Brand	CSL
Model	300570
Product Type	Ergonomic vertical mouse
Sensor	Optical
Resolution (DPI)	800 / 1200 / 1600 (selectable)
Number of Buttons	5 (left click, right click, scroll wheel, forward, back)
Scroll Wheel	Vertical
Connection	Wireless 2.4 GHz via USB receiver
Range	Approx. 10 m (estimated)
Power Supply	2 AAA batteries (1.5 V)
Operation with Rechargeable Battery	Not recommended (1.2 V voltage insufficient)
Dimensions (L x W x H)	Approx. 122 x 63 x 76 mm
Weight	Approx. 100 g (without batteries)
Usage	Right-handed only (ergonomic shape)
Operating Temperature	0 °C to 40 °C
Power On/Off Button	Yes, on the bottom
Receiver Storage Compartment	Yes, under the mouse
Plug and Play	Yes, automatic driver installation
Material	Plastic (estimated)
Care Instructions	Clean with a soft, dry cloth
Recycling	WEEE compliant, do not dispose of with household waste

Frequently Asked Questions - 300570 CSL

How to connect the CSL 300570 mouse to my computer?

Insert the USB receiver into a free port on your computer. Open the battery compartment, insert two new AAA batteries respecting polarity, then turn the switch to ON. The mouse is automatically recognized (Plug and Play).

How to change the DPI resolution of the mouse?

Press the DPI button located on top of the mouse to switch between 800, 1200 and 1600 DPI. The change is instantaneous.

What is the wireless range of this mouse?

The mouse operates at a 2.4 GHz frequency with a typical range of about ten meters in open field. Obstacles may reduce this range.

Can I use rechargeable batteries?

It is not recommended to use rechargeable batteries (1.2 V) because the reduced voltage may cause malfunctions (pointer jumps, reduced battery life). Use preferably 1.5 V alkaline batteries.

Is the mouse suitable for left-handed users?

No, the ergonomic vertical shape is designed only for use by right-handed individuals.

What to do if the mouse stops responding?

Check that the switch is ON, that batteries are correctly installed and not depleted. Reinsert the USB receiver or try another port. If the problem persists, restart your computer.

How to clean my CSL 300570 mouse?

Use a soft, dry cloth to clean the surface. Do not use chemical products or liquids. For the optical sensor, a dry cotton swab can be used gently.

Does the mouse have a button to navigate browser history?

Yes, the mouse has two quick navigation buttons (Forward and Back) located near the thumb, compatible with most browsers.

What are the dimensions and weight of the mouse?

Dimensions are approximately 122 x 63 x 76 mm (length x width x height). Estimated weight without batteries is approximately 100 grams.

How to recycle the mouse at end of life?

Do not throw the device with household waste. Deposit it at a WEEE collection point (store, recycling center). Used batteries must be removed and recycled separately. Consult the site www.quefairedemesdechets.fr.

USER MANUAL 300570 CSL

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for having chosen this product from CSL and for placing your trust in our company. Before using the ergonomic vertical mouse for the first time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1. Scope of delivery

• Ergonomic vertical mouse
  • 2,4GHz USB receiver
• User manual

2. Technical specifications

Polling rate	800 / 1200 / 1600 dpi (selectable)
Frequency range	2402 - 2480 MHz
Transmitting capacity	-2,80 dBm
Sensor	Optical
Connection	USB via 2,4GHz receiver
Features	• 5 buttons• scroll wheel
Power supply	2 AAA batteries
Product dimensions	Approx. 122 x 63 x 76mm
Ambient temperature	+ 0-3°C until 35-40°C

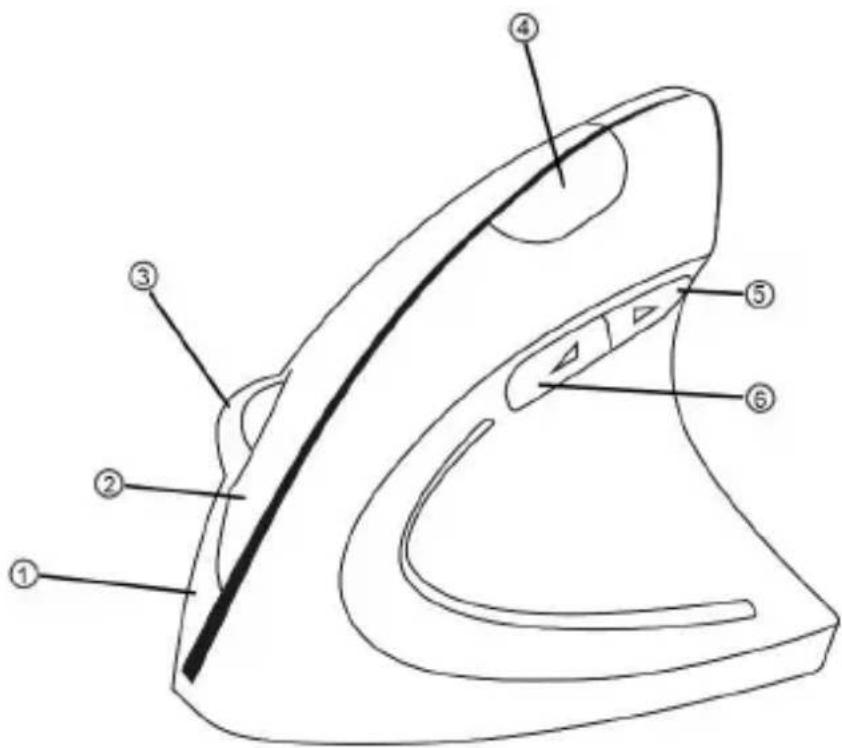

3 Product details

1	Right mouse button
2	Left mouse button
3	Vertical scroll wheel/ middle mouse button
4	Dpi select button
5	High navigation button „previous page“
6	High navigation button „next page“

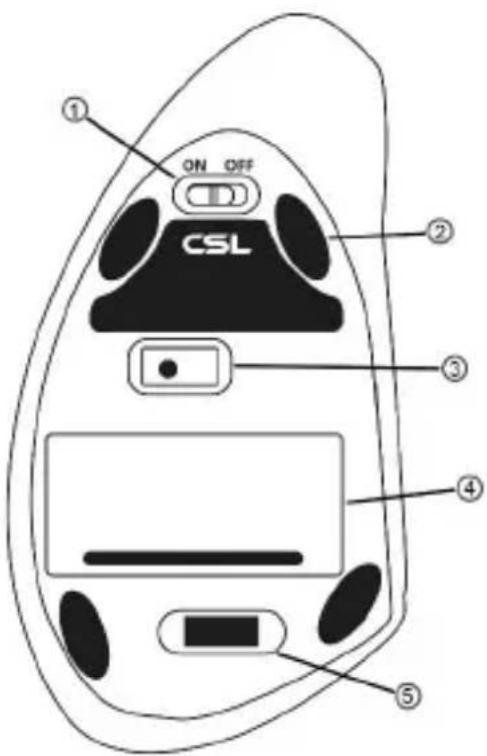

Rear view:

1	On/ Off switch
2	Glide pads
3	Optical sensor
4	Battery compartment
5	Battery case for 2,4GHz USB receiver

4. Getting started

Remove the mouse and the 2,4 GHz USB receiver from the packing and connect the USB receiver stick to your computer. The USB 2,4GHz dongle is situated on the bottom side of the mouse in the small transport slot as described in the 3. section of the manual. Put it into a free USB port of your computer.

A manual driver installation is not required.

Now take the mouse and open the battery compartment on the bottom side and insert 2 new 1,5V AAA batteries into the provided holder. Please be sure to observe the correct polarity when inserting the batteries (illustrated on the bottom of the compartment).

Information concerning the use of batteries:

Due to the lower battery- voltage of 1,2V, the function of the mouse cannot be guaranteed for each type of battery. Moreover, it is possible that malfunctions like mouse pointer jumps or reduced battery life can occur. For that reason, we recommend the use of 1,5V alkaline batteries.

Close the battery compartment and switch the slider to position „ON“.

The vertical mouse is now ready to operate.

5. Functions

Because of the ergonomic shape, this mouse is exclusively suited for right-handed use.

By using the dpi-button on the upper side of the device, you can select one of the following 3 sampling rates of 800, 1200 and 1600dpi.

Additionally, this device offers high-navigation buttons („Previous Page“ and „Next Page“), which are thumb operated and can easily be reached.

6. Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. Please avoid any contact to the electric current. This product is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight.

Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage of the internal electronic part of this unit.

Check this product for signs of damage before putting it in operation.

In case the device received any damage, it should not be used. Please contact our customer support.

Please observe the relevant national provisions and legal restrictions.

Do not use this product for anything other than intended and as described in the manual.

Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims.

Persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention may only use the mouse.

This unit is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly.

The technical specifications of this product may change without prior notice.

7. Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly.

As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

8. Disposal of batteries

In connection with the distribution of batteries or with the delivery of the devices which contain batteries the supplier is obliged to point out the customer to the following: The customer is obliged to return used batteries legally. He is able to return old batteries which the supplier leads as new batteries in the assortment or has led free of charge to the delivery camp (delivery address) of the supplier.

The symbols illustrated on the batteries have the following meaning:

Pb = battery includes more than 0,004 mass percent of lead,

CD = battery contains more than 0,002 mass percent of cadmium,

Hg = battery includes more than 0.0005 mass percent of mercury.

The symbol of the crossed garbage can means that the battery must not be given in the domestic waste.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 300570 conforms to the principle requirements and other relevant stipulations of Directive 2014/53/EU. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, https://model.ganzeinfach.de/300570
