Product type	Ergonomic vertical mouse
Power supply	2 AAA batteries (1.5 V)
Connection	2.4 GHz wireless via USB receiver
Sensor	Optical
Sampling rate (DPI)	Up to 1600 dpi, adjustable
Operating frequency	2402 - 2480 MHz
Transmission power	-2.80 dBm
Buttons	4 buttons + 1 scroll wheel + 1 DPI switch
Special functions	Quick navigation buttons (next/previous page)
Ergonomics	Designed for right-handed users
Installation	Plug-and-play, no driver required
Package contents	Mouse, USB receiver, user manual
Care and cleaning	Clean with a soft, dry cloth. Do not use harsh chemicals.
Safety	Do not open the device. Avoid moisture and high temperatures. Keep out of reach of children.
Brand	CSL
Model	301079
Recycling	The device and batteries must not be disposed of with household waste. Inquire at collection points.

Frequently Asked Questions - 301079 CSL

How to install the CSL 301079 mouse?

Insert the USB receiver (located under the mouse) into a USB port on your computer. Open the battery compartment, insert two AAA batteries respecting polarity, close the compartment, and set the switch to ON. The mouse is ready to use without driver installation.

What type of batteries should I use?

Use 1.5 V alkaline AAA batteries. Rechargeable batteries (1.2 V) may cause malfunctions (pointer jumps, reduced battery life).

Why isn't my mouse working?

Check that the switch under the mouse is set to ON. Make sure the batteries are properly inserted and sufficiently charged. Ensure the USB receiver is correctly plugged in and the port works. If the problem persists, try reinserting the receiver or replacing the batteries.

How to change the mouse DPI?

Use the DPI switch on top of the mouse (button 2). The sampling rate can be adjusted up to 1600 dpi. Each press changes the sensitivity.

Is the mouse suitable for left-handed users?

No, the ergonomic vertical mouse CSL 301079 is designed only for right-handed users due to its asymmetrical shape.

How to clean the mouse?

Disconnect the mouse from the receiver and remove the batteries. Clean the outer surface with a soft, dry cloth. Do not use solvents or abrasive cleaners. Avoid moisture.

What to do if the pointer jumps or moves erratically?

This may be due to weak batteries or 1.2 V rechargeable batteries. Replace with new alkaline batteries. Also check the work surface (avoid reflective surfaces). If the problem persists, reset the mouse by turning it off and on again.

Where is the USB receiver?

The 2.4 GHz USB receiver is stored in a compartment under the mouse. Remove it before using the mouse.

Can I use rechargeable batteries?

Using rechargeable batteries (1.2 V) is possible but not recommended as it may cause malfunctions such as pointer jumps or reduced battery life. It is recommended to use 1.5 V alkaline batteries.

What to do in case of malfunction?

Check the batteries and USB connection. Make sure the device is turned on. If the problem persists, consult the full manual or contact customer service. Do not attempt to open or repair the device yourself.

USER MANUAL 301079 CSL

Ergonomic Vertical Mouse, E.VE Wireless, 2.4 GHz

Mod.-Nr.: 301079

Index of contents

1. Deutsch .... 3
2. English 8
3. Français .... 13
4. Español....19
5. Italiano 24

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

3D model of a computer mouse with blue directional arrows indicating motion or force (no text or symbols)

Close-up of a black ergonomic computer mouse with blue curved arrows indicating motion or force (no text or symbols)

64321 5

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• Ergonomic vertical mouse
  • 2,4GHz USB receiver
• User manual

2 Technical data

Polling rate max. 1600dpi (3-stage selectable)
Sensor optical
Frequency range 2402 - 2480 MHz
Transmitting capacity -2,80 dBm
Port USB, via 2,4GHz receiver
Features	• 4 buttons• 1 button scroll wheel• 1 dpi switch• vertical scroll wheel
Power supply 2x AAA batteries

3 Product details

3D model of a computer mouse with blue directional arrows indicating motion or flow (no text or symbols)

Close-up of a black computer mouse with blue curved lines indicating motion or signal patterns (no text or symbols visible)

64321 5

1 Left mouse button
2 Doi select button
3 Vertical scroll wheel / middle mouse button
4	Right mouse button
5	“Next page” button
6	“Previous page” button

4 Initial startup

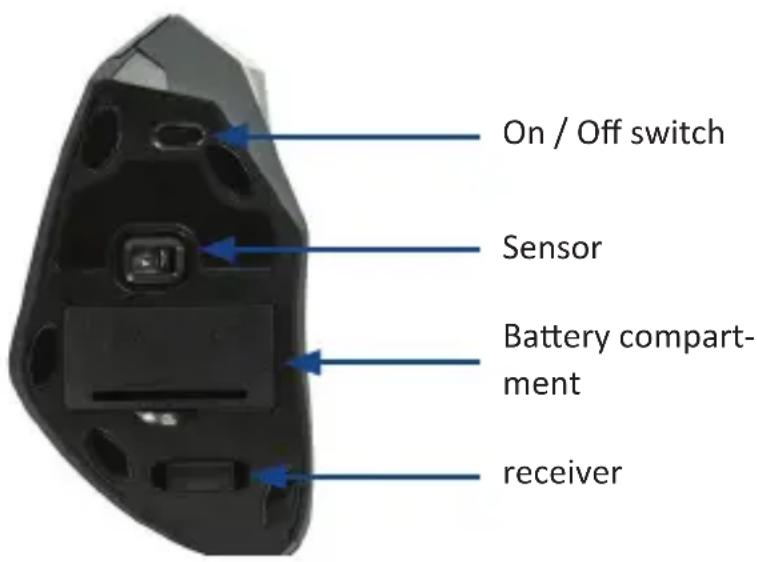

Remove the mouse and the 2,4 GHz USB receiver from the packing and connect the USB receiver stick to your computer. The USB 2,4GHz dongle is situated on the bottom side of the mouse in the small transport slot as described in section 3 of the manual. Put it into a free USB port of your computer. Due to „Plug and Play“, this can even be done during current operation.

A manual driver installation is not required.

Now take the mouse and open the battery compartment on the bottom side and insert 2 new 1,5V AAA batteries into the provided holder. Please be sure to observe the correct polarity when inserting the batteries (illustrated on the bottom of the compartment).

Information concerning the use of batteries:

Due to the lower battery- voltage of 1,2V, the function of the mouse cannot be guaranteed for each type of battery. Moreover, it is possible that malfunctions like mouse pointer jumps or reduced battery life can occur. For that reason, we recommend the use of 1,5V alkaline batteries.

Close the battery compartment and switch the slider to position „ON“.

The vertical mouse is now ready to operate.

5 Functions

Because of the ergonomic shape, this mouse is exclusively suited for right-hand-ed use. By using the dpi-button on the upper side of the device, you can select a maximal dpi rate of 1600. Additionally, this device offers high-navigation buttons („Previous Page“ and „Next Page“), which are thumb operated and can easily be reached.

6 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read

and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

8 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU

WEEE DE 67896761

WD Plus GmbH, herewith declares that this product 301079 conforms to the principle requirements and other relevant stipulations of Directive 2014/53/EU. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, https://model.ganzeinfach.de/301079
