USER MANUAL NA229 PHILIPS

Black Philips air fryer with control panel and brand logo (no visible text beyond branding)

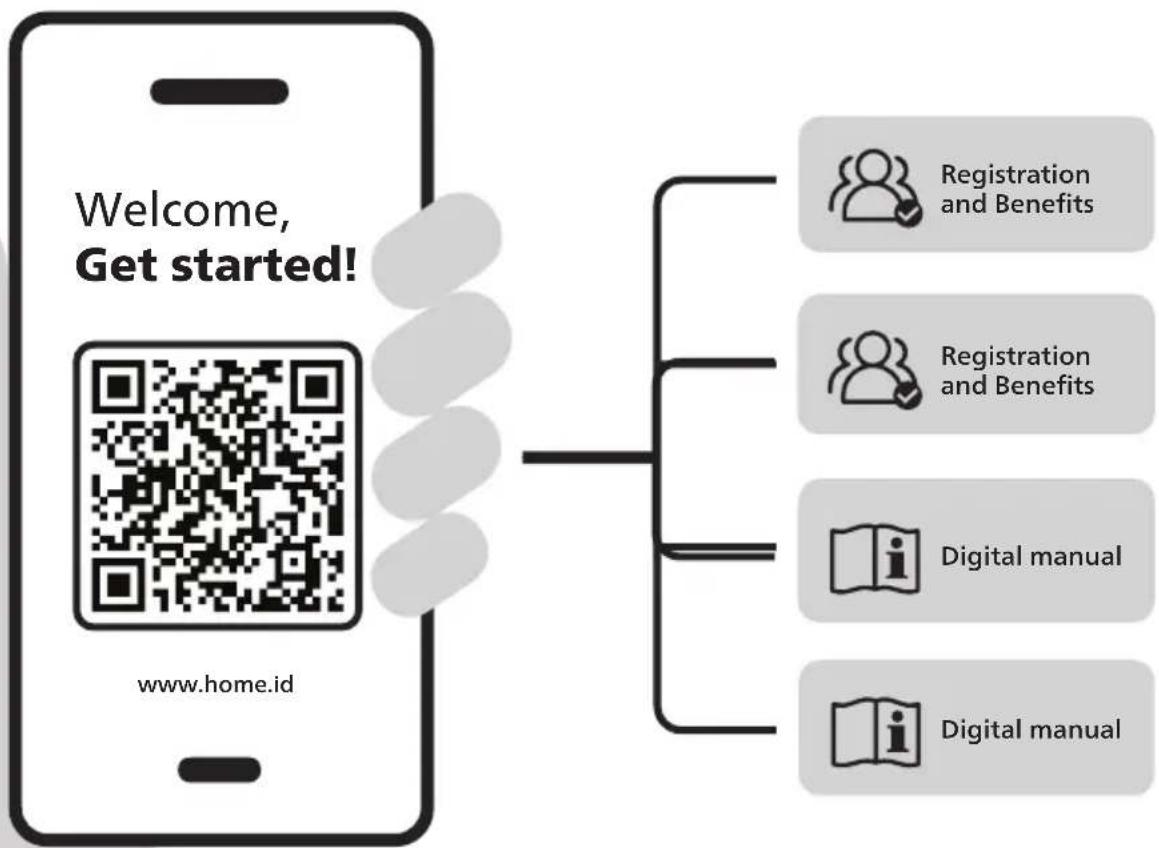


Illustration of a closed book with a grid pattern on the left and open pages on the right, showing no text or symbols.

a b c d e f g i h 1

Line drawing of a four-legged table lamp with decorative patterns and a labeled connection point (no text or symbols on the lamp itself)

③ MAX ④ MAX

Diagram of a rice cooker with numbered parts labeled 5, 6, and 7 for identification.

English 6

Čeština 20

Dansk 34

Deutsch 48

Eesti 64

Español 77

Français 91

Hrvatski 106

Italiano 120

Latviešu 135

Lietuviškai 149

Magyar 163

Nederlands 177

Norsk 191

Polski 204

Português 219

Română 233

Shqip 247

Slovenščina 261

Slovensky 275

Srpski 289

Suomi 303

Svenska 317

Türkçe 331

Ελληνικά 345

Български 361

Македонски 376

Русский 391

Українська 406

Қазақша 421

הכלה 437

Contents

Important 6

Recycling 8

Warranty and support 8

Introduction 8

General description 9

Before first use 9

Preparations before first use 10

Using the appliance 10

Cleaning 16

Storage 17

Troubleshooting 17

Important

Read this important information carefully before you use the appliance and save it for future reference.

Danger

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

• Do not place the appliance on or near a hot gas stove or all kinds of electric stove and electric cooking plates, or in a heated oven (fig. 1)
• Never immerse the appliance in water nor rinse it under the tap.
• Do not let any water or other liquid enter the appliance to prevent electric shock.
• Always put the ingredients to be fried in the pan, to prevent them from coming into contact with the heating elements.
• Do not cover the air inlet and the air outlet openings while the appliance is operating.
• Do not fill the pan with oil as this may cause a fire hazard.
• Do not use the appliance, if the plug, the mains cord or the appliance itself is damaged.
• Never touch the inside of the appliance while it is operating.
• Never put any amount of food that exceeds the maximum level indicated in the pan.
• Always make sure heater is free and no food stuck in heater.

Warning

• If the supply cord is damaged, it must be replaced by Philips, its service agent or similarly qualified persons in order to avoid a hazard.
• Only connect the appliance to an earthed wall socket, protected by an earth leakage circuit breaker.
• Always make sure that the plug is inserted into the wall socket properly.

- This appliance is not intended to be operated by means of an external timer or a separate remote control system.

- The accessible surfaces may become hot during use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of the reach of children less than 8 years.

- Do not place the appliance against a wall or against other appliances. Leave at least 10 cm free space at the back, on both sides and above the appliance. Do not place anything on top of the appliance.

- During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also, be careful of hot steam and air when you remove the pan from the appliance.

- Never use light ingredients or baking paper in the appliance.

- Storage of potatoes: The temperature shall be appropriate to the potato variety stored and it shall be above 6 °C to minimize the risk of acrylamide exposure in the prepared foodstuff.

- This appliance is designed to be used at ambient temperatures between 5°C and 40°C.

- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

- Keep the mains cord away from hot surfaces.

- Do not place the appliance on or near combustible materials such as a tablecloth or curtain.

- Do not use the appliance for any other purpose than described in this manual and use only original Philips accessories.

- Do not let the appliance operate unattended.

- The pan and accessories placed inside the cooking chamber becomes hot during and after use of the appliance, always handle carefully.

- Thoroughly clean the parts that come into contact with food before you use the appliance for the first time. Refer to the instructions in the manual.

Caution

- This appliance is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.

- Always disconnect the appliance from the supply if it is left unattended and before you assemble, disassemble, store or cleaning.

- Place the appliance on a horizontal, even and stable surface.

- If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Philips refuses any liability for damage caused.

• Always return the appliance to a service center authorized by Philips for examination or repair. Do not attempt to repair the appliance yourself, otherwise the guarantee becomes invalid.
• Always unplug the appliance after use.
• Let the appliance cool down for approximately 30 minutes before you handle or clean it.
• Make sure the ingredients prepared in this appliance come out golden yellow instead of dark or brown.
• Remove burnt remnants. Do not fry fresh potatoes at a temperature above 180^ C (to minimize the production of acrylamide).

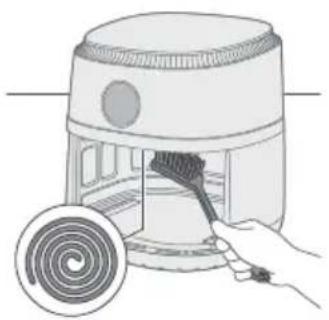

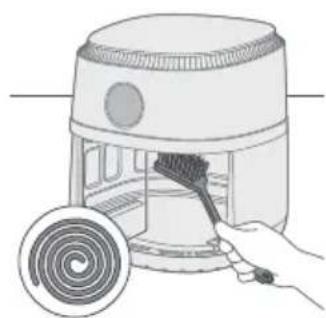

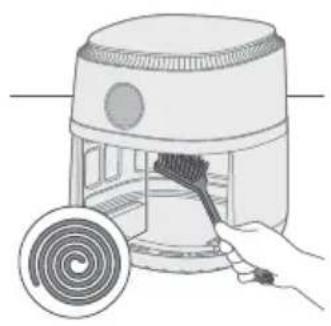

• Be careful when cleaning the upper area of the cooking chamber: Hot heating element, edge of metal parts, and splatter shield.
• Always make sure that the food is fully cooked in the Airfryer.
• Be careful when pouring out the cooked food and be careful not to let the accessories fall out.

Electromagnetic fields (EMF)

This appliance complies with the applicable standards and regulations regarding exposure to electromagnetic fields.

Recycling

Symbol of a recycling bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

• This symbol means that electrical products shall not be disposed of with normal household waste.
• Follow your country's rules for the separate collection of electrical products.

Warranty and support

Versuni offers a two-year warranty after purchase on this product. This warranty is not valid if a defect is due to incorrect use or poor maintenance. Our warranty does not affect your rights under law as a consumer. For more information or for invoking the warranty, please visit our website www.home.id/warranty.

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that we offer, register your product at www.home.id.

General description

a b c d e f g i h ①

Diagram of a decorative fan or tray with internal geometric patterns and a labeled connection point (no text or symbols on the fan itself)

③ MAX ④

Diagram of a rice cooker with numbered parts labeled 5, 6, and 7

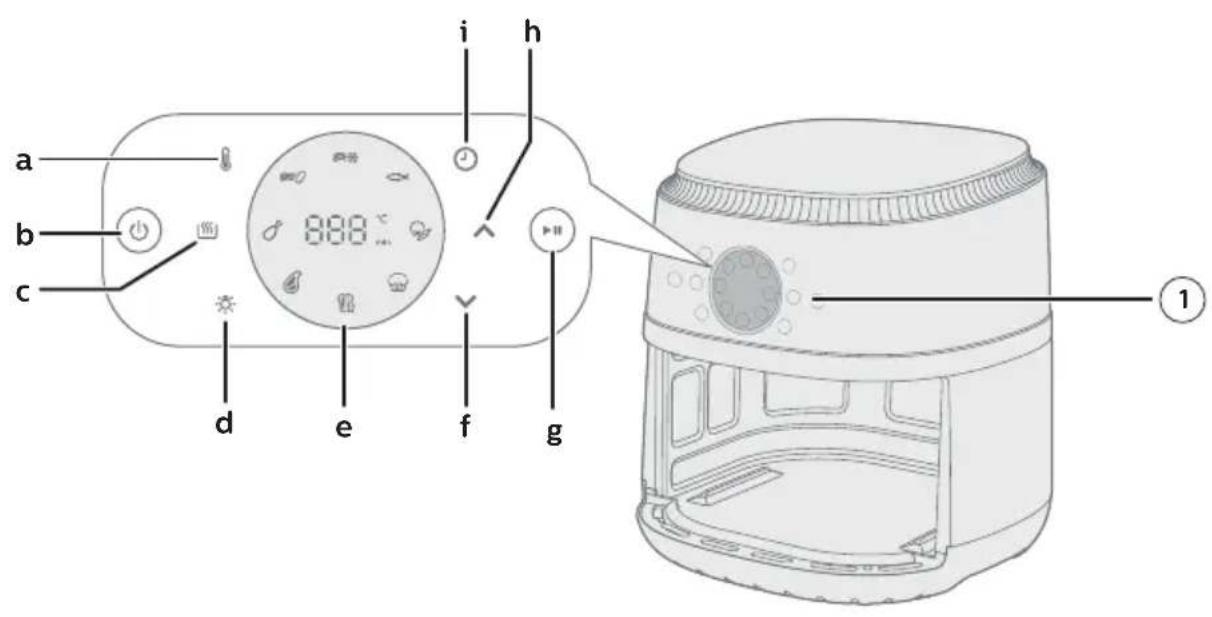

1 Control panel

a Temperature button
b On/off button
c Keep warm button
d Light button
e Preset menus
f Decrease button
g Start/pause button

h Increase button

i Time button

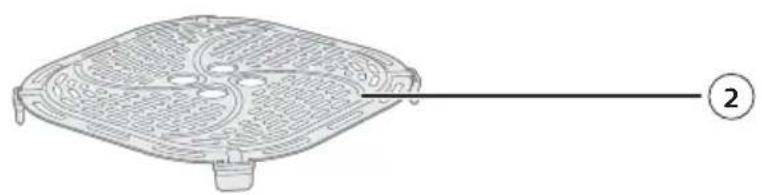

2 Frying insert

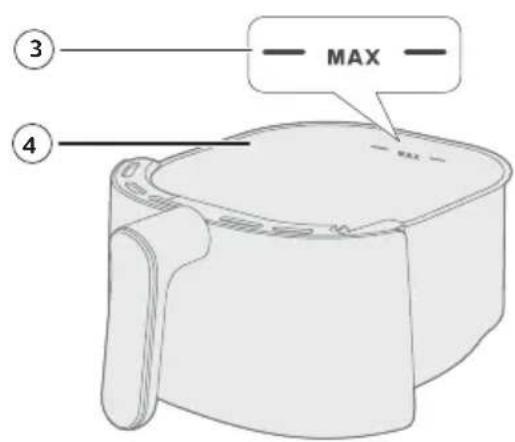

3 MAX indication

4 Pan

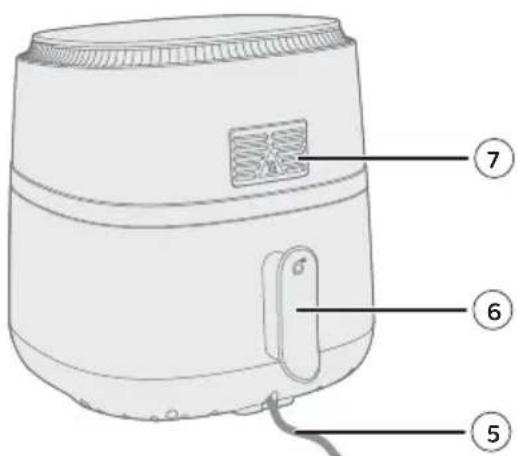

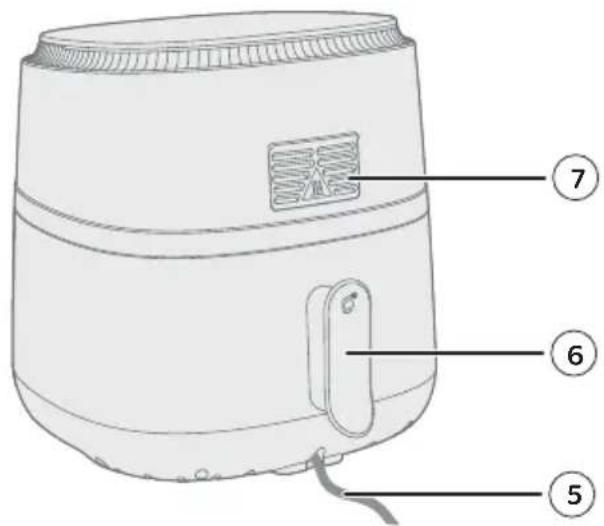

5 Power cord

6 Cord wrap

7 Air outlets

Before first use

1 Remove all packing material.
2 Remove any stickers or labels (if applicable) from the appliance.
3 Thoroughly clean the appliance before first use (see chapter "cleaning").

Preparations before first use

Place the appliance on a stable, horizontal, level and heat-resistant surface.

Note

• Do not put anything on top or on the sides of the appliance. This could disrupt the airflow and affect the frying result.
• Do not place the operating appliance near or underneath objects that could be damaged by steam, such as walls and cupboard.

Using the appliance

Food table

The table below helps you select the basic settings for the types of food you want to prepare.

Note

• Keep in mind that these settings are suggestions. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.
• When preparing larger amount of food (e.g. fries, prawns, drumsticks, frozen snacks), shake, turn, or stir the ingredients in the pan 2 to 3 times in order to achieve a consistent result.

Ingredients Min. – Max.

. amount

Time (min)

Temper- ature

Note

Thin frozen fries (7x7 mm / 0.3x0.3 in)	200–500 g 14-25 180°C
Homemade fries (10x10 mm / 0.4x0.4 in thick)	200–500 g 30-33 180°C
Frozen chicken nuggets 200-500 g 10-20 200°C
Frozen spring rolls 200–500 g 10-20 200°C
Hamburger (around 150 g/5 oz)	1–2 pieces 12-16 150°C
Meat loaf 400-600 g 35-45	150°C - Use the baking accessory
Meat chops without bone (around 190 g/7 oz)	1–2 pieces 16-20 200°C - Shake, turn, or stir halfway
Chicken drumsticks (around 125 g/4.5 oz)	2–6 pieces 18-21 180°C - Shake, turn, or stir halfway
Chicken breast (around 160 g/6 oz)	1–4 pieces 18-21 180°C
Whole fish (around 300–400 g / 11–14 oz)	1 piece 23 200°C

Ingredients Min. – Max.		Time (min)	Temperature	Note
	amount
Fish filet (around 200 g / 7 oz)	1–3 pieces 21-23 200°C
Mixed vegetables (roughly chopped)	200–500 g 15-20 180°C - Set the cooking time according to your own taste - Shake, turn or stir halfway
Muffins (around 50 g / 1.8 oz)	1–7 pieces 15-17 160°C
Cake 400-600 g 35-45 160°C - Use the baking accessory
Pre-baked bread/rolls (around 60 g / 2 oz)	1–5 pieces 6-10 200°C
Homemade bread 400-600 g 40-50 160°C - Use the baking accessory.				- The shape of the dough should be as flat as possible to avoid that the bread touches the heating element when rising.
Breakfast 3 eggs, 2 toasts 10 160°C - Cook the eggs first for 5 minutes, and then add the toasts.

Airfrying

Diagram showing a hand pouring liquid into a container with a cross mark and a 7/6 label, indicating a warning or inspection.

Caution

This is an Airfryer that works on hot air. Do not fill the pan with oil, frying fat or any other liquid.
- Do not touch hot surfaces. Use handles or knobs. Handle the hot pan with oven-safe gloves.
- This appliance is for household use only.
- This appliance may produce some smoke when you use it for the first time. This is normal.
- Preheating of the appliance is not necessary.

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

1 Remove the pan from the appliance by pulling the handle.

Illustration of a toaster oven with a lid and air fryer (no text or symbols)

2 Put the frying insert in the pan.

MAX

3 Put the ingredients in the pan.

Note

- The Airfryer can prepare a large range of ingredients. Consult the 'Food table' for the right quantities and approximate cooking times. - Do not exceed the amount indicated in the 'Food table' section or overfill the pan beyond the 'MAX' indication as this could affect the quality of the end result.

Illustration of a hand using a cooking pan to process food from an air fryer (no text or symbols visible)

4 Put the pan back into the Airfryer.

Caution

- Never use the pan without the frying insert in it. - Do not touch the pan during and for some time after use, as it could get very hot.

Illustration of a wall socket with a plug inserted, showing a cartoon face inside (no text or symbols)

5 Put the plug in the wall outlet.

PHILIPS

6 Press the power on/off button to switch on the appliance.

180° 泰

7 Press the temperature button.

PHILIPS

8 Press the increase or decrease button to choose the temperature.

25_

9 Press the time button.

PHILIPS

10 Press the increase of decrease button to choose the time.

PHILIPS © ↑ ↓ + +

11 (Optional) Press the keep warm button to activate the keep warm function.

Note

- Once the keep warm function is activated, your airfryer will maintain a warm temperature for 30 minutes after the cooking session is completed.

PHILIPS 180°C

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of hands preparing food with a curved arrow indicating rotation (no text or symbols)

12 Press the start/pause button to start the cooking process.

Note

• During cooking the temperature and time are shown alternately.
• The last cooking minute counts down in seconds.

• If you do not set the required cooking time within 30 minutes, the appliance automatically shuts off for safety reasons.

• Some ingredients require shaking or turning halfway through the cooking time (see 'Food table'). To shake the ingredients, pull out the pan and shake it over the sink. Then put the pan back into the appliance.

• To pause the cooking process, press the start/pause button. To resume the cooking process, press the same button again to continue the cooking process.
• The device is automatically in pause mode when you pull out the pan. The cooking process continues when the pan is put in the appliance again.

13 When you hear the timer bell, the cooking time has elapsed.

14 Pull out the pan and check if the ingredients are ready.

Caution

- The Airfryer pan is hot after the cooking process. Always place it on a heat resistant work top (eg. trivet, etc.) when you remove the pan from the device.

Note

- If the ingredients are not ready yet, simply slide the pan back into the Airfryer and add a few extra minutes.

15 Empty the contents into a bowl or onto a plate.

Caution

- After the cooking process, the pan, the interior housing and the ingredients are hot. Depending on the type of ingredients in the Airfryer, steam may escape from the pan.

Note

• To remove large or fragile ingredients, use a pair of tongs to lift out the ingredients.
• Excess oil or rendered fat from the ingredients is collected on the bottom of the pan.
• Depending on the type of ingredients cooking, you may want to carefully pour off any excess oil or rendered fat from the pan after each batch or before shaking. Place the pan on a heat-resistant surface. Wear oven-safe gloves to pour off excess oil or rendered fat. Return the pan into the appliance.
• When a batch of ingredients is ready, the Airfryer is instantly ready for preparing another batch.

Cooking with a preset

1 Follow steps 1 to 6 in chapter "Airfrying".

2 Press the desired preset button.

1 Follow steps 1 to 6 in chapter "Airfrying". 2 Press the desired preset button.

3 Start the cooking process by pressing the start/pause button.

Note

- During cooking, if you want to change to another preset, long press the power On/Off button to stop the cooking process. The device is then in stand-by mode. Press the On/Off button again to turn on the device and choose the preset you need.

Presets Max. amount Temperature Cooking time

	Frozen fries 500g 180°C 25 min
	Homemade fries 500g 180°C 33 min
	Meat chops 2 pieces 200°C 20 min
	Drumsticks 6 pieces 180°C 21 min
	Fish filet 3 pieces 200°C 23 min
	Muffin 7 pieces 160°C 17 min
	Breakfast 3 eggs, 2 toasts 160°C 10 min
	Veggie 500g 180°C 20 min

Making home-made fries

To make great home-made fries in the Airfryer:

• Choose a potato variety suitable for making fries, e.g. fresh, (slightly) floury potatoes.
• It is best to air fry the fries in portions of up to 500 g / 18 oz for an even result. Larger quantities of fries tend to be less crispy than smaller portions.

1 Peel the potatoes and cut into fries (10x10 mm / 0.4x0.4 in thick).

2 Soak the potato sticks in a bowl of water for at least 30 minutes.

3 Empty the bowl and dry the potato sticks with a dish towel or paper towel.

4 Pour one tablespoon of cooking oil into the bowl, put the sticks in the bowl and mix until the sticks are coated with oil.

5 Remove the sticks from the bowl with your fingers or a slotted kitchen utensil so excess oil remains in the bowl.

Note

- Do not tilt the bowl to pour all the sticks in the pan at once to prevent excess oil from going into the pan.

6 Put the sticks into the pan.

7 Fry the potato sticks and stir them 2-3 times during cooking.

6 Put the sticks into the pan. 7 Fry the potato sticks and stir them 2-3 times during cooking.

Cleaning

Illustration of a plug inserted into an electrical outlet with two circular outlets, showing a black arrow indicating direction (no text or symbols present)

Diagram showing a hand pressing down on a temperature thermometer above a toaster oven, indicating cooling or heating process.

Line drawing of a hand cleaning a kitchen oven with a cloth (no text or symbols)

Warning

- Let the pan and the inside of the appliance cool down completely before you start cleaning. - The pan has a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials as this may damage the non-stick coating.

Clean the appliance after every use. Remove oil and fat from the bottom of the pan after every use.

1 Press the on/off button to switch off the appliance, remove the plug from the wall outlet and let the appliance cool down.

Tip

- Remove the pan to let the Airfryer cool down faster.

2 Remove the frying insert from the pan.

3 Dispose of rendered fat or oil from the bottom of the pan.

4 Clean the pan and frying insert in a dishwasher. You can also clean them with hot water, dishwashing liquid and a non-abrasive sponge (see "cleaning table").

Tip

- If food residues stuck to the pan or frying insert, you can soak them in hot water and dishwashing liquid for 10–15 minutes. Soaking loosens the food residues and makes it easier to remove. Make sure you use a dishwashing liquid that can dissolve oil and grease. If there are grease stains on the pan or frying insert and you have not been able to remove them with hot water and dishwashing liquid, use a liquid degreaser. - If necessary, food residues stuck to the heating element can be removed with a soft to medium bristle brush. Do not use a steel wire brush or a hard bristle brush, as this might damage the coating on the heating element.

5 To prevent scratches, gently wipe the outside of the appliance with an unwrinkled, clean, and soft cloth. Begin with a slightly moistened cloth and follow up with a dry one, if necessary.

Illustration of a hand using a brush to clean a cylindrical object (no text or symbols present)

6 Clean the heating element with a cleaning brush to remove any food residues.

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

7 Clean the inside of the appliance with hot water and a non-abrasive sponge.

Storage

1 Unplug the appliance and let it cool down.
2 Make sure all parts are clean and dry before storing.

Note

• When carrying the Airfryer, always hold it horizontally to prevent the pans from accidentally falling out, which could potentially damage them.
• Always make sure that the removable parts of the Airfryer are fixed before you carry and/or store it.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The outside of the appliance becomes hot during use.

The heat inside radiates to the outside walls.

This is normal. All handles and knobs that you need to touch during use stay cool enough to touch.

Problem Possible cause Solution

		The pan and the inside of the appliance always become hot when the appliance is switched on to ensure the food is properly cooked. These parts are always too hot to touch.
		If you leave the appliance switched on for a longer time, some areas get too hot to touch. These areas are marked on the appliance with the following icon:
		As long as you are aware of the hot areas and avoid touching them, the appliance is completely safe to use.
My home-made fries do not turn out as I expected.	You did not use the right potato type.	To get the best results, use fresh floury potatoes. If you need to store the potatoes, do not store them in a cold environment like in a fridge. Choose potatoes whose package states that they are suitable for frying.
	The amount of ingredients in the pan is too big.	Follow the instructions in this user manual to prepare home-made fries.
	Certain types of ingredients need to be shaken halfway through the cooking time.	Follow the instructions in this user manual to prepare home-made fries.
The Airfryer does not switch on. The appliance is not plugged in. Check if the plug is inserted in the wall outlet properly.
	Several appliances are connected to one outlet.	The Airfryer has a high wattage. Try a different outlet and check the fuses.
I see some peeling off spots inside my Airfryer.	Some small spots can appear inside the pan of the Airfryer due to the incidental touching or scratching of the coating (e.g. during cleaning with harsh cleaning tools and/or while inserting the frying insert).	You can prevent damage by lowering the frying insert into the pan properly. If you insert the frying insert at an angle, its side may knock against the wall of the pan, causing small pieces of coating to chip off. If this occurs, please be informed that this is not harmful as all materials used are food-safe.

Problem Possible cause Solution

White smoke comes out of the appliance.	You are cooking fatty ingredients. Carefully pour off any excess oil or fat from the pan and then continue cooking.
	The pan still contains greasy residues from previous use.	White smoke is caused by greasy residues heating up in the pan. Always clean the pan and the frying insert thoroughly after every use.
	Breading or coating did not adhere properly to the food.	Tiny pieces of airborne breading can cause white smoke. Firmly press breading or coating to food to ensure it sticks.
	Marinade, liquid or meat juices are splattering in the rendered fat or grease.	Pat food dry before placing it in the pan.
The screen on the Airfryer shows "E1".	Your Airfryer might be stored in a place where it is too cold.	If your device was stored at a low ambient temperature, let it warm up to room temperature for at least 15 minutes before you plug it in again.If the problem persists, call the Philips service hot line or contact the Consumer Care Center in your country.
The screen on the Airfryer shows "E4", "E6", "E9", "E12".	The appliance runs into an error. Unplug the appliance and plug in again.If the problem persists, call the Philips service hot line or contact the Consumer Care Center in your country.

Obsah

Symbol of a robot without any text or numbers, featuring a prohibition sign inside a circle (no readable text)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

www.home.id/warranty.

Úvod

Illustration of a cooking pot and air fryer with a hand pointing to the lid (no text or symbols)

Diagram showing a cooking process with an air fryer and a refrigerator (no text or symbols)

Poznámka

Illustration of a hand using a cooking pot to process food from an air fryer (no text or symbols visible)

Illustration of a wall socket with a plug inserted, showing an arrow pointing to the socket (no text or symbols present)

Illustration of a portable air fryer with a pie chart on top (no text or symbols)

Illustration of a hand pouring liquid into a cup using an air fryer (no text or symbols)

Illustration of hands preparing food with a curved arrow indicating rotation (no text or symbols)

Diagram illustrating the process of heating a power outlet plug and temperature control using a toaster oven.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand using a brush to clean a cylindrical object (no text or symbols present)

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram showing a hand pouring liquid into a container with a cross symbol indicating removal or rejection.

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a side view of the oven (no text or symbols)

MAX

Illustration of a hand using a blender to press or install a food item, with no visible text or symbols.

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols)

Illustration of a hand holding a cup next to a portable air fryer (no text or symbols visible)

Illustration of hands using a knife to cut meat on a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into a wall socket with two circular outlets, showing an arrow indicating direction (no text or symbols)

Diagram showing a hand pressing down on a temperature sensor above a toaster oven, with temperature indicators and arrows indicating heating or cooling process.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand cleaning a mounted air fryer with a brush, next to a spiral-patterned object (no text or symbols)

Illustration of a hand inserting a cloth into a microwave oven (no text or symbols)

Tip

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text present)

Illustration of a microwave oven with a hand inserting a cup into the lid (no text or symbols)

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

Illustration of a hand using a cooking pan to process food from an air fryer (no text or symbols visible)

Illustration of a wall socket with a plug inserted, showing a cartoon face inside (no text or symbols)

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols on the device itself)

Illustration of a hand using a grater to clean air, with no text or symbols present.

Illustration of hands using a tool to cut food from a bowl into a plate (no text or symbols)

Illustration of a plug inserted into a wall socket with two circular outlets, showing an arrow indicating direction (no text or symbols)

Diagram showing a hand pouring liquid into a heater with temperature indicators above it

Symbol of a waste bin with no text or labels, including a crossed-out box and a solid rectangle below (no readable text or symbols)

www.home.id/warranty.

Tutvustus

Diagram showing a hand pouring liquid into a container with a cross symbol indicating removal or rejection.

Illustration of a hand holding a cup next to an air fryer with a black arrow pointing to the cup (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

MAX

Illustration of a hand using a cooking pot to remove air from an air fryer (no text or symbols)

Ettevaatust

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

5 Sisestage pistik seinakontakti.

PHILIPS ↑ ↓ ← → ← → ← →

Line drawing of a portable air fryer with a pie chart inset showing the slice (no text or symbols)

Illustration of a hand pouring liquid into a gridded air fryer (no text or symbols)

Ettevaatust

Illustration of hands preparing food with a knife and knife applying food to a plate (no text or symbols)

Illustration of a plug inserted into an electrical socket with two circular gauges, showing a black arrow indicating direction (no text or symbols)

Illustration showing a cooking step with thermometer and temperature indicators above a food item being placed into a pot.

Hoiatus

Symbol of a robot without any text or numbers, featuring a prohibition sign inside a circle (no readable text)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

• This symbol means that electrical products shall not be disposed of with normal household waste.
• Siga la normativa de su país con respecto a la recogida de productos eléctricos.

Diagram showing a container being poured into a container with a labeled dropper and a cross mark indicating removal or inspection.

Precaución

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

1 Retire el recipiente del aparato tirando del asa.

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols visible)

Illustration of a wall socket with a plug inserted, showing a cartoon face inside (no text or symbols)

PHILIPS ↑ ↓ ← → → → →

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols on the device itself)

Illustration of a hand using a grater to open a coffee maker (no text or symbols present)

Illustration of hands using a tool to rotate or expand a plate, no text or symbols present

Illustration of a plug inserted into an electrical outlet with two circular outlets, showing a black arrow indicating direction (no text or symbols)

Illustration showing a hand pressing down on a heater with thermometer symbols above it, indicating heating or cooling process.

Advertencias

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand cleaning a cylindrical object with a brush (no text or symbols)

Illustration of a hand cleaning a food appliance with a cloth (no text or symbols)

Symbol of a robot without any text or numbers, featuring a prohibition sign inside a circle (no readable text)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols)

Illustration of a toaster oven with a digital display unit being placed on top (no text or symbols)

Illustration of a hand pouring liquid from a cup into an air fryer (no text or symbols)

Illustration of a screwdriver inserted into a socket socket with a cartoon face, showing an upward arrow (no text or symbols)

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols visible)

Illustration of hands using a tool to cut meat on a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into an electrical socket with two circular ports, showing a black arrow indicating direction (no text or symbols)

Diagram showing a hand pressing down on a heater with temperature indicators above it, indicating heating or cooling process.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

• Ovaj simbol naznačuje da se električni proizvodi ne smiju odlagati su običajenim otpadom iz kućanstva.
• Poštujte propise svoje države o zasebnom prikupljanju električnih proizvoda.

Jamstvo i podrška

Diagram showing a hand pouring liquid into a container with a cross mark and a 7/6 label, indicating a chemical or material injection step.

Oprez

• Ovo je Airfryer koji prži vrućim zrakom. Posudu nemojte puniti uljem, mašću niti nekom drugom tekućinom.
• Nemojte dodirivati vruće površine. Upotrebljavajte drške i regulatore. Vruću tavu primajte s kuhinjskim rukavicama.
• Aparat je namijenjen isključivo kućnoj uporabi.
• Prilikom prve uporabe možda ćete primijetiti malo dima. To je normalno.
• Aparat ne treba prethodno zagrijavati.

Illustration of a cooking pot and a digital coffee maker with a hand pointing to the lid (no text or symbols)

Diagram showing a food item being placed on an air fryer with a lid, no text or symbols present

Illustration of a hand using a cooking pot to press or clean air from a portable air fryer (no text or symbols visible)

4 Vratite posudu u Airfryer.

Oprez

• Posudu nikad nemojte upotrebljavati bez umetka za prženje.
• Nemojte dodirivati posudu tijekom i neko vrijeme nakon uporabe jer su jako zagrijane.

Illustration of a wall socket with a plug inserted, showing an arrow pointing to the socket (no text or symbols present)

Illustration of a portable air fryer with a pie chart above it (no text or symbols)

• Neki sastojci moraju se protresti ili okrenuti nakon isteka pola vremena kuhanja (pogledajte Tablicu hrane). Kako biste protresli sastojke, izvadite posudu i protresite je iznad sudopera. Zatim posudu vratite u aparat.
• Za pauziranje procesa kuhanja pritisnite gumb za pokretanje/pauziranje. Kako biste nastavili kuhanje, ponovo pritisnite isti gumb.
• Kad izvadite posudu, aparat automatski prelazi u način rada pauziranja. Proces pripreme hrane nastavit će se nakon što u aparat vratite posudu.

13 Kad se oglasi zvono mjerača vremena, vrijeme kuhanja je isteklo.

Illustration of a hand using a cooking pot to add liquid into a refrigerator (no text or symbols)

Illustration of hands using a tool to cut meat on a plate, with no text or symbols present.

Illustration of a plug inserted into a wall socket with two circular outlets, showing an arrow indicating direction (no text or symbols present)

Illustration showing a hand pressing down on a heater with thermometer symbols above it, indicating heating or cooling process.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand using a brush to clean or store air from a mounted air fryer (no text or symbols visible)

Očistite aparat nakon svake uporabe. Nakon svake uporabe uklonite ulje i mast s dna posude.

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

7 Unutrašnjost aparata očistite vrućom vodom i neabrazivnom spužvom.

Pohrana

1 Iskopčajte aparat iz napajanja i ostavite ga da se ohladi.

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Diagram showing a hand pouring liquid into a container with a magnified view, marked with a black 'X' symbol.

Attenzione

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of a toaster oven with a lid and base, showing the exterior view (no text or symbols)

Illustration of a hand using a grater to lift a cup, with an arrow indicating the process (no text or symbols present)

Illustration of a screwdriver inserted into a socket socket with a cartoon face, showing an upward arrow (no text or symbols)

Line drawing of a small air fryer with a clock above it (no text or symbols)

Illustration of a toaster oven with a hand holding a cup, showing a black arrow pointing to the lid (no text or symbols present)

Illustration of hands preparing food with a curved arrow indicating rotation (no text or symbols)

Illustration of a plug inserted into a wall socket with two circular outlets, showing an arrow indicating direction (no text or symbols present)

Illustration showing a hand pressing down on a food item with temperature indicators above it, likely indicating cooling or heating process.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

Illustration of a hand using a cooking pot to press or clean air from a portable air fryer (no text or symbols visible)

4 lelieciet pannu atpakal Airfryer ierīcē.

Uzmanību!

Illustration of a wall socket with a plug inserted, showing an arrow pointing to the socket (no text or symbols present)

5 lespraudiet kontaktdakšu sienas kontaktligzdā.

PHILIPS (图) 泰

Illustration of a portable air fryer with a pie chart above it (no text or symbols)

Illustration of a hand pouring liquid into a cooking pot using an air fryer (no text or symbols)

Illustration of hands using a tool to cut meat from a bowl into a plate (no text or symbols)

Illustration of a plug inserted into an electrical outlet with two circular outlets, showing a black arrow indicating direction (no text or symbols present)

Diagram showing a hand pressing down on a temperature thermometer above an air fryer, indicating heating or cooling process.

Line drawing of a hand cleaning a kitchen oven with a cloth (no text or symbols)

Bridinājums!

Illustration of a hand cleaning a small appliance with a brush (no text or symbols)

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Illustration of a cooking pot and a toaster oven with a hand pointing to the lid (no text or symbols)

Diagram showing a food oven with a lid and a refrigerator, no text or symbols present

Illustration of a hand using a cooking pot to press an air fryer (no text or symbols present)

Illustration of a wall socket with a plug inserted, showing an arrow pointing to the socket (no text or symbols present)

Illustration of a portable air fryer with a pie chart above it (no text or symbols)

Illustration of a hand pouring liquid into a cooking pot using an air fryer (no text or symbols)

Illustration of hands using a tool to cut meat from a bowl into a plate (no text or symbols)

Illustration of a plug inserted into an electrical outlet socket (no text or symbols)

Diagram showing a cooking process with thermometer and temperature indicators above a cooking pot

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand cleaning a small appliance with a brush (no text or symbols)

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Illustration of a cooking pot and a toaster oven with a hand pointing to the lid (no text or symbols)

Diagram showing a food item being placed on an air fryer with a lid, no text or symbols present

Vigyázat!

Illustration of a hand using a cooking pot to press an air fryer (no text or symbols present)

Illustration of a wall socket with a plug inserted, showing an arrow pointing to the socket (no text or symbols present)

Line drawing of a kitchen air fryer with a pie chart above it (no text or symbols)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of hands using a tool to cut food from a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into an electrical socket with two circular outlets, showing a downward arrow (no text or symbols)

Diagram showing a cooking step with thermometer and temperature indicators above a cooking pot, indicating a hot source or oven setup.

Line drawing of a hand cleaning a toaster oven with a cloth (no text or symbols)

Figyelmeztetés

Illustration of a hand cleaning a small appliance with a brush (no text or symbols)

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or numbers present)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of a toaster oven with a lid and cooling unit, showing no text or symbols

Illustration of a hand using a cooking pot to press a grater (no text or symbols visible)

Illustration of a wall socket with a plug inserted, showing an arrow pointing to the socket (no text or symbols present)

PHILIPS ↑ ← → ← ←

PHILIPS ↓ ← ↑ ← ● ●

Line drawing of a portable air fryer with a pie chart inset showing the time slice (no text or symbols on the device itself)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of hands using a tool to process food on a plate (no text or symbols visible)

Illustration of a plug inserted into an electrical outlet with two circular outlets, showing a downward arrow (no text or symbols)

Diagram showing a cooking process with temperature indicators and a hand holding a pot, likely illustrating a thermal or heating setup.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand cleaning a small appliance with a brush (no text or symbols)

Illustration of a hand inserting a bag into a microwave oven (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

- Dette symbolet betyr at elektriske produkter ikke skal kasseres som restavfall

Diagram showing a hand pouring liquid into a container with a cross symbol indicating removal or rejection.

Illustration of a hand holding a cup next to an air fryer (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

MAX

Illustration of a hand using a microwave oven to clean air (no text or symbols)

Merk

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

Line drawing of a portable air fryer with a clock showing approximately 3 o'clock (no text or symbols on the device itself)

Illustration of a hand pouring liquid into a cooking pot next to a toaster (no text or symbols)

Illustration of hands using a knife to cut meat on a plate, with a curved arrow indicating rotation (no text or symbols)

- Etter stekeprosessen er pannen, innsiden og ingrediensene varme. Det kan komme damp fra pannen, avhengig av typen ingredienser du har i Airfryer.

Merk

• Bruk en mattang til å løfte ut store eller skjøre ingredienser.
• Overflødig olje eller fettrester fra ingrediensene samles opp nederst i pannen.
• Du bør forsiktig helle overflödig olje eller fett fra pannen etter hver omgang eller før du rister, avhengig av typen ingredienser du steker. Plasser pannen på et varmebestandig underlag. Bruk grytevotter til å helle av overflödig olje eller fettrester. Sett pannen tilbake i apparatet.
• Når en omgang med ingredienser er klar, er Airfryer umiddelbart klar til tilberedning av en ny omgang.

Illustration of a plug inserted into a wall socket with two circular ports, showing an arrow indicating direction (no text or symbols present)

Illustration showing a cooking process with thermometer symbols and a cooking pot, indicating temperature change.

Advarsel

Symbol of a robot without any text or numbers, featuring a prohibition sign inside a circle (no readable text)

Diagram showing a hand pouring liquid into a container with a 'X' symbol, likely indicating a chemical or physical process.

Illustration of a hand holding a cup next to an air fryer (no text or symbols present)

Illustration of a food processor with a downward arrow indicating compression or cooling process (no text or symbols)

MAX

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

PHILIPS ↑ ← → ← → ← →

PHILIPS

PHILIPS 180° hv

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols)

Illustration of a hand holding a cup next to an air fryer (no text or symbols present)

Illustration of hands using a knife to cut meat on a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into a wall socket with two circular holes, showing an arrow indicating direction (no text or symbols)

Ostrzeżenie

Diagram showing a hand pressing down on a temperature thermometer above a refrigerator with a lid, indicating cooling or heating process.

Wskazówka

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand using a brush to clean or store air from a mounted air fryer (no text or symbols visible)

Illustration of a hand cleaning a small appliance into a microwave oven (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Illustration of a hand holding a cup and a refrigerator with an arrow pointing to the cup (no text or symbols)

Illustration of a toaster oven with a mounted air fryer and a drop in air (no text or symbols)

Illustration of a hand using a cooking pan to press or clean air from a toaster (no text or symbols visible)

4 Volte a colocar o recipiente na Airfryer.

Nota

Illustration of a wall socket with a plug inserted, showing a circular vent and an arrow indicating direction (no text or symbols)

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols)

Illustration of a hand holding a cooking pot next to a toaster (no text or symbols)

Illustration of hands using a tool to cut meat on a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into a wall socket with two outlets, showing an arrow indicating direction (no text or symbols)

Diagram showing a cooking step with thermometer and temperature indicators above a cooking pot, indicating heating or cooling process.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Avisos

Illustration of a hand cleaning a kitchen appliance with a brush (no text or symbols)

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid black rectangle below (no text or symbols present)

www.home.id/warranty.

Introducere

Illustration of a hand holding a cup next to an air fryer (no text or symbols present)

Illustration of a toaster oven with an air fryer being placed on top, showing the lid and lid assembly (no text or symbols)

Illustration of a hand using a cooking pot to press or clean air from a portable air fryer (no text or symbols visible)

Illustration of a wall socket with a plug inserted, showing a circular vent and an arrow indicating direction (no text or symbols)

Line drawing of a portable air fryer with a pie chart inset showing the time slice (no text or symbols on the device itself)

Illustration of a hand using a cooking pot to remove air from a toaster oven (no text or symbols)

Illustration of hands using a tool to cut meat on a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with a cable, showing no text or symbols.

Diagram showing a cooking process with thermometer and temperature indicators above a cooking pot

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a brush (no text or symbols)

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Kujdes

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols visible)

Illustration of a plug inserted into a socket socket with an arrow indicating direction (no text or symbols)

PHILIPS ↑ ↓ ← → → → →

Line drawing of a portable air fryer with a pie chart inset showing the exterior (no text or symbols)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of hands preparing food with a curved arrow indicating rotation (no text or symbols)

Diagram illustrating the process of heating a power plug into a refrigerator, showing temperature change from 0°C to 1°C.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Paralajmërim

Illustration of a hand cleaning a cylindrical object with a brush (no text or symbols)

Illustration of a hand inserting a bag into a microwave oven (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Diagram showing a hand pouring liquid into a container with a 'X' symbol, likely indicating a chemical or material injection step.

Previdno

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a side view of the oven (no text or symbols)

Illustration of a hand using a cooking pot to press or clean air from a toaster (no text or symbols visible)

4 Posodo namestite nazaj v Airfryer.

Previdno

Illustration of a wall socket with a plug inserted, showing an arrow pointing to the socket (no text or symbols present)

Line drawing of a portable air fryer with a pie chart inset showing the time (no text or symbols on the device itself)

• Nekatere sestavine je treba pretresti ali obrniti na polovici časa priprave (glejte "Preglednico s hrano"). Če želite pretresti sestavine, izvlecite posodo in jo pretresite nad koritom. Nato dajte posodo nazaj v aparat.
• Če želite začasno ustaviti pripravo jedi, pritisnite gumb za zagon/premor. Če želite nadaljevati pripravo jedi, ponovno pritisnite isti gumb.
• Ko izvlečete posodo, se aparat samodejno preklopi v način premora. Priprava jedi se nadaljuje, ko v aparat ponovno vstavite posodo.

Illustration of a hand using a cooking pot to press or spread food from an air fryer (no text or symbols visible)

14 Izvlecite posodo in preverite, ali so sestavine pripravljene.

Previdno

Illustration of hands using a tool to cut meat on a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into a wall socket with two circular outlets, showing an arrow indicating direction (no text or symbols present)

Illustration showing a hand pressing down on a heater with thermometer symbols above it, indicating heating or cooling process.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand using a brush to clean or store air from a mounted air fryer (no text or symbols visible)

Illustration of a hand inserting a plug into a microwave oven (no text or symbols)

7 Notranjost aparata očistite z vročo vodo in gladko gobico.

Shranjevanje

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Diagram showing a hand pouring liquid into a container with a cross symbol indicating removal or rejection.

Illustration of a hand holding a cup next to an air fryer with a black arrow pointing to the cup (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

MAX

Illustration of a hand using a cooking pot to remove air from an air fryer (no text or symbols present)

Upozornenie

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

Line drawing of a portable air fryer with a clock above it (no text or symbols)

Illustration of a hand holding a cup next to a toaster oven with an arrow pointing to the cup (no text or symbols present)

Illustration of hands using a knife to cut food from a plate, with a curved arrow indicating rotation (no text or symbols)

Illustration of a plug inserted into a wall socket with a magnified inset showing internal components (no text or symbols)

Varovanie

Illustration showing a hand pressing down on a heater with temperature indicators above it, likely indicating heating or cooling process.

Tip

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

5 Aby ste predišli škrabancom, jemne utrite vonkajšiu časť zariadenia nepokrčenou, čistou a mäkkou handričkou. Začnite mierne navlhčenou handričkou a v prípade potreby pokračujte suchou handričkou.

Illustration of a hand using a brush to clean or store air from a mounted air fryer (no text or symbols visible)

Illustration of a hand cleaning a small appliance into a microwave oven (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text present)

• Ovaj simbol ukazuje na to da električni proizvodi ne smeju da se odlažu sa običnim kućnim otpadom.
• Pratite propise svoje zemlje za zasebno prikupljanje otpadnih električnih proizvoda.

Garancija i podrška

Versuni za ovaj proizvod pruža dve godine garancije nakon kupovine. Ova garancija ne važi ako je kvar nastao nepravilnom upotrebom ili lošim održavanjem. Naša garancija ne utiče na vaša zakonska prava u skladu sa Zakonom o potrošačima. Za više informacija ili pokretanje garancije, posetite našu veb-stranicu www.home.id/warranty.

Uvod

Čestitamo na kupovini i dobro došli u Philips!

Da biste na najbolji način iskoristili podršku koju nudimo, registrujte proizvod na www.home.id.

Opšti opis

1 Kontrolna tabla
a Dugme za temperaturu
b Dugme za uključivanje/isključivanje
c Dugme za održavanje temperature
d Dugme za svetlo
e Unapred podešeni meniji
f Dugme za smanjivanje
g Dugme za pokretanje/pauziranje
h Dugme za povećavanje
i Dugme za vreme
2 Umetak za prženje
3 Indikator MAX
4 Posuda
5 Kabl za napajanje
6 Deo za namotavanje kabla
7 Otvor za izlaz vazduha

Pre prve upotrebe

1 Uklonite svu ambalažu.
2 Uklonite sve nalepnice ili oznake sa aparata (ako ih ima).
3 Temeljno očistite aparat pre prve upotrebe (pogledajte poglavlje „Čišćenje“).

Pripreme pre prve upotrebe

Aparat stavite na stabilnu, horizontalnu i ravnu površinu otpornu na toplotu.

Napomena

• Nemojte ništa da stavljate na aparat niti pored njega. To može da ometa protok vazduha i da utiče na rezultat prženja.
• Nemojte da stavljate uključen aparat pored ili ispod predmeta koje može da ošteti para, kao što su zidovi i ormari.

Upotreba aparata

Tabela hrane

Donja tabela pomaže vam da izaberete osnovne postavke za vrste hrane koju želite da pripremate.

Napomena

• Imajte u vidu da te postavke predstavljaju preporuke. Pošto se namirnice razlikuju po poreklu, veličini, obliku i vrsti nije moguće garantovati najbolje postavke.
• Kada pripremate veću količinu hrane (npr. pomfrit, škampe, batake, zamrznute grickalice), protresite, okrenite ili promešajte sastojke u posudi 2 do 3 puta kako biste postigli ravnomeran rezultat.

Sastojci Min. – Maks.	količina	Vreme (min)	Temper- atura	Napomena
Tanki zamrznuti pomfrit (7 x 7 mm / 0,3 x 0,3 inča)	200–500 g 14–25 180°C
Domaći pomfrit (10 x 10 mm / 0,4 x 0,4 inča debljine)	200–500 g 30–33 180°C
Zamrznuti pileći medaljoni	200–500 g 10–20 200°C
Zamrznute prolećne rolnice	200–500 g 10–20 200°C
Hamburger (približno 150 g / 5 oz)	1–2 komada 12–16 150°C
Rolat od mesa 400–600 g 35–45 150°C - Koristite dodatak za pečenje
Mesni odresci bez kostiju (približno 190 g / 7 oz)	1–2 komada 16–20 200°C - Protresite, okrenite ili promešajte na pola pripreme
Mali pileći bataci (približno 125 g / 4,5 oz)	2–6 komada 18–21 180°C - Protresite, okrenite ili promešajte na pola pripreme
Pileća prsa (približno 160 g / 6 oz)	1–4 komada 18–21 180°C
Cela riba (približno 300 – 400 g / 11 – 14unci)	1 riba 23 200°C
Riblji filet (približno 200 g / 7 oz)	1–3 komada 21–23 200°C
Mešano povrće (grubo isečeno)	200–500 g 15–20 180°C - Podesite vreme pripreme po ukusu - Protresite, okrenite ili promešajte na pola pripreme
Mafini (približno 50 g / 1,8 oz)	1–7 komada 15–17 160°C
Kolač 400–600 g 35–45 160°C - Koristite dodatak za pečenje
Unapred ispečeni hleb / kiflice (približno 60 g / 2 unce)	1–5 komada 6–10 200°C

Sastojci Min. – Maks.

količina

Vreme (min)

Temper- atura

Napomena

Domaći hleb 400–600 g 40–50 160°C - Koristite dodatak za pečenje.

- Oblik testa bi trebalo da bude što pljosnatiji kako hleb ne bi dodirnuo grejni element kada naraste.

Doručak 3 jajeta, 2 tosta 10 160°C - Prvo kuvajte jaja 5 minuta, pa

dodajte tost.

Prženje na vazduhu

7/6

Oprez

• Ovo je Airfryer koji za pripremu koristi vruć vazduh. Nemojte da punite posudu uljem, mašću za prženje niti bilo kojom drugom tečnošću.
• Nemojte da dodirujete vruće površine. Koristite ručke ili regulatore. Vrućom posudom rukujte rukavicama otpornim na toplotu.
• Ovaj aparat namenjen je isključivo upotrebi u domaćinstvu.
• Pri prvoj upotrebi ovaj aparat može da proizvodi izvesnu količinu dima. To je normalno.
• Prethodno zagrevanje aparata nije potrebno.

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Diagram showing a device being placed on top of an air fryer with a downward arrow indicating compression (no text or symbols present)

Illustration of a hand using a cooking pot to press an air fryer (no text or symbols present)

4 Vratite posudu u Airfryer.

Oprez

Illustration of a wall socket with a plug inserted, showing an arrow pointing to the socket (no text or symbols present)

Line drawing of a portable air fryer with a pie chart inset showing the time (no text or symbols on the device itself)

Illustration of a hand using a cooking pot to press or spread food from an air fryer (no text or symbols visible)

Illustration of hands using a tool to cut meat on a plate, with an arrow indicating the process (no text or symbols present)

• Neke namirnice zahtevaju da ih protresete ili okrenete na pola vremena pripreme (pogledajte „Tabela hrane“). Da biste protresli hranu, izvucite posudu i protresite je iznad sudopere. Zatim vratite posudu u aparat.
• Da biste pauzirali proces kuvanja, pritisnite dugme za pokretanje/pauziranje. Da biste nastavili proces kuvanja, ponovo pritisnite isto dugme kako biste nastavili proces kuvanja.
• Aparat automatski prelazi u režim pauze kada izvadite posudu. Proces kuvanja se nastavlja kada se posuda vrati u aparat.

13 Kada se oglasi zvuk tajmera, vreme pripreme je isteklo.

14 Izvadite posudu i proverite li je hrana pripremljena.

Oprez

- Airfryer posuda je vruća nakon procesa pripreme. Uvek je stavite na radnu površinu otpornu na toplotu (npr. podmetač itd.) kada je izvadite iz aparata.

Napomena

Illustration of a plug inserted into an electrical outlet with two circular components, showing a black arrow indicating direction (no text or symbols)

Illustration showing a cooking step with thermometer and temperature indicators above a cooking pot

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

- Posuda ima premaz protiv lepljenja. Nemojte da koristite metalni kuhinjski pribor niti abrazivne materijale za čišćenje zato što mogu da oštete premaz protiv lepljenja.

Aparat očistite nakon svakog korišćenja. Uklonite ulje i mast sa dna posude nakon svake upotrebe.

1 Pritisnite dugme za uključivanje/isključivanje da biste isključili aparat, isključite utikač iz zidne utičnice i sačekajte da se aparat ohladi.

Savet

- Izvadite posudu da biste omogućili da se Airfryer brže ohladi.

Illustration of a hand using a brush to clean or brush inside a kitchen appliance, with a spiral-patterned inset (no text or symbols)

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

7 Očistite unutrašnjost aparata vrelom vodom i neabrazivnim sunderom.

Odlaganje

1 Isključite aparat iz električne mreže i ostavite ga da se ohladi.
2 Uverite se da su svi delovi čisti i suvi pre odlaganja.

Napomena

• Kada nosite Airfryer, uvek ga držite horizontalno da vam posude slučajno ne bi ispale i oštetile se.
• Uvek proverite da li su uklonjivi delovi aparata Airfryer fiksirani pre nošenja i/ili odlaganja.

Rešavanje problema

U ovom poglavlju ukratko su navedeni najčešći problemi do kojih može da dode sa aparatom. Ako ne uspete da rešite problem pomoću informacija navedenih u nastavku, posetite www.philips.com/support da biste pronašli listu najčešćih pitanja ili se obratite centru za korisničku podršku u svojoj zemlji.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Diagram showing a hand pouring liquid into a container with a cross symbol indicating removal or rejection.

Illustration of a hand holding a cup next to an air fryer with a black arrow pointing to the cup (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

MAX

Illustration of a hand using a cooking pot to remove air from an air fryer (no text or symbols)

Huomio

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

Line drawing of a small air fryer with a clock above it (no text or symbols)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of hands using a knife to cut meat on a plate, with a curved arrow indicating rotation (no text or symbols)

Illustration of a plug inserted into a wall socket with two circular outlets, showing an arrow indicating direction (no text or symbols)

Diagram showing a hand holding a pot with a thermometer above and a right-hand box with warning symbols, illustrating temperature control or cooling process.

Vihje

Line drawing of a hand cleaning a kitchen air fryer with a cloth (no text or symbols)

Illustration of a hand using a brush to clean or store air fryer with a spiral-patterned lid nearby (no text or symbols)

Illustration of a hand inserting a plug into a microwave oven (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram showing a hand pouring liquid into a container with a 'X' symbol, likely indicating a chemical or material injection step.

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Diagram showing a kitchen appliance with a grater and a lid, no text or symbols present

MAX

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of hands using a knife to cut food from a plate, with a curved arrow indicating rotation (no text or symbols)

Illustration of a plug inserted into a wall socket with two circular outlets, showing an arrow indicating direction (no text or symbols)

Varning

Diagram showing a hand holding a lid with a thermometer and warning symbols, next to an air fryer oven.

Tips

Line drawing of a hand cleaning a kitchen air conditioner with a cloth (no text or symbols)

Illustration of a hand cleaning a microwave oven with a brush (no text or symbols)

Line drawing of a hand cleaning a food appliance with a cloth (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a waste bin with no text or labels, crossed by two diagonal lines and a solid black rectangle below (no text or symbols present)

Illustration of a hand pouring liquid into a cooking pot next to an air fryer (no text or symbols)

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols visible)

Illustration of a plug inserted into a socket socket with an arrow indicating direction (no text or symbols)

5 Fişi prize takın.

PHILIPS ④

PHILIPS ↑ ↓ ← → → → →

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols on the device itself)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of hands preparing food with a curved arrow indicating rotation (no text or symbols)

Illustration of a plug inserted into an electrical outlet with two circular components, showing a downward arrow (no text or symbols)

Illustration showing a hand pressing down on a heater with thermometer symbols above it, indicating heating or cooling process.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Uyari

Illustration of a hand cleaning a small appliance with a brush (no text or symbols)

Illustration of a hand placing a food item into a microwave oven (no text or symbols)

Symbol of a robot without any text or numbers, featuring a prohibition sign inside a circle (no readable text)

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid rectangle below (no text or symbols present)

Diagram showing a hand pouring liquid into a container with a cross symbol indicating removal or rejection.

Προσοχή

Illustration of a hand holding a cup next to an air fryer with a black arrow pointing to the cup (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

Illustration of a hand using an air fryer to lift a cup (no text or symbols visible)

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Illustration of hands using a knife to cut meat on a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with two circular components, showing a black arrow indicating direction (no text or symbols)

Illustration showing a cooking step with temperature indicators and a cooking pot, likely for a food or appliance processing procedure.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand cleaning a square oven with a brush (no text or symbols)

Illustration of a hand inserting a bag into a microwave oven (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols)

Illustration of a toaster oven with a downward arrow indicating cooling effect (no text or symbols)

Illustration of a hand using a grater to lift a cup, with an arrow indicating the process (no text or symbols present)

Illustration of a screwdriver inserted into a socket socket with a cartoon face, showing an upward arrow (no text or symbols)

Line drawing of a square air fryer with a pie chart inset showing one pan (no text or symbols)

Illustration of a hand pouring liquid into a cooking pot with a grater nearby (no text or symbols)

Illustration of hands using a tool to cut food from a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with two circular components, showing a black arrow indicating direction (no text or symbols)

Diagram showing a hand pressing down on a temperature sensor above a toaster oven, with temperature readings indicated.

Съвет

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand cleaning a mounted air fryer with a brush (no text or symbols)

Illustration of a hand inserting a bag into a microwave oven (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram showing a hand pouring liquid into a container with a 'X' symbol, likely indicating a chemical or material injection step.

Illustration of a hand holding a cup next to an air fryer (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a side view of the oven (no text or symbols)

Illustration of a hand using a grater to lift a refrigerator (no text or symbols visible)

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

Line drawing of a portable air fryer with a pie chart inset showing the slice (no text or symbols)

Illustration of a hand holding a cup next to an air fryer (no text or symbols present)

Illustration of hands using a knife to cut meat on a plate, with an arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with two circular components, showing a black arrow indicating direction (no text or symbols)

Illustration showing a cooking step with temperature indicators and a cooking pot, likely for a food or appliance processing demonstration.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand using a brush to clean or store air by a large appliance (no text or symbols visible)

Illustration of a hand inserting a bag into a microwave oven (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram showing a hand pouring liquid into a container with a cross symbol indicating removal or rejection.

Illustration of a hand holding a cup next to an air fryer with a black arrow pointing to the cup (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a grater, no text or symbols present

MAX

Illustration of a hand using a cooking pot to remove air from an air fryer (no text or symbols)

Внимание!

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

PHILIPS ↑ ← → ← ← ←

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols)

Illustration of a hand holding a cup next to an air fryer (no text or symbols present)

Illustration of hands using a knife to cut meat on a plate (no text or symbols)

Diagram illustrating the process of heating a power plug into a refrigerator, showing temperature change and cooling steps.

Illustration showing two steps of cleaning a food appliance: top-down view with hand cleaning lid, bottom-down view with hand cleaning brush and spiral (no text or symbols)

Illustration of a hand inserting a bag into a microwave oven (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by diagonal lines and a solid black rectangle below (no readable text or symbols)

Diagram showing a hand pouring liquid into a container with a cross mark and a measuring tool labeled '7/6'.

Illustration of a hand holding a cup next to an air fryer with a black arrow pointing to the cup (no text or symbols)

Увага!

Illustration of a toaster oven with a lid and a side view showing the exterior (no text or symbols)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols visible)

Illustration of a wall socket with a cartoon face and an arrow pointing to the socket (no text or symbols)

PHILIPS ↑ ↓ ← → → → →

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols on the device itself)

Illustration of a hand holding a cup next to a portable air fryer with a black arrow pointing to the cup (no text or symbols)

Illustration of hands preparing food with a knife and bowl, no text or symbols present

Illustration of a plug inserted into a wall socket with two circular holes, showing an arrow indicating direction (no text or symbols)

Illustration showing a hand pressing down on a temperature measuring device with thermometer symbols

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand cleaning a mounted air fryer with a brush (no text or symbols)

Illustration of a hand cleaning a food appliance with a cloth (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

Symbol of a waste bin with no text or labels, crossed by diagonal lines (no readable text)

Diagram showing a hand pouring liquid into a container with a cross symbol indicating removal or rejection.

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

Diagram showing a kitchen appliance with a lid and a side view of the oven (no text or symbols)

MAX

Illustration of a plug inserted into a socket with a screwdriver inserted (no text or symbols)

Line drawing of a portable air fryer with a pie chart inset showing the exterior wall (no text or symbols)

Illustration of a hand holding a cooking pot next to a toaster oven (no text or symbols)

Illustration of hands preparing food with a knife and knife applying food to a plate (no text or symbols)

Diagram illustrating the process of heating a power plug into a refrigerator, showing temperature change and cooling steps.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a hand cleaning a cylindrical object with a brush (no text or symbols)

Illustration of a hand inserting a bag into a microwave oven (no text or symbols)

Symbol of a robot without any text or numbers, enclosed in a circle with a diagonal line crossing it (no text present)

,הכלה,הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

(בְרָה 'בִרָה' 0.4x0.4 / n" n

200°C 10-20 ☐☐☐ 500-200 ☐☐☐ ☐☐ ☐☐ ☐☐

Diagram showing a hand pouring liquid into a container with a cross symbol indicating removal or rejection.

Illustration of a cooking pot and a digital kitchen grater with a hand gesture (no text or symbols)

1. Λ'Γ'

Illustration of a food oven with a lid and a stand, showing a downward arrow indicating a drop (no text or symbols present)

2.710

MAX

1. 710

תַרְשָׁ

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols visible)

4.Airf

תְרָה

Illustration of a wall socket with a plug inserted, showing a circular vent and an arrow indicating direction (no text or symbols)

5.717

PHILIPS 击 夺

6.

180°C

7.

PHILIPS

8.הַרְבָר

25_

9.1071

10.1071

PHILIPS

PHILIPS 0 ↓ ① ② ↑ ▼

PHILIPS 180° m

Line drawing of a portable air fryer with a clock showing approximately 3 o'clock (no text or symbols on the device itself)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols present)

11

.ΟΙΝ 7Υ

תַרְשָׁ

Illustration of hands using a knife to cut food from a bowl into a container (no text or symbols)

תְרָה

Diagram illustrating the process of heating a plug into a washing machine, showing temperature change and cooling steps.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

6.1170

Illustration of a hand using a brush to clean or remove a cylindrical object (no text or symbols present)

Line drawing of a hand inserting a bag into an air fryer (no text or symbols)

7.1701

||DNX

1. 777

2.□□□

תַרְשָׁ

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

www.philips.com/support

PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.

(08/2025)
