771CB - Remote trigger LiftMaster - Free user manual and instructions

Product Type	Remote control for garage door and gate
Brand	LiftMaster
Model	771CB (compatible with 61LM, 62LM, 33LM, 63LM, 64LM)
Power Supply	12V lithium battery (model 10A14)
Battery Life	Approximately 1 year
Operating Frequency	390 MHz, fixed code
Number of Buttons	1, 2 or 3 depending on remote model
Number of Controllable Devices	Up to 3 devices (depending on version)
Programming Methods	Manual Dip switches or Smart/Learn button
Intended Use	Activation of commercial or residential barrier and door closing devices
Safety	Keep out of reach of children; operate only with clear visibility
Maintenance	Clean with a dry cloth; replace battery annually
Available Replacement Parts	Battery 10A14, sun visor clip 29C128
User Repairability	No repairable parts; only the battery is replaceable
Standards	FCC compliant for home and office use
Regulatory Warning	May contain lead; comply with California State requirements (P65)
Customer Service	Technical support at 1-800-528-9131 (USA)
Website	www.liftmaster.com

Frequently Asked Questions - 771CB LiftMaster

How to program my LiftMaster 771CB remote?

You can program the remote in two ways: via the Dip switches or the Smart/Learn button. For the Dip method, open the battery compartment and align the switches to the same positions as those on the receiver (+, 0, -). For the Smart method, press the Smart button on the receiver, then within 30 seconds, press and hold the desired remote button.

What battery does the LiftMaster 771CB remote use?

The remote uses a 12 V lithium battery, model 10A14. It lasts about one year.

How to replace the remote battery?

Slide open the battery compartment cover to access the battery. Replace it with a new 12 V (10A14) battery, respecting polarity. Dispose of the old battery according to local regulations.

My remote no longer works, what should I do?

First check the battery: replace it if necessary. Then ensure the Dip switches are properly set. If the problem persists, try reprogramming the remote with the receiver. Otherwise, contact customer service at 1-800-528-9131.

Can I use the remote with other brands of doors?

The 771CB remote is designed to work with LiftMaster products using a fixed code at 390 MHz. It is not guaranteed with other brands.

How to program multiple remotes for the same receiver?

Repeat the programming procedure (Smart button or Dip switches) for each remote. Each button can be programmed individually.

Is it safe to leave a remote within reach of a child?

No, always keep remotes out of reach of children. Never let a child operate the remote, as unintended activation can cause serious injury.

What does the indicator light mean after pressing the Smart button?

The LED lights up to indicate the receiver is in learning mode. If no button is pressed within 30 seconds, the LED turns off and programming is cancelled.

Can I program one button to open and another to close a door?

Yes, on a multi-button remote, you can assign each button to a different function (open, close, stop) by following the procedure with the corresponding Smart buttons (A, B, C) on the receiver.

Where can I find the full manual for the remote?

The full manual is available for free download in PDF format at notice-facile.com. You can also request a translation by email.

USER MANUAL 771CB LiftMaster

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

INTRODUCTION

This product is for use with gate operators, commercial door operators and any LiftMaster® product that uses a 390 MHz fixed code. The single-button remote control will activate one device, the 2-button remote control will activate up to 2 devices, and the 3-button remote control will activate up to 3 devices.

BEFORE YOU BEGIN

Locate the dip switches on your remote control

Single-Button and 3-Button Remote Controls:

Slide the battery cover open to access the dip switches in the remote control.

2-Button Remote Control:

The 2-button remote control has two sets of dip switches.

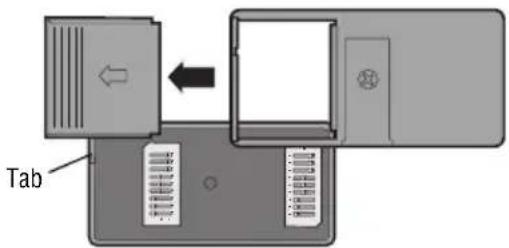

Slide the battery cover open to access the dip switches for the smooth button. Remove the screw on the back of the remote control and remove the cover by pressing the tab. This will access the dip switches for the ribbed button.

3-Button Mini Remote Control:

The large top button is recommended for use with a garage door opener and/or light control product. The other push buttons can be used to operate another garage door opener and/or light control product.

Access the dip switches by turning the remote over and removing the back of the case. Be careful to avoid moving circuit board components.

Single and 3-Button Remote Controls

2-Button Remote Controls

Tab

Mini Remote Controls

Diagram showing a device with a left-side arrow pointing to a labeled card or folder icon.

Use a pen or screwdriver to slide the dip switches.

Programming the remote control to an existing remote control

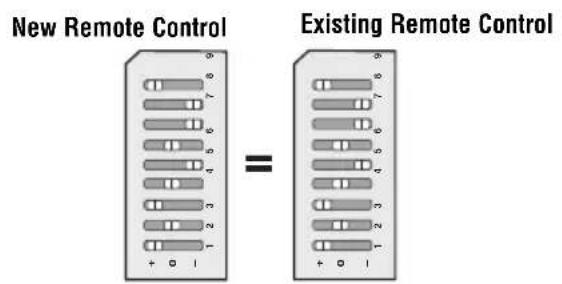

Locate the dip switches in the new and old remote controls. Place remote controls side by side and set the dip switches in the remote controls to matching positions (+,0,-).

Programming a 3-button remote control

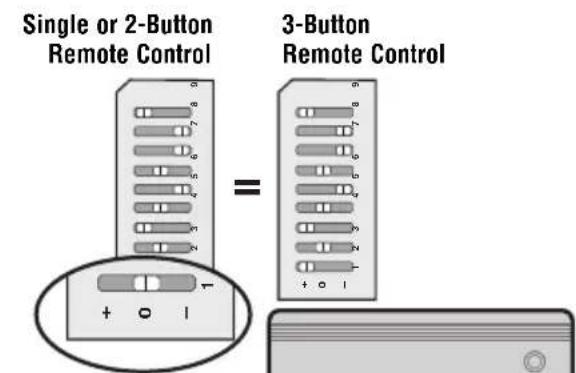

When programming a single or 2-button remote control to a 3-button remote control it is very important to set dip switch #1 to the correct position. The dip switch in the single or 2-button remote control MUST correspond to the buttons on the 3-button remote control as shown.

Example: If you are programming a single-button remote control to the middle button on the 3-button remote control, dip switch #1 in the single-button remote control MUST be set to "0" in order for both buttons to work.

Programming the remote control without an existing remote control

Set the dip switches in the remote controls to any position you want (+,0,-).

Programming with Smart/Learn button

1 Press and release the Smart/Learn button on your product. The LED will light.
2 Within 30 seconds press and hold the button on the remote control that you wish to activate your product.

Programming is complete.

Repeat the steps above for each button and/or remote control you would like to program.

Programming with dip switches

1 Check the dip switch settings on the back of your product.

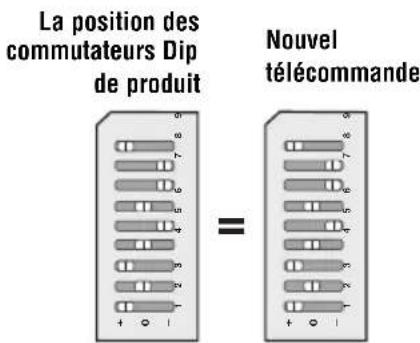

2 Use a pen or screwdriver to slide the dip switches in the remote control to match the dip switches on the back of the product.

When the dip switches have been set press the remote control button to activate your product.

New Remote Control = Existing Remote Control

Single or 2-Button Remote Control 3-Button Remote Control

Dip switch #1 must correspond to the 3-button remote control buttons

+ 0 -

New Remote Control

1 Smart/Learn Button

Hand inserting a small component into a wall socket (no text or symbols visible)

2

Line drawing of a hand holding a credit card (no text or symbols visible)

Dip Switch Settings From Product

Diagram showing two identical electrical or electronic components with numbered bands and polarity indicators (+, 0, 1)

WARNING

Install the control station and receiver where the door is visible, but away from the door and its hardware. When a receiver is used to activate a commercial door opener, a reversing edge MUST be installed on the bottom of the door. Failure to install a reversing edge under these circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

Model 33LM 3-button remote controls can also be used with a 423LM 3-channel receiver and a 3-button door control to activate a commercial door operator in OPEN, CLOSE, and STOP mode.

1 Use a screwdriver to pry open the receiver cover.
2 Verify that the slide switch on receiver is set to the N.C. position (other wise the commercial door operator will not operate).

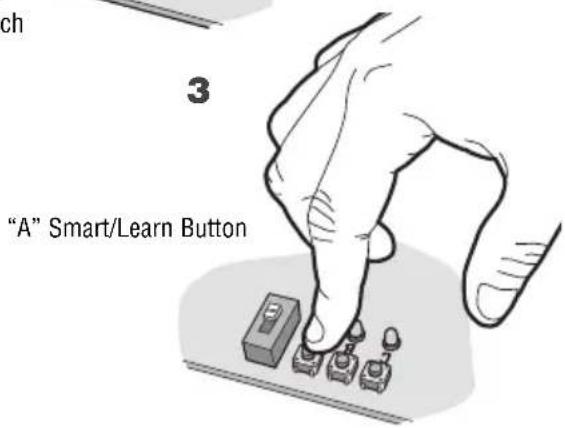

3 Press and release the Smart/Learn button labeled "A" on the receiver. The adjacent LED will flash.
4 Within 30 seconds press and release the red button on the remote control. The red button is now programmed for CLOSE mode.

NOTE: If the remote control button is not pressed within 30 seconds, the LED next to the selected Smart/Learn button will turn OFF. In that case, press the Smart/Learn button again to repeat programming.

1

2 N.C. Slide Switch

"A" Smart/Learn Button 3

Hand holding a card with a finger, no visible text or symbols

Repeat the steps 3-4 above with the yellow button on the remote control and the receiver Smart/Learn button "B" to program the CLOSE mode; and again with the green button on the remote control and the receiver Smart/Learn button "C" to program the OPEN mode.

5 Replace the receiver cover.

5 6

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

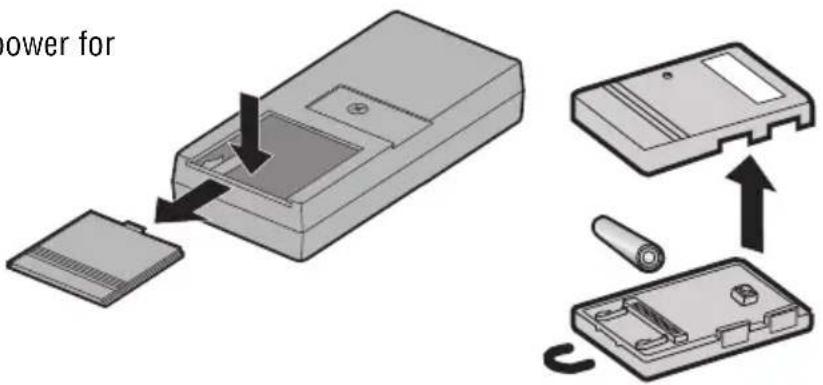

The 12 volt battery should produce power for 1 year.

Dispose of old batteries properly.

power for

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or remote control are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

REPLACEMENT PARTS

Visor clip 29C128

12V battery 10A14

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

www.liftmaster.com

LiftMaster®

Diagram showing equivalence between two remote control devices with labeled buttons and a central display.

Hand inserting a button into an electrical outlet (no text or symbols visible)

2

Line drawing of a hand holding a card (no text or symbols visible)

Line drawing of a hand holding a credit card (no text or symbols visible)

Diagram showing a device with a black arrow pointing to a screen, labeled in Chinese characters.

AVERTISSEMENT

Diagram showing two components: a battery inside a case and a battery partially inserted into a housing, with an upward arrow indicating motion (no text or symbols present)
