Product Type	Remote control for garage door/gate opener
Brand	LiftMaster
Model	63LM (compatible 33LM, 61LM, 62LM, 64LM)
Power Supply	12V alkaline battery (type 10A14)
Battery Life	At least 1 year
Frequency	390 MHz
Number of Buttons	3 (depending on model, 1 or 2-button version also available)
Programming	Via Dip switches or smart/learn button
Usage	Operates up to 3 devices (garage door, light, etc.)
Estimated Range	Up to 100 meters in open field
Estimated Dimensions	6.5 x 3.5 x 1.2 cm
Estimated Weight	30 g (with battery)
Material	ABS plastic
Compatibility	LiftMaster products with fixed code 390 MHz
Safety	Keep out of reach of children; use only under supervision
Maintenance	Clean with a dry cloth; replace battery if necessary
Spare Parts	Sun visor clip (29C128), 12V battery (10A14)
Repairability	No user-serviceable parts
Compliance	FCC, Industry Canada
Package Contents	1 remote control, 1 battery, instruction manual

Frequently Asked Questions - 63LM LiftMaster

How to program the 63LM remote with an existing remote?

Place the remotes side by side and set the Dip switches on each remote to match the positions (+, 0, -). If you are programming a one- or two-button remote for a three-button remote, make sure Dip switch #1 matches the desired button.

How to program the remote without an existing remote?

Set the Dip switches to any position (+, 0, -), then use the smart/learn button on your device: press and release it, then hold the remote button within 30 seconds.

How to replace the battery of the 63LM remote?

Use a 12V alkaline battery type 10A14. Open the battery compartment, remove the old battery and insert the new one respecting polarity. Dispose of used batteries according to local regulations.

What is the range of the LiftMaster 63LM remote?

The typical range is about 100 meters in open field. Obstacles like metal walls may reduce the range.

Is the 63LM remote compatible with my garage door opener?

Yes, if your LiftMaster opener uses a fixed code at 390 MHz. Refer to your opener manual to check compatibility.

What to do if the remote no longer works?

First check the battery. If it is discharged, replace it. Then check that the Dip switches match those of the receiver. If the problem persists, reprogram the remote using the smart button.

Can I use the 63LM remote to operate a gate or fence?

Yes, provided that the gate operator is compatible with LiftMaster products at 390 MHz and that safety devices (such as an edge sensor) are installed.

How to clean the 63LM remote?

Use a soft, dry cloth to clean the housing. Do not use chemical or abrasive cleaners. Avoid any contact of liquid with internal components.

What are the important safety instructions for this remote?

Always keep the remote out of reach of children. Only operate the door or gate when it is clearly visible and unobstructed. Never let a child play with the remote.

Where can I find spare parts for the 63LM?

Available spare parts are: sun visor clip (ref. 29C128) and 12V battery (ref. 10A14). Contact LiftMaster customer service at 1-800-528-9131 or visit www.liftmaster.com.

USER MANUAL 63LM LiftMaster

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

INTRODUCTION

This product is for use with gate operators, commercial door operators and any LiftMaster® product that uses a 390 MHz fixed code. The single-button remote control will activate one device, the 2-button remote control will activate up to 2 devices, and the 3-button remote control will activate up to 3 devices.

BEFORE YOU BEGIN

Locate the dip switches on your remote control

Single-Button and 3-Button Remote Controls:

Slide the battery cover open to access the dip switches in the remote control.

2-Button Remote Control:

The 2-button remote control has two sets of dip switches.

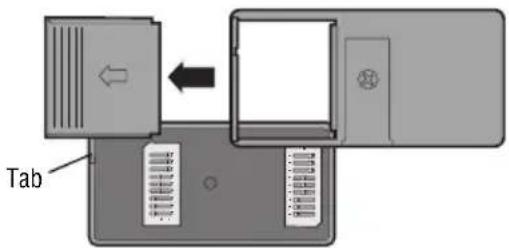

Slide the battery cover open to access the dip switches for the smooth button. Remove the screw on the back of the remote control and remove the cover by pressing the tab. This will access the dip switches for the ribbed button.

3-Button Mini Remote Control:

The large top button is recommended for use with a garage door opener and/or light control product. The other push buttons can be used to operate another garage door opener and/or light control product.

Access the dip switches by turning the remote over and removing the back of the case. Be careful to avoid moving circuit board components.

Single and 3-Button Remote Controls

2-Button Remote Controls

Tab

Mini Remote Controls

Diagram showing a device with a left-side arrow pointing to a labeled card or folder icon.

Use a pen or screwdriver to slide the dip switches.

Programming the remote control to an existing remote control

Locate the dip switches in the new and old remote controls. Place remote controls side by side and set the dip switches in the remote controls to matching positions (+,0,-).

Programming a 3-button remote control

When programming a single or 2-button remote control to a 3-button remote control it is very important to set dip switch #1 to the correct position. The dip switch in the single or 2-button remote control MUST correspond to the buttons on the 3-button remote control as shown.

Example: If you are programming a single-button remote control to the middle button on the 3-button remote control, dip switch #1 in the single-button remote control MUST be set to "0" in order for both buttons to work.

Programming the remote control without an existing remote control

Set the dip switches in the remote controls to any position you want (+,0,-).

Programming with Smart/Learn button

1 Press and release the Smart/Learn button on your product. The LED will light.
2 Within 30 seconds press and hold the button on the remote control that you wish to activate your product.

Programming is complete.

Repeat the steps above for each button and/or remote control you would like to program.

Programming with dip switches

1 Check the dip switch settings on the back of your product.
2 Use a pen or screwdriver to slide the dip switches in the remote control to match the dip switches on the back of the product.

When the dip switches have been set press the remote control button to activate your product.

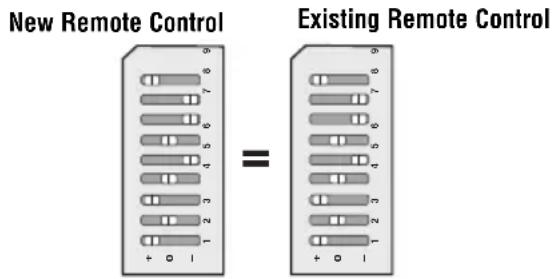

New Remote Control = Existing Remote Control

Single or 2-Button 3-Button Remote Control Remote Control

Diagram showing equivalence between two electronic device panels with labeled buttons and indicators

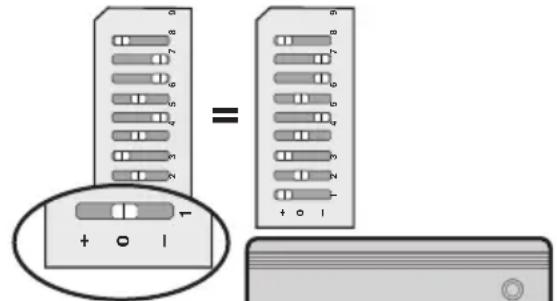

Dip switch #1 must correspond to the 3-button remote control buttons

New Remote Control

1 Smart/Learn Button

Hand inserting a button into an electrical outlet (no text or symbols visible)

2

Line drawing of a hand holding a credit card (no text or symbols visible)

Dip Switch Settings From Product

Diagram showing two identical electrical or electronic components with labeled pins and a equality symbol between them.

WARNING

Install the control station and receiver where the door is visible, but away from the door and its hardware. When a receiver is used to activate a commercial door opener, a reversing edge MUST be installed on the bottom of the door. Failure to install a reversing edge under these circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

Model 33LM 3-button remote controls can also be used with a 423LM 3-channel receiver and a 3-button door control to activate a commercial door operator in OPEN, CLOSE, and STOP mode.

1 Use a screwdriver to pry open the receiver cover.
2 Verify that the slide switch on receiver is set to the N.C. position (other wise the commercial door operator will not operate).
3 Press and release the Smart/Learn button labeled "A" on the receiver. The adjacent LED will flash.
4 Within 30 seconds press and release the red button on the remote control. The red button is now programmed for CLOSE mode.

NOTE: If the remote control button is not pressed within 30 seconds, the LED next to the selected Smart/Learn button will turn OFF. In that case, press the Smart/Learn button again to repeat programming.

1

2 N.C. Slide Switch

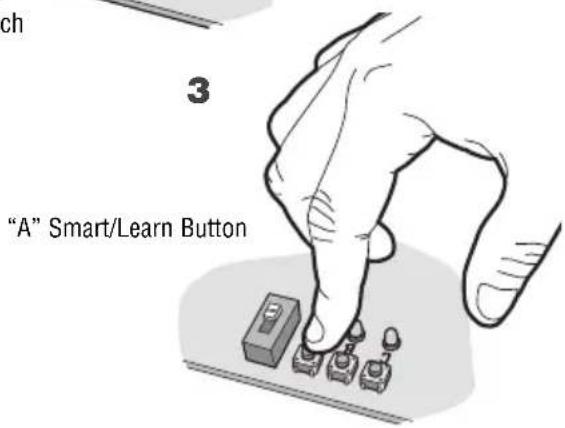

"A" Smart/Learn Button 3

Hand holding a card with a finger, no visible text or symbols

Repeat the steps 3-4 above with the yellow button on the remote control and the receiver Smart/Learn button "B" to program the CLOSE mode; and again with the green button on the remote control and the receiver Smart/Learn button "C" to program the OPEN mode.

5 Replace the receiver cover.

5 6

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

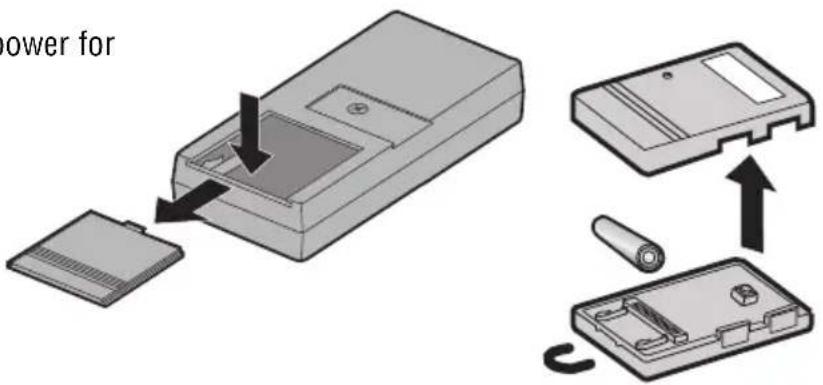

The 12 volt battery should produce power for 1 year.

Dispose of old batteries properly.

power for

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or remote control are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

REPLACEMENT PARTS

Visor clip 29C128

12V battery 10A14

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

www.liftmaster.com

LiftMaster®

Diagram showing two identical electrical or electronic components with labeled terminals and a equality symbol between them.

Diagram of a device control panel with labeled buttons and indicator lights

Diagram showing a computer control panel with labeled buttons and a vertical indicator on the left.
