USER MANUAL Elegance 700 Sonnenkönig

This product is only suitable for well insulated spaces or occasional use.

INDEX

Modifications techniques

1 Safety instructions 39
2 Cleaning and Maintenance 40
3 Installation 41
4 Controlpanel and Display 42
5 Operation 42
6 Technical data 46
7 Warranty / Disposal / Technical change 46

1 Safety instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

EN

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed, ie be used for heating rooms. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

The use of all electrical equipment must be observed some fundamentally important rules:

• Do not touch the appliance with wet hands or feet.
• Do not expose the device to the weather.
• The appliance must not be used by children or infirm persons without supervision.
  Pull the plug from the outlet when you no longer need it. not by pulling the power cable or the device to unplug it.
• Disconnect before carrying out any cleaning or maintenance operation, unplug the device. The air intake must be cleaned at least once a week.
• Do not use near a bathtub, shower, sink, or swimming pools
• Do not use any accessories or attachments that are not approved by the manufacturer.
• Do not insert objects into the interior of the device.
• Do not cover the appliance with objects.
• Mount the unit with the control at the bottom on a vertical wall.

The device must not be used under the following conditions:

• In areas with potentially explosive atmospheres.
• In rooms with aggressive atmospheres.
• In rooms with high solvent concentration.
• In areas with extremely high levels of dust.
• Disreputable operating conditions, it is recommended that the technical department of SONNENKÖNIG or dealer to contact. The use of an electric heater under the wrong conditions will invalidate the warranty!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

2 Cleaning and Maintenance

EN

2.1 Cleaning

Always unplug your heater and let it cool down completely before cleaning. Never dip into water and never splash water on it. Clean the heater with a soft damp cloth. For glass models use a soft cloth and glass cleaner. Never use a wet cloth and make sure to dry the heater when clean with a dry cloth. Do not use any abrasive materials, solvents or harsh cleaning sponges as this could cause scratches or other irreparable damage. Before operating the heater again it must be completely dry.

2.2 Using/Working

Please note that the heater may discolour with use. This is due to airborne pollution and is not a fault. Do not cover your heater with a picture foil and do not paint or print the heater yourself. This might cause damage to the heating element and will void your warranty. If you notice any noise, smells, visible changes or exceptionally high temperatures please discontinue use and contact an authorized SONNENKÖNIG dealer.

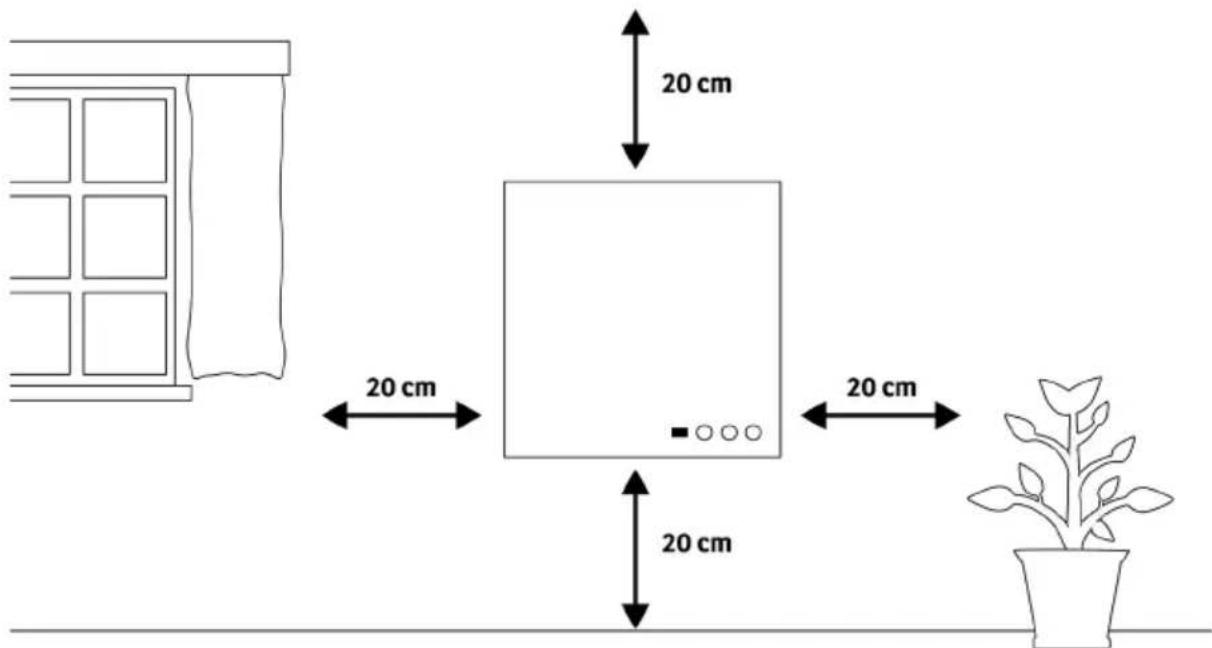

The heater must be at least 20~cm away from all objects, walls, the ceiling and the floor.

3 Installation

EN

1. Use the supplied template to mark the position of the holes on the wall.
2. Drill holes using a 8mm drill.
3. Insert the dowels into the holes.
4. Screw in the supplied screws to the wall.
5. Mount the panel on the screws.
6. Move the panel to the left and then down until it's secured.

Note: The kit supplied in the package is designed for mounting vertically on a solid wall. If mounted onto other types of walls, you will need appropriate fixings (not supplied). Please make sure the wall is safe to mount.

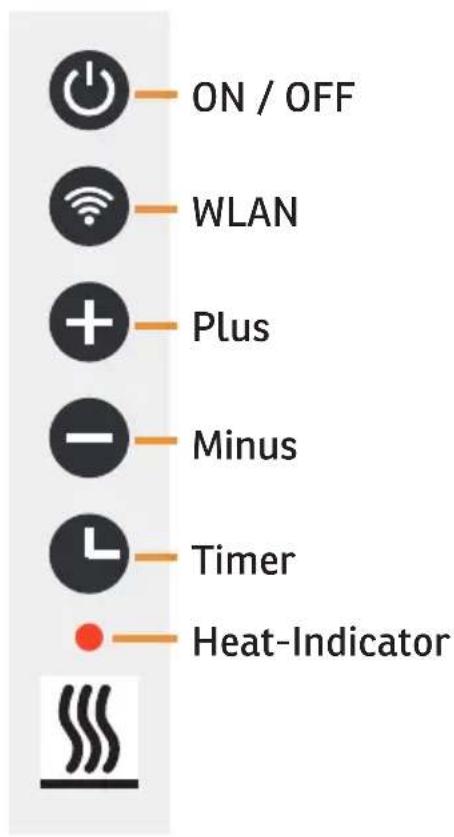

4 Controlpanel and Display

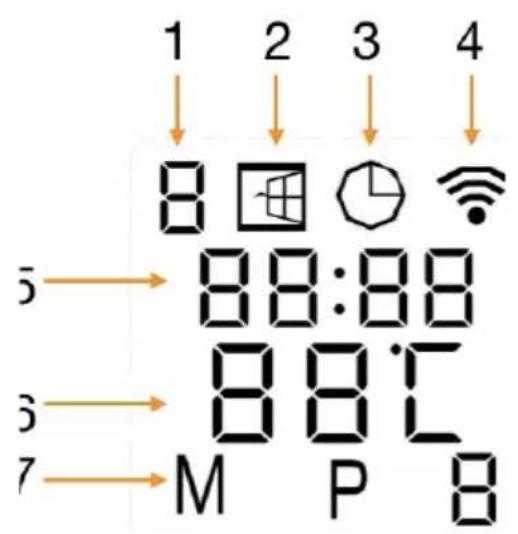

1. Weekday
2. Open window Sign
3. Timer Sign
4. WIFI Sign
5. Time
6. Temperature
7. Modes

5 Operation

General introduction of the control system

The product range has an integrated WIFI control box, meaning there is no other additional thermostat needed to control the heater. Once the heater has been connected to the APP, the smartphone will take control and communicate with the control box. If your home internet is not working, it is still possible to operate the heater via the control box manually, once the heater is re- connected to the WIFI, the smart phone will take control again.

• Manual mode: simple temperature control and 24 hours timer function
• Smart mode: 7 days program, 4 time zones per day
• Open window detection function
  Child lock
  Factory reset
• Mute operation

CAUTION: The control via app overwrites any presettings made on the manual setting.

Open window detection

If the room temperature drops drastically in a short time span, this function is activated and the heating stops for 30 minutes. Deactivate this function by pressing the button for 5 seconds.

EN

Temperature calibration

Press the button for 5 seconds to start the calibration. You can change the temperature from -5 to +5 °C.

Deactivate Wireless

Press the button 10 seconds to deactivate the Wireless function. The Symbol on the display should dissapear. Repeat to reactivate the Wireless function.

Manual Control

In manual mode, you can control the heating independently of a WLAN connection.

Temperature

Set the desired temperature by pressing the key two seconds after setting, the display will return to the room temperature.

Timer

Press the button to enter the timer setting. The display will show either 00 H or the previous setting. Set the timer with the buttons.

Temperature calibration

Press and hold the button for 5 seconds to enter the temperature calibration. Adjust the number by pressing the button. The calibration ranges from -5 to +5 °C.

Child lock

Press and hold the 3 seconds to activate the child lock; "CL" is displayed on the screen.

Factory reset

Switch on the heater and press until "OFF" is displayed on the screen. Press and hold 10 seconds to reset the unit.

Mute operation

If you do not like the "beep" sound when operating the heater, you can deactivate the sound in the settings after you have connected the heater to the APP.

Scan the QR code below to download the "Smart Remote King" APP or search "Smart Remote King" APP on APP store or Google play store to start the procedure to download the APP, open the APP and register with your phone number or Email address.

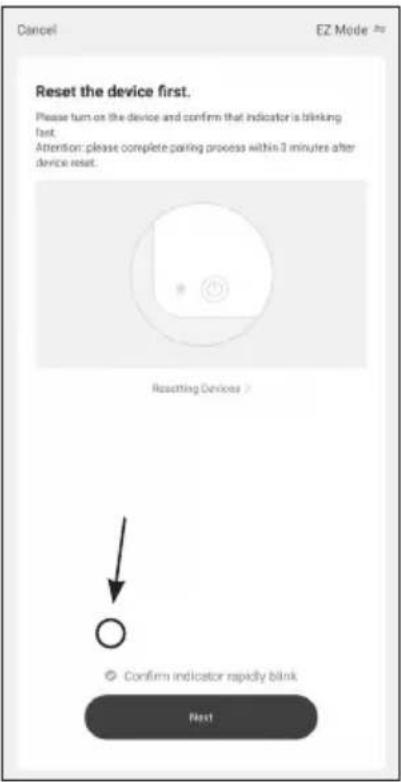

1. After you connect the device to the power supply and press the main switch, the WIFI symbol on the display will start flashing quickly. The WIFI module is now ready for normal connection mode.

1. 2.3.

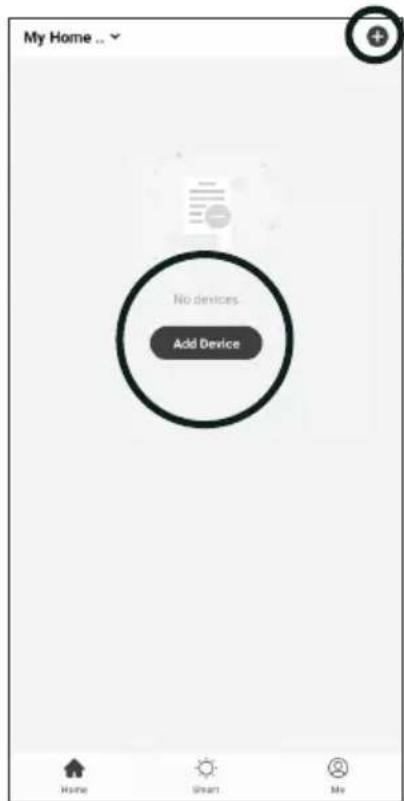

1. press the + icon or the "Add Device" button in your app

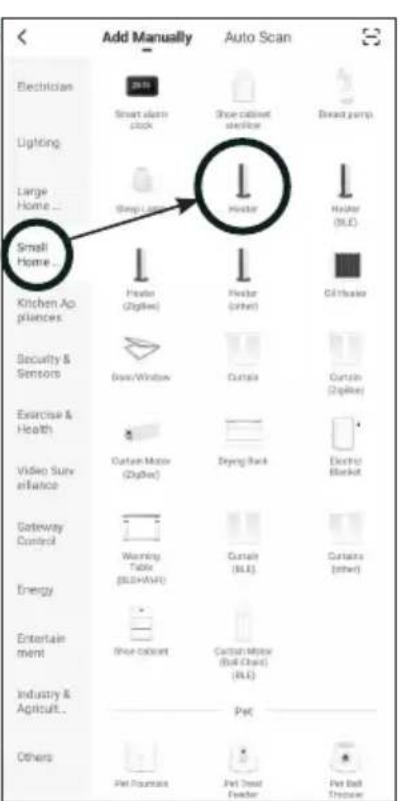

2. Select „Small Home Appliances first and then „Heater".

4.5.6.

EN

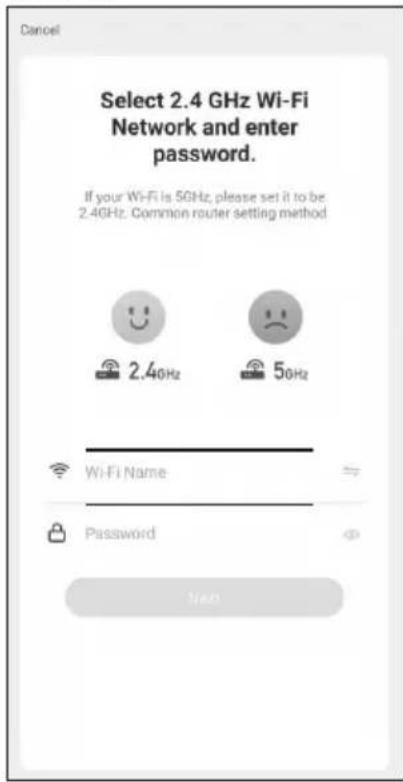

1. Make sure that your smartphone is connected to the WLAN and then enter the security phrase or password of your WIFI router
2. Check again that the WIFI symbol on the display of the infrared wall heater flashes quickly and check the box before pressing again.

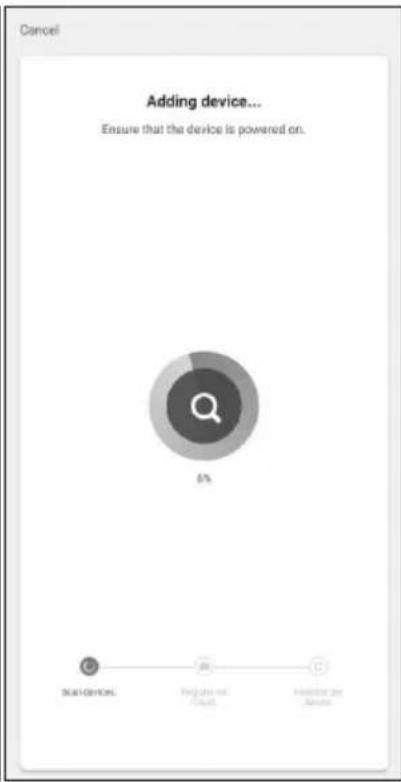

3. Wait until the connection status shows 100% . Give the device a name so you can assign it later.

Troubleshooting

If no connection could be established after the time has elapsed, switch off the device, switch it on again after some time, check the points mentioned below and try again.

• Is your device and smartphone near the router?
• Does your WLAN signal have the necessary 2.4 GHz frequency?
• Is your router already overloaded with other WLAN devices?

Reset WIFI settings

To reset the WIFI settings on the device, press and hold the WIFI button until the WIFI symbol flashes slowly. Press the button again until the symbol flashes quickly again. The WIFI module is now back in the factory settings.

6 Dati tecnici

Model Power Size [mm] IP Protection
Class

ECO 200 200 W 300 x 600 x 70 IP44
ECO 500 500 W 600 x 800 x 70 IP44
ECO 700 700 W	600 x 1150 x 70	IP44
ECO 1000	1000 W	850 x 1200 x 70	IP44
ELEGANCE 500	500 W 600 x 850 x 70 IP44
ELEGANCE 700	700 W 600 x 1200 x 70	IP44
ELEGANCE SCHIEFER	600 W	550 x 1100 x 70	IP44

7 Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Reserving technical changes in technology and design

Caution

Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

CE Declaration of Conformity

This device complies with the following standards

EMC EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN 61000-3-2:2019/A2:2024

EN 61000-3-3:2013/A2:2021 | EN 301 489-17 V3.3.1:2024

EN 62311:2008 | EN 50665:2017 | EN 300 328 V2.2.2:2019

LVD EN 60335-1:2012/A16:2023

EN 60335-2-30:2009/A13:2022

EN 62233:2008 | AfPS GS 2019:01 PAK | EK1 527-12 Rev. 2

EMC 2014/30/EU

LVD 2014/35/EU

RoHS 2015/863/EU

RED 2014/53/EU

ECHA 1907/2006

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send the purchase of new, equivalent devices back to the dealer in a one-to-one process. L'adeguata separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal, helps to avoid possible adverse effects on the environment and health and promote the reuse and/or recycling of the materials to which they belong. composed the equipment. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that it is prohibited to dispose of used batteries in household waste.

Batteries and batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. The service is free. In this way, legal requirements will be respected and the environment will be protected. The symbols identifying hazardous materials that may be present in batteries and accumulators are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.

Company

Armin Schmid

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel.Nat.0848870850

www.sonnenkoenig.ch

Company

Armin Schmid

Model Power Size [mm] IP Protection
Class

ECO 200 200 W 300 x 600 x 70 IP44
ECO 500 500 W 600 x 800 x 70 IP44
ECO 700 700 W 600 x 1150 x 70 IP44
ECO 1000	1000 W	850 x 1200 x 70	IP44
ELEGANCE 500	500 W 600 x 850 x 70 IP44
ELEGANCE 700	700 W	600 x 1200 x 70	IP44
ELEGANCE SCHIEFER	600 W 550 x 1100 x 70 IP44

Table for information requirements for ECO 200, 500, 700, 1000 / ELEGANCE 500 / 700
Item	Symbol	Value	Unit	Item	P
Heat output Type of heat input, for electric storage				local space heaters only (select one)
Nominal heat output Pnom	see list kW			Manual heat charge control with integrated thermostat [no]
Minimum heat output (indicative)	Pmin	see list kW		Manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	Pmax,c	see list kW		Electronic heat charge control with room and/or outdoor temperature feedback	[no]
Power consumption Fan assisted heat output [no]
in off mode P	0.00	kW		Type of heat output/room temperature control (select one)	[no]
In standby mode	PSdn	0.33	kW	single stage heat output and no romm temperature control	[no]
In idle mode	Pidle	0.81	kW	Two or more manual stages, no room temperature ocontrol	[no]
In network standby	Pnom	0.81	kW	with mechanical thermostat romm temperature control	[no]
Standby mode with display of information of status			[no]	with electronic room temperature control	[no]
Seasonal space heating energy efficiency in active mode	ns,on	94.0	%	Electronic room temperature control plus day timer	[no]
				Electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)	[yes]
				Room temperature control, with presence detection	[no]
				Room temperature control, with open window detection	[yes]
				distance control option	[yes]
				adaptive start control	[no]
				working time limitation	[yes]
				Black bulb sensor	[no]
				Self-learning functionality	[no]
				Control accuracy	[no]
Remark: This product is only suitable for well insulated spaces or occasional use. will be showed on the cover page of the user manual, free-access websites of manufacturer, product packaging

This product is only suitable for well-insulated rooms or occasional use. For private use only!

This product is only suitable for well-insulated rooms or occasional use. For private use only!

This product is only suitable for well-insulated rooms or occasional use. For private use only!

This product is only suitable for well-insulated rooms or occasional use. For private use only!

This product is only suitable for well-insulated rooms or occasional use. For private use only!
