USER MANUAL EAF3CG ELECTROLUX
EAF3B, EAF3CG, EAF5B,
EAF5CG, EAF7B, EAF7CG
Air Fryer


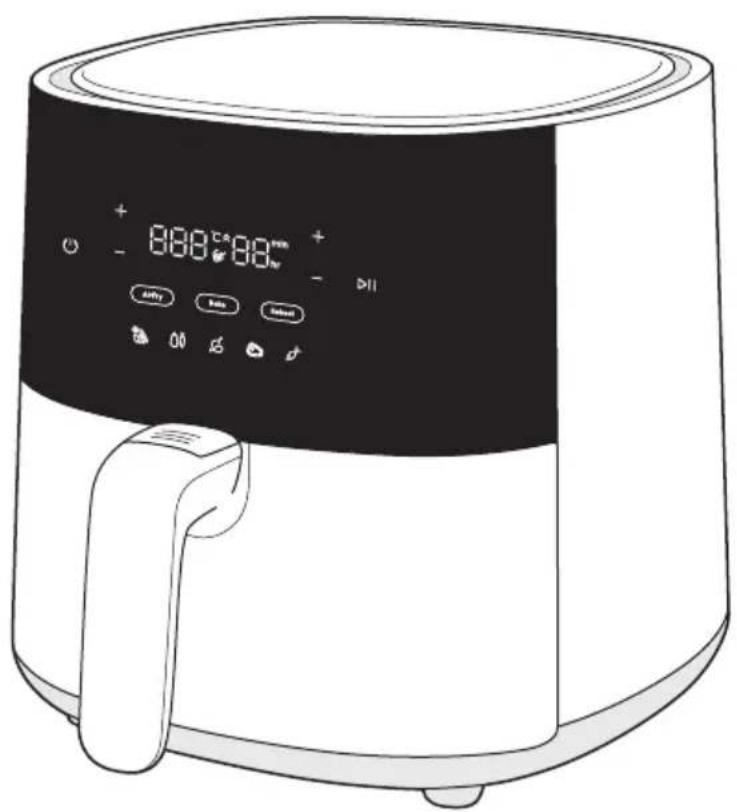

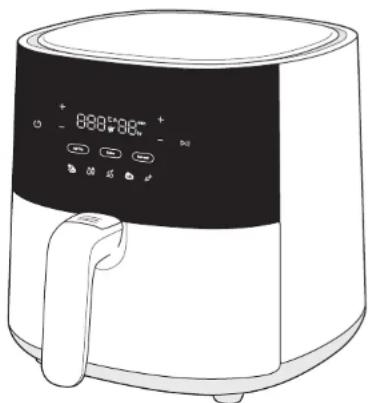

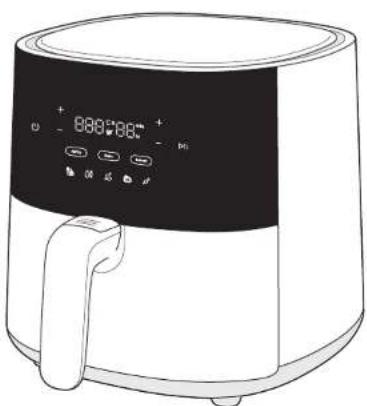

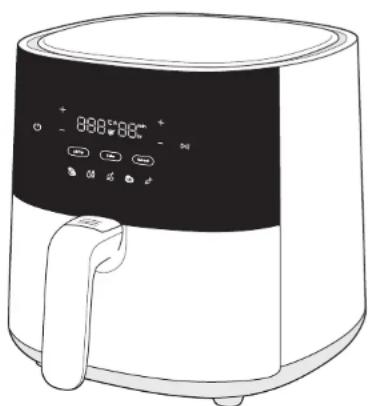

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols on the device itself)General Overview


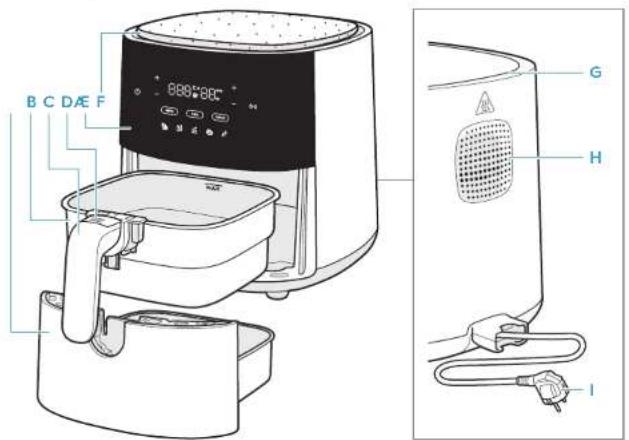

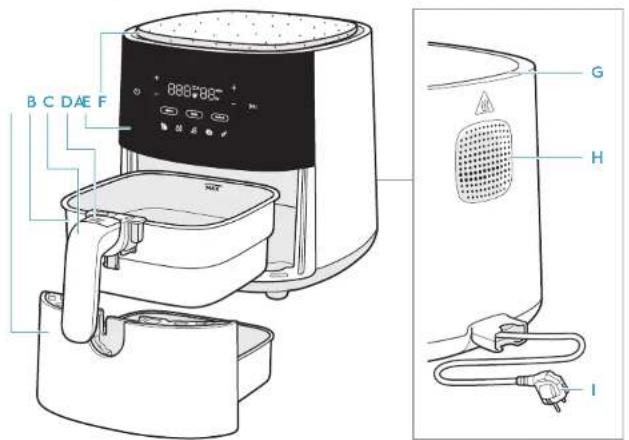

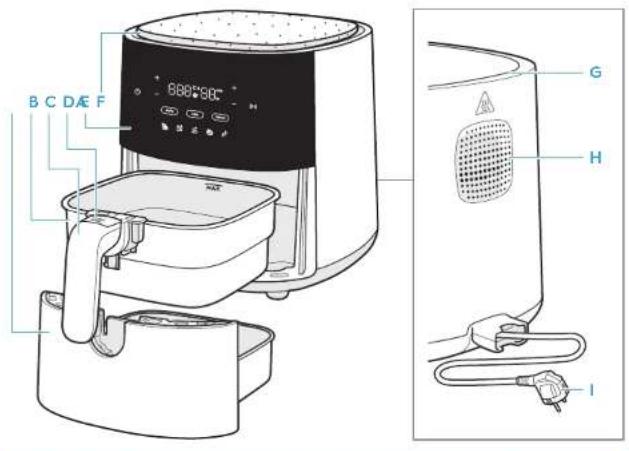

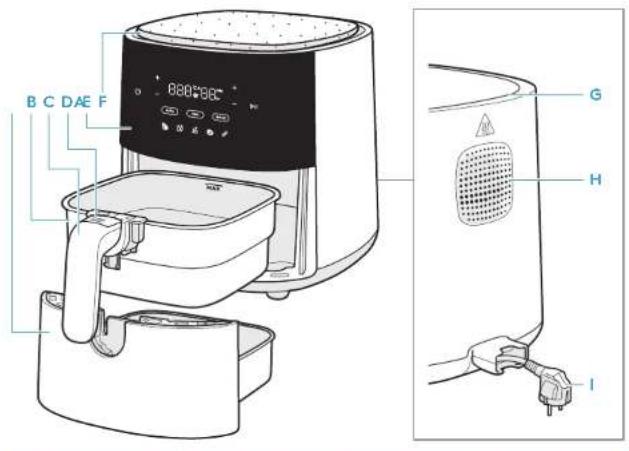

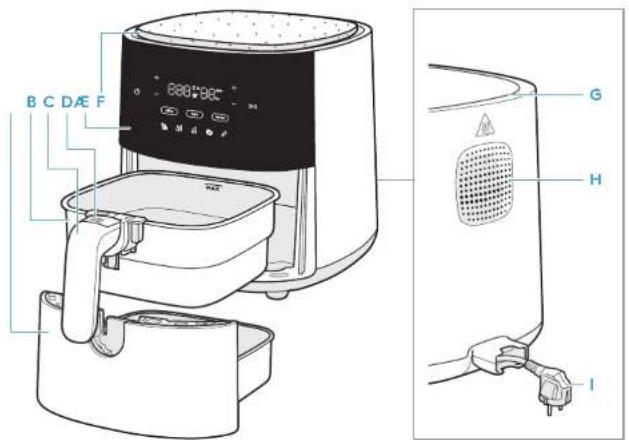

B C D E F 688°50'C G H IA Pan
D Basket release
F MultiCoaster
H Air outlet
B Basket
button
G Air inlet
1 Main cord
Accessories may very from model to model


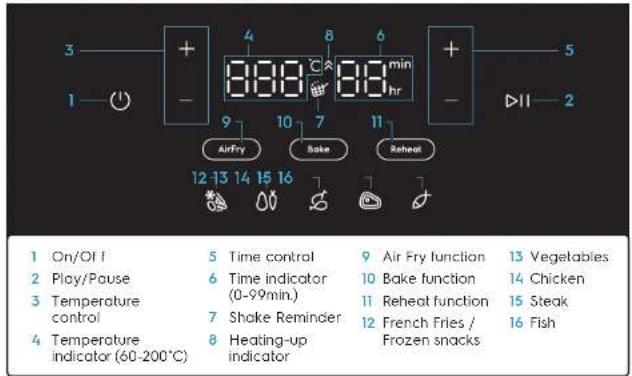

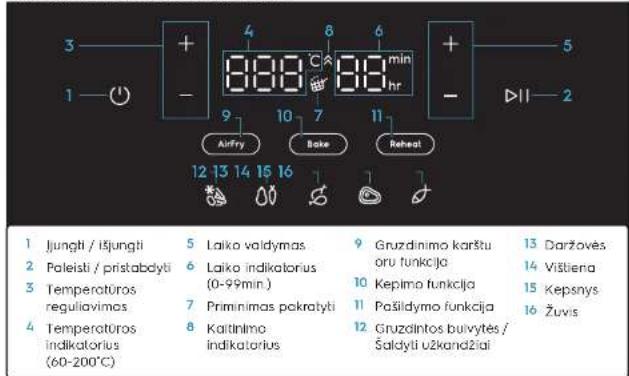

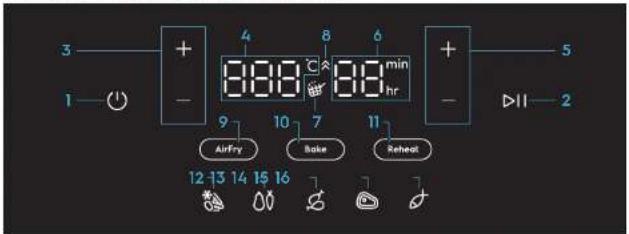

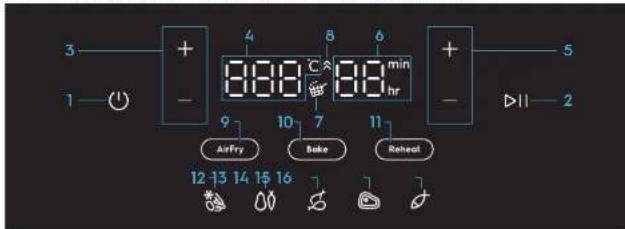

3 1 + - 888 88 min hr Air Fry Bake Reheat 12 13 14 15 16 1 On/OI I 5 Time control 9 Air Fry function 13 Vegetables 2 Play/Pause 6 Time indicator 10 Bake function 14 Chicken 3 Temperature control 7 Shake Reminder 11 Reheat function 15 Steak 4 Temperature indicator (60-200°C) 8 Heating-up indicator 12 French Fries / Frozen snacks 16 FishBefore first use


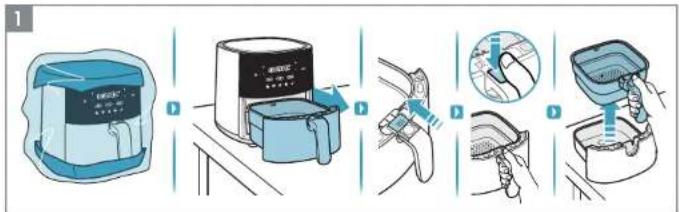

Illustration showing a series of cleaning and packaging steps for an air fryer, including washing machine, brush, and cleaning device.- Remove all the packaging and protective material.


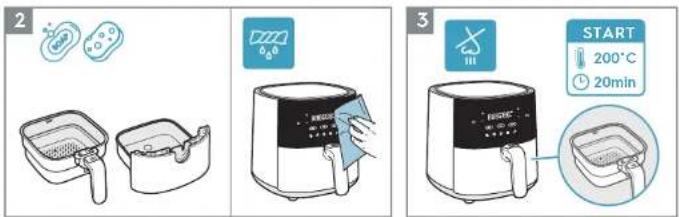

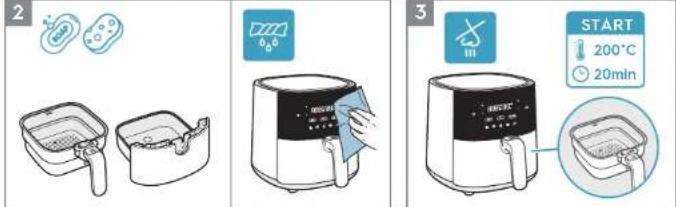

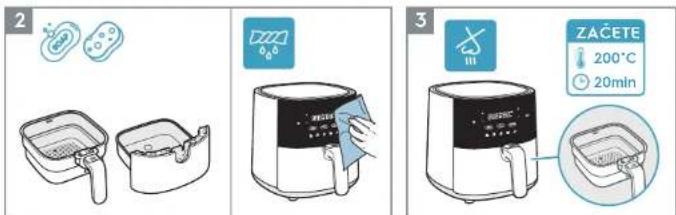

2 3 START 200°C 20min- Clean the basket and pan with warm water and dish soap. Wipe inside and outside of the appliance with a soft cloth.
- It is normal for a new unit to emit odors the first few times it is operated. Run the empty air fryer at 200°C for 20 minutes minutes before first use to avoid that.
How to use


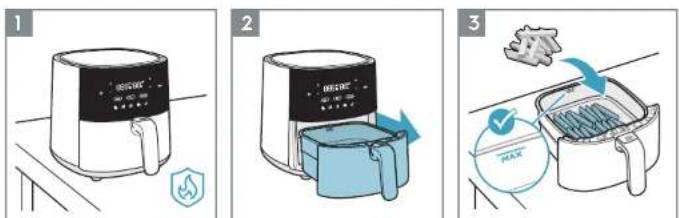

1 2 3- Place the appliance on a flat, stable and "heat-resistant" surface.
- Pull out the pan and place it on a stable surface.
- Put the food in the basket, observing the "MAX." capacity indication.
4


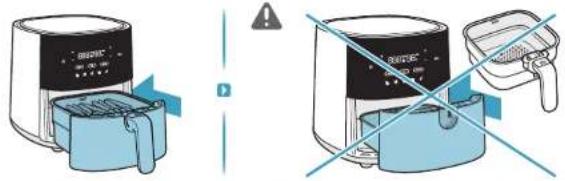

Diagram showing two types of air fryer devices with warning labels and safety symbols, indicating no protection or damage.- Push the pan with food completely back into the appliance.

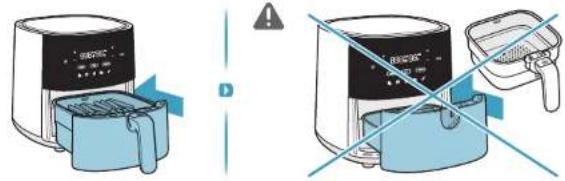

CAUTION: Do not use the appliance without the basket.

6

7

8

9

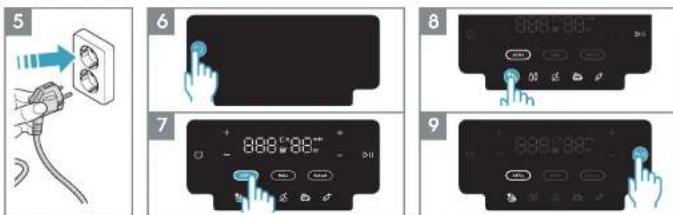

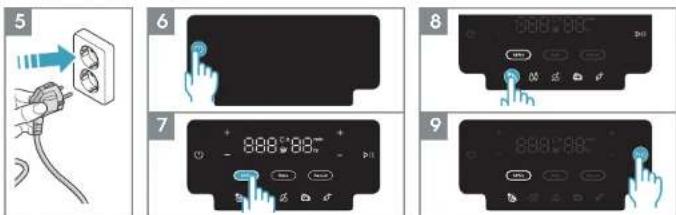

5. Plug in the appliance.
6. Press the On/Off button.
7. Select the desired cooking method. For example, Air Fry function
8. Adjust the time and temperature to your taste or select one of the pre-set recipes. For example, French Fries.
9. Press the Play/Pause button
10


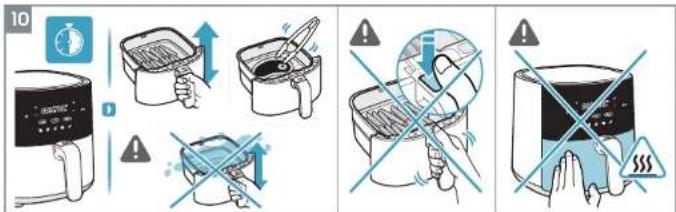

10. Depending on the type of ingredient, flip the food mid-cooking or every 7 minutes by using a heat-resistant tool or by just carefully shaking the food inside the basket. (see Cooking Guide).
CAUTION: Be careful not to press the "Basket Release Button" when shaking the food.
CAUTION: Be careful with hot surfaces when the appliance is in use.





11. At the end of the cooking time, the appliance will issue a beep signal.
12. Carefully remove the pan and place it on a heat-resistant surface.
13. To remove the basket from the pan, follow these instructions:
- Slide the transparent button cover
- Press the "Basket Release Button"
- Lift the basket from the pan
CAUTION: Hot steam can come out of the basket when it is opened mid or at the end of cooking. Make sure your face, arms and hands are away from the steam when opening it.
14

15

14. Unplug the appliance after using it.
15. The versatile MultiCoaster fits on top of the air fryer as a space-saving hotplate for the cooking basket or resting place for tools and spices when cooking. It's also removable to use at the table when serving food from the hot basket.*
*Accessories may vary from mode to model.
NOTE: Be careful with oil to avoid stains on the cork material.
Heating-up indicator

Shake Reminder
The "Heating-up indicator" is activated when the "Bake function" is selected, and it works as a pre-heat function so that the air fryer has the ideal temperature before cooking your favorite baked recipes. The timer only starts to count down once the pre-heating has finished.
If wished, you can skip the pre-heating step by tapping the "Play/Pause" button. The display will then show the target temperature, while the "Heating up indicator" icon will turn off and the timer will start to count down.
Shake Reminder
The "Shake Reminder" is activated during the pre-sets of some recipes, such as French Fries/Frozen Snacks, Vegetables and Chicken.
When it is time to shake or flip your food, the "Shake Reminder" icon will light up and blink for one minute, while a beep sound will repeat for three times.
The "Shake Reminder" is not mandatory, hence the cooking will continue as usual even if the food is not flipped or shaken.
Cooking Guide
![]() | ![]() | ![]() | [OK4C] | [3T02] | [OK6W] | [HCK6] |
![]() | 3 ![]() | 15-3 °C | ![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() | ![]() | [KXGW] | [2056] |
| 300 000g | 2v 00min | 100 ~ | ||||
![]() | 11 [W470] | 10-2 °C | ![]() | ![]() | ![]() | [470H] |
| [000C] | 10 ![]() | 10mi [DBY5] | ![]() | ![]() | [A2GB] | |
| [67W6] | 11 ![]() | 10mi ![]() | ![]() | [HC20] | ![]() | |
![]() | 11 ![]() | 10-3 °C | ![]() | ![]() | ![]() | |
![]() | 11 ![]() | 1 ![]() | ![]() | ![]() | ![]() | |
![]() | 81 [430K] | 9 45- °C | [HXX4] | [78C0] | ![]() | |
![]() | 11 ![]() | 10-1: °C | ![]() | ![]() | ![]() | |
![]() | 11 ![]() | 10mi ![]() | ![]() | ![]() | ![]() | |
![]() | ![]() | 70°C |
Cleaning


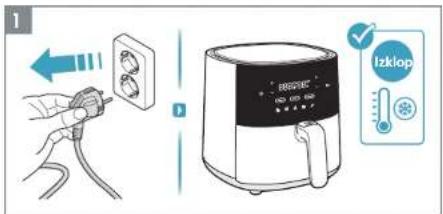

1 OFF- Always unplug the appliance and wait until it cools down before cleaning it.
- Wipe the outside of the appliance with a soft cloth.


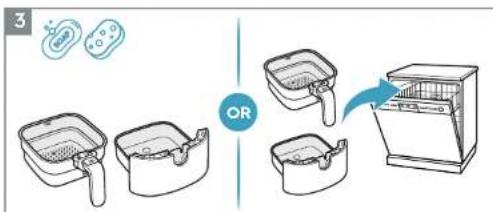

3 OR- Clean the basket and pan with warm water and dish soap, or place them in the dishwasher
NOTE: Avoid using abrasive cleaning products or metal tools in order to protect the non-stick coating.
CAUTION: Never submerge the product, its cord or plug in water or any other liquid.


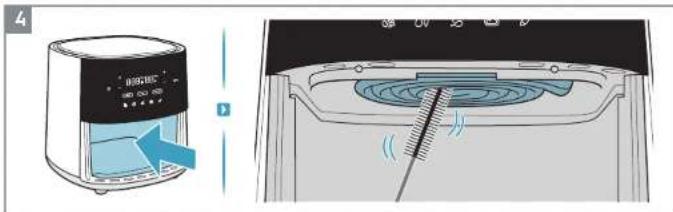

Diagram showing a hairdryer with a blue arrow indicating the interior and a close-up of its interior with a thermometer measuring the liquid level.- Clean the heating element with a cleaning brush
NOTE: Ensure the appliance is completely cooled down before cleaning the heating element.
What to do if...
| Problem | Check if... |
| You cannot activate or operate the appliance. | The appliance is correctly connected to an electrical supply.The basket and pan are in the correct position.Ensure they are completely pushed into the appliance to enable the electrical supply.The cooking time is set. |
| You cannot slide the pan into the appliance. | The basket is filled over its maximum capacity.The basket is placed correctly. It has to click when you place it in the pan.There's an object under the pan that is an obstacle to close it properly. |
| White smoke comes out of the appliance. | The food you prepare is too greasy.The pan and the basket are clean. |
| The display shows E1 | The temperature sensor is cutting out or disconnecting. |
| The display shows E2 | The temperature sensor has short-circuited. |
* In case the display shows E1 or E2 error, the appliance must be repaired by a Service Center.
Technical Data
| Product | Air Fryer | ||
| Model | EAF3B, EAF3CG | EAF5B, EAF5CG | EAF7B, EAF7CG |
| Voltage (V-) | 220 V - 240 V | 220 V - 240 V | 220 V - 240 V |
| Power (W) | 1350 W | 1500 W | 1800 W |
| Frequency (Hz) | 50 - 60 Hz | 50 - 60 Hz | 50 - 60 Hz |
| Capacity | 3.3 L | 5 L | 6.8 L |

Electrolux
Safety advice
EAF3B, EAF3CG, EAF5B,
EAF5CG, EAF7B, EAF7CG
Air Fryer
EN USER MANUAL
HR ZA KORISNIKE
CZ NÁVOD K POUŽITÍ
DK BRUGSANVISNING
EE KASUTUSJUHEND
FI KÄYTTÖOHJE
FR NOTICE D'UTILISATION
GE
HU HASZNÁLATI ÚTMUTATÓ
IT LIBRETTO DI ISTRUZIONI
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instruction concerning how to safely use the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.
Please keep the air fryer and the power cord out of the reach of children less than 5 years.
This appliance is intended for normal household use only.
If the power cord is damaged or broken, it must be replaced by a service agent or similarly qualified persons to avoid safety hazards.
The accessible surfaces may become hot during use.
Do not cover the air inlet and the air outlet openings while the appliance is operating.
Always return the appliance to an authorized service center for examination or repair. Do not attempt to repair the appliance yourself.
Do not place the appliance on or near a hot gas stove, any kind of electric stove, electric cooking plates or in a heated oven.
Always make sure that the plug is inserted into the socket properly.
Keep the mains cord away from hot surfaces or sharp objects to avoid damage.
Never put anything flammable, explosive or corrosive in the basket.
Do not excessively pinch, bend, twist or place heavy objects on the power cord to prevent from exposing or breaking its core.
Do not use the appliance if the plug, the main cord or the appliance itself is damaged.
Never start cooking without the basket being in place.
Do not fill up the basket above the "MAX" line in order to prevent food contact with the heating element.
Do not touch the basket directly with your hands during or right after use to avoid getting scalded.
Do not use any plastic utensils or normal paper wrapping materials to wrap food for cooking.
Do not insert pins, wires or other objects into any of the openings of the air fryer to avoid an electrical shock or injury.
Please be sure to unplug the air fryer before cleaning or repairing it.
Do not move or shake the air fryer during use.
Do not insert any foreign objects into the safety switch to avoid any danger.
CAUTION: Hot surfaces.

ENVIRONMENTAL CONCERNS
Recycle materials with the symbol 📋. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances.
Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
Electrolux reserves the right to change products, information and specifications without notice.
WE'RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.
Welcome to Electrolux.
Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
When contacting the service center, ensure that you have following data available. The information can be found on the rating plate.
Where should you take your old equipment?
Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms.
The list of official SENS collection points can be found at www.erecycling.chseconds
