Create 5 E5AF1-4GB - Deep fryer ELECTROLUX - Free user manual and instructions

Model	Create 5 E5AF1-4GB
Brand	Electrolux
Product Type	Air Fryer
Control Type	Manual knobs (timer and temperature)
Timer Range	0 - 60 minutes
Temperature Range	80 - 200°C
Indicator Lights	Power-on light and heating-up light
Basket Release Button	Yes
Basket Handle	Yes
Pan Included	Yes
Air Inlet and Outlet	Yes
Cooking Hints	Chart with recommended quantities, times and temperatures for various foods
Safety Features	Child safety (8+ years), cord replacement by qualified person, no external timer, max fill line, no metal tools, no water for steam, brush for heating element
Cleaning	Clean heating element with a brush; removable pan and basket for washing
Usage	For frying food in the air stream
Environmental	Recyclable packaging; do not dispose with household waste
Languages	Multiple languages available in manual (see list on page)
Manual Format	PDF, downloadable, 27 pages

Frequently Asked Questions - Create 5 E5AF1-4GB ELECTROLUX

How do I set the timer on the Electrolux Create 5 air fryer?

Turn the timer knob (G) to the desired time between 0 and 60 minutes. The appliance will start heating and the power-on light (F) will illuminate.

What is the maximum temperature the air fryer can reach?

The maximum temperature is 200°C, controlled by the temperature control knob (H) which adjusts from 80°C to 200°C.

How should I clean the air fryer?

Clean the heating element with a cleaning brush. The pan and basket are removable and can be washed with warm soapy water. Do not use metal tools.

Can I use metal utensils in the basket?

No, avoid using metal tools when manipulating food in the basket to prevent damaging the non-stick coating.

Is it safe for children to use this air fryer?

This appliance can be used by children aged 8 and above with supervision. Children under 8 must be kept away from the appliance and its cord.

How do I release the basket from the pan?

Press the basket release button (D) to detach the basket from the pan for easy emptying and cleaning.

Can I add water to the pan to create steam?

No, do not fill the pan with water to create steam as it may damage the appliance.

What does the heating-up light indicate?

The heating-up light (E) illuminates when the heating element is active. It cycles on and off to maintain the set temperature.

What is the maximum fill level for the basket?

Do not fill the basket above the "MAX" line to prevent food from contacting the heating element and ensure proper cooking.

Where can I download the user manual for this air fryer?

You can download the manual in PDF format from the Electrolux website or from notice-facile.com using the model number Create 5 E5AF1-4GB.

USER MANUAL Create 5 E5AF1-4GB ELECTROLUX

Line drawing of a modern air fryer with control panel and side door (no text or symbols)

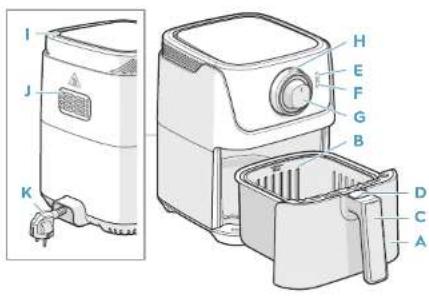

General Overview

A Pan
B Basket
C Basket handle
D Basket release
button
E Heating-up light
F Power-on light
G Timer (0-60min.)
H. Temperature control
knob (80-200°C)
Air inlet
Air outlet
K Main cord

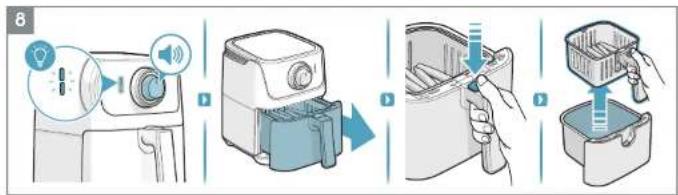

How to use

Cooking Hints

		[CYZS]	Overall	Overall	Overall	Overall
	300-700g 10-20min 180°C
	300-800g 15min 180°C
	100-400g 10-20min 170°C
	100-400g 10min 200°C
	100-400g 10min 200°C
	100-500g 20 min 180°C
	800-1000g 45-60min 180°C
	200-500g 10 min 140°C
	100-400g 6-10min 180°C
	150-300g	10-15min	180°C

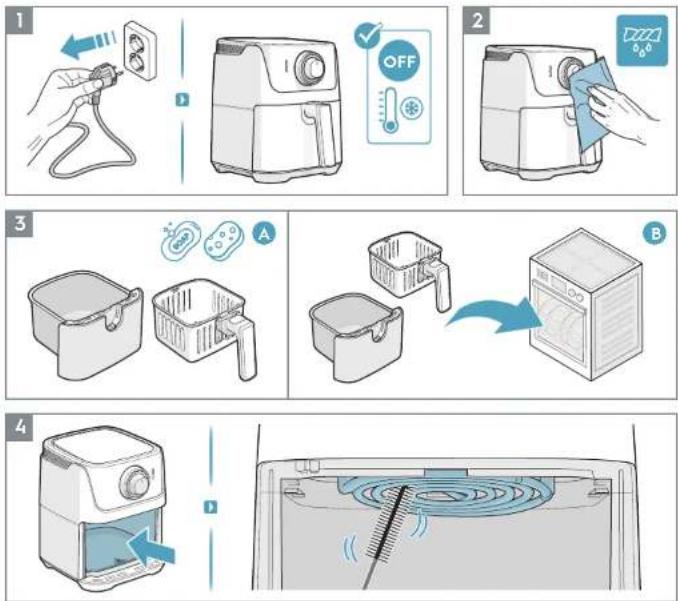

Cleaning

SAFETY INFORMATION	EN
BEZPEČNOSTNÍ INFORMACE	CS
SIKKERHEDSINFORMATION	DA
SICHERHEITSINFORMATIONEN	DE
OHUTUSINFO	ET
TURVALLISUUSOHJEET	FI
INFORMATIONS DE SÉCURITÉ	FR
INFORMACIJE O SIGURNOSTI	HR
BIZTONSÁGI TUDNIVALÓK	HU
INFORMAZIONI PER LA SICUREZZA	IT
DROŠĪBAS INFORMĀCIJA	LV
SAUGOS INFORMACIJA	LT
SIKKERHETSINFORMASJON	NO
INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA	PL
INFORMATII PRIVIND SIGURANȚA	RO
Мультипечь-Инструкция по эксплуатации	RU
ИНФОРМАЦИJE О БЕЗБЕДНОСТИ	SR
BEZPEČNOSTNĘ INFORMĀCIE	SK
VARNOSTNE INFORMACIJE	SL
SÄKERHETSINFORMATION	SV
GÜVENLIK BILGILERI	TR
ИНФОРМАЦІЯ ПРО БЕЗПЕКУ	UK
معلومات الأمان	AR

⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

• This appliance is designed for frying food in the air stream.
• This appliance can be used by children aged from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational

status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• Do not fill up the basket above the "MAX" line in order to prevent food contact with the heating element.
• Avoid using metal tools when manipulating the food in the basket.
• Do not fill up the pan with water in order to create steam.
• Clean the heating element with a cleaning brush.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📊. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

⚠ BEZPEČNOSTNÍ INFORMACE

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

- Model Number

- PNC number

- Serial number

The information can be found on the rating plate.
