Product Type	Subwoofer
Brand	Alpine
Model	S2-W12D4
Size	12 inches (30.5 cm)
Impedance	Dual 4 Ω + 4 Ω voice coil
Frequency Response	23 Hz - 215 Hz
RMS Power Handling	600 W
Peak Power	1800 W
Sensitivity (1W/1m)	86.2 dB
Voice Coil Diameter	65.5 mm (2.6 in)
Magnet Weight	64 oz (1.81 kg)
Resonant Frequency (Fs)	28.8 Hz
Equivalent Volume (Vas)	51.5 L
Qts	0.44
Linear Excursion (Xmax)	40 mm (one-way)
Mechanical Excursion (Xmech)	64 mm (peak-to-peak)
Cone Area (Sd)	472 cm²
Recommended Enclosure Type	Sealed or Ported
Net Volume - Sealed Enclosure	0.55 - 1.0 ft³ (15.6 - 28.3 L)
Net Volume - Ported Enclosure	1.0 - 1.5 ft³ (28.3 - 42.5 L)
Warranty	1 year (parts and labor)
Application	Automotive

Frequently Asked Questions - S2-W12D4 ALPINE

How to wire the Alpine S2-W12D4 subwoofer?

The S2-W12D4 has two 4 Ω voice coils. You can wire them in series for 8 Ω, or in parallel for 2 Ω. Consult your amplifier's manual to choose the appropriate impedance. Wiring to 1 Ω is not recommended without prior verification.

What type of enclosure should I choose for this subwoofer?

This subwoofer can be used in a sealed or ported enclosure. For a sealed enclosure, the recommended net volume is 0.55 to 1.0 ft³ (15.6-28.3 L). For a ported enclosure, the net volume is 1.0 to 1.5 ft³ (28.3-42.5 L) with a tuning of 32-37 Hz.

What amplifier power is recommended?

The power range is 250 to 600 W RMS. It is advisable to use an amplifier delivering at least 300 W RMS at the final load impedance to fully utilize the subwoofer without risk of clipping.

How to adjust the amplifier gain to avoid damaging the subwoofer?

Use a low-distortion test signal and gradually increase the gain until you hear distortion, then reduce slightly. Never exceed the maximum RMS power. Excessive clipping can damage the voice coil.

Can I use the S2-W12D4 in a sealed enclosure?

Yes, absolutely. Alpine provides recommendations for a sealed enclosure with a net volume of 0.79 ft³ (22.4 L) and external dimensions of 14"x14"x11". This gives an F3 of approximately 42 Hz with a Qtc of 0.91.

What is the difference between the D2 and D4 versions?

The D2 version has 2+2 Ω voice coils, while the D4 has 4+4 Ω voice coils. This affects wiring options: the D2 can be wired in series for 4 Ω or parallel for 1 Ω, whereas the D4 gives 8 Ω in series or 2 Ω in parallel.

How to maintain my Alpine subwoofer?

Clean dust from the cone regularly with a soft, dry cloth. Avoid moisture and extreme temperatures. Check connections to prevent corrosion. Do not touch the membrane with sharp objects.

What to do if the sound is distorted?

Immediately reduce the volume. Distortion is often due to excessive gain or insufficient amplifier power. Also check that the enclosure is properly sized and the wiring is correct.

Is this subwoofer suitable for outdoor or marine use?

No, this product is designed for indoor automotive use only. It is not waterproof or weather-resistant. Exposure to moisture can damage the voice coil and magnet.

Where can I find the complete user manual?

The user manual is available for free download on notice-facile.com in PDF format. You can also ask questions and consult detailed specifications there.

USER MANUAL S2-W12D4 ALPINE

S2-SERIES SUBWOOFER HAUT-PARLEUR D'EXTRÉMES GRAVES S-SERIES APPLICATION GUIDE GUIDE D'APPLICATION

S2-W12D4

Note: Specifications subject to change without notice.

APPLICATION DIAGRAMS

Example 1 One Amplifier + One Subwoofer

Example 3 Two Amplifiers + One Subwoofer

Example 5 One Amplifier + Two Subwoofer

JUMPER/CAVALIER

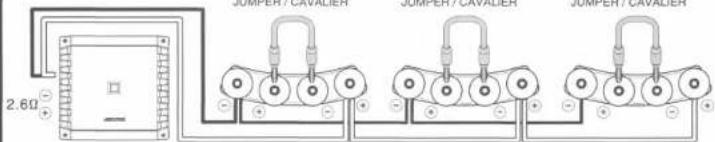

Example 7 One Amplifier + Three Subwoofer

20+20

82-WB04 82-W1004/S2-W1204 82-WB03/82-W1003/82-W1203

Example 2 One Amplifier + One Subwoofer

Notes:
1) Recommended enclosure net Internal volume is based upon 3/4" (19mm) MDF enclosure construction.
2) Consult the table below for alternative enclosure net internal volume calculation.

Front Mount Displacement* (magnet in)	-0.03ft³	-0.05ft³	-0.06ft³
Reverse Mount Added Volume* (magnet out)	+0.03ft³	+0.05ft³	+0.07ft³

*Based upon 3/4" (19mm) baffle thickness, with opening cut approximately to gasket inner diameter

		S2-W8D2/D4	S2-W10D2/D4	S2-W12D2/D4
Gamme Box Sealed	Net volume interne	0.15-0.50 pi³	0.4-0.85 pi³	0.55-1.0 pi³
Recommended Boîte Scellé	Dimensions extérieures	13 po x13 po x5.5 po	12 po x12 po x10.5 po	14 po x14 po x11 po
	Volume intéieur brut	0.30 pi³	0.58 pi³	0.85 pi³
	Volume intéieur Net ***	0.27 pi³	0.53 pi³	0.79 pi³
	F3, Qtc	D2: 61 Hz, 0.72 D4: 57 Hz, 0.78	D2: 47 Hz, 0.73 D4: 48 Hz, 0.77	D2: 41 Hz, 0.88 D4: 42 Hz, 0.91
Gamme charge bass-reflex	Volume net interne	0.35-0.70 pi³	0.75-1.3 pi³	1.0-1.5 pi³
	mise au point	36-40Hz	35-39Hz	32-37Hz
Recommended charge bass-reflex	Dimensions extérieures	11 po x8.5 po x20po	23 po x12 po x11.5 po	23 po x12.5 po x14 po
	Volume intéieur brut	0.71 pi³	1.3 pi³	1.71 pi³
	Aire de l'event (dimensions)	5.25in² (7 po x 0.75 po)	10in² (10 po x 1 po)	12.5in² (12.5 po x 1po)
	Longueur de l'event	15.5 po	17 po	16 po
	déplacement de l'event	0.10 pi³	0.17 pi³	0.20 pi³
	Volume intéieur Net (Vb)***	0.58 pi³	1.08 pi³	1.45 pi³
	F3, créé, Fb	D2: 31Hz, 1.1dB, 37Hz D4: 31Hz, 1.6dB, 37Hz	D2: 29Hz, 2.9dB, 35Hz D4: 29Hz, 2.3dB, 35Hz	D2: 30Hz, 3.3dB, 34Hz D4: 30Hz, 4.1dB, 34Hz
