KTX-H12 - Subwoofer ALPINE - Free user manual and instructions

Product Type	Subwoofer
Brand	Alpine
Model	KTX-H12
Size	12 inches
Peak Power Handling	1000 watts
RMS Power Handling	300 watts
Impedance	4 ohms (single voice coil)
Sensitivity	86 dB (1W/1m)
Frequency Response	20 - 200 Hz
Cone Material	Kevlar reinforced paper
Surround	High-excursion rubber
Voice Coil	2-inch high-temperature
Magnet	Ferrite
Mounting Depth	6.25 inches
Mounting Diameter	11.1875 inches
Weight	13.2 lbs
Recommended Enclosure	Sealed or ported
Sealed Box Volume	1.0 cubic foot
Ported Box Volume	1.5 cubic feet
Port Diameter	4 inches
Features	High power handling, low distortion, long excursion
Cleaning	Wipe with dry cloth; avoid solvents and water
Safety	Keep away from moisture; ensure proper ventilation
Spare Parts	Not user-serviceable; contact Alpine support
Reparability	Professional service only

Frequently Asked Questions - KTX-H12 ALPINE

How do I wire the Alpine KTX-H12 subwoofer?

The KTX-H12 has a single 4-ohm voice coil. Connect the positive terminal to the amplifier's positive output and the negative terminal to the amplifier's negative output. Ensure the amplifier is stable at 4 ohms.

What is the recommended enclosure size for this subwoofer?

For a sealed enclosure, use 1.0 cubic foot. For a ported enclosure, use 1.5 cubic feet with a 4-inch port. Always check the manual for exact specifications.

What is the RMS power handling of the KTX-H12?

The RMS power handling is 300 watts. It can handle up to 1000 watts peak. Match your amplifier's RMS output to 300 watts for best performance.

Can I use this subwoofer in a car?

Yes, the Alpine KTX-H12 is designed for car audio use. It works well in both sealed and ported enclosures. Ensure proper mounting and ventilation.

How do I break in the subwoofer?

Play the subwoofer at low volume (about 25% of RMS power) for 20-30 hours. This loosens the suspension and improves sound quality. Avoid high power during break-in.

What is the impedance of the KTX-H12?

The impedance is 4 ohms (single voice coil). It is not a dual voice coil model. Connect to a 4-ohm stable amplifier.

Is this a dual voice coil subwoofer?

No, the Alpine KTX-H12 has a single 4-ohm voice coil. For dual voice coil options, see other Alpine models like the Type-R series.

How should I clean the subwoofer?

Wipe the cone and surround with a dry, soft cloth. Do not use water, solvents, or cleaners. Keep the subwoofer dry to prevent damage.

What is the mounting depth of this subwoofer?

The mounting depth is 6.25 inches (159 mm). Ensure your enclosure has enough internal depth to accommodate it, including clearance for the magnet.

Does the KTX-H12 come with a grille?

No, the subwoofer does not include a grille. You can purchase an aftermarket grille for protection. Ensure it does not obstruct the cone movement.

USER MANUAL KTX-H12 ALPINE

IMPORTANT NOTICE! PLEASE READ FIRST BEFORE INSTALLING LINK KIT

Congratulations on your purchase from Alpine. Your listening satisfaction is important to us. In order to ensure proper installation of your new enclosure the following guidelines are being provided. Please read this notice carefully before installing the link kit or remounting the subwoofer.

1.) When installing your linking kit follow the steps provided in the instruction manual.

2.) Avoid over tightening screws

• If remounting a subwoofer or installing a linking kit start each provided machine screw thread by hand with the included hex key wrench.
• Once each screw is started use a drill torque setting of low to fasten.

3.) Do not use an Impact Driver Drill for hardware Installation.
4.) If using the KTE-10G, or KTE-12G Grille Kit do not use the supplied wood screws, instead use the 40mm machine screws pre-installed with the enclosure.
5.) Each Enclosure is wired to a 2 Ohm Load, if enclosures are wired in parallel check that your amplifier is 1 Ohm Stable.

Failure to follow these guidelines may result in enclosure damage which will void your warranty.

If further assistance is necessary, please contact your Alpine authorized dealer.

Symbol of a disassembled electric drill inside a circle, no text or labels present

Illustration of a hand using a flip phone to press the keyboard (no text or symbols visible)

KTX-H12 & KTX-H10 Linking Kit Installation Manual Compatible with the following models: R-SB12V, R-SB10V, S-SB12V, S-SB10V

Introduction

Congratulations on purchasing the KTX-H12 or H10. This installation manual is designed to take you through the step-by-step installation of the linking your 'R' or 'S' Series Halo Enclosures Together. Please familiarize yourself with the owners manual and if you still have additional questions please call 1-800-TECH-101.

Note: To ensure safe use, Always follow these precautions.

The installation of this product requires specialized skills and experience. We recommend that you have the product installed by an Alpine authorized dealer.

Before you use this product, be sure to carefully read this installation manual so that you can use the product correctly, Failing to do so could lead to damaged equipment or an accident. Alpine Electronics bears no responsibility for problems that arise as a result of failure to follow the instructions in the manual.

● Make sure enclosure is secured to the vehicle. Failing to do so can lead to electric shock, injury or damage to equipment.
- When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank, electrical wiring, and the like. This kind of damage could lead to an accident or fire.
- Do not install the product where it may be exposed to water or in a place with high levels of humidity or dust. Doing so could lead to fire or damaged equipment.
- Start all screw threads by hand and avoid overtourqing screws, failure to do so may damage your equipment.
- If using the KTE-10G, or KTE-12G Grille Kit do not use the supplied wood screws, instead use the 40mm machine screws pre-installed with the enclosure.

Tools Required

Hex Key Driver (Included) Power Drill with a Low Torque Setting (Optional)

Accessory List

Front Port Link (1 Pc) Front Port Brace (2 Pcs)

Front Port Link M5X25 Hardware Screws (4Pcs)

Rear Link M5X14 Hardware Screws (8 Pcs)

Center Alignment Hardware (4 Pcs) Rear Link Plate (1 Pcs)

KTX-H12 12", KTX-H10 10" Enclosure Link Instruction

1 By hand tighten (2) threaded center alignment dowels into each enclosure. (4 Total)

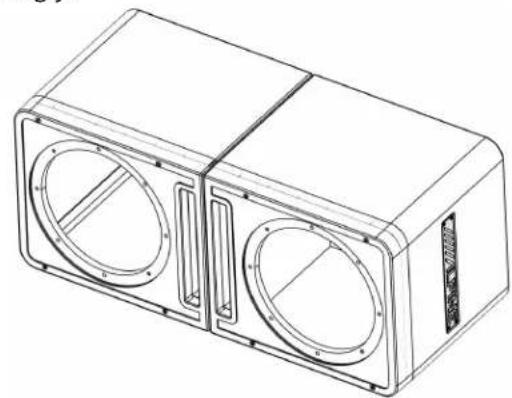

2 Slide both enclosures together nesting the center alignment dowels into the opposing enclosure snugly.

Technical line drawing of a rectangular electronic device with two circular cutouts and mounting brackets (no text or symbols)

3 On the rear of the combined boxes align the rear linking bracket to sit flush into the recessed area.

4 Take (8) M5 14mm screws and carefully start threads by hand tightening the steel plate into place with the included hex key wrench.

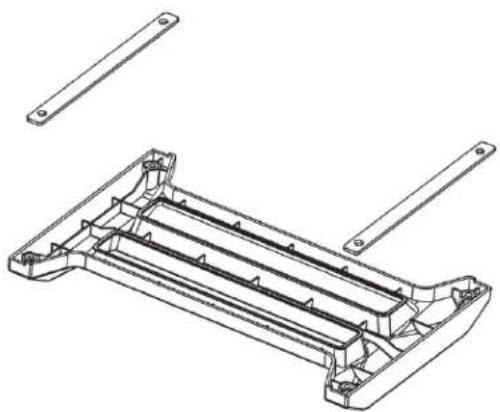

5 Place the two steel connection plates into the top and bottom channels on the rear of the front port cover.

6 Remove the (4) 20mm M5 Port Hex Screws. (Set them some place safe you will not need them unless unlinking your enclosures)

Technical line drawing of a mechanical housing component with mounting brackets (no text or symbols)

KTX-H12 12", KTX-H10 10" Enclosure Link Instruction (continued)

7 Align the braced front port cover to the four empty screw holes around the perimeter of each port

8 Locate the (4) M5 Screws 25mm you just removed, and hand tighten screws into the threaded holes with the included hex key wrench.

9 With two people carefully lift and load enclosure into your vehicle.

Two stylized human figures holding a device with circular components, no text or symbols present
