OWNER'S MANUAL

CONVECTION HEATER

MODEL: NDK20-21AF

This product is only suitable for well insulated spaces or occasional use.

READ AND SAVE THESE INSTRUCTIONS

Attention: Pictures in the IM are for reference only.

1. Warning: In order to avoid overheating, do not cover the heater.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4. The heater must not be located immediately below a socket -outlet.
5. Only used as portable appliance. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
6. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. This heater cannot achieve accurate temperature control of the environment, and thus cannot be used as insulation device for storage environment, items, animals and plants.

IMPORTANT SAFEGUARDS

1. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
2. Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARNING: IN ORDER TO AVOID OVERHEATING, DO NOT COVER THE HEATER.

IMPORTANT SAFEGUARDS

CAUTION

1. Never use the unit in places where are not even or unstable.
2. Do not insert and pull out the plug with wet hand, as this may cause electrical shock, power supply capacity should be enough.
3. The heater must only be used in the upright position. Never use when the unit is fallen over.
4. The unit should be far away from the object flammable or easy deform during uses.
5. Do not allow smashing the surface with rod or sharp hard tools, as this may cause deform and get rusty because of damage of paint coat.
6. Unit surface temperature of the flanges is high, thus do not touch it except handle, knobs.
7. Don't heat wet clothing etc. on the surface of the control chamber, as this may cause undue move of the thermostat.

WARNING

1. The surface temperature of the flanges is high, during use, thus closely supervise any children in the area of this appliance.
2. Do not use on a wet place to prevent electrical shock.
3. Do not use out of the house.
4. If malfunctions happen during operation please put it to nearby appointed service center with the maintenance card. Never disassemble it by yourself.
5. Be sure to pull out the plug from an outlet when not in use and before cleaning.
6. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
7. To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

IMPORTANT SAFEGUARDS

1. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
2. Do not use this heater if it has been dropped.
3. Do not use if there are visible signs of damage to the heater.
4. Use this heater on a horizontal and stable surface, or fix it to the wall, as applicable.

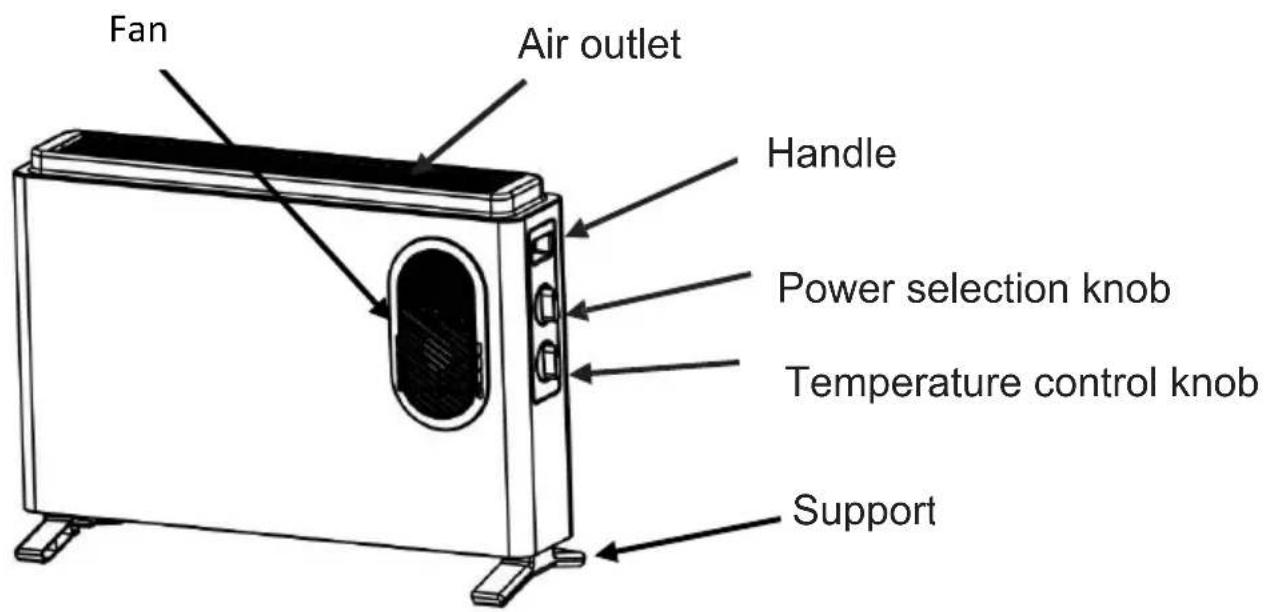

Fan Air outlet Handle Power selection knob Temperature control knob Support

INSTRUCTIONS FOR USE

Support installation

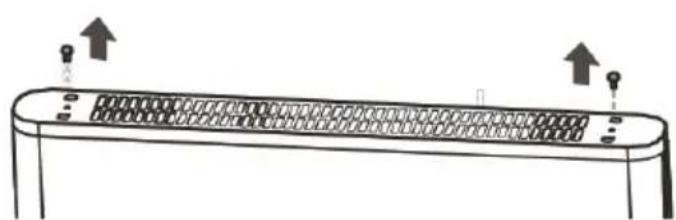

1. According to fig.1, turn the body down with the bottom upward, and the screw out onboard screws.
2. According to fig.2, remove the supports. Aim the buckle on the support at the hole, push the supporting foot until the holes on support coincides with the screw hole on the machine.
3. Penetrate the removed screws through the support holes and tighten in the machine table.
4. After the installation is completed, turn the body upward for use.

Support installation diagram

Diagram of a computer monitor with two indicator lights and a grid of buttons, no text or symbols present

Figure 1

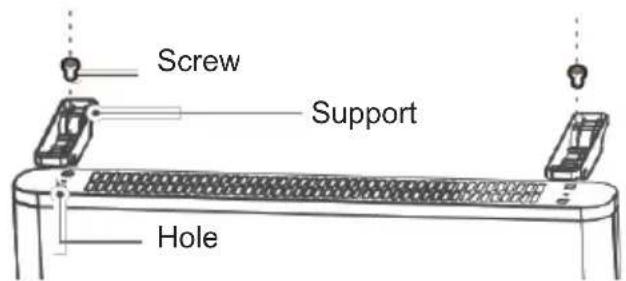

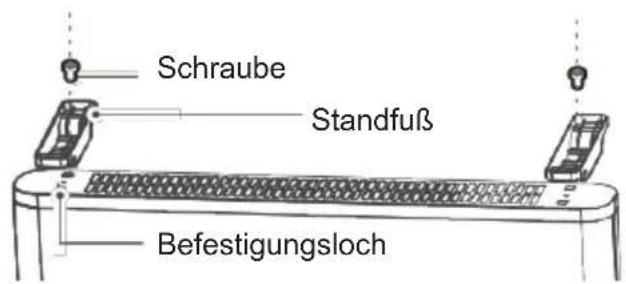

Screw Support Hole

Figure 2

- Check before turning on the machine

1. Check if the power wire is under good condition.
2. The product adopts 220V\~240V 50Hz AC power supply, before use, please confirm if the rated current of the power socket meets the local requirements, otherwise, please replace it with the qualified socket.

- Put the machine on the flat place

Please put the heater on the flat place, at least the surface below the base of the heater must be flat.

• Temperature Control Knob

Insert the plug into the power socket, then turn the Temperature Control knob clockwise, when hearing the “popping” sound (it means the temperature controller is on), adjust the Temperature Control knob to the desired temperature level.

• Power Selection Knob

Turn the Power selection knob to select between 5 functions: II 2000W (High+Fan on), I 1200W (Low+Fan on), O(Off), I 1200W (Low+Fan off), I 2000W (High+Fan off).

- Turn off the Heater

A. Turn the Power selection knob to OFF position.
B. Turn the Temperature Control knob anticlockwise to the initial position.
C. Remove the power plug, store the heater after the entire machine has become cool.

- Safety Protection

1. Overheat protection: This heater includes an Overheat Protection System that shuts the unit off if it overheats due to abnormal conditions. If this occurs turn the heater "OFF", unplug it, and inspect and remove any objects on or adjacent to the heater. Allow it to cool for a few minutes, plug it back in, and resume normal operation.

TECHNICAL PARAMETERS

Product model	Selectable power(W) Rated					voltage (V)	Frequency (Hz)	Socket load current (A)
	Off	Low +Fan off	High +Fan off	Low +Fan on	High +Fan on
NDK20-21AF	0	1200	2000 1	200 2	000	220-240	50	10

* All performance parameters in the table above were measured before delivery and are for reference only.

SAFETY CONTROL

Your heater is fitted with a safety device that switches off the heater by thermal cut-off in the event of overheating or malfunction, It will reset when the appliance cool down. If overheating or malfunctions continue, return the heater to an Approved Service Agent for examination.

ADDITIONAL FEATURES

This heater has additional features:

- Convenient Carry Handle – allows for easy transport from room to room.

TROUBLESHOOTING

If your heater fails to operate, please follow these instructions:

• Ensure that your circuit breaker or fuse is working properly.
• Be sure the heater is plugged in and that the electrical outlet is working properly.
• Check for any obstruction. If you find any obstruction, turn the heater "OFF". Unplug the heater and wait a few minutes for it to cool down. Carefully remove the obstruction. Plug the heater in and turn it on again by referring to the OPERATING INSTRUCTIONS.

NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOUR HEATER, PLEASE SEE THE WARRANTY

INFORMATION FOR INSTRUCTIONS. PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE HEATER YOURSELF. DOING SO MAY VOID THE WARRANTY AND COULD CAUSE DAMAGE OR PERSONAL INJURY. IF THE PROBLEM STILL PERSISTS, PLEASE CONTACT US BY REFERRING TO THE SERVICE & SUPPORT INFORMATION ON THE FOLLOWING PAGE.

CLEANING AND STORAGE

It is recommended that the heater be cleaned at least one time during the operating season in order to provide the optimum level of performance. ALWAYS TURN THE POWER SWITCH OFF AND UNPLUG THE HEATER BEFORE CLEANING. Be sure to save the box for off-season storage.

• Turn the heater "OFF", unplug it and wait for the heater to cool down.
• Use a dry cloth to clean only external surfaces of the heater.
• Do not use any cleaning agents or detergents.
• Never immerse the heater in water.
• Pack the heater in the original carton and store it in a cool and dry place.
• Avoid bruising or scratching products to avoid surface coating damage and rust.

Table for information requirements for electric local space heaters					P
Model identifier(s): NDK20-21AF
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2.0	kW	Manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	Pmin	1.2	kW	Manual heat charge control with room and/or outdoor	[no]
Maximum continuous heat output	Pmax	2.0	kW	Electronic heat charge control with room and/or outdoor	[no]
Auxiliary electricity consumption				Fan assisted heat output	[no]
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	Single stage heat output and no room temperature control	[no]
In standby mode	eISB	N/A	W	Two or more manual stages, no room temperature control	[no]
				With mechanic thermostat room temperature control	[yes]
				With electronic room temperature control	[no]
				Electronic room temperature control plus day timer	[no]
				Electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible) No
				Room temperature control, with presence detection	[no]
				Room temperature control, with open window detection	[no]
				with distance control option	[no]
				with adaptive start control	[no]
				with working time limitation	[no]
				with black bulb sensor	[no]
Contact details	Midea Europe GmbHLudwig-Erhard-Straße14, 65760 Eschborn, Germany
Remark:For electric local space heaters ,the measured seasonal space heating energy efficiency ,cannot be worse than the declared value at the nominal heat output of the unit

Warranty policy / service

We congratulate you to your new device and are convinced that you will be satisfied and have your joy with this modern appliance.

However, if you recognize a reason for a complaint, please contact us:

Midea Europe GmbH

Tel.: [phone] - 0

Im Servicefall:

Ludwig-Erhar d-Str. 14

Fax: [phone]

Tel.: [phone] - 0

65760 Eschborn

Homepage: www.midea.com/de

Fax.: [phone]

Email: [e-mail]

In case of a technical fault, enter your exact address, telephone number, sales contract number and Device type (from the type plate of the device).

A precise fault description saves you time and money. For special questions, please contact the customer service center.

Before calling for service:

Please check whether there is an operating error or a cause that has nothing to do with the function of your device.

Please observe the note in the user manual and check whether:

- The power plug is connected

- The power plug may be damaged

- Electricity is available

Warranty terms

This device has been manufactured and tested according to the most modern methods. The seller warrants for faultless material and proper manufacture for a period of 36 months from the date of sale to the end user. The unit is not suitable for commercial use.

The claim under guarantee lapses in the event of intervention by the Buyer or by a third party. Damage caused as a result of improper handling or operation, incorrect installation or storage, improper connection or installation as well as an act [...] of God or other external factors shall not be covered by this warranty.

When claims are submitted, the manufacturer reserves the right to make improvements to defective parts or to replace or exchange the device.

Only if it is not possible to achieve the intended use of the device by repairing or replacing the device, the buyer can demand a reduction of the purchase price or the cancellation of the purchase contract within 6 months from the date of purchase.

Claims for damages, including consequential damages, are excluded unless they are based on intent or gross negligence.

The guarantee claim exists only with submission of the product and the purchase receipt. This warranty is valid within Germany.

Importer by:

Midea Europe GmbH

Ludwig-Erhard-Str.14

65760 Eschborn

Germany

Midea Europe GmbH

Ludwig-Erhard-Str.14, 65760 Eschborn, Germany

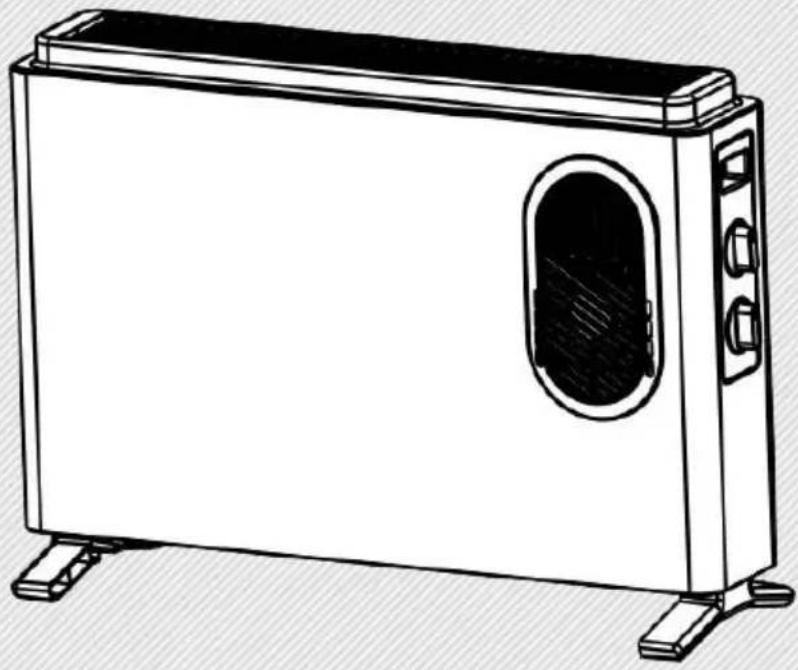

Line drawing of a portable electric heater with a circular vent and mounting base (no text or symbols)

MANUEL DE L'UTILISATEUR

RADIATEUR A CONVECTION

MODELE: NDK20-21AF

Simple line drawing of a computer monitor with two indicator lights above it (no text or symbols)

Illustration 1

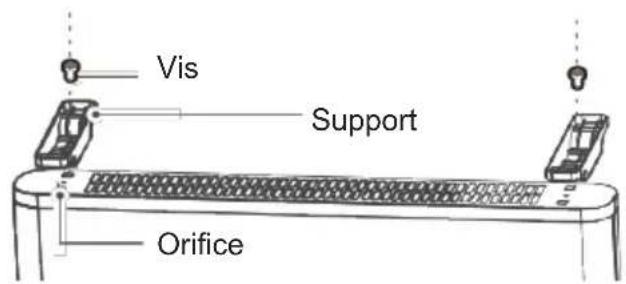

Vis Support Orifice

Illustration 2

65760 Eschborn Germany

Midea Europe GmbH

Ludwig-Erhard-Str.14, 65760 Eschborn, Germany

Line drawing of a rectangular electronic device with a circular vent and mounting base (no text or symbols)

MANUALE D'USO

Diagram of a computer monitor with two indicator lights above it, showing no text or symbols.

Figura 1

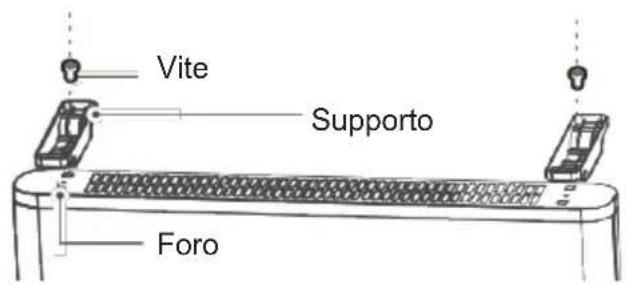

Vite Supporto Foro
