USER MANUAL MY-CS6037P MIDEA

Electric Pressure Cooker USER MANUAL

Line drawing of a rice cooker with handle and side panel (no text or symbols)

MY-CS6037P

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference. (Picture are for reference only, actual product may differ from picture shown)

Line drawing of a rice cooker with handle and side panel (no text or symbols)

MY-CS6037P

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference.

(Picture are for reference only, atual product may differ from picture shown)

Caution

1. Read all the instructions
2. This appliance is for household use only. Do not use outdoors.
3. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children;
5. Children should be supervised to ensure that they do not play with the appliance;
6. This appliance is intended to be used in household and similar applications such as:
   -Staff kitchen areas in shops, office and other working environments;
   -farm houses;
   -by clients in hotels, motels and other residential type environments;
   -bed and breakfast type environments;
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agentor similarly qualified persons in order to avoid a hazard.
8. Please turn off and unplug the appliance before cleaning, maintenance or relocation and whenever it is not in use;
9. Do not immerse any part of the appliance in water or other liquid.
10. The pressure regulator allowing the escape of steam should be checked regularly to ensure that they are not blocked.
11. The container must not be opened until the pressure has decreased sufficiently.

Caution

1. The heating element surface is subject to residual heat after use, do not touch.
2. Warning: Avoid spillage on the connector.
3. Warning: Misuse may cause potential injury;
4. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
   16.Do not put the pressure cooker into a heated oven.
5. Move the pressure cooker under pressure with the greatest care. Do not touch hot surfaces. Use the handles and knobs. If necessary, use protection.
   18.Do not let children near the pressure cooker when in use.
6. Do not use the pressure cooker for a purpose other than the one for which it is intended.
7. This appliance cooks under pressure. Scalds may result from inappropriate use of the pressure cooker. Make sure that the cooker is property closed before applying heat, see “instructions for use”.
8. Never force open the pressure cooker. Do not open before making sure that its internal pressure has completely dropped. See the “instructions for use”.
9. Never use your pressure cooker without adding water or food, this would seriously damage it.
10. Do not fill the cooker beyond 2/3 of its capacity. When cooking foodstuffs which expand during cooking, such as rice or dehydrate vegetables, do not fill the cooker to more than half of its capacity.
11. Use the appropriate heat source(s) according to the instructions for use.
12. After cooking meat with a skin (e.g. ox tongue) which may swell under the effect of pressure, do not prick the meat which the skin is swollen; you might be scalded.
13. When cooking doughy food, gently shake the cooker before opening the lid to avoid food ejection.

IMPORTANT PRECAUTIONS

Caution

1. Before each use, check that the valves are not obstructed. See the instructions for use.
2. Never use the pressure cooker in its pressurized mode for deep or shallow frying of food.
3. Do not tamper with any of the safety systems beyond the maintenance instructions specified in the instructions for use.
4. Only use manufacturer's spare parts in accordance with the relevant model. In particular, use a body and a lid from the same manufacturer indicated as being compatible.
5. KEEP THESE INSTRUCTIONS.

The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appliances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.

Licence holder:

Guangdong Midea Consumer Electric Manufacturing Co., Ltd. 19 Sanle Road, Beijiao, Shunde, 528311 Foshan, Guangdong, People's Republic Of China

Importer:

Customer service address:

Product Structure

Tips:

1. Please move the product with the handle of the cooker body;
2. Please remove the water from the housing cover with cloth.

Note:

① Exhaust valve: Pull out the exhaust valve from the lid. Clean the internal side of the exhaust valve and the exhaust valve and float valve of the lid with brush and cloth at least once a month.
② Sealing ring: Please remove oil and dirt from the sealing ring with detergent and brush.
③ Water box: After cooking, the steam may stay in the water box of the external pot as water. Water in the box should be removed for avoiding bad odor, please clean it with clean cloth.

Disassemble and install the block proof cover and seal ring

Disassemble and install the block proof cover Disassemble Install Pull it out upwards Press it down to install

Block proof cover

Disassemble and install the seal ring Disassemble Install Pull it out upwards Press it down to install

Diagram of hands holding a circular device with a handle, no text or symbols present

1. Check if the seal ring and block proof cover are correctly installed in the upper cover before use each time.
2. After use, please clean the seal ring and around of block proof cover for avoiding jamming the cover, keep it clean to avoid bad odor.
3. Please do not pull the seal ring, otherwise, the distorted seal ring may influence the seal and pressure effect.
4. Do not use the dam aged seal ring, please replace it at the authorized repair office.

Use and maintain the inner pot

1. Do not empty

It may cause yellowish and spotted inner pot or distorted bottom if it is empty for a long time.

2. Do not use it to store the acid, alkali and preserved foods for a long period

Although the inner pot has excellent anti-corrosion performance, it may cause corrosion of certain degree, the suggested time of keep warm shall not exceed 2h.

Use and maintain the inner pot

3. Keep it clean to prolong the service life

Do not immerse it in water for a long period.

Clean the inner pot with soap, mild detergent or warm water to remove dust, oil and dirt.

1. Do not use a metal shovel or other hard tool, otherwise it will damage the inner surface of pot.

Prepare For Cooking

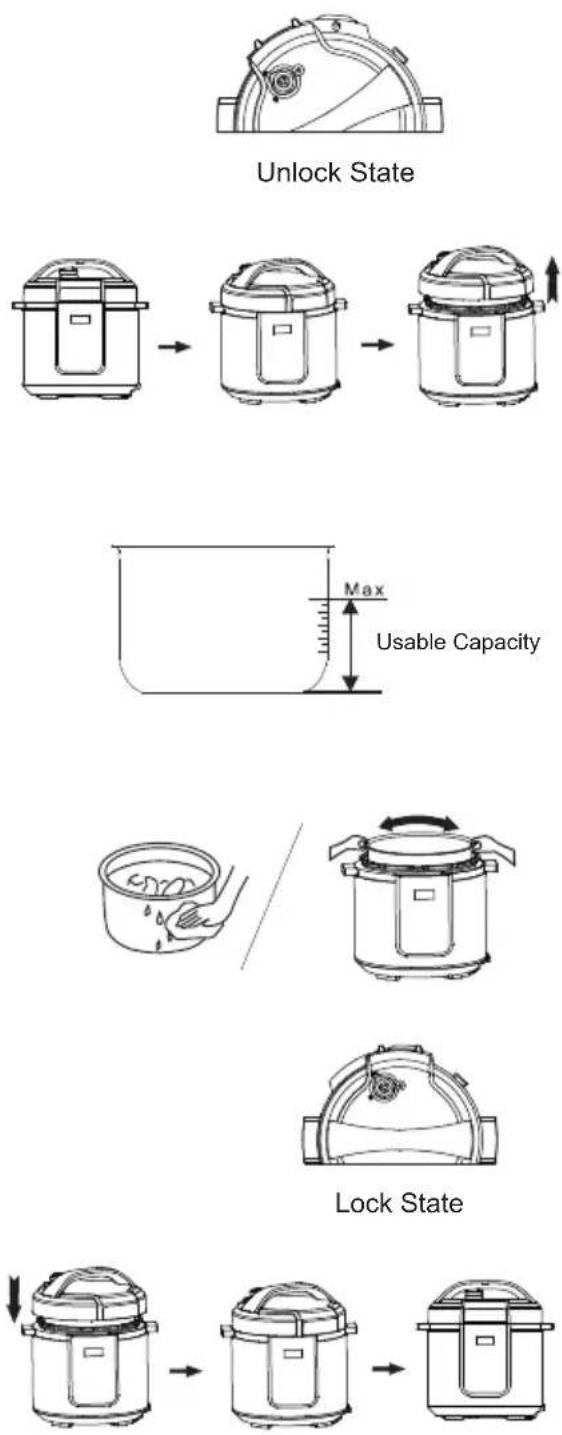

1 Opening the lid correctly

- Hold the handle of upper cover, turn it anticlockwise for about 30°till the lid at unlock state, and then lift the upper cover.

2 Check if the parts and accessories of lid are well installed

- Check if the floater valve and exhaust valve are jammed, confirm if the sealing ring and block proof cover are well installed.

3. Take out the inner pot, put the foods and water into the inner pot

- The total amount of foods and water shall not exceed the Max marked on the inner pot.

4 Put the inner pot into the cooker

- Wipe to clean the external surface of inner pot, foreign object and water are not allowed on the inner surface of electric pressure cooker;

- Turn the inner pot to left and right to ensure good contact with the heating plate.

5 Safely close the lid

- Before closing the lid, check if the sealing ring is well installed.

- Hold the handle of upper cover, aim the lid as "unlock state", put the top cover horizontally on the cooker body, turn the upper cover clockwise for about 30^ to the lock place as "Lock State".

6 Put the exhaust valve well

- When working, please turn the exhaust valve to the sealing place, which means the electric pressure cooker keeps at sealing state;

- For manual exhaust, please turn the exhaust valve handle to the exhaust place, the electric pressure cooker keeps at the exhaust state;

(Picture are for reference only, atual product may differ from picture shown)

Prepare For Cooking

when exhausting, do not keep the hands or face above the exhaust opening;

- Check if the floater valve drops down before working (before heating, the floater valve is down).

Sealing schematic diagram	Exhaust schematic diagram

General Function

1. Switch on If the buttons are inactive when use, please confirm if the lid is closed at the right place, the buttons are inactive if the lid is not closed correctly for product of this series.
2. After cooking, the cooker may automatically enter into the keep warm state. After cooking, the cooker may automatically enter into the keep warm state(Some funtion). and the indicator display "0H(0 hour), 1H(1 hour), 2H(2 hour)... "or " L0:00(0 min), L0:01(1 min)...."

Tips:

When the cooker is working, it is normal that it makes "cluck" sound, please set your heart at relax when use.

To cook a small amount of foods, the inner pot may possibly be lifted when opening the lid, please shake the lid to drop the inner pot in the cooker body and then remove the lid.

Safely open the lid

1. Cut off power supply or remove the power plug
2. Exhaust method

A. Quickly open the lid (For non-fluid foods)

Turn the exhaust valve to the exhaust place for exhausting, Some unit by pressing steam release button “💡” till the float valve drops down.

B. Generally open the lid

Keep the electric pressure cooker cool naturally till the float valve drops down.

1. Open the lid

Turn the upper cover anticlockwise with the left hand, turn it to the cover open limit place, lift the upper cover with the right hand to open the lid.

Do not open the lid before the pressure in the pot has been completely released, do not open the lid fiercely if it is difficult to open.

Do not pull out the exhaust valve when turning the exhaust valve.

After cooking fluid foods (porridge and soup), do not turn the exhaust valve or press the steam release button please cut off power supply to make it cool naturally till the float drops before opening the lid.

Technical Data Of The Product

Model Capacity		Power Supply	Rated Power	Size of Inner Pot	Working Pressure	Keep Warm Temperature
MY-CS6037P		220-240V~50/60Hz	1000W 8.66"5.7L		60kPa	140°F~176°F
Accessories	Spoon	User Manual	Power Cord Components [SW3K]	Water box [G3ZH]	Inner pot

Product Structure

No.	Description
1	Exhaust valve handle
2	Upper cover handle
3	Seal ring
4	Control Box
5	Exhaust opening
6	Float valve
7	Sealing ring
8	Block proof cover
9	Inner pot
10	Cooker body handle
11	Cooker body

Operation Part

Operation Guidelines

Function Operation Guidelines

Cancel	Under any state, press “Cancel” button to cancel the current work state and return standby state.
Keep Warm	Under standby state, press “Keep Warm” button, the indicator light is on and the digital screen shows default working time. Press “Cooking Timer” button, then press “+” or “-” button to adjust the working time. Press “Start” button to enter into to enter into keep warm state. “Keep Warm” indicator light is on and the digital screen shows default working time. Press “+” or “-” button to adjust the working time.
Sauté	Under standby state, press “Menu” button, the indicator light is on and the digital screen shows default working time. Press “Cooking Timer” button, then press “+” or “-” button to adjust the working time. Press “Start” button to enter into cooking state. Starts countdown and enters to standby state when it finishes working.
Roast	Under standby state, press “Menu” button, the indicator light is on and the digital screen shows default working time. Press “Cooking Timer” button, then press “+” or “-” button to adjust the working time. Press “Start” button to enter into cooking state. The digital screen starts countdown as soon as the temperature rise to working temperature. Enters into keep warm when it finishes working.
Slow Cook	Under standby state, press the function button, the indicator light is on and the digital screen shows default working time. Press “Cooking Timer” button, then press “+” or “-” button to adjust the working time. Press “Start” button to enter into cooking state. The digital screen starts countdown and the unit enters to keep warm when it finishes working.

Function Selection

Function	Operation Guidelines
MeatCurrySoupBrothSteamVegetablesPoultryBean/ChiliRiceManualSetting	Under standby state, press “Menu” button, the indicator light is on and the digital screen shows default working time. Press “Cooking Timer” button, then press “+” or “-” button to adjust the working time. Press “Start” button to enter into cooking state. The digital screen starts countdown as soon as the pressure rise to working pressure. Enters into keep warm when it finishes working.
Delay Timer	Delay cooking: Before the program start, press “Delay Timer” button. The screen shows the preset beginning time. Press “Cooking Timer” button, then press “+” or “-” button to adjust the delay time. Then press “Delay Timer” button to change Hour and minute. Press “Start” button, the unit starts delay time count-down. When it countdown to the end, the program starts working.Note: Sauté、Roast、Keep Warm function cannot set the delay timer.
Level	Before the program start, you can press “Level” button to change the food flavor for “Low” or “Medium” or “High”.

Daily Check And Maintenance

For use the product safely with a longer service life, please carefully check and maintain it.

If followings occur Solutions

- Power cord and plug is expanded, deformation, damaged and it color is changed.

• One part of the power cord and plug are hotter.

- Power cord is flexible with discontinuous power supply.

- The electric pressure cooker has abnormal heating and generates bad odor.

- There's abnormal noise or vibration when supply power.

- There's dust or dirt on the plug or socket. Remove the dust or dirt.

Stop using, and repair it by the authorized repair center.

Safety Precautions

To avoid personal injury and property loss, be sure to observe the following safety precautions.

- Meanings of the marks:

	Means“Forbidden” items		GeneralForbid		DisassembleForbidden	[AYDS]	Wet handsForbidden
			ContactForbidden		Spray WaterForbidden
	Means“Mandatory” items	[CSTT]	Must beexecuted		Remove thepower plug

- The danger caused by mistaken use if following warnings are neglected includes to two grades

Warning

It may possibly cause death or serious injury if the warming items are disobeyed.

Caution

It may cause physical injury or property damage if the caution items are disobeyed.

Safety Precautions

Warning

Use correct power outlet (Refer to the label)

• Failure to use correct electricity can cause fire or electric shock.
• Danger of fire if the bad socket is adopted.

Safety Precautions

Warning

Simple line drawing of a plug inserted into a socket (no text or symbols)

A socket shall be used alone

• A socket of more than 10A rated current with grounding wire shall be used alone;
• If shared with other electrical appliances, the socket may cause abnormal heat and result in fire.

Line drawings of two rice cookware containers, one with lid and one with lid (no text or symbols)

It is strictly prohibited to use other lid

• It is strictly prohibited to use other lid for heating, and in the (switching on) process, the use of non-original lid is not allowed.
  • As this may cause electric shock or safety hazards.

Simple line drawing of two electrical plugs connected to a plug with a star-shaped plug (no text or symbols)

Stop using if the power cord is damaged

- Replace the damaged power cord with special soft cord or replace it with special assembly purchased from the manufacturer or authorized repair center.

Line drawing of a rice cooker with a hand holding a tool (no text or symbols)

Do not put foreign objects

• It is prohibited to insert metal shavings, needles and other foreign matter in the gap.
• As this may cause electric shock or movement anomalies.

Illustration of a child reacting to a cooking appliance next to a rice cooker (no text or symbols)

Place the appliance in a location out of reach of infants

• Place the appliance in a location out of reach of infants.
  • To avoid electric shock and scald.

Line drawing of a rice cooker with a hand holding a pen tip (no text or symbols)

Modification is prohibited

• Modification or repair by non-professionals is prohibited.
  • Violation may cause a fire or electric shock.
• Repair or replacement of parts shall be made in a designated service center.

Line drawing of a rice cooker with a faucet symbol above it (no text or labels)

Products may not be immersed or sprinkled in water

- Doing so could cause electric shock and electrical short circuits.

Safety Precautions

Warning

Warning on Opening the lid

• When the electric pressure cooker is not working, there isn't pressure in the pot, the float valve is down;
• When the electric pressure cooker is working, pressure in the cooker rises, float valve ascends; do not fiercely open the lid before the pressure has been completely released;
• If it is difficult to open the lid, please do not open it fiercely, otherwise, it may cause scalding or physical injury.

Line drawing of a rice cooker with an inset showing its internal components (no text or symbols)

Check periodically

• Be sure to check periodically the block proof cover and exhaust valve core to make sure that they are not be blocked;
• Do not cover the exhaust valve with heavy object or replace it with other object.

Caution

Simple line drawing of a wall socket connected to a plug with liquid, no text or symbols present

Never pull the plug with a wet hand

• To avoid electric shock.

Illustration of a hand holding a plug with a cable, next to an open electrical outlet (no text or symbols)

When pulling the plug, you must pinch the plug

• When pulling the plug, you must pinch the plug;
• Do not pull the power cord, otherwise it will damage the cord, causing electric shock and short circuit.

Illustration of a hand inserting a plug into a wall socket, with an arrow indicating the plug's direction (no text or symbols present)

Unplugging when not in use

- Otherwise, it may produce leakage, fire or failure.

Line drawing of a rice cooker with steam rising from its side, accompanied by a hand holding a leaf (no text or symbols)

In working, never move your hands to close to the exhaust port.

• In cooking process, never move your hands to close to the exhaust port to avoid burns.
• During cooking, do not cover the vent with a cloth and other items.

Safety Precautions

Caution

Line drawing of a rice cooker with a hand adjusting its lid (no text or symbols)

When the cooker is working, please do not touch the lid

Simple line drawing of a pot with steam rising from the center, labeled 'Max' (no text or symbols beyond the label)

- When the cooker is working, lid has high temperature, do not touch it; - Otherwise, it may possibly cause scalding.

Line drawing of two cooking pot containers, one with lid and one with lid, both without any text or symbols.

The total amount of food and water can not exceed Max scale

- The total amount of food and water can not exceed Max scale, otherwise food may be cooked unfamiliar, or cause malfunction.

Simple line drawing of a cooking pot on a tray with steam rising (no text or symbols)

Do not use a pot other than the dedicated pot

- When there is foreign object on the bottom of pot and heating plate surface, remove the foreign object before use.

Illustration of hands holding a rice cooker and its lid, showing the process (no text or symbols)

- Otherwise, it may cause overheating and work abnormalities etc.

Do not put the inner pot on other appliance for heating

• In order to avoid deformation or fault.
- Please use the special inner pot.

When moving the product, please hold the handle of cooker body

- When moving the product, do not directly hold the handle of lid for avoiding lid dropping.

Do not use in the following locations

• Do not use in unstable locations;
• Do not use in locations near water and fire;
• Do not use near walls and furniture;
• Do not use in locations exposed to direct sunlight and oil splatter.
• Do not approach the stove for avoiding fire.

Environment For Storing The Product

• Periodically clean the cooker and remove oil and dirt if it is stored on the table.
- Put the electric pressure cooker 30cm away from other kitchen appliances.

Clean After Use

1. Clean after each use.
2. Before cleaning and maintenance, please unplug the power cord until the product cools.
3. Remove the lid and inner pot, clean with detergent first, then rinse well with water, and wipe dry with a soft cloth.

4. Clean the internal side of the lid with water, the seal ring, block proof cover, exhaust valve core and float valve can be removed for washing, timely and correctly install them after washing, and then dry the internal side of lid with cloth.

5. Wipe clean the cooker body with a rag, and it is prohibited to soak the cooker body in water or spray water to it.

Troubleshooting

When followings occur, it is not the cooker fault, please carefully check once before sending it for repair.

S/N	Problem	Reason	Solution
1	Difficult to close the lid	Sealing ring not installed properly	Position the sealing ring well
		The floater valve clamps the push rod	Lightly push the push rod
2	Difficult to open the lid	Float valve in the popped-up position	Press the float valve lightly with a chopstick.
		Pressure exists inside the cooker	Open the lid after the pressure is completely released.
3	Steam leaks from the lid	Sealing ring installed improperly	Install the sealing ring as required
		Food debris attached to the sealing ring	Clean the sealing ring
		Sealing ring damaged	Replace the sealing ring
		The lid is not closed correctly	Close the lid correctly
4	Steam leaks from float valve	Food debris on the float valve gasket	Clean the float valve gasket
		Float valve gasket worn-out	Replace the float valve gasket
5	Float valve unable to rise	Too little food and water in inner pot	Add water and food according to the recipe
		Steam leaks from the lid or exhaust valve	Send to the service center for repair

Troubleshooting

S/N	Problem		Reason	Solution
6	Steam comes out from exhaust valve non-stop		Exhaust valve not in sealing position	Turn the exhaust valve to the sealing position
			Pressure control fails	Send to the service center for repair
7	Power indicator doesn’t light on		Power socket bad contact	Please check the power socket
8	All indicators flas	Display screen displays E1	Bottom sensor fault	Send to the service center for repair
		Display screen displays E2
		Display screen displays C1	High temperature since there isn’t water in the inner pot	Add water according to the requirement
			High temperature since there isn’t water in the inner pot	Put the inner pot correctly
		Display screen displays E8	Pressure switch fault	Send to the service center for repair
9	Rice half cooked or too hard		Too little water	Add water accordingly
			Lid opened prematurely	After cooking cycle completes, leave the lid on for 5 more minutes.
10	Rice too soft		Too much water	Reduce water accordingly

—If the fault is not removed after above check, please contact our authorized service center for repair.
