USER MANUAL 306529 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Pure electrical circuit lines without any symbols

Two identical rectangular panels with internal diagonal lines and small triangular cutouts, no text or symbols present.

Two identical diagrams showing a container with vertical lines inside, no text or symbols present.

Warning symbols: triangular warning triangle with exclamation mark and smoke symbol inside triangle

Important safety instructions for this appliance

• Please read the following operating instructions carefully and make sure that you have understood them.
• Operate the unit in accordance with the voltage specified in the unit marking.
• Never touch the surface or the inside of the appliance during operation. There is a risk of burns!
• To protect against electric shock, do not immerse the cord, plug or any other part of the appliance in water or other liquids.
• Supervision is necessary when the appliance is used by or near children.
• Unplug the appliance as soon as it is not in use or you intend to clean it.
• Do not use this appliance with a damaged cord, plug or in a faulty con-

dition. If the power cord is damaged, it must be replaced by the manufacturer, a service agent or a suitably qualified person.

- Keep the power cord away from hot surfaces. Do not let the power cord hang over the edge of a table.

- The appliance must not be placed or used on or near hot surfaces (e.g. stove tops or open gas flames).

- (such as hot plates) or open gas flames.

- Use the product only for its intended use.

- Only use the appliance for baking waffles, toasting sandwiches or grilling food.

• Therefore, please never place the appliance near or underneath flammable materials. The appliance must be supervised at all times when in use.
• The use of accessories not recommended by the appliance manufacturer may cause injury.
• Always place the appliance on a heat-resistant and level surface.
• Unplug the appliance immediately if you notice smoke or fire!
• Do not use this appliance with external timers or separate remote controls.
• Children must be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of ex-

perience and knowledge if they have been given supervision or instruction concerning use of the appliance and understand the hazards involved. Cleaning and maintenance operations to be performed by the user must not be carried out by children.

• Keep the appliance and its power cord away from children under 8 years of age.
• Do not use the appliance outdoors.
• The appliance must only be operated in the closed position.
• This product is intended for household use only.
• Do not immerse this product in water.
  • Always switch off the appliance when not in use! Never leave it unattended.

arendo

Caution! Hot surface!

Thank you for purchasing an Arendo product. To ensure that you enjoy your purchased appliance for a long time, please read the following quick start guide carefully.

1. scope of delivery

• Sandwich maker
  • 4 attachments (grill, waffle, sandwich, sandwich2)
• Quick guide

2. technical data

Power supply 220-240V AC 50/60 Hz
Power consumption 900 W
Ambient temperature 0-40°C

3. initial commissioning

Note: While the heating elements are warming up, a burnt smell and smoke may appear when the appliance is used for the first time. This does not represent a danger or a defect. Wait until the appliance has heated up and the smell has disappeared when you use the product for the first time. It is advisable to use the appliance without contents/cooked food.

Remove the appliance from its packaging and remove all packaging material. Wipe the heating plates of the sandwich maker with a slightly damp cloth.

Attention! Before cleaning or changing the heating plates, make absolutely sure that the appliance is not connected to the mains and has cooled down completely!

1. product details


Power light Ready light Grab handle

Lock

Essays

Pure electrical circuit lines without any symbols

Two identical rectangular panels with vertical slats, no text or symbols visible

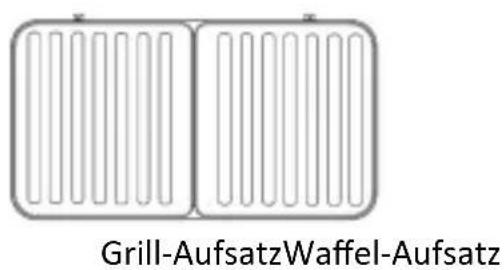

Grill attachmentWaffle attachment

Pure geometric diagram with four rectangular panels and internal triangular cutouts, no text or symbols present.

Sandwich attachment

Two identical rectangular diagrams showing vertical lines inside rounded rectangular containers, no text or symbols present.

Sandwich attachment

5. change / select attachment

Unplug the unit from the mains and wait until the unit has cooled down completely before assembling or disassembling anything.

Caution! Do not let the plates come into contact with metal cutlery or other metal objects to avoid damaging the non-stick coating.

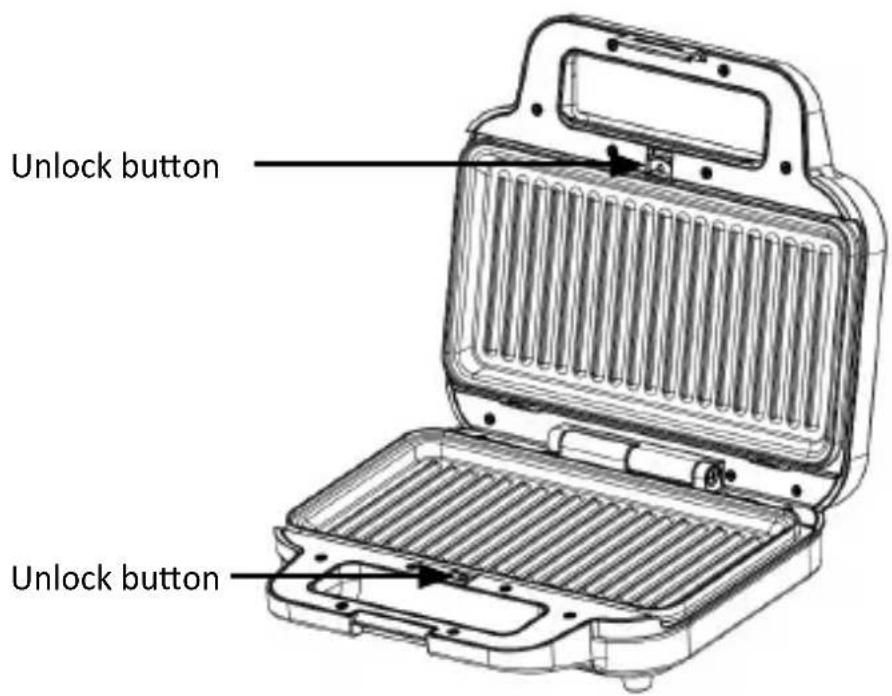

Open the lid of the appliance and pull the release buttons for the upper and lower plates outwards respectively (see arrow on release button). The plates will release from the lock and can then be easily removed.

Unlock button Unlock button

6. commissioning and use

This product is for domestic use only.

Caution: Never use the appliance with only one plate. Always make sure that 2 identical plates are inserted.

1. You can smear the plates with a little vegetable oil to ensure that you can easily remove the leftovers after baking.
2. Close the lid and then lock the handle.
3. Insert the appliance's mains plug into the socket. The red „POWER“ light comes on.
4. The appliance will then start to heat.
5. When the heating elements have reached their operating temperature, the green „Ready“ light goes out and the appliance is ready for use.
6. Open the lid with the handle by releasing the latch first.
7. Place the food on the lower plate.
8. Close the lid and then lock the handle.
9. If you are using the grill plates for sandwiches, make sure that you use the handle to push them down.
10. While the appliance is on, the green light goes on and off as the thermostat turns on and off.
11. The baking time depends on your personal taste. Experiment with the baking time for best results.
12. Stay close to the appliance and check regularly that the food is ready.

13. Unlock and lift the handle to open the lid when the food is ready.

14. Remove the food from the plate. Always use an oven mitt to remove the food from the appliance.

15. Close the lid to store the heat for further use.
16. To switch off the appliance, remove the plug from the socket.
17. Let the appliance cool down completely.

7. cleaning and care

Important: Unplug the appliance and let it cool down before cleaning. Never immer-se the appliance in water or any other liquid.

Wipe the lid and base with a damp cloth and a non-abrasive soap or dishwashing liquid. Wipe them with a clean, soft, damp cloth and dry them with a towel.

Storage: Store the cleaned unit in a clean, dry place.

Caution! Never store the product when it is still hot or plugged in.

Caution! Never wrap the cable tightly around the unit, but use the cable wrap designed for this purpose. Do not subject the cable to much tension, otherwise it may kink and be damaged in the long run.

Please do not use any aggressive or chemical cleaning agents!

8. recipe examples

The following recipes are only examples.

Waffle batter basic recipe

125 g soft butter

100 g sugar

1 sachet vanilla sugar

3 eggs

250 g flour

1 pinch of salt

1 teaspoon baking powder

200 ml milk

1. Mix the butter with the sugar and vanilla sugar.
2. Stir in the eggs a little at a time.
3. Mix the flour, baking powder and salt together and add to the batter.
4. Then add the milk.
5. Bake the waffle directly in the waffle iron.

Belgian waffles

1 kg flour
1 pinch of salt
3 packets vanilla sugar
7 eggs
600 g melted butter
2 cubes fresh yeast
650 g granulated sugar
1 cup lukewarm milk
1 cup water

1. Put the flour with the vanilla sugar in a key and mix the ingredients thoroughly.
2. Crumble the yeast and dissolve it in lukewarm milk.
3. Add the eggs, milk (including yeast) and melted butter to the flour and mix properly (about 1 minute).
4. Let the dough rise for about half an hour, covered, in a warm place.
5. Then mix the 650 g hail sugar into the dough.
6. Then bake the waffle directly in the waffle iron.

9. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life.

The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 306529 complies with the fundamental requirements and the other relevant stipulations of the directive. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

ATTENTION!

Pure electrical circuit lines without any symbols

Two identical rectangular panels with vertical slats, no text or symbols visible

Attachment du grilAttachment

Pure geometric diagram with two identical rectangular panels, each containing a diagonal line and internal triangular cutouts (no text or symbols)

Two identical diagrams showing vertical lines inside rectangular containers, no text or symbols present.

Attachment du sandwich
Attachment du sandwich

Warning symbols: triangular warning triangle with exclamation mark and smoke symbol inside triangle

Diagram of a dual-panel grid device with square and circular components, no text or symbols present

Two rectangular panels with vertical slots, no text or symbols present

Pure geometric diagram of two identical rectangular panels with internal diagonal lines and small triangular cutouts (no text or symbols)

Two identical rectangular diagrams with vertical lines inside, no text or symbols present.

Warning symbols: one warning triangle with exclamation mark, another with steam symbol inside triangle

Diagram of a dual-panel grid device with square and circular elements, no text or symbols present

Two rectangular panels with vertical slots, no text or symbols present

Pure geometric diagram of two identical rectangular panels with internal diagonal lines and small triangular cutouts (no text or symbols)

Two identical rectangular diagrams with vertical lines inside, no text or symbols present.

MO-FR 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

www.arendo.de
