USER MANUAL Royal EVK 1200 EINHELL

1. General safety regulations
2. Layout (see Fig. 1)
3. Description of the warning symbols (see Fig. 2)
4. Proper operation
5. Assembling the scarifier
6. Adjusting the scarifying depth
7. Starting up
8. Tips for proper scarification
9. Care and maintenance
10. Replacing the spike drum
11. Ordering replacement parts
12. Technical data
13. Troubleshooting guide
14. Replacement parts list
15. Replacement parts drawing
16. Declaration of CE conformity
17. Warranty certificate

F

Black mechanical device with a circular head and side blades, no visible text or symbols

5

Close-up of a hand turning a black mechanical component into a tire (no text or symbols visible)

4b II III II

4c I II III

4d III I

5a D A B C

5b A B C

6

Close-up of a mechanical lever with attached weights and a labeled section '6a' (no other text or symbols)

Close-up of a black mechanical component with a curved shaft and attached bracket (no visible text or symbols)

Close-up of a black metal pipe fitting with a flanged handle (no text or symbols visible)

Close-up of a metal bracket with a hanging hook and directional arrows indicating movement (no text or symbols)

8 A B C

Mechanical component with numbered parts, no visible text or symbols

Close-up of a mechanical component with labeled parts (① and ②), no readable text or symbols beyond labels

8

Before you operate this electric lawn aerator, thoroughly read through the following safety regulations as well as the operating instructions.

Always keep these operating instructions in a safe place!

Familiarize yourself with the operator controls and proper operation of the machine.

Improper operation of the aerator can lead to serious injuries.

This electric lawn aerator is only designed to aerate grass.

1. General safety regulations

Before you operate this electric scarifier, thoroughly read through the following safety regulations as well as the operating instructions.

Always keep these operating instructions in a safe place!

Familiarize yourself with the operator controls and proper operation of the machine.

Improper operation of the electric scarifier can lead to serious injuries.

This electric scarifier is only designed to scarify lawns.

1. General safety regulations

1. Never allow children or other persons who are not familiar with the operating instructions to use the scarifier. Contact your local governmental agency for information regarding minimum age requirements for operating the scarifier.
2. Always disconnect the power cable before carrying out any checks, maintenance or repairs.
3. The person operating the scarifier is liable for any damages sustained by third parties within the machine's working radius as a result of its use.
4. Work only in broad daylight or with suitable artificial lighting.
5. Always check the machine for signs of damage prior to using it.

6. Make sure that all the guards are fitted and that they are in good working order.

7. Never use the machine when you are tired.

8. Switch off the motor and disconnect the power plug before you carry out any checks, cleaning, maintenance or other work on the scarifier, and whenever the scarifier hits a foreign body.
9. Before using the scarifier, always visually examine the spike drum for excessive wear or dar
10. It is imperative to follow the instructions when fitting or dismantling the spike drum.
11. Examine the site where you want to use the scarifier and remove all objects which could be struck and thrown up. Foreign objects must be removed before operation. Watch out for foreign objects during operation. Watch out for any extension cables you may be using to operate the scarifier.
12. Always wear sturdy, non-slip footwear and long trousers while scarifying. Never scarify in bare feet or when wearing light sandals.
13. Always use the scarifier with the ejector flap closed, or with grass bag.
14. Do not raise the scarifier when you start the motor.
15. Never move your hands or feet toward or under any rotating parts. Keep clear of the ejector opening at all times.
16. Slopes have to be scarified along the slope and not up and down.
17. Do not use the scarifier on gradients exceeding 15 %.
18. Switch off the motor, pull out the power cable and wait for the spike drum to come to a standstill before you lift the scarifier for transporting.
19. Make sure there are no persons and particularly no children or animals in the direct vicinity of the scarifier while it is being used. Make sure that a safety distance of 10 meters is observed.
20. Store the scarifier in a dry place that is inaccessible to children.
21. Entrust repairs to the electrical parts of the scarifier only to a qualified electrician.
22. The power cables used are not to be of a lighter duty class than light rubber-insulated H07RN-F in accordance with DIN 57282/VDE 0282 and they must have a cross section of at least 1.5 mm². The connection must be splash-proof. The power cable must be fed through the stress-relief clips and be plugged into the switch/plug block. Before use, check the cable for damage and signs of aging. Never scarcity with faulty cables. If the cable is damaged while scarifying, disconnect the mains plug immediately and only then inspect the damage.

GB

1. Do not tilt the scarifier when you start the motor unless the scarifier must be raised off the ground a little in order to start it. In the latter case, tilt the scarifier as little as absolutely necessary and only raise the side opposite the user.

2. Make sure that all nuts, bolts and screws are tightened securely and that the machine is in safe working condition.

3. If the scarifier strikes a foreign body, examine the machine for signs of damage and carry out any necessary repairs before restarting and continuing to work with the scarifier.

4. Do not expose the scarifier to rain. The grass should not be wet or very moist.

5. Always make sure that you have a solid footing while working with the scarifier.

6. Operate the machine at a walking pace only.

7. Be particularly careful when you change direction on a slope.

8. Be particularly careful when you turn the scarifier around or pull it toward yourself.

9. Stop the scarifier whenever it has to be lifted for transporting over areas other than lawns and whenever it has to be moved from or to the area you want to scarify.

10. Carefully actuate the starter switch in accordance with the manufacturer's instructions. Make sure your feet are far enough away from the spike drum.

11. Never lift or carry the scarifier with the motor running.

12. Switch off the motor and pull out the mains plug before you leave the scarifier.

13. Allow the motor to cool down before you put the machine in a closed room.

14. Switch the scarifier off and disconnect the power cable before performing any adjustment or cleaning work to the scarifier, and before checking to see if the mains connection is entwinded or damaged.

15. Socket couplers to connection elements must be made from rubber, soft PVC or other thermoplastic material of equal rigidity or coated with such material.

16. When scarifying, ensure that you avoid paths that could restrict the free movement of the extension cable.

17. Switch off the motor:

18. before you try to remove any obstructions or blockages,
19. before performing any cleaning, checking or adjustment work to the scarifier,

20. after running over an obstruction.

21. If the machine should start to vibrate unusually, it must be checked immediately.

22. To prevent risk of fire, keep the motor free of grass, leaves and moss at all times.

23. For safety reasons you should always replace worn or damaged parts.

2. Layout (see Fig. 1)

1. ON/OFF lever

2. Push bar

3. Switch/plug block

4. Stress-relief clip

5. Star grip

6. Cable holder

7. Ejector flap

8. Hubcap with lawn aeration height adjustment

3. Brief description of the warning logos (see Fig. 2)

1 = Warning!

Thoroughly read the instructions before starting to use the machine.

2 = Keep other persons (and animals) away from the danger zone.

3 = Wear hearing and eye protection.

4 = Pull the plug out of the power socket before doing any work on the spike drum!

5 = Rotating spike drum

6 = Do not place your hands or feet under the rotating scarifier.

7 = Keep the power cable away from the machine. This will eliminate the risk of the power cable being shredded and destroyed by the rotating tine roller.

4. Proper operation

Power supply

The scarifier can be connected to any light socket (with 220/230 volts of alternating current). However, the socket outlet must have an earthing contact protected by a 16 A circuit breaker. Additionally, a 30 mA residual current circuit breaker should be present!

Power cable

Please only use power cables that are not damaged. The total length of the power cable should not exceed 50 meters; going beyond this distance will reduce the power output of the electric motor. The

power cable must have a cross-section of 3 x 1.5 mm2. The insulating sheath of scarifier power cables is frequently damaged.

Some of the causes for this are:

- Cracking from running over the cable

- Pinching when the power cable is dragging

under doors and pulled through windows

- Cracking due to old age of the insulation

- Kinking by improperly fastening or guiding the power cable

Even though power cables with damaged insulation sheaths pose a lethal hazard, some people still use them. Do not make this mistake!

Cables, plugs and socket couplers must meet the following requirements listed below. Power cables used to hook up lawn aerators must have a rubber insulation sheath.

The power cables must, at the very minimum, be of type HO5RN-F and 3-stranded. The cable type must be printed somewhere on the power cable. Only purchase power cables that are marked as such! Plugs and socket couplers for the power cables must be made from rubber and be splash-proof. There is a limit to how long power cables can be. Longer power cables require larger conductor cross-sections. Power cables and connecting lines must be regularly checked for damage. Ensure that the lines are de-energized before checking them. Completely unwind the power cable. Also check power cable entry points, plugs and socket couplers for kinks.

The Iscarifier is intended for private use, i.e. for use in home and gardening environments.

Scarifiers for private use are machines whose annual operating time generally does not exceed 10 hours, during which the machine is primarily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded.

The operating instructions as supplied by the manufacturer must be kept and referred to in order to ensure that the scarifier is properly used and maintained. The instructions contain valuable information on operating, maintenance and servicing conditions.

Important! Due to the high risk of bodily injury to the user, the scarfler may not be used to chop branches or hedge clippings. Moreover, the lawn aerator may not be used as a power cultivator to level out high areas such as molehills.

For safety reasons, the lawn aerator may not be used as a drive unit for other work tools or toolkits of any kind.

5. Assembling the scarifier

The scarifier comes disassembled. The ejector flap and the entire push bar assembly must be assembled and mounted before using the scarifier. Follow the operating instructions step by step and use the pictures provided as a visual guide to easily assemble the machine.

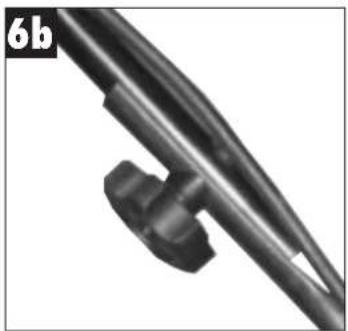

Mounting the lower push bar (see Flgs. 5 and 6 a/b)

- Insert the offset base bars (Fig. 5a, Item A) into the housing holes. Place anti-vibration rubber (Fig. 5a, Item C) between the housing and the base bars!

● Mount the stress-relief clip on the base bars (Fig. 5a, Item D).

● Then mount the lower push bar on the base bars (Fig. 6a).

● Screw together using the supplied saucer-head bolts and star grips.

- Important: The star grips must be fitted on the outside (Fig. 1, Item 5).

● Using the supplied bolts, fasten the two base bars (Fig. 5a, Item A) to the housing (Fig. 5b).

● Finally, press the two supplied rubber caps (Figs. 5a + 5b, Item B) into both bolt holes (Fig. 5a).

Mounting the upper push bar

- Position the upper push bar (Fig. 7) such that its holes line up with the holes of the lower push bar.

- Insert the supplied hex bolts through the holes from the inside out (Fig. 8, point C).

- Insert the supplied plastic parts (Fig. 8, point A) onto the hex bolts with the beveled side facing the pipe.

● Use the supplied star grips to fasten both push bars (Fig. 8, point B).

- Fasten the power cable onthe outside of the push bar pipes using the supplied cable holders (Fig. 10) such that the ejector flap can be opened and closed (Fig. 1, point 7).

- Caution! Make sure that the ejector flap can be opened and closed easily!

GB

6. Adjusting the scarifying depth:

Caution! Before you adjust the scarifying depth, switch off the machine and let the motor come to a complete stop.

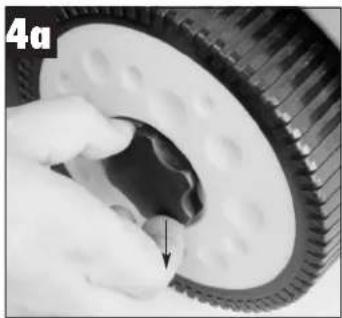

● The scarifying depth is adjusted by turning the hubcaps. You can choose from three different depth settings by pulling out and turning the hubcaps (Fig. 4a)
● Figures I, II and III are stamped in the center of the hubcaps.

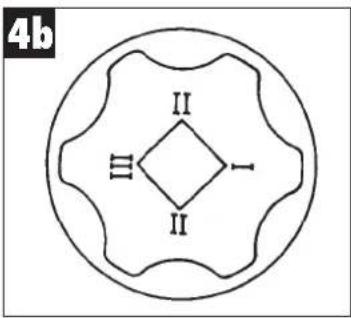

- When figure "II" is at the bottom, the middle setting is locked in. The scarifying depth is approx. 3 mm.
- The middle setting remains constant when the second figure "Il" is at the bottom (Fig. 4b).

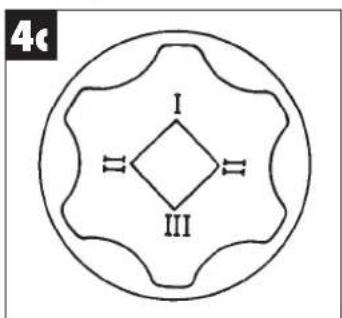

- When figure "III" is at the bottom, the low setting is locked in (Fig. 4c). The scarifying depth is approx. 7mm .

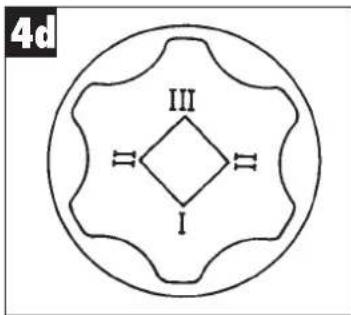

- When figure "I" is at the bottom, the high setting is locked in (Fig. 4d). The scarifying depth is approx. 1mm over the ground. Select depth setting "I" when transporting the scarifier.

Caution!

The hubcaps must always be firmly locked into place!

At the beginning it is best to select depth setting "II". When the scarification spikes have become worn you can then revert to setting "III".

7. Starting up

Connect the power cable to the switch plug/block (Fig. 1 / Item 3) and secure the cable with the cable holder.

Important!

In order to prevent the sacrifier from inadvertently switching on, the switch/plug block is equipped with a two-point switch (Fig. 9, Item 1) that has to be pressed before the lever (Fig. 9/Item 2) can be pulled. The scarifier switches itself off when the lever is released.

Repeat this process several times so that you are sure that the machine functions properly. Before you perform any repair or maintenance work on the machine, ensure that the line roller is not rotating and that the power supply is disconnected.

Important! Never open the ejector flap when the motor is running. A rotating spike drum can

cause injuries.

Always fasten the ejector flap carefully.

The flap flips back to the „Closed“ position by the tension springs!

Always ensure that a safe distance (provided by the long handles) is maintained between the user and the housing. Be especially careful when scarifying and changing direction on slopes and inclines.

Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always scarify along the incline (not up and down).

For safety reasons, the scarifier may not be used to scarify inclines whose gradient exceeds 15 degrees.

Take special care when backing up and pulling the scarifier (tripping hazard).

8. Tips for proper scarification

ry to scarify in straight lines for a nice, clean look. The scarification swaths should always overlap each other by a few centimeters in order to avoid bare strips.

How frequently you should scarify your lawn is determined primarily by the speed at which the grass grows and the firmness of the soil.

Keep the underside of the scarifier housing clean and remove soil and grass build-up. Deposits make it more difficult to start the scarifier and decrease the quality of the scarification.

Always scarify along inclines (not up and down).

Switch off the motor before doing any checks on the spike drum. Keep in mind that the spike drum continues to rotate for a few seconds after the motor has been switched off. Never attempt to manually stop the spike drum. In the event that the spike drum strikes an object, immediately switch off the scarifier and wait for the roller to come to a complete stop. Then inspect the condition of the spike drum. If the spike drum is damaged, it must be replaced (Fig. 10).

Lay the power cable on the ground in front of the outlet in a looped arrangement.

Scarify away from the outlet or cable and ensure that the power cable always trails in the scarified grass which will prevent the scarifier from traveling directly over the cable.

9. Care and maintenance

Maintenance and cleaning work on the scarifier as well as removal of the safety devices may only be performed when the motor is switched off and the power cable has been pulled.

Wom out or damaged spike drums should only be replaced by an authorized professional (see address on warranty certificate).

Do not clean the scarifier with running water, particularly with high-pressure water.

Ensure that all mounting components (i.e. bolts, nuts etc.) are always tightened so that the scarifier can be safely operated at all times.

Store your scarifier in a dry room. In order to ensure that you enjoy your scarifier for many years to come, all screwed parts, as well as the wheels and axles, should be cleaned and lubricated.

Keeping your scarifier in good condition not only ensures a long lifespan and

high-performance, but also enables the machine to thoroughly scarify your lawn with minimal effort. For best results, clean the scarifier with a brush or rag. Do not use any solvents to remove dirt.

At the end of the season, perform a general inspection of the scarifier and remove any residues which may have accumulated.

At the start of each season, ensure that you check the condition of the scarifier.

If repairs are necessary, please contact one of our customer service centers (see address on warranty certificate).

10. Replacing the spike drum

For safety reasons, we recommend having the spike drum replaced by an authorized professional (see address on warranty certificate).

Important! Wear work gloves!

Only replace the unit with a genuine Einhell spike drum (see section 11, "Ordering replacement parts"), as this will ensure top performance and safety under all conditions.

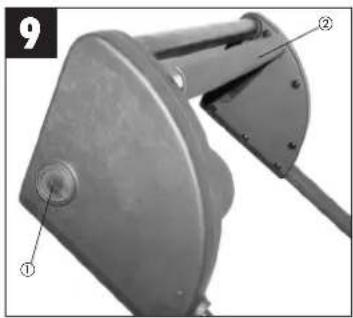

* The procedure for replacing the spike drum EMW 33, Replacement Part No.: 34.055.53, is described in the instructions issued with EMW 33!

11. Ordering replacement parts

The following information should be given when ordering replacement parts:

● Model of machine = EVK 1200
● Art. No. of machine = 34.204.20
● ID No. of machine = 01012
● Replacement part number of the required replacement part = e.g. spike drum = EMW 33=34.055.59

12. Technical data

Voltage: 230 V \~ 50 Hz

Power consumption: 100 W

Two-hand safety switch with switch/plug block

Working width: 33 cm

Spike drum with stainless steel spikes

Depth adjustment: 3-fold

LPA sound pressure level: 74,2 dB(A)

LWA sound power level: 97 dB(A)

Vibration on the shaft 5.6 m/s

GB

13. Troubleshooting guide

Fault Possible causes Rectification
Motor does not start a) No electricity in plug a) Check line and fuseb) Cable defective b) Checkc) Switch, switch/plug block c) Have machine checked by defective a customer service centerd) Connections to motor d) Have machine checked by or capacitor disconnected a customer service centere) Scanifier housing clogged e) Change scarifying depth if necessaryClean housing so that the spike drum spins unob-structed
Engine performance drops a) Soil is too firm a) Change scarifying depthb) Scanifier housing clogged b) Clean housingc) Cuttings severely worn c) Replace spike drum
Imprecise aeration	a) Cuttings wornb) Wrong scarifying depth b) Change scarifying depth	a) Replace spike drum

= t ex knivvals = EMW 33 = 34.055.53

12. Tekniska data

The image contains a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. Therefore, the corrected OCR text is:

[Empty]

97/23/EG

×

89/336/EWG

□

90/396/EWG

□
□
□
×

89/686/EWG
87/404/EWG
R&TTED 1999/5/EG
2000/14/EG: L_WM94,2 dB(A); L_WA97 dB(A)
Einhell AG
Wiesenweg 22
D-94405 Landau/Isar
D-94405 Landa
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
dB(A); L_W/A 97 dB(A)
dB(A); L_WA 97 dB(A)

EN 292-1; EN 292-2; EN 55014; EN 55104; EN 60335-1; pr EN 60335-2-77; pr EN 13684:2001-05; DIN-VDE 1856-1/2; DIN-VDE 0700-1; DIN-VDE 0700-206/84; DIN 8470/06.88, KBV V

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

Technical changes subject to change

Sous reserve de modifications Technische wizialges uordel

The guarantee period begins on the sales date and is valid for 2 years.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

NL GARANTIE

©CZ Poker Plus S.R.O.

Areal Vu Bechovice

Budava 10B

CZ-19011 Praha - Bechovice 911

Tel.+Fax [phone]

yu MP Trading d.o.o.

Cika Ljubina 8/IV

YU 11000 Beograd

GR An. Mavrofidopoulos S.A.

Technical & Commercial company

12, Papastratou & Asklipiou Str

GR 18545 Piräus

Tel [phone], Fax [phone]

HUS Bermas

Altufyevskoye shosse, 2A

RUS 127273 Moscow

Tel [phone], Fax [phone]

EH 02/2003
