USER MANUAL Gobo Shot Chauvet

Technical line drawing of a portable projector with dual buttons and a circular vent (no text or symbols)

About This Guide

The Gobo Shot Quick Reference Guide (QRG) has basic product information such as mounting and technical specifications.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
  • DISCONNECT from power before cleaning.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Be sure that no ventilation slots on the unit's housing are blocked.

- Never connect this product to a dimmer or rheostat.

- Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

- DO NOT open this product. It contains no user-serviceable parts.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Gobo Shot
• Power cord

- Quick Reference Guide

To Begin

Unpack your Gobo Shot and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

You can link up to 14 Gobo Shot products at 120 V or 23 products at 230 V. Power linking cords can be purchased separately.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

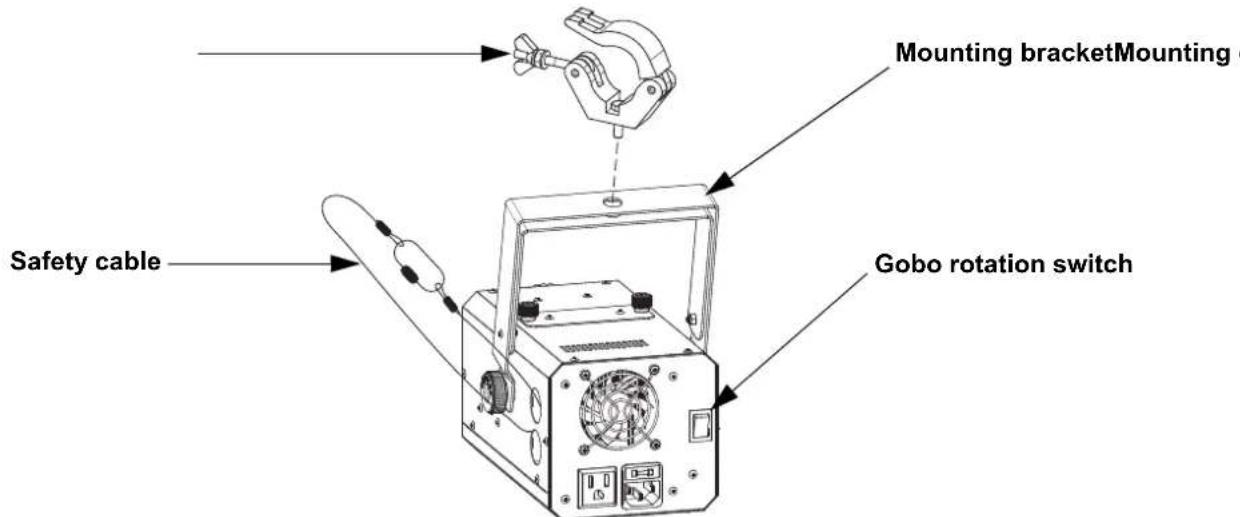

Mounting Diagram

Mounting bracketMounting Safety cable Gobo rotation switch

Gobo Rotation

Use the gobo rotation switch to toggle rotation on and off.

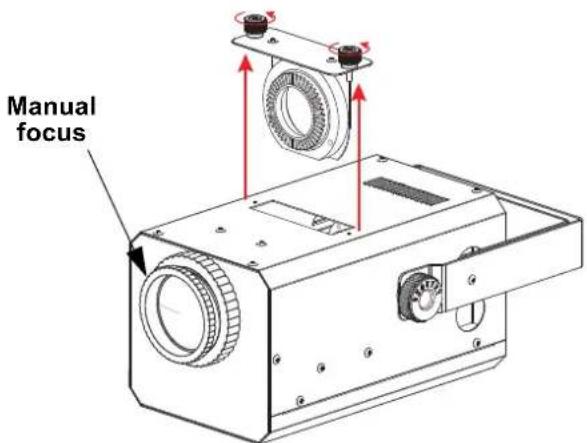

Changing the Gobo

Manual focus

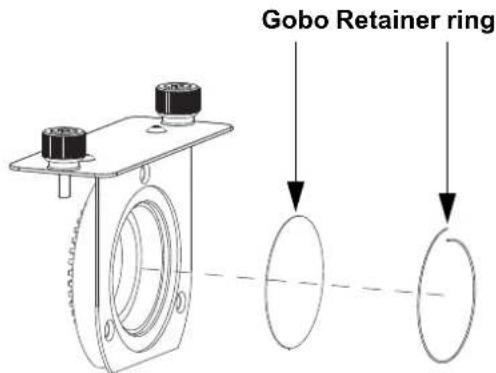

Gobo Retainer ring

Ensure the gear on the gobo assembly lines up properly with the rotation gear inside the product.

Technical Specifications

Dimensions and Weight

Length Width Height Weight

7.9 in (203 mm) 4.7 in (120 mm) 9.4 in (240 mm) 3.6 lb (1.63 kg)

Note: Dimensions in inches are rounded.

Power

Input Voltage Range Voltage Selection
Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging
Parameter 120 V, 60 Hz 230 V, 50 Hz
Consumption 42 W 51 W
Operating current	0.6 A	0.3 A
Power linking current (products)	8 A (14 products)	8 A (23 products)
Fuse	1 A, 250 V	1 A, 250 V
Power I/O	U.S./Worldwide	UK/Europe
Power input connector	IEC	IEC
Power output connector	Edison	IEC
Power cord plug	Edison (U.S.) Local Plug

Light Source

Type	Color	Quantity	Power	Current	Lifespan
LED	Cool white	1	32 W	2.4 A	50,000 hours

Photometrics

Illuminance @ 2 m

4,478 lux

Thermal

Maximum External Temp.	Cooling
104 °F (40 °C) Convection

Ordering

Product Name	Item Code	UPC Number
Gobo Shot 07121853	781462222000
