HAIER HADG6CBS4BWIFI - Range hood
📄 360 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice HAIER HADG6CBS4BWIFI - page 4
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Decorative wall hood
Brand Haier
Model HADG6CBS4BWIFI
Power supply 220-240 V ~ 50 Hz
Number of speeds 5 (including 2 boost)
Lighting LED, 1.5 W max
Timer function Delayed shutdown 5 minutes
Connectivity Wi-Fi 802.11 b/g/n, 2.4 GHz
Mobile app hOn (iOS/Android)
Grease filter type Non-stick metal, washable
Activated carbon filter Optional, annual replacement
Extraction mode External (duct Ø150 mm) or recirculation
Installation distance 65 to 75 cm above cooking hob
Exhaust duct diameter 150 mm
Network standby consumption 2 W
Package contents Body, ducts (2), brackets, filters, hardware
Safety Mandatory grounding, omnipolar disconnection
Filter maintenance Grease filter: monthly wash; charcoal filter: annual replacement
Repairability LED bulb replaceable as complete assembly; spare parts available after-sales service

Frequently Asked Questions - HADG6CBS4BWIFI HAIER

What is the ideal distance between the hood and the cooking hob?
The distance must be between 65 and 75 cm for optimal performance.
How to clean the grease filter?
Remove the filter and clean it with a household detergent and a soft cloth. Do not use a metal scouring pad. Wash it at least once a month.
When to replace the activated carbon filter?
The charcoal filter must be replaced at least once a year. It is only necessary in recirculation mode.
How to connect the hood to Wi-Fi?
Download the hOn app, then press and hold the Wi-Fi icon on the hood until it flashes. Follow the instructions in the app.
What to do if the hood does not turn on?
Check that the power cord is properly plugged in and that the outlet is powered. If the problem persists, contact after-sales service.
Can you use the hood without external venting?
Yes, in recirculation mode. You must install the activated carbon filters (supplied) to absorb odors.
How to activate the boost function?
Press the B button (or B+) to activate the maximum speed for 5 minutes, then the hood automatically returns to the previous speed.
How to replace the LED bulb?
Remove the glass cover, disconnect the wiring and replace the complete assembly (bulb + holder). The bulb alone is not replaceable.
The hood is very noisy, what to do?
Check that the appliance is securely fixed to the wall and that the filters are clean. If the noise persists, have it checked by a professional.
Can I flambé food under the hood?
No, never flambé under the hood, this presents a fire risk.

User questions about HADG6CBS4BWIFI HAIER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Range hood in PDF format for free! Find your manual HADG6CBS4BWIFI - HAIER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HADG6CBS4BWIFI by HAIER.

USER MANUAL HADG6CBS4BWIFI HAIER

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 03

SAFETY PRECAUTION 03

ELECTRICAL INSTALLATION 05

SPECIFICATION 06

INSTALLATION (VENT OUTSIDE) 07

INSTALLATION (VENT INSIDE) 16

DESCRIPTION OF COMPONENTS 17

OPERATION 17

MAINTENANCE 20

TROUBLESHOOTING 21

CONFORMITY WITH DIRECTIVES 22

ENVIRONMENTAL PROTECTION 22

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with a large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market).

The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

SAFETY PRECAUTION

☐ Never let children operate the machine. ☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purposes. ☐ The cooker hood and its filter should be cleaned regularly in order to keep in good working condition. ☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. ☐ Forbid direct baking from the gas cooker. Please keep the kitchen room with good convection. Before connecting this appliance, check that the power supply cord is not damaged. A damaged supply cord must be replaced by qualified service personnel only. ☐ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels; ☐ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels; ☐ Regulations concerning the discharge of air have to be fulfilled.

  • Children should be supervised to ensure that they do not play with the appliance.
  • Do not flambé under the range hood.
  • The range hood is not intended to be installed over a hob having more than four hob elements.
  • There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);
  • The details concerning the method and frequency of cleaning.
  • There is a fire risk if cleaning is not carried out in accordance with the instructions;
  • Do not flame under the range hood;
  • CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt, seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply, ensure that the mains voltage corresponds to the voltage on the rating plate.

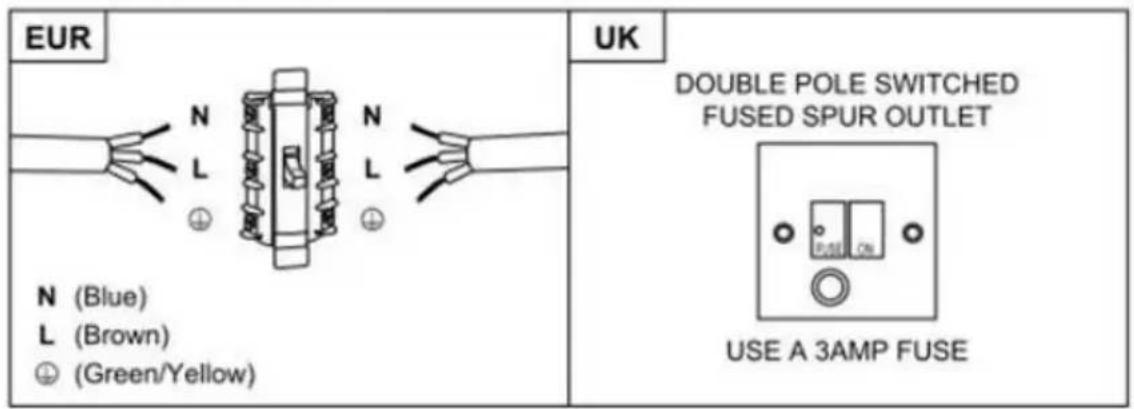

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

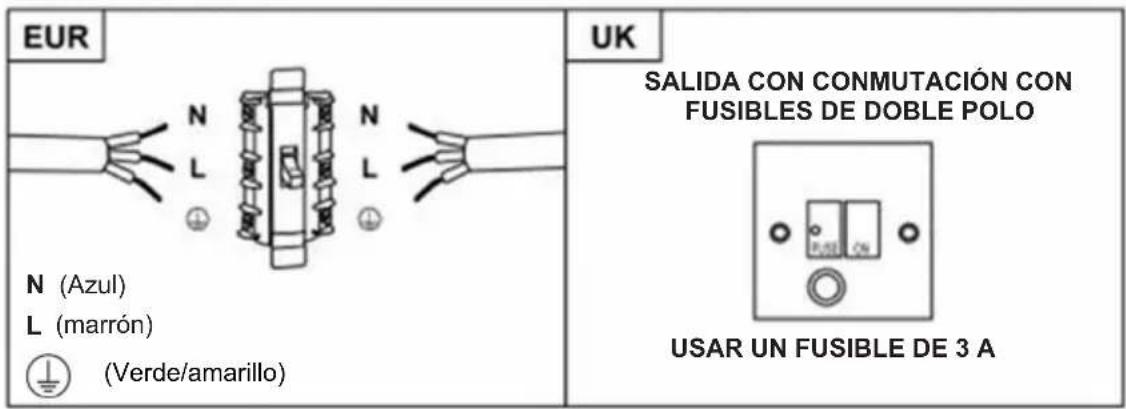

WARNING: This is a Class I appliance and MUST be earthed. This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

EUR (Blue), N (Brown), L (Green/Yellow), UK. Double pole switched fused spur outlet. Use a 3A fuse.

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec.Illustration PictureQty
Hood body 1HAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 1
Lower chimney (500mm)HAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 21
Upper chimney (500mm)HAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 31
Upper chimney bracketHAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 41
Lower chimney bracketHAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 51
Cooker hood bracketHAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 61
φ8 rawl plugs φ8×φ6 white colorHAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 79
Screw (ST4 * 30 mm)HAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 89
Screw (ST4 * 8 mm)HAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 96
Air outletHAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 101
Carbon filterHAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 112

INSTALLATION (wall mounting)

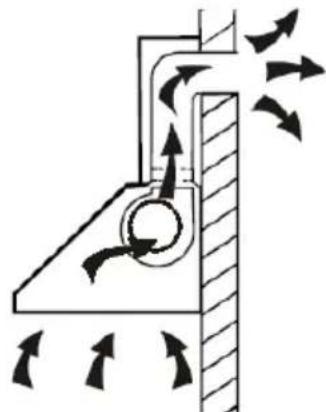

If you have an outlet to the outside, your cooker hood can be connected as shown in the picture below by means of an extraction duct (enamel, aluminum, or flexible non-flammable pipe with an interior diameter of 150mm).

Diagram of airflow around a mechanical component with directional arrows indicating movement.

  1. Before installation, turn the unit off and unplug it from the outlet.

Hand holding a power outlet plug with a cable.

  1. The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect.

65 cm, 75 cm

INSTALLING THE HOOD

Position the hood at the desired height, respecting the minimum height above the hob.

Mark the location of the wall bracket. (Place the holes between 700 and 800 mm above the worktop.) Remove the hood and position the wall bracket to mark the locations of the holes on the wall.

Drill the 3 holes in the wall to insert the appropriate fastening system (screw ST4x30mm).

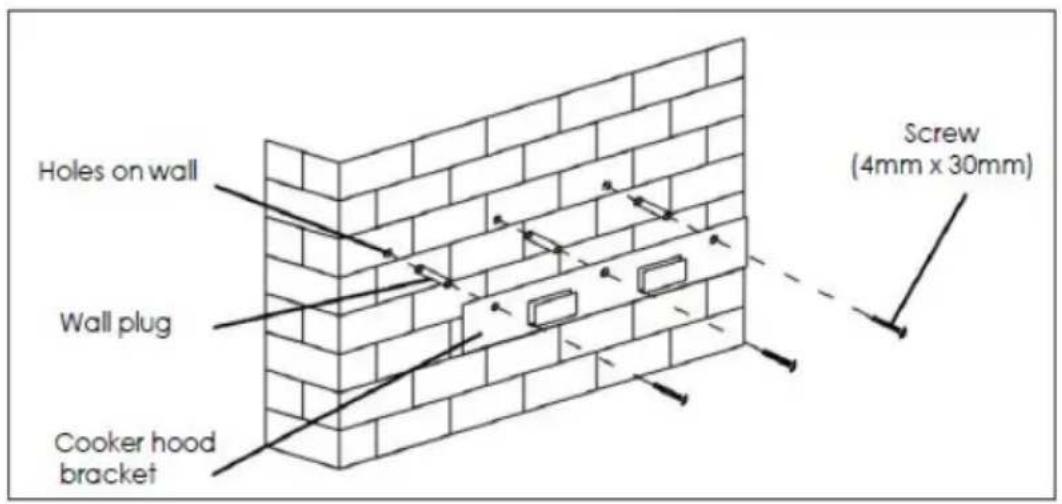

Holes on wall, wall plug, cooker hood bracket, screw (4mm x 30mm).

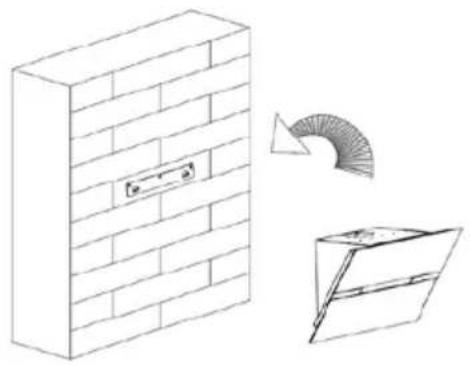

Hang the hood in the notches of the wall bracket.

Diagram showing a brick wall with a switch and a separate 3D schematic of a door mechanism.

INSTALLING THE HOOD

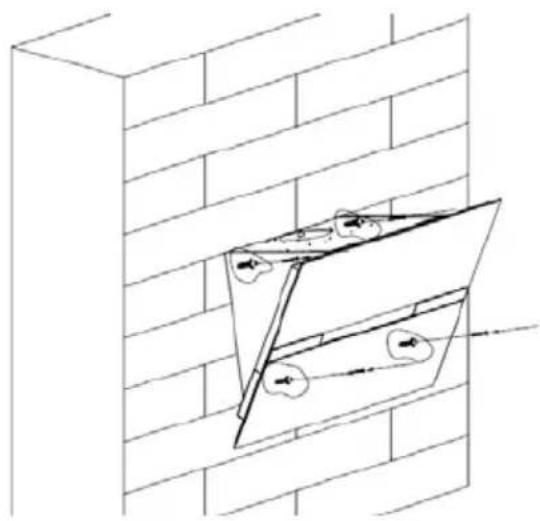

Once the hood is in place, locate the position of the 4 additional wall mount screws as shown in the following diagram.

Remove the hood to puncture the wall and install wall plugs.

Secure the body of the hood with 4 screws of 4 mm in diameter using dowels adapted to your wall.

Technical line drawing of a wall corner with internal components and directional arrows.

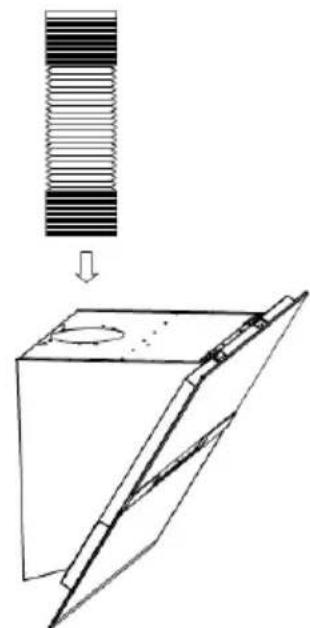

If the extraction mode is selected, place the exhaust air duct on the air outlet as shown.

Technical line drawing of a mechanical component with a spring-loaded assembly and a cross-section view.

INSTALLING THE HOOD

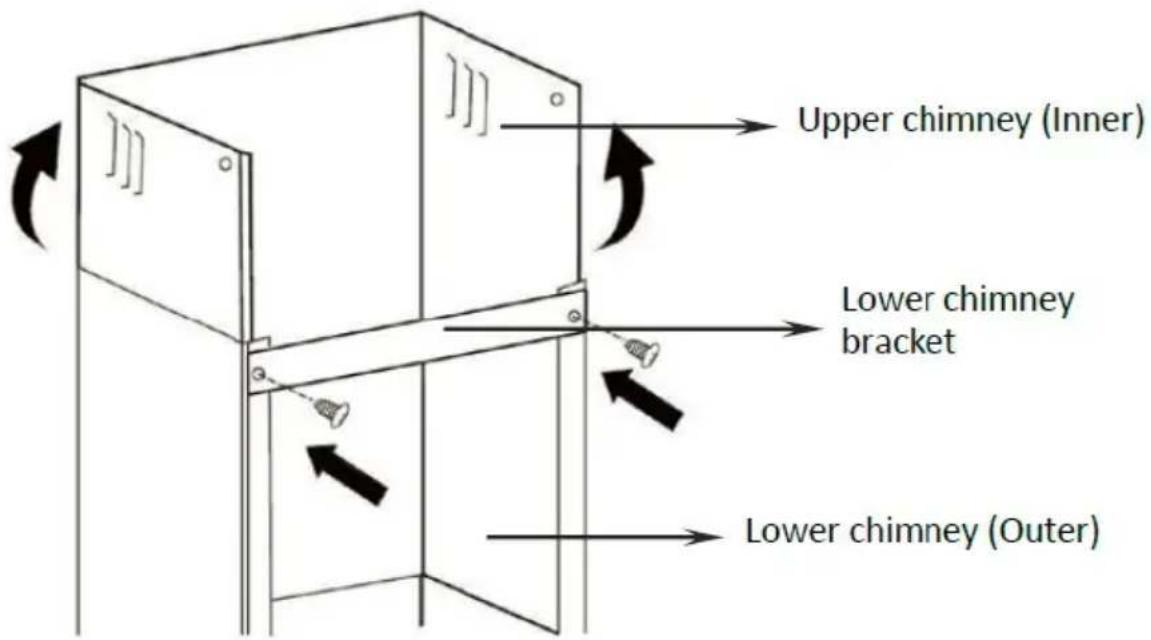

Attach the lower chimney support to the lower chimney as shown.

Use 2 screws ST4x8mm.

(Do not over tighten the screws, make sure the upper chimney can slide easily into the lower chimney)

Insert the upper chimney into the lower chimney.

Upper chimney (inner), lower chimney bracket, lower chimney (outer).

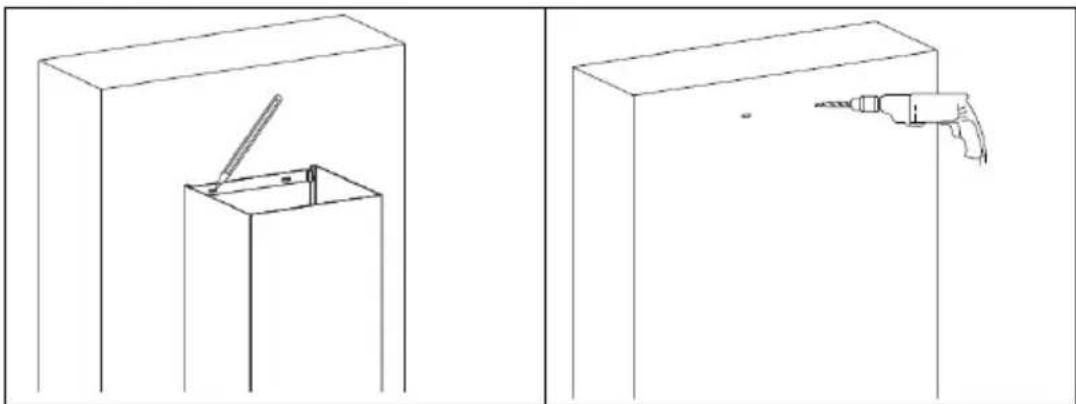

Position the bottom chimney in the appliance, then mark the holes on the wall.

Two technical line drawings showing a tool inside a box and a drill bit in a container.

Remove the lower chimney, then drill holes in the wall: hole for screw diameter 8 mm

Use the dowels adapted to your wall

INSTALLING THE HOOD

Install the lower chimney, then screw it to the wall with 2 screws of diameter 8 mm

Technical line drawing of a 3D rectangular block with internal cutout and dimension annotations.

Line drawing of a box with a handle and internal compartments.

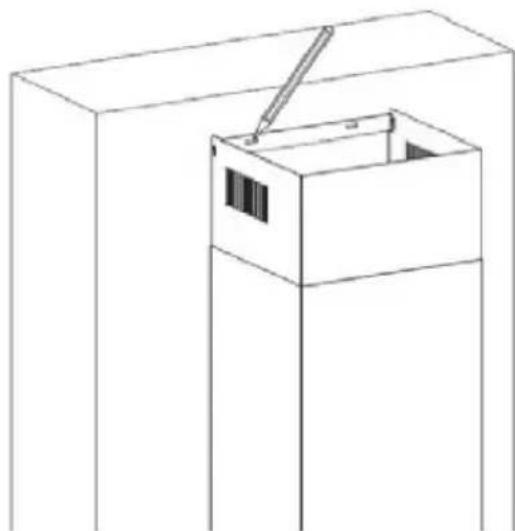

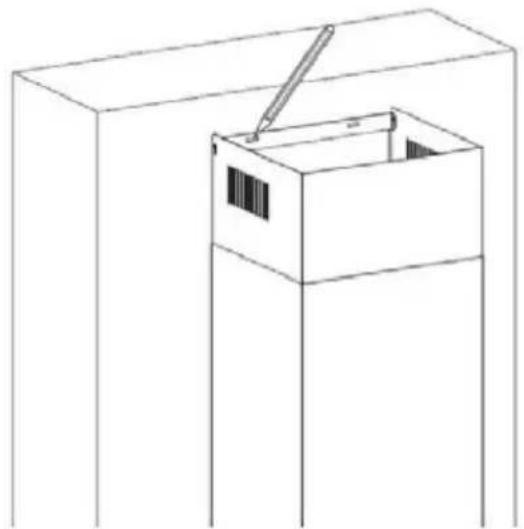

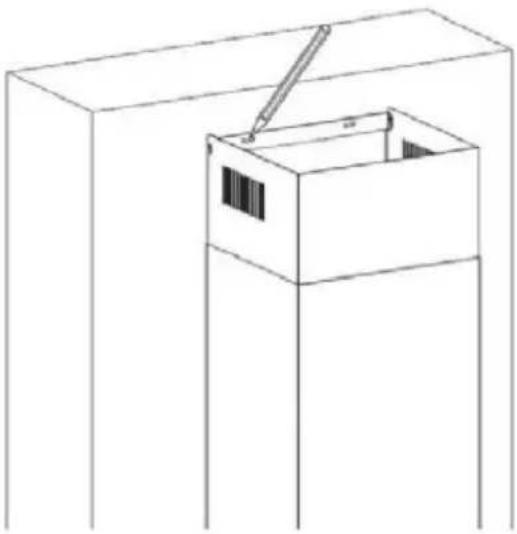

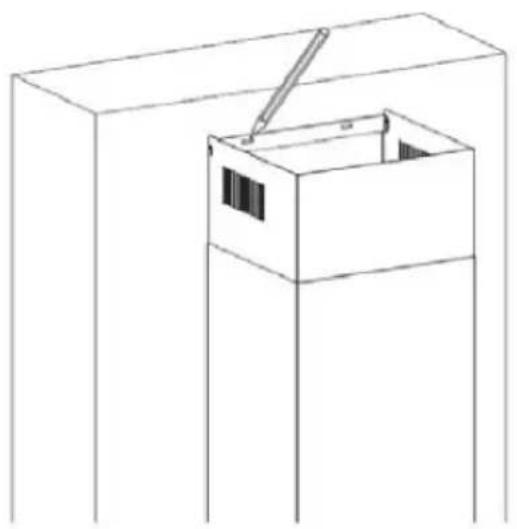

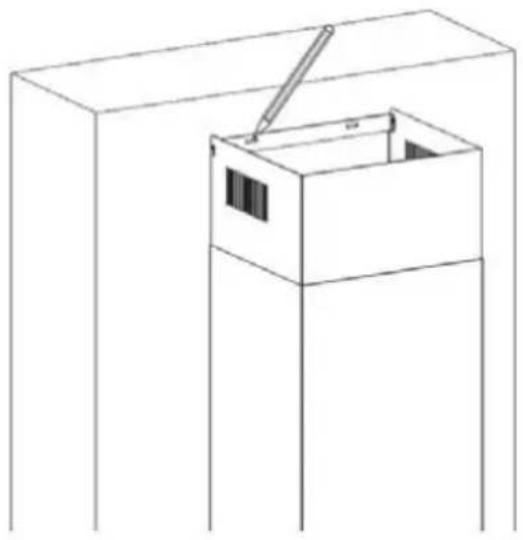

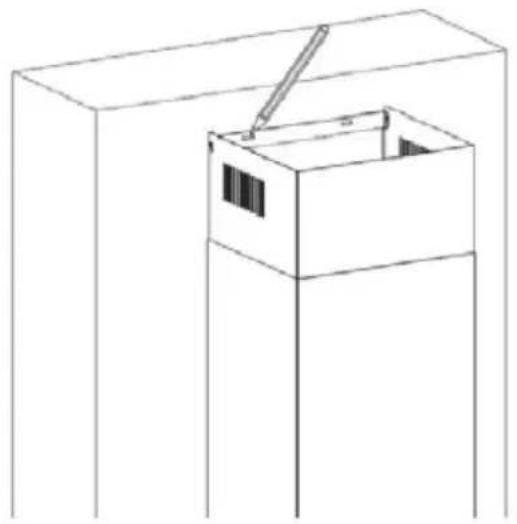

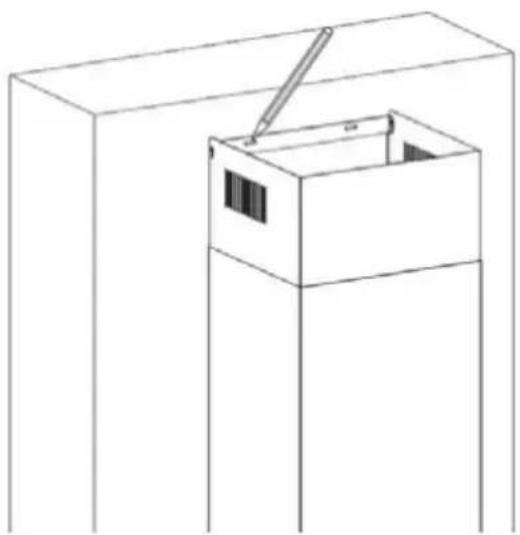

Then pull the upper chimney upwards to the desired height. Mark the locations of the mounting holes of the upper chimney support.

Lower the upper chimney and then drill holes in the wall.

Insert the dowels adapted to your wall

Line drawing of a rectangular box with a hand holding a tool.

INSTALLING THE HOOD

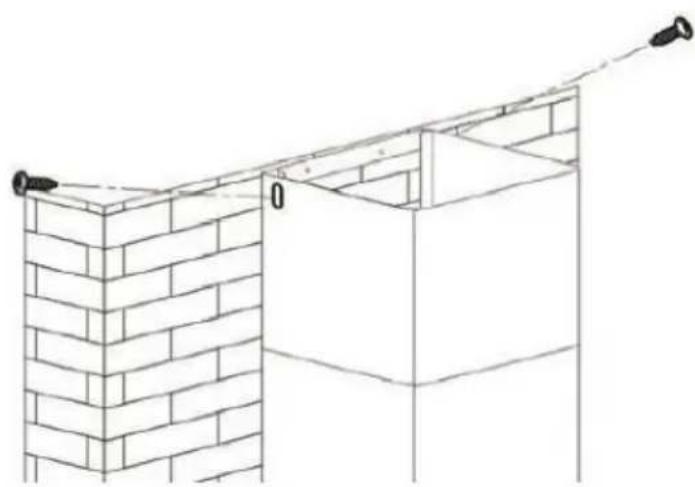

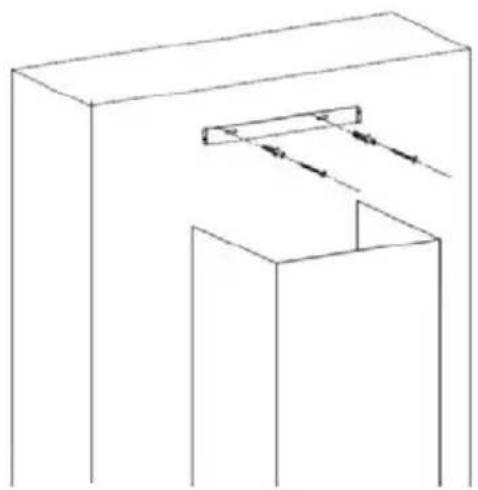

Secure the wall bracket of the upper chimney to the wall using the selected dowels (8 mm screws recommended).

3D diagram of a rectangular block with internal arrows indicating direction.

Line drawing of a brick wall structure with two hanging sensors and a vertical panel.

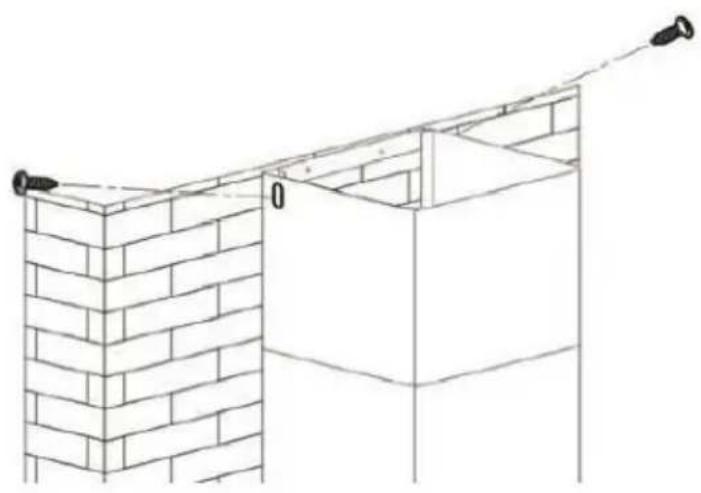

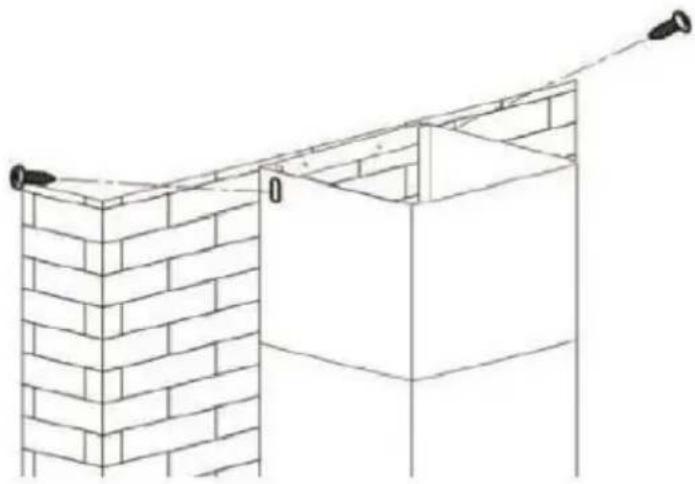

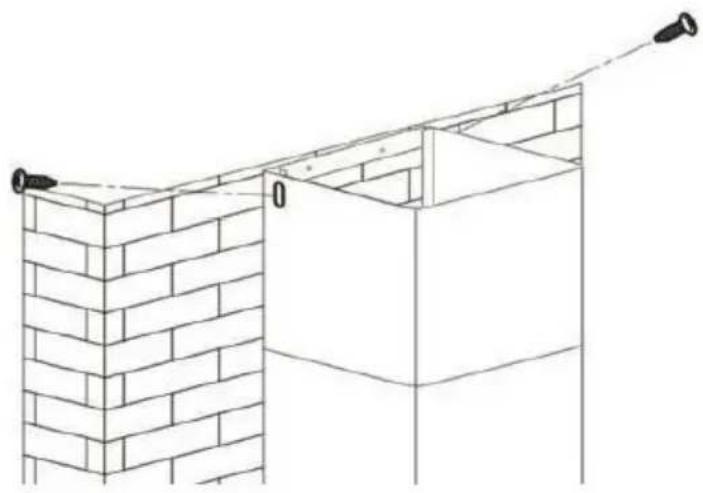

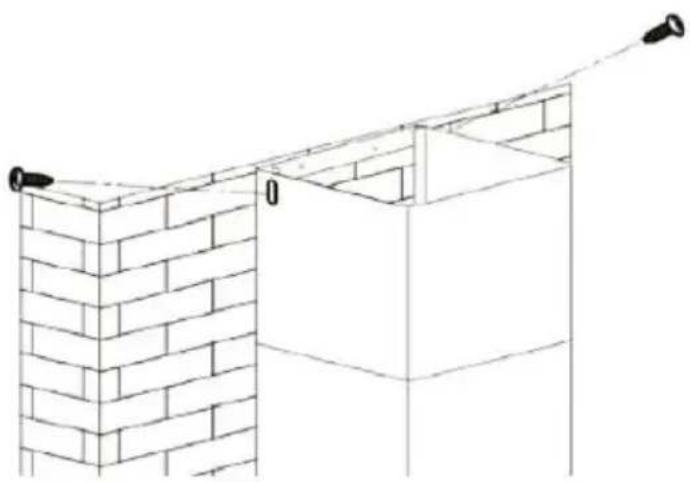

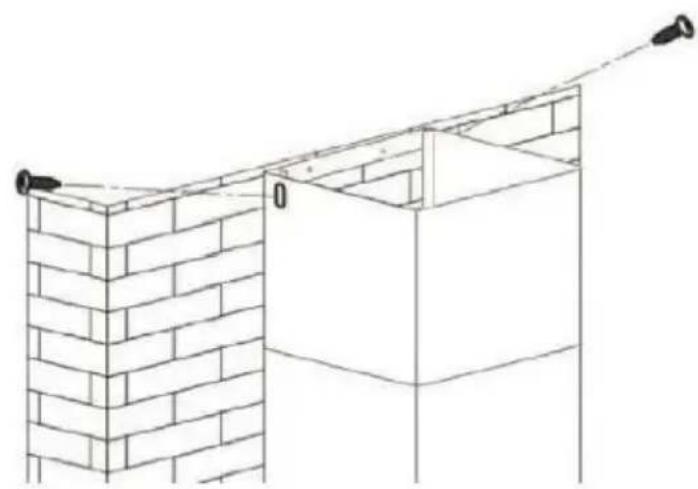

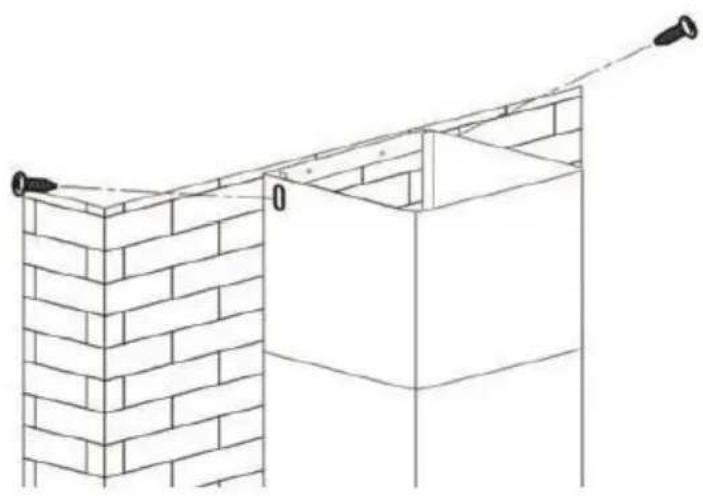

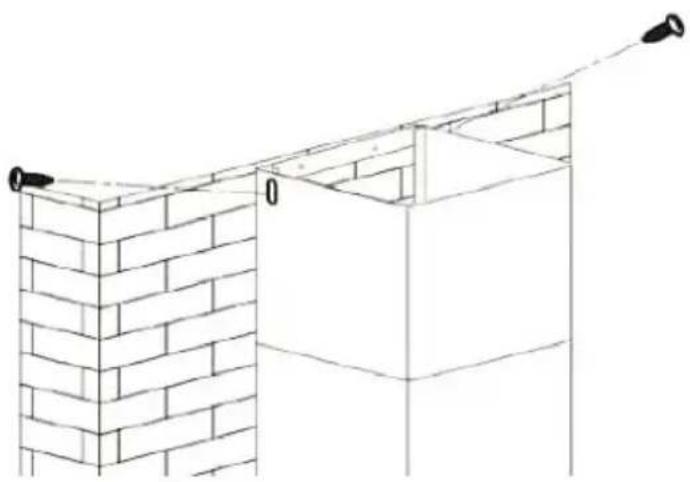

Reassemble the upper chimney and fix it to the wall bracket with 2 screws ST4x8mm.

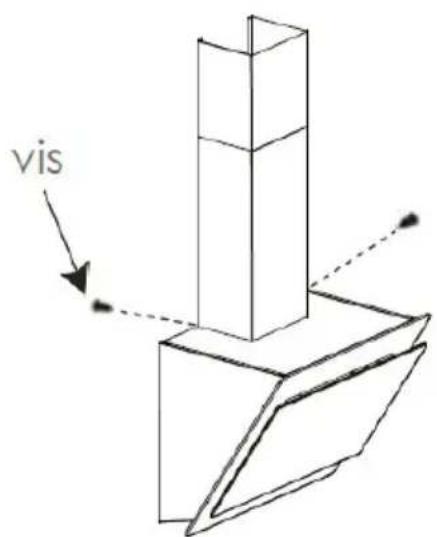

Fasten the lower chimney to the lugs of the kitchen hood using 2 screws ST4x8mm.

Screw

Standard Installation Accessories List

Spec.Illustration PictureQty
Air DeflectorHAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 11
BracketHAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 21
φ8 rawl plugs φ8×φ6 white colorHAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 32
Screws ST4.0×30HAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 42
Screws ST3.5×12HAIER HADG6CBS4BWIFI - Standard Installation Accessories List - 52

INSTALLATION (AIR DEFLECTOR FOR T-SHAPE, CURVED GLASS, FLAT GLASS MODELS):

Air deflector is mentioned as included and not optional.

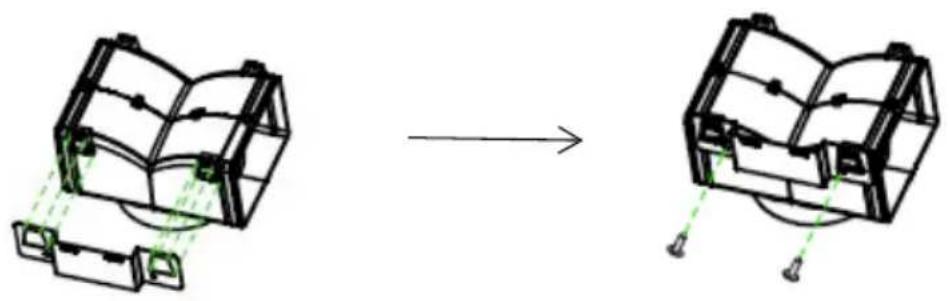

  1. Fix the bracket to the T-shaped plastic outlet with 2pcs ST3.5x12mm screws provided as shown below:

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

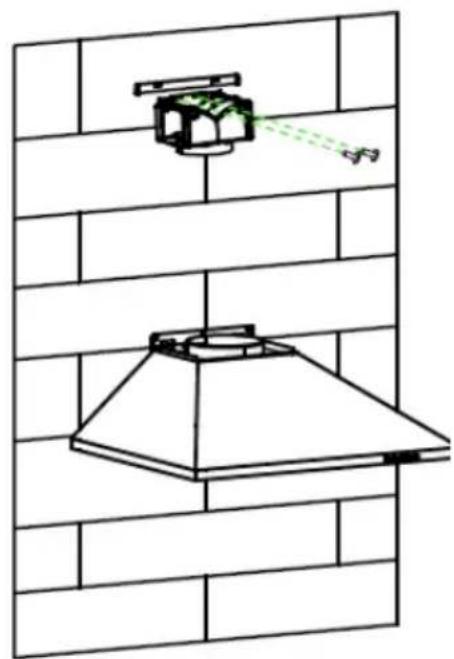

  1. Drill 2 holes on the wall to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2pcs ST4x30mm screws provided.

Technical line drawing of a chimney with a mounted device and a conical canopy, mounted on a brick wall (no text or symbols).

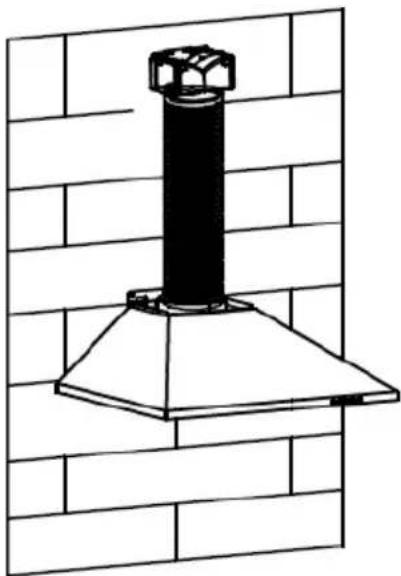

  1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

Line drawing of a black metal chimney mounted on a white brick wall (no text or symbols).

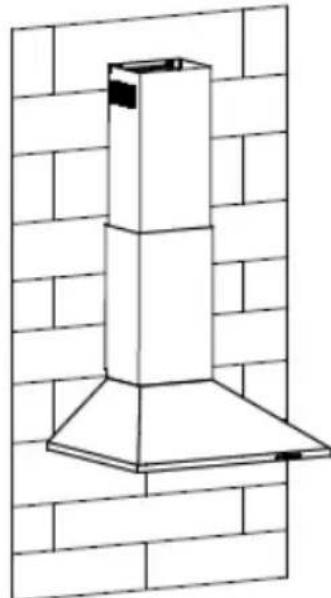

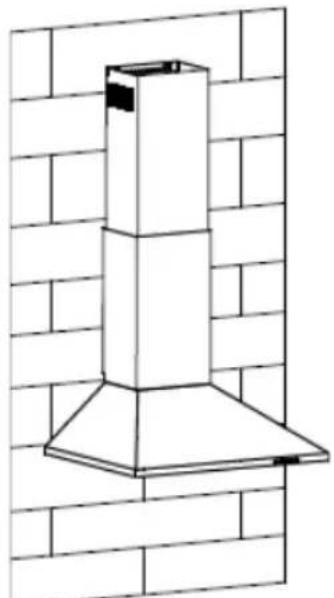

  1. Install the chimney to the unit and fix it.

Line drawing of a chimney mounted on a brick wall (no text or symbols).

Please kindly be noted: T-shaped plastic outlet and v-flaps cannot be used at the same time. You can use them in two ways: 1) Add v-flap on existing outlet; 2) Use T-shaped plastic outlet, no add v-flap.

Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation and use of the product.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one shown in section "INSTALLATION (VENT OUTSIDE)".

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols).

Activated carbon filter can be used to trap odors. In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols).

Illustration of a hand pressing down on a mechanical component with a curved arrow indicating motion (no text or symbols).

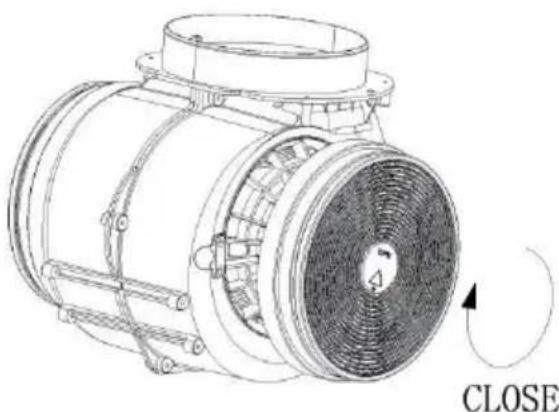

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with no visible text or symbols.

NOTE:

Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. When activated carbon filter is attached, the suction power will be lowered.

DESCRIPTION OF COMPONENTS

CONFIGURATION 1

1

2

3

B

B+

HAIER HADG6CBS4BWIFI - CONFIGURATION 1 - 1

HAIER HADG6CBS4BWIFI - CONFIGURATION 1 - 2

OPERATION

1 Low Speed button

It's used for ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally suited for ventilation during standard cooking operations.

3 High Speed button

When a high density of smoke or steam is produced, press the high-speed button for effective ventilation.

B Boost 1 (speed 4)

Press the speed B button once; the backlight of the speed B button turns on, and the cooker hood operates in boost mode.

B+ Boost 2 (speed 5)

Press the speed B+ button once; the backlight of the speed B+ button turns on, and the cooker hood operates in boost mode.

HAIER HADG6CBS4BWIFI - B+ Boost 2 (speed 5) - 1

Light

Short press to turn the light on or off.

Quick timer: Long press the light button for 3 seconds; the fan speed buttons will flash and enter a 5-minute countdown. After 5 minutes, the motor and light will turn off automatically with three buzzer sounds.

HAIER HADG6CBS4BWIFI - Light - 1

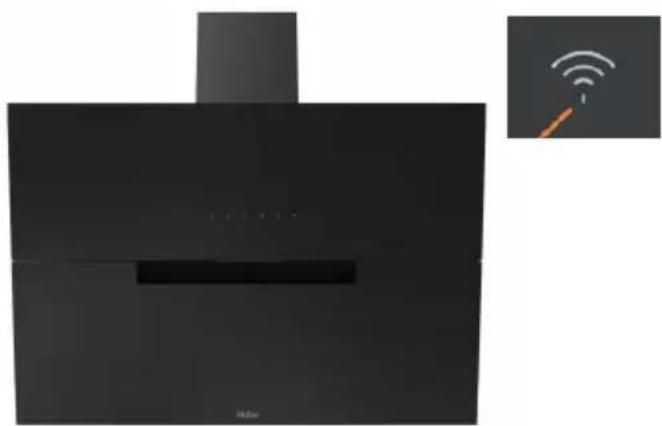

Wi-Fi Connection

Long press the Wi-Fi icon to enter connecting mode: the backlight of the Wi-Fi icon keeps flashing to indicate the connection is in progress; the backlight stays on to indicate a successful connection, and the same applies in standby mode. Long press the Wi-Fi icon again to stop the connection.

CONFIGURATION 2

1

2

3

B

HAIER HADG6CBS4BWIFI - CONFIGURATION 2 - 1

HAIER HADG6CBS4BWIFI - CONFIGURATION 2 - 2

STANDBY MODE.

After plugging in, all lighting and system are in STANDBY MODE.

1 Low Speed button

It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.

2 Medium Speed button

Airflow speed is ideal for ventilation during standard cooking operations.

3 High Speed button

When high density of smoke or steam is produced, press the high-speed button for effective ventilation.

B Booster function

This hood has a booster function. To activate the booster, press B to speed 4, entering the highest speed while the hood is in use, and it will increase speed for 5 minutes before slowing down again.

HAIER HADG6CBS4BWIFI - B Booster function - 1

Light: Short press for lighting on and off.

Quick timer: Long press the light button and hold for 3 seconds. Fan speed buttons will flash and enter a 5-minute countdown. After 5 minutes, the motor and light will turn off automatically with three buzzer sounds.

HAIER HADG6CBS4BWIFI - Light: Short press for lighting on and off. - 1

Wi-Fi Connection

Long press the WiFi icon to enter connecting mode: the backlit WiFi icon flashing indicates the connection is in progress, the backlit WiFi icon lit steadily indicates it is connected, same for standby mode; long press the WiFi icon again to stop the connection.

Download hOn App

HAIER HADG6CBS4BWIFI - Download hOn App - 1

First of all, you should download the hOn APP and install it on your portable device. Then enroll your hood.

QR code image containing encoded data, no visible human-readable text.

HAIER HADG6CBS4BWIFI - Download hOn App - 3

NOTE

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

The image of the hood is for presentation purposes only and may not be perfectly representative.

1. Press the WiFi button until the icon starts blinking. When the pairing is completed, the WiFi icon will be on.

MAINTENANCE

Before cleaning, switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material, or stiff brushes to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month to prevent any risk of fire.

The filter collects grease, smoke, and dust... so the filter directly affects the efficiency of the cooker hood. If not cleaned, the grease residue (potentially flammable) will saturate the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that is installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequently the cooker hood is used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement; you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure technical diagram showing two parallel lines with downward arrows indicating force or connection points (no text or symbols).

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It is not possible to replace the bulbs individually; it will be necessary to obtain the bulbs, bulb holders, and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders, and wiring in the same manner as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROUBLESHOOTING

FaultCauseSolution
Light on, but fan does not workThe fan blade is jammed.Switch off the unit and repair by qualified service personnel only.
The motor is damaged.
Both light and fan do not workHalogen light bulb burn.Replace the bulb with correct rating.
Power cord looses.Plug in to the power supply again.
Serious Vibration of the unitThe fan blade is damaged.Switch of the unit and repair by qualified service personnel only.
The fan motor is not fixed tightly.Switch off the unit and repair by qualified service personnel only.
The unit is not hung properly on the bracket.Take down the unit and check whether the bracket is in proper location.
Suction performance not goodToo long distance between the unit and the cooking planeReadjust the distance to 65-75cm
Technology Wi-Fi
Standard 802.11 b/g/n
Frequency Band(s)[MHz]2400 MHz - 2483.5 MHz
Maximum Power[mW]100 mW
Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:2 W
How to activate wireless network port:If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.
How to deactivate wireless network port:If the Hood has been enrolled with the APP, turn off the Hood to deactivate wireless network port. If the Hood hasn’t been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important that you inform the Assistance Service of your product code and its serial number (a 16-character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific

HAIER HADG6CBS4BWIFI - CUSTOMER ASSISTANCE SERVICE - 1

treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Line drawing of a box with a handle and internal compartments, no text or symbols present.

Isometric line drawing of a brick wall with two hanging sensors and a support structure (no text or symbols).

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols).

Get it on Google Play. Download on the App Store.

Get ready to add your appliance

1 Stay close to your appliance 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal CHANGE WI-FI SETTINGS 3 Public networks are not allowed due to low security and reliability. 4 Prepare to enter your Home Wi-Fi password.

Exterior view of a modern office building (no signage).

Line drawing of a simple electrical cabinet with a handle and internal compartments (no text or symbols).

Line drawing of a brick wall structure with two hanging sensors and a vertical support (no text or symbols)

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Closed

NOTE:

GET IT ON Google Play Download on the App Store

NOTE

Get ready to add your appliance

1 Stay close to your appliance 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal CHANGE WI-FI SETTINGS 3 Public networks are not allowed due to low security and reliability. 4 Prepare to enter your Home Wi-Fi password.

HAIER HOOD REGISTRATION

Black rectangular device with a vertical stack and a small inset showing a Wi-Fi signal icon (no text or symbols on the device itself)

Blue = N (Neutral) or NEUTRAL

Green and yellow = E (Earth) or GROUND

HAIER HADG6CBS4BWIFI - HAIER HOOD REGISTRATION - 2

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Line drawing of a simple electrical cabinet with a handle and internal compartments (no text or symbols)

Line drawing of a brick wall structure with two hanging sensors and a vertical panel (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

NOTE:

Get it on Google Play. Download on the App Store.

NOTE

Get ready to add your appliance

1 Stay close to your appliance 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal CHANGE WI-FI SETTINGS 3 Public networks are not allowed due to low security and reliability. 4 Prepare to enter your Home Wi-Fi password.

REGISTRATION OF A HAIER HOOD

Exterior view of a modern office building (no signage)

ELECTRICAL INSTALLATION....89

INSTALLATION (WALL MOUNTING) 91

INSTALLATION OF THE EXTRACTOR HOOD 92

LIST OF STANDARD INSTALLATION ACCESSORIES...... 97

INSTALLATION (AIR DEFLECTOR FOR T-SHAPE, CURVED GLASS, FLAT GLASS MODELS)......98

INSTALLATION (INDOOR VENTING) 100

PARTS DESCRIPTION....101

MAINTENANCE 104

TROUBLESHOOTING 105

CUSTOMER ASSISTANCE SERVICE.... 106

INTRODUCTION

INSTALLATION OF THE EXTRACTOR HOOD

INSTALLATION OF THE EXTRACTOR HOOD

Line drawing of a simple electrical cabinet with a handle and internal compartments (no text or symbols)

Isometric line drawing of a brick wall with two hanging sensors and a support structure (no text or symbols).

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols).

Close

NOTE:

GET IT ON Google Play Download on the App Store

NOTE

Get ready to add your appliance

1 Stay close to your appliance. 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3 Public networks are not allowed due to low security and reliability. 4 Prepare to enter your Home Wi-Fi password.

REGISTRATION OF HAIER EXTRACTOR HOOD

Exterior view of a modern kitchen appliance with a mounted chimney and a close-up inset showing wireless signal icons (no text or symbols).

INSTALLATION OF THE EXTRACTOR HOOD

INSTALLATION OF THE EXTRACTOR HOOD

Line drawing of a simple electrical cabinet with a handle and internal compartments (no text or symbols)

INSTALLATION OF THE EXTRACTOR HOOD

Isometric line drawing of a brick wall with two hanging sensors and a support structure (no text or symbols)

  1. Install the chimney onto the unit and secure it.

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Simple line drawing of a hand pressing down on a slanted object (no text or symbols)

NOTE:

GET IT ON Google Play Download on the App Store

NOTE

Get ready to add your appliance

1 Stay close to your appliance. 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3 Public networks are not allowed due to low security and reliability. 4 Prepare to enter your Home Wi-Fi password.

REGISTRATION OF HAIER EXTRACTOR HOOD

Exterior view of a modern office building (no signage)

Line drawing of a box with a handle and internal compartments, no text or symbols present.

Line drawing of a brick wall corner with a vertical support structure and a hanging pipe, no text or symbols.

Simple line drawing of a hand pressing down on a laptop keyboard, no text or symbols.

CLOSE

NOTE:

HAIER HADG6CBS4BWIFI - NOTE: - 1

NOTE

Get ready to add your appliance

1 Stay close to your appliance. 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3 Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

HAIER EXTRACTOR HOOD REGISTRATION

Exterior view of a modern black electronic device with a small inset showing a wireless signal icon, no text or symbols on the device itself.

INSTALLATION (RECIRCULATION MODE) 163

INSTALLATION (WALL MOUNTING)

MOUNTING THE EXTRACTOR HOOD

MOUNTING THE EXTRACTOR HOOD

Line drawing of a box with a handle inserted into one corner, no text or symbols present

MOUNTING THE EXTRACTOR HOOD

Line drawing of a brick wall and adjacent structure with two hanging lights (no text or symbols)

INSTALLATION (RECIRCULATION MODE)

Simple line drawing of a hand pressing down on a mechanical component.

CLOSING

NOTE:

HAIER HADG6CBS4BWIFI - NOTE: - 1

NOTE

Get ready to add your appliance

1 Stay close to your appliance. 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3 Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

HOOD INSTALLATION

HOOD INSTALLATION

Line drawing of a box with a handle inserted into one corner.

HOOD INSTALLATION

Line drawing of a brick wall and adjacent structure with two hanging lights, no text or symbols.

Simple line drawing of a hand pressing down on a piano keyboard, no text or symbols.

CLOSE

WARNING;

HAIER HADG6CBS4BWIFI - WARNING; - 1

WARNING

Get ready to add your appliance

1 Stay close to your appliance 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal CHANGE WI-FI SETTINGS 3 Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

HAIER HOOD REGISTRATION

Exterior view of a modern office building, no signage.

Line drawing of a box with a handle and internal compartments, no text or symbols present

Line drawing of a brick wall structure with a vertical support and two hanging sensors (no text or symbols)

NOTE:

HAIER HADG6CBS4BWIFI - NOTE: - 1

NOTE

Get ready to add your appliance

1 Stay close to your appliance 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal CHANGE WI-FI SETTINGS 3 Public networks are not allowed due to low security and reliability. 4 Prepare to enter your Home Wi-Fi password.

HOOD INSTALLATION

HOOD INSTALLATION

Line drawing of a box with a handle and internal compartments, no text or symbols present.

HOOD INSTALLATION

Line drawing of a brick wall with a chimney and a cabinet, no text or symbols present

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

CLOSE

HAIER HADG6CBS4BWIFI - HOOD INSTALLATION - 3

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

HAIER HOOD REGISTRATION

Exterior view of a modern office building (no signage)

INSTALLING THE HOOD

INSTALLING THE HOOD

Line drawing of a cabinet with a handle and internal compartments (no text or symbols)

Line drawing of a brick wall structure with a vertical support and two hanging sensors (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating rotation (no text or symbols)

CLOSE

NOTE:

HAIER HADG6CBS4BWIFI - NOTE: - 1

NOTE

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

HAIER HOOD REGISTRATION

Exterior view of a modern kitchen appliance with a mounted chimney and a close-up inset showing wireless signal icons (no text or symbols)

INSTALLING THE HOOD

INSTALLING THE HOOD

Line drawing of a box with a handle and internal compartments, no text or symbols present

INSTALLING THE EXTRACTOR HOOD

Line drawing of a brick wall structure with a vertical panel and two hanging sensors (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating motion (no text or symbols)

NOTE:

NOTE

HAIER HADG6CBS4BWIFI - NOTE: - 1

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

REGISTERING THE HAIER EXTRACTOR HOOD

Exterior view of a modern office building (no signage)

INSTALLING THE EXTRACTOR HOOD

INSTALLING THE EXTRACTOR HOOD

Line drawing of a box with a pen inserted into it, no text or symbols present

INSTALLING THE EXTRACTOR HOOD

Line drawing of a brick wall structure with two hanging sensors and a vertical panel (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating motion (no text or symbols)

CLOSE

NOTE.

HAIER HADG6CBS4BWIFI - NOTE. - 1

NOTE

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

REGISTERING THE HAIER EXTRACTOR HOOD

Exterior view of a modern black appliance with a white top and rectangular base, alongside an inset showing a Wi-Fi signal icon (no text or symbols on the device itself).

HOOD INSTALLATION

HOOD INSTALLATION

Line drawing of a box with a pen inserted into one corner, no text or symbols present.

HOOD INSTALLATION

Line drawing of a brick wall structure with a vertical support and hanging sensors (no text or symbols).

A carbon filter can be used to retain odors.

Simple line drawing of a hand pressing down on a curved surface (no text or symbols).

CLOSING

NOTE.

HAIER HADG6CBS4BWIFI - NOTE. - 1

NOTE

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

HAIER HOOD REGISTRATION

Exterior view of a modern black appliance with a white ventilation icon and a small inset showing a Wi-Fi signal (no text or symbols on the device itself).

INSTALLING THE HOOD

INSTALLING THE HOOD

Remove the lower chimney, then drill holes in the wall: hole for screw diameter Φ8 mm. Use wall-adapted plugs.

INSTALLING THE HOOD

Line drawing of a box with a pencil inserted into it.

INSTALLING THE HOOD

Line drawing of a brick wall with a vertical support structure and two hanging sensors.

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation.

HAIER HADG6CBS4BWIFI - INSTALLING THE HOOD - 3

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

HAIER TVAIKU NOSÜCËJA REGISTRÄCIJA

Exterior view of a modern black appliance with a white top and control panel, alongside an inset showing a wireless signal icon (no text or symbols on the device itself).

KLIENTU ATBALSTA DIENESTS

Line drawing of a box with a handle and internal compartments, no text or symbols present.

ЗАКРИТИ

ПРИМИТКА.

HAIER HADG6CBS4BWIFI - ПРИМИТКА. - 1

ПРИМИТКАExterior view of a modern office building, with no signage.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HAIER

Model : HADG6CBS4BWIFI

Category : Range hood
