About This Guide

The EZLink Par Q4BT ILS Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product's housing when it is on because it will be hot.
• This product must be charged under supervision only. NEVER leave it unattended or unmonitored while charging.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• This product is intended for floor mounting only. Do not hang overhead.
  • Always place this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surface.
• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
  • The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• EZLink Par Q4BT ILS
- Power cord
- Quick Reference Guide

To Begin

Unpack your EZLink Par Q4BT ILS and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to link up to 16 EZLink Par Q4BT ILS products at 120 V or 29 products at 230 V. Never exceed this number. Power-linking cords can be purchased separately.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Battery Power

The EZLink Par Q4BT ILS comes with a rechargeable lithium battery for cable-free operation.

Charging the Battery

The battery charges whenever the EZLink Par Q4BT ILS is plugged into a power source using the included power cord. If the product is plugged in and not in operation, make sure the product is turned off.

• The LED indicator light will flash if you overpower your units.
• DO NOT use the EZLink Par Q4BT ILS on full power mode (all LEDs at 100%) while it is being charged/plugged into a power source, as the unit will get extremely hot.

Battery Life Indicator

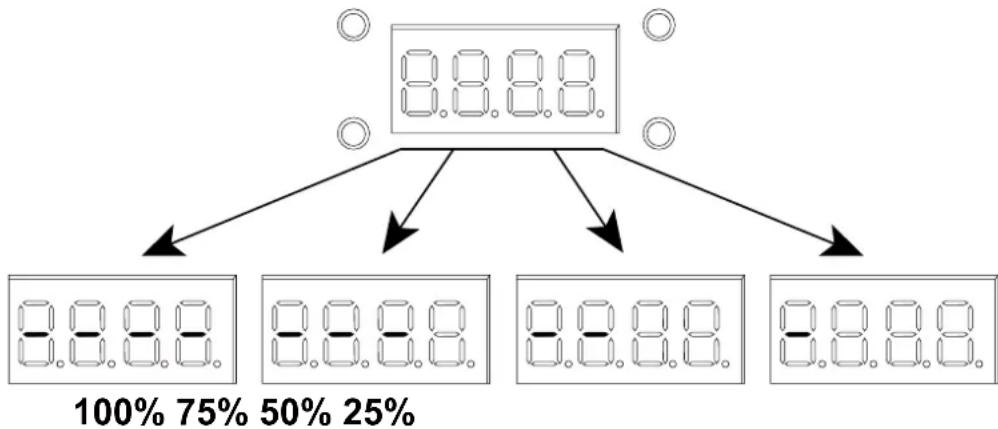

The indicators on the LED Menu Display show how much battery life remains available. The drawing below provides a key to reading the battery life indicators.

Battery Run Time

Maximum Run Time (all colors on)	Maximum Run Time (single color on)	Recharge Time
Up to 8 hours Up to 20 hours	4 hours

Mounting

Before mounting this product, read the Safety Notes.

Mounting Diagram

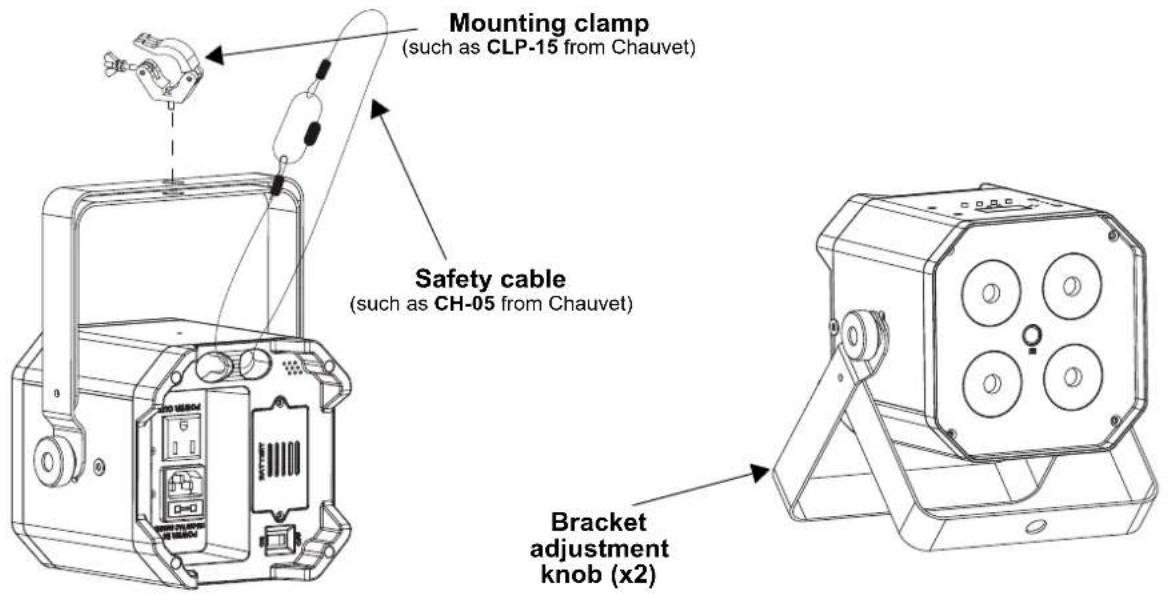

Mounting clamp (such as CLP-15 from Chauvet) Safety cable (such as CH-05 from Chauvet) Bracket adjustment knob (x2)

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the EZLink Par Q4BT ILS product page on www.chauvetdj.com for the latest menu map.

Mode Programming Levels Description
DMX Mode	4Ch	d 1-509		4-channel DMX mode
	8Ch 8-channel DMX mode
ILS Mode iLS iLS1-4 Sets ILS mode
Static Colors	C--	C 1-15		Static colors
Automatic Programs	P--	P 1-5		Automatic programs
Auto Speed	S--	S. 1-100		Program speed for P 1-5
Dimmer	d--	L. 1-255		Dimmer
Sound-Active Mode	Snd	Snd1-5		Sound-active programs
Sensitivity	SEnS	u 0-100		Sound sensitivity
Custom Color Mixing	u--	r. 0-255G. 0-255b. 0-255A. 0-255		Custom static colors combine red, green, blue, and amber
		S. 0-100		Strobe rate
Bluetooth Mode*	bLE	----		Bluetooth control mode, displays Bluetooth ID
Control Mode	SEt	ir	on	Turns infrared on or off
			oFF
		out	SLAV Enable Master/Slave with other BT products
			dMX	Enable Master/Slave with non-BT products

*The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

DMX Linking

The EZLink Par Q4BT ILS can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 505.

Master/Slave Connection

The EZLink Par Q4BT ILS uses the DMX data connection for its Master/Slave mode. Information about configuring the EZLink Par Q4BT ILS for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

ILS Connection

The EZLink Par Q4BT ILS uses the DMX data connection and the D-Fi USB for wireless connection to the Integrated Lighting System (ILS) ecosystem (patent pending). For more information about configuring the EZLink Par Q4BT ILS into ILS mode, please refer to the User Manual available at www.chauvetdj.com.

IRC-6 (Infrared Remote Control)

The EZLink Par Q4BT ILS can be operated with the CHAUVET IRC-6. For more information about the IRC-6, download instructions for the IRC-6 or the EZLink Par Q4BT ILS User Manual from www.chauvetdj.com.

Bluetooth Control

The EZLink Par Q4BT ILS can be operated with the BTAir application over a Bluetooth connection. For more information on using the BTAir app, download the BTAir User Manual from www.chauvetdj.com.

DMX Values

4Ch	8Ch	Function	Value	Percent/Setting
1		1	R255 0-100%	000
2		2	Green255 0-100%	000
3 3 Blue 000			255 0-100%
4		4	Amber255 0-100%	000
-5 Strobe			000 015 No function016 255 Strobe, slow to fast
-6 Auto Programs			000 005 No function006 055 Auto program 1 (programs 2-5)056 106 Auto program 2107 157 Auto program 3158 208 Auto program 4209 255 Auto program 5
-7 Auto Speed			000 250 Program speed, slow to fast251 255 Sound-active mode
-8 Dimmer 000			255 0-100%
