Mili - Essential Oil Diffuser LANAFORM - Free user manual and instructions

Brand	Lanaform
Model	Mili
Product type	Essential oil diffuser
Reservoir capacity	165 ml
Maximum autonomy (continuous)	Up to 11 hours
Diffusion modes	Continuous and cyclic (30s on / 30s off)
Power supply	AC 100-240V, 50/60Hz (adapter included)
Adapter output	DC24V, 500mA
Ceramic disc lifespan	Approximately 3000 hours
Automatic shut-off	Yes, in case of insufficient water level
Recommended use	In 30-minute periods, several times a day
Transducer cleaning	White vinegar and cotton swab (do not scratch)
Reservoir cleaning	Clear water and diluted white vinegar, soft cloth
Warranty	2 years
Additional functions	Eliminates electrostatic charges, improves air quality
Recommended essential oil type	Pure and 100% natural oils for diffusion
Important precautions	Do not use without water, do not immerse, do not inhale directly

Frequently Asked Questions - Mili LANAFORM

How to turn on the Lanaform Mili diffuser?

Press the ON/OFF button once for continuous diffusion. Press a second time to switch to cyclic diffusion (30 seconds on, 30 seconds off).

What type of water should I use?

It is recommended to use mineral water or cooled boiled water. Avoid water that is too hard to prevent deposits on the transducer.

How many drops of essential oil to add?

Add 3 to 6 drops of essential oil to the water tank. Do not exceed 6 drops to avoid damaging the device.

How to clean the transducer?

Unplug the device, put 2 to 5 drops of white vinegar on the ceramic disc, let it sit for 2 to 5 minutes, then gently rub with a cotton swab. Never use a hard tool.

What to do if the device does not produce vapor?

Check the water level: add water if the tank is empty. Make sure the room temperature is at least 10°C and let the device adjust for 30 minutes before use.

Can I use synthetic fragrances?

No, only use pure and 100% natural essential oils intended for diffusion. Synthetic fragrances may damage the device.

Does the diffuser shut off automatically?

Yes, the device shuts off automatically when the water level is too low or the tank is empty.

What are the important safety precautions?

Place the device on a flat and stable surface. Do not plug it in with wet hands. Do not immerse it. Unplug it before cleaning. Supervise children.

Where to find the full manual?

Download the free PDF manual from notice-facile.com or from the official Lanaform website.

What to do in case of unusual odor?

This may be due to stagnant water. Clean the tank and pour fresh water. If the odor persists, check the quality of the essential oils.

USER MANUAL Mili LANAFORM

Black spherical object with a silver horizontal band, resembling a decorative lamp or stand (no text or symbols visible)

Create your own style

Simple line drawing of a cable and plug assembly with a numbered label (10) pointing to one end (no text or symbols on the diagram itself)

Line drawing of a device with a dome-shaped top and internal layers, showing airflow or movement arrows (no text or symbols)

Line drawing of a container pouring liquid from a bottle into a bowl (no text or symbols)

Line drawing of a bowl with liquid being poured into it, labeled with numbers 14, 15, and 16 (no text or symbols on the diagram itself)

Line drawing of a device with a dome-shaped lid and internal structure, showing directional arrows indicating flow or movement (no text or symbols)

Line drawing of a spherical water heater connected to a wall-mounted power outlet (no text or symbols)

Line drawing of a hand holding a spherical object with a pointer at the base (no text or symbols)

17 18 19

Line drawing of a hand holding a spherical object with a pointer at the base (no text or symbols)

Thank you for choosing the «Mili»diffuser by LANAFORM®. The «Mili» essential oil diffuser combines design and well-being. «Mili» can be personalised to suit your preferences and interior design.

It is a decorative object designed to allow you to enjoy the benefits of essential oils.

PLEASE READ ALL OF THE INSTRUCTIONS BEFORE USING YOUR DIFFUSER, ESPECIALLY THIS BASIC SAFETY INFORMATION:

• Always place the device on a hard, flat, horizontal surface inside. Keep it away from walls and heat sources such as stoves, radiators, etc. N.B.: If it is not placed on a horizontal surface, it may not work properly.
• Check that your mains voltage is the same as that of your device.
• Do not connect or disconnect the plug with wet hands.
• If the power cable is damaged, it must be replaced with the same type of cable which is available from the supplier or its after-sales department.
• Do not leave the device in the sun for a long period of time.
• Do not dismantle the device entirely.
• Do not switch the device on if there is no water in the reservoir.
• Do not lift the cover of the diffuser when the device is on. If you notice a suspicious odour or noise, switch the device off immediately and consult the «Troubleshooting» section of these instructions for use. If the problem persists, ask the supplier or its after-sales department to check the device.
• Do not use essential oils that are not recommended for diffusion. To find out which essential oils are recommended, consult the advice provided in these instructions for use. • Do not use essential oils or room fragrances without water.
• Do not use perfume or synthetic essences as these could damage the device.
• Unplug the device before cleaning it.
• Do not wash the entire unit with water and do not immerse it in water. Consult the cleaning instructions in these instructions for use.
• For ambiance diffusion only, do not inhale.
  • To be used in an environment from 10°C to 30°C.
• Never scrape the transducer with a hard tool. Consult the cleaning instructions in these instructions for use.
• The device should be used preferably for 30 minutes at a time, but can be used several times a day if you wish. Continuous use of the diffuser can, in the long term, damage the product and reduce its lifespan.
• If any water enters the device, unplug the diffuser immediately and leave it to air-dry for at least 3 days before using it again.
• Be sure to never empty the water through the exhaust vent. This would damage the diffuser. Tip the water out of the side opposite the exhaust vent.
• This device is not intended for use by people, including children, with reduced physical, sensory or mental capabilities, or people with lack of experience or knowledge, unless someone responsible for their safety can supervise or instruct them beforehand on how to use the device. Children should be supervised to make sure they do not play with the device.
• Use this device only for its intended purpose, as described in these instructions for use.

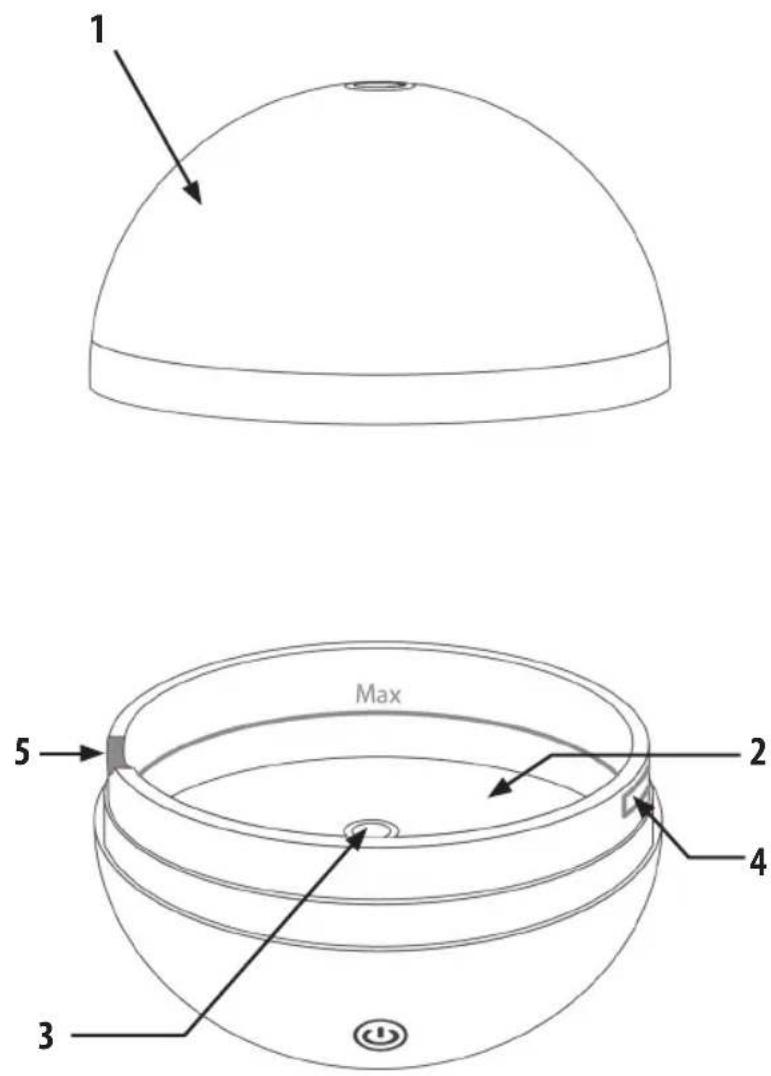

COMPONENTS

1. Cover (1)
2. Water reservoir (2)
3. Ceramic disc/Transducer (3)
4. Exhaust vent (4)
5. Water spout (5)
6. Mist outlet (6)
7. Interchangeable ring (7)
8. Inner plastic cover (8)
9. ON/OFF button (9)
10. Transformer (10)

INSTRUCTIONS FOR USE

Features:

• 165 ml capacity;
- Up to 11 hours of continuous diffusion;
- Easy-to-fill water reservoir;
- Automatically switches off when there is not enough water remaining in the reservoir.

Functionalities:

• Essential oil diffuser;
• Eliminates electrostatic charges;
• Improves ambient air quality
• Input power AC 100-240V, 50/60Hz;
• Output power DC24V 500mA;
  • Lifespan of the ceramic disc: +/- 3,000 hours.

Instructions for use:

• Place the «Mili» in the room half an hour before turning it on to allow it to adjust to room temperature.

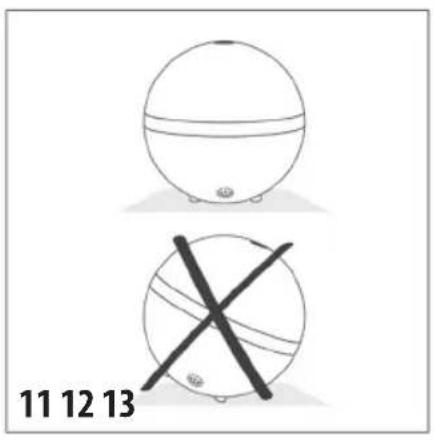

• Place the diffuser on a flat, stable surface, keeping it away from the edge. (11)
• Check that the diffuser is clean.

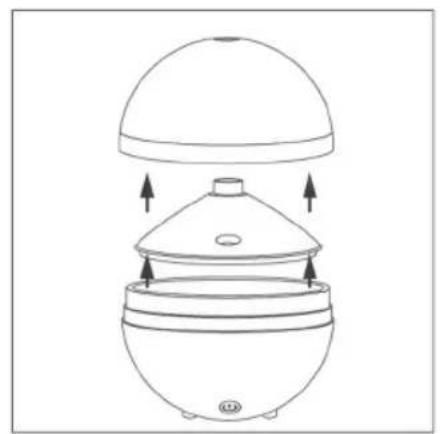

• Remove the cover from the base of the diffuser by lifting it up (12).

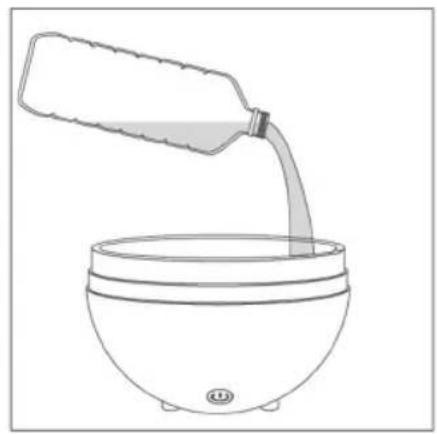

• Fill the reservoir with mineral water no higher than the maximum water level line of 165 ml. (The temperature of the water should not exceed 40°C). (13)

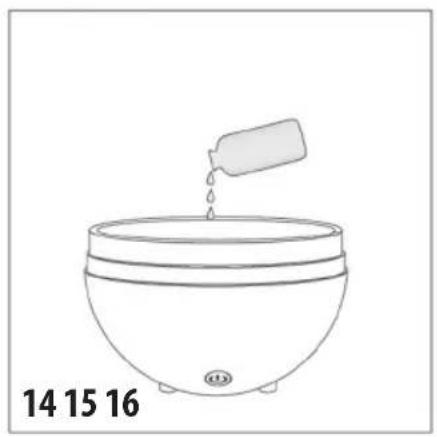

• Pour a few (3 to 6) drops of essential oil into the reservoir. (14)

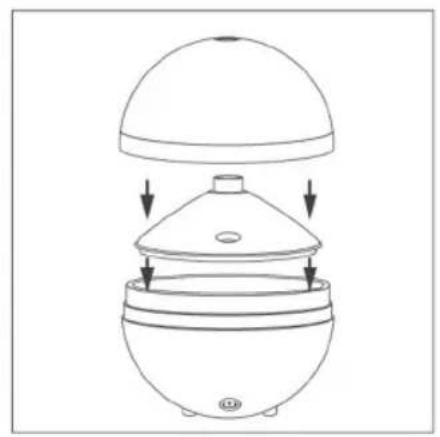

• Replace the cover on the filled water reservoir. (15)

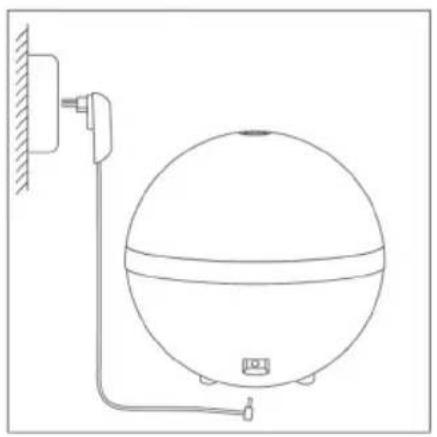

• With dry hands, insert the end of the adapter in the DC-jack socket located on the back of the diffuser. (16)
• With dry hands, plug the adapter into a power socket.
• Press the button to switch the device on. The mist it diffuses creates an ambiance that encourages relaxation. (17)

• The diffuser has several functions:

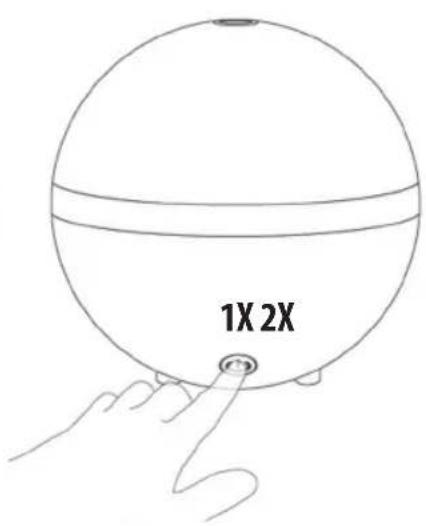

1. Continuous diffusion: press the button once. (18)
2. Cyclical diffusion: press the button twice. The device will work for 30 seconds and then stop for 30 seconds until the water reservoir is empty. After this it will switch off automatically. (19)

When the water level in the reservoir is too low or empty, the device will stop automatically. If this happens, refill the water following the steps in the instructions for use to restore normal operation.

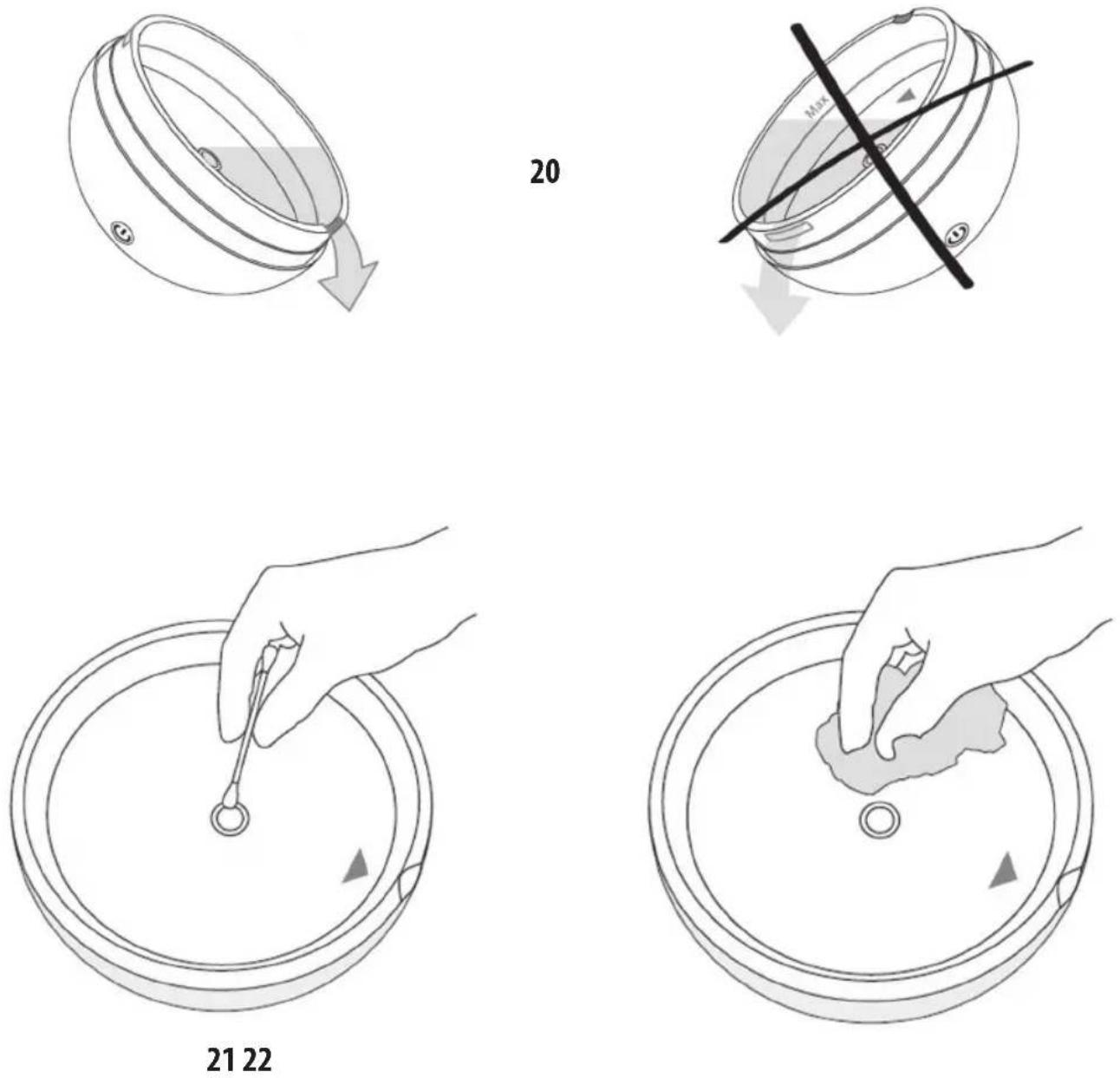

NOTE: Use the spout to empty the water from the reservoir out of the side opposite the exhaust vent. Never empty the water through the exhaust vent.

This would damage the diffuser. (20)

N.B.: EVEN THOUGH THERE IS A SAFETY DEVICE THAT STOPS THE TRANSDUCER WORKING, DO NOT LEAVE THE DEVICE CONNECTED WHEN YOU ARE NOT USING IT.

ADDITIONAL INFORMATION RELATING TO THE USE OF ESSENTIAL OILS

• Before using essential oils, please check the harmful effects that use of these products may have on your health.
  • Always choose quality essential oils that are pure, 100% natural and intended for diffusion. Use them in moderation and with care. Follow the instructions and warnings stated on the packaging of the essential oils, in particular noting that:
• Pregnant women, people with epilepsy, asthmatics and people who suffer from allergies, and those with heart problems or serious illnesses should not use essential oils.
• Essential oils should be used only for periods not exceeding 10 minutes in a baby's room (under 3 years old) and only when the baby is not actually in the room.
• Make sure that children and minors do not play with or use the device.
• Just a few drops (3 to 4 drops at most) of essential oils are sufficient to ensure that the device works properly and the scent is diffused. Excessive use of essential oils could damage the device.
• Make sure you pour water into the reservoir first before adding the drops of essential oils.

- Lanaform® cannot be held liable in the event of accidental damage resulting from any use contrary to the instructions given in these instructions for use.

MAINTENANCE AND STORAGE

If the water contains too much calcium and magnesium, it may deposit a "white powder" in the device. If this foam is deposited on the transducer (ceramic ring producing ultrasounds, diagram 1, point 3), this will prevent the device from working properly.

Maintenance:

We recommend:

1. Using cooled, boiled water for each use;
2. Cleaning the reservoir every 2 days and cleaning the transducer every week;
3. Changing the water in the reservoir every 2 days;
4. Cleaning the device and making sure that all its parts are completely dry when it is not in use.

To clean the transducer:

1. Switch the device off and unplug it;
2. Put 2 to 5 drops of vinegar on its surface and leave them there for 2 to 5 minutes;
3. Brush the foam off the surface with a soft brush (cotton bud) (21). Do not use a hard tool to scrape the surface;
4. Rinse the reservoir of the base in clean water;
5. Do not use soap, solvent or spray cleaner to clean the transducer.

To clean the reservoir:

1. Switch the device off and unplug it;
2. Clean the reservoir with water using a soft cloth and a little highly diluted vinegar if there are foam or limescale deposits on the inside. Do not use any corrosive detergents.
   Rub the ceramic disc gently with a cotton bud, taking care not to scratch it; (22)
3. Rinse the reservoir in clean water.

Storage:

After cleaning and drying the device, store it in a dry, cool place out of the reach of children.

TROUBLESHOOTING

In the event of a malfunction, under normal conditions of use, please refer to the following chart:

Breakdowns Possible causes Solutions
No mist The water level in the reservoir is too low. Add water to the empty reservoir.
		The temperature of the unit is too low. Place the unit in a room at ambient temperature for half an hour prior to use.
Mist has an unusual smell	The water has been standing in the reservoir too long.	Clean the reservoir and pour fresh water into it.
Low intensity Too much/too little water in the reservoir. Empty water out of the reservoir or add water to it.
		Sediment on the transducer Clean the transducer.
		The water is too cold. Use water that is at room temperature.
		The water is not clean. Clean the reservoir and pour fresh water into it.

ADVICE REGARDING THE DISPOSAL OF WASTE

• All the packaging is composed of materials that pose no hazard for the environment and which can be disposed of at your local sorting centre to be used as secondary raw materials. The cardboard may be disposed of in a paper recycling bin. The packaging film must be taken to your local sorting and recycling centre.
• When you have finished using the device, please dispose of it in an environmentally friendly way and in accordance with the law.

LIMITED WARRANTY

LANAFORM® guarantees this product against any material or manufacturing defect for a period of two years from the date of purchase, except in the circumstances described below.

The LANAFORM ^® guarantee does not cover damage caused as a result of normal wear to this product. In addition, the guarantee covering this LANAFORM ^® product does not cover damage caused by abusive or inappropriate or incorrect use, accidents, the use of unauthorized accessories, changes made to the product or any other circumstance, of whatever sort, that is outside LANAFORM ^® 's control.

LANAFORM® may not be held liable for any type of circumstantial, indirect or specific damage. All implicit guarantees relating to the suitability of the product are limited to a period of two years from the initial date of purchase as long as a copy of the proof of purchase can be supplied.

On receipt, LANAFORM ^® will repair or replace your appliance at its discretion and will return it to you. The guarantee is only valid through LANAFORM ^® 's Service Centre ^® . Any attempt to maintain this product by a person other than LANAFORM ^® 's Service Centre will render this guarantee void.
