USER MANUAL Fidji LANAFORM

White cylindrical electronic device with a power button symbol on the side (no text or labels visible)

8 HRS AU TONOMY

FIXED OR CHANGING COLOUR

USB POWERED

TRAVEL FRIENDLY

ESSENTIAL OIL DIFFUSER

DIFFUSEUR D'HUILES ESSENTIELLES

VERDAMPER VAN ETHERISCHE OLIËN

DIFFUSOR FÜR ÄTHERISCHE ÖLE

EN FR NL DE IT PL CS SK SL HR LT

2/60

1 5

3 2

EN Adapter not supplied.

FR Adaptateur non fourni.

Line drawing of a handheld device with a circular button and a number 6 on the top (no text or symbols on the device itself)

LT Adapteris nepridedamas. 1 7 2

ENGLISH

Thank you for buying the Fidji essential oil diffuser by LANAFORM.

The Fidji diffuser combines technology, well-being and design. Virtually silent, it not only disperses a cool mist of fragrance, but also diffuses a pleasant atmospheric colour around your home.

The photographs and other images of the product in this manual and on the packaging are as accurate as possible, but do not claim to be a perfect reproduction of the product.

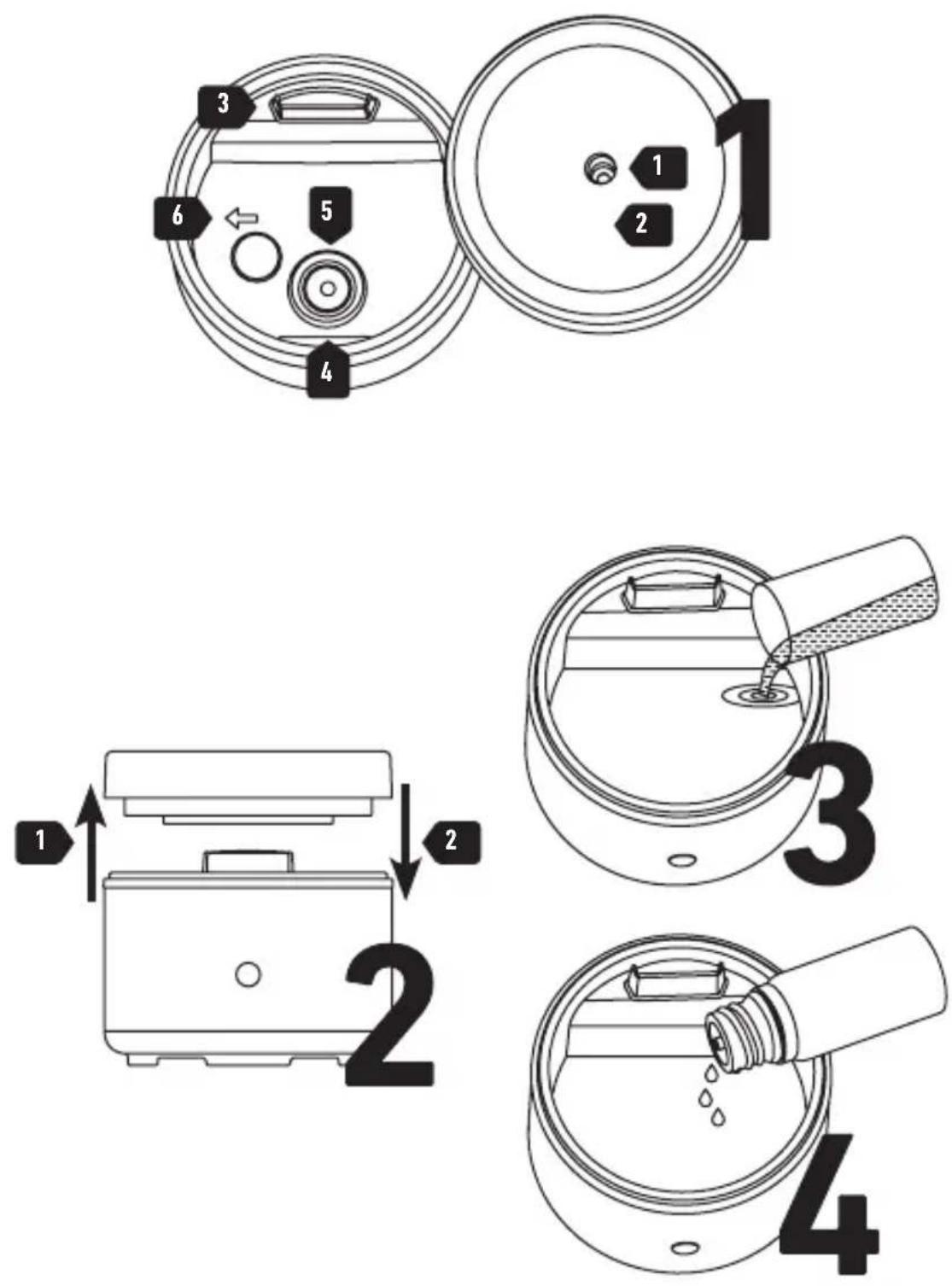

COMPONENTS 1

1 Mist outlet
2 Cover
3 Ventilation outlet
4 Maximum water level indicator
5 Transducer
6 Drainage indicator

PRECAUTIONARY STATEMENT

Always power the device using the USB cable supplied by connecting it either to a computer, or to a mains plug using a commercial USB power adapter with an output current of at least 500 mA.

Always place the device on a hard, flat, horizontal surface inside. Keep it away from walls and heat sources such as stoves, radiators, etc.

Please note: If it is not placed on a horizontal surface, it may not work properly.

Do not connect or disconnect the USB cable with wet hands.

If the USB cable is damaged, it must be replaced with the same type of cable which is available from the supplier or its after-sales department.

Do not leave the device in the sun for a long period of time.

Do not dismantle the device entirely.

Do not switch the device on if there is no water in the reservoir.

Do not lift the cover, do not move the diffuser and do not try to fill it or empty it when the device is on.

If you notice a suspicious smell or sound, switch the device off immediately and consult the "Troubleshooting" section of these instructions for use. If the problem persists, ask the supplier or its after-sales department to check the device.

Do not use essential oils that are not recommended for diffusion. To find out which essential oils are recommended, consult the advice provided in these instructions for use.

Do not use perfume or synthetic essences as these could damage the device.

Unplug the device before cleaning it.

Do not wash the entire unit with water and do not immerse it in water. Consult the cleaning instructions in these instructions for use.

Never scrape the transducer with a hard tool. Consult the cleaning instructions in these instructions for use.

The device should be used preferably for 30 minutes at a time, but can be used several times a day if you wish.

Make sure you never empty the water through the exhaust vent as this would damage the diffuser. Empty the water in the direction indicated by the arrow (Fig. 1 point 6).

This device is not intended for use by people, including children, with reduced physical, sensory or mental capabilities, or people with lack of experience or knowledge, unless someone responsible for their safety can supervise or instruct them beforehand on how to use the device. Children should be supervised to make sure they do not play with the device.

Use this device only for its intended purpose, as described in these instructions for use.

INSTRUCTIONS FOR USE Features

- 70ml capacity

• 8 hours of continuous diffusion

• Lights with constantly changing or permanent colours
- Easy-to-fill water reservoir
• Automatically switches off when there is not enough water remaining in the reservoir.

Instructions for use

Place the Fidji in the room half an hour before turning it on to allow it to adjust to room temperature.

Check that the diffuser is clean.

Remove the cover from the base of the diffuser (Fig. 2, point 1).

Fill the reservoir with no more than 70 ml of clean water (Fig. 3). The temperature of the water should not exceed 40°C.

Pour a few drops of essential oil into the reservoir (Fig. 4).

Replace the cover on the filled water reservoir (Fig. 2, point 2).

With dry hands, connect the micro USB cable to the diffuser (Fig. 5, point 2), then connect the other end to your computer or to a mains plug using a 5V USB mains adapter (not supplied) (Fig. 5, point 3).

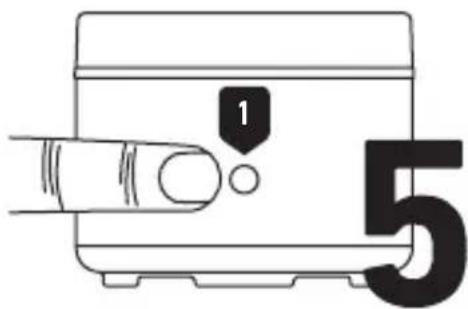

Press the ON/OFF button to switch on the device (Fig. 5, point 1). The diffuser has several functions:

1 Press once to start diffusion and colour-changing atmospheric light effects.
2 Press a second time to set the atmospheric colour of your choice. Press when you see the light colour you want.

EN FR NL DE IT PL CS SK SL HR LT

3 Press a third time to stop the atmospheric light effect. The diffuser will continue to diffuse continuously.
4 Press a fourth time to switch the diffuser off.

The device stops automatically when there is no more water left in the reservoir

With dry hands, disconnect the USB cable from the device and from your computer or from the mains with its adapter (not supplied).

Empty the remaining water in the diffuser in the direction indicated by the arrow (Fig. 6).

Even though there is a safety device that stops the transducer running, do not leave the device connected when you are not using it.

ADDITIONAL INFORMATION RELATING TO THE USE OF ESSENTIAL OILS

Before using essential oils, please check the harmful effects that use of these products may have on your health.

Always choose quality essential oils that are pure, 100% natural and intended for diffusion. Use them in moderation and with care. Follow the instructions and warnings stated on the packaging of the essential oils, in particular noting that:

Pregnant women, people with epilepsy, asthmatics and people who

suffer from allergies, and those with heart problems or serious illnesses should not use essential oils.

Essential oils should be used only for periods not exceeding 10 minutes in a baby's room (under 3 years old) and only when the baby is not actually in the room.

Make sure that children and minors do not play with or use the device.

Just a few drops (3 to 4 drops at most) of essential oils are sufficient to ensure that the device works properly and the scent is diffused. Excessive use of essential oils could damage the device.

Make sure you pour water into the reservoir first before adding the drops of essential oils.

Lanaform cannot be held liable in the event of accidental damage resulting from any use contrary to the instructions given in these instructions for use.

MAINTENANCE AND STORAGE

If the water contains too much calcium and magnesium, it may deposit a "white powder" in the device. If this foam is deposited on the transducer (ceramic ring producing ultrasounds, Fig. 1, point 5), this will prevent the device from working properly.

Maintenance

We recommend:

1 Preferably using boiled and cooled water for each use,

2 Cleaning the reservoir every 2 days and cleaning the transducer every week,

3 Changing the water in the reservoir every 2 days,

4 Cleaning the device and making sure that all its parts are completely dry when it is not in use.

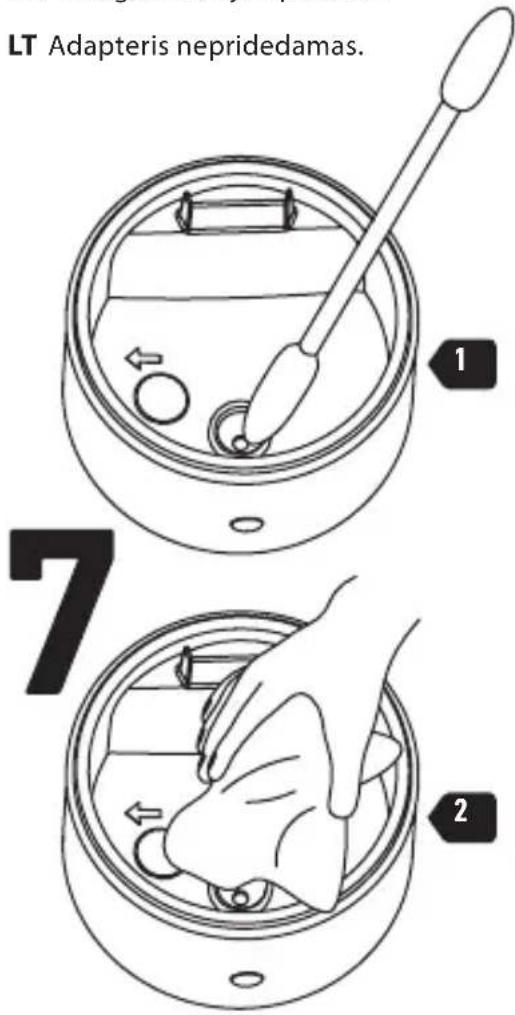

To clean the transducer:

1 Put 2 to 5 drops of vinegar on its surface and leave them there for 2 to 5 minutes.

2 Brush the foam off the surface with a soft brush (Fig. 7, point 1). Do not use a hard tool to scrape the surface.

3 Rinse the reservoir of the base in clean water.

4 Do not use soap, solvent or spray cleaner to clean the transducer.

To clean the reservoir:

1 Clean the reservoir with water using a soft cloth and vinegar if there are any foam or limescale deposits on the inside (Fig. 7, point 2).

2 Rinse the reservoir in clean water.

Storage

Having cleaned and dried the device, store it in a dry, cool place out of the reach of children.

BREAKDOWNS AND SOLUTIONS

In the event of a malfunction, under normal conditions of use, please refer to the following chart:

☺ No steam, no light indicators

⑦ If there is no light.

😊 Check the mode chosen. If you chose continuous diffusion with ambient light, check that the device is plugged in and no power outage has occurred.

⑦ The water level in the reservoir is too low.

😊 Add water to the reservoir.

⑦ The temperature of the unit is too low.

😊 Place the unit in a room at ambient temperature for half an hour prior to use.

⑦ The mist outlet is blocked.

😊 Clean the mist outlet to maintain ventilation.

😊 Mist has an unusual smell

② The water has been standing in the reservoir for too long.

😊 Clean the reservoir and pour fresh water into it.

😊 Low intensity

⑦ Too much/too little water in the reservoir.

😊 Empty water out of the reservoir or add water to it.

⑦ Sediment on the transducer.

😊 Clean the transducer.

⑦ The water is too cold.

😊 Use water that is at room temperature.

⑦ The water is not clean.

😊 Clean the reservoir and pour fresh water into it.

ADVICEON WASTE DISPOSAL

The packaging is made up entirely of environmentally-friendly materials that can be taken to your local waste sorting centre to be used as secondary materials. Cardboard can be placed in a paper collection container. Packing film must be taken to your local sorting and recycling centre.

When you are no longer using the device, dispose of it in an environmentally responsible manner and in compliance with the statutory requirements.

LIMITED WARRANTY

LANAFORM guarantees that this product will be free from any defects in material and workmanship for a period of two years from the date it was purchased, other than as specified below.

The LANAFORM warranty does not cover damage caused by normal wear and tear of this product. In addition, the warranty on this LANAFORM product does not cover damage caused as a result of any abusive, inappropriate or incorrect use, accident, attachment of any unauthorised accessory, modification of the product or any other situation of whatever kind, beyond the control of LANAFORM.

LANAFORM shall not be held liable for any type of incidental, consequential or special damage.

Any implied warranties of the product's fitness for purpose are limited to a period of two years from the original purchase date on presentation of a copy of the proof of purchase.

Upon receipt, LANAFORM will repair or replace your device, as appropriate, and return it to you. The warranty may only be used at the LANAFORM Service Centre. Any maintenance and repair work carried on this product by any person other than the LANAFORM Service Centre will invalidate this warranty.
