USER MANUAL Night 2 Xblitz

Exterior view of a black MRI camera with lens and external display (no visible text or symbols)

Table of contents

Spis treści

Technical diagram showing exploded view of a camera module with numbered components for identification.

B

Interior view of a car dashboard and steering wheel (no text or symbols visible)

PL

INSTRUKCJA OBSŁUGI

WIDEOREJESTRATOR

Carefully read the enclosed manual and safety notes before use to avoid accidental damage to the equipment or unintentional injury.

PURPOSE OF THE PRODUCT

The Xblitz Night 2 dash cam with night mode and Wi-Fi allows you to monitor your vehicle's route and record any traffic incidents. The camera is created from the highest quality components.

BEFORE USE

1. It is recommended to use original micro SD cards of class 10 or higher.

2. Before placing the memory card in the recorder, it must be formatted on the computer in the FAT32 or exFAT file system (depending on the card) and then in the recorder.

3. The memory card must be installed when the device is switched off. Failure to do so may damage the card and the device. The same applies when removing the card from the device.

4. Set in the menu:

a. Date and time.
b. Loop recording (adjust recording time). If you disable loop recording, the files will not be overwritten.
c. Set the highest resolution available.
d. Set the G-Sensor to the lowest possible sensitivity so that the camera does not catch bumps in the road and secure unnecessary recordings.
e. Enable WDR mode.

1. When the memory card fills up, the oldest unprotected recordings are overwritten.

2. The camera will start recording automatically every time you switch it on (provided there is no permanent power supply in your car's cigarette lighter socket).

3. It is recommended to use the functions of the device according to their intended use, that is, not to use the PARKING MODE and MOVEMENT DETECTION functions while driving. This may cause recording to start and stop automatically and unnecessary loss of space on the memory card.

4. Sound: the device has a condenser microphone that records all ambient sounds. Sounds may overlap causing distortion.

01. CONTENTS OF THE KIT

1. Dash cam
2. Charger
3. Handle
4. Electrostatic foil

5. Micro SD memory card reader

6. Manual

02. PRODUCT DESCRIPTION

SEE FIG. A

1. Lens
2. The „UP“ button
3. Down" button
4. MENU button
5. Confirmation button „OK”
6. USB-C port (camera power supply)
7. Alternative USB-C port in the handle (supports constant power kit)
8. Micro SD card slot
9. Recording lock button
10. POWER button
11. Handle

03. DESCRIPTION OF THE KEYS

UP - in menu and playback mode is responsible for navigating through the various items. In home screen and video mode, a short press turns audio recording on and off, when held for about 2 seconds it starts and deactivates the Wi-Fi module. In record playback mode, a short press scrolls the video backwards.

MENU - a short press in any mode except recording takes you to the individual camera settings. In recording mode, a short press takes a picture. A longer press in home screen mode takes you to playback mode.

DOWN - in menu and playback mode is responsible for navigating through the individual items. In record playback mode, a short press scrolls the video forward.

OK - in video mode, a short press switches recording on and off. During video playback, a short press acts as PLAY/PAUSE. In Menu and playback mode, a short press validates the individual actions.

BLOCK - during video recording, pressing the button locks the file and prevents it from being overwritten.

POWER - short press to blank the screen, longer press to switch the device on/off.

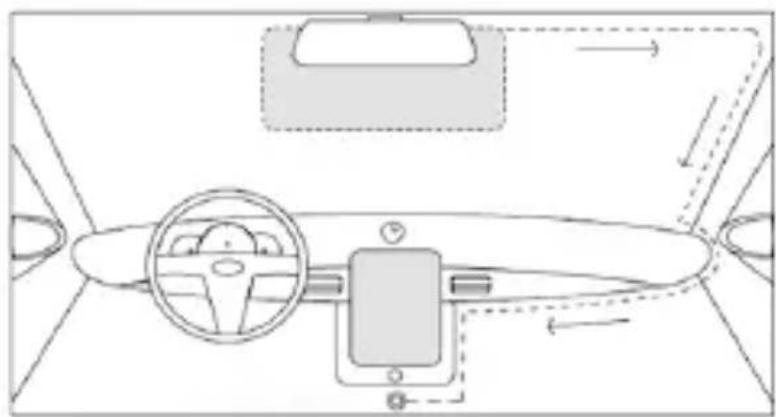

04. CAMERA INSTALLATION

SEE FIG. B

1. Choose where to mount the camera. It is best to position the camera so that the display preview shows as much of the area in front of the car as possible and the horizon line is in the centre of

the frame. Make sure the camera will not obstruct the driver's view while driving.

1. Mount the bracket on the windscreen and then install the dash cam with a formatted micro SD memory card in it.
2. Route the USB power cable so that it does not obstruct the view while driving.
3. Plug the power cord into the device and the power supply plug into the car's cigarette lighter socket.

05. MAIN FEATURES OF THE CAMERA

1. Camera modes

The camera has 2 modes of operation. Recording mode: in this mode the camera records video and Playback mode: viewing footage recorded by the camera.

2. Loop recording

The camera divides the recordings according to the selected time. When the memory card fills up, the oldest (unprotected) recording is overwritten.

3. Resolution

The camera can record in different resolutions. The higher the resolution the better the quality of the recordings, but the recording files also take up more space on the memory card, it is recommended to use the highest resolution.

4. G-Sensor

Gravity sensor. When the sensor is activated on impact, the recording file is protected from being overwritten. It is recommended that the lowest available value is set, as at a higher value the camera may pick up bumps caused by unevenness of the road, which can cause the memory card to fill up.

5. Audio recording

Along with video recording, the camera can also record audio.

6. Motion detection

The camera has a motion detection mode that automatically starts a short audio/video recording when a moving object (e.g. a person approaching the car) is detected. To avoid unnecessary clogging of the memory card in the device, only activate the motion detection mode when you leave the car parked.

7. Night mode

Enhanced light sensitivity and image conversion to black and white make route footage clearer.

8. Parking mode

When this function is activated, the camera will automatically start overwrite-protected video for several seconds after detecting an impact due to an external collision (if the battery is charged or a constant power kit is connected).

06. DESCRIPTION OF THE MENU OPTIONS

VIDEO MODE:

1. Resolution - allows you to change the resolution of the recorded video files.
2. Loop recording - allows you to change the length of the recorded videos.
3. Motion detection - allows you to enable or disable the mode in which the camera starts recording video when motion is detected in front of it.
4. G-sensor - allows you to set the sensitivity of the shock sensor.
5. Night mode - available settings: on/off/auto.
6. Audio recording - allows you to enable or disable audio recording by the camera.
7. Date stamp - allows you to enable or disable the display of the model name, date and time on recordings.

PLAYBACK MODE:

1. Erase this - allows you to delete the currently selected file.
2. Erase all - allows you to delete all files.
3. Protect - allows you to block the selected file from being overwritten.
4. Unlock all - allows you to unlock all protected files.

GENERAL MENU:

1. Wi-Fi switch - allows you to enable or disable the Wi-Fi module on the camera.
2. Date/time - allows the date, time and their format to be set.
3. Language - language selection
4. Registration number - allows you to enable and set or disable the display of the registration number on the recordings.
5. Screen saver - allows you to enable or disable the screen saver.
6. Beep - allows you to switch the sound of the buttons on or off.
7. Parking mode - allows you to enable and set the sensitivity or disable the parking mode.
8. Formatting - performs a format of the memory card inserted in the device - recommended every 30 days.
9. Version - displays information on the software version of the device

and memory card.

1. Default settings - restores the device to its factory settings.

07. MOBILE APPLICATION

The Xblitz Night 2 camera, thanks to its built-in Wi-Fi module, also has the ability to control and playback recordings via a mobile app called DashGo. The software can be downloaded from the Play Store (Android), App Store (iOS) or by scanning the QR code on the box.

Connecting to the app: Make sure your camera is switched on and has Wi-Fi activated. Launch the app, add your device and search for a Wi-Fi network on your phone, the device Wi-Fi network name is: Xblitz Night 2 and the default password is 12345678 Once the device is successfully connected to the app, a screen will appear on the camera display informing you that you can control the camera via the app (it is not possible to control the camera manually with buttons at this time). You can then manage the settings yourself or view and save recordings to your phone's memory.

Note: only one device can be connected to the network when using the camera.

Note: after disconnecting the device from the phone and mobile app, it is necessary to manually deactivate the Wi-Fi module by holding down the „up” button for approximately 2 seconds so that the camera can be controlled again.

08. PRECAUTIONS

1. Do not disassemble or tamper with the camera yourself. In the event of a malfunction, contact the service department.

2. Use only original accessories.

3. Use only the original power supply unit included in the kit.

4. The device may not be used in contravention of the laws of your country or region.

5. Permissible operating temperatures are 0 - 35°C. Storage: +5 to +45°C. Humidity: 5-90% non-condensing.

6. Do not subject the device to damage or physical impact.

7. Take care of the cleanliness of the product, especially the lens. Do not use detergents or chemicals when cleaning.

8. Clean only when the unit is unplugged.

9. Keep the device out of the reach of children.

10. Do not expose the device to very high temperatures or fire.

11. If you smell burnt plastic or electronics from the camera, unplug the unit as soon as possible and contact the service department.

09. FAQ

1. Device does not switch on, screen flashes

Before starting up, charge the unit's battery and check the connection in the cigarette lighter socket.

2. The device does not switch on/off automatically

The reason for this behaviour may be the constant power supply in the cigarette lighter socket.

3. The camera stops recording / does not overwrite recordings

Check: G-SENSOR - a function by which recordings with recorded overloads (e.g. uneven pavement, braking, driving off a kerb or over a speed bump, etc.) are protected from being overwritten. If you use this function, you must periodically format the memory card on your computer and then on the camera. Ultimately, each file on the data carrier will be protected from being overwritten and the device will not be able to record a further route - it will not record in a loop. We suggest setting the sensor according to your driving style and road conditions. You can also disable the option completely, in which case each oldest file will be overwritten and the card will not need to be formatted periodically. After adjusting the function, remember to format the memory card.

4. The camera turns on and off

Check: PARKING MODE/MONITOR and MOVEMENT DETECTION - function designed to operate while the vehicle is parked. Deactivate the function, before setting off, as it may cause the camera to switch on and off and make random fragments of route recordings.

If the functions are disabled, check if the fault occurs without the memory card inserted.

5. The camera records fragments of the route / random ongoing recordings

Check: MOVEMENT DETECTION - a function designed to operate while the vehicle is parked.

You need to deactivate the function, before setting off, as it can cause the camera to switch on and off and make random fragments of route recordings. If the function is deactivated, check that the fault occurs without a memory card inserted.

6. The device shows the message „card full” or does not read the card

Check the „G-sensor“ and „parking mode“ functions and set them to minimum. The card must be formatted in the computer in the FAT32 or exFAT file system (depending on the card) and then in the recorder.

Also check: Is the selected card capacity and specification (micro SD, class 10 - U1, V10 additionally recommended) suitable for your device (we recommend using cards from reputable manufacturers, e.g.:

If you encounter an error at any stage, replace the card with a new one from an official distribution.

7. The device records noise, distorted, unclear sound

The device has a highly sensitive microphone that records any ambient noises. The recorded sounds may overlap. Windscreen air vents can also distort the sound.

8. The device does not respond

Press the reset button briefly or reset the device to factory settings.

9. Transverse stripes are present in the footage

Incorrect setting of the frame rate value. Set the frequency value to „50Hz” or „60Hz” depending on local settings.

10. Handle detaches from windshield/does not stick

Degrease the surfaces well before mounting the holder on the glass. Remember to avoid high temperatures, which can cause deformation of the holder, and damage to the recorder itself.

NOTES:

- G-SENSOR - a function thanks to which recordings with recorded overloads (e.g. uneven road surface, braking, driving off a kerb or over a speed bump, etc.) are protected from being overwritten. If you use this function, you must periodically format the memory card on your computer and then on the camera. Ultimately, each file on the data carrier will be protected from being overwritten and the device will not be able to record a further route - it will not record in a loop. We suggest setting the sensor according to your driving style and road conditions. The option can also be completely disabled, in which case each oldest file will be overwritten and the card will not need to be formatted periodically.

- PARKING MODE/MONITOR - a function designed to operate while the vehicle is parked, uses battery power* if the recorder is fully charged - (*if it has a built-in battery). In this case, the camera starts recording a few seconds of video after detecting a shock - until the battery is discharged. When using this function, bear in mind the battery of the device, which needs to be recharged after the function activates (starts). You should deactivate the function, before setting off on a journey, as it may cause the camera to switch on and off and make random fragments of recordings from the route. *The constant power supply in the vehicle may cause this function to behave differently, e.g. leaving the camera on, which may drain the car battery.

- MOVEMENT DETECTION - a function designed to operate while the vehicle is parked - requires constant power and the camera must remain switched on. The dash cam will start recording automatically when motion is detected, and will stop recording a few seconds after there is no movement in front of

the camera lens. Please note that this function can drain the car battery. You need to deactivate the function, before setting off, as it can cause the camera to switch on and off and make random fragments of route footage.

NOTE: Use only the original charger with a charging current of 5V/2A. (Do not connect directly to a 220/230V socket). Failure to follow the instructions may damage the camera or lead to dangerous situations.

Due to continuous product improvement, the manufacturer reserves the right to change the device and its kit without prior notice, some functions described in this manual may change slightly different in reality.

10. SPECIFICATION

Processor: NTK96563

Max recording resolution: 2.5K (2560x1440p)/30fps

Sensor: GC4653

Lens: FOV 140° / FNO=2.0

Display: 2" LCD

Memory: Micro SD cards up to 256 GB class 10 upward

Night mode: Yes

Motion detection: Yes

Parking mode: Yes (constant power kit required - works with bracket)

Loop recording: Yes

G-sensor: Yes

Recording format: MP4

Codec: H.264

Power supply: 5V/2A

USB: 2x USB-C

Microphone / Speaker: Built-in

Built-in supercapacitor: Yes

Operating frequency range: 2412-2484MHz

Max frequency power in operating range: 12dBm

Dimensions: 74x32x87mm

Weight (with handle): 75g

11. WARRANTY/COMPLAINT CARD

The product comes with a 24-month warranty. Warranty terms and conditions can be found at: https://xblitz.pl/gwarancja/

Complaints should be made using the complaint form found at:

Details, contact and service address can be found at: www.xblitz.pl. Specifications and contents are subject to change without notice. We apologise for

any inconvenience.

KGK Trend declares that the Xblitz Night 2 device complies with the essential requirements of Directive 2014/53/EU. The text of the declaration can be found at the link: https://xblitz.pl/download/DOC/deklaracja-UE-Xblitz-Night2.pdf
