USER MANUAL ORH-249-W Orima

facebook.com/orima.pt

FRIGORÍFICO

Refrigerator / Frigorifico / Refrigerateur

SERVICO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone]
E: [e-mail]

Servico Pós Venda:

Tel.: [phone] E: assistenciaorima.pt

Obrigado por ter adquirido este produit ORIMA. Por favor leia atentamente este manual antes de partir a usar o aparho.
Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.
FR Merci d'avoir acheté ce produit ORIMA. Veuillez dire attentivement ce manuel avant d'utiliser l'appareil.
ES Gracias por haber adquirido este produit ORIMA. Por favor lea atentamente estemanualantesde empezar a usar el aparato.

To ensure proper use of this appliance and your safety, please read the instruction manual completely before operating this appliance.

• All accessories, such as drawers, shelves, balconies, should be kept there for lower energy consumption.

！

disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

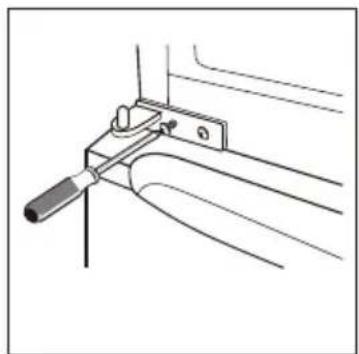

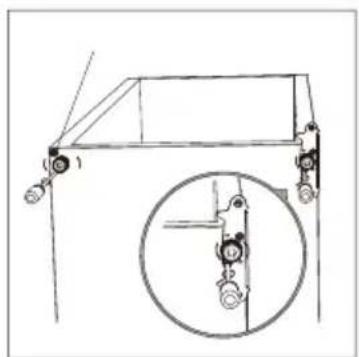

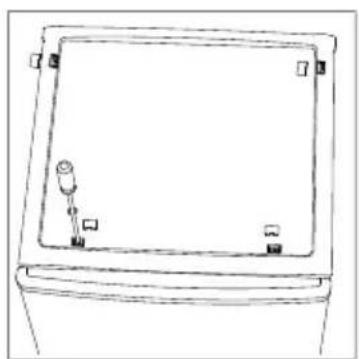

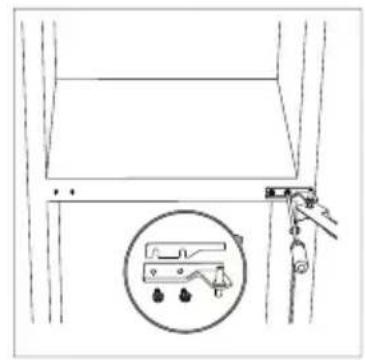

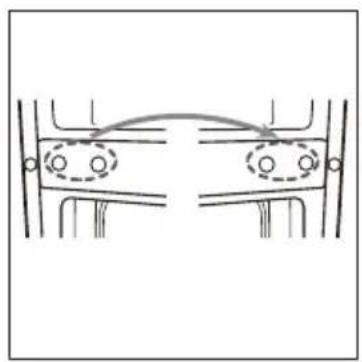

12.Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

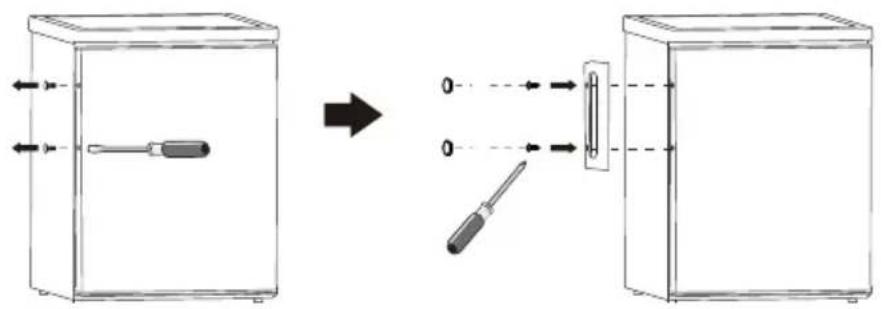

Install door external handle (if external handle is present)

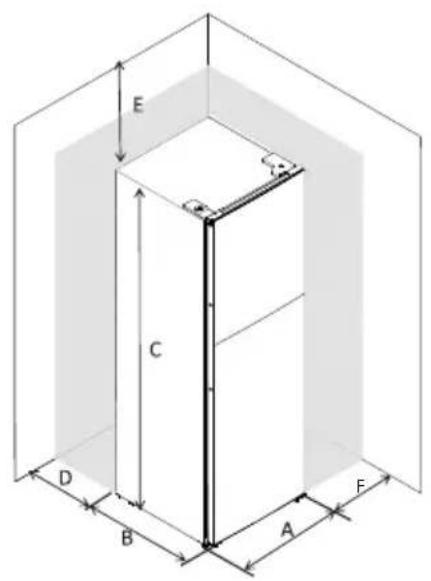

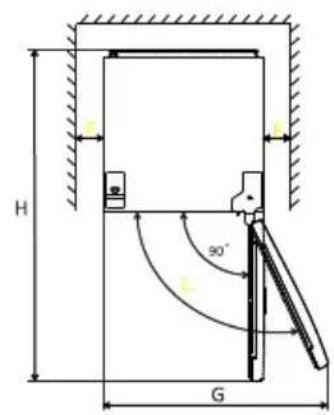

Space Requirement

Keep enough space of door open.

A	550
B	580
C	1650
D	min=50
E	min=50
F	min=50
G	1100
H	1130
L	135°

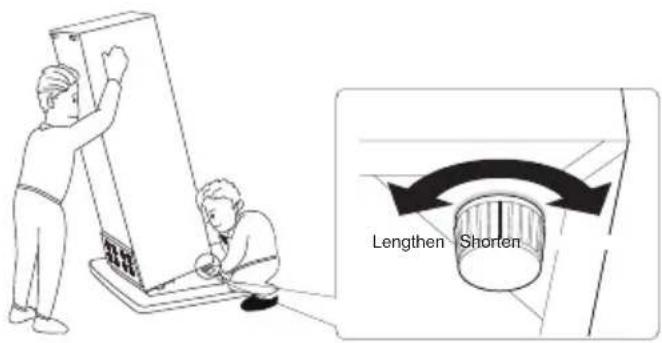

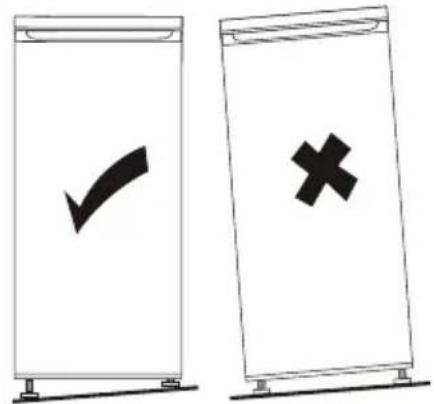

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ ; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^;(N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^ ; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 50~mm . Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance;

when set is 0, the appliance is switched off. When set is max, compressor will not stop

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments. ·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin. ·Do not store bananas, onions, potatoes, garlic inthe refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage. ·Bottom drawer/shelf for raw meat, poultry, fish. ·Middle drawer/shelf for frozen vegetables, chips. ·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Freezer compartment	Fridge compartment
Summer ( Above 38°C )	/	Set on 2~4
Normal	/	Set on 4
Winter ( Below 16°C )	/	Set on 4~6

Information above give users recommendation of temperature setting.

Impact on Food Storage

Under Recommended setting, the best storage time of fridge is no more than 3 days.
- Under Recommended setting, the best storage time of freezer is no more than 1 month.
- The best storage time may reduce under other settings.

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4^

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours, or can be manually disabled by pressing Fast Freeze button.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times:

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days (temp setting: middle)

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

Model
Total Net Volume, L	248
Refrigerator Net Volume, L	198
Freezer net volume, L	50
Actual consumption depends on how the device is used and the location
Energy Class based on EU 2019/2016	E
Power Consumption: KWh/year	187
Climate class N,ST
Dimensions (A x L x P), mm 1660*550*580	0
Noise level, db(A) re 1pw 40
Electrical Information See in the product rating label
Note: The manufacturer reserves the right to make future changes to the Specifications and technical parameters.

IMPORTADO POR: MARIO MIRANDA DE ALMEIDA, SA
APARTADO 1, 3060-752 CORTICEIRO DE CIMA, PORTUGAL

Table de matieres

Model placed on the Union market from 01/06/2024

EPREL registration number: 1864449

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

https://eprel.ec.europa.eu/qr/1864449

Website: www.orima.pt

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: ORIMA
Supplier's address: MARIO MIRANDA ALMEIDA, SA, RUA PADRE BASILIO COSTA MORGADO 23/25, 3060-752 CORTICEIRO DE CIMA, PT
Model identifier: ORH 249 W
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No		Other refrigerating appli- ance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 1 660	Total volume (dm3 or l) 248
	Width 550
	Depth 580
EEI 99 Energy efficiency class		E
Airborne acoustical noise emis- sions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		187	Climate class:	temperate, subtropi- cal
Minimum ambient tempera- ture (℃), for which the refriger- ating appliance is suitable		16	Maximum ambient tem- perature (℃), for which the refrigerating appliance is suitable	38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Vol- ume (dm3 or l)	Recom- mended tempera- ture setting for opti- mised food storage (℃) These set- tings shall not con- tradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No ----
Wine storage No ----
Cellar No ----
Fresh food Yes 198,0 4 - M
Chill No ----
0-star or ice-making No - ----
1-star No - ----
2-star No - ----
3-star No - ----
4-star	Yes	50,0	-18	2,5	M
2-star section	No - - - - -
Variable temperature compartment	-	------
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 36 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: www.orima.pt

Model placed on the Union market from 01/06/2024

EPREL registration number: 1864449

https://eprel.ec.europa.eu/qr/1864449
