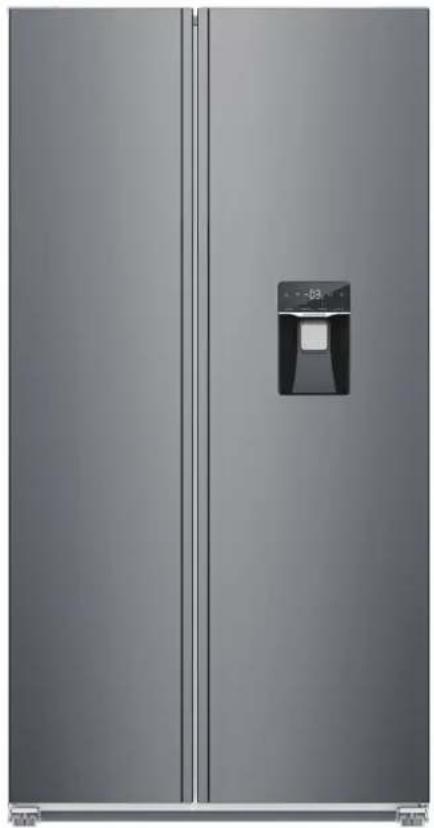

Exterior view of a modern stainless steel double door with a digital display unit (no visible text or symbols)

SIDE BY SIDE

UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.

Three-step mechanical assembly diagram showing progressive assembly from bracket to bracket (no text or symbols)

-88°C MODE | FREEZER | FRIDGE | LOCK 3s WATER DISPENSER

1.2 Botões

3D diagram of a refrigerator inside a room with an upward arrow and 100mm dimension label (no text or symbols on the main structure)

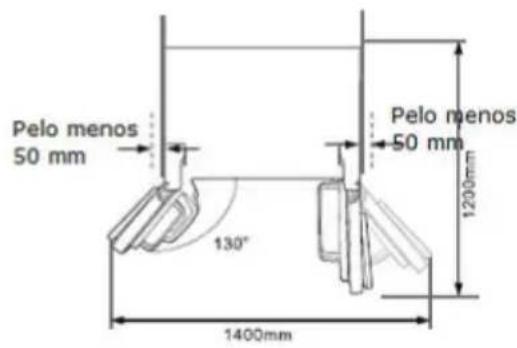

Pelo menos 50 mm 130° 1400mm Pelo menos 50 mm 1200mm

Nivelar o aparelho.

Side By Side Refrigerator

ORH 694 X

Content
1. Safety Information	Page 1-9
2. Overview	Page 10
3. Installation	Page 11-14
4. Daily Use	Page 15~22

•

•

!

!

process, other

!

!

!

•

•

•

•

•

!

CE

!

!

recommendations

- All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

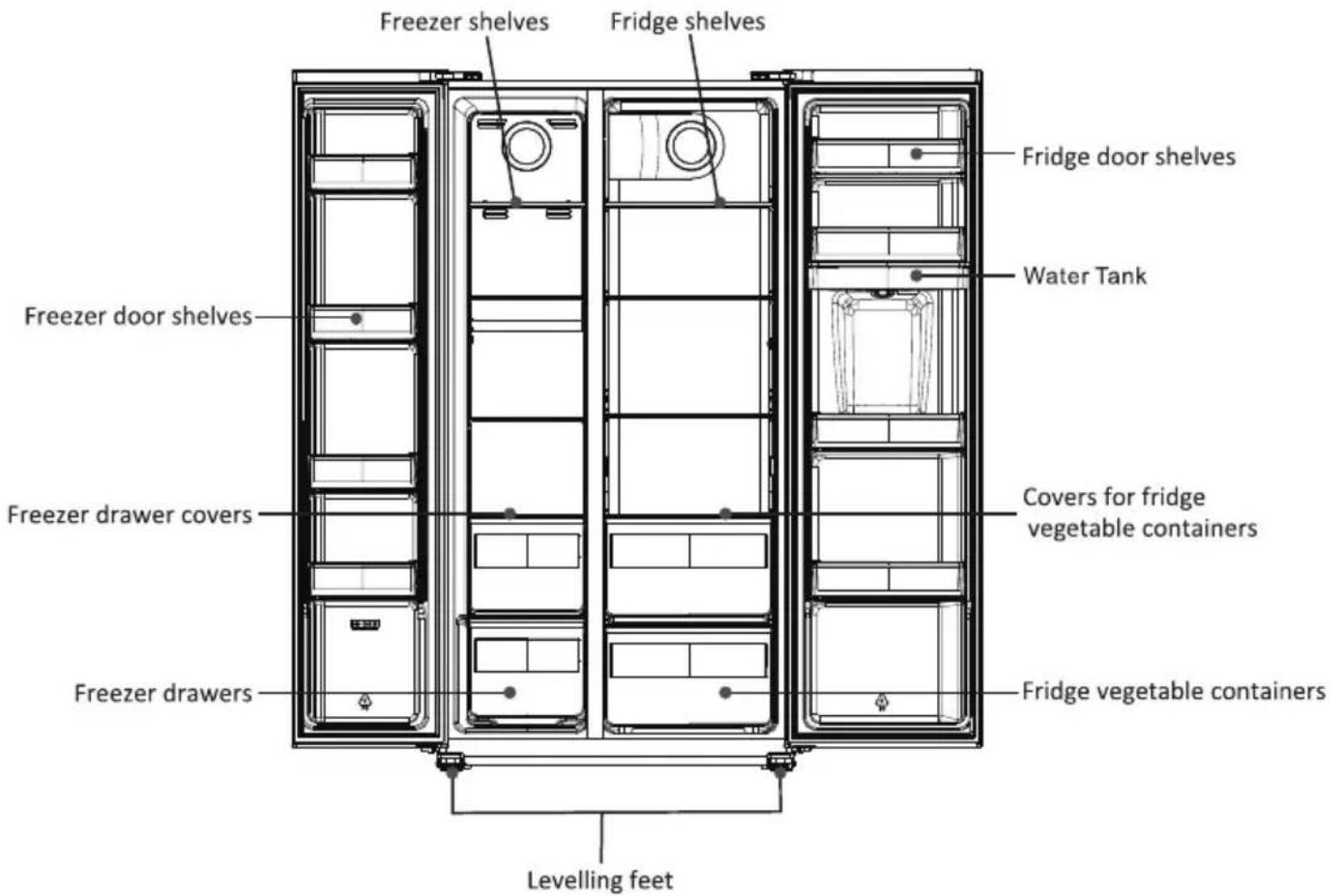

Freezer shelves Fridge shelves Fridge door shelves Water Tank Freezer door shelves Covers for fridge vegetable containers Freezer drawer covers Freezer drawers Fridge vegetable containers Levelling feet

Simple line drawing of a mechanical setup with a downward arrow and a table (no text or symbols)

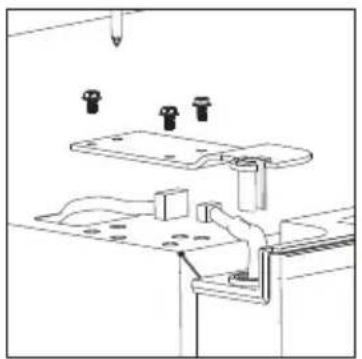

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

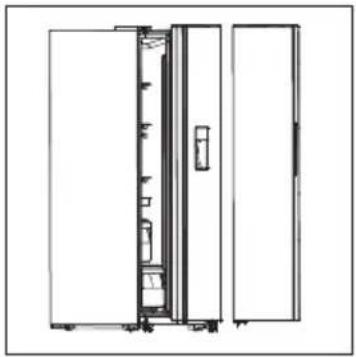

Line drawing of a refrigerator interior showing front and rear doors with internal compartments (no text or symbols)

Simple line drawing of two people climbing an inclined ramp with a horizontal bar (no text or symbols)

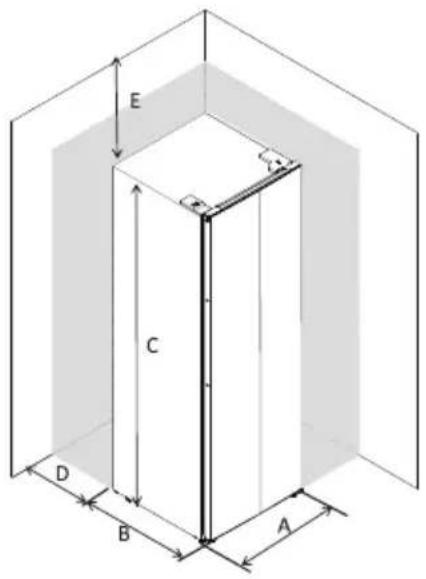

Space Requirement

Keep enough space of door open.

Keep at least 50mm gap at two sides and back.

E C D B A

G H F

A	900
B	660
C	1770
D	min=50
E	min=50
F	1800
G	1560
H	135°

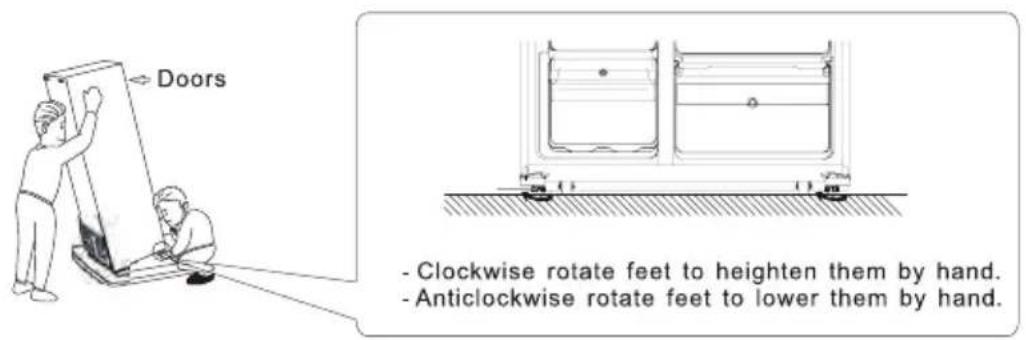

Levelling the refrigerator

Doors - Clockwise rotate feet to heighten them by hand. - Anticlockwise rotate feet to lower them by hand.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C;(T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance;

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose.

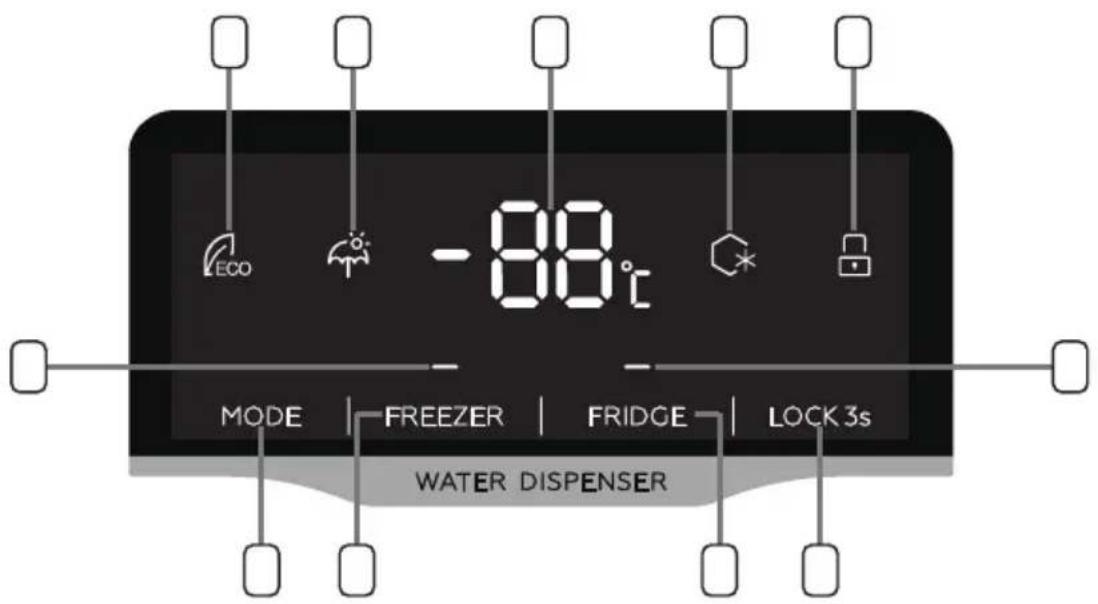

1.1 Using the control panel

-88°C MODE | FREEZER | FRIDGE | LOCK 3s WATER DISPENSER

1.2 Buttons

Mode settings
Freezer temperature adjustment
☐ Fridge temperature adjustment
Lock or unlock

1.3 Using the control panel

ECO mode
Holiday mode
Freezer or fridge temperature
Super freezing
Lock icon
Freezer temperature icon
Fridge temperature icon

Mode button::

Press to select running mode from ECO- Holiday- Super freezing - User's setting

Fridge temperature adjustment

Fridge temperature adjustment: it is valid in the user's setting mode and the super freezing mode.

Daily Use

Press this button to enter the temperature setting of the fridge compartment. At this time,

the icon of the fridge temperature lights up, and the temperature digital tube flashes.

Press this button continuously and the temperature will cycle between “2°C, 3°C, 4°C, 5°C, 6°C, 7°C, 8°C" in sequence; after selection, it will be confirmed after flashing for 5s.

Freezer temperature adjustment

Freezer temperature adjustment: it is valid in user's setting mode and holiday mode. Press this key to enter the temperature setting of the freezer. At this time, the icon of the freezing temperature lights up, and the temperature digital tube flashes. Press this button continuously and the temperature will cycle between -14^ and -22^ in sequence; after selection, it will be confirmed after flashing for 5s.

Lock or unlock

Long press this button to enter/exit the lock function.

Unlock function: In locked state, press and hold for 3 seconds, the buzzer will beep for a long time, and all buttons will be unlocked.

Lock function: In the unlocked state, press and hold for 3 seconds, the buzzer will beep for a long time, and all buttons will be locked.

Display

☐ ECO mode, the refrigerator runs in lowest energy consumption setting.
☐ Holiday mode, turn off the fridge compartment, only turn on the freezer compartment to cool its temperature, which will save the energy consumption.
☐ Display the temperature of freezer or fridge.
SUPER FREEZING cools the freezer compartment to the lowest temperature for approx.6

hours. Then the temperature set before super mode is automatically restored.

☐ LOCK, the symbol will light on if buttons are locked.

☐ Display the setting temperature of freezer compartment.

☐ Display the setting temperature of fridge compartment.

Door open alarm

If the door is opened for 60 seconds, the buzzer will sound the alarm according to the following rules: Beep 5 times at 1Hz frequency, stop for 30 seconds; repeat this cycle until the door closes.

Mode	Icon	Freezer temperature display	Fridge temperature display
ECO		Smart settings based on ambient temperature
Holiday		Keep the original temperature setting	17°C
Super freezing		-25°C	Keep the original temperature setting

Lock or unlock

Long press this button to enter/exit the lock function.

Unlock function: In locked state, press and hold for 3 seconds, the buzzer will beep for a long time, and all buttons will be unlocked.

(Lock icon lights off)

Lock function: In the unlocked state, press and hold for 3 seconds, the buzzer will beep for a long time, and all buttons will be locked.

(Lock icon lights up)

Before using the water dispenser for the first time, remove and clean the water tank located inside the fridge compartment.

1. Lift and take off tank balcony first, then take off water tank with cover. Detach the cover to wash and clean the

tank and cover.

Diagram showing three sequential steps of a mechanical assembly or mounting process, with no visible text or symbols.

1. After cleaning, reposition water tank, cover and tank balcony as below process.

Four-step diagram showing mechanical assembly or assembly process with arrows indicating direction (no text or symbols)

1. Clean the dispenser pad outside the fridge door.

Simple line drawing of a container with an arrow pointing to the side (no text or symbols)

Filing the water tank with water

1. Open the small lid.

Simple line drawing of a hand placing a small object into a rectangular box (no text or symbols)

1. Fill the water tank with drinkable water up to 2.5 L line.
2. Close the small lid on the cover.

Dispensing

To dispense water, push the dispenser pad gently, using a glass or container.

To stop the flow of water, pull your glass away from the dispenser pad.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	Foods with natural preservatives, such as jams, juices, drinks, condiments.Do not store perishable foods.
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper bin.Do not store bananas, onions, potatoes, garlic inthe refrigerator.
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – to p	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	Foods for long-term storage.Bottom drawer/shelf for raw meat, poultry, fish.Middle drawer/shelf for frozen vegetables, chips.Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

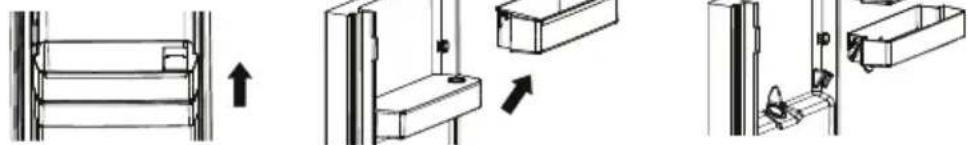

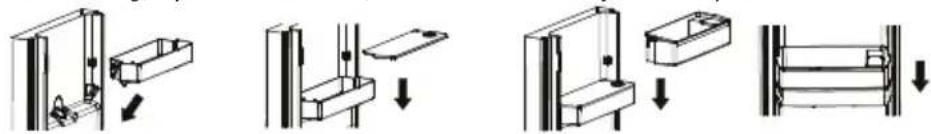

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Simple line drawing of a storage or storage unit with two upward-pointing arrows (no text or symbols)

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Temperature Setting
Summer	Fridge set on 4°C
	Freezer set on -18°C
Normal	Fridge set on 4°C
	Freezer set on -18°C
Winter	Fridge set on 4°C
	Freezer set on -18°C

• Information above give users recommendation of temperature setting.

Impact on Food Storage

• Under Recommended setting, the best storage time of fridge is no more than 3 days.
• Under Recommended setting, the best storage time of freezer is no more than 1 month.
- The best storage time may reduce under other settings.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
- the freezing process takes 24 hours. No further food to be frozen should be added during this period; - only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• Make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

- Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

- Do not open the door frequently or leave it open longer than absolutely necessary;

- Once defrosted, food deteriorates rapidly and cannot be refrozen;

- Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

- Do not store warm food or evaporating liquids in the refrigerator

- Do cover or wrap the food, particularly if it has a strong flavour

Hints for refrigeration

Useful hints:

• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
- For safety, store in this way only one or two days at the most
• Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
- Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
- butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
- Milk bottle: these should have a cap and should be stored in the balconies on the door.
- Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance dose not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at SUPER modes.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours, or can be manually disabled by pressing Fast Freeze button.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times:

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days （temp setting: middle）

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

Technical Information

Model	ORH 694 X
Category	Side by Side
Volume of refrigerator compartment (L)	344
Freezer compartment volume (L)	185
Actual consumption depends on how the appliance is used and its location
Energy Class based onUE 2019/2016	E
Energy consumption: kWh/ano	312
Current (V)	220-240
Frequency (Hz)	50
Current Value (A)	1.5
Total Input Power (W)	150
Defrost Power (W)	240
Freezing capacity (kg/24h)	14
Climate Class SN,N,ST
Dimensions(A x L x P), mm	1770*900*660
Noise level, db(A) re 1pw	39
Electric information Check Rating Label
This appliance is intended for use at na ambient temperature between
10°C and 38°C.
Note: The manufacturer reserves the right to make future changes to the specifications and technical parameters.

IMPORTADO POR: MÁRIO MIRANDA DE ALMEIDA, SA APARTADO 1, 3060-752 CORTICEIRO DE CIMA, PORTUGAL

orima

Simple line drawing of a mechanical setup with a vertical rod and base plate (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting brackets and a tool (no text or symbols)

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

Simple line drawing of a ladder with two figures and a stick, no text or symbols present

Technical line drawing of a dual-basin container system mounted on a flat surface (no text or symbols)

-88°C MODE | FREEZER | FRIDGE | LOCK 3s WATER DISPENSER A B C D 6 7

Boutons

Diagram showing three sequential steps of a door or cabinet assembly, with no visible text or symbols.

Pure mechanical assembly diagrams showing sequential steps of lifting or mounting components (no text or symbols)

Simple line drawing of a container with a side outlet and an arrow pointing to it (no text or symbols)

Simple line drawing of a hand placing a small object into a container (no text or symbols)

Line drawing of a hand holding a rectangular object over a shelf (no text or symbols)

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

-88°C MODE | FREEZER | FRIDGE | LOCK 3s WATER DISPENSER
