ORS-102-DG - Refrigerator Orima - Free user manual and instructions

Product Type	Chest Freezer (Horizontal Freezer)
Brand	Orima
Model	ORS-102-DG
Total Volume	98 L
Dimensions (H x W x D)	845 x 545 x 545 mm
Energy Class	E
Annual Energy Consumption	168 kWh/year
Climate Class	SN, N, ST (temperate, subtropical, tropical)
Noise Level	40 dB(A)
Defrost Type	Manual
Freezing Capacity	6 kg/24h
Fast Freeze Function	Yes
Temperature Control	Electronic with LED indicators
Power Supply	220-240 V, 50 Hz (see rating plate)
Refrigerant	R600a (flammable)
LED Lamp	Yes, energy class G
Design Type	Freestanding
Warranty	36 months
Color	White
Additional Features	Recessed handle, basket, drain hole, power-off memory

Frequently Asked Questions - ORS-102-DG Orima

How do I set the temperature on my Orima ORS-102-DG freezer?

Press the SET key to adjust the temperature. Each press increases the temperature range, cycling through fridge (levels 1-2) and freezer (levels 3-7) ranges. After 5 seconds, the setting is confirmed. LED indicators show the selected range.

What is the Fast Freeze function and how do I use it?

The Fast Freeze function rapidly lowers the temperature to freeze large quantities of food. Press the SET key until all temperature LEDs are on, then wait 5 seconds to activate. The function automatically disables after 72 hours or can be turned off manually by pressing SET again.

How do I defrost the chest freezer?

Disconnect the power supply. Open the door and remove all food. Place a container under the internal drain hole to collect water. Allow frost to melt naturally (keep door open). After defrosting, dry the interior and replace the drain plug.

How do I clean the freezer?

Unplug the appliance. Remove baskets and accessories. Wipe the interior and exterior with a soft cloth and mild detergent. Do not use abrasive cleaners. Dry thoroughly before plugging back in.

How do I replace the LED lamp?

The LED lamp is gravity-controlled and turns on when the door is opened >30°. To replace: 1) Loosen screws on the lamp cover. 2) Loosen screws on the LED electronic part. 3) Check cable connections. If faulty, replace the LED electronic part. Contact after-sales service if needed.

What do the indicator lights mean?

Blue LED (temperature range): Fridge range (1-2) or freezer range (3-7). Blue Fast Freeze LED: On when fast freeze is active. Green Running LED: On when compressor is running, off when stopped. After 30 minutes of inactivity, LEDs dim.

Why is my freezer not working?

Check that the mains plug is inserted and not loose. Check the fuse and replace if blown. If the socket is defective, contact an electrician. If the problem persists, contact the service center.

How do I level the appliance?

Ensure the freezer is placed on a flat, stable surface. If it rocks, use leveling feet or place shims under the corners. Check with a spirit level.

Can I store frozen food for long periods?

Yes, the freezer compartment is suitable for long-term storage of frozen foods such as meat, poultry, fish, vegetables, and ice cream. Set the temperature to -18°C and use the fast freeze function for large quantities.

What should I do if frost builds up on the door seal?

The door seal may not be airtight. Carefully warm the leaking sections with a hair dryer on a cool setting and shape the seal by hand to fit correctly. If the problem persists, contact the service center.

USER MANUAL ORS-102-DG Orima

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL

LIVRE D'INSTRUCTIONS

facebook.com/orima.pt

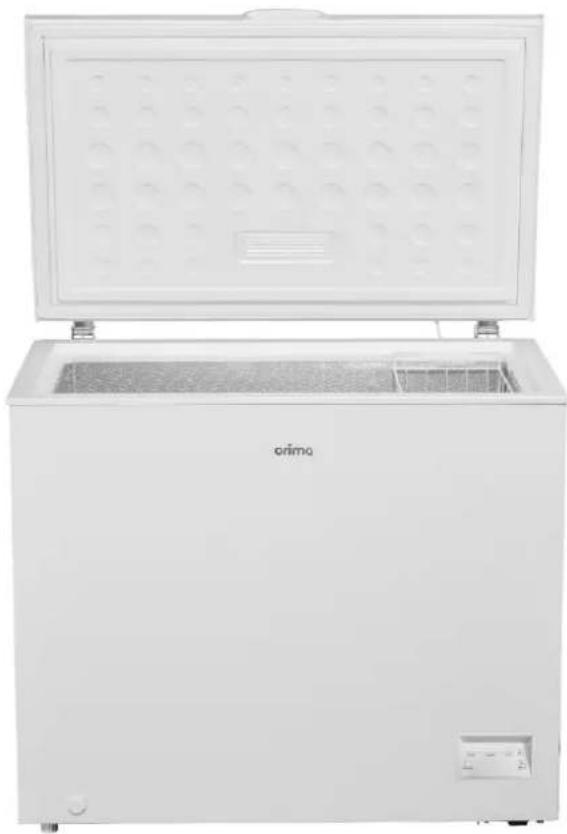

Front view of a white refrigerator with perforated lid and label 'orimo' on front (no other text or symbols visible)

MMA

MARIO MIRANDIA DE ALMEIDA

CONGELADOR HORIZONTAL

Horizontal Freezer | Congelador Horizontal | Congélateur Horizontal

SERVIÇO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone]

Simple line drawing of a box placed inside a vertical structure (no text or symbols)

Posicionamento

Three horizontal bars with varying lengths and fill patterns, no text or symbols present

Modo Refrigerador recomendado

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

1 Recessed handle
2 Basket
3 Thermostat knob
4 Drain hole

Simple line drawing of a box placed inside a vertical structure (no text or symbols)

Abstract grayscale gradient pattern with no text or symbols

Thecurrentis switchedon

All LED lamps light on 1 second when the current is switched on, then running on the original setting mode before switched off.

The temperature setting

Press 'SET' key to adjust the temperature; Press once, one more temperature range LED indicator will be light on. It can be cycling setting, after set up 5 seconds, the electronic thermostat can confirm the settings automatically.

When all temperature range LED indicators are light on, press the 'SET' key, the SUPER LED indicator will be light on, after 5 seconds, the fast freezing mode can be confirmed automatically.

The recommendations of the users setting

Three horizontal bars with varying lengths and fill patterns, no text or symbols present

Temperature range LED indicator (Blue color): Fridge range (1,2 level) Freezer range (3,4,5,6,7 level)

Fast Freezing LED indicator (Blue color): On Fast freezing mode, LED light on Turn off Fast freezing mode, LED light off

Running LED indicator (Green color): Compressor running, LED light on; Compressor stopped, LED light off;

After each operation is finished for 30 minutes, LED indicator will light slightly.

Power Off Memory Function: the power of chest freezer is switched on again, it will automatically run according to the mode setting before the power off.

OFF 3'S : the power of chest freezer is switched off after press OFF 3's key 3 seconds.

Chest Freezer

·Foods for long-term storage, ·Raw meat, poultry, fish, frozen vegetables, chips, ice cream, frozen fruit, frozen baked goods

defrost faster keep the freezer door open.

dial in. Replug the drain plug inside the freezer compartment. Note: monitor the container under the drain to avoid overflow.

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

⚠️ Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
Appliance dose not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes too much	Temperature is set too cold or the appliance runs at "7" setting.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build-up of frost on the door seal.	Door seal is not air-tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Check the appliance and level it by some articles.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, in the side of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.
These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Replace the lamp

The switch of LED lamp is gravity controlled, when the angle of door-opening is bigger than 30. Degree, light will switch on and switch off when the angle is smaller than 30 degree.

Notice:

When LED lamp does not work when door is open, Please be released and check as below steps:

- Firstly, loosen screws on the lamp cover

• Secondly, loosen the screws fixed on the lamp electronic parts

• Thirdly, check the cable terminals of electronic parts and terminals of contacting lines for door lamp is loosening or not. Please fix them if they are not fixed. Then, check the light is on or not. If the lamp is switch on please install the lamp cover; If not, please further check the electronic part is intact or not. If necessary, please replace the electronic part to check the lamp is on or not. If the lamp still does not work. Please contact with staff of after-sale service for assistance.
• The steps of Led lamp installing Fix the cable terminals of electronic parts and contacting lines in the door liner; Install LED electronic part in the door liner and fix on by screws; Install lamp cover on the holder and fix to finish all process

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours, or can be manually disabled by pressing Fast Freeze button.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times:

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days （temp setting: middle）

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

Technical Information

Model	ORS 102 DG
Total Volume, L	98
Actual consumption depends on how the device is used and the location
Energy Class based on EU 2019/2016	E
Power Consumption: kWh/year	168
Climate class	SN,N,ST
Dimensions (A x L x P), mm	845x545x545
Noise level, db(A) re 1pw	40
Electrical Information See in the product rating label
Note: The manufacturer reserves the right to make future changes to the Specifications and technical parameters.

Model	ORS 146 DG
Total Volume, L	142
Actual consumption depends on how the device is used and the location
Energy Class based on EU 2019/2016	E
Power Consumption: kWh/year	182
Climate class	SN,N,ST
Dimensions (A x L x P), mm	845x705x545
Noise level, db(A) re 1pw	40
Electrical Information See in the product rating label
Note: The manufacturer reserves the right to make future changes to the Specifications and technical parameters.

Model	ORS 252 DG
Total Volume, L	246
Actual consumption depends on how the device is used and the location
Energy Class based on EU 2019/2016	E
Power Consumption: kWh/year	215
Climate class	SN,N,ST
Dimensions (A x L x P), mm	845x954x616
Noise level, db(A) re 1pw	40
Electrical Information See in the product rating label
Note: The manufacturer reserves the right to make future changes to the Specifications and technical parameters.

IMPORTADO POR: MÁRIO MIRANDA DE ALMEIDA, SA APARTADO 1, 3060-752 CORTICEIRO DE CIMA, PORTUGAL

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864346

https://eprel.ec.europa.eu/qr/1864346

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: ORIMA
Supplier's address: MARIO MIRANDA ALMEIDA, SA, RUA PADRE BASILIO COSTA MORGADO 23/25, 3060-752CORTICEIRO DE CIMA, PT
Model identifier: ORS 102 DG
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No			Other refrigerating appli-ance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height	845	Total volume (dm3 or l) 98
	Width	545
	Depth	545
EEI 100 Energy efficiency class		E
Airborne acoustical noise emis-sions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		168 Climate class:			temperate, subtropi-cal, tropical
Minimum ambient tempera-ture (°C), for which the refrigerating appliance is suitable		10	Maximum ambient tem-perature (°C), for which the refrigerating appliance is suitable		38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Vol-ume (dm3 or l)	Recommended temperature setting for opti-mised food storage (°C)These set-tings shall not con-tradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage No - - - -
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star Yes 98,0 -18 6,0		M
2-star section	No - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			Yes
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 36 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: www.orima.pt

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864346

https://eprel.ec.europa.eu/qr/1864346

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA

Website: www.orima.pt

Email: [e-mail]

Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864346

https://eprel.ec.europa.eu/qr/1864346

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864346

https://eprel.ec.europa.eu/qr/1864346

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864347

https://eprel.ec.europa.eu/qr/1864347

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: ORIMA
Supplier's address: MARIO MIRANDA ALMEIDA, SA, RUA PADRE BASILIO COSTA MORGADO 23/25, 3060-752CORTICEIRO DE CIMA, PT
Model identifier: ORS 146 DG
Type of refrigerating appliance:
Low-noise appliance: No Design type: built-in
Wine storage appliance: No			Other refrigerating appli-ance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height	845	Total volume (dm3 or l) 142
	Width	705
	Depth	545
EEI 100 Energy efficiency class		E
Airborne acoustical noise emis-sions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		182 Climate class:			temperate, subtropi-cal, tropical
Minimum ambient tempera-ture (°C), for which the refrigerating appliance is suitable		10	Maximum ambient tem-perature (°C), for which the refrigerating appliance is suitable		38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Vol-ume (dm3 or l)	Recommended temperature setting for opti-mised food storage (°C)These set-tings shall not con-tradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage No - - - -
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star Yes 142,0 -18 7,0		M
2-star section	No - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			Yes
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 36 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: www.orima.pt

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864347

https://eprel.ec.europa.eu/qr/1864347

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA

Website: www.orima.pt

Email: [e-mail]

Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864347

https://eprel.ec.europa.eu/qr/1864347

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864347

https://eprel.ec.europa.eu/qr/1864347

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864348

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

https://eprel.ec.europa.eu/qr/1864348

Website: www.orima.pt

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: ORIMA
Supplier's address: MARIO MIRANDA ALMEIDA, SA, RUA PADRE BASILIO COSTA MORGADO 23/25, 3060-752CORTICEIRO DE CIMA, PT
Model identifier: ORS 252 DG
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No			Other refrigerating appli-ance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 845		Total volume (dm3 or l) 246
	Width 954
	Depth 616
EEI 100 Energy efficiency class		E
Airborne acoustical noise emis-sions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		215 Climate class:			extended temperate, temperate, subtropi-cal, tropical
Minimum ambient tempera-ture (oC), for which the refrigerating appliance is suitable		10	Maximum ambient tem-perature (oC), for which the refrigerating appliance is suitable		43
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Vol-ume (dm3 or l)	Recommended temperature setting for opti-mised food storage (oC) These set-tings shall not con-tradict the storage conditions set out inAnnex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage No - - - -
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star Yes 246,0 -18 14,0		M
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			Yes
Light source parameters:
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 36 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: www.orima.pt

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864348

https://eprel.ec.europa.eu/qr/1864348

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA

Website: www.orima.pt

Email: [e-mail]

Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864348

https://eprel.ec.europa.eu/qr/1864348

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024

EPREL registration number: 1864348

https://eprel.ec.europa.eu/qr/1864348

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal
