Pure One Station FurFree - Vacuum Cleaner TINECO - Free user manual and instructions

Product Type	Cordless Vacuum Cleaner with Cleaning Station
Brand	Tineco
Model	Pure One Station FurFree
Rated Voltage	14.4 V
Power Supply	270 W
Dust Bin Capacity	0.3 L
Charging Time	4 to 5 hours
Runtime in Auto Mode	Approximately 60 minutes
Runtime in Max Mode	Approximately 15 minutes
Cleaning Station	Yes, with automatic emptying function
Cleaning Mode	Auto and Max
Dust Sensor	Yes, with LED loop (blue to red)
Electric Brush	ZeroTangle anti-tangle
Filter	Washable HEPA and mesh filter
Connectivity	Built-in Wi-Fi, Tineco app
Digital Display	Yes, with battery level and obstruction indicators
Included Accessories	ZeroTangle electric brush, mini turbo brush, 2-in-1 crevice tool, cleaning tool
HEPA Filter Maintenance	Wash every 6 months, replace every 24 months
Safety	Overheat protection, grounding, FCC and IC certification
Warranty	2 years (1 year for accessories and battery)

Frequently Asked Questions - Pure One Station FurFree TINECO

How do I charge the Pure One Station FurFree vacuum?

Place the vacuum on the cleaning station. Charging starts automatically. It takes 4 to 5 hours for a full charge. Use only the power adapter provided by Tineco.

What is the runtime of the vacuum?

In Auto mode, runtime is approximately 60 minutes. In Max mode, it is approximately 15 minutes. Actual runtime may vary depending on usage.

How do I clean the HEPA filter?

Remove the HEPA filter (magnetic attachment). Wash it with cold running water and dry it completely before reinstalling. It should be washed every 6 months and replaced every 24 months.

What should I do if the vacuum does not turn on?

Check if the battery is charged. If the device has overheated, let it cool down then restart. Also make sure no obstruction is blocking the tube or brush.

How do I empty the dust bin of the cleaning station?

Push the release button outward to remove the dust bin from the station. Press the latch to open the lid and empty the contents. Replace the bin firmly.

Can I use the vacuum on rugs and carpets?

Yes, the ZeroTangle electric brush is designed for hard floors and carpets. It offers anti-tangle performance, ideal for pet owners.

How do I connect the vacuum to the Tineco app?

Download the Tineco app from the App Store or Google Play. On the vacuum, press and hold the power button for 3 seconds to activate Wi-Fi, then follow the instructions in the app to set up the connection.

What does the flashing LED loop mean?

The LED loop indicates the amount of dust detected: blue for low, red for high. Flashing accompanied by a beep may indicate an obstruction, a clogged filter, or a blocked sensor. Refer to the troubleshooting guide.

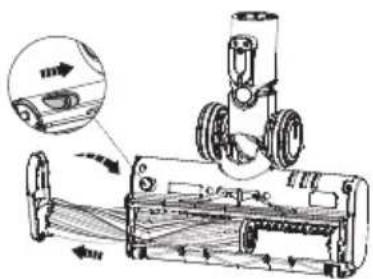

How do I clean the brush roll?

Slide the button to open the end cover, remove the brush roll by turning counterclockwise. Use the hair cleaning tool to remove debris. Do not submerge the motorized brush in water.

What is the warranty of the device?

The device is covered by a limited 2-year warranty against defects in materials and workmanship. Motorized accessories and batteries purchased separately have a 1-year warranty. The warranty is valid only for household use.

USER MANUAL Pure One Station FurFree TINECO

Smart Vacuum Cleaner

Instruction Manual

Manual De Uso

Mode D'emploi

Exterior view of a modern black and blue handheld vacuum cleaner (no visible text or symbols)

*Actual product may differ from illustration.

CONTENTS

Important Safety Instructions....2

Specifications....6

Overview....7

Accessories....9

Assembly 10

Operation 12

Maintenance 19

Troubleshooting....22

Warranty 23

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not block openings. Stop use if openings become blocked. Clean and remove any blocked objects according to the manual instructions.
9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without a filter.

14. Prevent unintentional activation. Ensure the switch is in the off position before connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or powering on the appliance with the switch on may cause accidents.

15. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
18. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
19. Under improper usage, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
20. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
21. Do not expose a battery pack or appliance to fire or excessive heat. Exposure to fire or temperatures above 266^ F ( 130^ C) may cause an explosion.
22. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
23. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
24. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
25. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
26. Do not charge or store the appliance outdoors or inside a car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.
27. The appliance is only to be used with the unit provided. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
28. Use only with supply unit. This appliance contains batteries that are non-replaceable.
29. WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
30. GROUNDING INSTRUCTIONS

1) This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

2) This appliance is for use on a nominal 120-V circuit and has a grounding attachment plug that looks like the plug illustrated below. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adapter should be used with this appliance.

GROUNDED OUTLET GROUNDED POIN GROUNDED OUTLET BOX

FCC Supplier's Declaration of Conformity

Tineco / PURE ONE STATION FURFREE SERIES

This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation. Tineco INTELLIGENT, INC.

1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

WWW.TINECO.COM

1-855-292-8864

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 5cm between the radiator and any part of your body.

Note

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, such modifications could void the user's authority to operate this equipment.

IC Note

This appliance contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1) this appliance may not cause interference.
(2) this appliance must accept any interference, including interference that may cause undesired operation of the appliance.

- This Class B digital apparatus complies with Canadian ICES-003.

- This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 5cm between the radiator and any part of your body.

Specifications

Product (Appliance) PURE ONE STATION FURFREE
Voltage 14.4V	—
Rated Power 270W
Dustbin Capacity 0.3L
Charging Time 4-5 hrs

CLEAN STATION

Input (Self-Cleaning Mode) 120V 60Hz 4.2A
Input (Charging) 120V 60Hz 0.5A
Output 18V	==1A

Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil. Do not dispose of chargers into household waste!
• If battery leakage contacts skin or clothing, immediately flush with water to avoid irritation and seek medical help.

Overview

A B C D E F G H I

A. Power Button

B. Dustbin

C. Dust Empty Release Button

D. Dust Sensor

E. Tube

F. ZeroTangle Power Brush

G. Digital Display

H. Auto/Max Mode

I. HEPA Filter

Digital Display

MAX AUTO tineco

A B C D E F G H I

A. Dust Monitoring Loop (Blue to red according to the dust amount)
B. Max Mode
C. WiFi Indicator
D. Air Channel Blocked

E. Battery Level
F. Auto Mode
G. Dust Sensor Malfunction
H. Brush Roller Tangled
I. Tineco Logo

Accessories

Note:

• Test an accessory on a small, inconspicuous area before use on sensitive surfaces.
  • To identify what should be included with your purchase, please refer to the packaging box.
• As shown below, there are many components compatible with this model. If you require more accessories, please visit www.tineco.com or store.tineco.com.

Line drawing of a robotic arm gripping a cylindrical device (no text or symbols)

ZeroTangle power brush

With improved performance on both hard floors and carpets. Its hair-tangle-free feature makes it an excellent option for pet owners.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Mini power brush

For vacuuming upholstered furniture, mattresses etc. Vacuums pet hair and removes stubborn stains.

2-in-1 Crevice dusting brush

The slimline crevice tool is ideal for tight spots, corners and crevices.

Cleaning tool

For maintenance of the Clean Station.

Hair cleaning tool

Use the end with the small blade to remove hair and debris wrapped around the roller. Use the end with the brush to clean the brush window, and the dustbin, as required.

Assembly

Vacuum Installation

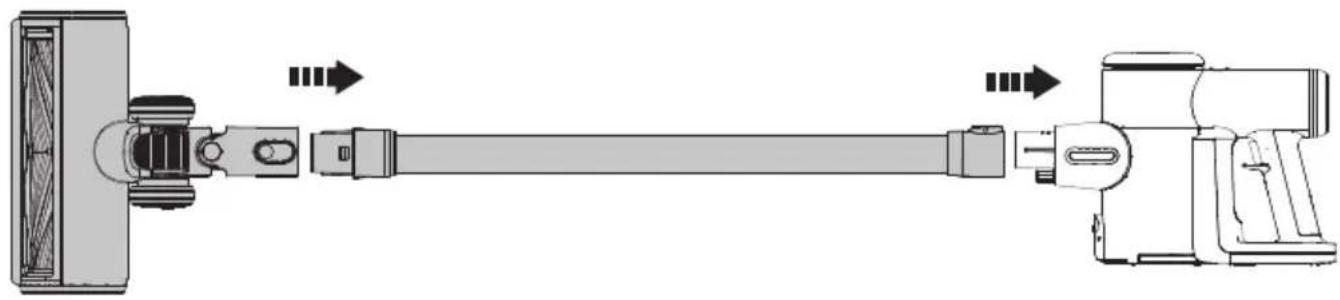

Technical line drawing of a mechanical assembly with no visible text or symbols

Insert the power brush, tube and main unit.

Diagram of a mechanical device with lever and handle, showing motion arrows (no text or symbols)

Press the release button to disconnect the power brush and tube.

Clean Station Installation

Note: Please make sure the Clean Station is placed on a hard flat surface.

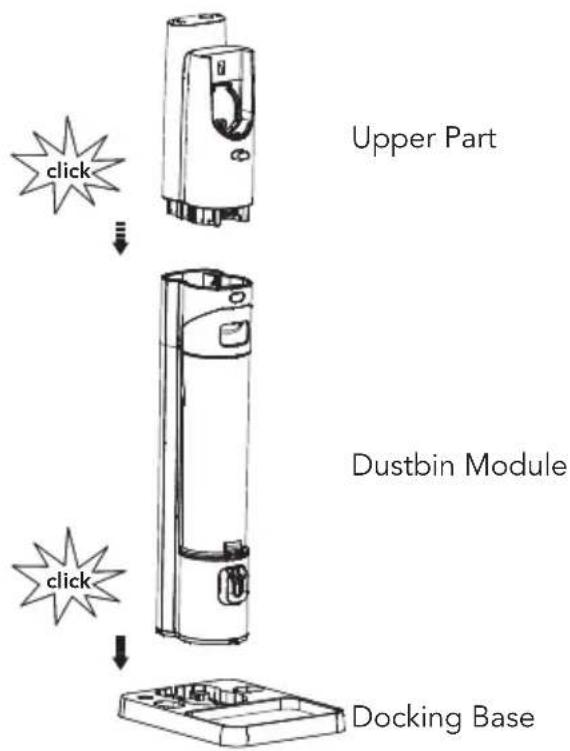

click Upper Part Dustbin Module click Docking Base

Insert dustbin module into docking base first, then insert upper part into the dustbin module.

Technical line drawing of a vertical industrial machine with control panel and directional arrow (no text or symbols)

In the event that the Clean Station needs to be disassembled, press the latch with tool to remove the three parts.

Line drawing of a vertical cylindrical device with mounting base and connector, connected to a power outlet (no text or symbols)

Technical line drawing of a vertical cylindrical device with attached components and a power outlet indicator (no text or symbols)

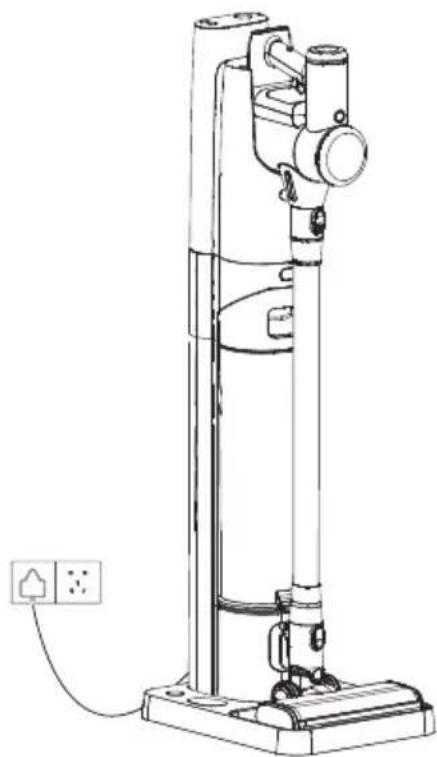

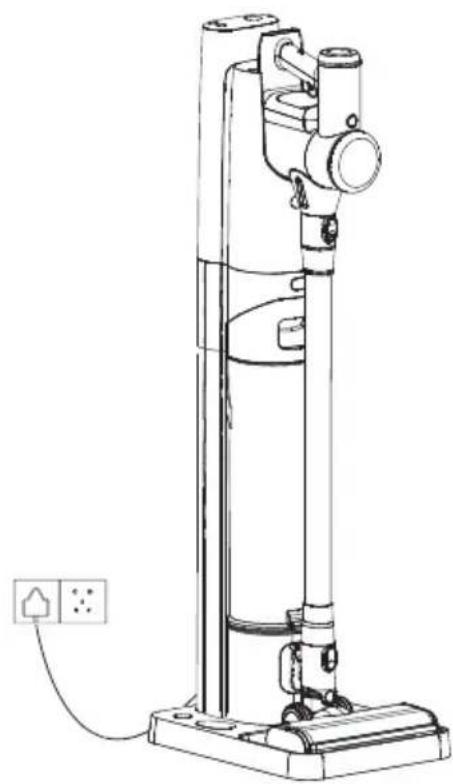

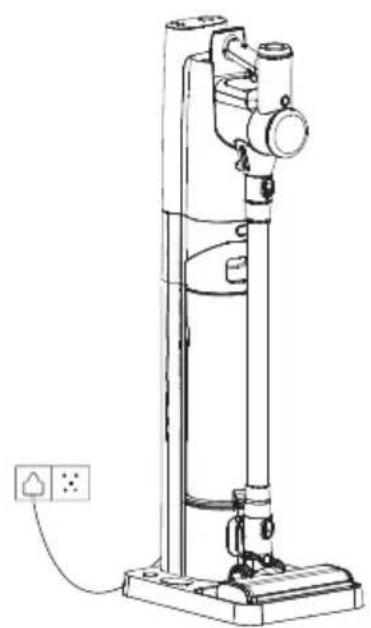

Plug in the Clean Station. Place the vacuum and accessories on the Clean

Station for convenient storage after use.

Operation

Preparing for Use

Note:

• Before the first use, please charge the appliance (see "Charging the Battery") for 4-5 hours in an area where the ambient temperature is between 39.2^ (4^) and 104^ (40^) .
• Select an accessory and attach it to the appliance before use (see "Accessories").

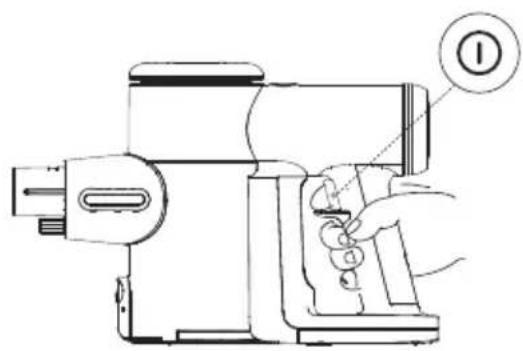

Line drawing of a hand operating a handheld device with a button labeled (no text or symbols present)

Press the button to activate suction. Press it again to turn off the appliance.

AUTO MAX

The appliance will start in AUTO mode by default. Press the Ⓗ button to switch between AUTO and MAX mode.

Technical line drawing of a vertical cylindrical device with attached components and a power outlet (no text or symbols)

Place the vacuum and accessories on the Clean Station for convenient storage and charging after use.

Cleaning Mode Selection

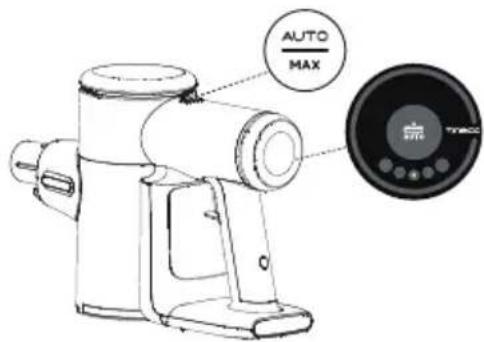

AUTO Mode

• In AUTO mode, the color of dust monitoring loop changes according to the amount of dust detected.
• Automatically, the monitoring loop in red indicates a higher amount of dust detected, while the loop in blue indicates a lower amount detected. This feature provides the optimal cleaning solution.

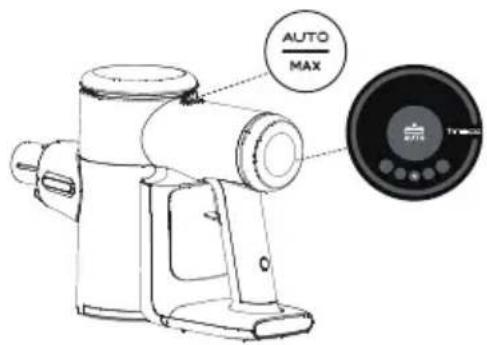

To activate AUTO mode:

Line drawing of a hand operating a sewing machine with a circular icon labeled '①' pointing to the handle (no text or symbols on the device itself)

Press the power button to activate suction. The default setting upon startup is AUTO mode.

AUTO MAX

When in MAX mode, press the AUTO button to switch to AUTO mode.

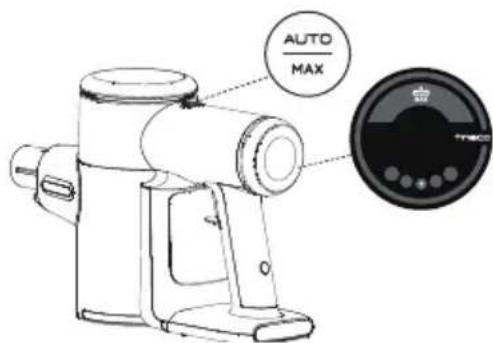

MAX Mode

AUTO MAX

In AUTO mode, press the button to switch to MAX mode.

Note:

Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

APP

- All the functions can be performed using the Tineco app. Download the Tineco app from the App Store, Google Play and Tineco Official Site.

Turn On/Off WiFi

- Turn on WiFi: During work, hold the button for 3 seconds to enter Help Center and go to Connect to network.

- Turn off WiFi: Hold the button for 20 seconds to turn off.

Vacuum's Dustbin Emptying & Vacuum Charging

Note:

• To make sure that the vacuum cleaner is successfully charged, please place it near the charging port. Also, place the dustbin close enough to the suction port of the Clean Station to ensure that the Clean Station is fully operational.
• The vacuum cleaner cannot be charged when connected to accessories other than the brush roller.
• The vacuum cleaner is not allowed to be removed when the self-cleaning or pet grooming feature is activated.

Technical line drawing of a vacuum cleaner device with base mount and clamped arm (no text or symbols)

Place the vacuum onto the Clean Station. The Clean Station will then start charging, meanwhile self-cleaning will also be activated.

Line drawing of a vertical cylindrical device with attached components and a power outlet (no text or symbols)

When self-cleaning is complete, the Dust Monitoring Loop turns solid blue, and the voice announces "Self-cleaning completed."

Clean Station Dustbin's Emptying

Technical line drawing of a mechanical device with no visible text or symbols

Press the release button and pull outward to remove the dustbin.

Line drawing of a hand inserting a component into a cylindrical device (no text or symbols)

Squeeze the latch to open the cover and empty the dustbin.

click

Close the dustbin cover and put the dustbin back into place.

Warning:

• Only use the Tineco-provided adapter to charge the appliance.
• To avoid trip hazards, please place the appliance securely on the charging dock, near a wall during charging.
• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)\~104°F (40°C).

Runtime

• When in AUTO mode, the runtime is approximately 60 minutes. When MAX power is used, the runtime is approximately 15 minutes.
• Estimated runtime data was obtained by Tineco Laboratory using one battery and non-motorized accessories.

Charging Time

• A full charge takes approximately 4-5 hours.
- Estimated data was obtained by Tineco Laboratory using ambient temperatures between 39.2^ (4°C) to 104^ (40°C).

Indicators (Appliance)

When in Use

Max indicator on: Max mode.

AUTO indicator on: Auto mode.

Five solid green lights: full power.

Three solid green lights: medium power.

One solid green light: low power.

Blinking green light: battery level<5%.

LED loop blinking with a beep: charging failure, check the troubleshooting.

Blinking: brush roller has a blockage.

Blinking: appliance has a blockage, either in the filter or in the dustbin.

Blinking: sensor inside the dustbin is obstructed.

Lit: WiFi is connected.

Blinking: WiFi is connecting.

Off: WiFi is not connected, please connect.

During Charging

Continuous blinking: charging.

Fully Charged

Battery level: 100%.

Maintenance

Note:

- Wash and dry the HEPA filter every 6 months, replacing it every 24 months.

Dustbin and Mesh Filter (Appliance)

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating assembly or transformation.

Pure mechanical diagram showing a crossed-out machine with no text or symbols

Turn counter-clockwise to remove the mesh filter. Do not turn the appliance upside down

when removing or installing the mesh filter to prevent dust from entering the motor.

Diagram showing four different water sources and a timer, including a faucet, trash can, sun, and light bulb.

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

The mesh filter can be washed under cold running water and must be completely dry before reinstalling.

After cleaning, install the clean filter back into the main unit, then close the dustbin flap.

HEPA Filter

Illustration of a hand holding a cylindrical component above a handheld device, with an arrow indicating upward motion (no text or symbols present)

Pull out the HEPA filter (magnetically designed) for cleaning. Do not use the appliance without first installing the HEPA filter.

Diagram showing four symbolic icons: a faucet, a spool of water, a sun, and a speedometer with '24h' label.

The HEPA filter can be washed under running water and must be completely dry before reinstalling.

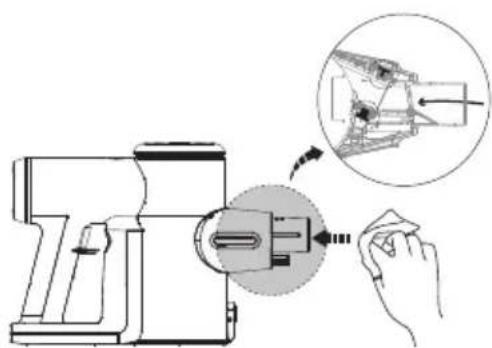

Dust Sensor

Diagram of a kitchen mixer with a close-up view showing the internal components (no text or labels)

Wipe the suction mouth with a damp cloth to prevent the accumulation of dust, which may impact the cleaning performance.

Mini Power Brush

Diagram showing a hand pressing a button labeled 'B' and 'S' with an arrow indicating direction

Technical line drawing of a mechanical device with no visible text or symbols

Press against the roller end cover downward. Pull out the brush roller.

Technical line drawing of a mechanical device with exploded view showing internal components (no text or symbols)

Remove the debris wrapped around the roller with the Tineco Hair Cleaning Tool.

click

Fully reinsert the brush roller at an angle and push upward until it clicks securely back into place.

Brush Roller

Mechanical assembly diagram showing a vehicle chassis with gears and a piston, no text or symbols present

With the power off, slide the switch to open the brush roller end cover, and rotate it counterclockwise to pull out the brush roller.

Illustration of a hand using a tool to adjust or install a mechanical device (no text or symbols visible)

After removing the brush roller, gently clean the brush window, suction mouth and the row of plastic teeth.

Technical line drawing of a mechanical device with gears and a handle (no text or symbols)

Fully reinsert the brush roller into the brush window and the end cover can be rotated counter-clockwise until it clicks securely back into place.

Warning:

• The power brush contains electrical components which must not be soaked or washed with water.
• To reduce the injury, do not touch the brush roller while the appliance is in working condition.

SCAN THE QR CODE BELOW TO GET PRODUCT CARE VIDEOS.

Troubleshooting

Problem Possible cause Solution
The appliance does not turn on	No power Charge the battery
	Auto protection for overheating Restart after cooling down
	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Check and remove blockages
Weak suction power	Dustbin and filters are full Clean the dustbin and filters
	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages
	The brush roller is tangled with hair or fibers	Clean the brush roller
Battery won't charge	Vacuum is not properly placed on the docking base.	Pull the vacuum up and place it back on the docking base again.
Brush roller tangled indicator is blinking	The brush roller is blocked Remove blockages
The indicator for blocked air channel is blinking (accompanied by a beep).	The appliance is blocked, or full of dust in filter and dustbin	Remove blockages
Indicator for dust sensor malfunction is blinking	The sensor inside the dustbin is blocked	Clean the dust on the inner sensor
WiFi indicator is off WiFi is	not connected	Follow the in-app guide to connect to WiFi
LED loop blinking with a beep	Auto protection for overheating Restart after cooling down
Abnormal motor sounds	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

- Use of parts not in accordance with the Tineco Instruction Manual.

- Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

- Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

- Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
  Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

Register: We highly recommend that upon purchase, you register your appliance by logging into our official website (www.tineco.com) or scanning the QR code (see right) to enjoy more exclusive benefits. To register, please enter the whole serial number (on the back of the appliance). Failure to register your product won't diminish your warranty rights.

Serial number *************************

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or an authorized agent.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service

Hotline: [phone]

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

A B C D E F G H I

Line drawing of a mechanical device with wheels and a sensor (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Diagram of a mechanical device showing assembly steps: pin, connector, and final assembly (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a vertical industrial machine with control panel and adjustment knobs (no text or symbols)

Line drawing of a vertical cylindrical device with attached electrical outlet (no text or symbols)

Technical line drawing of a vertical cylindrical device with attached components and a power outlet (no text or symbols)

Line drawing of a hand operating a sewing machine with a handle and button (no text or symbols)

Line drawing of a vertical cylindrical device with attached components and a power outlet (no text or symbols)

Line drawing of a hand operating a portable device with a button labeled (no text or symbols on the device itself)

Technical line drawing of a vacuum cleaner device with base mount and clamped unit (no text or symbols)

Line drawing of a vertical cylindrical device with attached components and a small electrical outlet (no text or symbols)

Line drawing of a mechanical device with two cylindrical components mounted on a base (no text or symbols)

Line drawing of a hand inserting a plug into a cylindrical device (no text or symbols)

Technical diagram showing a mechanical device with directional arrows and a separate view of its internal structure.

Diagram of a machine with crossed lines indicating no change or restriction, no text or symbols present

Diagram showing four different water sources and a timer, including a faucet, trash can, sun, and light bulb.

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand using a handheld device to press or install a component, with no visible text or symbols.

Diagram showing water sources, a sun, a brush, and a timer with '24' indicating time

Diagram of a kitchen mixer with a close-up view showing the tool interacting with the motor (no text or labels present)

Line drawing of a hand operating a mechanical device with a curved arrow labeled B and S (no text or symbols beyond labels)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with exploded view showing internal components (no text or symbols)

Diagram showing a mechanical device with labeled components and a starburst symbol containing the word 'click'

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Diagram of a robotic device with wheels and a magnified inset showing a tool interacting with it (no text or symbols present)

Technical line drawing of a mechanical device with gears and a housing (no text or symbols)

A B C D E F G H I

Line drawing of a mechanical device with wheels and a sensor (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Mini brosse turbo

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols)

Technical line drawing of a vertical industrial machine with control panel and adjustment knobs (no text or symbols)

Line drawing of a vertical cylindrical device with attached electrical outlet (no text or symbols)

Line drawing of a vertical cylindrical device with attached components and a power outlet (no text or symbols)

Fonctionnement

Line drawing of a hand operating a handheld device with a numbered label (1) pointing to the handle area.

Technical line drawing of a vertical cylindrical device with attached mounting base and control panel (no text or symbols)

Line drawing of a hand operating a handheld device with a circular icon labeled '①' (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with attached device and power outlet (no text or symbols)

Line drawing of a vertical cylindrical device with attached components and a power outlet (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand operating a cylindrical device with a handle, showing mechanical components and an arrow indicating motion (no text or symbols)

Technical diagram showing a mechanical device with directional arrows indicating assembly or transformation, alongside a schematic view of the component.

Diagram of a mechanical device with crossed-out lines and an upward arrow, no readable text or symbols present.

Illustration of four different water sources and a timer, no text or symbols present

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand using a handheld device to press down a component, with an upward arrow indicating motion (no text or symbols present)

Diagram showing water sources, a sun, and two cylindrical objects with a time scale icon

Line drawing of a kitchen mixer with a close-up view showing the handle and internal components (no text or symbols)

Line drawing of a hand operating a mechanical device with a tool, showing no text or symbols

Technical line drawing of a mechanical device with internal components and directional arrow (no text or symbols)

Retirez le rouleau brosse.

Technical line drawing of a mechanical device with exploded view showing internal components (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

Illustration of a hand operating a mechanical device with a magnified inset showing the tool interacting with it (no text or symbols present)

tinecoglobal

Contact us - We'll get back to you within 1 business day.
