Product Type	Bagless Steam Mop Vacuum
Brand	Tineco
Model	Floor One S5 Steam
Power Supply	120 V, 60 Hz, 12 A
Rated Power	1440 W
Clean Water Tank Capacity	0.75 L
Dirty Water Tank Capacity	0.75 L
Water Flow	30-60 ml/min
Compatible Floor Types	Hard floors: vinyl, tile, hardwood
Cleaning Modes	Auto (iLoop sensor), Steam
Special Features	Automatic brush roller cleaning, digital display, voice prompt
Included Accessories	Brush roller, spare dry filter, cleaning tool, storage tray
Safety	Grounding, auto shut-off in upright position, overheat protection
Recommended Maintenance	Clean dirty water tank, dry filter, and brush roller after each use
Warranty	2-year limited (parts and labor)

Frequently Asked Questions - Floor One S5 Steam TINECO

How to use the steam mode?

In Auto mode, press the Steam Mode button. The screen displays a counter that reaches 100, then the nozzle sprays steam. Ensure the clean water tank is full.

What to do if suction is weak?

Check that the dry filter is installed and clean. Clean it with water and let it dry completely. Also check that the brush roller is not blocked and the dirty water tank is not full.

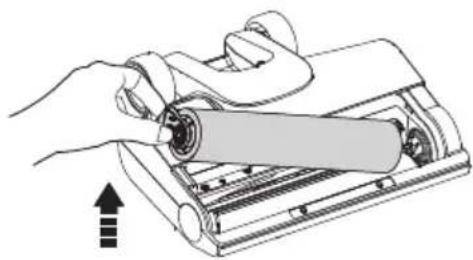

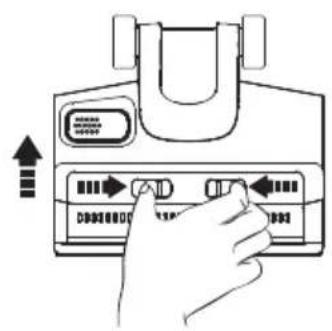

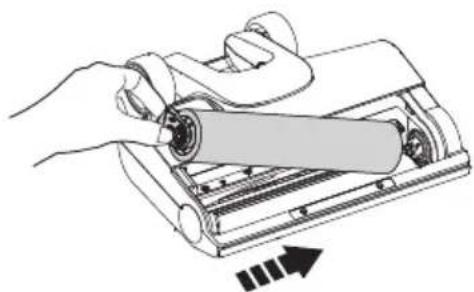

How to clean the brush roller?

Remove the brush roller cover, then take out the roller. Use the cleaning tool to remove hair and debris. Rinse the roller with water and let it dry completely before reinstalling.

What does the red light on the screen mean?

A steady or flashing red light indicates a dirt sensor malfunction or blockage. Clean the sensor in the dirty water tank with a damp cloth or the cleaning tool.

How to fill the clean water tank?

Press the clean water tank unlock button, remove it, open the cap, and fill with room temperature tap water up to the Max line. Reinsert the tank until it clicks.

When to use Auto mode?

Auto mode is the default mode. It uses the iLoop sensor to detect the level of dirt and automatically adjusts the water amount and suction power. It is ideal for daily cleaning.

How to perform self-cleaning?

Place the machine on the storage tray after use. When the voice prompt asks, press the self-cleaning button. Ensure the clean water tank has at least 40% water. Once finished, clean the dirty water tank.

What types of floors can I clean?

This machine is designed for hard indoor floors such as vinyl, tile, and hardwood. Do not use on carpet or thick rugs.

What to do if the dirty water tank is full?

The machine stops and a voice prompt sounds. Empty the dirty water tank by pulling the lid upward, rinse it with water, and reinsert it into the machine.

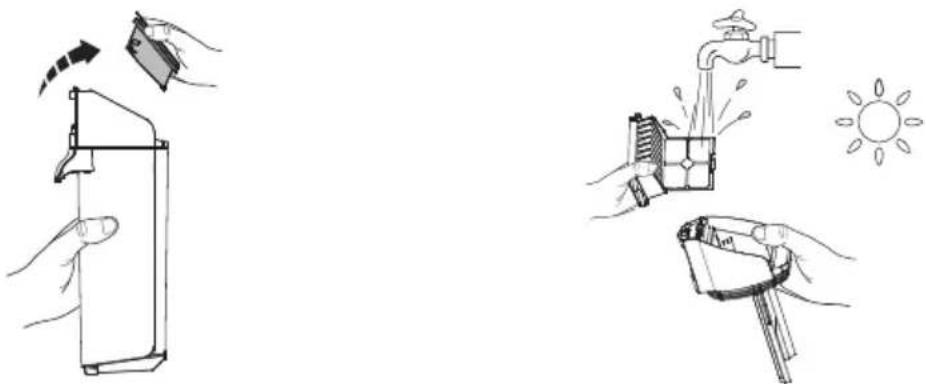

How to maintain the dry filter?

Remove the dry filter by grasping the recesses on each side and pulling upward. Rinse it under running water and let it dry completely before reinstalling. A spare filter is provided.

USER MANUAL Floor One S5 Steam TINECO

Smart Vacuum & Washer with Steam

Instruction Manual

Manual De Uso

Mode D'emploi

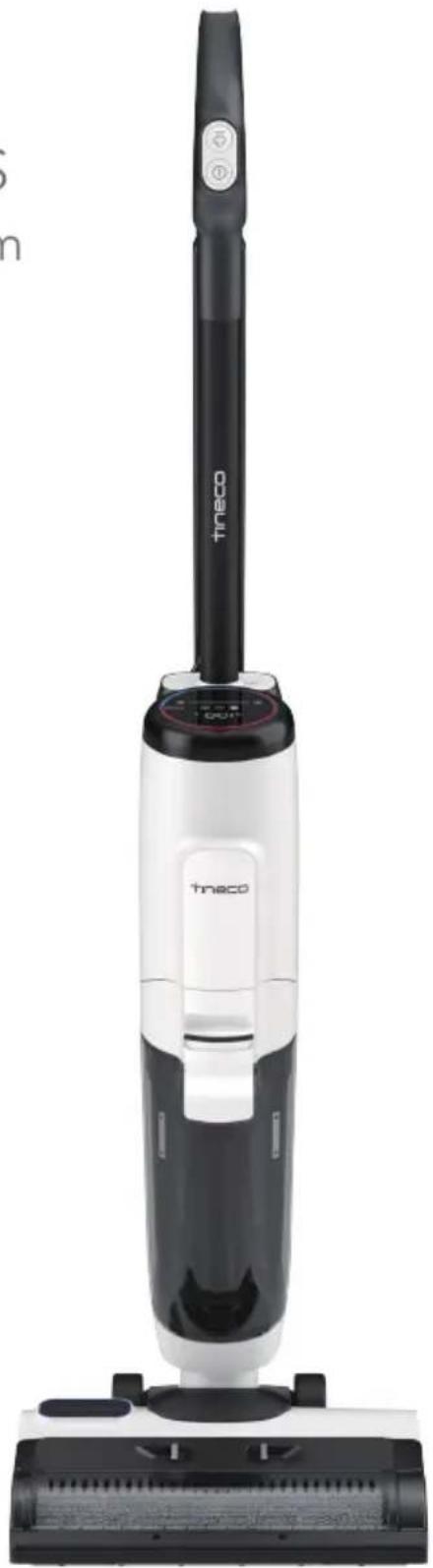

Exterior view of a Tineco vacuum cleaner (no signage or text visible on body)

*Actual product may differ from illustration.

CONTENTS

Important Safety Instructions....2

Specifications 5

Overview......6

Accessories....8

Assembly 9

Operation....10

Maintenance 14

Troubleshooting....18

Warranty 19

Z

Important Safety Instructions

SAVE THESE INSTRUCTIONS Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. CAUTION – Risk Of Injury. Brush May Start Unexpectedly. Unplug Before Cleaning or Servicing.
7. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
8. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
9. Do not handle plug or appliance with wet hands.
10. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
11. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
12. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
13. Use extra care when cleaning on stairs.

14. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

15. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

16. Do not use without filter.
17. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
18. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
19. TO REDUCE THE RISK OF ELECTRIC SHOCK – UNPLUG BEFORE CLEANING OR SERVICING.
20. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
21. Turn off all controls before unplugging.
22. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
23. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.
24. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.
25. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.
26. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaking electricity.
27. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
28. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.
29. Do not expose to rain.
30. Store appropriately indoors in a dry place after use.
31. Do not place or submerge appliance in standing water or try to clean flooded areas.
32. Do not immerse in water. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
33. A hazard may occur if the appliance runs over the supply cord.
34. CAUTION - To provide continued protection against risk of electric shock, connect to properly grounded outlets only. See Grounding Instructions.
35. Not for Space Heating Purposes.

Range of Usage

1. The appliance is to be used on indoor hard floors, such as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
2. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
3. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. Use extra care when cleaning on stairs.
3. Ensure that the Power Switch is in the OFF-position before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
4. To avoid being tripped accidentally, please put away the appliance on the storage tray.
5. Always install the Dirty Water Tank and Clean Water Tank properly before use.
6. Do not allow the appliance to get wet to avoid risk of fire or injury caused by a short circuit.

Grounding Instructions

1. This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

2. WARNING – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

3. This appliance is for use on a nominal 120-V circuit and has a grounding attachment plug that looks like the plug illustrated in sketch A in Figure 20. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used with this appliance.

Specifications

Product FLOOR ONE S5 STEAM SERIES
Model SW100400US, SW10******
Voltage 120V, 60Hz
Current 12A
Rated Power 1440W
Water Flow Rate 30~60ml/min
CWT Capacity ~0.75L
DWT Capacity ~0.75L

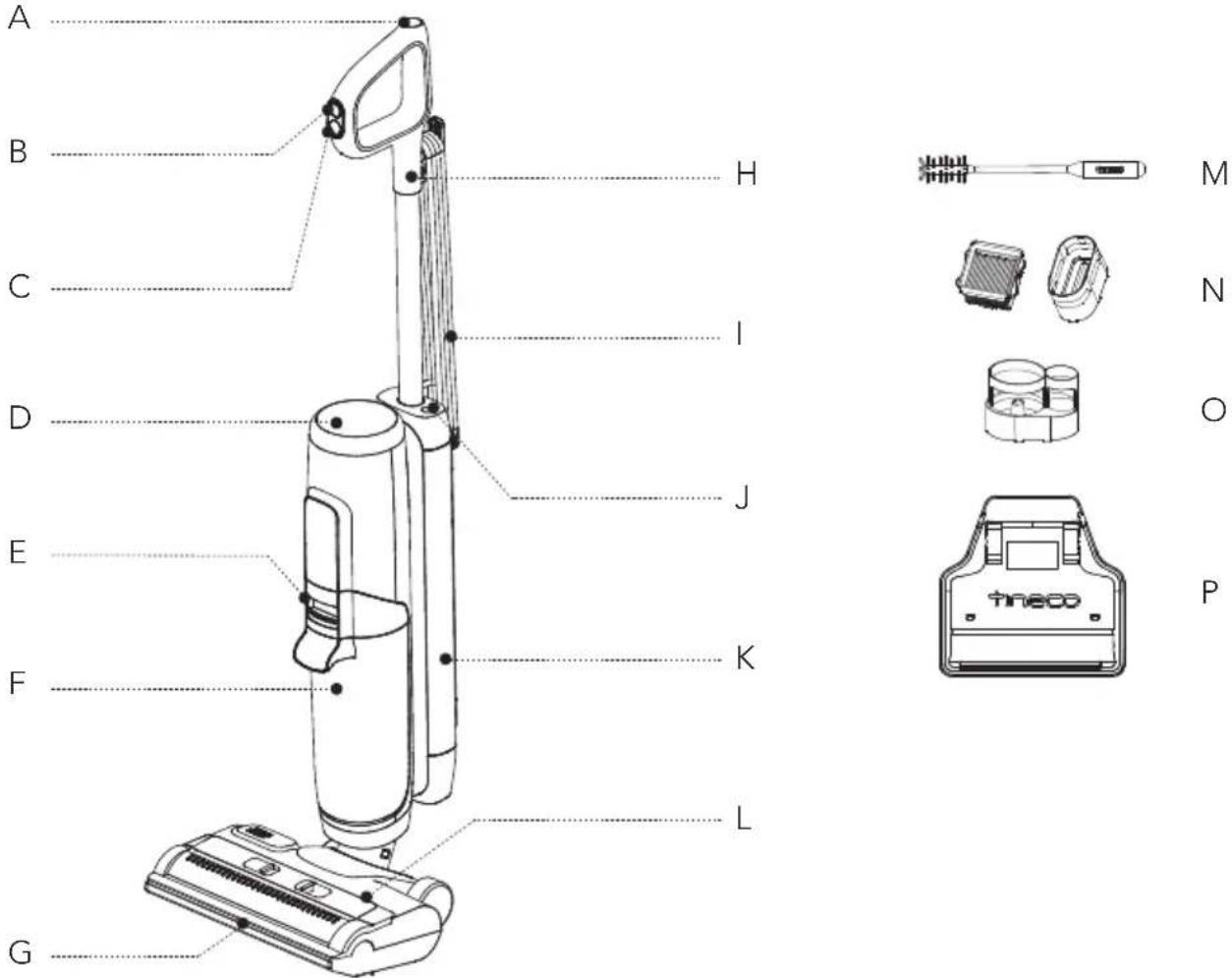

Overview

Z

A. Self-cleaning Button
B. Auto/Steaming Mode
C. Power On/Off
D. Digital Display
E. Dirty Water Tank Release
F. Dirty Water Tank (DWT)
G. Steam Nozzle
H. Handle

I. Power Cord
J. Mute Button
K. Clean Water Tank (CWT)
L. Brush Roller Cover
M. Cleaning Tool
N. Dry Filter & Holder
O. Accessory Holder
P. Storage Tray

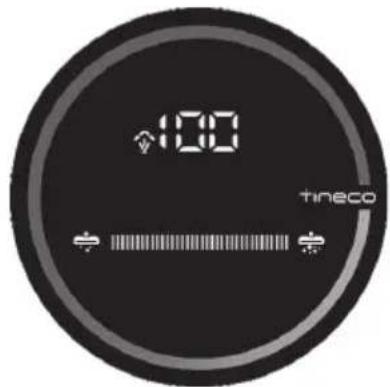

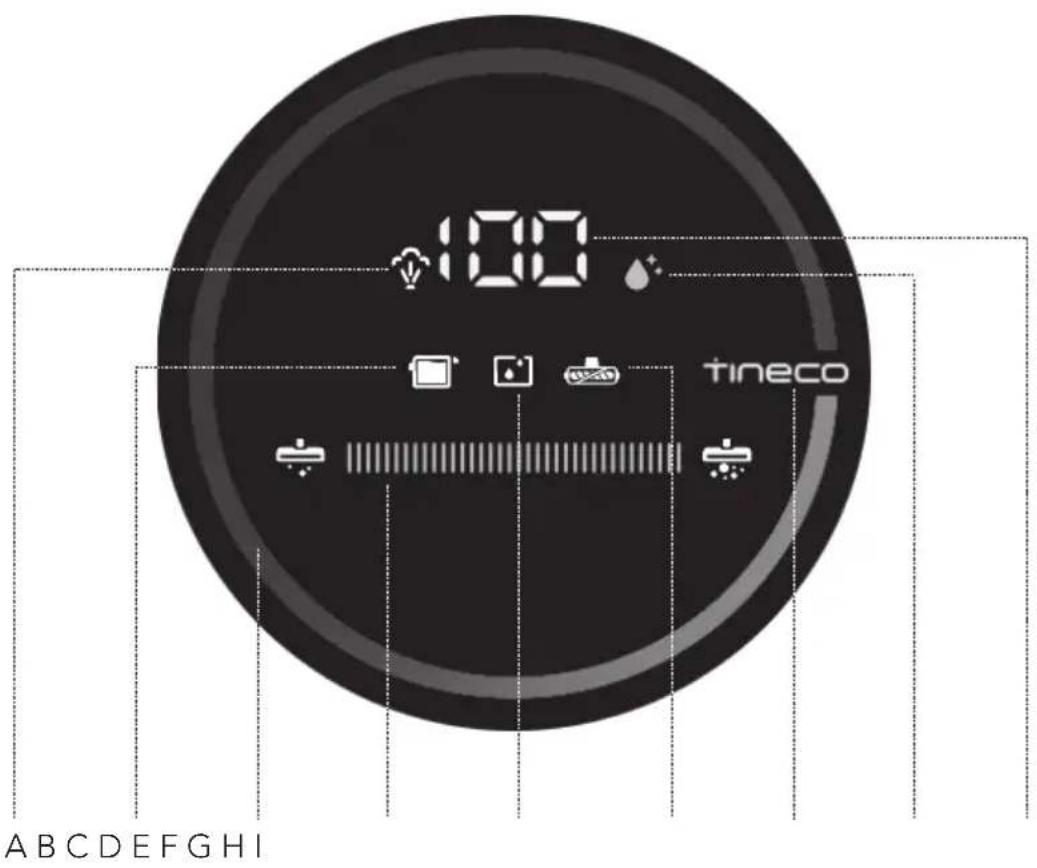

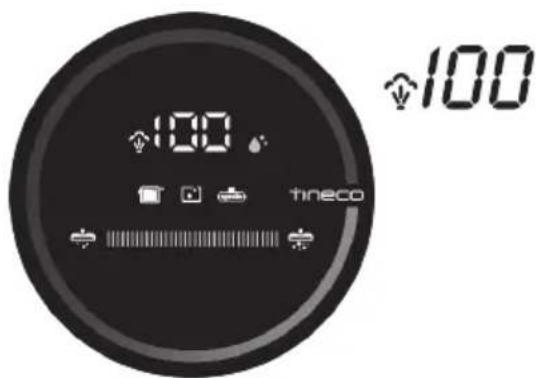

Digital Display

Z

A. Steaming Indicator
B. DWT Full or Blocked
C. Dirt Monitoring Loop
(Blue to red according to the dirt amount)
D. Power Indicator

E. CWT Empty
F. Brush Roller Tangled Indicator
G. Tineco Logo
H. Self-cleaning Icon
I. Steaming Progress

Accessories

Z

Note:

Accessories may vary between markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Brush Roller

Soft roller head with bristles can be used to vacuum and wash at the same time. It can be easily cleaned with the self-cleaning function.

Dry Filter

Dry filter and filter net can block large particles and debris, ensure the appliance's durability.

* Please install the dry filter before use, or it may lead to weak suction.

Cleaning Tool

A full brush to clean the DWT, brush chamber and opening. The tool also has a bristled end to remove dirt and mud on the roller and DWT.

Assembly

How to Assemble/Disassemble

Note:

For water tank and brush assembly, please refer to "Operation" and "Maintenance".

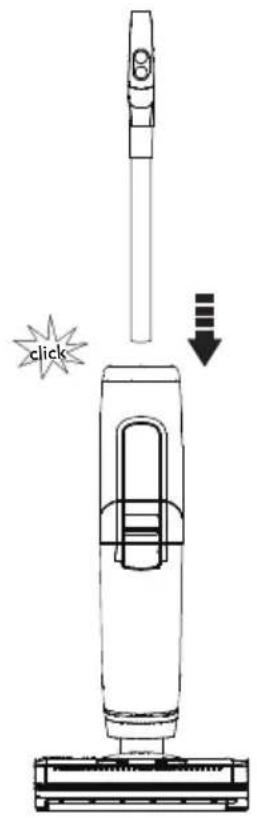

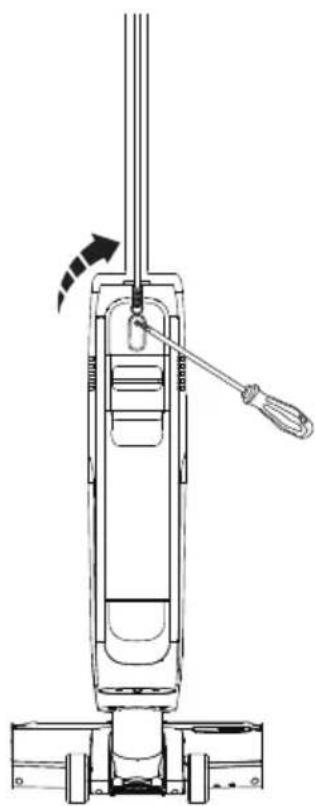

To assemble the handle, insert it into the appliance until you hear a click.

Line drawing of a vacuum cleaner with a lever and handle, showing internal components and motion direction (no text or symbols)

In the event that the handle need to be disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance.

Operation

Preparing for Use

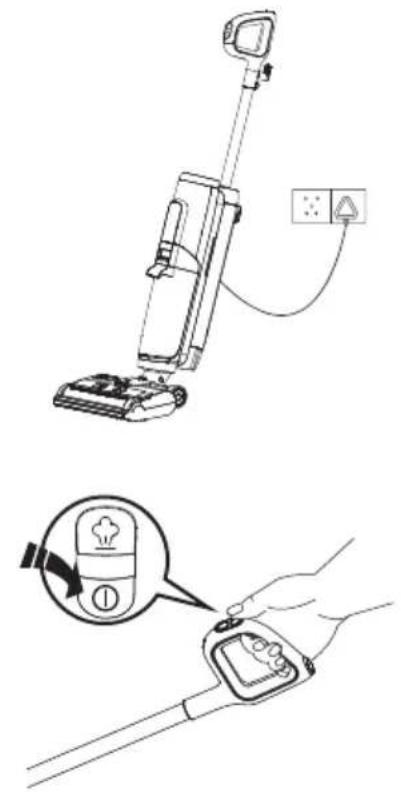

Press the Ⓐ button and the appliance will start in Auto mode by default. Press it again to turn off the appliance. Switch between Auto and Steaming mode by pressing the 🏠 button.

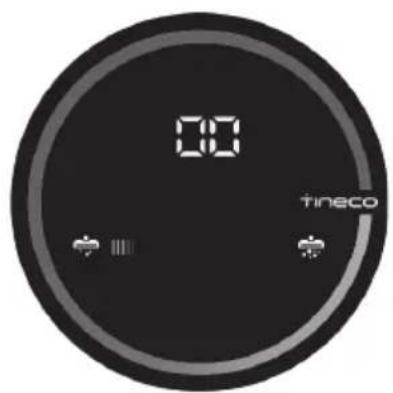

After switching to the Steaming mode, the number starts to read. After reaching 100, the nozzle starts to spray steam.

Plug into the AC power outlet.

Tips:

• Please avoid entanglement of the power cord in the process of releasing.
  • The appliance can only be used under 120 voltage.

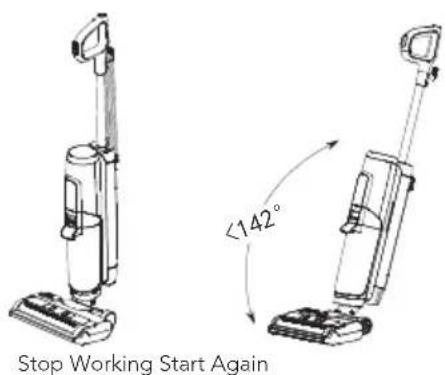

The appliance will stop working when put uprightly and start running again when you recline.

* Do not recline more than 142° to protect against water leakage.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

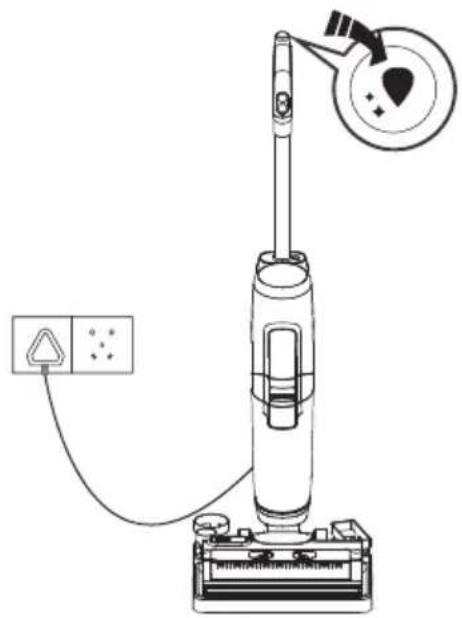

Place the appliance on the storage tray vertically after use for storage.

Note:

• Selecting the appropriate mode depending on the actual demand.
• Do not vacuum foamed liquid.
  • To vacuum water left on the surface, the appliance will switch off in 3 seconds after power off.
• To avoid the power cord from being caught in the brush roller.

Filling Clean Water Tank

Illustration of a hand operating a vertical tool with a curved arrow indicating motion (no text or symbols)

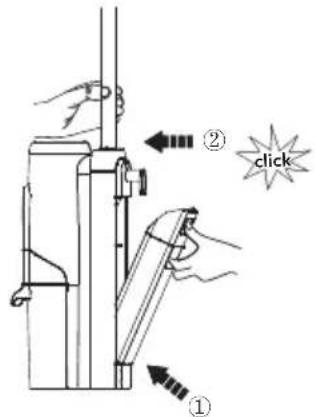

Press the Clean Water Tank release button to remove it from the appliance.

Place the tank back into the appliance. You should hear a "Click" if done correctly.

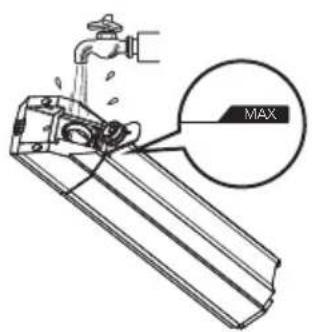

Open the tank cap, and fill with tap water to the Max line.

Note:

Only use water under 140°F/60°C. DO NOT USE HOT WATER.

Cleaning Mode Selection

Auto Mode

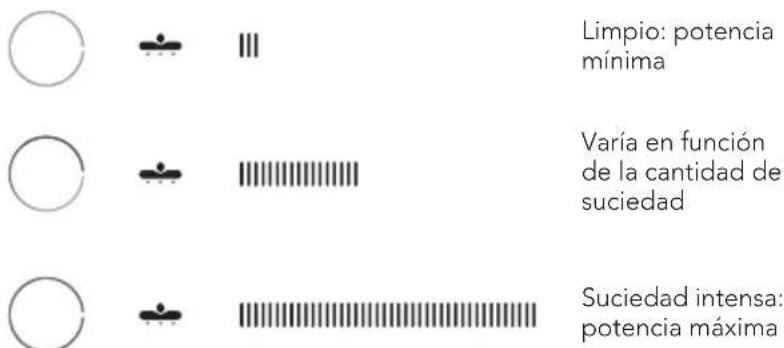

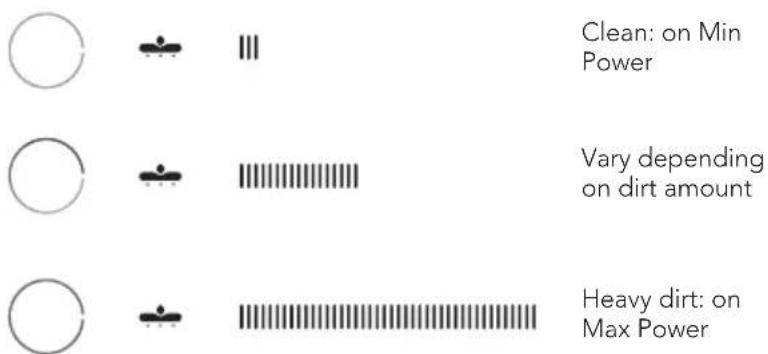

• In Auto mode, the iLoop™ sensor automatically detects how dirty the floor is and applies the appropriate amount of detergent and suction power.
• A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected. This mode automatically provides the best cleaning solution.

Steaming Mode

• In Auto mode, press 📁 button to enter Steaming mode. The steaming indicator on the display will turn on.
• In Steaming mode, the nozzle starts to spray steam when number reads to 100. It suits for deep cleaning.

Note:

Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

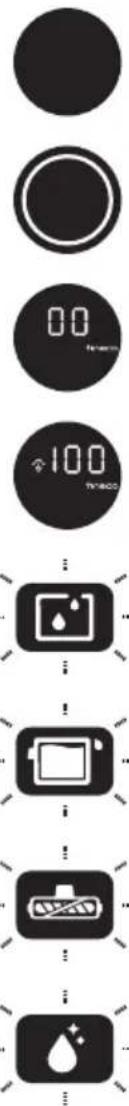

Indicator

When in Use

Off: no power detected.

Solid or blinking red light: dirt sensor malfunction or blocked.

Auto mode.

Steaming mode.

Indicator blinking: CWT is empty.

Indicator blinking: DWT is full or channel has a blockage.

Indicator blinking: brush roller has a blockage.

Indicator blinking: appliance is in need of self-cleaning.

Voice Prompt (Contents may vary, please in kind prevail.)

Status Reminder
Auto mode by default Auto mode
Switch to Steaming mode Steaming mode
During steam preparation Steam will be released soon, please wait
Clean Water Tank is empty Clean Water Tank empty, please refill water
Clean Water Tank is empty in Steaming mode	Auto mode, Clean Water Tank empty, please refill water
Need self cleaning Please begin self-cleaning cycle
Press self-cleaning while appliance not on storage tray	Please place appliance on storage tray for self cleaning
Dirty Water Tank is full Dirty Water Tank full, please empty
Brush roller is tangled Please clean the brush roller
Press power off button Shutting down
Press power off button in Steaming mode	Shutting down, the steaming will turn off, please wait
Power is off Power off
Begin self-cleaning cycle Start self-cleaning
Steam venting Steam venting
Cleaning brush roller Cleaning brush roller
Cleaning debris channel	Cleaning debris channel
Auto detecting	Auto detecting
Deep cleaning	Deep cleaning
Self-cleaning stopped	Self-cleaning cycle stopped, please clean Dirty Water Tank
Self-cleaning completed (sensor is dirty)	Self-cleaning cycle complete, please clean Dirty Water Tank and debris channel
Self-cleaning completed	Self-cleaning cycle complete, please clean Dirty Water Tank

Maintenance

Z

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
• After maintenance, place the appliance on the storage tray vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

To reduce the risk of injury, switch off before performing maintenance.

Line drawing of a hand holding a cylindrical object with a handle, next to a cylindrical container (no text or symbols)

Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

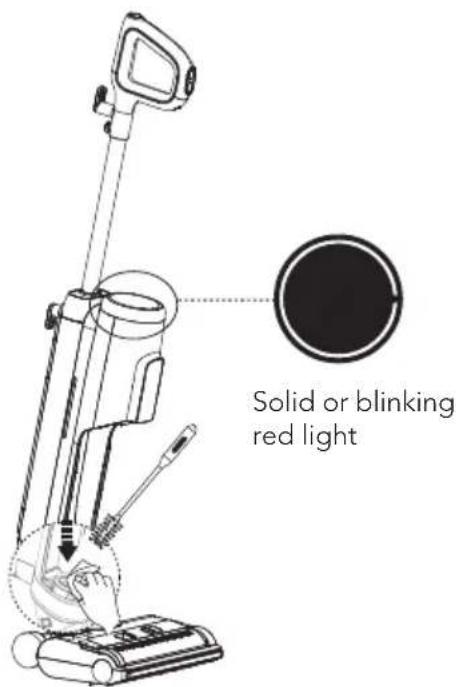

When LED loop illuminates red, remove Dirty Water Tank, clean the dirt sensor with a damp cloth or the cleaning tool.

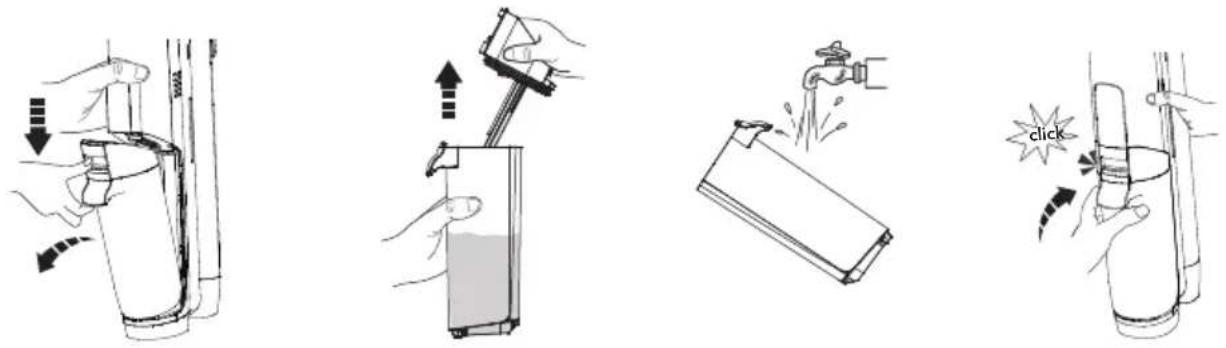

Dirty Water Tank

• When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt.
• Pull up the tank lid to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance.

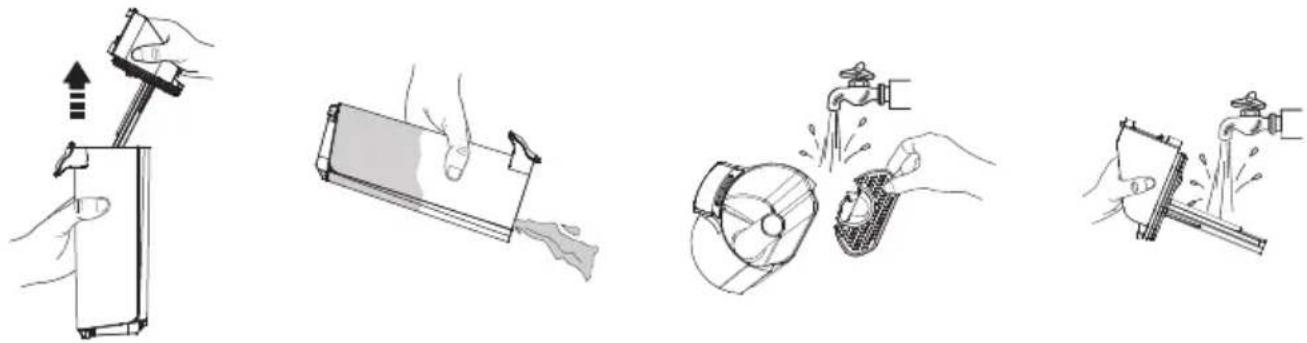

Dirty Water Tank Lid

Illustration of four different hand tools and devices, including a handheld device, a handheld device, a water dispenser, and a water dispenser (no text or symbols present)

If the Dirty Water Tank lid and the filter inside have been blocked, remove the tank lid and the filter, rinse both parts with water.

Dry Filter

Illustration showing three different cleaning or cleaning techniques: a hand holding a tool, a water tap with spray, and a brush tip (no text or symbols present)

Grasp recessed area on each side of the dry filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.

* A spare dry filter is provided with your appliance for convenient replacement.

Brush Roller Self-cleaning

Line drawing of a vacuum cleaner with attached circuit breaker and indicator lights (no text or symbols)

1. Place the appliance on the storage tray after use, the sensor will auto-detect the level of dirt.
2. When you hear the voice prompt "please begin self-cleaning cycle," press the self-cleaning button and begin the process.
3. Once complete, please clean up the DWT.

Note:

Before self-cleaning cycle, please plug in and ensure the water level in the CWT exceeds 40%.

Brush Roller Cover

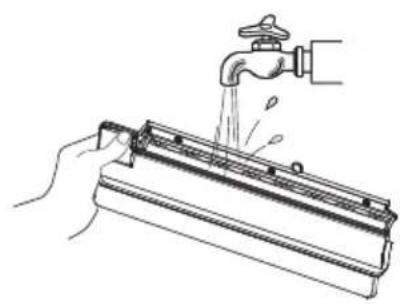

Squeeze latches on the cover and pull upward to remove.

Illustration of hands using a faucet to lift water from a plastic tray (no text or symbols)

Rinse with water.

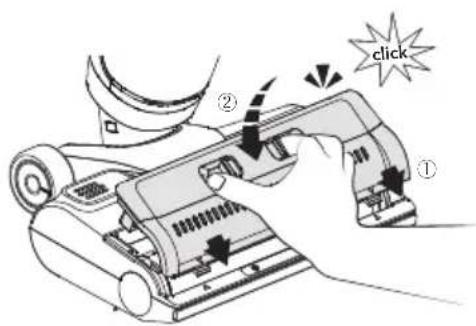

When replacing, always latch the brush cover into place to avoid leakage.

Brush Roller

Illustration of hands using a cylindrical device to press or install a component, with an upward arrow indicating motion (no text or symbols present)

Remove the brush roller by grabbing the brush roller tab and pulling out.

Illustration showing hands using cylindrical containers and a solar-powered device with a sun symbol (no text or labels)

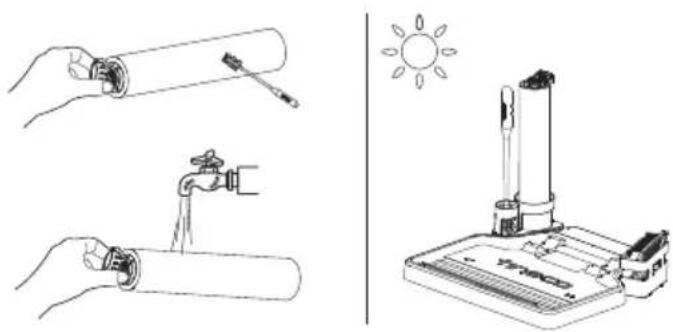

Using the cleaning tool, remove the hair and debris wrapped around the roller and rinse with water. Replace the brush roller back into the accessory holder, and allow it to dry completely before reinstalling.

Line drawing of a hand inserting a component into a device (no text or symbols)

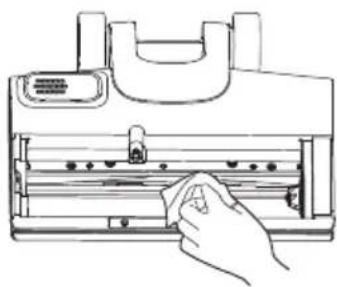

Remove hair and debris from the brush roller chamber and the opening with a tissue or a damp cloth.

Illustration of hands using a cylindrical device to press or install a mechanical component, with an arrow indicating motion (no text or symbols present)

Replace the brush roller by inserting the brush roller end into the right side of the holder, then attach the roller tab to the magnetic buckle on the left side to lock into place.

Note:

A spare brush roller is provided with your appliance for convenient replacement.

Troubleshooting

Problem Possible cause Solution
The appliance does not turn on	The power cord is not plugged in, or the socket is not energized	Ensure that the socket is energized and the power cord is plugged in
Weak suction	The dry filter is not installed, or the dry filter is dirty	Install the dry filter or clean and allow it to dry completely
	The brush roller is not installed	Install brush roller correctly
Brush roller tangled indicator blinkingVoice prompt: Please clean the brush roller	The brush roller is blocked Remove blockages
CWT empty indicator blinkingVoice prompt: Clean Water Tank empty, please refill water and cleaning solution	CWT is empty Refill CWT
DWT full indicator blinkingVoice prompt: Please clean Dirty Water Tank	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
LED loop illuminates redVoice prompt: Please begin self-cleaning cycle	Dirt sensor malfunction or blocked	Remove blockages, clean the debris channel, or restart
Self-cleaning icon blinking	Brush roller is dirty Start self-cleaning

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website

www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

- Use of parts not in accordance with the Tineco Instruction Manual.

- Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

- Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

- Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
  Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

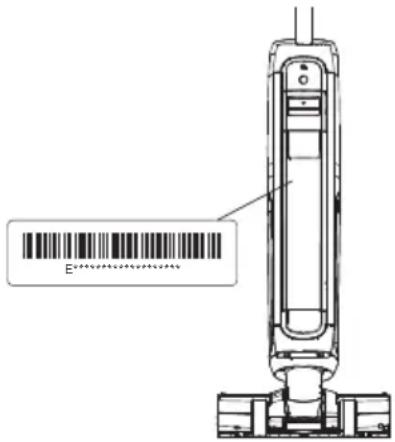

Register: We highly recommend that upon purchase, you register your appliance on the Tineco official website (www.tineco.com) and enjoy exclusive benefits. To register, please enter the whole serial number (remove the Clean Water Tank and find it on the back of the appliance). Failure to register your product won't diminish your warranty rights.

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or its authorized agency.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service

Hotline: [phone]

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

Line drawing of a vacuum cleaner with a lever and scroll (no text or symbols)

Technical line drawing of a vacuum cleaner with a 142-degree angle annotation (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with a mounted brush and base (no text or symbols)

Illustration of a hand operating a vertical tool with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand holding a cylindrical object with a lid, no text or symbols present

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Illustration of two hands cleaning a water tap and a bucket with a sun symbol (no text or labels)

Line drawing of a vacuum cleaner with attached circuit breaker and indicator lights (no text or symbols)

Illustration of a hand pouring liquid into a water-filled container with a faucet (no text or symbols)

Illustration of hands using a cylindrical device to press or install a component, with an upward arrow indicating motion (no text or symbols present)

Illustration showing hands using a tool to lift a pipe, tap, and battery under a sun (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Illustration of hands using a cylindrical device to press or install a mechanical component, with an arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with a screwdriver and directional arrow (no text or symbols)

Technical line drawing of a vacuum cleaner with a 142-degree angle标注 (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with attached base and chimney (no text or symbols)

Line drawing of a hand operating a vertical tool with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand holding a small object over a cylindrical container (no text or symbols)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Illustration of two hands cleaning a water tap and a bucket with a sun symbol (no text or labels)

Illustration of a hand pouring liquid into a water tank with a faucet (no text or symbols)

Rincez à l'eau.

Illustration of hands using a cylindrical device to press or install a mechanical component (no text or symbols visible)

Illustration showing hands holding cylindrical containers and a water tap, alongside a sunlight device with a tripod stand (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Illustration of hands using a tool to press or install a cylindrical component, with an arrow indicating motion (no text or symbols present)
