USER MANUAL W71P Yealink

Rechargeable Battery

Charging Cradle

Quick Start Guide

Note: Yealink W71P DECT IP phone consists of one W70B base station and one W71H handset.

Assembling the DECT Phone

1. Connect the base station power and the network using method a or method b.

a. AC Power Option

Internet Power

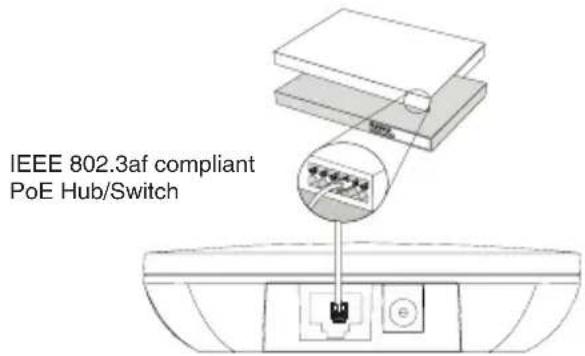

b. PoE (Power over Ethernet) Option

IEEE 802.3af compliant PoE Hub/Switch

Note:

• If you choose method a, use Yealink supplied power adapter (5V/0.6A). A third-party power adapter may damage the base station.
• If you choose method b, you do not need to connect the power adapter. Make sure the hub/switch is PoE-compliant.

2a. (Desktop Installation) Attach and remove the base stand.

Attach the Base Stand Remove the Base Stand

Diagram showing two views of a device with wires and connectors, one before and after transformation (no text or symbols)

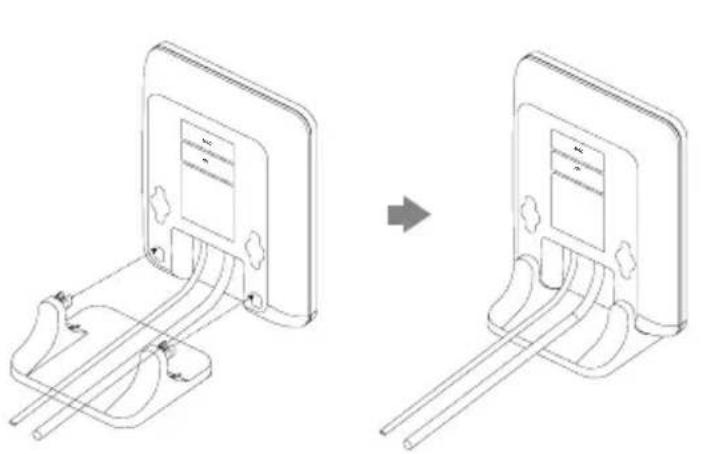

Align the snap-fits with the corresponding holes and push forward, snapping them into the holes.

Technical line drawing of a mechanical assembly with two curved components and directional arrows indicating movement (no text or symbols)

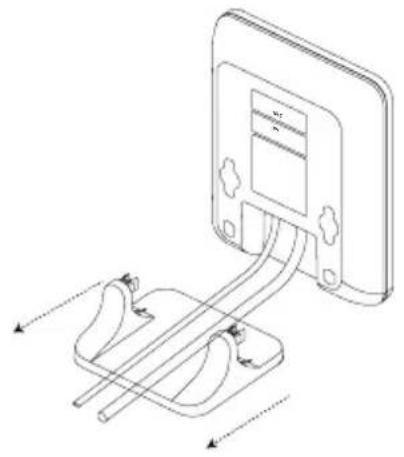

Remove the snap-fits from the holes horizontally.

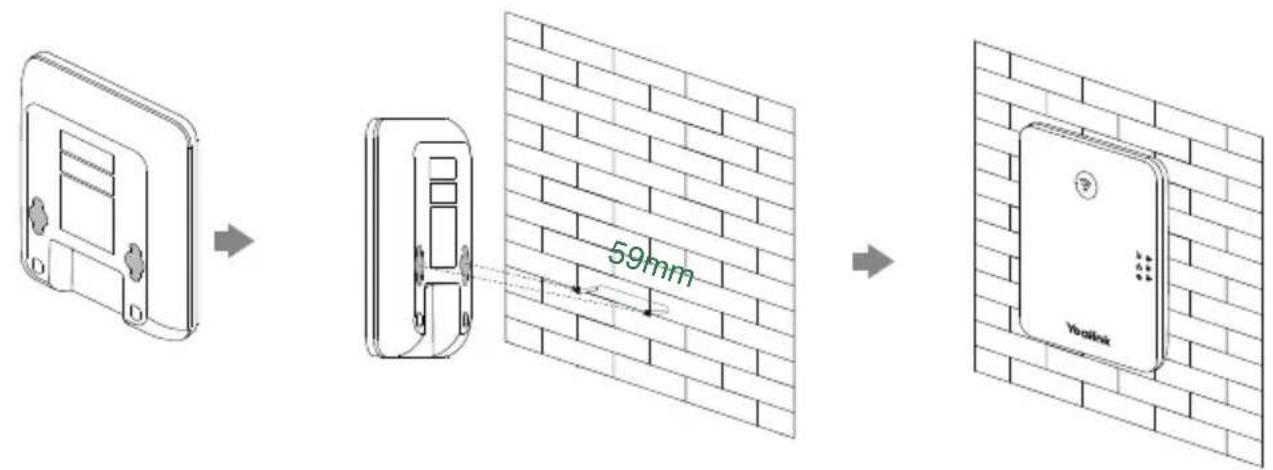

2b. (Wall-Mount Installation) Attach the base station.

59mm Yorlek

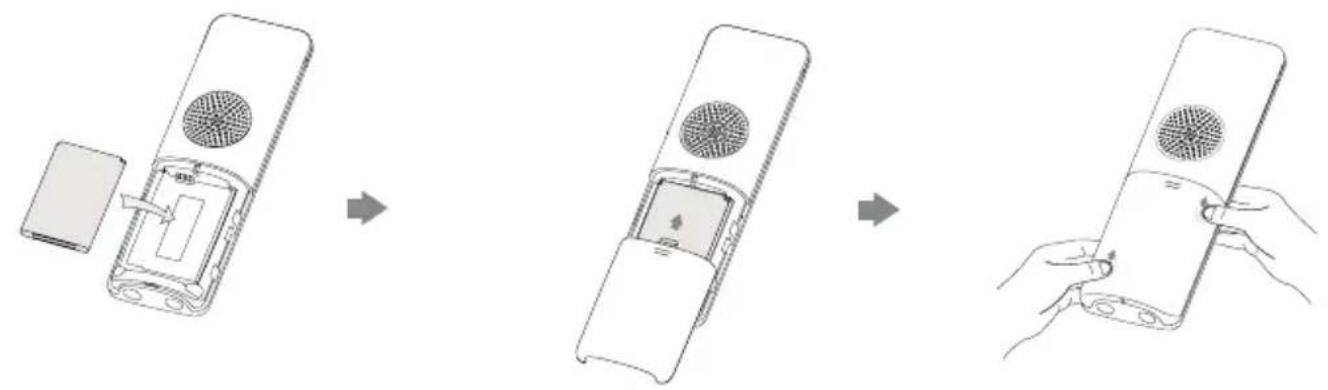

1. Insert the battery into the handset.

Diagram showing three-step device shipment process: open, closed, and closed again with fan and speaker labels

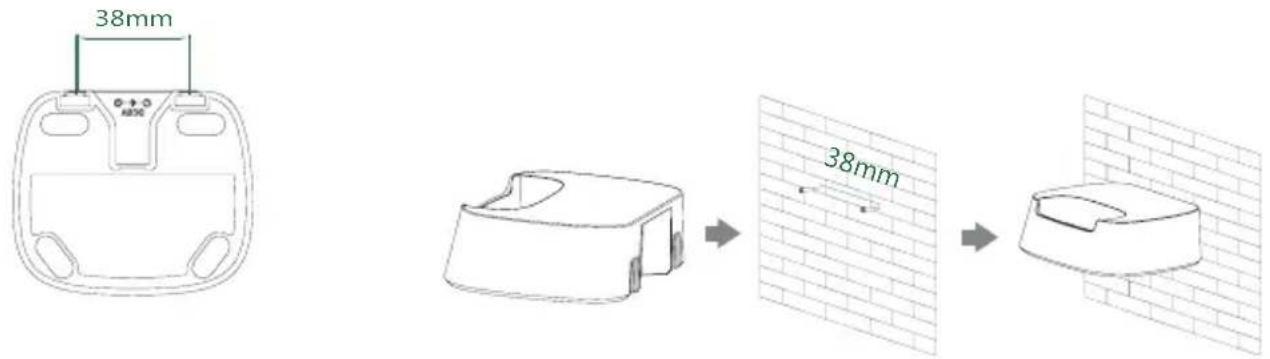

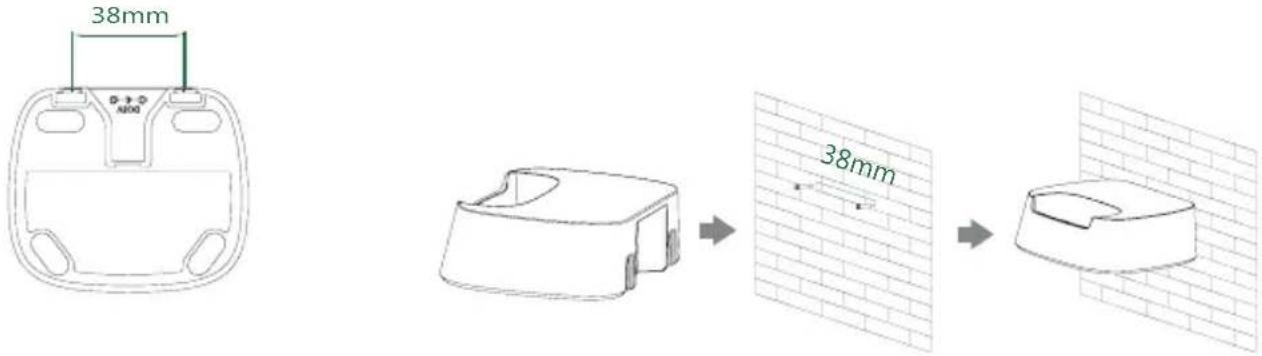

4. (Optional) Mount the charging cradle to the wall.

38mm D+O A000 38mm

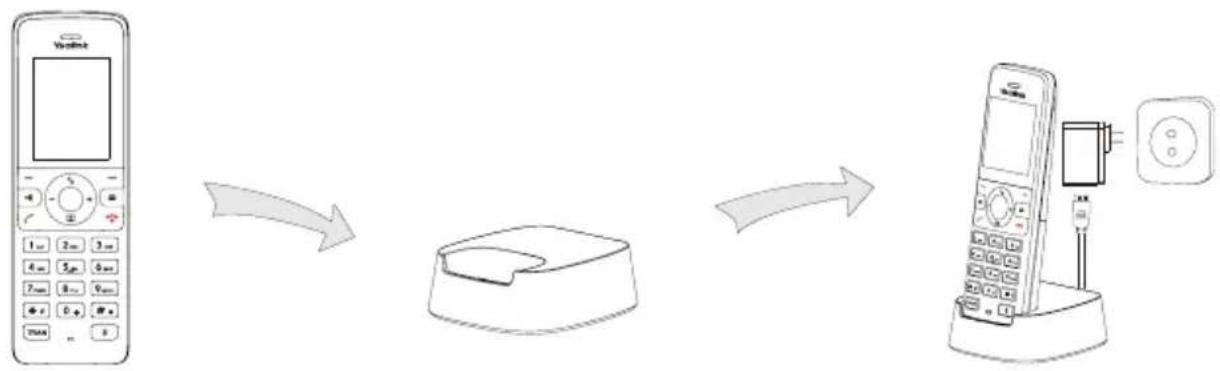

5. Connect the charging cradle and charge the handset.

Note:

• Use Yealink-supplied power adapter (5V/0.6A). A third-party power adapter may damage the handset.
• Check the charging status on the top-right corner of the LCD screen.

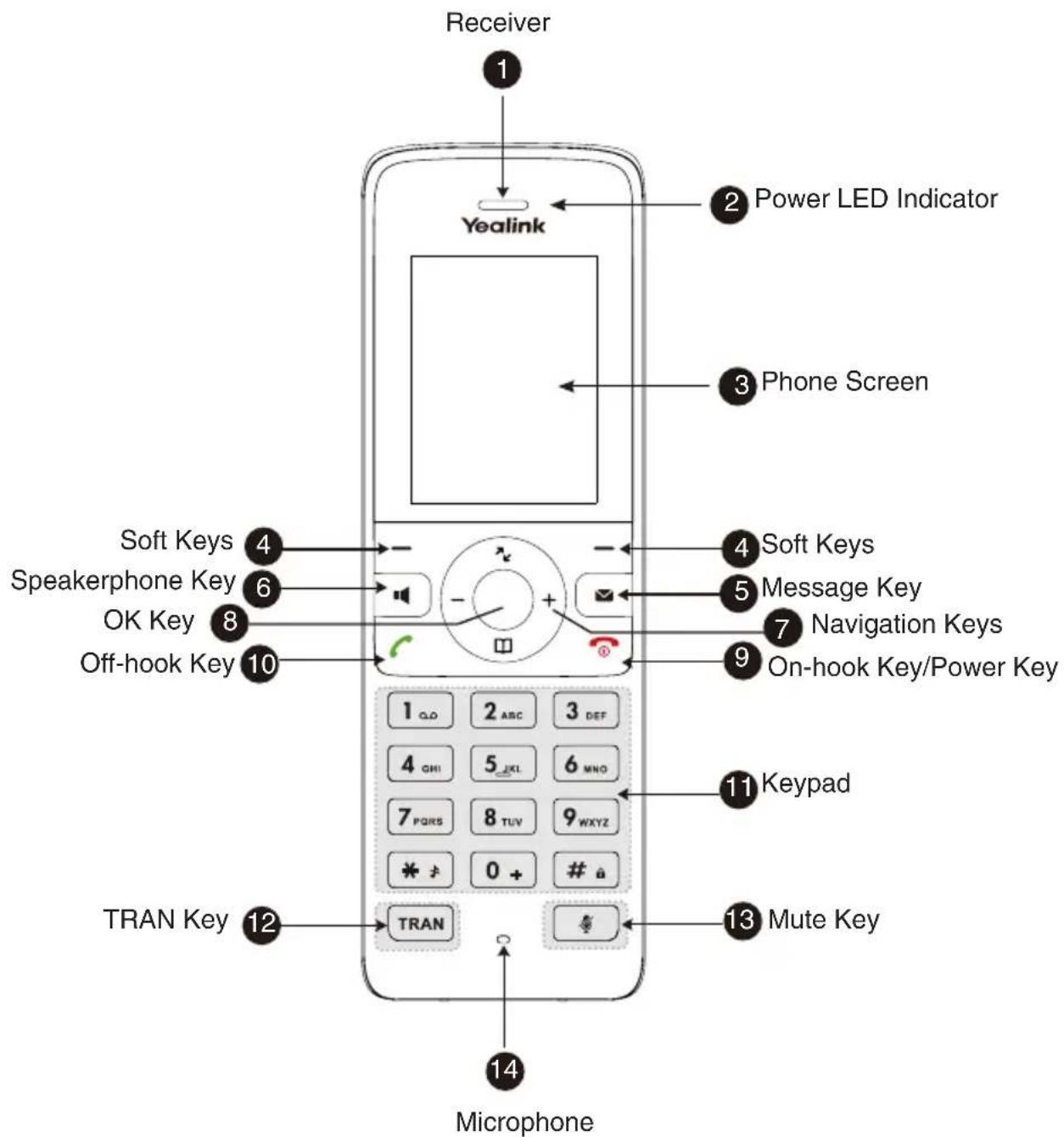

Hardware Component Instructions

Receiver 1 Yealink 2 Power LED Indicator 3 Phone Screen 4 Soft Keys 5 Message Key 6 Navigation Keys 7 On-hook Key/Power Key 8 OK Key 9 Soft Keys Speakerphone Key Off-hook Key 10 11 Keypad TRAN Key 12 TRAN 13 Mute Key Microphone

Regulatory Notices

Operating Ambient Temperatures

- Operating temperature: +14 to 122°F (-10 to 50°C)

• Relative humidity: 5% to 90%, noncondensing

• Storage temperature: -22 to +158°F (-30 to +70°C)

Warranty

Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yearlink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.

Explanation of the symbols

- DC symbol

is the DC voltage symbol.

• WEEE Warning symbol

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Restriction of Hazardous Substances Directive (RoHS)

This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting [e-mail].

Safety Instructions

Save these instructions. Read these safety instructions before use!

General Requirements

- Before you install and use the device, read the safety instructions carefully and observe the situation during operation.

- During the process of storage, transportation, and operation, please always keep the device dry and clean, avoid collision and crash.

- Please attempt not to dismantle the device by yourself. In case of any discrepancy, please contact the appointed maintenance center for repair.

- Please refer to the relevant laws and statutes while using the device. Legal rights of others should be respected as well.

Environmental Requirements

- Place the device at a well-ventilated place. Do not expose the device under direct sunlight.

- Keep the device dry and free of dusts.

- Do not place the device on or near any inflammable or fire-vulnerable object, such as rubber-made materials.

- Keep the device away from any heat source or bare fire, such as a candle or an electric heater.

Operating Requirements

- Do not let a child operate the device without guidance.

- Do not let a child play with the device or any accessory in case of accidental swallowing.

- Please use the accessories provided or authorized by the manufacturer only.

- The power supply of the device shall meet the requirements of the input voltage of the device. Please use the provided surge protection power socket only.

- Before plugging or unplugging any cable, make sure that your hands are completely dry.

- Do not spill liquid of any kind on the product or use the equipment near water, for example, near a bathtub, washbowl, kitchen sink, wet basement or near a swimming pool.

- During a thunderstorm, stop using the device and disconnect it from the power supply. Unplug the power plug and the Asymmetric Digital Subscriber Line (ADSL) twisted pair (the radio frequency cable) to avoid lightning strike.

- If the device is left unused for a rather long time, disconnect it from the power supply and unplug the power plug.

- When there is smoke emitted from the device, or some abnormal noise or smell, disconnect the device from the power supply, and unplug the power plug immediately.

- Contact the specified maintenance center for repair.

- Do not insert any object into equipment slots that is not part of the product or auxiliary product.

- Before connecting a cable, connect the grounding cable of the device first. Do not disconnect the grounding cable until you disconnect all other cables.

Battery Requirements

• Do not immerse the battery into water, which could short-circuit and damage the battery.
• Do not expose the battery to an open flame or leave the battery where it could be subjected to extremely high temperatures, which could cause the battery to explode.
• Do power the handset off before removing the battery.
• Do not try to use the battery for the power supply of any device other than this handset.
• Do not open or mutilate the battery, released electrolyte is corrosive and may cause damage to your eyes or skin.
• Use only the rechargeable battery pack delivered with the handset or those rechargeable battery packs expressly recommended by Yealink.
• Defective or exhausted battery should never be disposed of as municipal waste. Return old battery to the battery supplier, a licensed battery dealer or a designated collection facility.

Cleaning Requirements

■ Before cleaning the device, disconnect it from the power supply.

- Use a piece of soft, dry and anti-static cloth to clean the device.

- Keep the power plug clean and dry.

Troubleshooting

The unit cannot supply power to Yealink device.

There is a bad connection with the plug.

1. Clean the plug with a dry cloth.

2. Connect it to another wall outlet.

The usage environment is out of operating temperature range.

1. Use in the operating temperature range.

The cable between the unit and the Yealink device is connected incorrectly.

1. Connect the cable correctly.

You cannot connect the cable properly.

1. You may have connected a wrong Yealink device.

2. Use the correct power supply.

Some dust, etc., may be in the port.

1. Clean the port.

Contact your dealer or authorized service facility for any further questions.

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

IC Statement

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

(1) this device may not cause interference; and

(2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-3(B)

Radiation Exposure Statement

This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

309, 3rd Floor, No.16, Yun Ding North Road, Hull District, Xiamen City, Fujian, P.R.C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127. Atrium Building, 8th floor, 1077ZX Amsterdam. The Netherlands

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Made in China

Need more help?

QR code image containing encoded data, no visible human-readable text

Yealink Documentation& Video

About Yealink

Yealink (Stock Code: 300628) is a global-leading provider of Unified Communication & Collaboration Solutions specialized in video conferencing, voice communications, and collaboration, dedicated to helping every person and organization embrace the power of "Easy Collaboration, High Productivity".

With best-in-class quality, innovative technology, and user-friendly experiences, Yealink is one of the best providers in more than 140 countries and regions, ranks No.1 in the global market share of IP Phone, and is the Top 5 leader in the video conferencing market (Frost & Sullivan, 2021).

For more information about Yealink, click here.

Copyright

Copyright © 2023 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO., LTD.

All rights reserved. No parts of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, photocopying, recording, or otherwise, for any purpose, without the express written permission of Yealink(Xiamen) Network Technology CO., LTD.

Technical Support

Visit Yealink WIKI (http://support.yealink.com/) for firmware downloads, product documents, FAQ, and more. For better service, we sincerely recommend you to use Yealink Ticketing system (https://ticket.yealink.com) to submit all your technical issues.

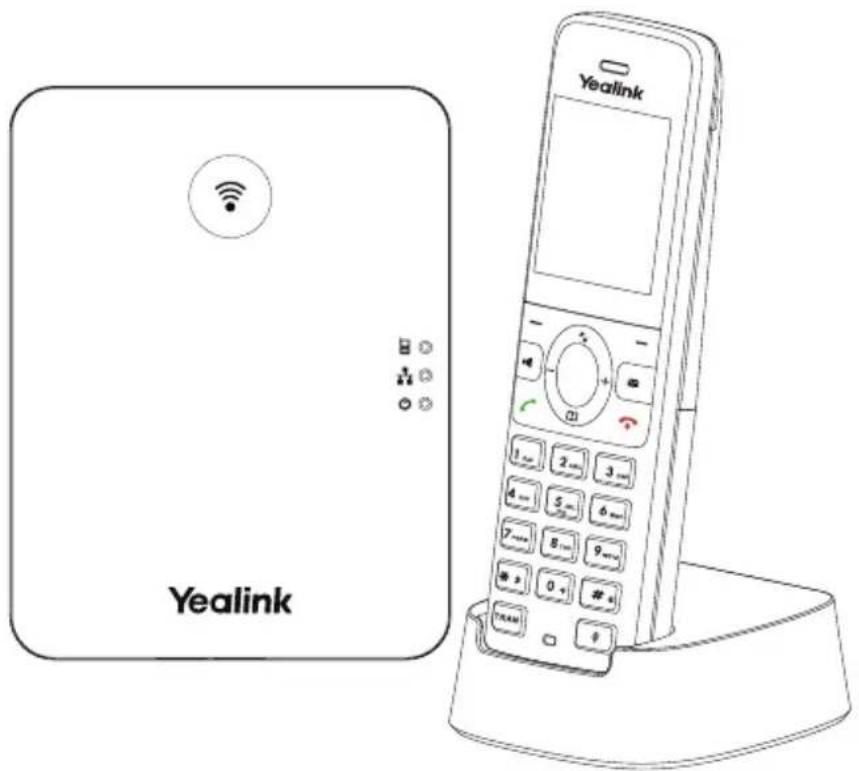

DECT IP Phone W71P

Yealink Yealink

Quick Start Guide (V1.0)

Table of Contents

English 1

Deutsch 6

Español 11

Français 16

W71P Package Contents

W71H Handset

W70B Base Station

2 Power Adapters

Base Stand

Ethernet Cable

Battery Cover

Rechargeable Battery

Charging Cradle

Quick Start Guide

Note: Yealink W71P DECT IP phone consists of one W70B base station and one W71H handset.

Assembling the DECT Phone

1. Connect the base station power and the network using method a or method b.

a. AC Power Option

Internet

b. PoE (Power over Ethernet) Option

IEEE 802.3af compliant PoE Hub/Switch

Note:

• If you choose method a, use Yealink supplied power adapter (5V/0.6A). A third-party power adapter may damage the base station.
• If you choose method b, you do not need to connect the power adapter. Make sure the hub/switch is PoE-compliant.

2a. (Desktop Installation) Attach and remove the base stand.

Attach the Base Stand Remove the Base Stand

Diagram showing a device being processed from a left-side and right-side views, with no visible text or symbols.

Align the snap-fits with the corresponding holes and push forward, snapping them into the holes.

Technical line drawing of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

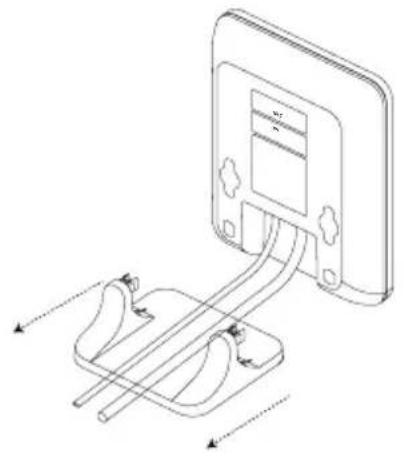

Remove the snap-fits from the holes horizontally.

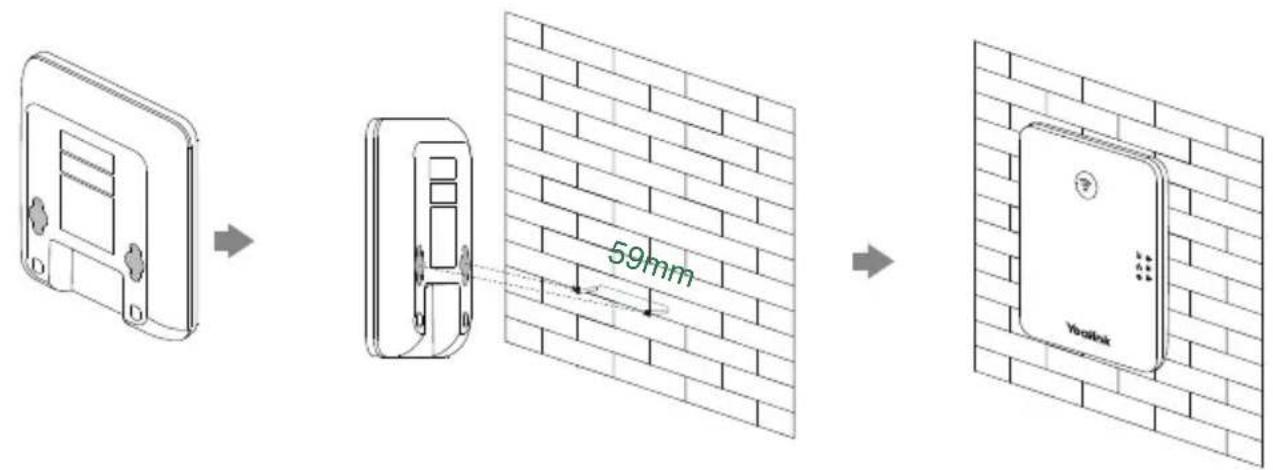

2b. (Wall-Mount Installation) Attach the base station.

59mm Yorok

1. Insert the battery into the handset.

Three-step diagram showing a device being opened, with no visible text or symbols.

4. (Optional) Mount the charging cradle to the wall.

38mm 38mm

5. Connect the charging cradle and charge the handset.

Note:

• Use Yealink-supplied power adapter (5V/0.6A). A third-party power adapter may damage the handset.
• Check the charging status on the top-right corner of the LCD screen.

Hardware Component Instructions

Receiver 1 Yealink 2 Power LED Indicator 3 Phone Screen 4 Soft Keys 5 Message Key 6 Navigation Keys 7 On-hook Key/Power Key 8 OK Key 9 Soft Keys Speakerphone Key Off-hook Key 10 11 Keypad TRAN Key 12 TRAN 13 Mute Key Microphone

Regulatory Notices

Operating Ambient Temperatures

• Operating temperature: +14 to 122^ (-10 to 50^ )
  • Relative humidity: 5% to 90%, noncondensing
  • Storage temperature: -22 to +160°F (-30 to +70°C)

Warranty

Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.

DC symbol

is the DC voltage symbol.

Restriction of Hazardous Substances Directive (RoHS)

This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting [e-mail].

Safety Instructions

Save these instructions. Read these safety instructions before use! The following basic safety precautions should always be followed to reduce risk of fire, electrical shock, and other personal injury.

General Requirements

• Before you install and use the device, read the safety instructions carefully and observe the situation during operation.
• During the process of storage, transportation, and operation, please always keep the device dry and clean.
• During the process of storage, transportation, and operation, please avoid collision and crash of the device.
• Please attempt not to dismantle the device by yourself. In case of any discrepancy, please contact the appointed maintenance center for repair.
• Without prior written consent, no organization or individual is permitted to make any change to the structure or the safety design of the device. Yealink is under no circumstance liable to consequences or legal issues caused by such changes.
• Please refer to the relevant laws and statutes while using the device. Legal rights of others should be respected as well.

Environmental Requirements

• Place the device at a well-ventilated place. Do not expose the device under direct sunlight.
• Keep the device dry and free of dusts.
• Place the device on a stable and level platform.
• Please place no heavy objects on the device in case of damage and deformation caused by the heavy load.
• Keep at least 10 cm between the device and the closest object for heat dissipation.
• Do not place the device on or near any inflammable or fire-vulnerable object, such as rubber-made materials.
• Keep the device away from any heat source or bare fire, such as a candle or an electric heater.
• Keep the device away from any household appliance with strong magnetic field or electromagnetic field, such as a microwave oven or a refrigerator.

Operating Requirements

• Do not let a child operate the device without guidance.
• Do not let a child play with the device or any accessory in case of accidental swallowing.
• Please use the accessories provided or authorized by the manufacturer only.
• The power supply of the device shall meet the requirements of the input voltage of the device. Please usethe provided surge protection power socket only.
• Before plugging or unplugging any cable, make sure that your hands are completely dry.

• Do not spill liquid of any kind on the product or use the equipment near water, for example, near a bathtub, washbowl, kitchen sink, wet basement or near a swimming pool.

• Do not tread on, pull, or over-bend any cable in case of malfunction of the device.

• During a thunderstorm, stop using the device and disconnect it from the power supply. Unplug the power plug and the Asymmetric Digital Subscriber Line (ADSL) twisted pair (the radio frequency cable) to avoid lightning strike.
• If the device is left unused for a rather long time, disconnect it from the power supply and unplug the power plug.
• When there is smoke emitted from the device, or some abnormal noise or smell, disconnect the device from the power supply, and unplug the power plug immediately. Contact the specified maintenance center for repair.
• Do not insert any object into equipment slots that is not part of the product or auxiliary product.
• Before connecting a cable, connect the grounding cable of the device first. Do not disconnect the grounding cable until you disconnect all other cables.

Cleaning Requirements

• Before cleaning the device, stop using it and disconnect it from the power supply.
• Use a piece of soft, dry and anti-static cloth to clean the device.
• Keep the power plug clean and dry. Using a dirty or wet power plug may lead to electric shock or other perils.

ENVIRONMENTAL RECYCLING

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Never dispose of the device with domestic waste

Ask your Town Council about how to dispose of it in an environmentally friendly way. The cardboard box, plastic packaging and player components may be recycled in accordance with prevailing recycling regulations in your country.

Always adhere to prevailing regulations

Those who fail to do so may be fined or prosecuted in accordance with the law. The crossed out garbage can that appears on the device means that when it has reached the end of its useful life, it should be taken to a special waste disposal centre and treated separately to general urban waste.

Troubleshooting

The unit cannot supply power to Yealink device.

There is a bad connection with the plug.

1. Clean the plug with a dry cloth.

2. Connect it to another wall outlet.

The usage environment is out of operating temperature range.

1. Use in the operating temperature range.

The cable between the unit and the Yealink device is connected incorrectly.

1. Connect the cable correctly.

You cannot connect the cable properly.

1. You may have connected a wrong Yealink device.

2. Use the correct power supply.

Some dust, etc., may be in the port.

1. Clean the port.

Contact your dealer or authorized service facility for any further questions.

Contact Information

YEALINK NETWORK TECHNOLOGY CO.,LTD.

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA Made in China

Diagram showing a device being processed from a left-side and right-side views, with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

59mm YooLink

Diagram showing three-step device shipment process: open, closed, and closed again with fan and speaker labels

Hinweis:

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

309, 3rd Floor, No. 16, Yun Ding North Road, Huli District, Xiamen City, Fujian, VR China

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Niederlande YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Diagram showing a device being processed from a left-side and right-side views, with no visible text or symbols.

Technical line drawing of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Three-step diagram showing a device being open, with the next step showing a hand holding a fan (no text or symbols present)

38mm 38mm

Nota:

⚠️ RECICLAJE AMBIENTAL

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Made in China

Batterie rechargeable

Socle de chargeur

Diagram showing a device being processed from a left-side and right-side views, with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

59mm Yorlek

Three-step diagram showing device disassembly and packaging process, with no visible text or symbols

38mm 38mm

Remarque :

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, Chine

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Pays-Bas

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

Declaration of Conformity

We,

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road,

Huli District, Xiamen City, Fujian, P.R. China

CE DATE: 20th/1une/2021

declare that the product

Type: DELT IP Base Station

Model: W70B

meets the essential requirements and other relevant provisions according to the following EC directive Directive: 2014/30/EU, 2014/35/EU;RED 2014/53/EU;

The presumption of conformity with the essential requirement is ensure according to :

Article 3.1 a :[protection of the health &the safety of the user]

Safety: EN 62368-1:2014-A11:2017

SAR: ETSI EN 50663:2017, EN 62479:2010

Article 3.1 b [protection requirement with respect to electromagnetic compatibility]

EMC: EN55032:2015 and EN55032:2015/A11:2020. EN55035:2017.

EN 55035:2017/A11:2020, EN 61000-3-2:2014, EN 61000-3-2:2014.

EN 61000-3-3:2013/A1:2019 EN 61000-3-3:2013/A1:2019

EN301489-6 V2.2.1 EN301489-1 V2.2.3

Article 3.2 (effective use of the radio spectrum)

Radio: ITSHEN 301-606 V2.2.2

Directive 2011/65/EU and (EU)2015/863 of the European Parliament and of the Council of 8 June 2011 and 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS 2.0)

Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on Waste electrical and electronic equipment (WEEE)

Regulation (EC) No.1907/2006 of the European Parliament and of the Council of 18 December 2006 on Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH)

NAME: Huahu Wang

DATE: 20th /June/2021

TITLE: Senior Manager

Liu hui Wang

45-37, 2nd Floor, No. 10, Yan Ding North Road

Hall District, Keanan City, Nang, CA, Chong

Fe1 [phone]-0.6

The source image is illegible due to extreme low resolution and noise. No discernible text, symbols, or structure can be reliably extracted. Therefore, no OCR output can be generated that matches the visual content of the source image.

CE

Declaration of Conformity

We,

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road,

Hull District, Xiamen City, Fujian, P.R. China

CE DATE: 20th /June/2021

declare that the product

Type: DECT IP Phone

Model: W73H

meets the essential requirements and other relevant provisions according to the following EC, directive Directive: 2014/30/EU, 2014/35/EU, RED 2014/53/EU;

The presumption of conformity with the essential requirement is ensure according to:

Article 3.1 a (protection of the health &the safety of the user)

Safety: EN 62368-1:2014+A11:2017

SAR: ETSI EN 50566/2017, EN 50566/2017

Article 3.1 b (protection requirement with respect to electromagnetic compatibility)

EMC: ENSS032:2015 and ENSS032:2015/A11:2020. ENSS035:2017.

EN 55035/2017/A11:2020, EN 61000-3-2:2014, EN 61000-3-2:2014.

EN 61000-3-3:2013/A1:2019, EN 61000-3-3:2013/A1:2019

EN3014B9-6 V2.2.1.EN3014B9-1 V2.2.3

Article 3.2 (effective use of the radio spectrum)

Radio: ETSI EN 301406 V2.2.2

Directive 2011/65/EU and (EU)2015/063 of the European Parliament and of the Council of 8 June 2011 and 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS 2.0)

Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on Waste electrical and electronic equipment (WEEE)

Regulation (EC) No.1907/2016 of the European Parliament and of the Council of 18 December 2006 on Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH)

NAME: Huashu Wang

DATE: 20th/June/2021

TITLE: Senior Manager

Hua hui Wang

Ann. 2019, Jiu Hong, Ren Li, Yan Ding, Hoshi Fang

The following table is a simple diagram and cannot be extracted.

(1) 本说明仅供参考

À propos de Yealink

Assistance technique

Adresse : No.1 Ling-Xia North Road, High Tech Park, Huli District, Xiamen, Fujian, République populaire de Chine

Diagram showing a device being replaced by a wire, with no visible text or symbols

Technical line drawing of a mechanical assembly with two curved components and directional arrows indicating movement (no text or symbols)

59mm Yedink

Three-step diagram showing a device being open, with the next step showing a hand holding a fan (no text or symbols present)

38mm 38mm

Nota:

Declaration of Conformity

We

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road,

Huli District, Xiamen City, Fujian, P.R. China

CE DATE: 20* /June/2021

declare that the product

Type: DECT IP Base Station

Model: W768

meets the essential requirements and other relevant provisions according to the following EC directive Directive: 2014/30/EU, 2014/35/EU,RED 2014/53/EU;

The presumption of conformity with the essential requirement is unsure according to:

Article 3.1 a [protection of the health &the safety of the user]

Safety: EN 62368-1:2014+A11:2017

SAR: ETSI EN 50663:2017, EN 62479:2010

Article 3.1 b (protection requirement with respect to electromagnetic compatibility)

EMC: EN55032:2015 and EN55032:2015/A11:2020, EN55035:2017.

EN 55035:2017/A11:2020, EN 61000-3-2:2014, EN 61000-3-2:2014,

EN 61000-3-3:2013/A1:2019, EN 61000-3-3:2013/A1:2019

EN301489-6 V2.2.1,EN301489-1 V2.2.3

Article 3.2 (effective use of the radio spectrum)

Radio: ETSI EN 301406 V2.2.2

Directive 2011/65/EU and (EU)2015/863 of the European Parliament and of the Council of 8 June 2011 and 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS 2.0)

Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on Waste electrical and electronic equipment (WEEE)

Regulation (EC) No.1907/2006 of the European Parliament and of the Council of 18.December 2006 on Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH)

NAME: Bushu Wang

DATE: 2016/June/2021

TITLE: Senior Manager

Liu hui Wang

Astr 309, 2nd Floor, 5016, You Day North Road

red District, Westen On: Fujian, FL, China

Tel: [phone]

[Unreadable due to severe distortion and noise]

Declaration of Conformity

Wu,

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road,

Buli District, Xiamen City, Fujian, P.R. China

CE DATE: 20th /June/2021

declare that the product

Types: DIRECT IF Phone

Model: W73H

meets the essential requirements and other relevant provisions according to the following EC directive

Directive: 2014/30/03 2014/35/EU,RED 2014/53/EU;

The presumption of conformity with the essential requirement is ensure according to

Article 3.1 a (protection of the health &the safety of the user)

Safety: EN 62368-1:2014+A11:2017

SAR: ETSI EN 50566/2017, EN 50566/2017

Article 3.1 b (protection requirement with respect to electromagnetic compatibility)

EMC: EN55032:2015 and EN55032:2015/AL1:2020. EN55035:2017

EN 55035:2017/A11:2020, EN 61000-3-2:2014, EN 61000-3-2:2014,

EN 61000-3-3:2013/A1:2019, EN 61000-3-3:2013/A1:2019

EN301489-6 V2.2.1,EN301489-1 V2.2.3

Article 3.2 [effective use of the radio spectrum]

Radio ETS| EN 301406 Y2.2.2

Directive 2011/65/EU and (EU)2015/063 of the European Parliament and of the Council of 8 June 2011 and 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS 2.0)

Directive 2012/19/EU of the European Parliament and of the Council of 4 July, 2012 on Waste electrical and electronic equipment (WEEE)

Regulation (EC) No.1907/2006 of the European Parliament and of the Council of 18 December 2005 on Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH)

NAME: Huaxu Wang

DATE: 20th/June/2021

TITLE: Server Manager

Hua hao Wang

Auto 2013, 3rd Floor, No. 56, New City, North Road

18.2007-2008年1月1日

制 1 毫米 3 克

2016年1月1日

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, Repubblica Popolare cinese

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Paesi Bassi YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA Made in China

Addr: No.666 Hu'an Rd, Huli District Xiamen City, Fujian, P.R.C

Copyright©2023 Yealink Inc. All rights reserved.
