USER MANUAL 303319 Brandson

This product is only suitable for well insulated rooms or suitable for occasional use.

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

Diagram of a portable electric heater with labeled parts including cooling unit, heat exchanger, and air vent.

Symbol of a waste sorting bin with no text or labels

Usage and safety instructions

- Read the manual completely before using the product! Keep this user manual for future reference.

- Before using the heater, check whether the voltage indicated on the rating plate matches that of your mains supply!

- Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!

- Never block the fan in the device. This could damage the device, result in a fire or electric shock!

- Never block the air inlet of the interior fan heater!

- Disconnect the plug from the power source if the device is not being used! Do not leave the fan heater unattended!

- This device emits a lot of heat during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.

- Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!

- This device is intended for personal use only!

- Caution! The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.

- Cleaning and maintenance should not be carried out by children.

- This appliance can be operated by children from 8 years of age and above, as well as by people with re-

duced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and they understand the resultant dangers.

• CAUTION! Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.
• Never immerse it in water for cleaning. Wipe the body with a dry cloth.
• Place the appliance at a distance of least 1m from other objects.
• Use the product only on a flat surface.
• Disconnect the appliance from the mains when it is not being used or during cleaning.
• Keep the appliance at least 1m away from flammable materials, such as

furniture, curtains, bedding, clothing or paper.

- Ensure that the cable does not come into contact with any hot or moist surfaces.

- Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.

- Never move the appliance during operation.

- The appliance should be opened or repaired only by qualified technicians!

- Remove the packaging material and check if the appliance is in proper working condition before using it.

- Ensure that children do not play with the appliance or the packaging material!

• This product is not a toy!

• Close supervision is required if the product is used by or near children or frail persons.
• Do not use the appliance after a malfunction, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.
• Ensure that the appliance is switched off before disconnecting the mains cable. If you touch it, make sure that your hands are dry so as to avoid electric shock.
• Hold the heater only using the handle on the back.
• Do not use the heater in places such as garages, where petrol, paint, or other flammable materials are used or stored.

- This product should not be used near water, such as a bathtub, washbasin, swimming pool, etc., where there is a risk of immersion or splashing.

- Dust and lint deposits which get into the appliance are a common cause of overheating. Make sure that these deposits are removed regularly by disconnecting the heater from the socket, so that it can cool down and be cleaned (as described in the section on "Cleaning and care").

- Never connect the appliance to an extension cable or power strip!

- Do not use the appliance outdoors!

- Use this heater only as described in this manual. Using the appliance for any other purpose which is not recommended by the manufacturer may cause fire, electric shock or physical

injury and void the guarantee.

• CAUTION: Please do not cover!
• Do not cover the product during use or shortly after use (e.g., using a cloth, a blanket, a curtain, etc.) to prevent overheating of the product. There is also a risk of fire!

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Fan heater
• User manual

2. Technical data

Power supply 220-240V AC / 50Hz
Power consumption	Setting 1: 800 W / Setting 2: 1500 W
Dimensions (H x W x D) approx. 270 mm x 170 mm x 130 mm
Weight approx. 1400 g
Ambient temperature 0°C - 40°C
Features • Oscillation option	• 2 heat settings

3. Function

You can heat the desired area with the Brandon heater. Thanks to the oscillation function and the 2 heat settings, you can heat as desired.

Note: To ensure that the heater works and heats properly, the desired temperature must be set on the heater.

To arrive at the ideal thermostat setting, proceed as follows:

Adjust the thermostat to the maximum setting. Once the desired room temperature is reached, turn the thermostat back slowly until the heater switches off. The heater will automatically maintain the desired temperature. If the heater does not seem to be heating, increase the desired temperature on the heater to activate the heating elements.

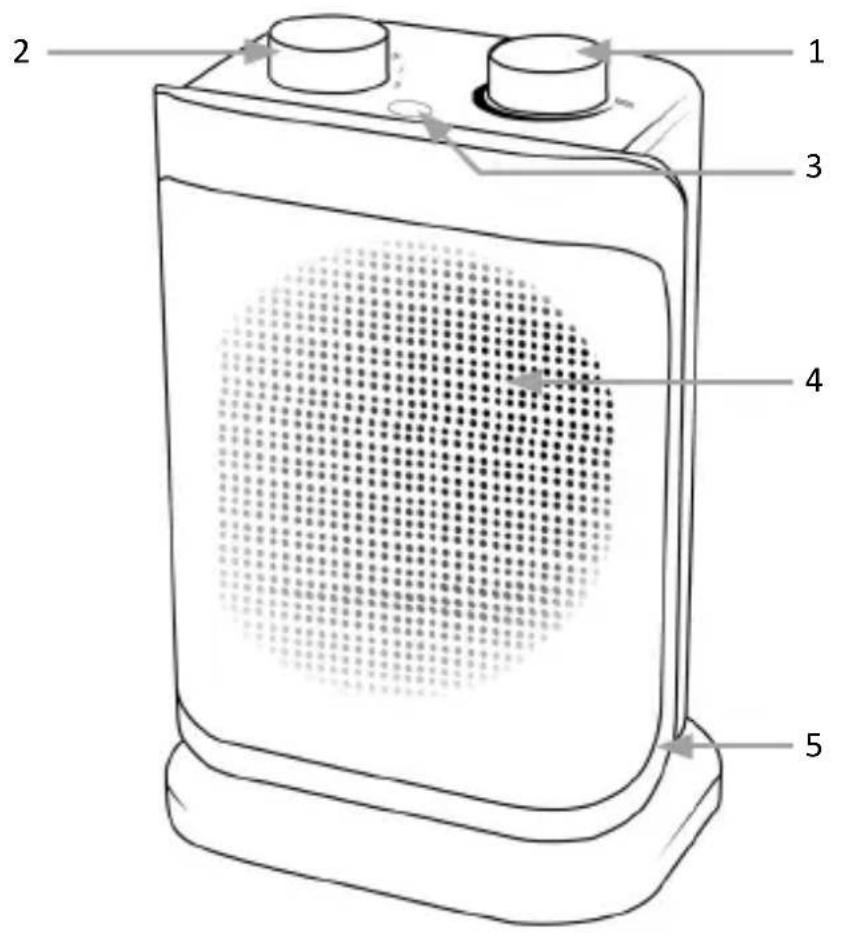

4. Product details

1 2 3 4 5

No. Description

1 Temperature controller

2 Power regulator

3 Status LED

4 Heating elements

5 Pedestal

5. Installation

Take the appliance out of the packaging and remove any packaging material and check the appliance for any damage. The fan heater must be placed on a firm and flat surface. Ensure that the heater is placed at least 1m away from other objects, and not directly below a socket. A socket should be available for supplying power to the appliance.

Caution! Ensure that the appliance is not placed near any flammable materials or fluids, or with the air discharge pointing in this direction.

6. Commissioning

Connect the appliance to a 230 V AC socket. To start the appliance, turn the "Power regulator" at the top to the desired speed.

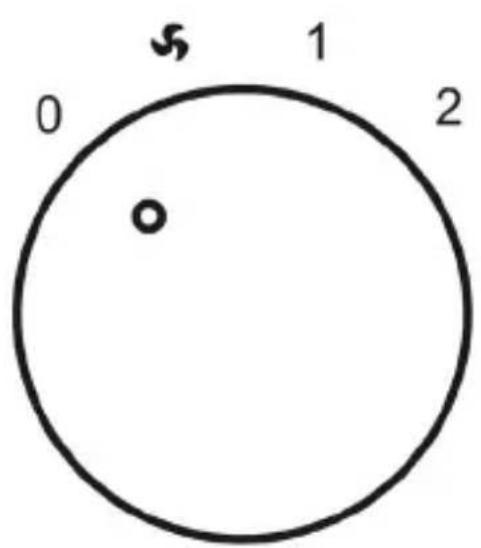

0 1 2

0 Fan is switched off
Fan symbol Only fan is switched on
1 First heat setting (750W)
2 Second heat setting (1500W)

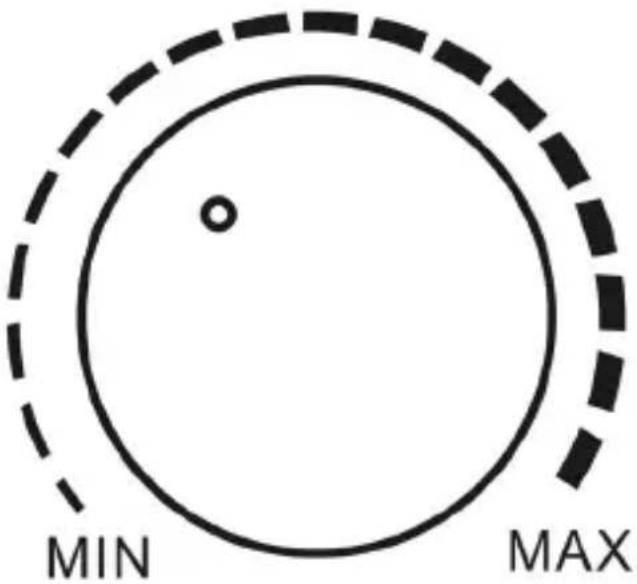

MIN MAX

Select the desired temperature using the "Temperature controller". "MIN" is the lowest temperature setting and "MAX" is the highest. To switch off the appliance, turn the "Temperature controller" in the counter-clockwise direction until the appliance switches off with an audible "click".

This temperature is maintained almost constant by switching the appliance on and off automatically. Please remember that the appliance is switched on only if the thermostat setting is higher than the room temperature.

7. Overheating

Overheating generally occurs only if one of the openings of the fan heater is blocked. This device comes with a self-resetting thermal fuse. The heater switches off automatically once the overheating temperature is reached. The operation of the fan heater can only be resumed when the fuse is reset.

8. Oscillation

The oscillation can be switched On or Off using the oscillation switch at the back.

9. Cleaning and Care

Completely switch off the appliance and disconnect it from the power supply before you start cleaning it.

Clean the housing with a slightly damp cloth, a vacuum cleaner or a dusting brush. Never use flammable, aggressive or scouring cleaning agents such as benzene or spirit to clean.

Clean the air inlet and outlet regularly using a vacuum cleaner.

If the appliance is not going to be used for a long time, then it must be protected against excessive dust and dirt.

10. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the appliance for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without special prior notice.

11. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303319 / 303904 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, or from the following Internet address: http://model.ganzeinfach.de/303319

Prohibition sign indicating a device without blocking, featuring a diagonal line crossed over a document icon.

Diagram of a portable electric heater with labeled parts including cooling unit, heat exchanger, and air vent.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign with a diagonal line crossed over a document icon, indicating no prohibition or exclusion.

Diagram of a portable electric heater with labeled parts including cooling unit, heat exchanger, and air vent.

Symbol of a trash bin with crossed lines indicating no waste, above and below a solid black rectangle (no text or labels)

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

Diagram of a portable electric heater with labeled parts including cooling unit, heat exchanger, and air vent.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Model identifier(s): WDP-303319,WDP-303904
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,5	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	P_min	0,8	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	P_max,c	1,5	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	el_max	0	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0	kW	single stage heat output and no room temperature control	No
In standby mode	el_sb	0,000	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No

				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details				WD Plus GmbHWohlenbergstraße 16 · 30179 Hannover	No
