USER MANUAL 303769 Brandson

This product is only suitable for well insulated rooms or suitable for occasional use.

Table of contents

1. Deutsch .... 3
2. English....14
3. Français 24
4. Italiano 35
5. Español....46

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Prohibition sign with red circle and black icon depicting a document or folder, crossed out by a diagonal line.

Usage and safety instructions

• Read the manual completely before using the product! Keep this user manual for future reference.
• Before using the heater, check whether the voltage indicated on the rating plate matches that of your mains supply!
• Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!
• Never block the fan in the device. This could damage the device, result in a fire or electric shock!
• Never block the air inlet of the interior fan heater!
• Disconnect the plug from the power source if the device is not being used! Do not leave the fan heater unattended!

- This device emits a lot of heat during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.

- Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!

- This device is intended for personal use only!

- Caution! The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.

- Cleaning and maintenance should not be carried out by children.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• CAUTION —Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• Never immerse it in water for cleaning. Wipe the body with a dry cloth.
• Place the appliance at a distance of least 30 cm from other objects.
• Use the product only on a flat surface.
• Disconnect the appliance from the mains when it is not being used or dur-

ing cleaning.

• Keep the appliance at least 90 cm away from flammable materials, such as furniture, curtains, bedding, clothing or paper.
• Ensure that the cable does not come into contact with any hot or moist surfaces.
• Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
• CAUTION: Please do not cover!
• Do not cover the product during use or shortly after use (e.g., using a cloth, a blanket, a curtain, etc.) to prevent overheating of the product. There is also a risk of fire!

Prohibition sign with a red circle and black document icon, indicating no prohibition or exclusion

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.
• Do not use this fan heater in the immediate surroundings of a bath, a shower or a swimming pool.
• The heater must not be located immediately below a socket-outlet.
• WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• Fan heater
• User manual

2. Technical data

Power supply 220-240 V AC / 50/60 Hz
Power consumption 1500 W
Dimensions (H x W x D) approx. 175 mm x 245 mm x 115 mm
Weight aprox. 1385 g
Plug type Plug type F

3. Function

With the Brandon fan heater you have a practical and cost-effective alternative in comparison to a conventional stand heater. Warm up your desired area with the fan heater and you will no longer have to worry about low temperatures.

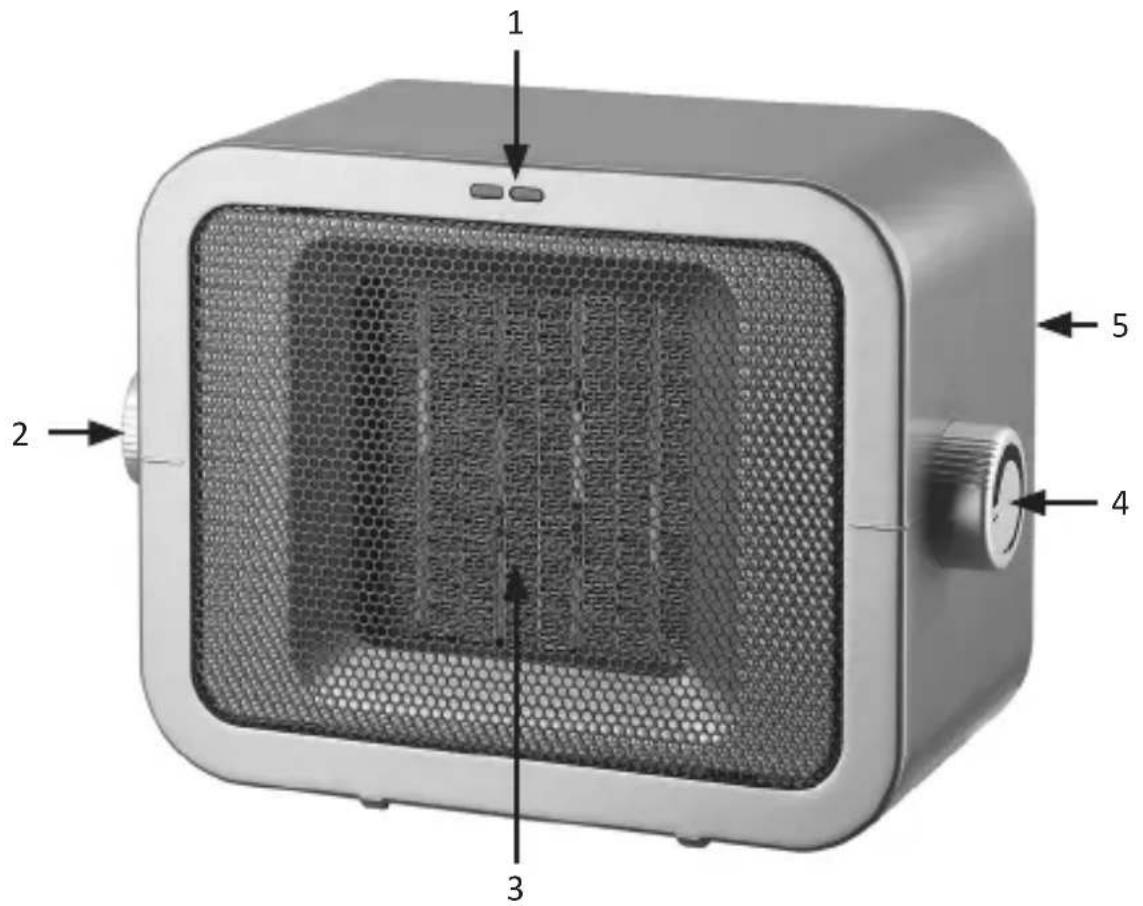

1. Product details


1 2 3 4 5

No.	Descripion
1	Status LED
2	On/Off/Speed mode controller
3	Air outlet
4	Temperature control
5	Air intake (rear)

5. Installation

Take the appliance out of the packaging, remove any packaging material and check the appliance for any damage. The fan heater must be placed on a firm and flat surface.

Attention! Make sure that the appliance is not installed near flammable materials or any liquids, or that the air outlet is pointing in these directions.

6. Start-up

When commissioning the appliance for the first time, check the intactness of the product and the components as well as the function. Connect the appliance to a 230 V AC socket. In order to start the device, turn the “On/Off/Speed Modes” switch on the top of the device to the desired speed and select the desired temperature with the temperature controller. Never operate the appliance unattended and check it before each use for possible damage and correct assembly.

7. Overheating

Overheating generally occurs only if one of the openings of the fan heater is blocked. This device comes with a non self-resetting thermal fuse. The heater switches off automatically once the overheating temperature is reached. The fan heater can be operated again only after the fuse is replaced by the manufacturer or an equally qualified person.

8. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the appliance for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs

or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without special prior notice.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU

WEEE register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 307369 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, or from the following Internet address: downloads.ganzeinfach.de

Prohibition sign with red circle and black icon depicting a document or file, crossed by a diagonal line

Prohibition sign with red circle and black document icon, indicating no prohibition or disapproval

Prohibition sign with red circle and black icon depicting a document or file, crossed out by a diagonal line

Model identifier(s): WDP-303769
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,5	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.75	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1,5	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	el_sb	0	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes

				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details				WD Plus GmbHWohlenbergstraße 16 · 30179 Hannover	No

Notes

Notes

SERVICE

We hope you enjoy your new product in every way! If there is still something you're concerned about; please feel free to let us know. You're welcome to contact our service team at any time.
