Digital window thermometer

Thank you for choosing this product from TFA.

1. Before you use this product

- Please make sure you read the instruction manual carefully.

- Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.

- Please pay particular attention to the safety notices!

- Please keep this instruction manual safe for future reference.

1. Delivery contents

- Window thermometer

Digital window thermometer

• Holder with adhesive tape
• Instruction manual

3. Range of application and all the benefits of your new instrument at a glance

• Clear functional design
• Easy reading of the outside temperature from the inside
• Permanent indication of maximum and minimum values with auto reset
• Easy to fix, with integrated holder and adhesive tape
• Weather resistant

4. For your safety

- This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.

WARNING! Risk of injury!

Digital window thermometer

• Keep this device and the battery out of reach of children.
• Small parts can be swallowed by children (under three years old).
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct. Remove the battery if the device will not be used for an extended period of time. Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor.

Digital window thermometer

CAUTION

• Unauthorised repairs, alterations or changes to the product are prohibited.
• Do not expose the device to extreme temperatures, vibrations or shocks.
• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

5. Elements

A: Display (Fig. 1):

A 1: Highest temperature
A 2: Actual outdoor temperature
A 3: Lowest temperature
A 4: Minutes (when setting the clock)
A 5: Hours (when setting the clock)

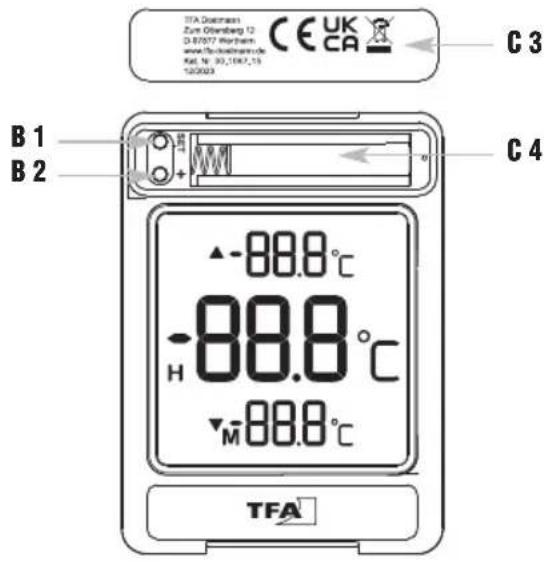

B: Buttons (Fig. 2):

B 1: SET button

B 2: + button

Digital window thermometer

C: Housing (Fig. 1-3):

C 1: Holder
C 2: Adhesive tape
C 3: Battery compartment lid (screwed)
C 4: Battery compartment
C 5: Temperature probe
C 6: Recess for holder

6. Getting started

• Place your thump into the recess and lift the holder up.
• Remove the protective film from the display.
• Open the battery compartment with a suitable screwdriver.
• Insert a new battery (1.5 V AAA), polarity as indicated. All LCD segments will be displayed for a short moment.
• The upper display shows the maximum temperature, the middle display the actual temperature and the lower display the minimum temperature.

Digital window thermometer

- The maximum and minimum values are automatically reset: The maximum temperature at 8:00 and minimum temperature at 20:00 o'clock. Therefore, the current time must be set.

6.1 Set the clock

• Press the SET button. The hour digit (H) flashes for 20 seconds on the display.
• Press + button to adjust hours. Press and hold the button for fast mode.
• Confirm the setting with the SET button and set minutes (M) in the same way. Press the SET button again to return to normal mode.

7. Mounting

• Screw the battery cover back on carefully.
• Remove the protective film from the adhesive tape and attach the holder to the outside of the window. Please clean the window glass before. The device can now be easily clipped in and out.

Digital window thermometer

• Caution: Avoid direct sunshine. It falsifies the indicated values! Extremely high temperatures may lead to damages of the display. Permanent sunshine may bleach the liquid crystals.
• Important note: Due to the heat emission (depending on isolation) and the protected location of your window it is possible that the temperature displayed is higher than the outdoor temperature at a free unsheltered location directly over the ground.

8. Battery replacement

- As soon as the display becomes weaker, remove the device from the holder and replace the battery. Screw the cover back on carefully.

9. Troubleshooting

Problem Solution

No display on the device

→ Ensure that the battery polarity is correct
→ Change the battery

Digital window thermometer

Incorrect indication

→ Change the battery

Display HH.H/LL.L

→ Outside measuring range

If your device fails to work despite these measures, please contact the retailer where you purchased the product from for advice.

10. Waste disposal

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment.

Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up.

Digital window thermometer

Disposal of the electrical device

Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately.

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

This product must not be disposed of in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. The return service is free of charge. Observe the current regulations in place!

Disposal of the batteries

Never dispose of empty batteries and rechargeable batteries with ordinary household waste.

Digital window thermometer

They contain pollutants which, if improperly disposed of, can harm the environment and human health.

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The return service is free of charge.

The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

11. Specifications

Measuring range - temperature

$$ - 2 5 \dots + 7 0 ^ {\circ} \mathrm{C} $$

Resolution

$$ 0. 1 ^ {\circ} \mathrm{C} $$

Digital window thermometer

Accuracy

$$ \pm 1 ^ {\circ} \mathrm{C} \text { from } - 1 0 \dots + 5 0 ^ {\circ} \mathrm{C}, \text { otherwise } \pm 2 ^ {\circ} \mathrm{C} $$

Power consumption

Battery 1 x AAA 1.5 V (not included)

We recommend Alkaline batteries

Dimensions

$$ 6 6 \times 2 1 \times 9 0 \mathrm{mm} $$

Weight

$$ 4 2 \mathrm{g} (\text { d e v i c e o n l y }) $$

Digital window thermometer

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de
