USER MANUAL iCarpet TINECO

Powerful Carpet Cleaner

Bedienungsanleitung

Instruction Manual

Manual De Uso

Mode D'emploi

Black and white photo of a Tineco vacuum cleaner (no visible text or symbols on body)

*Actual product may differ from illustration.

A

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17

19

20

21

Simple line drawing of a coiled hose with two connectors (no text or symbols)

22

ECO MAX tineco

23 25 272624 28 29

B-1B-

click

Technical line drawing of a vacuum cleaner with tool and mounting base (no text or symbols)

B-3B-

Line drawing of a vacuum cleaner with attached mechanical components (no text or symbols)

Line drawing of a mechanical device with a curved handle and attached cable (no text or symbols)

B-5B-

MAX

① ② click

B-7B-

Diagram of a vacuum cleaner with labeled parts and click indicator

Diagram of a funnel-shaped object with internal structure and a small protrusion at the bottom (no text or symbols)

or

B-9B-

Diagram of a car seatbelt mechanism with an arrow indicating upward motion (no text or symbols present)

Line drawing of a vacuum cleaner with a hose and suction tube, no text or symbols present

C-1C-

Line drawing of a vacuum cleaner with a mounted sensor and power outlet (no text or symbols)

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Do not grip DWT handle to lift or move the appliance.

D-1D-

Line drawing of a hand holding a smartwatch with a circular dial indicator (no text or symbols)

Line drawing of a hand cleaning a cylindrical object with a handle (no text or symbols)

D-3

Diagram of a vacuum cleaner with labeled parts and directional arrows indicating motion or force

①
②

③

Diagram showing a hand holding a small component being inserted into a mechanical device, with arrows indicating movement (no text or symbols present)

④

Simple line drawing of a container with liquid inside, no text or symbols present

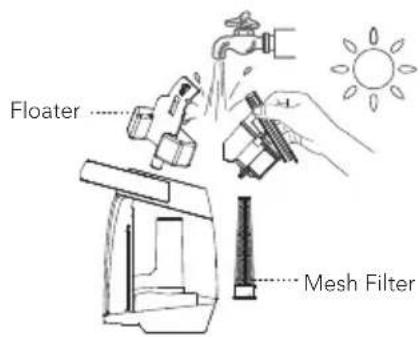

Floater Mesh Filter

⑤

⑥

click

⑦

D-4D-

Line drawing of a vacuum cleaner with a component inserted, showing internal components and a close-up view (no text or symbols)

Line drawing of a vacuum cleaner device with no visible text or symbols

On carpetOn floor

INHALT

DE

89 Princess Street, Manchester, M1 4HT, UK

ÜBERSICHT

Hinweis:

Important Safety Instructions....19

Specifications 22

Overview 22

Assembly 23

Operation 23

Maintenance 25

Troubleshooting....26

Warranty 26

MORE LANGUAGES

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

2. This appliance is not intended for use

by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

1. Children should be supervised to ensure that they do not play with the appliance.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. Use only indoors, do not immerse. To reduce risk of electric shock – Use only on carpet moistened by cleaning process.

4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.

5. To reduce the risk of fire and electric shock – Use only Tineco cleaning products intended for use with this machine.

6. Use only as described in this manual. Use only manufacturer's recommended attachments.

7. CAUTION – Risk of injury. Brush may start unexpectedly. Unplug before cleaning or servicing.

8. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

10. Do not handle plug or appliance with wet hands.

11. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.

12. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

13. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.

14. Use extra care when cleaning on stairs.

15. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

16. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

17. Do not use without filter.

18. To reduce the risk of electric shock, always install float before any wet pick-up operation.

19. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

20. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

21. TO REDUCE THE RISK OF ELECTRIC SHOCK – UNPLUG BEFORE CLEANING OR SERVICING.

22. Always turn off this appliance before connecting or disconnecting the motorized nozzle.

23. Turn off all controls before unplugging.

24. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

25. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.

26. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.

27. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.

28. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaking electricity.

29. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
30. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.
31. Do not expose to rain.
32. Store appropriately indoors in a dry place after use.
33. Do not place or submerge appliance in standing water or try to clean flooded areas.
34. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
35. A hazard may occur if the appliance runs over the supply cord.
36. Connect to a properly grounded outlet only. See Grounding Instructions.
37. To reduce the risk of fire and electric shock due to internal component damage, use only Tineco cleaning fluid/solution: Carpet Deodorizing & Cleaning Solution intended for use with this appliance. See the Cleaning Fluid/ Solution section of this manual.
38. Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
39. Do not store cleaner with solution in Clean Water Solution Tank or dirty water in Dirty Water Tank. Mineral deposits and mildew can form which will affect the performance of your carpet cleaner.

Range of Usage

1. The Carpet washer is to be used on carpets, such as level loop, etc.
2. Some Loop Berber carpets, Natural Fiber (including silk and wool), and Soft Fiber carpets can fuzz with wear. Some

vacuums & carpet cleaners can worsen this carpet wear. If cleaning on Berber, Natural Fiber, or Soft Fiber carpeting, first test on a small hidden area of carpet by running the carpet washer over it. If no fuzzing or overwetting occurs, continue cleaning. Avoid overwetting Berber carpets. If you have any questions or concerns, consult with your carpet manufacturer on deep cleaning recommendations.

1. Important: Keep the foot of the deep cleaner perpendicular to the rug's edge with each cleaning pass to prevent damage.

2. Important! Please check manufacturer's tag before cleaning area rugs for any specialized cleaning instructions. It's not advisable to perform deep cleaning on delicate, silk, wool, antique or area rugs without a manufacturer's tag.

3. When cleaning area rugs, place the rug on a sealed surface to test for colorfastness in an inconspicuous area. Your cleaner should not be used on unsealed surfaces.

4. Avoid using it on rugs or carpets that require dry cleaning.

5. For upholstery, check cleaning code - Use your Tineco Carpet Washer only if the upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Do not clean fabric marked "S" ("solvent/dry" clean only). If your upholstery does not have a code, seek professional assistance.

6. Test for colorfastness - Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait for ten minutes and check for color removal. If surface has more than one color, check all colors.

7. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.

8. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Fluid/Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the appliance. Don't shake the machine violently.
2. Add solution as instructed in the Operation section. We recommend using the provided cleaning solution.
3. Keep out of reach of children. If any solution gets into the eyes, immediately flush them with clean water. If any solution is swallowed by accident, seek medical care immediately.
4. Dirty water and solution disposal should comply with local environmental regulations.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. Use extra care when cleaning on stairs.
3. Ensure that the Power Switch is in the OFF-position and unplug before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
4. Always install the Dirty Water Tank and Clean Water Tank properly before use.
5. Do not allow the appliance to get wet to avoid risk of fire or injury caused by a short circuit.

Recycling Instructions according to WEEE

Waste electrical and electronic equipment must not be disposed of with household waste! Every consumer is obliged to hand in all appliances at the end of their service life at a collection point in his or her municipality/district or at a retailer so that they can be disposed of properly and in an environmentally friendly manner. The illustration left shows the wheelie bin symbol indicating separate collection of waste electrical and electronic equipment (WEEE).

For EU Countries:

For EU Declaration of Conformity information, please visit www.tineco.com.

Symbols:

	Read the instruction manual
	For indoor use only
	Alternating current
	Power On/Off
	ECO/MAX/DRY Mode

SPECIFICATIONS

Product iCARPET	SERIES
Voltage 220-240V	50Hz
Rated Power ~1300W
CWT Capacity ~2L
DWT Capacity ~1.5L
Waterproof IPX4

- All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.

Tineco Intelligent Europe GmbH Europadamm 2-6, 41460 Neuss

APEX CE SPECIALISTS LIMITED 89 Princess Street, Manchester, M1 4HT, UK

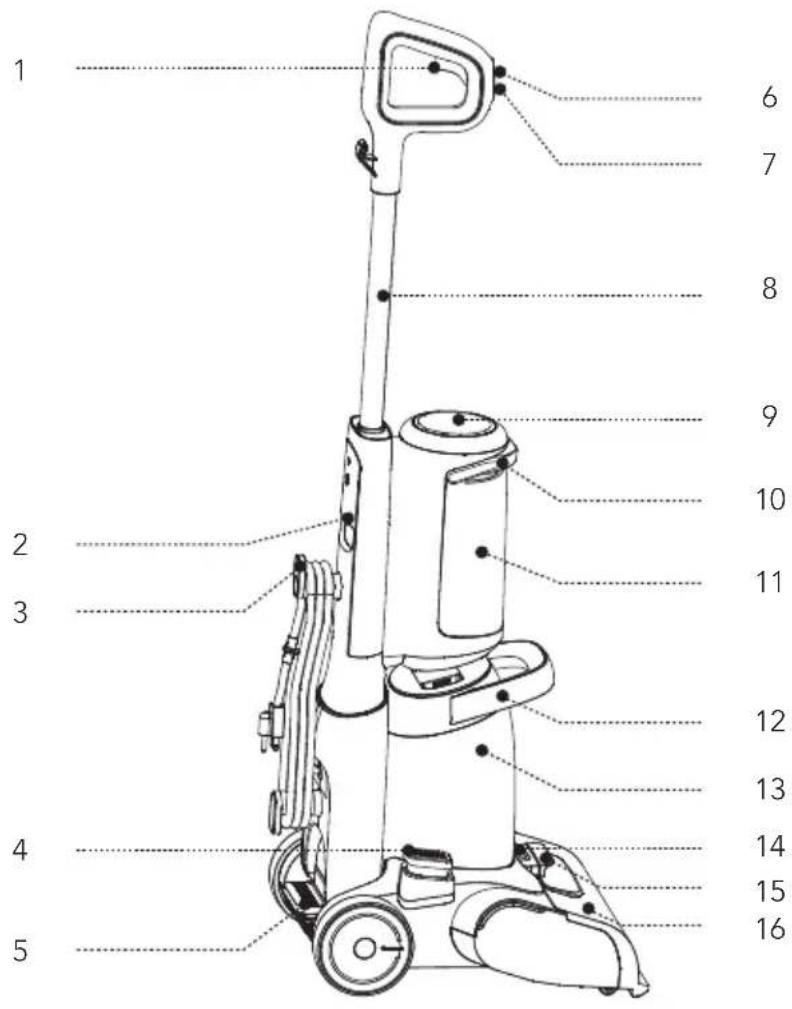

OVERVIEW

Note:

Accessories may vary among markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

1 Water Spray Trigger

2 Back Carry Handle

3 Cord Wrap

4 Dirty Water Tank Release Pedal

5 Recline Pedal

6 ECO/MAX/DRY Mode

7 Power On/Off

8 Tube

9 Digital Display

10 Clean Water Tank Handle

11 Clean Water Tank (CWT)

12 Dirty Water Tank Handle

13 Dirty Water Tank (DWT)

14 Brush Roller Cover Release Button

15 Hose Connection Port Cover

16 Brush Roller Cover
17 Carpet Deodorizing & Cleaning Solution
18 Cleaning Tool
19 2 in 1 Nozzle
20 Sponge Filter
21 Brush Cover Scraper
22 Accessory Hose
23 ECO Mode
24 DWT Full or Blocked
25 CWT Empty
26 Tineco Logo
27 MAX Mode
28 Brush Roller Tangled Indicator
29 Dry Mode

Fig.A

ASSEMBLY

How to Assemble/Disassemble

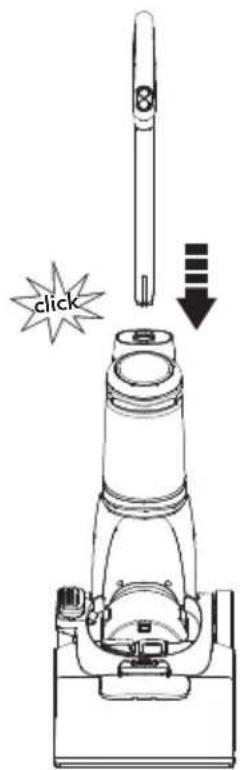

• To assemble the handle, insert it into the appliance until you hear a "click".
  Fig.B-1

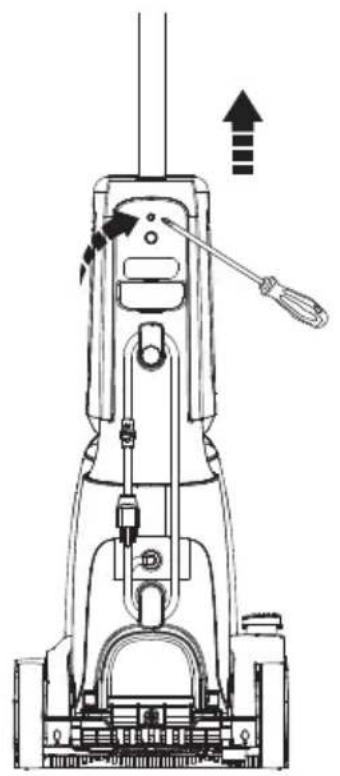

• In the event that the handle needs to be disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance.
  Fig.B-2

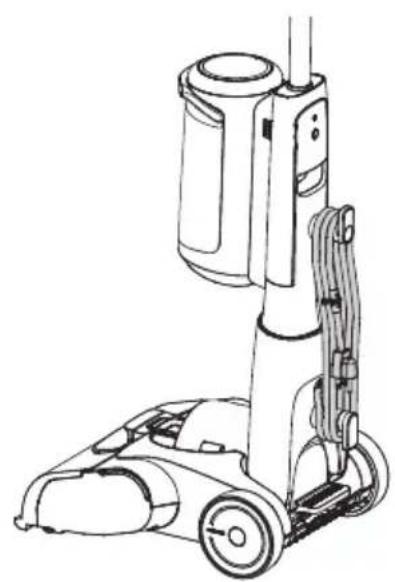

• Wrap the power cord around the cord hooks for convenient storage.
  Fig.B-3

Clean Water Tank

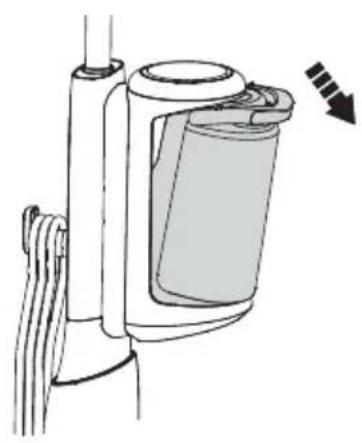

- Press the CWT handle to remove it.

Fig.B-4

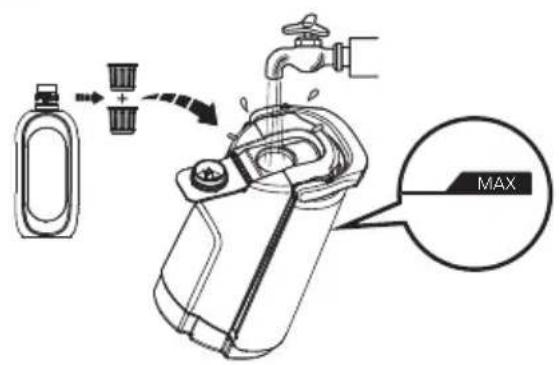

- Open the tank cap, add two bottle caps of solution to the CWT, then fill with tap water to the Max line and tightly close the cap.

Fig.B-5

Note:

Only use water under 140^ F/ 60^ C.

DO NOT USE HOT WATER.

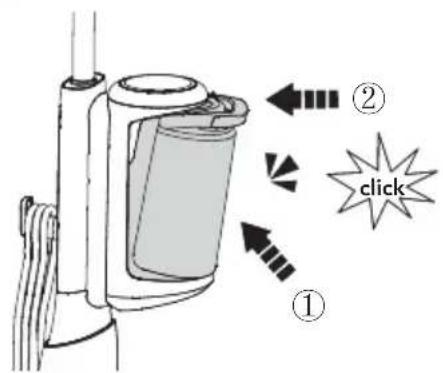

- Install the Clean Water Tank into the appliance. You should hear a "click" if done correctly.

Fig.B-6

Dirty Water Tank

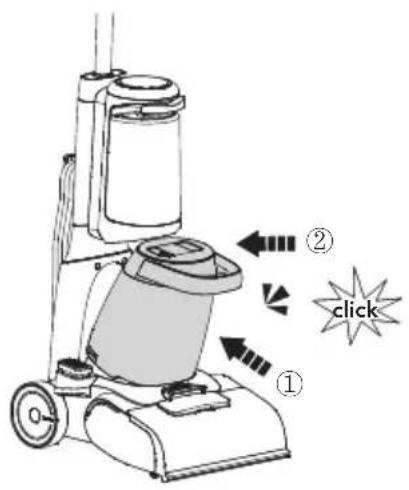

- Install the Dirty Water Tank into the appliance. You should hear a "click" if done correctly.

Fig.B-7

Accessory Hose & 2 in 1 Nozzle

- Choose suitable brush head according to the usage scenario.

Fig.B-8

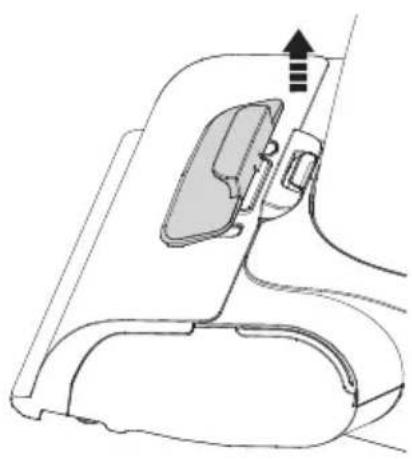

- Pull it up to uncover the accessory connection port.

Fig.B-9

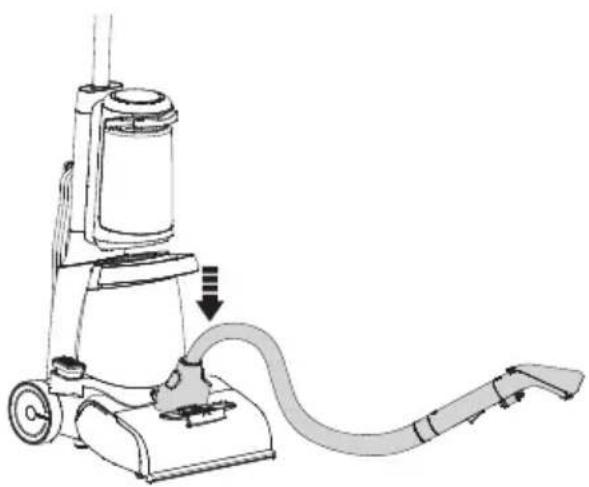

- Insert the hose end into the port. You should hear two "clicks" if done correctly.

Fig.B-10

OPERATION

Preparing for Use (Appliance)

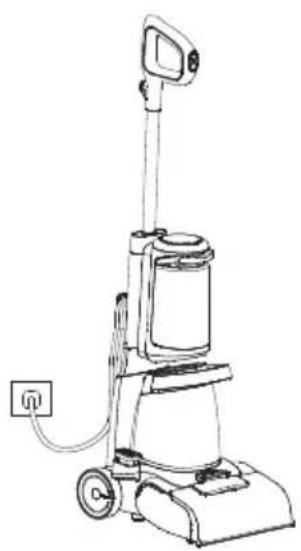

1. Unwrap the power cord and plug into an electrical outlet.

Fig.C-1

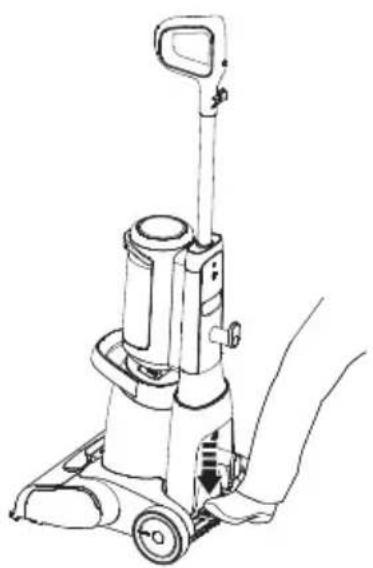

2.Step on the recline pedal to recline the unit to cleaning position.

Fig.C-2

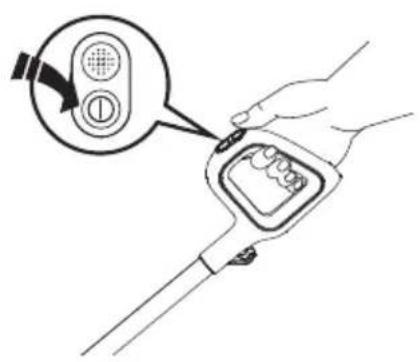

1. Press the button and the appliance will start in ECO mode by default. Press it again to turn off the appliance. Switch between ECO, MAX and DRY mode by pressing the button.

Fig.C-3

1. Hold the trigger to spray water in ECO/MAX mode. While in Dry mode, no water will spray when pulling the trigger.

Fig.C-4

1. In ECO/MAX/DRY mode, the appliance will stop working when put uprightly and start running again when reclined.

Fig.C-5

1. Grip the back carry handle to lift or move appliance. Empty CWT and DWT after each use.

Fig.C-6

Note:

• Pretreat spots and heavy traffic areas with Tineco Pretreat Cleaning Solutions to achieve better cleaning effect. Follow Directions on bottle.
• The carpet cleaner differs from the traditional vacuum cleaner.
• In all modes, it blows hot air, whose temperature is 70-80°C.

* Appropriate temperature is conducive to dissolve the dirt and helps surfactant in the solution to decompose the dirt.

- Take a spot test on a small and marginal area of the carpet for colorfastness. Gently rub surface with a damp white cloth. Then wait for ten minutes and check for color removal.

- During use, don't keep the appliance at a resting position for a long time.

- Important: Keep the foot of the deep cleaner perpendicular to the rug's edge with each cleaning pass to prevent damage.

- Important! Please check manufacturer's tag before cleaning area rugs for any specialized cleaning instructions. It's not advisable to perform deep cleaning on cleaning delicate, silk, wool, antique or area rugs without a manufacturer's tag.

- Some Loop Berber carpets, Natural Fiber (including silk and wool), and Soft Fiber carpets can fuzz with wear. Some vacuums & carpet cleaners can worsen this carpet wear. If cleaning on Berber, Natural Fiber, or Soft Fiber carpeting, first test on a small hidden area of carpet by running the carpet washer over it. If no fuzzing or overwetting occurs, continue cleaning. Avoid overwetting Berber carpets. If you have any questions or concerns, consult with your carpet manufacturer on deep cleaning recommendations.

- Avoid using it on rugs or carpets that require dry cleaning.

- For upholstery, check cleaning code - Use your Tineco Carpet Washer only if the upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Do not clean fabric marked "S" ("solvent/dry" clean only). If your upholstery does not have a code, seek professional assistance.

- Test for colorfastness - Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait for ten minutes and check for color removal. If surface has more than one color, check all colors.

Preparing for Use (Accessory Hose & 2 in 1 Nozzle)

1. Attach the accessory hose, stand the appliance upright and ensure that it is powered on (if not, press the button), the appliance will enter ACCESSORY Mode, the appliance will stop working when reclined.

Fig.C-7

1. Please rinse and let dry after use, then store the accessory in the bag afterwards.
2. If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again to achieve better cleaning effect.

Fig.C-8

Note:

• Do not vacuum foamed liquid.
• Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

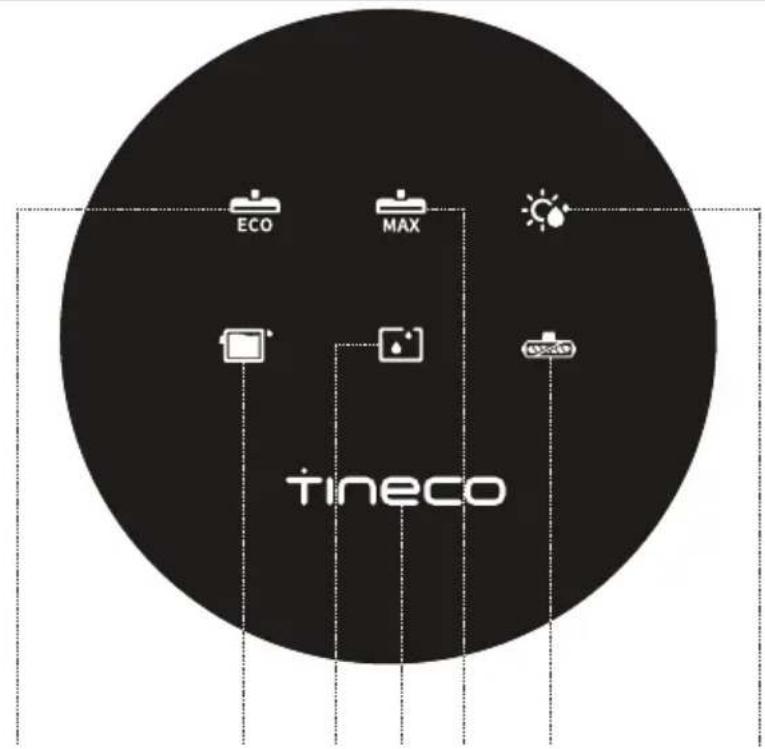

Indicator

When in Use

Illuminated: ECO mode

Illuminated: MAX mode

Illuminated: DRY mode

Illuminated simultaneously: ACCESSORY mode

Indicator blinking: CWT is empty.

Indicator blinking: DWT is full or not installed, or the channel has a blockage.

Indicator blinking: brush roller cover is not installed or brush roller has a blockage.

MAINTENANCE

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover, 2 in 1 nozzle completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
• After maintenance, place the appliance vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

1. To reduce the risk of injury, switch off before performing maintenance.

Fig.D-1

1. Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

Fig.D-2

Dirty Water Tank

1. When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display.
   2.Step on the recline pedal and press the DWT handle to remove it.
2. Pull up the tank lid and mesh filter to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT & tank lid & floater & mesh filter and place back into the appliance.

Fig.D-3

Note:

- Check if the floater is in good condition and press it to the bottom.

Sponge Filter

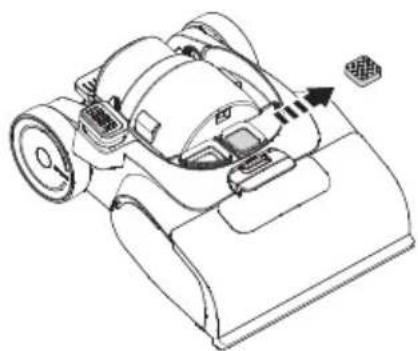

1. Remove the DWT, take the filter out and wash it after each use.

Fig.D-4

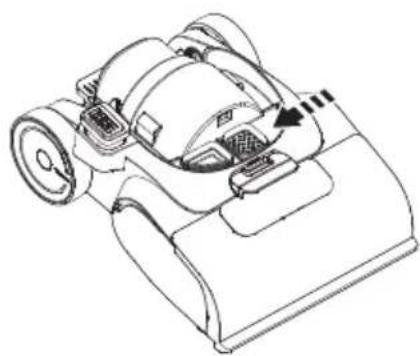

2.Reinstall.

Fig.D-5

* A spare sponge filter is provided for your replacement.

Brush Roller Cover

1. Press brush roller cover release button on the cover and pull upward to remove.

Fig.D-6

1. Rinse with water. Use the provided cover scraper to clean the gap in the front side to avoid blockages.

Fig.D-7

1. When replacing, always latch the brush cover into place to avoid leakage.

Fig.D-8

Brush Roller

1. Remove the brush roller by squeezing the brush roller tab and pulling out.

Fig.D-9

1. Using the cleaning tool, remove the hair and debris wrapped around the roller and rinse with water. Allow it to dry completely before reinstalling.

Fig.D-10

1. Remove hair and debris from the brush roller chamber and the opening with a tissue or a damp cloth.

Fig.D-11

1. Replace the brush roller by inserting the brush roller end into the right side of the holder, then attach the roller tab to the left side to lock into place.

Fig.D-12

1. Clean the the bristle after each use with the cleaning tool.

Fig.D-13

Accessory Hose & 2 in 1 Nozzle

1. Press the buttons on both sides to remove the hose.

Fig.D-14

1. Press the release button to remove the accessory brush.

Fig.D-15

1. Remove the top cover and brush head.

Fig.D-16

1. Rinse with water. Allow it to dry completely before reinstalling.

Fig.D-17

5.Reinstall.

Fig.D-18

SCAN THE QR CODE BELOW TO GET PRODUCT CARE VIDEOS.

TROUBLESHOOTING

Problem Solution
The appliance does not turn on	Ensure that the socket is energized and the power cord is plugged in
Weak suction	1.Remove blockages or replace the sponge filter2.Clean the mesh filter3.Install brush roller cover correctly
ECO icon: blinks	Stand the appliance upright and tilt again to enter ECO mode
ECO icon and MAX icon blink together	Stand the appliance upright

Problem Solution
CWT empty indicator blinking	Refill CWT
DWT full indicator blinking	Empty the dirty water and then reinstall the DWTCheck if the floater is in good condition and press it to the bottomRemove blockages
Brush roller tangled indicator blinking	Remove blockagesInstall brush roller cover correctly

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website

www.tineco.com for further support.

WARRANTY

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.

- This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

- Use of parts not in accordance with the Tineco Instruction Manual.

- Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

• Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the

product, where the product was purchased, or who you purchased the product from. Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

Register:

- We highly recommend that upon purchase, you register your appliance by logging into our official website (www.tineco.com) or scanning the QR code to enjoy more exclusive benefits. To register, please enter the whole serial number (find it on the back of the appliance).

Fig.E-1

- Failure to register your product won't diminish your warranty rights.

How to Claim:

• Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.
• All work will be carried out by Tineco or its authorized agency.
• Any replaced defective parts will become the property of Tineco.
• Service under this warranty will not extend the period of this warranty.

Visit Tineco website www.tineco.com for expert customer service.

CONTENIDO

89 Princess Street, Manchester, M1 4HT, UK

DESCRIPCIÓN GENERAL

Nota:

89 Princess Street, Manchester, M1 4HT, UK

DESCRIPTION

Remarque :

89 Princess Street, Manchester, M1 4HT, UK

PANORAMICA

Nota:

89 Princess Street, Manchester, M1 4HT, UK

OVERZICHT

Opmerking:

11 Schoonwatertank (CWT)

12 Handgreep vuilwatertank

13 Vuilwatertank (DWT)

89 Princess Street, Manchester, M1 4HT, UK

WIDOK OGÓLNY

Uwaga!

NIE UŻYWAĆ GORĄCEJ WODY.

CO OBEJMUJE GWARANCJA?

89 Princess Street, Manchester, M1 4HT, UK

GENEL BAKİŞ

Not:

tinecoglobal

www.tineco.com

Contact us - We'll get back to you within 1 business day.
