USER MANUAL PW11 Pro Max JIMMY

Technical line drawing of a vertical cylindrical device with mounting base (no text or symbols)

PW11 Pro Max

Instruction Manual Cordless Vacuum&Washer

Instrukcja Obsługi Bezprzewodowy odkurzacz i mop

Gebrauchsanweisung Schnurloser Staubsauger&Waschmaschine

Manuel d'instruction Aspirateur et laveur sans fil

Manuale d'uso Aspirapolvere e lavapavimenti senza fili

Manual de instrucciones Aspiradora y Lavadora sin cable

Инструкция по эксплуатации Беспроводной пылесос с функцией влажной уборки

>100% of the total.

Contents

English 2

Polski 15

28Deutsd

Français 42

Italiano 56

Español 70

русский язык 84

Important Safety Instructions

1. Read all instructions and warnings before using this appliance. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury.
2. When using appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury.

Warning

1. The appliance is only for household use.
2. Before use the product, check whether the local voltage is consistent with the voltage marked on the charging base.
3. Inspect the product before use, stop use if the product or charging base is damaged.
4. Use only as described in this manual.
5. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved children shall not play with the appliance cleaning and user maintenance shall not be made by children without supervision.
6. Do not use this product as a toy. Keep this product away from the reach of children. Take care of children and make sure they will not regard this product as a toy.
7. Do not touch plug with wet hand.
8. Use extra care when cleaning on stairs to prevent falling.
9. Do not use or disassemble or replace any component if there is damage on power cord, plug, battery or conductive parts. Disassembly or replacement of the components by yourself may cause electric shock or fire. JIMMY will not take responsibility. Once damaged, the product need to be repaired or replaced by JIMMY, JIMMY's distributor or qualified person designated by JIMMY to avoid injury.
10. Recharge only with the charging base model specified by JIMMY.
11. Only to use the battery pack specified by JIMMY. Use of any other battery pack may cause explosion, injury and or product damage.
12. If the product does not operate in accordance with the instructions, is seriously impacted, falls from a height, is damaged, or falls into the water, do not use it and contact JIMMY or JIMMY distributor.
13. Only use JIMMY specified replacement parts or attachments.
14. Do not pull or press the cable. Keep cable away from heated surfaces. Do not place the cable in a closed door or pull it through a sharp edge or corner. Keep the cable away from walking area. Do not operate product across the cable.
15. Unplug the product when it is not used or before repairing.
16. Do not drag the cord or carry cord to move the product, or use cord as handle.
17. The product is a rechargeable electric appliance. Do not leave the machine to run unattended
18. Remove battery pack when the product is cleaned, repaired or long idled.
19. Do not get close to heating appliance or expose under sunshine longtime, to prevent over heating causing housing deformation.
20. Keep objects that may obstruct air path from air inlet and outlet to prevent machine overheating.
21. Product mainbody and floorhead have electric components, cannot be washed under water.
22. Do not clean or disassemble brushroll cover or brushroll when the machine is power on or under working to prevent injury.
23. Do not use the product to pick up flaming objects like burning charcoal or cigarette etc.
24. Do not use the product to pick up sharp objects like broken glass.
25. Do not use the product to pick up lime, cement, toner, gypsum powder, flour and other ultra-fine substances.
26. Do not use the product to pick up acid-base cleaning liquid, washing powder and other corrosive liquids.
27. Do not use the product to pick up inflammable and explosive objects like gasoline, alcohol, perfume, paint, etc.
28. Do not disassemble the closed machine, and do not try to change the performance of the machine. Only get help from the professional personnel of the manufacturer, its maintenance department or similar departments, otherwise it will cause danger.

29. Turn off power and unplug charger if the products is long idled.

30. Product technical specification of this manual are based on results from lab tests of JIMMY or designated third parties. The company reserves all rights for final explanations.

About use of the product

1. This product is suitable for hard floor in indoor environment, including waxed floor, rubber floor, tile floor and sealed wood floor, solid wood floor and other flat surface, use of the product on unflat ground may not achieve the best effect.
2. Do not turn on the machine before dirty water tank and clean water tank are assembled in place according to instruction.
3. Do not shake the product up and down or collide violently to prevent dirty water from flowing into the motor; when the product is turned on, do not lift or carry the machine up and down, and do not tilt the product to one side or lay it flat on the floor to prevent dirty water from flowing into the motor.
4. Do not run the product for a long time with the float blocking the air inlet to avoid damage.
5. After using the product, clean the dirty water tank, suction nozzle, air path and store it in ventilated and dry place. Wet place will affect the insulation and life of electrical appliances.

About Cleaning Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the appliance.
2. Mix the solution with clean water according to the instructions (the ratio of solution to clean water is 1:50). It is recommended to use provided cleaning solution. Do not use cleaning solution contains acid, alkali, alcoholic solution or substances harmful to the environment.
3. Keep cleaning solution out of reach of children. If any solution gets into the eyes, immediately flush them with clean water. If any solution is swallowed by accident, see medical care immediately.
4. Dirty water and solution disposal should comply with local environmental regulations.

About disposal of battery

1. The battery in the product contains materials harmful to the environment. Take out the battery pack from the product before disposal.
2. Turn off the product and unplug adaptor before taking out battery pack.
3. Handle the waste battery pack safely and properly. Do not put it into fire, water or soil.
4. If the disposed battery leakage causes pollution to skin or clothes, Wash with clean water and see medical care immediately.

The product may have following signs, which have following meanings:

Sign Meaning
	Pay attention to high-temperature surfaces, as they may become hot during use. Be careful of burns
	Do not use during bathing or showering
	Powered head of water vacuuming device
	Do not cover up
	Water proof grade

Chapter 1 Product Assembly

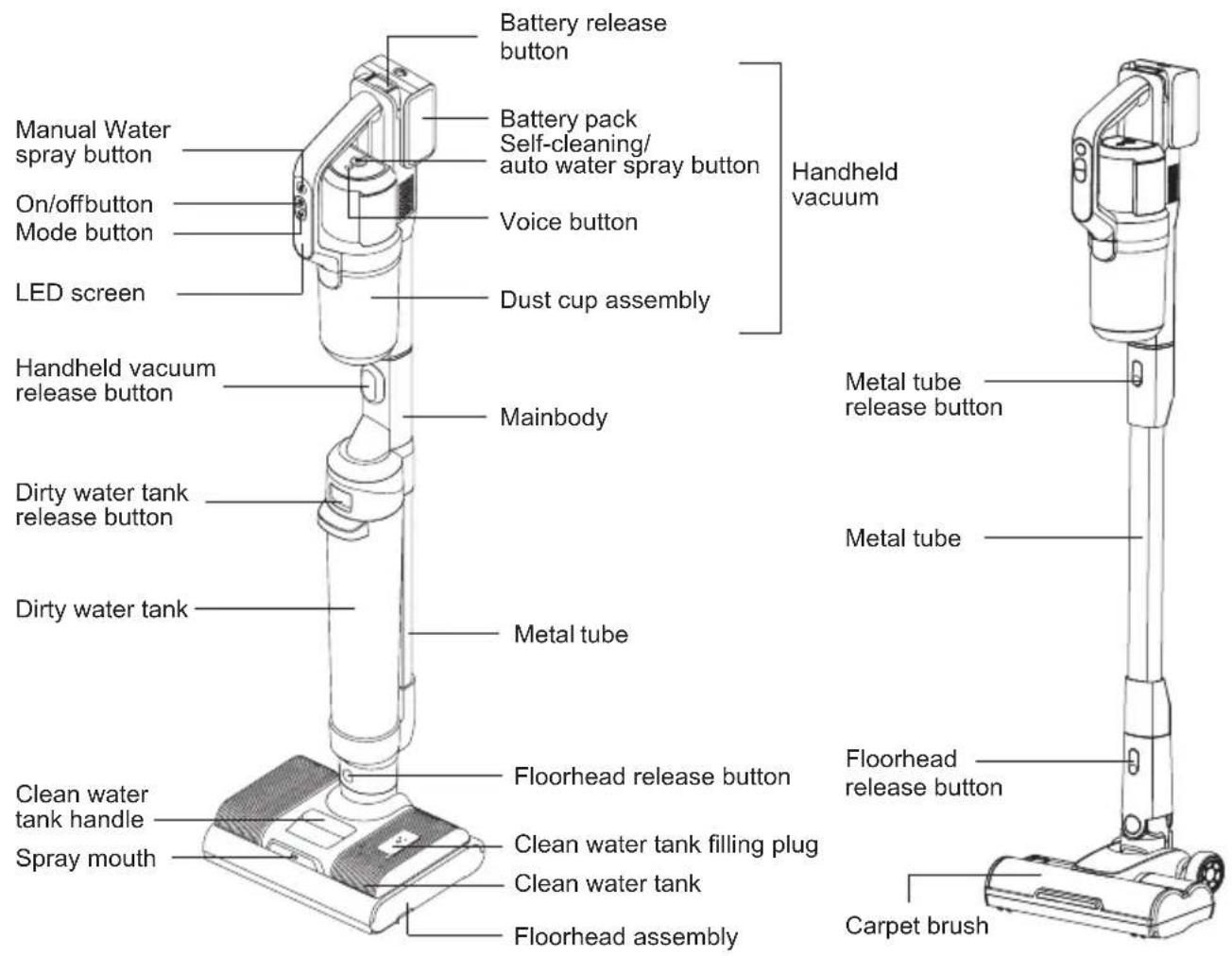

Part Name

Battery release button Battery pack Self-cleaning/ auto water spray button Handheld vacuum Manual Water spray button On/offbutton Mode button Voice button LED screen Dust cup assembly Handheld vacuum release button Mainbody Metal tube Dirty water tank release button Dirty water tank Metal tube Clean water tank handle Spray mouth Floorhead release button Clean water tank filling plug Clean water tank Floorhead assembly Metal tube release button Metal tube Floorhead release button Carpet brush

Charging base upper Charging base Crevice tool Electric mattress head Cleaning brush Cleaning solution Power cord Upholstery tool Accessory holder tube Accessory holder

Packing list

Handheld vacuum	Mainbody assembly	Floorhead Battery pack		Charging base upper	Charging base lower
1 1 1 1 1	1
Carpet brush Upholstery tool Crev	ice tool Cleaning brush Cleaning solution				Electric mattress head
1 1 1 1 1	1
Metal tube	Accessory holder tube	Accessory holder	Power cord	Instruction manual
1 1 1 1 1

Product assembly and disassembly

Note: Cut off power before disassembling or assembling the product.

Mainbody assembly and disassembly

When installing the mainbody, insert the end of the mainbody into floorhead connector vertically until a "click" sound is heard. Ensure that mainbody is tight and not loose. To remove the main body, simply press the floorhead release button and lift the main body upward. (Fig 1)

Battery pack assembly and disassembly

1. Hold battery and slide down along the leading slot, press down until a "click" sound is heard.
2. Press battery release button, pull battery pack upward to take it out.(Fig 2)

Note: No need to take out battery unless it needs replacement.

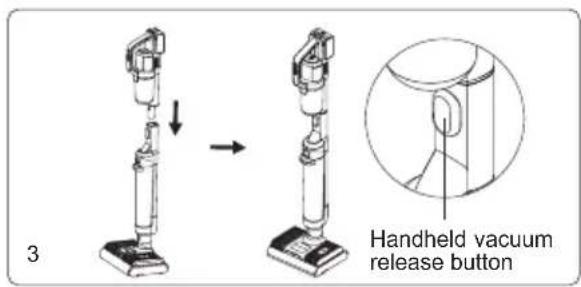

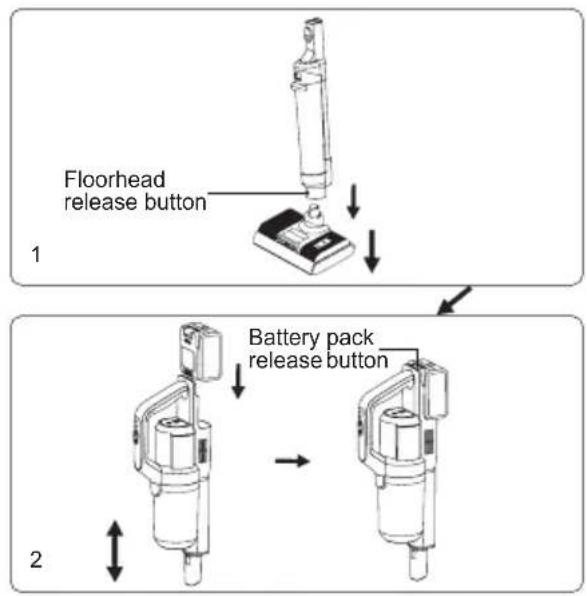

Handheld vacuum assembly and disassembly

Insert the end of the handheld vacuum installed with the battery pack into mainbody connector vertically until a "click" sound is heard. Ensure that the handheld vacuum is tight and not loose.

In this status, the product is used as a cordless vacuum and washer. To remove the handheld vacuum cleaner separately, simply press the handheld vacuum release button and lift it up vertically. (Fig 3)

Floorhead release button Battery pack release button

3 Handheld vacuum release button

4 Drity water tank release button

Dirty water tank assembly and disassembly

To assemble dirty water tank, locate dirty water tank bottom to mainbody tray slot and then push dirty water tank towards mainbody until a "click" sound is heard. To take out dirty water tank, hold mainbody with one hand and dirty water tank handle with another hand, press dirty water tank release button with thumb and pull dirty water tank out. (Fig 4)

Charging base assembly

Press charging base upper towards charging base lower as the picture show. After a "click" sound is heard and clips are located in corresponding holes, the assembly is completed. (Fig 5)

Machine charging and placement

Place the floorhead in upright position, lift the machine, align the charging slot at the rear of the machine with the charging socket on the charging base, and gently place down the machine into the charging base; To take out the machine, hold the handheld vacuum handle and directly pull the machine out of the charging base. (Fig 6)

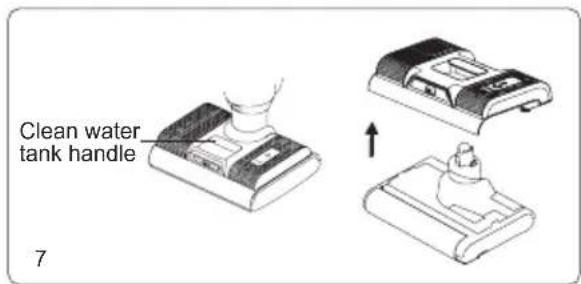

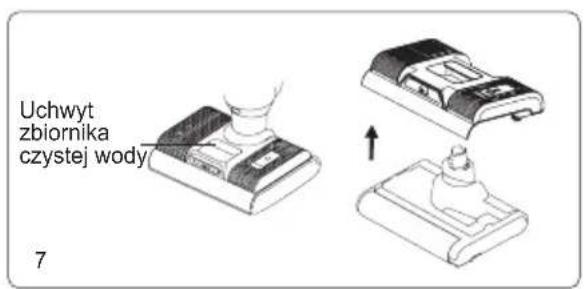

Clean water tank assembly and disassembly

To remove clean water tank, hold the clean water tank handle and pull it upward to remove the clean water tank. To install clean water tank, place it on floorhead and press down until a "click" sound is heard. (Fig 7)

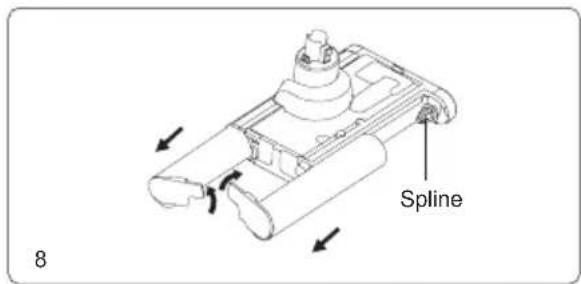

Brushroll assembly and disassembly

To remove the brushroll, remove clean water tank first, and then press floorhead with one hand, rotate the brushroll end cap upwards with another hand, and remove brushroll outwards; When installing the brushroll, first align one end of the brushroll with the spline, rotate it inward to the bottom, and then rotate the brushroll end cap in another end of brushroll to lock the brushroll. (Fig 8)

Assembly and disassembly of metal tube and carpet brush

By assembling handheld vacuum cleaner, metal brush and carpet brushroll together, the product can be used as a cordless stick vacuum cleaner. When assembling metal tube, align metal tube connector with handheld vacuum mouth and push toward the vacuum until a "click" sound is heard. To remove metal tube, press release button and pull metal tube. Assembly and disassembly of carpet brush is the same. (Fig 9)

Charging base upper Charging base lower 5

Mechanical device with a cylindrical component and a base, showing a downward arrow indicating motion (no text or symbols present)

Clean water tank handle 7

Spline 8

Diagram of a vertical vacuum cleaner with downward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with multiple ports and a base (no text or symbols)

Assembly of accessory holder and accessories

When assembling accessory holder, insert holder tube connector into accessory holder connector vertical and push downward until a "click" sound is heard. Put the accessories on to the holder in correct position indicated in the picture. (Fig 10)

Chapter 2 Use of the Product

Note: Before use, please check whether the machine has power, if no power, please fully charge the machine before using it.

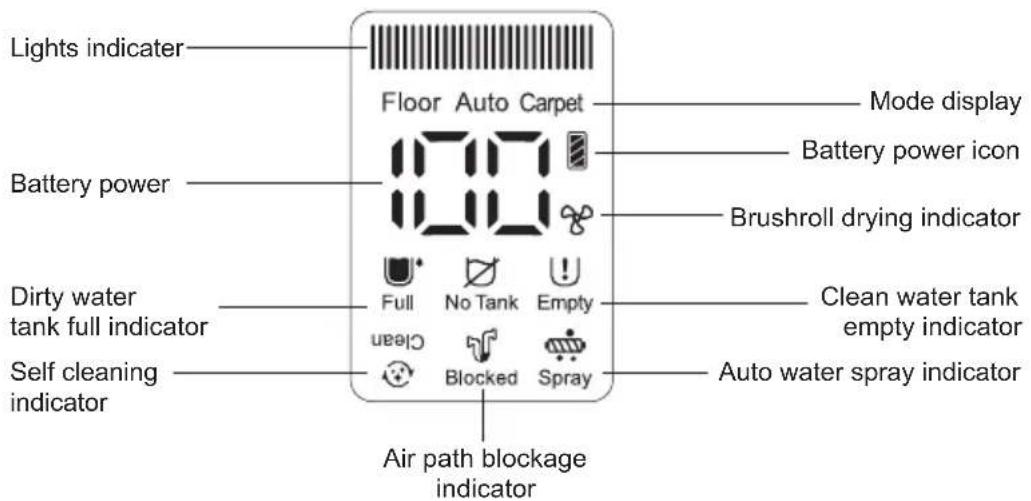

LED screen and instructions

Lights indicator Floor Auto Carpet Battery power Dirty water tank full indicator Self cleaning indicator Air path blockage indicator Mode display Battery power icon Brushroll drying indicator Clean water tank empty indicator Auto water spray indicator Full No Tank Empty Clean Blocked Spray

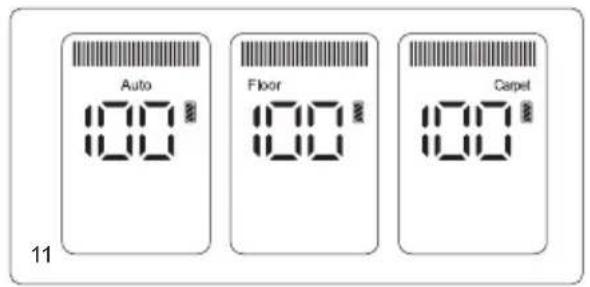

Use of stick vacuum and washer

In the upright tilt state, press the on/off button and product start to work. Default mode is in Auto mode, press the mode button to switch among floor mode, carpet mode and Auto mode, accompanied by voice reminding. Press the on/off button again, the voice reminds "Machine turning off", the main motor will run for 2 seconds, the machine stops working. (Fig 11)

In Auto mode, the machine power changes automatically basing on how much dirty water or dust is detected. And LED light colour changes accordingly. The more dirty water or dust is detected, the more red lights. And the less dirty water or dust is detected, the more blue lights. Notes:

1. When cleaning carpet, please clean the floorhead first (refer to "Cleaning and Maintenance, Floorhead Cleaning" for details) and to deep clean carpet it is recommended to replace the carpet brush. (Carpet brush can be selected according to your own needs and sold at JIMMY distributors)

2. When the battery level is lower than 20%, it cannot be switched to Carpet mode.

Auto Floor Carpet 11

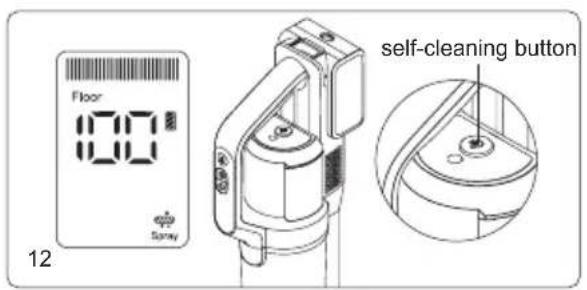

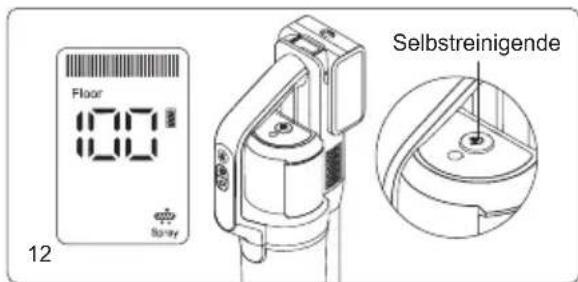

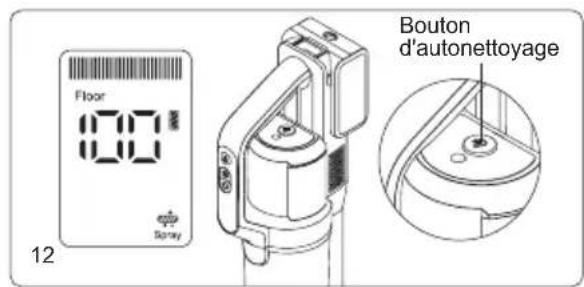

Floor 100% Spray self-cleaning button 12

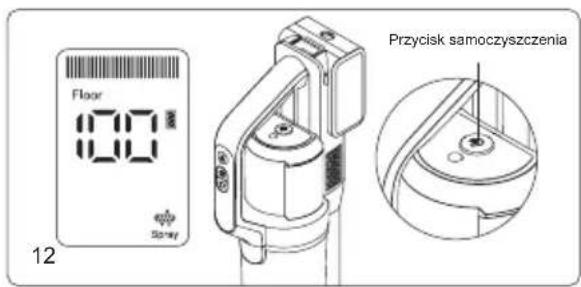

When upright vacuum cleaner is working, press the water spray button, the auto water spray function is open by default. LED screen will show auto spray indicator and clean water will be sprayed to brushroll automatically. To turn off auto water spray function, keep pressing the self cleaning button for over 3 seconds when product is on. To turn on auto water spray function again, keep pressing the self cleaning button for over 3 seconds when product is on.(Fig 12)

If floor is very dirty, you can choose to spray more water to floor by using manual water spray function to improve floor washing effect. With the machine turned on, press manual water spray button, spray mouth sprays fan-shaped water; release the water spray button to stop spraying water. Manual water spray function can be activated no matter whether auto water spray function is turned on or off. (Fig 13)

Note:

1. The manual water spray button cannot be used with the on/off button or the mode button at the same time.
2. It is recommended to use carpet mode when there is heavy pollution or water stain.
3. When cleaning carpet, please turn off auto water spray function.
4. Please use the low-foam cleaning solution with this product for cleaning, do not put the easy foaming cleaning solution into the clean water tank for use, otherwise more foam will be generated during use, which may penetrate into the machine and cause danger.

Product lay flat to vacuum function

When product is laid flat to clean under furniture, working power will automatically drop. This is normal. When product is laid flat, do not shake the product violently to prevent water entering dust cup.

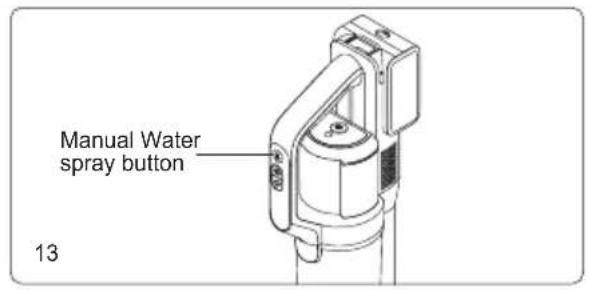

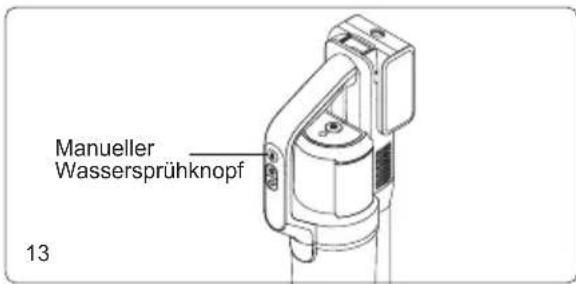

Manual Water spray button 13

Metal tube 14-1 Carpet brush

Button Upholstery tool 14-2

Button Crevice tool 14-3

Button Electric mattress head 14-4

Use of handheld vacuum cleaner

1. Take off handheld vacuum cleaner and connect with accessories needed. Press on/off button. Display screen will light up. Default mode is floor mode. Press mode button to switch between floor mode and carpet mode. Press on/off button again to turn off the vacuum cleaner and display screen will extinguish.

2. Handheld vacuum cleaner can be connected to metal tube and carpet brush to use as a stick vacuum cleaner to vacuum floor and carpet. It can also connect with different accessories like upholstery tool, crevice tool, electric mattress head for different cleaning purpose (Fig 14). Aim the accessory to handheld vacuum mouth and push upward until a "click" sound is heard. Push the button on accessory to remove accessory from vacuum cleaner. Note:

3. Other accessories like pet brush or stretch hose can also be bought from JIMMY local distributor if needed.

4. When the battery level is lower than 20%, the machine switches to the floor mode automatically.
5. Do not use handheld vacuum cleaner and carpet brush to pick up liquid.

Product charging

Connect power cord to power socket, put stick vaccum cleaner to charging base to start charging.

Note:

1. Fully charge battery pack before first use. Empty battery power before second charge to ensure life of battery pack.
2. If the product is to be long idled, please charge it once every three months. (Please only use power cord supplied with the unit)
3. When not charging, please remove the charging base power cord from power socket to prevent the danger of accidental touching.
4. If need to charge the battery separately, applicable charger can be bought from JIMMY distributor.

Hot drying function

Under charging mode, press mode button to enter hot dry mode. Hot air will dry entire air path including burshroll, dust cup and dirty water tank for about 0.5 hour and then only dry brushroll for another 2.5 hours. In the first 0.5 hour full air path drying, vacuum motor will work to send hot air through the full air path.

To stop drying air path and only keep brushroll drying for silent drying mode, press on/off button, vacuum motor will not work in this mode.

To turn on and turn off hot air drying function, press mode button.

Note: This function is to prevent humid brushroll to breed bacteria or reduce odor.

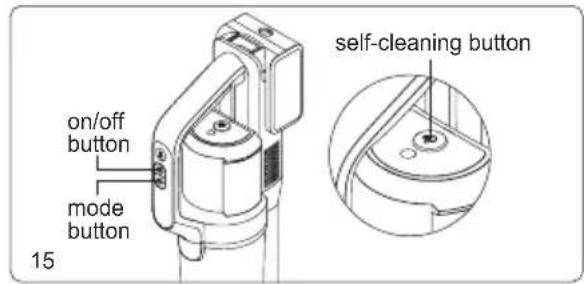

on/off button mode button self-cleaning button 15

Hot drying mode 30 16-1

Self cleaning mode Clean 16-2

Brushroll and air path self cleaning function

Under charging mode, press self cleaning button to enter self cleaning mode (Fig 15). After self cleaning, product automatically enters brushroll hot drying mode. During self cleaning, if need to complete self cleaning in advance, press on/off button or mode button. And product will go back to charging mode and fan will turn off after 3 minutes.(Fig 16)

Charging mode 30 16-3 17

Water filing plug

Note:

1. Before start self cleaning, please drain the dirty water tank and make sure product is placed on charging base, power cord is connected to power socket and charging base, and there is at least 50% water in clean water tank. After self cleaning, please clean dirty water tank again.

2. When the power is lower than 10%, the machine cannot enter the self cleaning mode or hot drying mode. After charging for a period of time, it can work on self cleaning mode or hot drying mode.

Clean water tank empty indicator

1. During use of the stick vacuum and washer, if LED screen shows " ⭕ " and the voice reminds "No clean water, please fill water", please fill clean water into clean water tank and then continue to use directly.

2. During self cleaning, if there is no water inside clean water tank, the self washing automatically stop and the voice reminds "No clean water, please fill water". Please fill clean water into clean water tank and then press self cleaning button again to restart self cleaning.

Fill up clean water tank

Fill up clean water tank: After removing the clean water tank, open the water filling plug, flip it upward to expose the water inlet hole, pour clean water and cleaning solution in, and then plug back to the original position and reinstall the clean water tank to floorhead. (Fig 17)

Note: When adding clean water, you can add the JIMMY cleaning solution equipped with the product, the ratio is about two bottles of cleaning solution to one full water tank, the water temperature cannot exceed 40°C.

Dirty water tank full indicator

1. When the stick vacuum and washer detects that the dirty water tank is full, the machine will stop working and give a voice reminder. Please clean the full dirty water tank and put it back before use.

2. When it is detected that the dirty water tank is full in self cleaning mode, the machine will stop working and give a voice reminder. Please clean the full dirty water tank and put it back and repress self clean button to restart self cleaning.

Dirty water tank cleaning

Take out dirty water tank upper cover and filter frame, dump the dirty water, assemble the dirty water tank after washing, and put it back to the mainbody. (refer to Cleaning and Maintenance of dirty water tank" for details)

Brushroll stuck indicator

When the cleaner is in vacuuming or self cleaning mode, if the brushroll is stuck, the machine will stop and give a voice reminder. Please take out brushroll, clean the foreign matter attached to the brushroll or the hair winding on brushroll and reassemble the brushroll into floorhead to resume working.

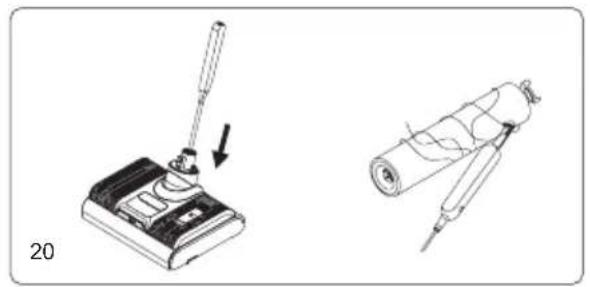

Brushroll cleaning

After removing the clean water tank, pull out brushroll, use the blade on the mini brush to cut the hairs winding on brushroll, and clean the foreign matter attached to the brushroll and floorhead, Install brushroll and window back. (refer to "Cleaning and Maintenance of Floorhead Assembly" for details)

Air path blocked indicator

1. When the stick cleaner is in working or self clean mode, if the air path is blocked, the machine will stop working and give a voice reminder. Please clean possible blocked areas like handheld vacuum dust cup, nozzle air path, dirty water tank in sequence. After cleaning, restart the machine to work.
2. When handheld vacuum cleaner is working, if the air path is blocked, cleaner will automatically stop. At this time, the dust cup and HEPA need to be cleaned.

Air path cleaning

Disassemble the dirty water tank, take out dirty water tank upper cover and garbage basket, wash all parts and them assemble back. Use cleaning brush to clean the dirt, foreign objects and hair inside air path of floorhead. Put dirt water tank back into mainbody.

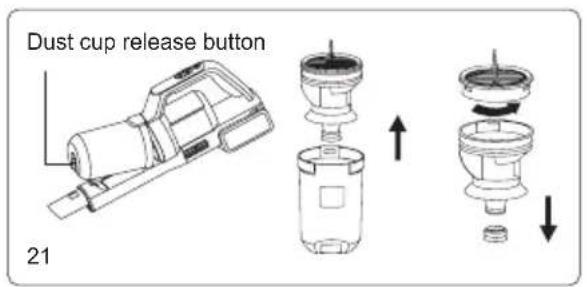

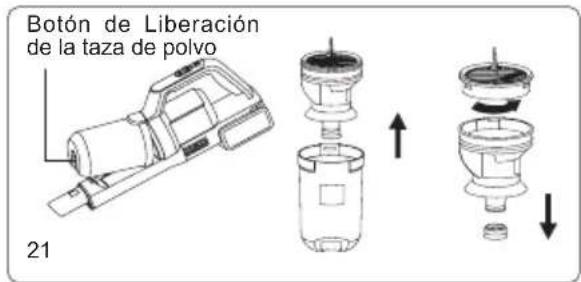

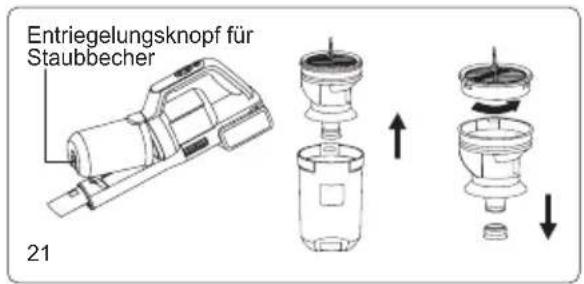

Remove the dust cup, then take out cyclone, empty the dust cup, remove HEPA, clean all parts and reassemble the dust cup. (Refer to "Cleaning and Maintenance" for details)

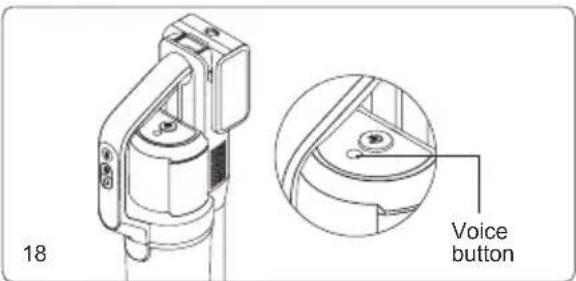

Voice reminding function

The product includes voice reminding of 5 different language: English, German, Italian, French and Russian.

Voice of the new machine is turned on and in English by default, press the voice button to switch to other language, keep pressing the voice button to turn off the voice function; press the voice button again to turn on the voice function. (Fig 18)

Note: When the product is used as handheld vacuum cleaner or stick vacuum cleaner, there is no voice function.

18 Voice button

Battery low power indicator

1. When the stick cleaner is working, if the voice reminds "Low battery. Please charge the battery", Please use it after charging.

2. When the stick cleaner is working, if the voice reminds "Low battery. Machine will be turned off soon. Please charge the battery", the power is about to be exhausted, and it will automatically shut down. Need to charge for use.

3. When using vacuum cleaner, the icon on LED screen displays left working minutes. When battery power is lower than 20%, the battery icon on right top corner turns from white to red.

Chapter 3 Cleaning and Maintenance

Dirty water tank cleaning

After turning off the vacuum cleaner, remove the dirty water tank, lift the water tank top cover, and remove the filter frame from it, open the flip cover of the filter frame, take out the filter. Pour out dirty water and dirt in the water tank, then wash dirty water tank, water tank cover, filter frame and filter. If there is foreign matter in the dirty water tank pipe, it can be cleaned with cleaning brush; dry the above parts after washing. And then reassemble all the parts back into dirty water tank. Put dirty water tank back into mainbody to continue working. (Fig 19)

Dirty water tank cleaning 19

Note:

1. After using stick vacuum cleaner, it is recommended to clean the dirty tank immediately;
2. When reinstalling the garbage basket, do not fold the black soft rubber under the filter.

Illustration of a medical or laboratory setup with a tool and a rolled tube, both without any visible text or symbols.

Floorhead cleaning

After removing the clean water tank, brushroll, and dirty water tank, insert the cleaning brush through the circular hole below the installation position of the mainbody to clear foreign matter and scales in the pipe, and the clogged hair; Use the blade on the mini brush to cut off the entangled hair on the brushroll; Wipe the dirty parts of the machine and then assemble them back into machine (the brushroll can be placed in the brushroll housing for drying). Wash clean the cleaning brush and then put it back into brushroll housing. (Fig 20)

Note: Do not wash the floorhead with water!

Dust cup release button 21

Dust cup cleaning

Press the dust cup release button to remove the dust cup from the handheld vacuum cleaner. Lift the metal handle on cyclone to pull out cyclone assembly and empty dust cup. Hold metal handle and rotate to remove HEPA. (Fig 21)

Maintenance and Storage

1. it is recommended to clean the dirty water tank, dust cup, brushroll after each use. If there is any of below situation:
   1) HEPA filter leaks dust.
   2) Foam filter severely damaged.
   3) The brushroll has serious hair loss, or has strong vibration and abnormal noise during use.
2. It is recommended to purchase consumables and replace it to avoid machine performance.
3. when the machine is long idled, place it in a cool and dry place, avoid direct sunlight or wet environment. When pack and store the machine, please be sure to clean the machine and dry all parts to prevent damage to the machine.

Troubleshooting

Please check the following points before contacting the after sale service.

Problem Possible cause	Solution
Can not start or stop during use	Low battery power Recharge battery
	On/off button is not pressed down Press	down on/off button
	Brushroll is entangled Clean brushroll
	Dirty water tank full Clean dirty water tank
	Battery pack not assembled properly	Reassemble battery pack
	Air path blocked Clean air path and filter
Weak suction	Suction inlet blocked Clean suction inlet and filter
	No HEPA assembled Assemble HEPA
Abnormal noise	Suction inlet blocked Clean suction inlet
	No HEPA assembled Assemble HEPA
Spray mouth does not spray water	Clean water tank empty Fill clean water tank
	Water spray button not pressed Press	water spray button
	Clean water tank not assembled properly	Reassemble clean water tank
Water spray out from air path	HEPA and dust cup are put to use without fully dry	Dry the HEPA and dust cup after washing before use
	Filter is not assembled in the dirty water tank	Assemble filter in dirty water tank
	Soft plastic folds under the filter	Reassemble the filter, the soft glue must not be folded

Note: If the above troubleshooting guide fails to provide a solution or the screen displays error code F0 to F9, please contact after service or local distributor for support.

Product Specification

Technical specification

Product name Cordless Vacuum&Washer
Model PW11 Pro Max
Rated Power 460W
Battery Capacity 4600mAh 21.6V	==
Charging Time 5h±0.5h
Rated Input 220-240V~ 50-60Hz
Rated Voltage 21.6V	==

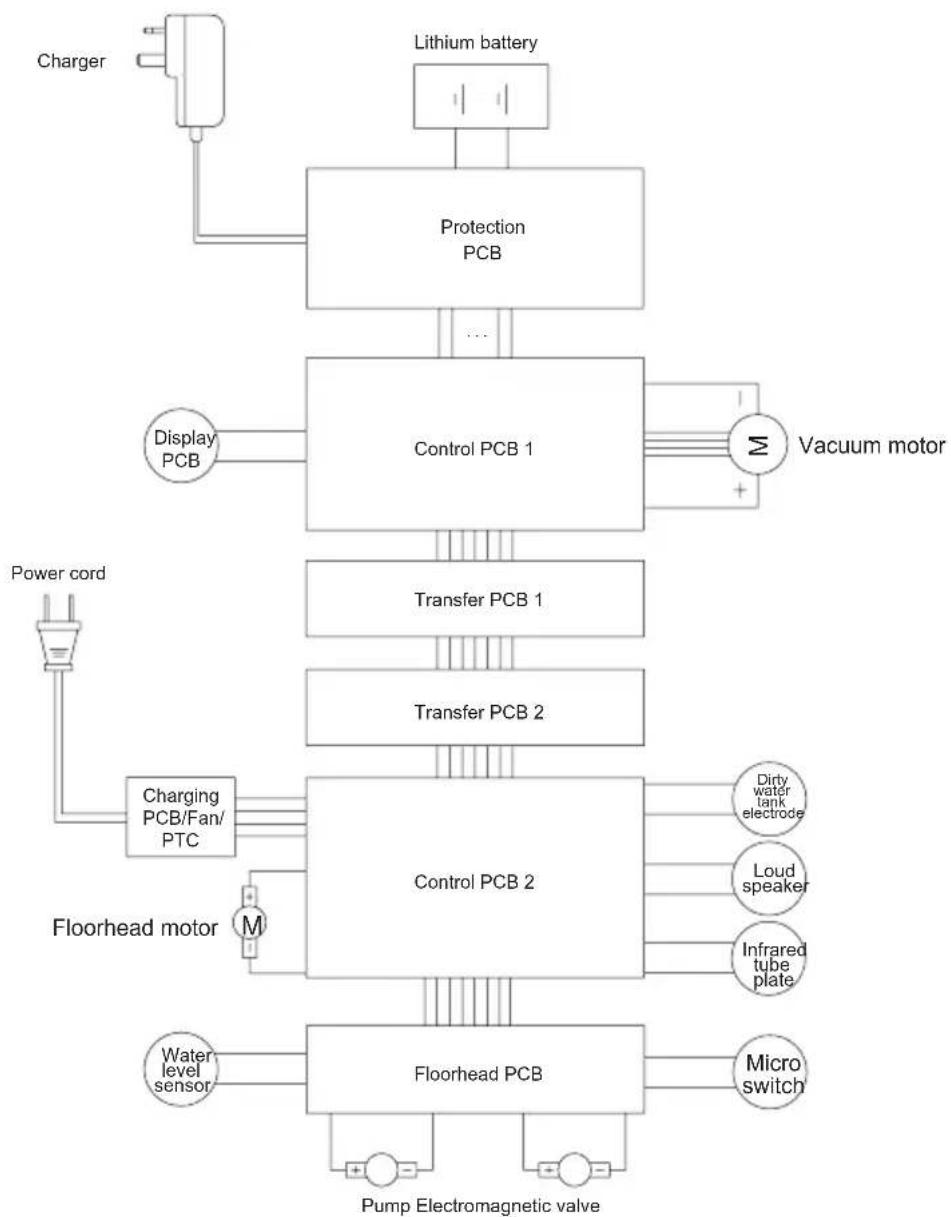

Circuit Diagram

Manufacturer Information

Manufacturer	Kingclean Electric Co., Ltd
Address	No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China

CE

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the machine into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Integrated batteries may only be removed for disposal by qualified personnel. Opening the housing shell can damage or destroy the machine.

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possible, be discharged, collected, recycled or disposed of in an environmental-friendly manner.

Subject to change without notice.

Warranty Information

This product enjoys two years warranty from the date of purchase.

Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances.

Mechanical device with a vertical cylindrical component and a base, showing a downward arrow indicating motion (no text or symbols)

Illustration of a vertical vacuum cleaner with downward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with multiple components and no visible text or symbols

Użycie produktu

Auto Floor Carpet 11

Floor 100% 100% 12 Przycisk samoczyszczenia

Illustration of a medical or laboratory procedure: a device with a needle inserted, and a rolled-up cylindrical object (no text or symbols present)

Diagram of a vacuum cleaner with downward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with multiple components and no visible text or symbols

Auto 11 Floor 100 Carpet

Floor 100% 12 Selbstreinigende

Illustration of a medical or laboratory procedure: a tool on a device being inserted, and a wrapped cylindrical object with internal lines (no text or symbols)

Technical line drawing of a mechanical device with multiple legs and components (no text or symbols)

Line drawing of a vacuum cleaner with downward arrows indicating motion (no text or symbols)

Auto Floor Carpet 11

Floor 100 100 Spray 12 Bouton d'autonettoyage

Remarque:

Illustration of a medical or laboratory procedure: a tool being inserted into a device, and a wrapped cylindrical object with a needle inserted (no text or symbols present)

Remarque:

Machine charging and placement

Mechanical device with a cylindrical component and a base, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with downward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Auto 11 Floor 100 Carpet

Illustration of a medical or laboratory procedure: a tool on a device being inserted, and a wrapped cylindrical object with a pen (no text or symbols present)

Diagram of a vacuum cleaner with downward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with multiple components and no visible text or symbols

Auto Floor Carpet 11

Illustration of a medical device with a needle inserted and a rolled tube wrapped around it, no text or symbols present.

Do not dispose of the machine into household waste!

Mechanical device with a cylindrical component and a base, showing a downward arrow indicating motion (no text or symbols present)

Diagram of a vertical cylindrical device with two downward arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical device with multiple rods and a base mount (no text or symbols)

Auto Floor Carpet 11

Illustration of a handheld device with a pen and a rolled cylindrical tool, both without any text or symbols.

>100% of the total.

>100%

2N-01

JIMMY
