USER MANUAL GST 183-LI Professional BOSCH

General Power Tool SafetyWarnings

WARNING

Read all safety warnings, instructions, illustrations and specifica

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten

tion while operating power tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
  When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
  Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
  Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
  Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
- Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety instructions for jigsaws

Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory

contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.
- Keep hands away from the sawing area. Do not reach under the workpiece. Contact with the saw blade can lead to injuries.
Only bring the power tool into contact with the workpiece when switched on. Otherwise there is danger of kickback if the cutting tool jams in the workpiece.
Ensure that the footplate always rests securely while sawing. A jammed saw blade can break or lead to kickback.
When the cut is completed, switch off the power tool and then pull the saw blade out of the cut only after it has come to a standstill. In this manner you can avoid kickback and can place down the power tool securely.
Always wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool.
Use only undamaged saw blades that are in perfect condition. Bent or dull saw blades can break, negatively influence the cut, or lead to kickback.
Do not brake the saw blade to a stop by applying side pressure after switching off. The saw blade can be damaged, break or cause kickback.
Only use the power tool with the base plate. If you do not use the base plate, you are at risk of not being able to control the power tool.
Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
Do not open the battery. There is a risk of short-circuiting.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
Only use the battery in the manufacturer's products. This is the only way in which you can protect the battery against dangerous overload.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

Product Description and Specifications

Read all the safety and general instructions.

Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The power tool is intended for making separating cuts and cut-outs in wood, plastic, metal, ceramic plates, rubber and laminate/HPL (High Pressure Laminate) while resting firmly on the workpiece. It is suitable for straight and curved cuts with metre/bevel angles of up to 45^ . The saw blade recommendations are to be observed.

Product Features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Stroke rate preselection thumbwheel
(2) Lock-off function for On/Off switch
(3) On/off switch
(4) Hex key
(5) Rechargeable battery release button
(6) Rechargeable battery
(7) Handle (insulated gripping surface)
(8) Orbital action adjusting lever
(9) Base plate

(10) Saw blade
(11) Shock protection guard
(12) Guide roller
(13) Saw blade receptacle
(14) Worklight
(15) Anti-splinter guard
(16) Hood for dust extraction a)
(17) Extraction outlet
(18) Extraction hose^a)
(19) Base plate screw
(20) Scale for metre/bevel angles
(21) Guide for parallel guide
(22) Locking screw for parallel guide
(23) Parallel guide with circle cutter
(24) Circle cutter centring tip a)

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Cordless jigsaw GST 183-LI
Article number		3601 EB7 0..
Rated voltage V= 18
No-load stroke rate n0A)	min-1	0-3300
Stroke mm 20
Max. cutting depth
-in wood mm 95
-in aluminium mm 15
-in steel (unalloyed) mm 8
Max. cutting angle (left/right) °45
Weight according to EPTA-Procedure 01:2014	kg 2.0-3.0	B)
Recommended ambient temperature during charging	°C 0 to +35
Permitted ambient temperature during operation and during storage	°C -20 to +50
Compatible rechargeable batteries		GBA 18V... ProCORE18V...
Recommended rechargeable batteries		GBA 18V... ≥4,0 Ah ProCORE18V... ≥4,0 Ah
Recommended chargers GAL 18...		GAX 18... GAL 36...

A) Measured at 20 - 25^ with rechargeable battery GBA 18V 4.0Ah.
B) Depends on battery in use
C) Limited performance at temperatures < 0^
Values can vary depending upon the product and are subject to application and environmental conditions. For further information www.bosch-professional.com/wac.

Rechargeable battery

Bosch sells some cordless power tools without a rechargeable battery. You can tell whether a rechargeable battery is included with the power tool by looking at the packaging.

Charging the battery

Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool.

Note: Lithium-ion rechargeable batteries are supplied partially charged according to international transport regulations. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time.

Inserting the Battery

Push the charged battery into the battery holder until it clicks into place.

Removing the Battery

To remove the rechargeable battery, press the battery release button and pull the battery out. Do not use force to do this.

The rechargeable battery has two locking levels to prevent the battery from falling out if the battery release button is pressed unintentionally. The rechargeable battery is held in place by a spring when fitted in the power tool.

Battery charge indicator

Note: Not all battery types have a battery charge indicator. The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation.

Press the button for the battery charge indicator or show the state of charge. This is also possible when the battery is removed.

If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced.

Battery model GBA 18V...

LED Capacity

3× continuous green light 60 - 100%
2× continuous green light 30 - 60%
1× continuous green light 5-30%
1 × flashing green light 0 - 5%

Battery model ProCORE18V...

LED Capacity

5 × continuous green light 80–100 %
4× continuous green light 60 - 80%
3× continuous green light 40 - 60%
2× continuous green light 20-40%
1× continuous green light 5-20%
1× flashing green light 0-5%

Recommendations for Optimal Handling of the Battery

Protect the battery against moisture and water.

Only store the battery within a temperature range of -20 to 50^ . Do not leave the battery in your car in the summer, for example.

Occasionally clean the ventilation slots on the battery using a soft brush that is clean and dry.

A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal.

Assembly

• Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

Inserting/changing the saw blade

• When fitting or changing the saw blade, wear protective gloves. Blades are sharp and can become hot when used for prolonged periods of time.

Selecting the saw blade

You will find an overview of recommended saw blades at the end of these operating instructions. Only use saw blades with single lug shank (T shank). The saw blade should not be longer than required for the intended cut.

Use a narrow saw blade when sawing tight curves.

Inserting the saw blade (see figure A)

Clean the shaft on the saw blade before inserting it.

A dirty shaft cannot be securely fixed in place.

Push the saw blade (10), with the teeth in the cutting direction, into the saw blade receptacle (13) until it clicks into place.

Make sure when inserting the saw blade that the back of the saw blade is in the groove on the guide roller (12).

Check that the saw blade is seated securely. A loose saw blade can fall out and lead to injuries.

Removing the saw blade (see figure B)

Push the saw blade receptacle (13) upwards in the direction of the arrow and remove the saw blade (10).

Anti-splinter guard (see figure C)

The anti-splinter guard (15) can prevent splintering of the surface while sawing wood. The anti-splinter guard can only be used with certain saw blade types and only at a cutting angle of 0^ .

Push the anti-splinter guard (15) into the base plate (9) from below.

Dust/Chip Extraction

The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity.

Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment

10 | English

additives (chromate, wood preservative). Materials containing asbestos may only be machined by specialists.

• Use a dust extraction system that is suitable for the material wherever possible.
• Provide good ventilation at the workplace.
• It is advisable to wear a P2 filter class breathing mask.

The regulations on the material being machined that apply in the country of use must be observed.

• Avoid dust accumulation at the workplace. Dust can easily ignite.

Hood (see figure D)

Fit the hood (16) before you connect the power tool to the dust extraction system.

Attach the hood (16) to the power tool so that the bracket locks into place on the safety guard (11).

Remove the hood (16) when working without a dust extraction system and for metre/bevel cuts. To do this, pull the hood forwards off the safety guard (11).

Connecting the dust extraction (see figures E-F)

Fit the extraction outlet (17) in the recesses of the base plate (9).

Ensure that the cam on the extraction outlet slots into the corresponding recess of the base plate (9) as shown in the figure E.

Connect a dust extraction hose (18) (accessory) to the extraction outlet (17). Connect the dust extraction hose (18) to a dust extractor (accessory).

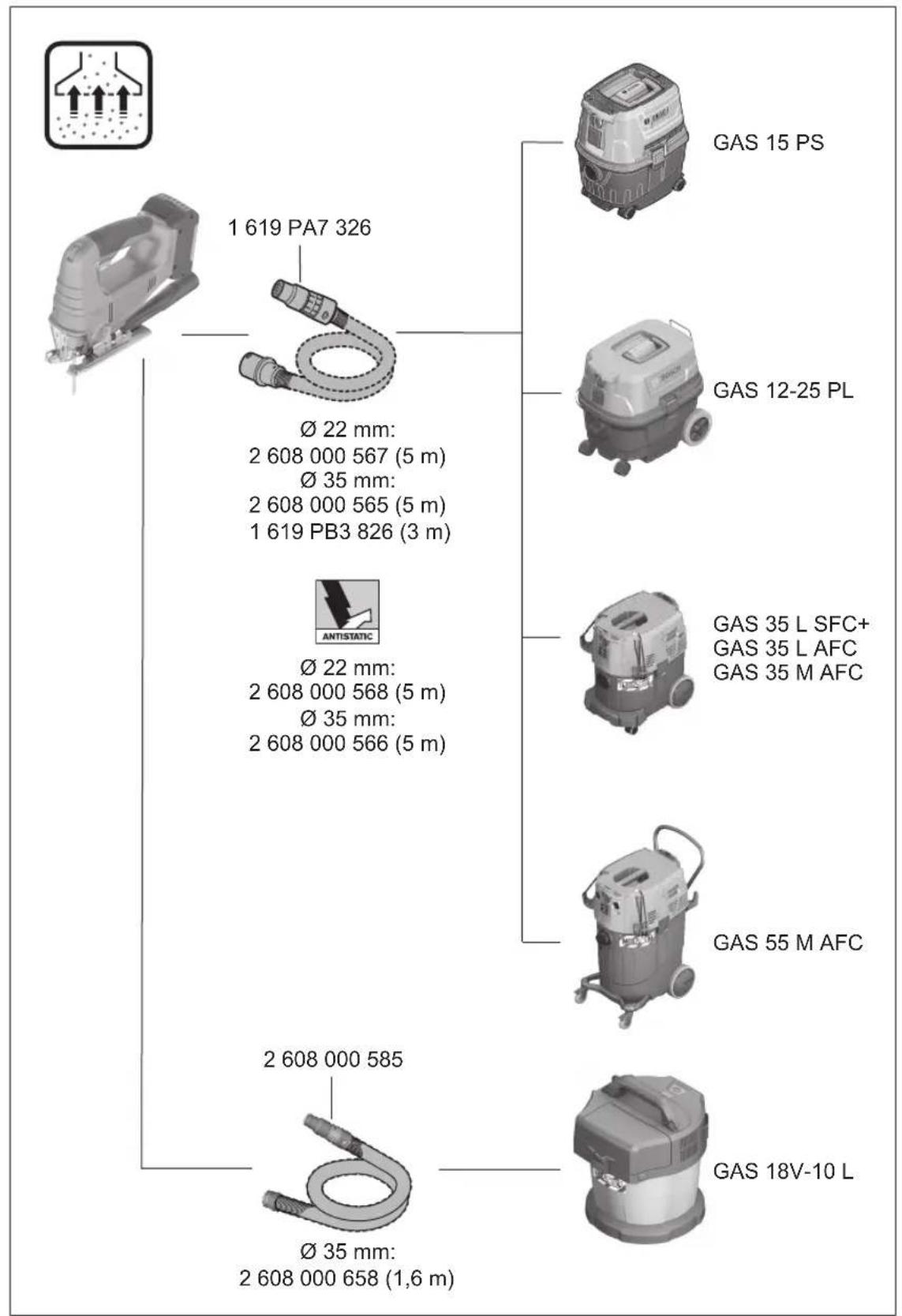

You will find an overview of connecting to various dust extractors at the end of these operating instructions.

For optimum dust extraction, where possible use the anti-splinter guard (15).

The dust extractor must be suitable for the material being worked.

When extracting dry dust that is especially detrimental to health or carcinogenic, use a special dust extractor.

Operation

Operating modes

• Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

Pendulum action settings

The pendulum action can be adjusted using four different settings, allowing the cutting speed, cutting capacity and the cut itself to be optimally adapted to the material that you want to cut.

You can also adjust the pendulum action during operation using the adjusting lever (8).

Level 0 No pendulum action

Level I Low pendulum action

Level II Moderate pendulum action

Level III High pendulum action

The optimum pendulum level for each application can be determined by a practical test. Note the following recommendations:

• Select a lower pendulum level or switch off the pendulum action completely if you wish to produce a finer or cleaner cutting edge.
• Switch off the pendulum action when machining thin materials (e.g. sheets).
• Work on hard materials (e.g. steel) with low pendulum action.
• You can work on soft materials and saw wood using maximum pendulum action.

Adjusting the litre/bevel angle (see figure G)

The base plate (9) can be swivelled to the right or left to make litre cuts up to 45^ .
The hood (16) and anti-splinter guard (15) cannot be used while litre cuts are being made.
- Push the extraction outlet (17) gently upward and pull it out of the base plate (9).
- Remove the hood (16) and the anti-splinter guard (15).
- Loosen the screw (19) with the hex key (4) and slide the base plate (9) slightly towards the saw blade (10).
- The base plate has lock-in points at 0^ and 45^ on the left and right so that precise metre/bevel angles can be set. Swivel the base plate (9) to the required position according to the scale (20). Other metre/bevel angles can be adjusted using a protractor.
- Then push the base plate (9) towards the rechargeable battery asfasasitwillgo.
- Retighten the screw (19).

Starting Operation

Switching On and Off

To switch on the power tool, press the lock-off button (2) next to the symbol first, thereby deactivating it. Then press the on/off switch (3) and keep it pressed.

The worklight lights up when the on/off switch (3) is lightly or fully pressed allowing the work area to be illuminated in poor lighting conditions.

Do not look directly into the worklight; it can blind you.

To switch off the power tool, release the on/off switch (3). Activate the lock-off button (2) by pressing the lock-off button next to the symbol

Controlling/preselecting the stroke rate

You can variably adjust the stroke rate of the power tool when it is on by pressing in the on/off switch (3) to varying extents.

Applying light pressure to the on/off switch (3) results in a low stroke rate. Applying increasing pressure to the switch increases the stroke rate.

You can preselect the stroke rate and change it during operation using the stroke rate preselection thumbwheel (1).

The required stroke rate is dependent on the material and the work conditions and can be determined using practical tests.

It is recommended that you reduce the stroke rate when placing the saw blade on the workpiece and when sawing plastic and aluminium.

During prolonged periods of use at a low stroke rate, the power tool may heat up significantly. Remove the saw blade and let the power tool run at the maximum stroke rate for around three minutes to cool down.

Temperature-dependent overload protection

In normal conditions of use, the power tool cannot be overloaded. If the power tool is overloaded or not kept within the permitted battery temperature range, the speed is reduced or the power tool switches off. At reduced speed, the power tool will run again at full speed once the permitted battery temperature is reached or the load is reduced. If it automatically shuts down, switch the power tool off, allow the battery to cool down, then switch the power tool back on.

Working Advice

• Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
  Switch the power tool off immediately if the saw blade becomes blocked.
  Always use a sturdy support when working on small or thin workpieces.

Before sawing into wood, chipboard, building materials, etc., check for and remove any foreign objects such as nails, screws, etc.

Jigsaws are primarily designed for curved cuts. The range of products from Bosch also includes accessories which enable straight cuts or circular cuts (depending on the jigsaw model, e.g. parallel guide, guide rail or circle cutter).

Hand-held jigsaws generally tend to go off at an angle, i.e. under certain circumstances the angle and cutting accuracy can no longer be ensured. Decisive influencing factors on the accuracy are the saw blade thickness, cutting length and the material thickness and strength of the workpiece.

Therefore, always check using test cuts whether the cutting result of the selected system meets the requirements of your application.

Plunge cutting (see figure H)

Plunge cuts may only be applied to soft materials, such as wood, gypsum board, etc.

For plunge cutting, use only short saw blades. Plunge cutting is possible only with a litre angle of 0^ .

Place the power tool so that the front edge of the base plate (9) rests on the workpiece, without the saw blade (10) touching the workpiece, and switch it on. On power tools with stroke rate control, select the maximum stroke rate.

Press the power tool firmly against the workpiece and allow the saw blade to plunge slowly into the workpiece.

As soon as the base plate (9) rests fully on the workpiece, continue sawing along the required cutting line.

Parallel guide with circle cutter (accessory)

When working with the parallel guide with circle cutter (23), the workpiece must be no more than 30mm thick.

Parallel cuts (see figure 1): Loosen the locking screw (22) and slide the scale on the parallel guide through the guide (21) in the base plate. Adjust the desired cutting width as a scale value on the inside edge of the base plate. Retighten the locking screw (22).

Circular cuts (see figure J): Drill a hole large enough to push the saw blade through on the cutting line within the circle to be cut. Machine the drill hole with a router or file so that the saw blade can lie flush with the cutting line.

Position the locking screw (22) on the other side of the parallel guide. Slide the scale on the parallel guide through the guide (21) into the base plate. Drill a hole in the workpiece in the middle of the section to be cut out. Insert the centring tip (24) through the inner opening of the parallel guide and into the drilled hole. Adjust the radius as a scale value on the inside edge of the base plate. Retighten the locking screw (22).

Coolant/lubricant

As the material heats up along the cutting line when cutting metal, you should apply coolant or lubricant.

Maintenance and Service

Maintenance and Cleaning

• Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
  To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

Clean the saw blade receptacle regularly. For this, remove the saw blade from the power tool and lightly tap out the power tool on a level surface.

If the power tool becomes very dirty, this can lead to serious faults. For this reason, do not cut materials which generate large quantities of dust from below or overhead.

If the dust outlet becomes blocked, switch off the power tool, disconnect the dust extraction system and remove the dust and chips.

Apply a drop of oil to the guide roller (12) from time to time. Check the guide roller (12) regularly. If worn, it must be replaced through an authorised Bosch after-sales service centre.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare

12 | Français

parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Malaysia

Robert Bosch Sdn. Bhd.(220975-V) PT/SMY

No.8A, Jalan 13/6

46200 Petaling Jaya

Selangor

Tel.: [phone]

Toll-Free: 1800 880188

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.my

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.

When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/re-chargeable batteries into household waste!

Battery packs/batteries:

Li-ion:

Please observe the notes in the section on transport (see "Transport", page 12).

Français

Robert Bosch Morocco SARL

1. Rue Lieutenant Mahmoud Mohamed

20300 Casablanca

Tel.:[phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

搬运

www.bosch-pt.com/serviceaddresses

搬運

"10000000000000000000000000000000000000000000000000000000000000

nannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
aolwovolwwnnuuunnnae nnnnne 100 wlu uuuuauuunluln nruu 100u 100u 100u 100u 100u 100u 100u 100u
nannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnaanannnnnuulw

nnaaannnnnnaaennnnnnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaan

nWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWuWu

GBA 18V...

LED

100%

2x 30-60%

1×5-30%

wnw 1x

ProCORE18V...

LED

5×80-100%

40 - 80%

100% 3x 40-60%

nnaaannnnnnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanara

nnoanynnnnnaeunneau nnnnnnnnnaeunneau

nueuunue (12) uuaan nannnnnae Bocch wannnnnwn

www.bosch-pt.com/serviceaddresses

77777

y

mnnnnaaannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Keselamatan personnel

Arkadia Green Park Tower G-7th floor

Ji. Let, Jend. TB. Simatupang Kav.88

Jakarta 12520

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.co.id

www.bosch-pt.com/serviceaddresses

Transpor

www.bosch-pt.com/serviceaddresses

Vanhuyen

Pin Li-Ion duoc khuyen nghi la doi tuong phai tuan theo cac qui dinh cua Phap Luat ve Hang Hoa Nguyen Hiem. Nguoi su dung co the van chuyen pin hop khoi bang duong bo ma khong can them yeu cau nao khac.

Khi duoc van chuyen thong qua ben thu ba (vd.
v an chuyen bang dong hang khong hay dai ly giao
nhan), thai tuan theo cac yeu cau dac biét ve dong
gói va dan nhan. Thai tham v an chuyengia ve
hang hoa nguy hiem khi chuan bi goiHang.

Chi gui pin hop khoi khi v o ngoai khong bi hou hong. Dan bang keo hay che kin cac diem tiep xuc ho va dong goi pin hop khoi theo cach sao cho pin khong the xedich khi nam trong bao bi. Ngoai ra, xin vui long chap hanh cac qui dinh chi tiet co the ducc bo sung them cua quocgia.

Su'thai bo

Dung cu dien, pin, phu kien va bao bi can ducg tai su dung theo quy dinh vmei truong.

Ban khong duoc nem dung cu dien va pin vao thung racgia dinh!

Pin/acute:

Li-Ion:

Tuan tu nhung hong dan trong phan van chuyen (xem,Van chuyen",Trang 59).

60

Iooal jno yJlJI JlaaWJyaao

aio po sssu 9 aubllgai gaiyau kssl jaoi dsiu u .calaiill jull no auggl

Uo aall jbs jaoaai Juiu o aLgU uJgSJI

jolaiwJ1

05paaui 2. jssu auijSll oall

gSloisie gI Lsio ngSlo sic aJy. .aggIgUgsJIgUdsJoJu

oall saiwlaic o salg abol ouwl po sc .yabu llo! 15sag aflj

aIalai Ojagai JdJd. aIg UJIJIaIIS

JUaJg JUJI, JO aLggl Euaas dauuJU JUJIg gJgJgJgJjI JQ

joo auiy 1001 1uai u 2g 2

g j 0a a jyS1 o sS 1 g S 1 g g g g g

gliaJIgclelgeo!gaiu！.g

aLjJU Ug g g dJgSJJ o

g,1uunl 20g lcl aioo2 loi yuulSJI .Jglal E9g U

gl 01 jglg 2. aJySL 0dJI Jl jIqll no Jg g Jgai I

aag aagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaa

jaiI Lg I gai I gai I aaiia I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai I gai

JgBJI gJg aJg JIg JIg JIg JIg JIg

Lgolaiw aigagogogl jnssb 1auiuuljqoiiaiuiuuiu Jauu Jauu uuauiu

aogjglg jggl gglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglggl

Lauuolguljcbuobj1 (1)

labg Uusul alao uusu Jg (2)

labxig juswul giao (3)

wJU1gWJU2liao (4)

(a)SJUJIa9!JJ (5)

(a) ≤slant 1 (6)

(Ugjoo uagabw) yao (7)

8

oXcll au（9）

(a)JaiJoo

uoull a g9 (11)

aagul oJy (12)

Juiuai joojua (13)

JaaJg (14)

aJJI abwJI gjai aJg1g (15)

(a) blaa uL aLb (16)

(a) bouw dαg9 (17)

(a)duuul ggbj (18)

oxcll aao yol (19)

aIolI Iuull Ugj wua (20)

s|g|g| sdo dogo (21)

(a) _j = 1^n_i = 1^n - 1_j = 1^n - 1_i = 1^n - 1_j = 1^n - 1_i = 1^n - 1_j = 1^n - 1_i = 1^n - 1_j = 1^n - 1_i = 1^n - 1_j = 1^_i = 1^n - 1_j = 1^_i = 1^n - 1_j = 1^_i = 1^n - 1_j = 1^_i = 1^n - 1_j = 1^_i = 1^n - 1_j = 1^_i = 1^n - 1_j = 1^_i = 1^n - 1_j = 1^_i = 1^n - 1_j = 1^_i = 1^_j = 1^_i = 1^_j = 1^_i = 1^_j = 1^_i = 1^_i = 1^_j = 1^_i = 1^_j = 1^_i = 1^_j = 1, j i^_k i, k j^_l i, l j^_m i, m j^_p i, p j^_q i, q j^_r i, r j^_s i, s j^_t i, t j^_u i, u j^_v i, v j^_w i, w j^_x i, x j^_y i, y j^_z i, z j^_w i, w j^_x i, x j^_y i, y j^_z i, z j^~a~

(3) 50

(a) y iuiol g bai j 5j a j (24)

LuljIg aIgIgIg.oguIg

aaii

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

#

1g aai

JLl 1sJ! gJg JI
gJi sic 1kJ. cJUuUg
yJg 9, tJauUg nJUuUg
Jg aJUuUg Uo uO uU
gJg jg Jg/g gJgJgJg

g 1

Jusss

a aai aai i 1c aui jll 1
uall y lai all Jac alal ggbll
bllg aajll glalag jslalg eewllg
Lglag .(jlll bail gla) HPL/galag
.45 uabw aglj aiaolg daaiiall ggbll
Juaill cjaaiy aoall gclj

63

81 jnll allae 0s y 8 g aolly. aaggioauiyulg 0xllg
alga 9g 0nlll allae n no jgc bssn.
jao sajllg lai i no sno jnil
jj cbeall sgs ag aol i
yag g jpsjll u jie jnll allae no

GBA 18V... pSJJI Egi

ddssdI	LED dd
% 100-60	jɔdɪx3 jɔiɪnəgɔ
% 60-30	jɔdɪx2 jɔiɪnəgɔ
% 30-5	jɔdɪx1 jɔiɪnəgɔ
% 5-0	jɔdɪx1 ψo log gɔ

ProCORE18V... p5jJgj

dawal	LED dawal
% 100-80	\( \mu \) àl \( \times 5 \) \( \mu \) iu uo \( \circ \) g o
% 80-60	\( \mu \) àl \( \times 4 \) \( \mu \) iu uo \( \circ \) g o
% 60-40	\( \mu \) àl \( \times 3 \) \( \mu \) iu uo \( \circ \) g o
% 40-20	\( \mu \) àl \( \times 2 \) \( \mu \) iu uo \( \circ \) g o
% 20-5	\( \mu \) àl \( \times 1 \) \( \mu \) iu uo \( \circ \) g o
% 5-0	\( \mu \) àl \( \times 1 \) \( \mu \) o log \( \circ \) g o

aaiy jyj 1000000000000000000000000000000000000000000

aag aagg jno pssjll aalaae g 50 20- y
y jn no pssjll aagall cai g ab
aag aabig ayb wabwlg
o snnn bgsy jg cnsi|d
y agll glls

u

JgI JgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

GST183-LI	ρ35+...0 abdall ojrljss jssic jy wagll
	ρ50+...20abdljss cjjssic dgaasll jssic g
GBA 18V... ProCORE18V...	aalglll palsll
GBA 18V... ProCORE18V...	lajll 4,0s aclw 4,0s
GAL 18... GAX 18... GAL 36...	lajll 4,0s aclw 4,0s

(AGBA 18V pSjO 20 Po

psuolpssuol (B

（Cp0°0>0jJJIUaJ

joll. g pssw wg bgs

yjgogclogale

www.bosch-professional.com/

#

a aalal yuysllBosch asw g 1]looggll no uulkay. lao yog 1jagill aggaao naaggo pall 1sL .aalal ayuysll oall go

pSJJJ

0gSall jaii 0jajl pdaai lge jai i
ngs o nnwol ojai. aaiil ciaalgai g
pogll Uigpo go aialgai I yu
.ayy Sll ci xc g po aaiall
aigaao pgsll Uigp slo paew aybga
1j OJg Jnlaol .aggl Jaiil gll la9 g jao
Jols Lsw psjoll naw uugduolssjall
.oo JgJLuswJU

pJjll uJj

JpJJI UuWggo JUgauuJpJJI.ugalo Suw u

pSjJI Eji

g pJ j J b a 1s jll
. 3 oai 0a 2 .paj
gaw jiai jai! g y jy pssj li
pssjll jao i jb 0a jla qal lal pssj
jai abwlg pssjall w p .gaoo qu Lk
. uJSSI oai j g lo

sJll Jw uL u

JUe 1s jgjI gJ Uc uJ .JW JAL aJn aJn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn

(DoJgalljblai)LaalI sLbc

ooj (16) yooJI 1bc uoJoo

juaJIbaowojuqsiuJUJSGJI

auiuie 16 aiai iuee

(11) aagg lol

baw jgj 10 (16) aJJI Ubc glal

IgpoalJilJIuBulEgBgJus

aolj oalj ploj l jaoaiu

.(11)UmaU

(E-F jgai jbi) aj21 l baw

aagg (17) bawll aogg uSj p

.(9)

aag（goggglgolk

gagill E ojjall gogo go los kaii

(9) 0sclll aauu yislll

Uc (UaSj (galo) (18) 10001 pgsj 45

Lai 15gipaaannl gaiill jll

JUSS JU O AUAO UG UUGA

jIJIg IgUll oJcL, aIeJlI OJcL Js

gjglgallblwj21sicLgWg,jlbmu

山

1 aJlJHsOgSll ola gl) 1

11 aJlwbagjgai jgaj.

1111 1111 1111 1111 1111

.

.1KxJgOol
.
. · 2 0jJI aiojmu
-.P2 aJai ai jmu

auiuill sio) auiuysu yu lao

gI gai sie Ig (..Jlg ssll JsswI

Lc baii sic agjy aol jia cllim. qiu jai

gaoo mu kuy labg uuul liuo

J

J 1

a aabjll jll jll jll

J

J 1 J 1

aagawall oJll aJgI gblj no agjgl jll

0aJIgaiI 1

0dJIgJU LJI UaAsic.

Jgss

sic gI sJALLgagawal JJALd

gulogig 1aal al aai

aJyGg aSjEg,duuJgSjSsJg

.0jdo juJgSJJ 0ssll Juuu

JJI 1sJ

aJUJI:0) aJUERSL J 1JLacI gI Lai Si cLg (.Jlg SsJ U

Ic Iaaiiaie aaiiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

Jgaoo uKsuyLobyIg Jsuill elio

Jauu JuaiaI Jai

aogglg oosall

1111gogbgaaalagglg

auej jgag aai

.0g j! lgjlg.1w log wlgUg JolwJLk

gablllJocLwI Jswa aaa aaiia

Bosch alk

aJlgl aaiuI ggbjU jauI uia

Jlll JwIe cSjI juaio jbp uas)

.（aui gbiolglggiSw glj

lo wolwai gwsll

jgbalglgjjdaa j1 《gjll》LwU Lc oogallolgallpul

slawg gabll jgbg juiiJI oJaw slaw aJJI

Jswll aebq aylo 15sog doJI

egball 12a 0 5u 1111 1

gbljolpblglgbdwwu

puiuuiuiuiibio

(HjgJJI jJI) jblJl Jll

JlaIg Jssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

Jaiil 0s la yol bllbI bglw dsc gaii

aill ldo aaii w gagg

.dulosJl

jg 12 g j (12) aagill o ju j u

12 10000000000000000000000000000000000000000000

pI 1

aalai aaiil 1c laoa do sa yu yu gwl jgl glal aglky auiog gail Jgll gabau logleall quaull www.bosch-pt.com:

Lclu oIaWbI UJuaWb Bosch jj Jw Llqio wosy OJluawil 1sU 1s1

aagU aeg g uall Ullg caiuall qj j jluu bgl uJluwaiu JluwJ sic giai G. Juc

U

Robert Bosch Morocco SARL

gjoo oo ojjoll gJw,53

JU 20300

[phone]：

[e-mail]:JgJSLJI J

:aa aai jglic no jall

www.bosch-pt.com/serviceaddresses

Jai

UjwLg yogol ngu jy gaaag aeg aag 1000000000000000000000000000000000000000000000000000000000000000

jlll) jf jfp jc qllj plo sic aolbogw yag (jaw gglgall
yjw luyi .alalg ggg caleill s
yauo yic oaball slgall juyuusia
. alal oai w jall psjall
lqk uks 15 ksljll jnypogj
Loojngsall uolol all aubssn .palw
yj. jy jy2 x yjll aeluy ag
. dag jdaiaill alaoll claymuil ola la

auijseJoo jalil

aJySsI Oe 10 Jyssll y aJyBbIg gIgIg sJyIg aJI IyIaII qJb Jc AaiuA aJy

/psJgJg aJgJgJg JgJg JgJgJgJg

:UJbJI/psjJI

:oguU Ugul 1r

jai) jai l jao oJgll 1sLwJl olejo .66 aonll, "jaiil,

a 10) jwai o w m p
bglw suc. auiyjSUI ssu w pi
syyoogjai yu jy SUI ssu y
g ogayuiyjSUI ssu l bgi
abj Uc gui Jwai OJw Jua u

Jusill aobg 9) oxclall aojaiu loic gboJI bsol juiill Jolg Iolao Jsu .ogjol

oo golg jolgill

（Lusj（do）

gall olj pssu w jlgul sao plssu w jessll 23) 30

gj jg:（jglal）ajglall llll Jwll mc gill sdo yj 22) wjc aqabol .ccll qy (21) LJIaJdJIaJIyLwagaiIcogjIgbl

.22) uJg jp oJ .0eJl aJ
JQ: (J gall pil) ysswll cIgblll
Jjw JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI JJIJI

aall aagll (22) cull wj p 9
ue sglil daae jy yu y jgill
laai .oclall aao (21) lll Jauall
aw gajll aabll caauiu Jauill aebg
aalal aliai Ic (24) jsail uyyu p
aog bol .dai y slll aaiy gglill saal
aad aalal alall yu all lgc
.(22) cull wj yj oal .oclll

p/1s1g0

ba jwocg wll g yuul slgo uus Jaos. oJall oJgl aJl uW uJSLaJI uSi gaBai

aJg aJJI

aillg aill

1J!UaJUgSJ

auiuill:ti) auijyJU oJU Jlae i gI laj icuug (..gJU uJU

gI qai sic blg (..g g ssll JsswI Ic baii sic 29jy a lo] jao liu. qiu jsi .gaoo u Ksw labylg u wui liao

aIbIg JsUJcU 1u

Jai eji Jabiu JKw JuaaJI Jai jol a bai Jai jll uui ayu gSj osal juaia

g u w 1c a auiu jll o sll
Jy u Jsw uay uj yss oal uwl uy
i y ll c0aill uai pai k j. uauu U
oo gucu no gulaw no ais luc qic

auiu jll aollaby g jauu jao wul 1j ouiu juiu uji y g jusl baw ojuqglalg .laio

67

00 p51 jSioj8 9u jbu buaa 5u wluo .siiS

jbls s j1 yu uogj o slol
ois g b k l) uoj g h jy j 0laowl (uoj u jai
g jn oj g h jy j 0laos
.

paIgaiIyIe

JyI y JgS g g g Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg Sg S

slaolaiw l sicj 0jlgaw g jssuolo jiai jua joi slaiow g joi oLs i jai y i slaas, jie jy jls egj u wluo kao g

aaiwgs jgl jg jj jj jj jj jj jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j jj

0s s g j1 l 10jg o ss p b u (slo w y s) g d s w jai g jj . Jy Jy Jy Jy Ccy siilgoo , jls jg o kss o sia

sI y 1000000000000000000000000000000000000000000000000000000000000000000000

jg 0sui g l jw cbl sui 1u w u 1u w u 1u w u

GJLg

UJgW

GgJSLjIgJlogac jai

LJd 1g jgljgws

Jx

Jg jIoljoad oodiljclao

SisgjdyuJgaiUgws

1yIgioIgloa uds .isS y

a dLgjI LgJlss JU 1uJ1j1j1 jU 1sIgJlg g (gauw) sigua y jy

JL Joo

dsj jg jlaal yj l dai jy jslab 1

.

aWgljgby jIjI aS wU ubgo

Joail jdaas

g l g jL Lg 15 g Js gag
Jy 15jL. sji Js d, Siu d joo
ui ci siigdo sii Su slal i qa j
. igw lg w gog sg jg

4uugggs

Jd jgj gj 1s j 1j

4501j1aam 2

LjS11

←wwwjjL

daugg j 5uui dig s uu uul
Lgluua duu uua uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uu

4aW a Juaio Ua

g jglj g w j 10o j lai JwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJwJw

<ugjguljy

SgwhjyjIyI yJgai SsJr Jw gJyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI y

4oIaiwJySdol

u uus 1 jj J 1s j s i j s i s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s

[slgabooJg]

sAs sIs oIaowI bI JI LJI qJ JU 1JL .wU y wUio jj JU bco

68|

la jw ay Suiy gxiu cgliaa Jgao aaiuy Cwai kao yao 1uau wj jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz

jJwJbLgSy

SjUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgU

jjw lLg jjI Js

Jg Cooo oos sSsLjIw L q 15uJJw SLo kws uI g. jkio lo w Jl (Li-1on) gogw .siow

（C

（15）auijui jblao bao aao .sS gglg 0g （204 jla egl gluagl j dai j gdo （9）aao uui j1 (15）

awjg0sJ uS

JUW SLJSLJU 1sJLgJUc g J
SILGUNIJIg g JSSO slgo, Lg UgJ I J
JUuUgUgUu. SiuUu uuUuUu UuUu UuUu UuUu UuUu UuUu UuUu UuUu UuUu UuUu UuUu UuUu UuUu UuuUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu uu

.0slaui (jIs dofo) 0slo jgjs

.

.1s 1o laiw P2 jul

LdabjdsggsjgssjgoooJg jilq g d 1s dgj sJcUeog g Jgo jI daiiw

.igwJsiuwojIwIaJilgJoJc g J

(Dgag aEgJ)

（16）

. siS 400 . SiSiO

Jg j1 (16) w g oai i 100000000000000000000000000000000000000000000000000000

g oJg jS JSL pSIm (16) w g 5j. dJy jI yg jI ygo slw y nJg 11) dJy JwLo JI JwG y JSL

(E-F gai ay sis egaj) aIso Juail

(9)du daa (5gj oaaa J (17) si do dilo

0sIsO dlwsIqilj dS wdydiwUoJds.0swosuEUsWJdsJgbilamgWJg9)duaabogjo

dil s (gj) (18) o si So Sliu 41 (18) o si So Siliu .si Joio (17) o SiO .(laio) oia o si o aiw

(sglil jI caliao sl o siSo Jaiol ogai juii .sly loaiJd

Jolj JnLio jI sJgj 15

LED

sio jux 1% 20-5

jj Saa jw eJ 1%5-0

JSL aagogajg jgljg g alaggi

L

Lg ggbj Jg j

50 20- ju sls j Jssio Ij sji

JlJiWiJjI jI JIJIIOJg. .SISJg

alg 1uogj 1sju gge j slqjw oL

Jus jai Sg oji gS uj Lgao

ojuAsjyjSjLjloj uo aagj山

oogjg jy d CwU jJjLai, cWb sJjw .g w Jg g o W Jasa

Sjui jus jla oJ jIogai dy bjo ulSi d

wai

<jI) 1JlJl J

jI jI! uooL o

oJ a jgj/ j1s jogai

SjU oJ SjI Ss (Slo aogS jS OJI

.

blaabwam oJ daui s caluogw L

Slaioj uksbs j 22 pabu y slaoi j uksbs suiy jg sglgo jjo j. uyl dao (21) jw j sglgo jso sgi. suis lal g w sjuys g o g sglgo slaiol uksbs gls gwl (24) w eow ojl si. uoi o w sai lglw j uauu d aad uals gls gj y j bj gno .uicawl (22) cww ay .si

gj gSis oSlo
Jy jy yg jy pOjla s la jI
. Slaow jg gSis Ss oSlo ju

uugw9 1j

olkssjgmasj

g（gjglg jy g 1000000000000000000000000000000000000000000000000000000000000000000000

Jusjlslaw

jJy jOJd (jJl) oJgSj Cawg Jy jI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI

Jjglg jgsuogssuoo Jjglg g jgaaawg,siwgoa Jjglg jg jg g g Jjglg Jjglg Jj (12) laimjailgiwl

Jg j. d. Jjik 12) lai dlgiw Bosch jao oosu wgi

juiu o o jgluo g lo

JU 100000000000000000000000000000000000000000000000000000000000000000000000000

www.bosch-pt.com

du Jus L Bosch u jjuao do oogoo g 10 i a

Glac (slqila)

jJlJl J

g g jj l u yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu y

.1s uogoljg9

A 1Jg jjI oJ a

.1s 0 slawl ciJg baw jI oJgaw

JUgU 159 JIJI JI JI
JUgU 159 JIJI JIJI JIJI
JUgU 159 JIJI JIJI JIJI
JUgU 159 JIJI JIJI JIJI
JUgU 159 JIJI JIJI JIJI

Bosch 101111111111111111111111111111

"5y 25" a Uai Jgaoo ju yagc sl oJ
j Cg s bui wu cui Soo g u jil
g h ao Lpao qui chala uugj
"Uikam g ujg"ojduy coa j1 ujjuc
JL dabcoiaogglgo U
wjuuoi jsl uuiuuiuyu jui jI
luouiiuiuuiuuiuuiuuiuuiu
juauiuauuauuauuuiuuiu

IwJU 90g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100g JU 100

（23）jSgLglgo slaiol jLsJ 30mmjsljJlsda

www.bosch-pt.com/serviceaddresses

olius Jaa

Jgaoo 0s w dogj gog jy sl s

jL. suiu sljbs iLk jgla Ioljll

jUgjjolaoiUgUJLgjlslgJ

.

endurance StainlessSteel

T 118 AHM, ...

for plastics

clean

T102D,..

clean

T 102 H, ...

precis

T 1044 HP,...

clean

T 102 BF, ...

clean

T101A, ...

clean

T 108 BHM, ...

clean

T128BHM,

clean

PlasticComposites

T301CHM, ...

for special materials

precision

SoftMaterial T1013 AWP,...

special

oftMaterial T113A,...

special

eramic T130RF,..

endurance

FiberPlaster T141HM,...

80

2607010079

1619P18654

Licenses

Copyright © 2015, Infineon Technologies AG

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the copyright holders nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRIBUTORS "AS IS" AND ANY EXPRESS OR IMplied WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER-RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
