USER MANUAL DOCKUCPT01 V7
Copyright
This document contains proprietary information protected by copyright. All rights reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.
Trademarks
All trademarks and registered trademarks are the property of their respective owners or companies.
Package Contents
- Docking Station
- USB Cable (connect computer to Docking Station)
- User's Manual
IMPORTANT
- Confirm that you are connecting the Docking Station with the supplied USB cable to the fastest USB port available on your computer
- Confirm all of your cables and devices are working properly by using them directly connected to your computer
- Confirm you are using the latest software and drivers from the manufacturer of the computer including Chipset Drivers, Firmware Updates, Bios, etc.
- Confirm your computer's operating system power saving mode setting is not set to turn off USB connectivity. This can results in USB input devices being ignored during sleep mode so you can't wake up your computer.
Still having trouble?
Contact our customer service team at www.v7world.com

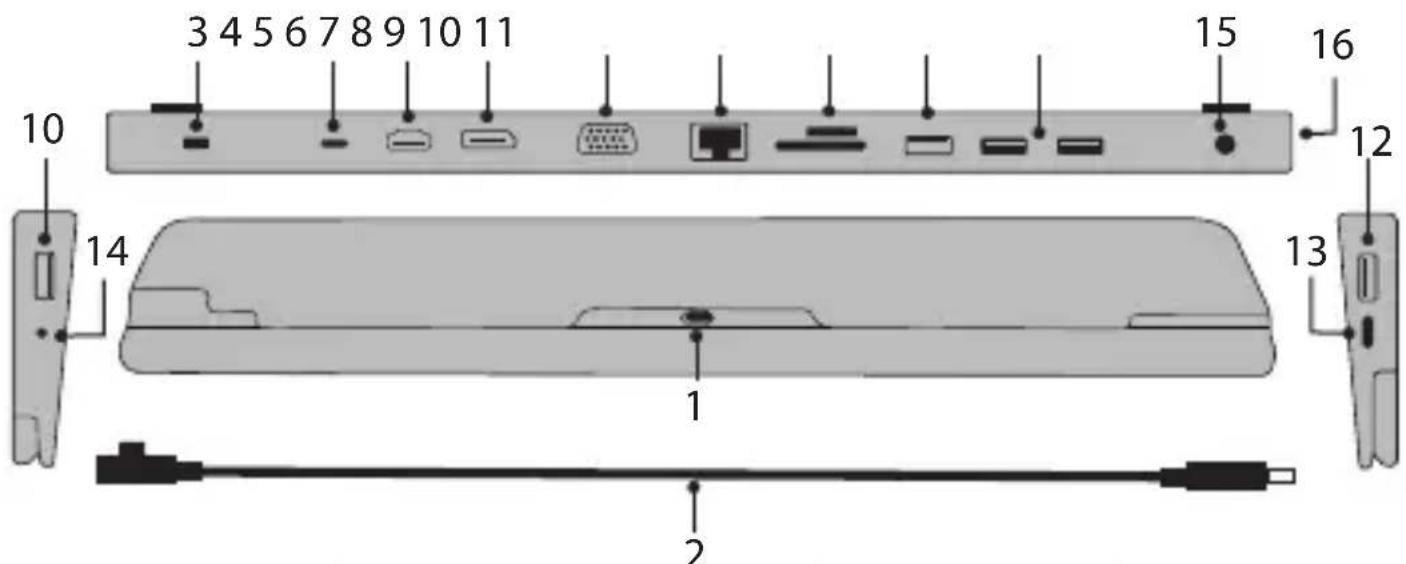

PRODUCT OVERVIEW
- USB-C Male to Male Cable. Insert angled side in bottom of this product and other side to USB-C host
- Anti-theft K-Lock
- USB-C Female: Connect USB-C PD Power Adapter (near HDMI) supports maximum 100W Charging with fast role swap of PD3.0. Supports Dynamic Current Detection and Power Distribution. Note: 4-18W (4W for no-load mode and 18W for full-load mode) power will be dynamically provided to support the functions of this product.
- HDMI Female: Supports max 4k/30Hz, 6/8/10/12 bit color depth output, output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2, HDCP 1.4
- DisplayPort Female: Supports max 4k/30Hz. Mac OS: Up to 3 displays simultaneously under SST mode showing the same picture or video with maximum 1080p@60Hz, Windows: Up to 3 mirrored displays in SST mode at 1080p@60Hz or up to 3 extended displays in MST mode
- VGA Female (1920x1200/60Hz)
- RJ45 10/100/1000 Ethernet
OVERVIEW CONT'D
- SD/Micro SD 3.0: Secure Digital v3.0 UHS-I (Ultra High Speed) SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s) with simultaneous operation
- USB-A 2.0 Female x 2 (near SD card slot, maximum 500mA downstream charging and 480Mbps data transmission
- USB-A 3.0 Female x 2 (Near power switch, maximum 5Gbps data transmission, 900mA downstream charging
- USB-A 3.0 Female with maximum 7.5W (5V/1.5A) downstream charging, 5Gbps data transmission
- USB-C female (near USB-A, connect Type-C device) supports maximum 5Gbps data transmission and 1.5A downstream charging
- Combo Audio In/Out 3.5mm: Supports both microphone and headphone 48KHz and CTIA
- Power Switch
- LED Light
- Green: On
- Off: Off
| SST Mode (Single Stream Transport) | |||
| VGA HDMI DP | |||
| 1 Port | 1080P/60HzN | AN/A | |
| N/A4K/30HzN/A | |||
| N/AN/A4K/30Hz | |||
| 2 Ports | 1080P/60Hz1 | 080P/60HzN/A | |
| 1080P/60HzN/A | 1080P/60Hz | ||
| N/A4K/30Hz4K/30Hz | |||
| 3 Ports 1080p/60Hz1080p/60Hz1080p/60Hz | |||
| MST Mode (Multi-Stream Transport) | |||
| VGA HDMI DP | |||
| 1 Port | 1080P/60HzN | AN/A | |
| N/A4K/30HzN/A | |||
| N/AN/A4K/30Hz | |||
| 2 Ports | 1080P/60Hz1 | 1080P/60HzN/A | |
| 1080P/60HzN | A1080P/60Hz | ||
| N/A1080P/60Hz | 1080P/60Hz | ||
| 3 Ports | 1080P/60Hz7 | 20p/60Hz7 | 20p/60Hz |
| 720p/60Hz7 | 20p/60Hz1 | 1080P/60Hz | |
| 720p/60Hz1 | 80p/60Hz7 | 20p/60Hz | |
SPECIFICATION
| Input USB-C Female | (Connect to Type-C Host) |
| Output | USB-C Female (data) x1USB-C Female (PD) x1USB 3.0 Female x3USB 2.0 Female x2HDMI Female x1DisplayPort Female x1VGA Female x1RJ45 x1Micro SD x1SD/MMC x1Combo Audio Jack x1 |
| Product Weight 0.55 lbs (0.2473 kg) | |
| Product Dimensions 13.76 x 2.91 x 0.71 in (349.5 x 74 x 18 mm) | |
| Package Weight 3.13 lbs (1.42 kg) | |
| Package Dimensions 15.35 x 4.53 x 1.38 in (390 x 115 x 35 mm) | |
| Operating Temperature 0 to 45 C | |
| Operating Humidity 10% to 85 % RH (no condensation) | |
| Storage Temperature -10 to 70 C | |
| Storage Humidity 5% to 90 % RH (no condensation) | |
| Warranty 2 Years | |
| Certifications FCC, CE, UKCA | |
| USB-C Female Port Up to 100W | |
| Security K Lock |
