| Product Type | Docking Station / USB-C Hub |
| Brand | V7 |
| Model | CA66449 (DOCKUCPT01-DE) |
| Product Dimensions | 349,5 x 74 x 18 mm |
| Weight (product) | 0,247 kg |
| Power Supply | USB-C PD 3.0, up to 100W (input and output) |
| Video Ports | HDMI (4K/30Hz), DisplayPort (4K/30Hz), VGA (1920x1200/60Hz) |
| USB Ports | 3x USB-A 3.0 (5 Gbit/s), 2x USB-A 2.0 (480 Mbit/s), 1x USB-C (data 5 Gbit/s), 1x USB-C PD |
| Network Connectivity | RJ45 10/100/1000 Ethernet |
| Card Reader | SD/Micro SD 3.0 UHS-I (up to 104 MB/s) |
| Audio | 3.5mm combo jack (mic/headphone, CTIA, 48 KHz) |
| Button and Indicator | Power button, green LED light (on) / off (off) |
| Multi-Screen Support | Up to 3 simultaneous displays (MST) or mirror (SST) |
| Maximum Resolution | 4K@30Hz on HDMI and DisplayPort, 1080p@60Hz on VGA |
| Security | K-Lock anti-theft, power button with indicator |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -10 to 70°C |
| Operating Humidity | 10% to 85% RH (non-condensing) |
| Certifications | FCC, CE, UKCA |
| Warranty | 2 years |
| Maintenance | Clean with a soft, dry cloth. Disconnect before cleaning. |
Frequently Asked Questions - CA66449 V7
What operating systems are compatible with the V7 CA66449 docking station?
The docking station is compatible with Windows and Mac OS. For Windows, MST (Multi-Stream Transport) mode enables extended displays; for Mac OS, SST (Single Stream Transport) mode is used with up to 3 mirrored displays.
Can I charge my laptop via the USB-C port on the docking station?
Yes, the dedicated USB-C female port (near the HDMI port) supports up to 100W charging with PD 3.0 and fast role swap. A power supply of 4 to 18W is required for hub operation.
How many displays can I connect simultaneously?
You can connect up to 3 displays, depending on the mode. In SST mode (Mac), displays show the same image up to 1080p@60Hz. In MST mode (Windows), you can have 3 extended or mirrored displays with varying resolutions (e.g., 1080p@60Hz, 720p, etc.).
What is the maximum supported resolution on HDMI and DisplayPort?
The HDMI and DisplayPort ports support a maximum resolution of 4K@30Hz with 6/8/10/12-bit color depth and RGB/YCbCr formats.
Is the Ethernet port Gigabit?
Yes, the RJ45 port supports 10/100/1000 Mbps (Gigabit Ethernet).
What types of memory cards are supported?
The docking station features a SD and Micro SD card reader compatible with UHS-I (SDR12, SDR25, SDR50, DDR50, SDR104) with speeds up to 104 MB/s.
Does the 3.5mm jack support both microphone and headphone?
Yes, it is a combo (CTIA) jack that supports microphone and headphone with a 48 KHz frequency.
How can I verify that the docking station is properly powered?
The docking station has a green LED indicator that lights up when powered. Make sure to use the provided USB-C cable and connect it to a USB-C port on your computer that supports DP1.2 Alt Mode.
What should I do if my USB devices are not recognized?
Check that your operating system's power saving settings do not disable USB connectivity. Also ensure you are using the latest drivers from your PC manufacturer (chipset, firmware, BIOS).
Where can I find drivers or technical support for this product?
Drivers are generally not required for basic functions. For any assistance, please visit www.v7world.com or contact customer service.
User questions about CA66449 V7
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Other computer accessories in PDF format for free! Find your manual CA66449 - V7 and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CA66449 by V7.
USER MANUAL CA66449 V7


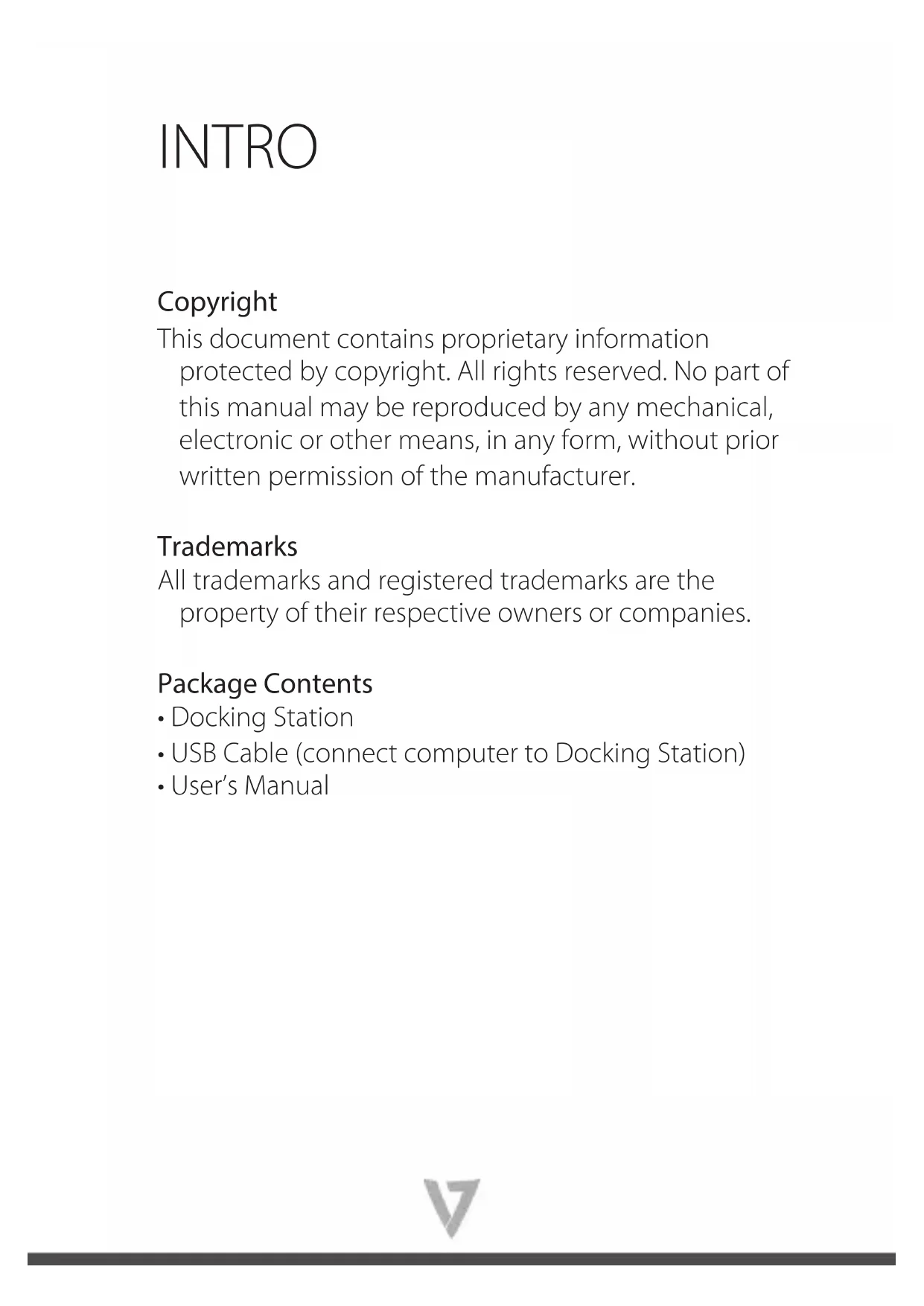

Line drawing of a computer rear panel with ports and connectors (no text or symbols)INTRO
Copyright
This document contains proprietary information protected by copyright. All rights reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.
Trademarks
All trademarks and registered trademarks are the property of their respective owners or companies.
Package Contents
- Docking Station
- USB Cable (connect computer to Docking Station)
- User's Manual
IMPORTANT
- Confirm that you are connecting the Docking Station with the supplied USB cable to the fastest USB port available on your computer
- Confirm all of your cables and devices are working properly by using them directly connected to your computer
- Confirm you are using the latest software and drivers from the manufacturer of the computer including Chipset Drivers, Firmware Updates, Bios, etc.
- Confirm your computer's operating system power saving mode setting is not set to turn off USB connectivity. This can results in USB input devices being ignored during sleep mode so you can't wake up your computer.
Still having trouble?
Contact our customer service team at www.v7world.com

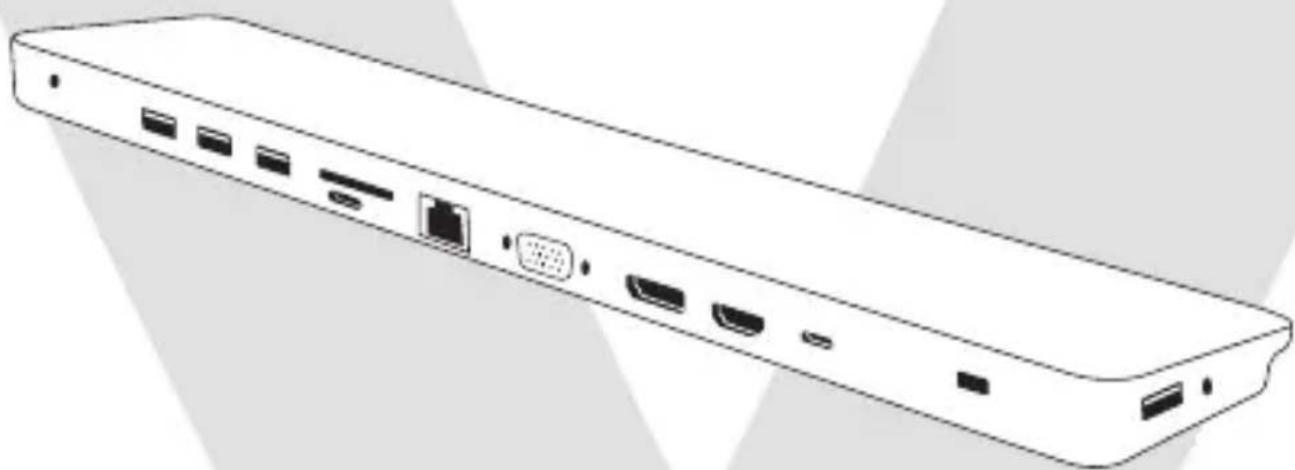

PRODUCT OVERVIEW
- USB-C Male to Male Cable. Insert angled side in bottom of this product and other side to USB-C host
- Anti-theft K-Lock
- USB-C Female: Connect USB-C PD Power Adapter (near HDMI) supports maximum 100W Charging with fast role swap of PD3.0. Supports Dynamic Current Detection and Power Distribution. Note: 4-18W (4W for no-load mode and 18W for full-load mode) power will be dynamically provided to support the functions of this product.
- HDMI Female: Supports max 4k/30Hz, 6/8/10/12 bit color depth output, output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2, HDCP 1.4
- DisplayPort Female: Supports max 4k/30Hz. Mac OS: Up to 3 displays simultaneously under SST mode showing the same picture or video with maximum 1080p@60Hz, Windows: Up to 3 mirrored displays in SST mode at 1080p@60Hz or up to 3 extended displays in MST mode
- VGA Female (1920x1200/60Hz)
- RJ45 10/100/1000 Ethernet
OVERVIEW CONT'D
- SD/Micro SD 3.0: Secure Digital v3.0 UHS-I (Ultra High Speed) SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s) with simultaneous operation
- USB-A 2.0 Female x 2 (near SD card slot, maximum 500mA downstream charging and 480Mbps data transmission
- USB-A 3.0 Female x 2 (Near power switch, maximum 5Gbps data transmission, 900mA downstream charging
- USB-A 3.0 Female with maximum 7.5W (5V/1.5A) downstream charging, 5Gbps data transmission
- USB-C female (near USB-A, connect Type-C device) supports maximum 5Gbps data transmission and 1.5A downstream charging
- Combo Audio In/Out 3.5mm: Supports both microphone and headphone 48KHz and CTIA
- Power Switch
- LED Light
- Green: On
- Off: Off
| SST Mode (Single Stream Transport) | |||
| VGA HDMI DP | |||
| 1 Port | 1080P/60HzN | AN/A | |
| N/A4K/30HzN/A | |||
| N/AN/A4K/30Hz | |||
| 2 Ports | 1080P/60Hz1 | 080P/60HzN/A | |
| 1080P/60HzN/A | 1080P/60Hz | ||
| N/A4K/30Hz4K/30Hz | |||
| 3 Ports 1080p/60Hz1080p/60Hz1080p/60Hz | |||
| MST Mode (Multi-Stream Transport) | |||
| VGA HDMI DP | |||
| 1 Port | 1080P/60HzN | AN/A | |
| N/A4K/30HzN/A | |||
| N/AN/A4K/30Hz | |||
| 2 Ports | 1080P/60Hz1 | 1080P/60HzN/A | |
| 1080P/60HzN | A1080P/60Hz | ||
| N/A1080P/60Hz | 1080P/60Hz | ||
| 3 Ports | 1080P/60Hz7 | 20p/60Hz7 | 20p/60Hz |
| 720p/60Hz7 | 20p/60Hz1 | 1080P/60Hz | |
| 720p/60Hz1 | 80p/60Hz7 | 20p/60Hz | |
SPECIFICATION
| Input USB-C Female | (Connect to Type-C Host) |
| Output | USB-C Female (data) x1USB-C Female (PD) x1USB 3.0 Female x3USB 2.0 Female x2HDMI Female x1DisplayPort Female x1VGA Female x1RJ45 x1Micro SD x1SD/MMC x1Combo Audio Jack x1 |
| Product Weight 0.55 lbs (0.2473 kg) | |
| Product Dimensions 13.76 x 2.91 x 0.71 in (349.5 x 74 x 18 mm) | |
| Package Weight 3.13 lbs (1.42 kg) | |
| Package Dimensions 15.35 x 4.53 x 1.38 in (390 x 115 x 35 mm) | |
| Operating Temperature 0 to 45 C | |
| Operating Humidity 10% to 85 % RH (no condensation) | |
| Storage Temperature -10 to 70 C | |
| Storage Humidity 5% to 90 % RH (no condensation) | |
| Warranty 2 Years | |
| Certifications FCC, CE, UKCA | |
| USB-C Female Port Up to 100W | |
| Security K Lock |
