USER MANUAL LÖRBY 103.819.66 IKEA
Design and Quality IKEA of Sweden
| DEUTSCH | 10 | ČESKY | 42 |
| FRANÇAIS | 14 | ESPAÑOL | 46 |
| NEDERLANDS | 18 | ITALIANO | 50 |
| DANSK | 22 | MAGYAR | 54 |
| ÍSLENSKA | 26 | POLSKI | 58 |
| NORSK | 30 | EESTI | 62 |
| SUOMI | 34 | LATVIEŠU | 66 |
LIETUVIŲ 70 ŮKPAÏHСЬКА 102
PORTUGUÊS 74 SRPSKI 106
ROMÂNA 78 SLOVENŠČINA 110
SLOVENSKY 82 TÜRKÇE 114
БЪЛГАРСКИ 86 عربی 118
HRVATSKI 90
ΕΛΛΗΝΙΚΑ 94
РУССКИЙ 98
ENGLISH 6
Charger features
— Charges 3 devices simultaneously.
— One single USB outlet can provide up to 2400 mA load.

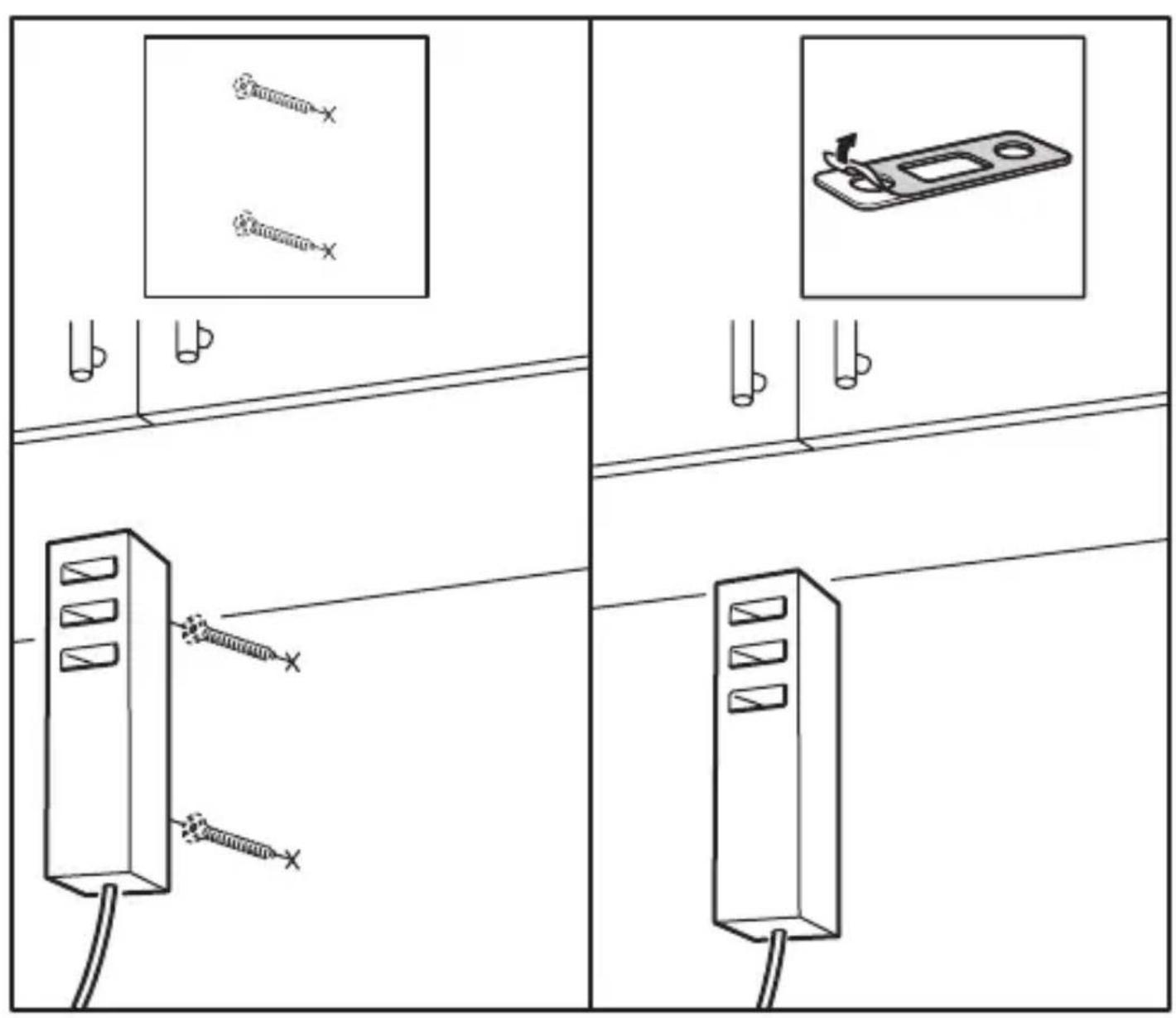

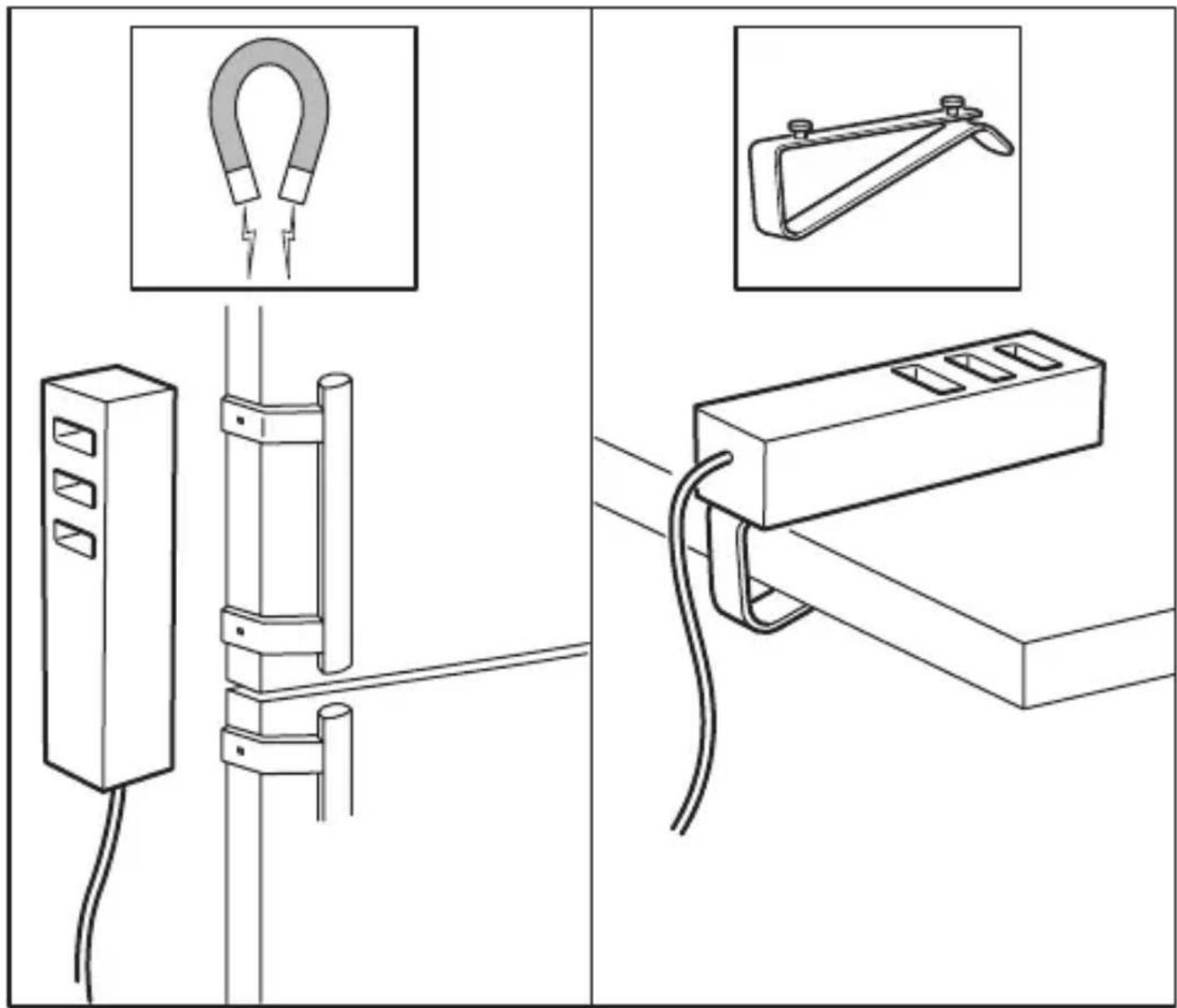

— Can be attached with the clip provided or the built-in magnetic plate or the adhesive label or screws.
Instructions for use
— Connect the power adapter into the wall socket, insert USB cable one by one into the free slots and the other end to the device you want to charge.
— If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.
— When charging only use a recommended USB cable for your device.
— Be sure to not exceed the maximum USB cable length recommended for the appliance or the device.
Good to know
— USB cable length and quality influences charging speed and performance.
— Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
— Charger storage temperature: -20^ to 25^ .
— Charger operating temperature: 0°C to 40°C.
Unplug the charger from the power source before cleaning and when it is not in use.
To clean the charger, wipe with a moist cloth. Never submerge the charger in water.
Recommended precautionary measures and technical data, see the back of the charger.
Save these instructions for future use.
WARNING:
— The wall socket must be located near the equipment and must be easily accessible.
— Only use in dry locations.
— Children should be supervised to ensure they do not play with the product.
— If the cord is damaged the appliance shall be destroyed.
— Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.
Product servicing
Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.
TECHNICAL DATA
Type: E1605 LÖRBY
Input: 24V DC
Output: 5V DC
Indoor use only
Max total load: 3400 mA
Max load per USB-outlet: 2400 mA
Max USB cable length: 1.5 m/4'11"
Manufacturer: IKEA of Sweden AB
Address: Box 702, SE-343 81 Älmhult, SWEDEN
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
DEUTSCH 10
Fabricant : IKEA of Sweden AB
Adresse : Box 702, SE-343 81 Älmhult, SUÈDE
Producent: IKEA of Sweden AB
Framleiðandi: IKEA of Sweden AB
Heimilisfang: Box 702, SE-343 81 Älmhult, SWEDEN
Produsent: IKEA of Sweden AB
Adresse: Box 702, 343 81 Älmhult, SWEDEN
Producent: IKEA of Sweden AB
Adres: Box 702, SE-343 81 Älmhult, SZWECJA
Tootja: IKEA of Sweden AB
Aadress: Box 702, SE-343 81 Älmhult, SWEDEN
© Inter IKEA Systems B.V. 2017
AA-2041619-3
