NORDMÄRKE 304.729.89 - Phone charger IKEA - Free user manual and instructions

Product type	Wireless charger for mobile phone
Brand	IKEA
Model	NORDMÄRKE 304.729.89
Charging technology	Qi (standard 1.2.4BPP)
Input power	5V DC, 2A (USB Type-C)
Output power (RF field)	33 dBμA/m at 3 m
Transmission frequency	113 - 148 KHz
Status indicator	LED (on for 3s during operation, on while charging, off when charging complete, blinking on error)
Operating temperature	0°C to 40°C
Storage temperature	-20°C to 25°C
Intended use	Indoor only
Protection	Temperature and charge control
Compatibility	Qi compatible devices
Cable included	No (USB Type-C cable not provided)
Adapter included	No (5V/2A power adapter not provided)
Cleaning	Damp cloth, do not immerse
Safety	Minimum distance of 10 cm from the user (RF exposure)
Recycling	Sort according to local regulations (crossed-out wheelie bin symbol)
Repairability	Do not open or repair yourself

Frequently Asked Questions - NORDMÄRKE 304.729.89 IKEA

How to use the NORDMÄRKE charger?

Connect a USB Type-C cable to the charger and a power adapter (5V, 2A), then plug into a power outlet. Place your Qi-compatible phone on the (+) symbol of the charger to start wireless charging. Ensure wireless charging is enabled in your phone settings.

What should I do if the LED indicator flashes?

A flashing LED indicates an error. Check that your device is Qi-compatible and properly positioned on the charger, that the cable and adapter are in good condition, and that nothing interferes with charging. If the problem persists, unplug and reconnect the charger.

Can I charge a non-Qi device?

No, the NORDMÄRKE can only charge Qi-compatible devices. Do not attempt to charge a non-compatible device, as it may cause damage or malfunction.

Are the cable and adapter included?

No, the NORDMÄRKE is sold without a USB Type-C cable or power adapter. You should use a 5V/2A adapter and a good-quality USB Type-C cable for optimal performance.

Why is my phone not charging even when placed on the charger?

Ensure your phone is Qi-compatible and wireless charging is enabled in its settings. Place it exactly on the (+) symbol. If the battery is completely empty, it may take a few minutes before charging starts.

Does the charger heat up during use?

Yes, it is normal for the charger to warm up slightly during charging. It will cool down gradually once charging is complete. The charger has temperature control for safety.

How to clean the charger?

Unplug the charger before cleaning. Wipe it with a damp cloth. Never immerse the charger in water and do not use abrasive products.

What safety precautions should be taken?

Use the charger only indoors, in a dry place. Do not use if the cable or adapter is damaged. Keep out of reach of children. Maintain a distance of at least 10 cm between the charger and your body to comply with radiofrequency exposure standards.

Can I repair the charger myself?

No, do not attempt to repair the charger yourself. Opening the casing may cause electric shock. If problems occur, contact IKEA customer service.

How to recycle the charger at end of life?

Do not dispose of the charger with household waste. The crossed-out wheelie bin symbol indicates it must be sorted and recycled according to local regulations. Take it to a collection point or your local IKEA store.

USER MANUAL NORDMÄRKE 304.729.89 IKEA

Design and Quality IKEA of Sweden

Simple line drawing of a circular object with a cross-shaped cutout on top and a small hole at the bottom (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

Diagram showing two circular devices connected by a cable with arrows indicating motion, one with a cross symbol and the other with a star symbol (no text or labels)

English 6

Deutsch 10

Français 14

Nederlands 18

Dansk 22

Íslenska 26

Norsk 30

Suomi 34

Svenska 38

Español 42

Português 46

Ελληνικα 50

Türkçe 54

Italiano 62

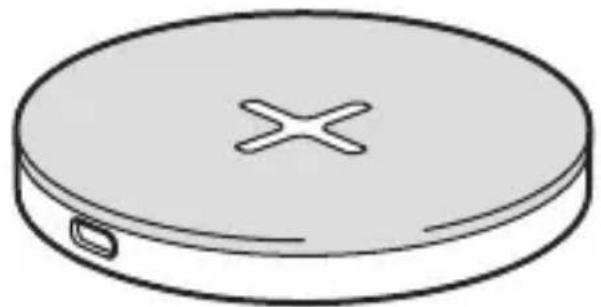

Charger features

• USB power adapter (5V, 2A) and USB Type-C cable not included.
• Wirelessly charges Qi-compatible devices.
• Compatible with Qi 1.2.4BPP specification.
  • Temperature and power monitor for safety.
  • LED status indicator.

Instructions for use

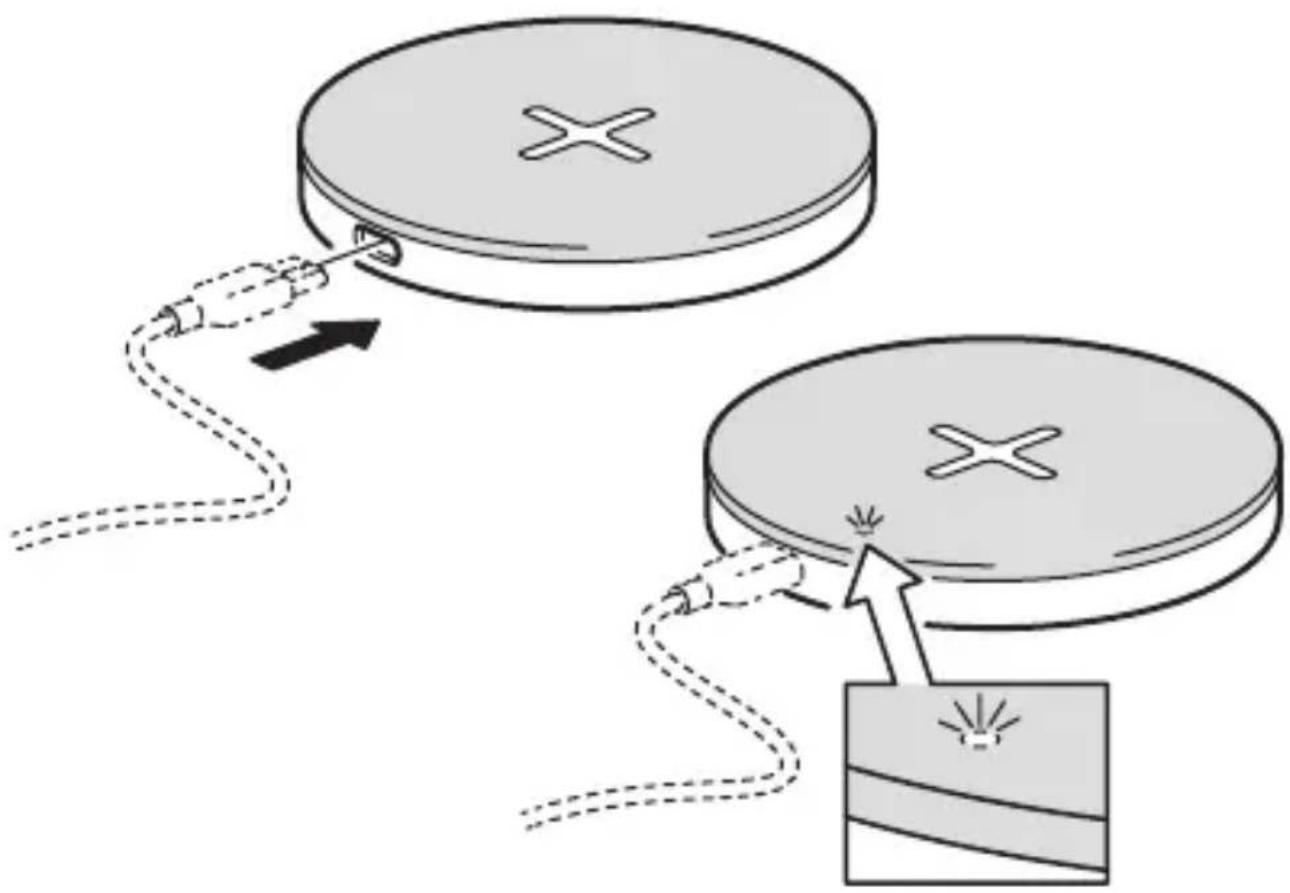

• Connect the USB cable to the power adapter and to NORDMÄRKE. Plug it into the wall socket.

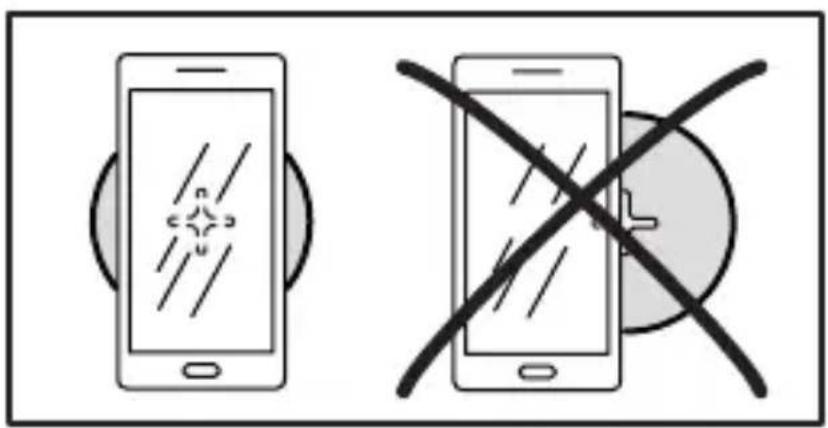

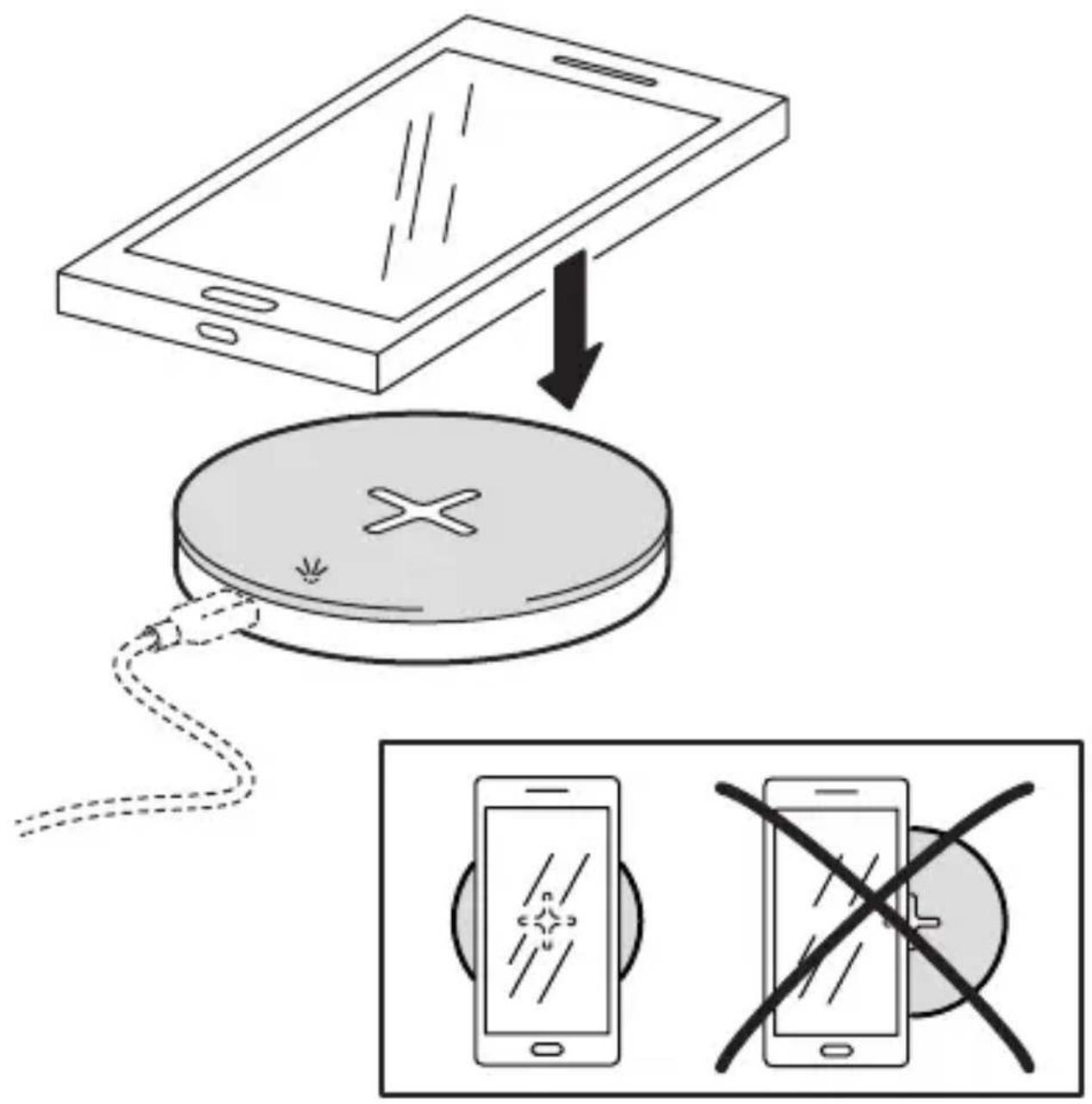

• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

4. Error: LED flashes.

Good to know

• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0^ to 40^ .

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth.

Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2011 NORDMÄRKE

Input: 5V DC, 2A USB Type-C

Indoor use only

Operating frequency: 113 - 148 KHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste.

The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
