NORDMÄRKE 104.841.44 - Phone charger IKEA - Free user manual and instructions

Product Type	Qi-compatible wireless charger
Brand	IKEA
Model	NORDMÄRKE 104.841.44
Input Power	5V DC, 2A (USB Type-C)
Wireless Charging Standard	Qi 1.2.4BPP
Transmission Frequency	113 - 148 KHz
Output Power	33 dBμA/m at 3 m
LED Indicator	Yes (steady on when charging, off when charged, flashes on error)
Thermal Protection	Yes
Overload Protection	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 25°C
RF Safety Distance	10 cm minimum
Usage	Indoor only
Maintenance	Wipe with a damp cloth, do not immerse
Repairability	Do not attempt to repair yourself
Included Cable	No (USB Type-C not supplied)
Included Power Adapter	No
Compliance	Qi standard, Wireless Power Consortium

Frequently Asked Questions - NORDMÄRKE 104.841.44 IKEA

How do I charge my phone with NORDMÄRKE?

Connect the charger to a power outlet via a USB Type-C cable and an adapter (not included). Place your Qi-compatible phone on the (+) sign of the charger. For some phones, enable wireless charging in the settings.

Why is my phone not charging?

Check that your phone is Qi compatible and placed precisely on the (+) symbol. Ensure the charger is powered (LED on). If the battery is completely discharged, wait a few minutes. Enable wireless charging in your phone's settings.

What does the LED indicator mean?

LED steady on during charging, off when charging is complete, on for 3 seconds at power-on, and flashing in case of error (metal object, overheating, etc.).

Can I use any USB cable?

Use a good quality USB Type-C cable. Cable length and quality affect charging speed. A damaged cable can damage the device and your phone.

Does the charger get hot?

Yes, it's normal. Devices warm up during charging and cool down afterwards. The charger has thermal protection. If the temperature becomes excessive, charging stops automatically.

How to clean the charger?

Unplug it, then wipe it with a damp cloth. Never immerse the charger in water and do not use abrasive products.

Can I use the charger outdoors?

No, the NORDMÄRKE is designed for indoor use only. Exposure to moisture or extreme temperatures could damage it.

What to do if the charger doesn't work?

Check the power supply, cable, and adapter. Try another USB cable. If the LED flashes, remove any metal object between the charger and the phone. Do not attempt to repair the charger yourself; contact IKEA support.

Is it compatible with all phones?

It is compatible with all devices supporting Qi technology. Check your phone's specifications. Some phones require enabling wireless charging in the settings.

How to enable wireless charging on my phone?

Go to your phone's settings, search for 'wireless charging' or 'fast charging' and enable the option. Activation varies by model. Refer to your phone's manual.

USER MANUAL NORDMÄRKE 104.841.44 IKEA

Design and Quality IKEA of Sweden

Simple line drawing of a circular object with a cross symbol on top and a small protrusion at the bottom (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

Diagram showing two circular objects connected by a cable with arrows indicating motion, one with a cross symbol and the other with a star symbol (no text or labels)

English 6

Deutsch 10

Français 14

Nederlands 18

Dansk 22

Íslenska 26

Norsk 30

Suomi 34

Svenska 38

Español 42

Português 46

Ελληνικα 50

Türkçe 54

Italiano 62

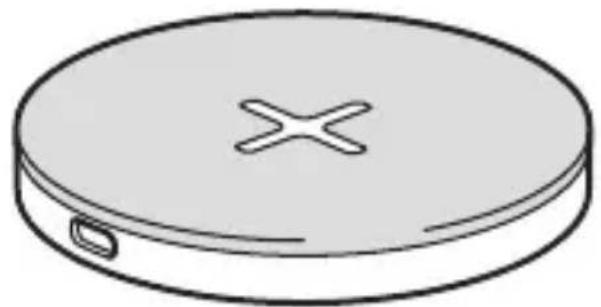

Charger features

• USB power adapter (5V, 2A) and USB Type-C cable not included.
- Wirelessly charges Qi-compatible devices.
- Compatible with Qi 1.2.4BPP specification.
• Temperature and power monitor for safety.
• LED status indicator.

Instructions for use

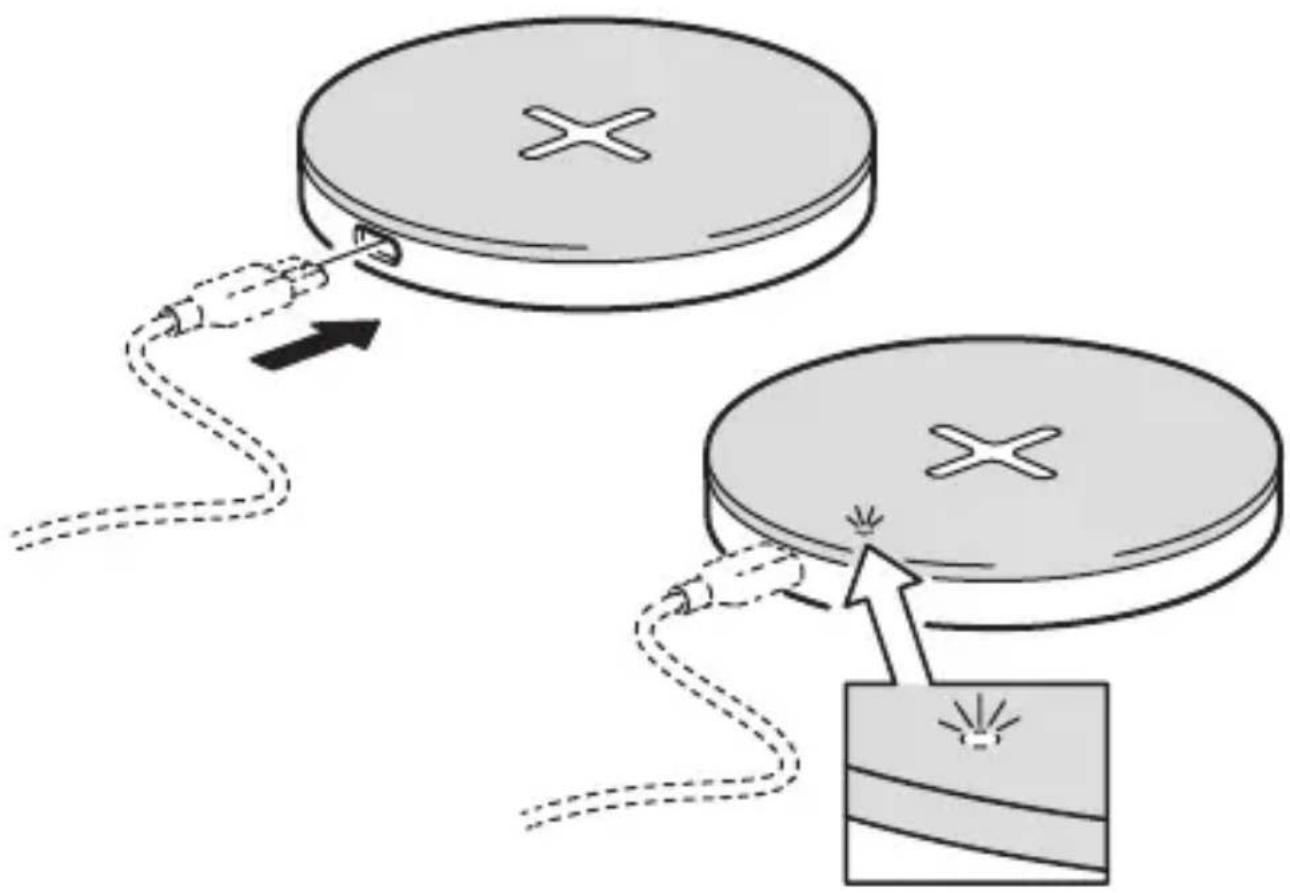

• Connect the USB cable to the power adapter and to NORDMÄRKE. Plug it into the wall socket.

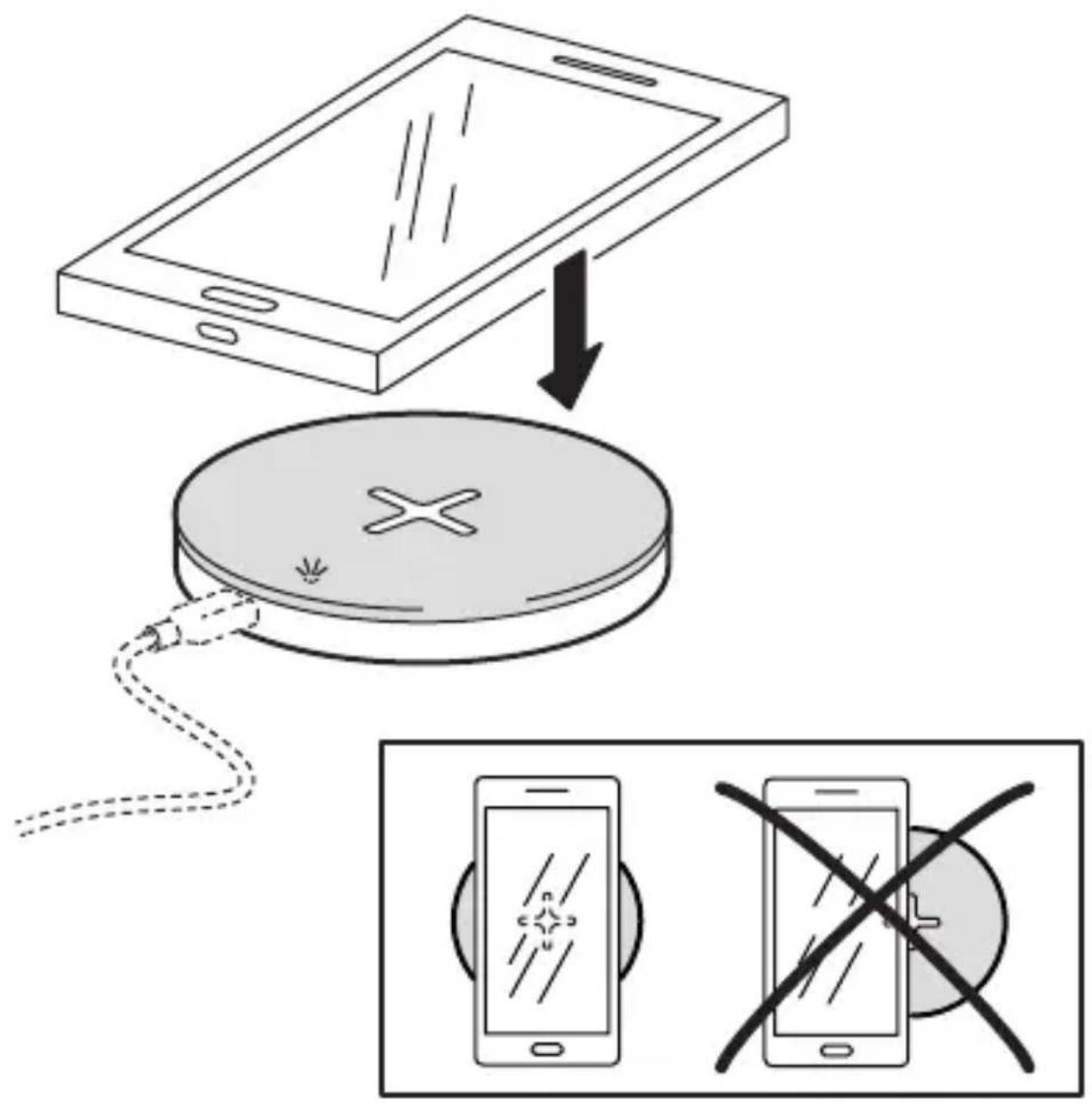

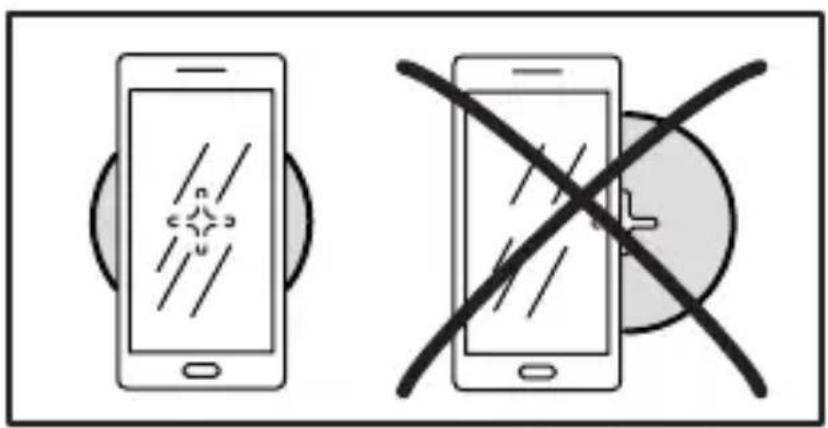

• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

4. Error: LED flashes.

Good to know

• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0°C to 40°C.

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth.

Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2011 NORDMÄRKE

Input: 5V DC, 2A USB Type-C

Indoor use only

Operating frequency: 113 - 148 KHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste.

The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
