Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Contents

1 Explanation of symbols 15
2 Safety instructions .... 16
3 Intended use 18
4 Scope of delivery 18
5 Accessories 18
6 Technical description .... 19
7 Operation....19
8 Troubleshooting....21
9 Cleaning and maintenance 21
10 Guarantee 22
11 Disposal 22
12 Technical data 22

1 Explanation of symbols

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
√This symbol describes the result of an action.

Fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

2 Safety instructions

2.1 General safety

WARNING!

• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children without supervision.
  ● Children must not play with the device.
  ● Children must be supervised to ensure that they do not play with the device.
  ● Always keep and use the device out of the reach of children under the age of 8 years.
• Do not store any explosive substances such as spray cans with a flammable propellant in the device.

CAUTION!

• Disconnect the device from the mains
  – before each cleaning and maintenance
• after every use
• Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
• Only connect the device to a DC plug socket in the vehicle (e. g. cigarette lighter) with the DC cable.

● Never pull the plug out of the socket by the cable.
- Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device.
- Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.
- The cooling device is not suitable for transporting caustic materials or materials containing solvents.

2.2 Operating the device safely

DANGER!

- Do not touch exposed cables with your bare hands.

CAUTION!

- Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
  ● Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluid.
  ● Never immerse the device in water.
• Protect the device and the cable against heat and moisture.

3 Intended use

The cooler is suitable for cooling foodstuffs.

The device has been designed for use with a 12 V---vehicle electrics socket of a car (cigarette lighter), boat or caravan.

The appliance may also be used for camping use. The appliance shall not to be exposed to rain. It can be used as a box or cupboard.

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.

NOTE

• To operate the device using a 220 – 240 V AC mains supply, we recommend using a rectifier.
• The seatbelt can be fed through the lugs on the cooler to fasten it to the car seat (fig. 1, page 3).

4 Scope of delivery

● BordBar TF08 (Item no. 9105300001)
- Connection cable for 12 V== connection
- Operating manual

5 Accessories

Available as accessories (not included in the scope of delivery):

Description Item no.

Voltage monitor (12 V, 5 A) 9105303854

Mains adapter (230 V - 12 V) 9102600030

6 Technical description

The cooler is suitable for mobile use. If can cool goods to max. 20 °C under the ambient temperature or keep them cool.

The handy shutter provides easy access to the refrigerated goods inside.

Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan.

6.1 Description of the device

No. in fig. 1, page 3 Description

1 Shoulder strap
2 Safety belt tabs
3 Shutter

7 Operation

CAUTION! Health hazard!

Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Ensure that the objects placed in the cooler are suitable for cooling to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers

NOTE

Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 21).

7.1 Energy saving tips

• Choose a well ventilated installation location which is protected against direct sunlight.
• Allow warm food to cool down first before placing it in the device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooler unit open for longer than necessary.
• Do not leave the shutter open for longer than necessary.

7.2 Using the cooler

NOTE

Like every cooling device, your cooler must be properly ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured.

▶Place the cooler on a firm base.
▶ Connect the 12 V connection cable into the cigarette lighter socket or a 12 V socket in the vehicle
√The cooler starts cooling the interior.
▶To switch off the cooler, disconnect the plug.

7.3 Connecting to the cigarette lighter

NOTE

If you connect the cooler to the cigarette lighter, remember that the ignition must be turned on to supply it with power.

8 Troubleshooting

Fault Possible cause Suggested remedy

Your cooler does not work (plug is inserted).	There is no voltage flowing from the 12 V socket (cigarette lighter) in your vehicle.	The ignition must be switched on in most vehicles for voltage to flow at the cigarette lighter.
The cooler does not cool (plug is inserted).	The inner fan or the cooling element is defective.	This can only be repaired by an authorised customer services unit.
Operation with a 12 V socket (cigarette lighter): The ignition is on and the cooler is not working. Pull the plug out of the socket and make the following checks.	The cigarette lighter socket is dirty. This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the cigarette lighter socket, either the socket must be cleaned or the plug has not been assembled correctly.

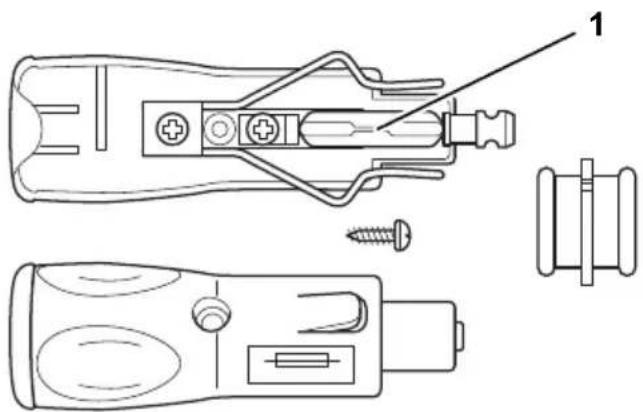

	The fuse of the 12 V plug has blown.	Replace the fuse (5 A) in the 12 V plug (fig. 2 1, page 3).
	The vehicle fuse has blown.	Replace the vehicle's 12 V socket fuse (usually 15 A). (Please refer to the operating manual of your vehicle.)

9 Cleaning and maintenance

WARNING!

Always disconnect the device from the mains before you clean and service it.

NOTICE! Risk of damage

● Never clean the cooler under running water or in dish water.
- Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

▶Occasionally clean the device interior and exterior with a damp cloth.
▶Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.
▶Clean the lid seal regularly.

10 Guarantee

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

● A copy of the receipt with purchasing date
● A reason for the claim or description of the fault

11 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

	BordBar TF08
Item no.: 9105300001
Gross capacity: 8 litres
Connection voltage: 12 V---
Power consumption: 31 W
Cooling capacity: Max. 20 °C under ambient temperature

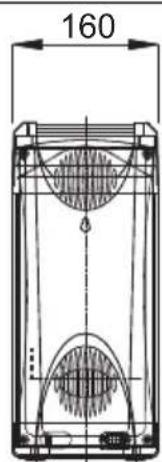

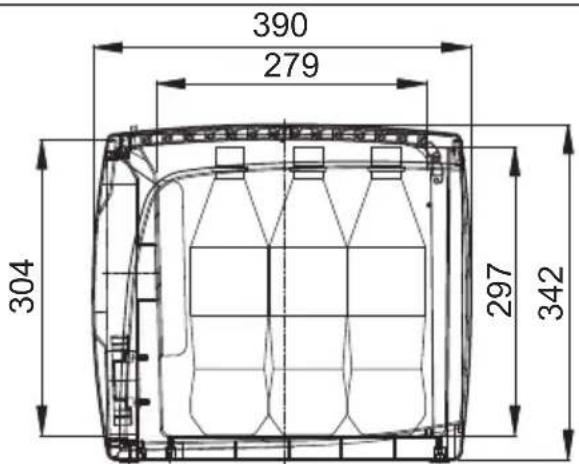

Dimensions (W x H x D): 390 x 342 x 160 mm
Weight:	3.5 kg
Testing/certification:
