Location and Function of

Controls ....13

Captioning Glasses 13

Receiver Box

(STW-C140GI only) ....14

Instructions to Theater Staff

Charging 16

Mode Selection: Captioning or

Audio 16

Preparation ......17

Screen Position Alignment Check

(Captioning Mode) 17

Channel and Audio Selection ..... 17

Language Selection (Captioning

Mode) 18

Providing Customers with Units

(Captioning Mode) ......19

Providing Customers with Units

(Audio Mode) 19

Turning Off 20

Cleaning 20

Wiping the Captioning Glasses ..... 20

Sterilization 21

Instructions to Customers

Adjustments 23

Setting Screen 24

Setting Screen Operation ...... 24

Appendices

Specifications 25

License 26

About this manual

In this manual, we mention two models; STW-C140GI and STW-C140S. Each model is structured as follows::

Model name Captioning glasses Receiver box
STW-C140GI(Captioning Glasses with Audio Assist)	Supplied Supplied
STW-C140S(Captioning Glasses)	Supplied Not supplied*

* The receiver box is not included with the STW-C140S. Refer to the description of the receiver box in the discussion of a captioning glasses connected to a receiver box.

Supplied Items

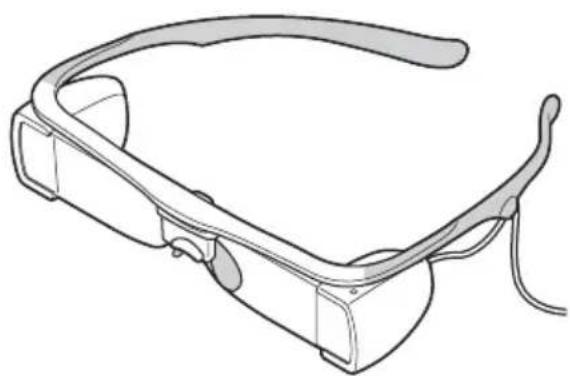

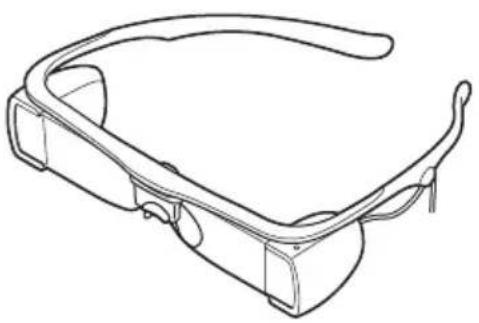

Captioning glasses (1)

Line drawing of a smart glasses headset (no text or symbols)

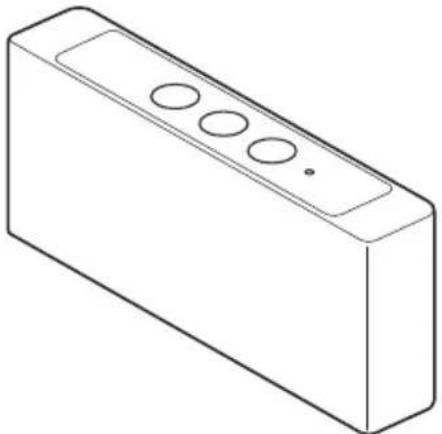

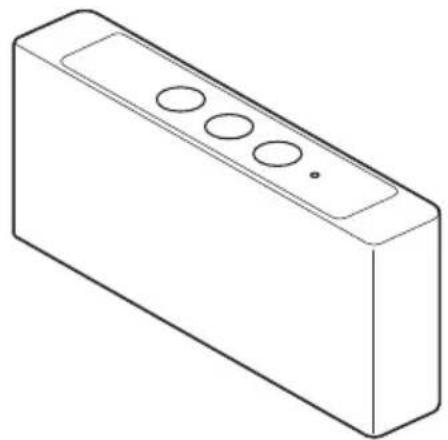

Receiver box (1) (STW-C140GI only)

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Operating Instructions (1)

System Configuration (Example)

Closed caption data is transmitted from a D-Cinema (digital cinema) server by the Data Transmitter and received by the receiver box to be displayed on the captioning glasses. Audio data for the visually impaired and/or the hearing impaired can be also transmitted, for listening through headphones.

*1 The receiver box outputs to only one device at a time; either the captioning glasses or the headphones.
^*2 The receiver box is not included with the STW-C140S.

Precautions

- Do not drop or subject to impact.

- Do not stretch the cable.

- Avoid exposing the units to water. If water enters the units, a malfunction may occur, which may not be repairable.

- The units are neither dust-proof, nor splash-proof.

- Do not allow condensation to form in the unit, or use the unit near water.

- Stop using the unit immediately if it gets wet. In an attempt to resume use of the unit, do not charge the battery or dry the unit forcibly using heating apparatus (microwave, etc.).

- Do not leave the unit in a humid place. An environment where a humidifier's vapor is emitted (as a result of sudden temperature change) may cause condensation in the unit.

- Do not place the unit near the vents of an air conditioner. If the unit is brought directly from a cold to a warm location, condensation may occur inside.

• The minimum age for wearing the captioning glasses is seven years old.

- The lenses of the captioning glasses are made of glass. If the glass cracks or breaks, contact your dealer and refrain from touching it or attempting to repair it yourself. Damage may be incurred if the captioning glasses sustain a shock or if they are dropped; therefore, be careful when handling them. Damages resulting from inappropriate handling of the captioning glasses are not covered under warranty.

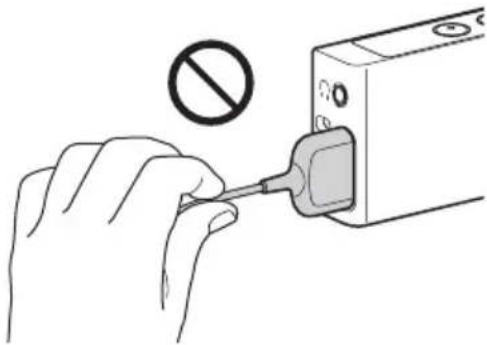

- Hold the connector when disconnecting the cable from the unit; do not hold the cable, as it may be damaged and closed captions may not be displayed.

Hand inserting a plug into an electrical outlet with a no-smoking symbol (no text or labels)

- Hold the connector when connecting the cable to the receiver; do not bend the cable at the connector/cable junction, as it may be damaged and closed captions may not be displayed.

Illustration of hands inserting a plug into a device with a no-smoking symbol (no text or labels)

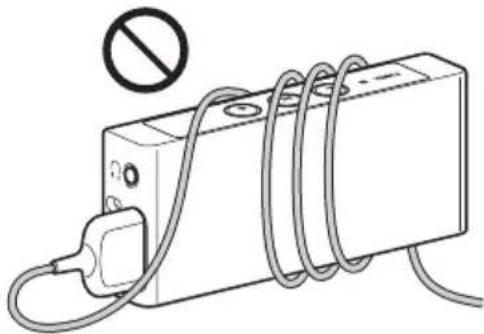

- Do not loop the cable around the unit. The cable may be damaged and closed captions may not be displayed.

Simple line drawing of an electrical component with a no-smoking symbol above it (no text or labels)

Location and Function of Controls

Captioning Glasses

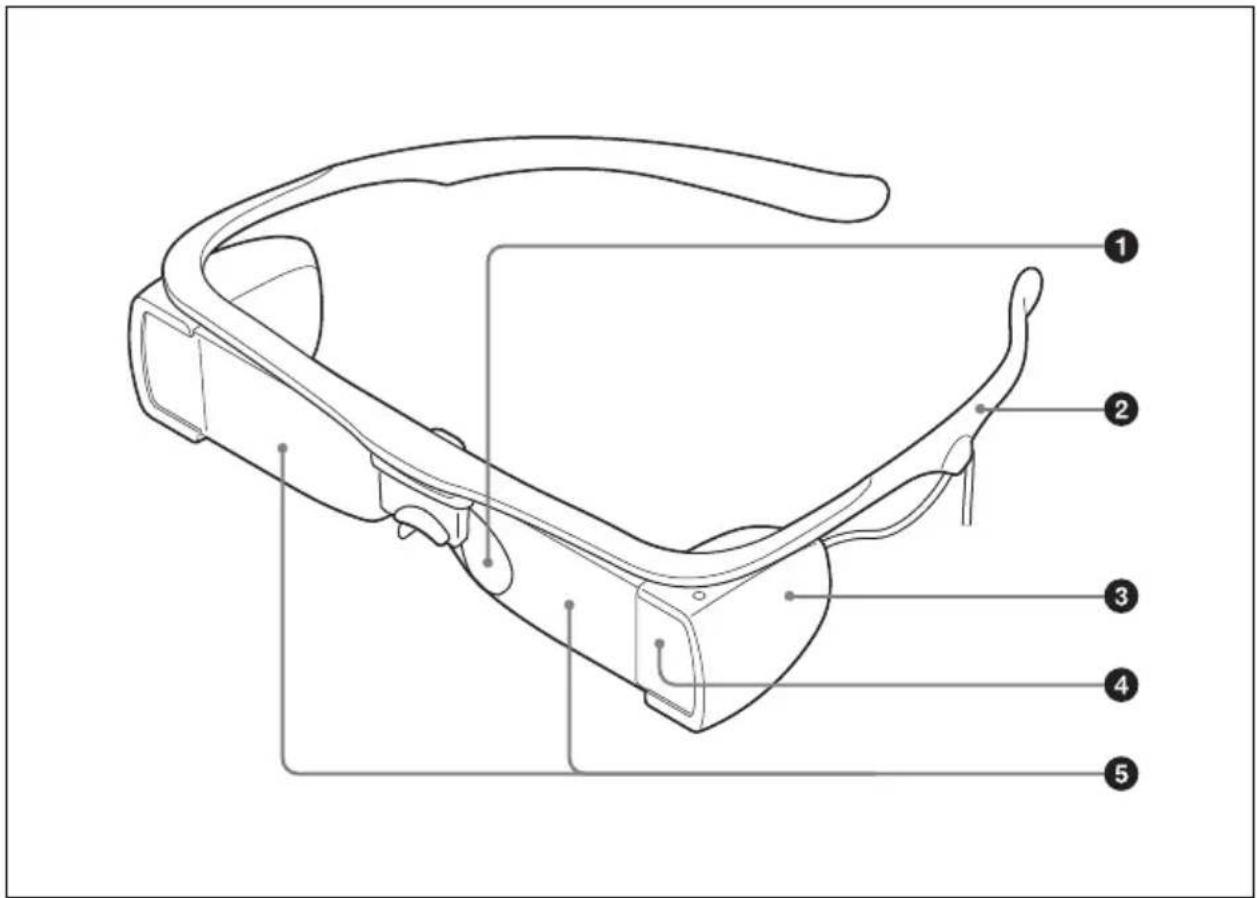

Technical diagram of a smart glasses headset with numbered labels pointing to key components.

①Nose piece

Slide the nose piece up or down and adjust the angle for a comfortable fit.

② Temple frames

Place the temple frames over your ears, as you would regular glasses. Similarly, handle the captioning glasses by the temple frames.

③Optical engines

Use to raise or lower the position of the closed captions. The optical engines and lenses are integrated into one component and can rotate back and forth.

Diagram of a pair of eyeglasses with curved wires and an arrow indicating rotation (no text or symbols)

④ Photo sensor

Detects the screen image brightness to adjust the closed caption brightness automatically.

⑤Lenses

Keep the lenses clean and avoid touching or staining them.

1 2 3 4 5 6 POWER - SEL +

7 8 9 H V Q1 2 3 4 5 6 7 Y1 2 3 4 5 6 7 RESET

1 10

Diagram of a device panel with numbered labels pointing to different components

①Antenna (inside)

Avoid covering the antenna.

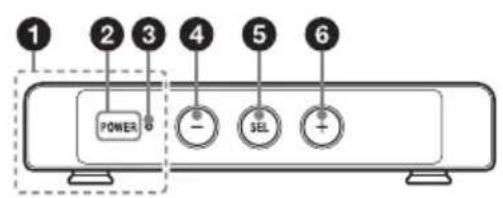

② POWER button

Press this button to turn on the receiver box. After turned on, channel and audio selection is available.

While turned on, press and hold this button for about two seconds until the POWER indicator starts blinking in amber, and press this button once more to turn off the receiver box.

While turned off and while pressing and holding the SEL button, press this button to call up the screen position alignment check image.

③POWER indicator

Displays the status of the receiver box.

Lit in green: The unit is turned on and the battery can last more than three hours.

Lit in amber: The unit is turned on but the battery may run down in less than three hours.

Blinks in red five times at power-on:

The battery may have reached its end of usable life. Contact your Sony sales representative to have the battery

replaced with a new one. The unit may still work with the old battery, though the battery may have lost one half its initial capacity, which means that it may not last three hours even if the indicator lights in green.

Blinking: The unit is in the channel or audio selection mode.

Off: The power of the unit is turned off.

④- button

Use this button to select an item or adjust a value in a setting screen. Also, press and hold the + and - buttons simultaneously while the unit is turned on to display the language selection menu.

In Audio mode, press and hold this button to turn down the volume.

Assistive audio is still audible at the minimum volume.

⑤SEL (Select) button

Press this button to display a setting screen, go to the next setting screen or confirm an adjusted value. Also, press and hold the button to display the adjustment screen.

⑥+ button

Use this button to select an item or adjust the value when a setting screen is displayed.

In Audio mode, press and hold this button to turn up the volume.

⑦HI/VI indicator

Indicates the type of audio assistance for Audio mode.

H: Assistive audio for the hearing impaired.

V: Audio description for the visually impaired.

Blinking: HI/VI selection is available.

⑧Channel indicator

Indicates the wireless channel.

Lit in green: One of the G group channels (G1 to G7) is selected.

Lit in yellow: One of the Y group channels (Y1 to Y7) is selected.

Blinking: Channel selection is available.

⑨RESET button

Press this button with a thin, straight object (such as an opened paper clip) if all buttons on the unit (including the POWER button) become unresponsive. The power turns off.

Pressing this button has no effect on the power charge cycle count.

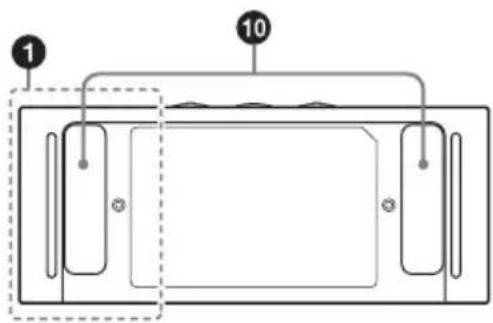

10Clips

Attach the unit to the holder of the carrying case or lanyard (not supplied) with the clips.

⑪ Battery charger terminals

For details on how to charge the battery of the unit, refer to the operating instructions included with the battery charger.

⑫Headphone jack

When using the unit in Audio mode, connect headphones to this jack.

⑬Captioning glasses connector

When using the unit in Captioning mode, connect the cable of the captioning glasses to this connector.

Charging

Use the specified battery charger to charge the battery of the receiver box. (It takes about three hours.) For details on how to charge the battery, refer to the operating instructions supplied with the battery charger.

Note about the battery terminal

The battery terminal of this unit (the connector for battery chargers) is a consumable part.

Power may not be supplied to the unit properly if the pins of the battery terminal are bent or deformed by shock or vibrations, or if they become corroded due to prolonged outdoor use.

If the unit remains turned off for an extended period of time, the battery may discharge. If the unit is not to be used for an extended period, keep the battery of the unit charged by the charger if possible. Otherwise, before resuming use, charge the battery of the unit. Periodic inspections are recommended to keep the unit working properly and to prolong its usable lifetime.

Contact a Sony service or sales representative for more information about inspections.

Mode Selection: Captioning or Audio

The receiver box works in one of two modes: Captioning mode, or Audio mode. The receiver box switches between these modes by detecting whether the captioning glasses are connected or not.

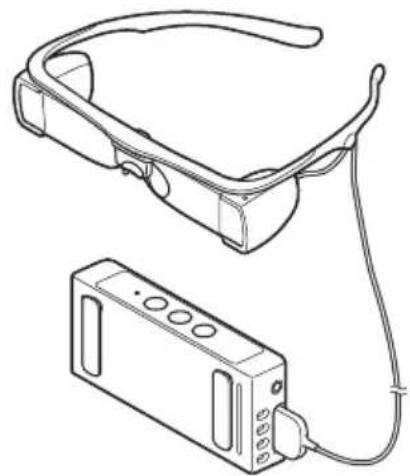

With the captioning glasses connected, the receiver box works in the Captioning mode, and the captioning glasses display captions. With the captioning glasses not connected, the receiver box works in Audio mode, and headphones play audio descriptions for the visually impaired, or assistive audio for the hearing impaired. The headphones should be connected to the headphone jack of the receiver box.

Captioning mode

Line drawing of a smart glasses and a connected device (no text or symbols)

Audio mode

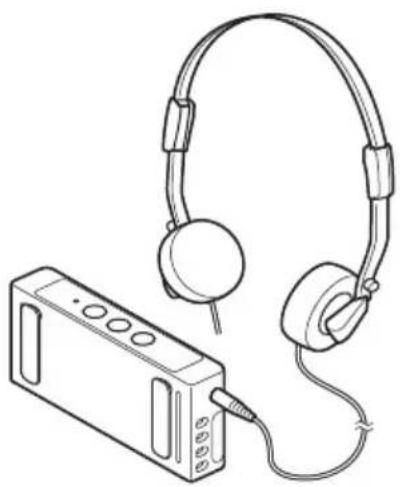

Line drawing of a portable electronic device connected to an earphone (no text or symbols)

Preparation

Before providing customers with units, make prepare the units as follows.

Captioning mode:

• Screen position alignment check
• Channel selection
• Language selection

Audio mode:

• Channel selection
• Audio selection

Screen Position Alignment Check (Captioning Mode)

If the screen position alignment of the captioning glasses is incorrect, do not use them. Contact your dealer for service information.

1 Connect the captioning glasses to the receiver box, and put the glasses on.

Note

The triangular marks of the plug and connector should be aligned.

2 Make sure that the unit is turned off.
3 While pressing and holding the SEL button, press the POWER button to turn the unit on.

POWER - SEL +

The screen position alignment check image appears on the glasses.

Left screen Right screen


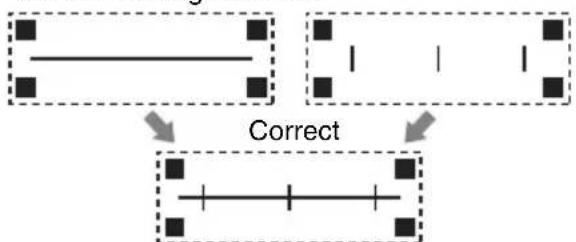

The combined picture you see with both eyes

4 Check that the horizontal line crosses all the vertical lines, as shown below.

Correct

Incorrect

5 Press and hold the POWER button for about two seconds until the POWER indicator starts blinking in amber. Press the POWER button again to turn off the receiver box. The POWER indicator goes out.

Channel and Audio Selection

Set the receiver box and the Data Transmitter to the same channel, and select HI (Hearing Impaired) or VI (Visually Impaired) accordingly.

1 Make sure that the unit is turned off.
2 Press the POWER button to turn on the receiver box.

POWER - SEL + +

The POWER indicator and channel indicator start blinking.

H V G1 2 3 4 5 6 7 Y1 2 3 4 5 6 7 ○ RESET

3 Press the +/- button repeatedly to select the channel.

POWER ○ - SEL + +

There are two channel groups: “G” (green indicator) and “Y” (yellow indicator).

4 Press the SEL button to set the channel.

The channel indicator stays lit.

POWER ○ - SEL +

The HI/VI indicator starts blinking.

H V G1 2 3 4 5 6 7 Y1 2 3 4 5 6 7 ○ RESET

5 Press the +/- button to choose HI or VI.

6 Press the SEL button again to set the audio setting.

The HI/VI indicator and POWER indicator stay lit.

For Captioning mode, follow the instructions as follows to select language.

Language Selection (Captioning Mode)

Select the closed caption language. Selectable languages and their order are set up by the Data Transmitter STWA-C101. For how to set up, refer to the operating instructions included with STWA-C101.

1 Press and hold the + and - buttons simultaneously until the language menu appears on the glasses. It takes about two seconds.

POWER ○ - SEL +

2 Press the +/- button repeatedly to select the language.

Language No.1

3 Press the SEL button to set the language.

POWER ○ - SEL + +

Notes

• After 10 seconds of no operation, the menu disappears and the language setting remains unchanged.
- The default language setting is “Language No.1.” When the receiver box is turned on, the language setting returns to the default setting.

Providing Customers with Units (Captioning Mode)

Before providing customers with units, check the screen position alignment and select the channel and language (see pages 17 to 18).

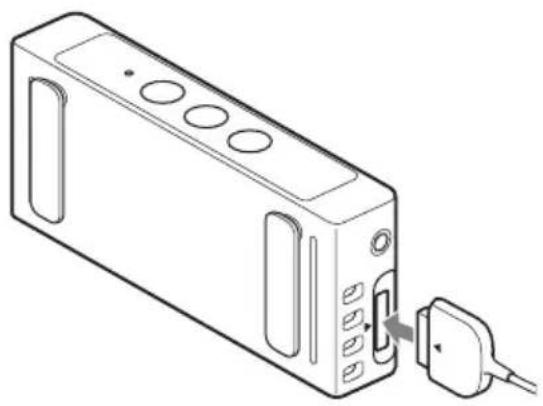

1 Connect the cable of the captioning glasses to the connector of the receiver box.

Line drawing of a microwave oven with a plug inserted, showing ports and casing (no text or symbols)

Note

The triangular marks of the plug and connector should be aligned.

2 Have the customer put on the glasses.

Notes

• The captioning glasses can be worn over the customer's own eyeglasses.
• Hold the captioning glasses by the temple frames.
• Any BTE (behind-the-ear) hearing aid should be removed before wearing the captioning glasses.

Providing Customers with Units (Audio Mode)

Before providing customers with units, select the channel and audio (see pages 17 to 18).

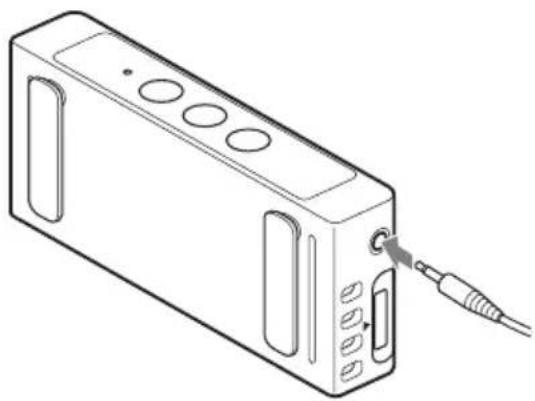

1 Connect the headphones to the headphone jack of the receiver box.

Line drawing of a device casing with ports and a cable inserted (no text or symbols)

2 Have the customer put on the headphones.

Notes

• Any hearing aid should be removed before wearing the headphones.
  • Assistive audio is still audible at the minimum volume.

Turning Off

After the receiver box is returned from the customer, turn it off.

1 Press and hold the POWER button for about two seconds until the POWER indicator starts blinking in amber.

2 Press the POWER button again. The POWER indicator goes out and the receiver box turns off.

Cleaning

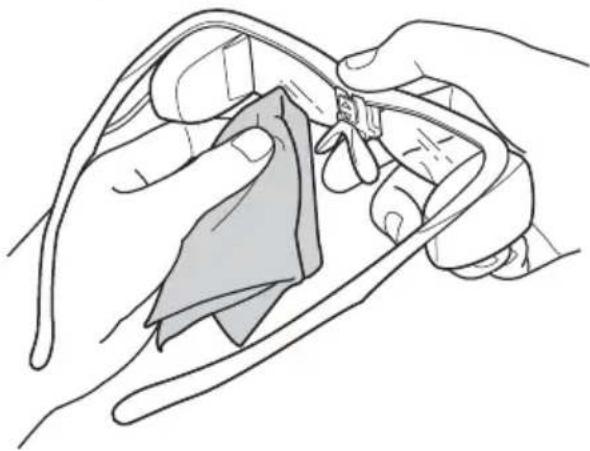

When cleaning the captioning glasses, hold them by the bridge, as illustrated below.

Illustration of hands holding a medical device with a shaded area, no text or symbols present

Wiping the Captioning Glasses

Wipe the front and back of each lens with a microfiber lens cleaning cloth (recommendation: Lens Cleaning Cloth 9021, by 3M Company).

If the lenses are badly stained by finger prints, oil, etc., wipe them with pre-moistened lens tissues (recommendation: Lens Pre-Moistened Tissues, by Carl Zeiss Optical Inc.).

If the lens surfaces are dirty, closed captions may not be displayed clearly.

To ensure they are displayed clearly, it is recommended to wipe the lenses periodically, using a pre-moistened lens tissue.

Note

Do not expose the captioning glasses to chemical products such as thinner, benzine, insect repellent, sunscreen or insecticide.

Sterilization

Use alcohol cleaning papers to wipe the parts that contact with skin.

Line drawing of a smart glasses with curved arms and earbuds (no text or symbols)

Use eyeglass cleaners to wipe the glasses. If the glasses are badly stained, wipe them with alcohol cleaning papers (IPA 70%).

Line drawing of a smart glasses with curved lenses and earbuds (no text or symbols)

Ultraviolet sterilization equipment can be used to sterilize the captioning glasses. 250 W·minute/cm ^2 of ultraviolet irradiation can kill 99.9% of bacteria and viruses.

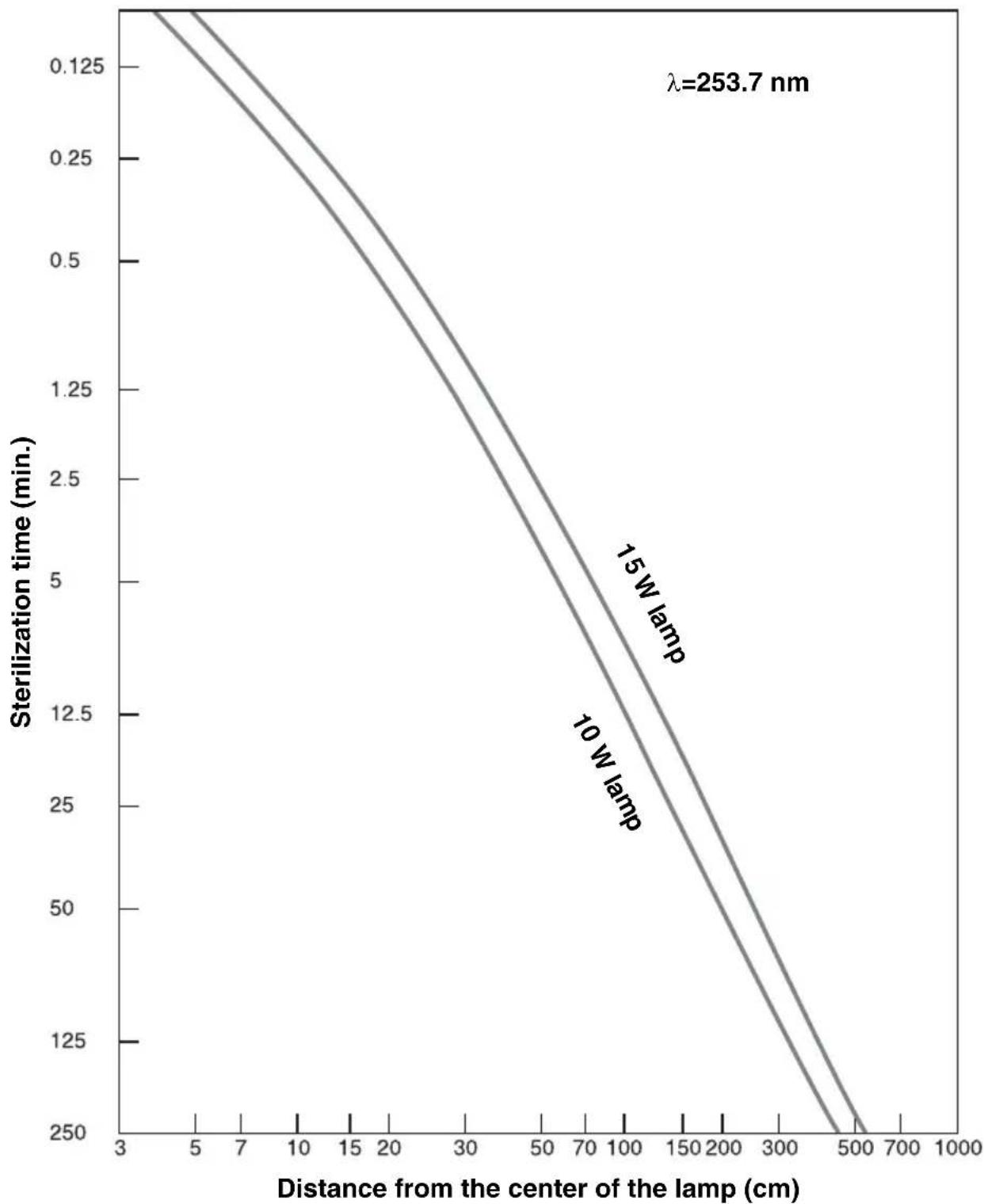

Sterilization time VS Distance from the lamp to kill 99.9% bacteria and virus

▶Instructions to Customers

Adjustments

The captioning glasses can be adjusted to fit the customer's face.

Use the adjustment screen to check whether the captioning glasses are correctly adjusted, while fitting the face comfortably.

1 Press and hold the SEL button until the adjustment screen appears on the glasses.

It takes about two seconds.

POWER o - SEL +

Note

During adjustment, keep all four corner marks visible.

Correct

Push select to exit

Incorrect

Push select to exit Push select to exit

Note

The screen automatically disappears after two minutes of no operation.

2 Adjust the height and angle of the nose piece so that all four corner marks are visible.

Pure mechanical diagram showing a lever mechanism with no text or symbols

The nose piece height can be set to three levels.

Also, the nose piece angle can be adjusted (open or closed) for a comfortable fit.

3 Adjust the vertical position of the closed captions by rotating the optical engines and lenses. The optical engines and lenses are integrated into one component and can rotate back and forth.

Diagram of a pair of eyeglasses with curved wires and an arrow indicating rotation (no text or symbols)

4 Make sure that all four corner marks are visible. If any of them are not visible, return to step 2 to readjust the height and angle of the nose piece.

To close the adjustment screen

Press the SEL button.

Setting Screen

You can adjust the perceived distance and brightness of the closed captions to make them easier to see.

Setting Screen Operation

You can press the SEL button to display one of the following adjustment screens. Each time you press the SEL button, the adjustment screen changes. After three seconds of no operation, the adjustment screen disappears.

Distance Adjustment

Distance □ Far ■ Mid □ Near

Press the +/- button to set the closed captions to appear as close to the cinema screen as possible (as would normally be viewed). The + button moves the captions away from the wearer, and the - button moves them toward the wearer. Select one of three settings.

Approximate distances:

• Near: 7 m (23 feet)
  • Mid: 12 m (39 feet)
  • Far: 18 m (59 feet)

Brightness Adjustment

Brightness - ■ ■ ■ □ □ +

The captioning glasses automatically adjust the closed caption brightness to make it suit the screen image brightness that is detected by the photo sensor incorporated into the captioning glasses.

Furthermore, you can manually adjust the brightness in 5 levels by pressing the +/- button. The + button increases the brightness, and the - button decreases it.

Note

The brightness does not change when the theater is well-lit or pitch-dark, regardless of any brightness adjustment. (The maximum and minimum brightness is constant and only the sensitivity to theater brightness changes.)

Specifications

Captioning glasses

Displayable characters

31* characters × 3 lines (average font size)

Field of view

19^ (horizontal) × 3.7^ (vertical)

Brightness

3cd / m^2 to 50~cd / m^2

Text color

Green

Dimensions

Approx. 190 × 43 × 190 mm

(7^1/2× 1^3/4× 7^1/_2inches) (w/h/d)

Mass

Approx. 84 g (3.0 oz) (excluding cable)

Operating conditions

Temperature

10^ to 35^ (50°F to 95°F)

Humidity

10% to 85% (no condensation)

Storage conditions

Temperature

-20^ to +60^ (-4^ to

+140 °F)

Humidity

0% to 90% (no condensation)

* The maximum number of characters displayed per line varies depending on the number of pixels of each character. (The number of characters is based on the average number of character pixels for the supported fonts).

Receiver box (STW-C140GI only)

Numbers of wireless channels

7 channels for closed captions, 7

channels for audio

Audio selection

HI audio / VI-N audio

Adjustments/Settings

Nose piece height (high, mid, low)

Vertical position of closed captions

Perceived distance of closed

captions (7 m, 12 m, 18 m (23 feet, 39 feet, 59 feet))

Language (6 languages)

Brightness (5 levels)

Volume (50 levels)

Battery life

Approx. 6 hours at shipment.

Longevity decreases through charging/discharging.

Longevity will decrease to approximately 3 hours after 500 charge/discharge cycles.

The LED of the receiver will be lit, to warn when the battery has reached 500 charge/discharge cycles.

Dimensions

Approx. 108 × 45 × 20 mm

(4^3/8×1^13/16×^13/_16 inches) (w/h/d)

Mass

Approx. 89 g (3.1 oz)

Operating conditions

Temperature

10^ to 35^ (50°F to 95°F)

Humidity

10% to 85% (no condensation)

Storage conditions

Temperature

-20^ to +60^ (-4^ to

+140 °F)

Humidity

0% to 90% (no condensation)

Supplied items

Captioning glasses (1)

Receiver box (1) (STW-C140GI only)

Operating Instructions (1)

Recommended options

Lens Cleaning Cloth 9021, by 3M Company

Lens Pre-Moistened Tissues, by Carl Zeiss Optical, Inc.

Ultraviolet sterilization equipment

Battery charger

Design and specifications are subject to change without notice.

Note

Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

License

standard library

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Pour le STW-C140GI

Line drawing of a smart glasses headset (no text or symbols)

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Mode d'emploi (1)

Hand inserting a plug into a device with a no-smoking symbol (no text or labels)

Illustration of hands inserting a plug into a device with a no-smoking symbol (no text or labels)

Line drawing of an electrical component with coiled wires and a prohibition symbol (no text or labels)

Technical diagram of a smart glasses headset with numbered parts labeled 1 through 5

①Arcade

Diagram of a pair of eyeglasses with curved wires and an arrow indicating rotation (no text or symbols)

④Capteur photo

Diagram of a device panel with numbered labels pointing to different components

Line drawing of a smart glasses and a connected device (no text or symbols)

Mode Audio

Line drawing of a portable electronic device connected to an earphone (no text or symbols)

Préparation

Two abstract geometric diagrams with black squares and lines, no text or symbols present

Incorrect

Two geometric diagrams with black squares and lines, no text or symbols present

Language No.1

Line drawing of a device with ports and an attached plug (no text or symbols)

Remarque

Line drawing of a device with ports and an attached cable (no text or symbols)

Line drawing of hands holding a medical device with a shaded area, no text or symbols present

Line drawing of a smart glasses with curved arms and earbuds (no text or symbols)

Line drawing of a smart glasses with curved lenses and earbuds (no text or symbols)

▶Instructions destinées aux clients

Réglages

Push select to exit

Incorrect

Push select to exit Push select to exit

Remarque

Pure mechanical diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Diagram of a pair of eyeglasses with curved wires and an arrow indicating rotation (no text or symbols)

Distances approximatives :

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met :

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Para STW-C140GI

Line drawing of a smart glasses headset (no text or symbols)

Caja del receptor (1) (STW-C140GI únicamente)

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Hand inserting a plug into a device with a no-smoking symbol (no text or labels)

Illustration of hands inserting a plug into a device with a no-smoking symbol (no text or labels)

Line drawing of an electrical component with coiled wires and a prohibition symbol (no text or labels)

Technical diagram of a smart glasses headset with numbered parts labeled 1 through 5

①Plaquetas para montura

Diagram of a pair of eyeglasses with curved wires and an arrow indicating rotation (no text or symbols)

④Fotosensor

Diagram of a device panel with numbered labels pointing to different components

①Antena (interna)

Line drawing of a smart glasses and a connected device (no text or symbols)

Modo Audio

Line drawing of a portable electronic device connected to an earphone (no text or symbols)

Preparación

Two abstract geometric diagrams with black squares and lines inside dashed rectangles (no text or symbols)

Incorrecto

Two geometric diagrams showing a horizontal line and a diagonal line with vertical tick marks, enclosed in dashed rectangular boxes (no text or symbols)

Language No.1

Line drawing of a device with ports and an attached plug (no text or symbols)

Nota

Line drawing of a device with ports and an attached cable (no text or symbols)

Line drawing of hands holding a medical device with a shaded area, no text or symbols present

Line drawing of a smart glasses headset with adjustable arms and buttons (no text or symbols)

Line drawing of a smart glasses with curved lenses and earbuds (no text or symbols)

Push select to exit

Incorrecto

Push select to exit Push select to exit

Nota

Pure mechanical diagram showing a clamping mechanism with no text or symbols

Diagram of a pair of eyeglasses with curved wires and an arrow indicating rotation (no text or symbols)

• Cerca: 7 m (23 pies)
• Media: 12 m (39 pies)
- Lejos: 18 m (59 pies)

Ajuste del brillo

Brightness - ■ ■ ■ □ □ +

(7 m, 12 m, 18 m (23 pies, 39 pies, 59 pies))

Idioma (6 idiomas)

Brillo (5 niveles)

Volumen (50 niveles)

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Für STW-C140GI

Line drawing of a smart glasses headset (no text or symbols)

Empfängerbox (1) (nur STW-C140GI)

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Hand inserting a plug into an electrical outlet with a no-smoking symbol above (no text or labels)

Illustration of hands inserting a plug into a device with a no-smoking symbol (no text or labels)

Simple line drawing of an electrical component with a no-smoking symbol above it (no text or labels)

Technical diagram of a smart glasses headset with numbered parts labeled 1 to 5

①Nasenpad

Diagram of a pair of eyeglasses with curved wires and an arrow indicating rotation (no text or symbols)

④ Lichtsensor

Diagram of a device panel with numbered labels pointing to different components

① Antenne (innen)

Line drawing of a smart glasses and a rectangular electronic device with ports and cables (no text or symbols)

Audiomodus

Line drawing of a portable electronic device connected to an earphone (no text or symbols)

Vorbereitung

Line drawing of a device with ports and an attached plug (no text or symbols)

Hinweis

Line drawing of a device with ports and an attached cable (no text or symbols)

Illustration of hands holding a medical device with a shaded area, no text or symbols present

Line drawing of a smart glasses with adjustable arms and head (no text or symbols)

Line drawing of a smart glasses with adjustable lenses and earments (no text or symbols)

Push select to exit

Falsch

Push select to exit Push select to exit

Hinweis

Pure mechanical diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Diagram of a pair of eyeglasses with a curved cable and directional arrow indicating rotation (no text or symbols)

Distance Far Mid Near

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Per STW-C140GI

Line drawing of a smart glasses headset (no text or symbols)

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Hand inserting a plug into a device with a no-smoking symbol (no text or labels)

Illustration of hands inserting a plug into a device with a no-smoking symbol (no text or labels)

Simple line drawing of an electrical component with a no-smoking symbol above it (no text or labels)

Technical diagram of a smart glasses headset with numbered parts labeled 1 through 5

①Ponte occhiali

Diagram of a pair of eyeglasses with a curved cable and directional arrow indicating rotation (no text or symbols)

④Fotorilevatore

Diagram of a device panel with numbered labels pointing to different components

①Antenna (interna)

Line drawing of a smart glasses and a handheld device connected by cables (no text or symbols)

Modalità Audio

Line drawing of a portable electronic device connected to an earphone (no text or symbols)

Preparazione

Two abstract geometric diagrams with black squares and lines, no text or symbols present

Non corretto

Two geometric diagrams with black squares and lines, no text or symbols present

Language No.1

Line drawing of a device with ports and an attached plug (no text or symbols)

Nota

Line drawing of a computer case with ports and an attached cable (no text or symbols)

Line drawing of hands holding a medical device with a shaded area, no text or symbols present

Line drawing of a smart glasses headset with curved arms and headband (no text or symbols)

Line drawing of a smart glasses with lenses and earbuds (no text or symbols)

Push select to exit

Non corretto

Push select to exit Push select to exit

Nota

Pure mechanical diagram showing a lever mechanism with directional arrows, no text or symbols present

Diagram of a pair of eyeglasses with curved wires and an arrow indicating rotation (no text or symbols)

Distanze approssimative:

Circa 108 × 45 × 20 mm

(4^3/8×1^13/16×^13/_16poll.)(L/A/P)

Peso

Circa 89 g (3,1 once)

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Printed on recycled paper.

http://www.sony.net/

Sony Corporation

Printed in Japan
