Product type	Audio receiver
Brand	Sony
Model	STW-C140X
Dimensions (W x H x D)	108 x 45 x 20 mm
Weight	Approx. 89 g
Number of wireless channels	7 channels for subtitles, 7 channels for audio
Audio selection	HI (hearing impaired) or VI (visually impaired)
Settings	Volume (50 levels)
Battery life (new battery)	Approx. 6 hours
Charge cycle	Approx. 500 cycles before reduction to 3 hours
Operating temperature	10 °C to 35 °C
Operating humidity	10% to 85% (without condensation)
Storage temperature	-20 °C to +60 °C
Storage humidity	0% to 90% (without condensation)
Operating modes	Subtitling (with glasses) or Audio (with headphones)
Supplied items	Receiver (1), instruction manual (1)
Recommended option	Battery charger
Cautions	Do not expose to rain or moisture; avoid shocks

Frequently Asked Questions - STW-C140X SONY

How to turn on the STW-C140X receiver?

Press the POWER button to turn on the device. The POWER indicator lights up green if the battery is sufficient.

How to select the audio channel?

Make sure the device is powered on. Use the +/- buttons to select the channel (G1 to G7 or Y1 to Y7), then press SEL to confirm.

How to switch to Audio mode?

Audio mode is active when the subtitling glasses are not plugged in. Connect headphones to the headphone jack to listen to audio assistance.

How to adjust the volume in Audio mode?

Press and hold the + button to increase volume or the - button to decrease it. The minimum volume remains audible.

What is the battery life?

The new battery lasts about 6 hours. After 500 charge cycles, the duration drops to about 3 hours. A orange or red indicator shows low battery.

How to charge the receiver battery?

Use the specified battery charger. Connect the receiver to the charger via the charging terminals. Full charging takes about 3 hours.

What to do if the device stops responding?

Use a thin object (like a paperclip) to press the RESET button located on the back. The device will turn off and can be restarted.

Can I use subtitling glasses with this receiver?

Yes, connect the subtitling glasses cable to the dedicated connector. The receiver automatically switches to Subtitling mode.

How to turn off the receiver?

Press and hold the POWER button for about 2 seconds until the indicator flashes orange, then press POWER again to turn off.

What usage precautions are recommended?

Avoid exposing the device to water, condensation, shocks, and excessive heat. Do not place it near an air conditioner or humidifier.

USER MANUAL STW-C140X SONY

Operating Instructions ____ GB

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Owner's Record

The model and serial numbers are located on the product. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No.

Serial No.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION

The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

WARNING

Excessive sound pressure from earphones and headphones can cause hearing loss.

In order to use this product safely, avoid prolonged listening at excessive sound pressure levels.

WARNING

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

For the customers in Canada

CAN ICES-3 (A)/NMB-3(A)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

For the customers in Europe, Australia and New Zealand

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

For the customers in Europe

This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents.

This apparatus shall not be used in the residential area.

Dutch	Hierbij verklaart Sony Corporation dat het toestel STW-C140X/Ontvanger in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van Richtlijn 1999/5/EG. Nadere informatie kunt u vinden op: http://www.compliance.sony.de/
English	Hereby, Sony Corporation, declares that STW-C140X/Receiver Box is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/
French	Par la présente Sony Corporation déclare que l’appareil STW-C140X/Récepteur est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Pour toute information complémentaire, veuillez consulter l’URL suivante:http://www.compliance.sony.de/
German	Hiermit erklärt Sony Corporation, dass sich das Gerät STW-C140X/Empfängerbox in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Weitere Informationen erhältlich unter:http://www.compliance.sony.de/
Italian	Con la presente Sony Corporation dichiara che STW-C140X/Ricevitore è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Per ulteriori dettagli, si prega di consultare il seguente URL:http://www.compliance.sony.de/
Norwegian	Sony Corporation erklærer herved at STW-C140X/mottakerboks er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF. For flere detaljer, vennligst se:http://www.compliance.sony.de/
Spanish	Por medio de la presente Sony Corporation declara que el STW-C140X/caja del receptor cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Para mayor información, por favor consulte el siguiente URL:http://www.compliance.sony.de/
Turkish	Sony Corporation, STW-C140X/Alicı kutusu ürünü için gerekli tüm testleri 1999/5/EC Direktifinc göre yapmış bulunmaktadır. Daha detaylı bilgi için lütfen web sayfasını ziyaret ediniz:URL: http://www.compliance.sony.de/

For the customers in Italy

Use of the RLAN network is governed:

- with respect to private use, by the Legislative Decree of 1.8.2003, no. 259 (“Code of Electronic Communications”). In particular Article 104 indicates when the prior obtainment of a general authorization is required and Art. 105 indicates when free use is permitted;

- with respect to the supply to the public of the RLAN access to telecom networks and services, by the Ministerial Decree 28.5.2003, as amended, and Art. 25 (general authorization for electronic communications networks and services) of the Code of electronic communications

For the customers in Norway

Use of this radio equipment is not allowed in the geographical area within a radius of 20 km from the centre of Ny-Ålesund, Svalbard.

For kundene i Norge

Location and Function of Controls .... 10

Instructions to Theater Staff

Charging 12

Mode Selection: Captioning or Audio ....12

Preparation 13

Channel and Audio Selection ..... 13

Providing Customers with Units (Audio Mode) 14

Turning Off ....14

Appendices

Specifications 15

License ....16

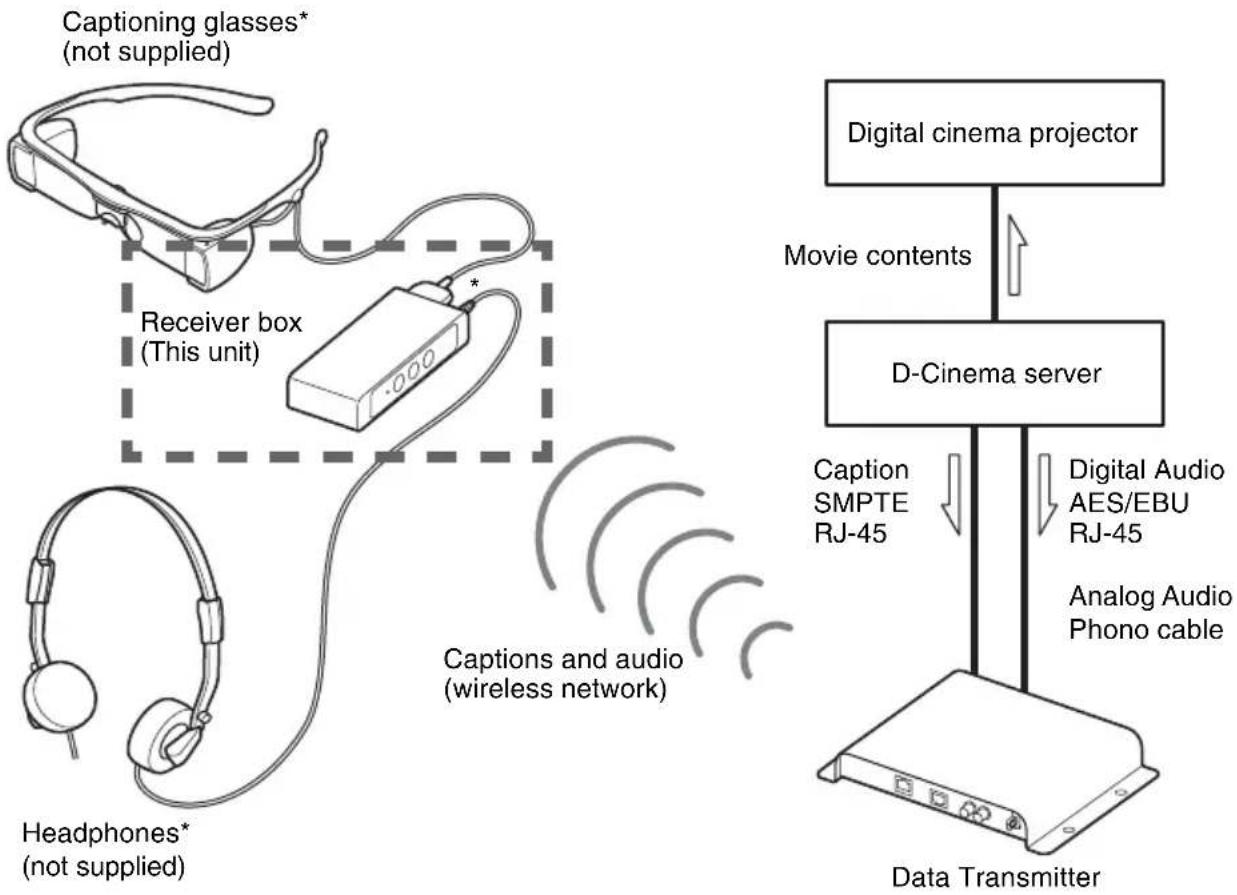

System Configuration (Example)

Closed caption data is transmitted from a D-Cinema (digital cinema) server by the Data Transmitter and received by the receiver box to be displayed on the captioning glasses. Audio data for the visually impaired and/or the hearing impaired can be also transmitted, for listening through headphones.

*The receiver box outputs to only one device at a time; either the captioning glasses or the headphones.

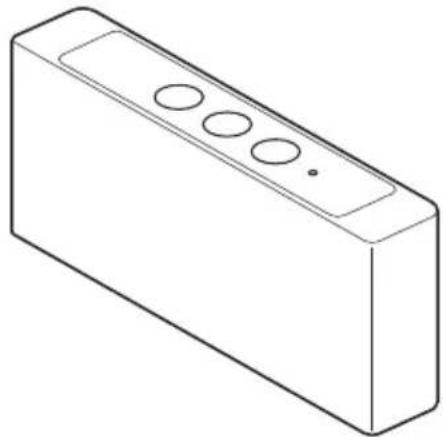

Supplied Items

Receiver box (1)

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Operating Instructions (1)

Precautions

• Do not drop or subject to impact.
• Avoid exposing the units to water. If water enters the units, a malfunction may occur, which may not be repairable.
  • The units are neither dust-proof, nor splash-proof.
• Do not allow condensation to form in the unit, or use the unit near water.
• Stop using the unit immediately if it gets wet. In an attempt to resume use of the unit, do not charge the battery or dry the unit forcibly using heating apparatus (microwave, etc.).
• Do not leave the unit in a humid place. An environment where a humidifier's vapor is emitted (as a result of sudden temperature change) may cause condensation in the unit.
• Do not place the unit near the vents of an air conditioner. If the unit is brought directly from a cold to a warm location, condensation may occur inside.

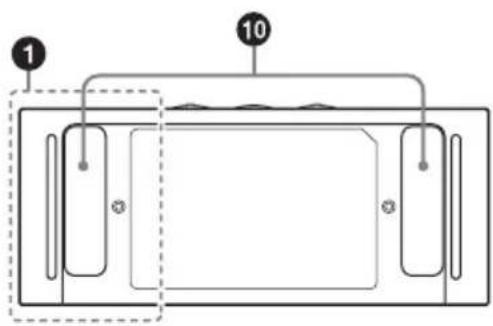

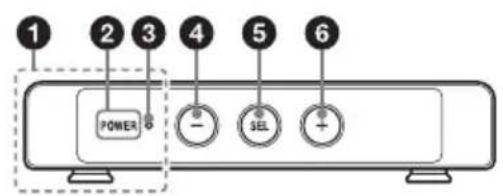

Location and Function of Controls

1 2 3 4 5 6 POWER - SEL +

7 8 9 H V G1 2 3 4 5 6 7 Y1 2 3 4 5 6 7 RESET

1 10

Diagram of a device panel with numbered labels pointing to different components

①Antenna (inside)

Avoid covering the antenna.

②POWER button

Press this button to turn on the receiver box. After turned on, channel and audio selection is available.

While turned on, press and hold this button for about two seconds until the POWER indicator starts blinking in amber, and press this button once more to turn off the receiver box.

While turned off and while pressing and holding the SEL button, press this button to call up the screen position alignment check image.

③POWER indicator

Displays the status of the receiver box. Lit in green: The unit is turned on and the battery can last more than three hours.

Lit in amber: The unit is turned on but the battery may run down in less than three hours.

Blinks in red five times at power-on: The battery may have reached its end of usable life. Contact your Sony sales

representative to have the battery replaced with a new one. The unit may still work with the old battery, though the battery may have lost one half its initial capacity, which means that it may not last three hours even if the indicator lights in green.

Blinking: The unit is in the channel or audio selection mode.

Off: The power of the unit is turned off.

④- button

In Audio mode, press and hold this button to turn down the volume. Assistive audio is still audible at the minimum volume.

⑤SEL (Select) button

Use this button to set the channel in "Preparation."

6+ button

In Audio mode, press and hold this button to turn up the volume.

⑦HI/VI indicator

Indicates the type of audio assistance for Audio mode.

H: Assistive audio for the hearing impaired.

V: Audio description for the visually impaired.

Blinking: HI/VI selection is available.

⑧Channel indicator

Indicates the wireless channel.

Lit in green: One of the G group channels (G1 to G7) is selected.

Lit in yellow: One of the Y group channels (Y1 to Y7) is selected.

Blinking: Channel selection is available.

⑨ RESET button

Press this button with a thin, straight object (such as an opened paper clip) if all buttons on the unit (including the POWER button) become unresponsive. The power turns off.

Pressing this button has no effect on the power charge cycle count.

10Clips

Attach the unit to the holder of the carrying case or lanyard (not supplied) with the clips.

⑪ Battery charger terminals

For details on how to charge the battery of the unit, refer to the operating instructions included with the battery charger.

⑫Headphone jack

When using the unit in Audio mode, connect headphones to this jack.

⑬Captioning glasses connector

When using the unit in Captioning mode, connect the cable of the captioning glasses to this connector.

Charging

Use the specified battery charger to charge the battery of the receiver box. (It takes about three hours.) For details on how to charge the battery, refer to the operating instructions supplied with the battery charger.

Note about the battery terminal

The battery terminal of this unit (the connector for battery chargers) is a consumable part.

Power may not be supplied to the unit properly if the pins of the battery terminal are bent or deformed by shock or vibrations, or if they become corroded due to prolonged outdoor use.

If the unit remains turned off for an extended period of time, the battery may discharge. If the unit is not to be used for an extended period, keep the battery of the unit charged by the charger if possible. Otherwise, before resuming use, charge the battery of the unit. Periodic inspections are recommended to keep the unit working properly and to prolong its usable lifetime.

Contact a Sony service or sales representative for more information about inspections.

Mode Selection: Captioning or Audio

The receiver box works in one of two modes: Captioning mode, or Audio mode. The receiver box switches between these modes by detecting whether the captioning glasses are connected or not.

With the captioning glasses connected, the receiver box works in the Captioning mode, and the captioning glasses display captions. With the captioning glasses not connected, the receiver box works in Audio mode, and headphones play audio descriptions for the visually impaired, or assistive audio for the hearing impaired. The headphones should be connected to the headphone jack of the receiver box.

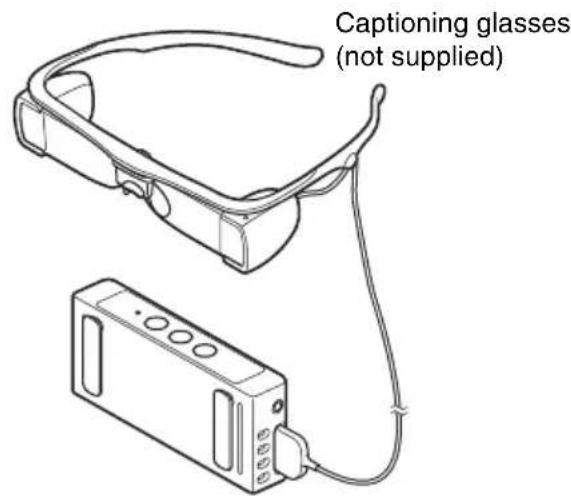

Captioning mode

Captioning glasses (not supplied)

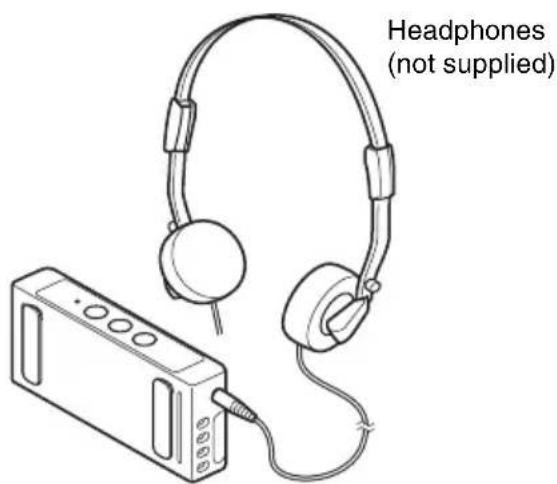

Audio mode

Headphones (not supplied)

Preparation

Before providing customers with units, make prepare the units as follows.

Audio mode:

• Channel selection
• Audio selection

Channel and Audio Selection

Set the receiver box and the Data Transmitter to the same channel, and select HI (Hearing Impaired) or VI (Visually Impaired) accordingly.

1 Make sure that the unit is turned off.
2 Press the POWER button to turn on the receiver box.

POWER - SEL +

The POWER indicator and channel indicator start blinking.

H V G1 2 3 4 5 6 7 Y1 2 3 4 5 6 7 ○ RESET

3 Press the +/- button repeatedly to select the channel.

POWER ○ - SEL + +

There are two channel groups: “G” (green indicator) and “Y” (yellow indicator).

4 Press the SEL button to set the channel.

The channel indicator stays lit.

POWER ○ - SEL +

The HI/VI indicator starts blinking.

H V G1 2 3 4 5 6 7 Y1 2 3 4 5 6 7 ○ RESET

5 Press the +/- button to choose HI or VI.
6 Press the SEL button again to set the audio setting.

The HI/VI indicator and POWER indicator stay lit.

For Captioning mode, refer to the Operating Instructions of STW-C140S/C140GI, or consult your nearest Sony dealer.

Providing Customers with Units (Audio Mode)

Before providing customers with units, select the channel and audio (see page 13).

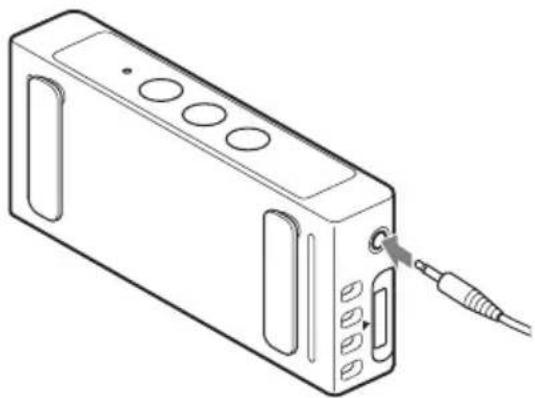

1 Connect the headphones to the headphone jack of the receiver box.

Line drawing of a device with ports and a cable inserted, no text or symbols present

2 Have the customer put on the headphones.

Notes

• Any hearing aid should be removed before wearing the headphones.
  • Assistive audio is still audible at the minimum volume.

Turning Off

After the receiver box is returned from the customer, turn it off.

1 Press and hold the POWER button for about two seconds until the POWER indicator starts blinking in amber.

2 Press the POWER button again. The POWER indicator goes out and the receiver box turns off.

Specifications

Receiver box

Numbers of wireless channels 7 channels for closed captions, 7 channels for audio

Audio selection HI audio / VI-N audio

Adjustments/Settings Volume (50 levels)

Battery life Approx. 6 hours at shipment. Longevity decreases through charging/discharging. Longevity will decrease to approximately 3 hours after 500 charge/discharge cycles. The LED of the receiver will be lit, to warn when the battery has reached 500 charge/discharge cycles.

Dimensions Approx. 108 × 45 × 20 mm (4^3/8 × 1^13/16 × ^13/_16 inches) (w/h/d)

Mass Approx. 89 g (3.1 oz)

Operating conditions Temperature 10 °C to 35 °C (50 °F to 95 °F) Humidity 10% to 85% (no condensation)

Storage conditions Temperature -20 °C to +60 °C (-4 °F to +140 °F) Humidity 0% to 90% (no condensation)

Supplied items

Receiver box (1) Operating Instructions (1)

Recommended options

Battery charger

Design and specifications are subject to change without notice.

Note Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

License

standard library

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
   THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Mode d'emploi (1)

Précautions

Diagram of a device panel with numbered labels pointing to different ports or compartments

Casque (non fournis)

Préparation

Line drawing of a device with ports and an attached cable (no text or symbols)

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met :

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
   THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Diagram of a device panel with numbered labels pointing to different components

①Antena (interna)

Line drawing of a device with ports and an attached cable (no text or symbols)

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
   THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Diagram of a device panel with numbered labels pointing to different ports or compartments

① Antenne (innen)

Line drawing of a device with ports and an attached cable (no text or symbols)

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
   THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Isometric line drawing of a rectangular electronic device with three circular ports (no text or symbols)

Diagram of a device panel with numbered labels pointing to different components

①Antenna (interna)

Line drawing of a device with ports and a cable inserted, no text or symbols present

Circa 108 × 45 × 20 mm

$$ (4 ^ {3} / _ {8} \times 1 ^ {1 3} / _ {1 6} \times {} ^ {1 3} / _ {1 6} \text { poll. }) (\mathrm{L/A/P}) $$

Peso

Circa 89 g (3,1 once)

Copyright c Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
   THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Printed on recycled paper.

http://www.sony.net/

Sony Corporation

Printed in Japan
