USER MANUAL WA3610 WORX
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Use battery pack for WORX cordless products only. Refer to the marking label and instruction manual provided with product.
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become
dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
EN 4
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.
SYMBOL
 | Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. |
 | Do not burn |
Li-lon battery This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
OPERATION INSTRUCTIONS
Recommendations for optimal handling of the battery NOTE:
-
Your battery pack is UNCHARGED. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.
-
A battery pack will slowly lose its charge when kept out of the charger or left in an unplugged charger for a long time. It may need to be recharged before use.
The Li-Ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The tool no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging. The Li-Ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.
How to charge the battery
Refer to the instruction manual provided with product or charger.
WARNING: Do not continue to press the On/Off Switch after the machine has been automatically switched off. The battery could be over-discharged.
Store the battery only within a temperature range between 0 °C and 45°C. As an example, do not leave the battery in the car in summer time.
A significantly reduced working period after charging indicates that the battery is used and must be replaced.
TRANSPORT
The contained Li-Ion batteries are subject to the dangerous goods legislation requirements.
Dispatch batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.
MAINTENANCE AND SERVICE
Occasionally clean the venting slots of the battery using a soft, clean and dry brush.
When the battery is no longer operative, please refer to an authorized after-sales service agent for WORX power tools.
Occasionally clean the venting slots of the battery using a soft, clean and dry brush.
MANUTENCAO E SERVICO
Copyright © 2022, Positec. All Rights Reserved.
AR01323202
WORX®
| Ladegerät | D | P09 |
| Chargeur | F | P15 |
| Carica batteria I | P21 | |
| Cargador ES | P27 | |
| Oplaadapparaat | NL | P33 |
| Ładowarki PL | P39 | |
| Töltókészülék HU | P45 | |
| Încărcător RO | P50 | |
| Nabíječka akumulátorů CZ | P55 | |
| Nabíjačka batérií SK | P60 | |
| Carregador PT | P65 | |
| Laddningsaggregat | SV | P70 |
| Polnilnik akumulatorjev | SL | P75 |


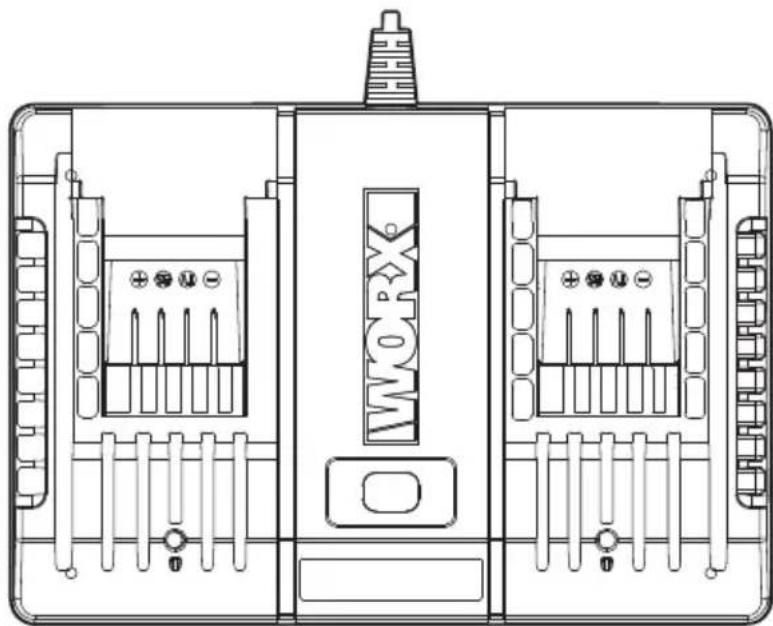

- CHARGER
- CHARGE INDICATOR LIGHT
- CHARGING MODE SELECTOR
*Not all the accessories illustrated or described are included in standard delivery.
We recommend that you purchase your accessories listed in the above list from the same store that sold you the battery charger. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
TECHNICAL DATA
| Rated input voltage 100-240V~50/60Hz | |
| Output voltage 20V | --- |
| Charging current 2A | |
| Rated Input power 50W | |
| Charge battery Li-lon | |
| Charging time (approx.) | |
| Battery pack 2.0Ah(1pc) Approx. 1hr | |
| 2.0Ah(2pcs) Approx. 2hrs | |
| 4.0Ah(1pc) Approx. 2hrs | |
| 4.0Ah(2pcs) Approx. 4hrs | |
| Protection class | □/II |
| Machine weight | 0.5kg |
For the technical data of the types, the number of cells and the rated capacity of the batteries that can be charged, please refer the nameplate of the battery pack supplied by Worx.
PRODUCT SAFETY GENERAL SAFETY WARNINGS
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR BATTERY CHARGER
- Before charging, read the instructions.
- After charging, disconnect the battery charger from the supply mains. Then remove the chassis connection and then the battery connection.
- Do not charge a leaking battery.
- Do not use chargers for works other than those for which they are designed.
- Before charging, ensure your charger is matching the local AC supply.
- For indoor use, or do not expose to rain.
- The charging device must be protected from moisture.
- Do not use the charging device in the open.
- Do not short out the contacts of battery or charger.
- Respect the polarity “+/-” when charging.
- Do not open the unit and keep out of the reach of
children.
-
Do not charge the batteries of other manufactures or ill-suited models.
-
Ensure that the connection between the battery charger and battery is correctly positioned and is not obstructed by foreign bodies.
-
Keep battery charger's slots are free of foreign objects and protect against dirt and humidity. Store in a dry and frost-free place.
-
When charging batteries, ensure that the battery charger is in a well-ventilated area and away from inflammable materials. Batteries can get hot during charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging.
-
Do not recharge non-rechargeable batteries, as they can overheat and break.
-
Longer life and better performance can be obtained if the battery
pack is charged when the air temperature is between 18°C and 24°C. Do not charge the battery pack in air temperatures below 4.5°C, or above 40.5°C. This is important as it can prevent serious damage to the battery pack.
- Charge only battery pack of the same model provided by Worx and of models recommended by Worx.
SYMBOLS
Read the operator's manual
Warning
For indoor use only
Double insulation
Fuse
Positive terminal
Negative terminal
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
CHARGING PROCEDURE
NOTE: Before using the tool, read the instruction book carefully.
CHARGING INSTRUCTIONS
1. CHARGING YOUR BATTERY PACK
The charger is designed to charge two battery packs at the same time as well as charge one by one.
WARNING: The charger and battery pack are
not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because an electrical failure and hazard will occur.
Your battery pack is UNCHARGED and you must charge once before use.
3. HOW TO CHARGE YOUR BATTERY CHARGING PROCEDURE
1) Plug the charger into an appropriate outlet.
2) Slide one battery pack or two battery packs into the charger. Normally, the relevant charge indicator light (3) will flash in green color showing the battery is being charged.
3) This is a dual-port charger and it has 2 charging modes, Dual-Charging (default) and 1-by-1 charging.
a) (Dual-charging mode, for 2 battery packs completed charging at the same time, the charger charges both battery packs simultaneously.
b) (91-by-1 charging mode, for reducing waiting time to complete 1 battery pack charging first. The charger charges the higher residual capacity battery pack first until fully charged then the charger charges another battery.
4) The 2 charging modes can be selected by pressing Charging mode selector (4).
WARNING: When battery charge runs out after continuous use or exposure
to direct sunlight or heat, allow time for the battery to cool down before re-charging to achieve the full charge.
CHARGING INDICATOR
This charger is designed to detect some problems that can arise with battery packs. Indicator lights indicate problems (see table below). If this occurs, insert a new battery pack to determine if the charger is OK. If the new battery charges correctly, then the original pack is defective and should be returned to a service center or recycling service center. If the new battery pack displays the same problem as the original Battery Pack, have the charger tested at an authorized service center.
| Light ON/ Flash Status | ||
| Red on | Defective Battery | |
| Red flash | Battery Temperature ProtectionThe temperature of battery pack is less than 0°C or more than 45°C. | |
| Green on | Fully Charged | |
| Green flash | Charging | |
BATTERY TEMPERATURE PROTECTION
This charger has a battery temperature protection feature. When the charger detects a battery pack that is too hot or cold (the light will be red and flash), it automatically activates the protection circuit, and suspends charging until the battery pack has reached the correct temperature. The charging process will then automatically begin (the light will be green and flash). This feature ensures maximum battery life.
LEAVING THE BATTERY PACK IN THE CHARGER
If a fully charged battery pack is left in the charger, the Light will remain green. The battery pack will remain charging with a maintenance trickle current.
DEFECTIVE BATTERY PACKS
This charger will detect a defective battery pack. When a defective battery pack is inserted into the charger, the charger will try to repair it. This process will last about 30mins (the light will be green and flash). If the repair is successful, the charger will automatically begin to charge the battery pack to the highest capacity possible (the light will be green and flash). If the light becomes solid red, the battery pack is dead.
NOTE: Repaired battery packs are still usable but should not be expected to perform as much work as new battery packs.
IMPORTANT CHARGING NOTES:
-
For a new battery or a battery that has been in storage for sometime, please recharge the battery before use. If you want to store the battery for a long time, please fully charge the battery pack to ensure maximum battery life.
-
Longer life and better performance can be
obtained if the battery pack is charged when the air temperature is between (18°C-24°C). Do not charge the battery pack in air temperatures below 4.5°C, or above 40.5°C. This is important as it can prevent serious damage to the battery pack.
- Never freeze your charger or immerse charger in water or any other liquid.
- When the battery pack fails to produce sufficient power on jobs that were previously done easily, please recharge your battery, do not continue to use under this condition. You may charge a partially used pack whenever you desire with no adverse effect on the battery pack.
- When charging it is normal that the charger and battery pack may become warm to touch.
- If the battery pack does not charge properly:
a. Check current at power outlet by plugging in another appliance.
b. Plug and unplug to check whether the charger is ok
c. Check whether the battery has been damaged
d. Move the charger and battery pack to a location where the surrounding air temperature is approximately 18^ C- 24^ C.
e. If the charging problem persists, take the tool, battery pack and charger to an authorized service center.
f. Under certain conditions, when the charger is plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the charger or before attempting to clean.
PROBLEM SOLUTION
I CANNOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?
a) Check if the charger and the battery pack are specifically designed for working together.
b) The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the indicator light should be green and flash when the battery is charging.
REASONS FOR DIFFERENT CHARGING TIMES
The charging time can be affected by many reasons which are not defects in your product.
a) If the battery pack is only partly discharged it
may be re-charged in less than rated charging time.
b) If the battery pack and ambient temperature are very cold/ hot, it may take longer to re-charge. Please find an appropriate environment with proper air temperature to start charging.
c) If the battery pack is very hot, remove battery pack from the charger and allow battery pack to cool first to ambient temperature and then recharging can be started.
MAINTENANCE
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Your battery charger requires no additional lubrication or maintenance. Never use water or chemical cleaners to clean your charger. Wipe clean with a dry cloth. Always store your charger in a dry place. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
ENVIRONMENTAL PROTECTION
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your
local authorities or retailer for recycling advice.
DECLARATION OF CONFORMITY
We,
Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
Declare that the product,
Description Worx Battery Charger
Type WA3869
Complies with the following Directives,
2014/35/EU
2014/30/EU
2011/65/EU&(EU)2015/863
Standards conform to
EN 60335-1
EN 60335-2-29
EN 62233
EN 55014-1
EN 55014-2
EN IEC 61000-3-2
EN 61000-3-3
