WA3505 - Battery WORX - Free user manual and instructions

Product type	Rechargeable lithium-ion battery
Brand	Worx
Model	WA3505
Nominal voltage	20 V Max
Typical capacity	2.0 Ah
Approximate weight	0.5 kg
Dimensions (L x W x H)	120 x 80 x 60 mm
Cell technology	Lithium-ion
Built-in protections	Deep discharge, overcharge, short circuit, temperature
Charging temperature	0 °C to 45 °C
Optimal operating temperature	15 °C to 25 °C
Storage temperature	0 °C to 45 °C
Charge indicator	LED on charger (not included)
Compatibility	Worx 20 V cordless tools
Recommended charger	Genuine Worx charger
Runtime	Varies by tool and usage
Maintenance	Clean ventilation slots with a soft, dry brush
Recycling	Do not dispose of with household waste, take to collection center
Water resistance	Do not expose to rain or water
Warranty	Refer to Worx warranty

Frequently Asked Questions - WA3505 WORX

How to charge the Worx WA3505 battery?

Use only a genuine Worx charger. Plug the charger into a wall outlet, insert the battery, and let it charge fully before first use. The battery can be charged at any time without affecting its lifespan.

How long does it take to charge the battery?

Charging time depends on the charger used and the battery's discharge state. Refer to the charger manual for specific details. Generally, a full charge takes 1 to 2 hours with a standard charger.

How do I know if the battery is fully charged?

Most Worx chargers have an LED indicator. A green or solid light typically means charging is complete. Refer to the charger manual for the exact color code.

Can I use this battery with other tool brands?

No, this battery is designed exclusively for Worx 20 V cordless tools. Using it with other brands may cause safety risks and damage the tool or battery.

What to do if the battery gets hot during charging?

It is normal for the battery to warm slightly. If it becomes too hot to touch, disconnect it immediately and let it cool in a dry, ventilated area. Recharge only when the temperature is between 0 °C and 45 °C.

How to store the battery long-term?

Store it in a dry, cool place away from sunlight, between 0 °C and 45 °C. Ideally, keep it with a partial charge (about 50%) and recharge it every 3 to 6 months to maintain performance.

Why does my tool stop suddenly?

This is normal: the battery has deep discharge protection. When voltage becomes too low, a protection device automatically cuts off power. Recharge the battery to continue using the tool.

Can I charge the battery after partial use?

Yes, lithium-ion batteries have no memory effect. You can recharge them at any time, even after a short use, without reducing their lifespan.

How to clean the battery?

Use a soft, clean, dry brush to clean the ventilation slots. Never use water, solvents, or abrasive products. Ensure the battery remains dry and clean.

How to recycle the battery at end of life?

Never throw the battery in household waste. Place it at a local collection point, recycling center, or return it to a participating retailer. Follow local regulations.

USER MANUAL WA3505 WORX

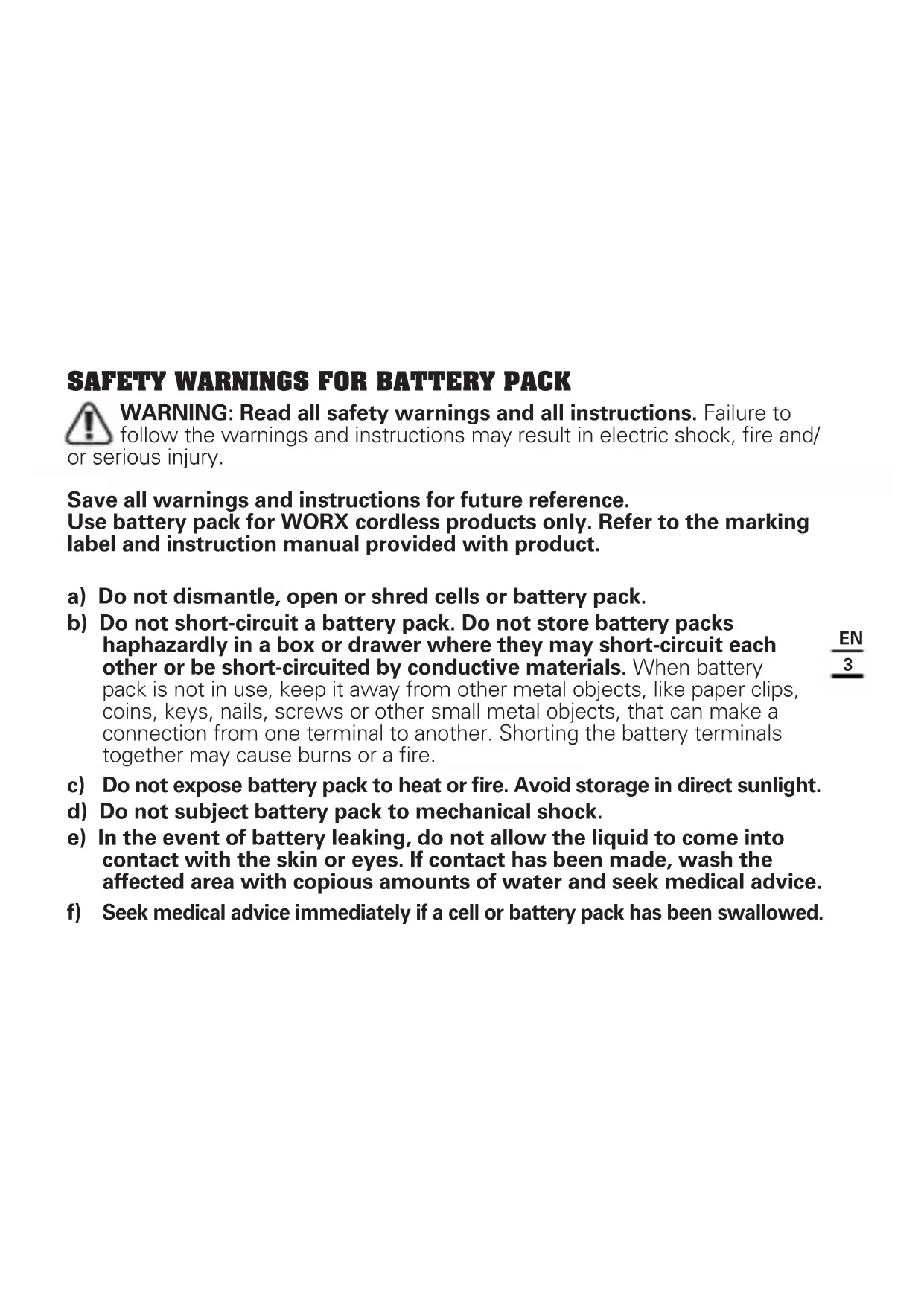

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/rious injury.

Save all warnings and instructions for future reference.

Use battery pack for WORX cordless products only. Refer to the marking label and instruction manual provided with product.

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject battery pack to mechanical shock.

e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack has been swallowed.

g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature ( 20^ ± 5^ ).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

SYMBOL

	Do not expose to rain or water
	Do not burn
Li-lon	Li-lon battery. Do not dispose of batteries, Return exhausted batteries to your local collection or recycling point.

OPERATION INSTRUCTIONS

Recommendations for optimal handling of the battery NOTE:

1. Your battery pack is UNCHARGED. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your

power tool for the first time.

1. A battery pack will slowly lose its charge when kept out of the charger or left in an unplugged charger for a long time. It may need to be recharged before use.

The Li-Ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The tool no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging. The Li-Ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

How to charge the battery

Refer to the instruction manual provided with product or charger.

WARNING: Do not continue to press the On/Off Switch after the machine has been automatically switched off. The battery could be over-discharged.

Store the battery only within a temperature range between 0 °C and 45°C. As an example, do not leave the battery in the car in summer time.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

TRANSPORT

The contained Li-Ion batteries are subject to the dangerous goods legislation requirements.

Dispatch batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.

MAINTENANCE AND SERVICE

Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

When the battery is no longer operative, please refer to an authorized after-sales service agent for WORX power tools.

Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

MANUTENCAO E SERVICO

Copyright © 2018, Positec. All Rights Reserved. AR01323201
