USER MANUAL FW-85BZ35L SONY

LCD Display Écran LCD Pantalla LCD

Reference Guide

EN

Manuel de référence

FR

Guía de referencia

ES

HELP

Read this manual before using this product / Lisez ce manuel avant d'utiliser le produit / Lea este manual antes de usar el producto

Table of Contents

Safety Information....2

Connection Diagram .....6

Using LCD Display as Part of Audio System....9

Remote Control and LCD Display . . . .9

Settings....11 Pro mode....11

Control functions....13 RS-232C....13 IP....14

Installing the LCD Display to the Wall....16

Troubleshooting....17

Specifications....18

About Manuals

This LCD Display comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• LCD Display installation and setup.

Reference Guide (this manual) / Safety and Regulatory Booklet

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help

Find more troubleshooting and other useful information directly from your LCD Display. Press HELP on the remote control to display a list of topics.

Setting menus are subject to change without notice.

IMPORTANT - Read the End User Software License Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software License Agreement. The software license agreement between you and Sony is available online at Sony website (https://www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] → [System] → [About] → [Legal information] → [End user license agreement].

Note

• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• This LCD Display displays all video input signals in a resolution of 3840 dots × 2160 lines.

Location of the identification label

Labels for the LCD Display Model No. and Power Supply rating are located on the rear of the LCD Display.

FOR CONSUMERS in the USA and Canada (except FW-98BZ53L / 98BZ50L / 85BZ40L / 75BZ40L / 75BZ30L / 65BZ30L / 55BZ40L / 55BZ30L)

This LCD Display is ENERGY STAR® qualified. It meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of these government agencies, designed to promote energy efficient products and practices. Changes to certain features, settings, and functionalities of this LCD Display (i.e. Picture/Sound, Power Savings) can increase or change the power consumption. Depending upon such changed settings, the power consumption may exceed the limits required for the ENERGY STAR certification.

CAUTION

To prevent electric shock and blade exposure, do not use this AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted.

- Operate the LCD Display only on 110 V - 240 V AC (U.S.A./Canada 120 V AC).

Safety Information

Notice for customers in the United States of America

Supplier's Declaration of Conformity

Trade Name: SONY Model: FW-98BZ53L / FW-98BZ50L / FW-98BZ30L / FW-85BZ40L / FW-85BZ35L / FW-85BZ30L / FW-75BZ40L / FW-75BZ35L / FW-75BZ30L / FW-65BZ40L / FW-65BZ35L / FW-65BZ30L / FW-55BZ40L / FW-55BZ35L / FW-55BZ30L / FW-50BZ30L / FW-43BZ30L Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230

FCC Related Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or LCD Display reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit
  different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/LCD Display technician for help.

Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Safety and Regulatory

FCC regulations restrict operation of this device to indoor use only.

Warning

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired operation.

Notice for customers in Canada

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Notice for customers in the United States of America and Canada

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles).

This device and its antenna(s) must not be co-located or operating with any other antenna or transmitter except Grant condition.

Compatible Wall-Mount Bracket Information

Use the following Sony Wall-Mount Bracket with your LCD Display model.

	Sony LCD Display Model No.
	FW-75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L
Sony Wall-Mount Bracket Model No.	SU-WL855*1

Use with other Wall-Mount Brackets ^2 may cause instability and could result in property damage or injury.

*1 Only for limited region/country/model.

*2 For instructions on using the Wall-Mount bracket with your LCD Display please go to https://www.sony.com/am/support for your LCD Display model and download "Wall-Mount Bracket".

Compatible Table-Top Stand Information

Use the following Table-Top Stand accessory with your LCD Display model.

	Sony LCD Display Model No.
	FW-43BZ30L	FW-50BZ30L	FW-65BZ40L/65BZ35L/65BZ30L/55BZ40L/55BZ35L/55BZ30L
Table-Top Stand Model No.	FWA-ST1L	FWA-ST2L FWA-ST3L

To Customers

Sufficient expertise is required for LCD Display installations. Be sure to subcontract the installation to a Sony dealer or licensed contractor and pay adequate attention to safety during the installation.

Before setting up your LCD Display

Some LCD Display models are packaged with a detached Table-Top Stand so you can mount your LCD Display to a wall right away. See "Installing the LCD Display to the Wall" if you want to mount the LCD Display to a wall. If you are not mounting the LCD Display to a wall, you will need to attach the Table-Top Stand (refer to the Setup Guide).

(Models with Table-Top Stand only)

Be sure to consider the following while setting up your LCD Display:

- Disconnect all cables when carrying the LCD Display.

- Two or more persons (three or more persons for 214.8 cm (85 inches), four or more persons for 247.7 cm (98 inches) and above LCD Display) are needed to transport a large LCD Display.

- Correct hand placement while carrying the LCD Display is very important for safety and to avoid damage.

- When handling or mounting the LCD Display set, do not lay down the LCD Display (for applicable LCD Display model only).

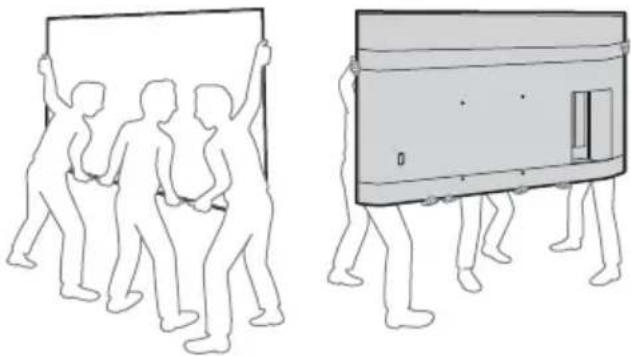

FW-98BZ53L / 98BZ50L / 98BZ30L

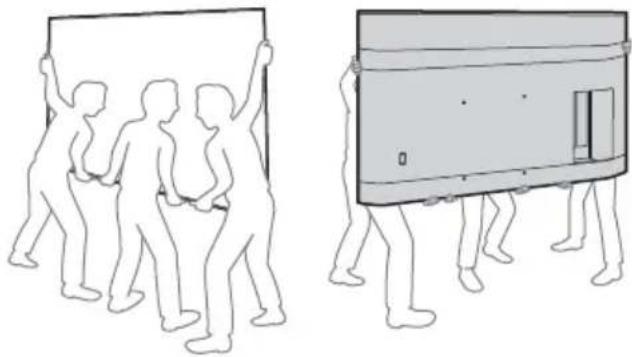

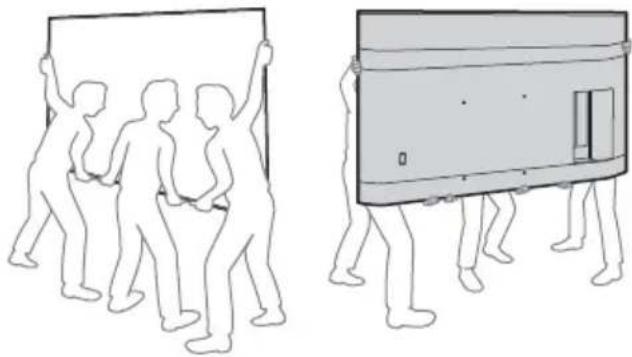

Illustration of three people installing or adjusting a large panel or panel (no text or symbols visible)

FW-85BZ40L / 85BZ35L / 85BZ30L

Two line drawings of human figures carrying a large rectangular object, no text or symbols present

FW-75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

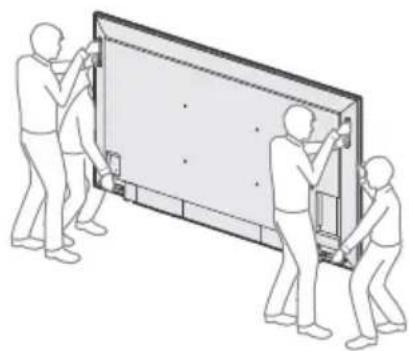

Line drawing of two silhouetted figures holding a rectangular device (no text or symbols)

• Ensure your LCD Display has adequate ventilation, refer to the safety documentation.
• For best picture quality, do not expose the screen to direct illumination or sunlight.
• Avoid installing the LCD Display in a room with reflective wall and floor materials.
• Avoid moving the LCD Display from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the LCD Display to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the LCD Display on.

Securing the LCD Display

Sony strongly recommends taking measures to prevent the LCD Display from toppling over. Unsecured LCD Display may topple and result in property damage, serious bodily injury or even death.

Preventing the LCD Display from Toppling

• Secure the LCD Display to a wall and/or Stand (models with Table-Top Stand only).
• Do not allow children to play or climb on furniture and LCD Display.
• Avoid placing or hanging items on the LCD Display.

- Never install the LCD Display on:

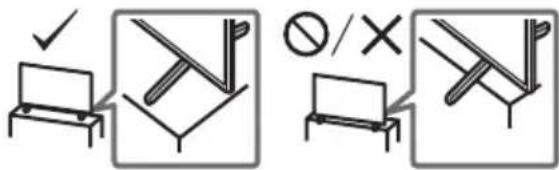

- slippery, unstable and/or uneven surfaces. - furniture that can easily be used as steps, such as a chest of drawers.

• Install the LCD Display where it cannot be pulled, pushed, or knocked over.

- Install the LCD Display so that the LCD Display's Table-Top Stand does not protrude out from the Stand (not supplied). If the Table-Top Stand protrudes out from the Stand, it may cause LCD Display to topple over, fall down, and cause personal injury or damage to the LCD Display. (Models with Table-Top Stand only)

Diagram illustrating three different viewing or lighting conditions: check, no/×, and no/×.

- Route all AC power cords and connecting cables so that they are not accessible to curious children.

Recommended Measures to Secure the LCD Display (models with Table-Top Stand only)

Consider the following measures when securing your LCD Display to a Stand (not supplied).

1 Secure the Stand for the LCD Display. Make sure the Stand can adequately support the weight of the LCD Display. Use two angle braces (not supplied) to secure the Stand. For each angle brace use the appropriate hardware to:

• Attach one side of the angle brace to the wall stud.
• Attach the other side to the Stand.

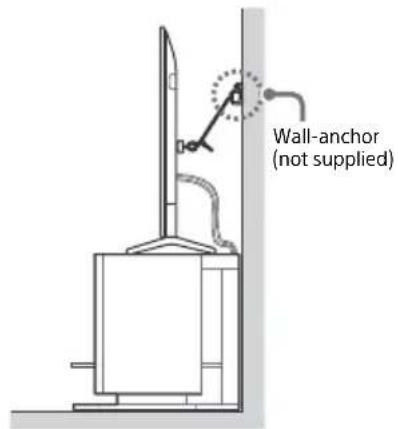

Angle brace (not supplied) Stand

2 Secure the LCD Display to the Stand. Use the optional hardware listed as follows (not supplied):
- M6 machine screws (screwed into the LCD Display's rear cover) (except FW-98BZ53L / 98BZ50L / 98BZ30L).
- A screw or similar (attach it to the Stand).
- Rope or chain (strong enough to support the weight of the LCD Display). Make sure that there is no excess slack in the rope or chain.

FW-65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

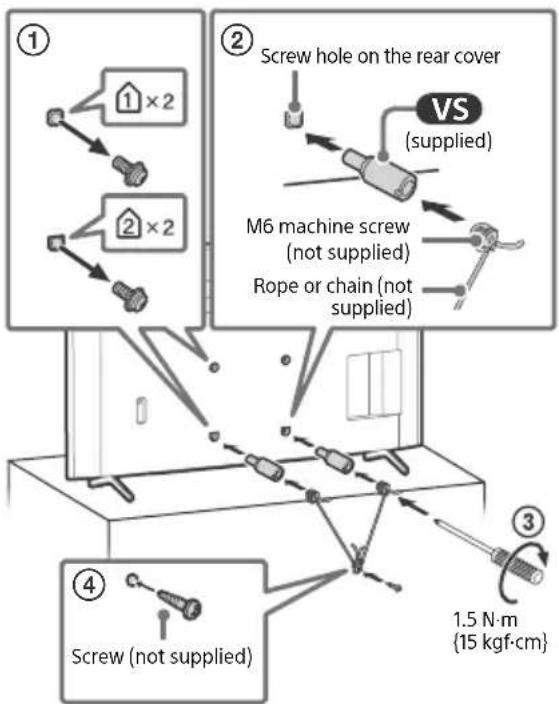

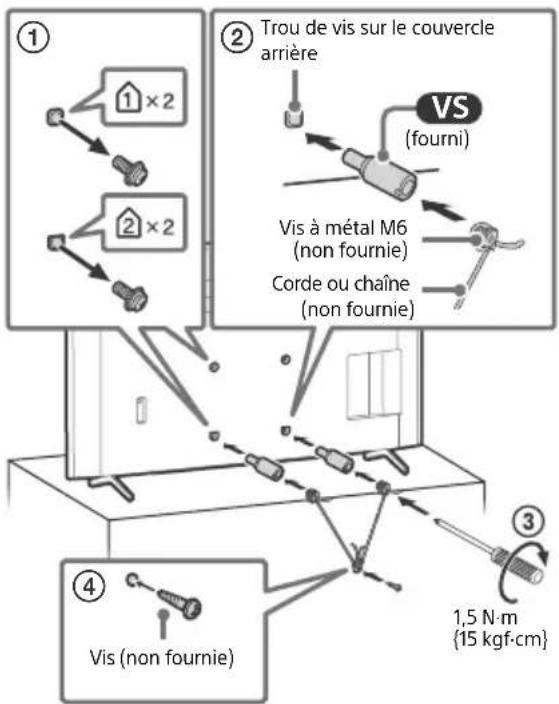

① ② Screw hole on the rear cover VS (supplied) M6 machine screw (not supplied) Rope or chain (not supplied) ③ 1.5 N·m {15 kgf·cm} ④ Screw (not supplied)

The length of the M6 machine screw differs depending on the rope or chain diameter. Please refer to below illustration.

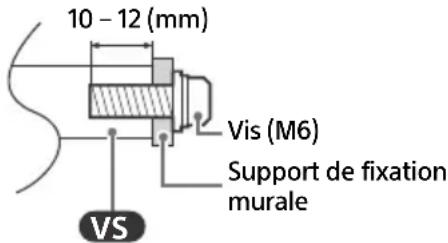

10 - 12 (mm) Screw (M6) Rope or chain VS

3 Anchor the LCD Display to the wall by using bolts, wall anchor and chain (or rope).

FW-65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

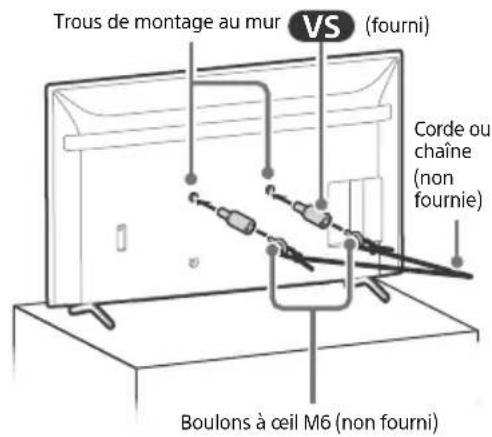

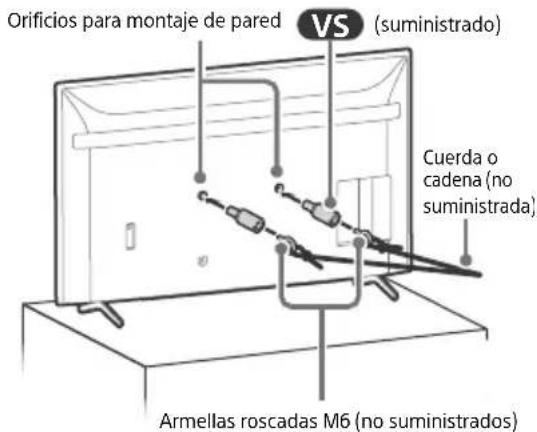

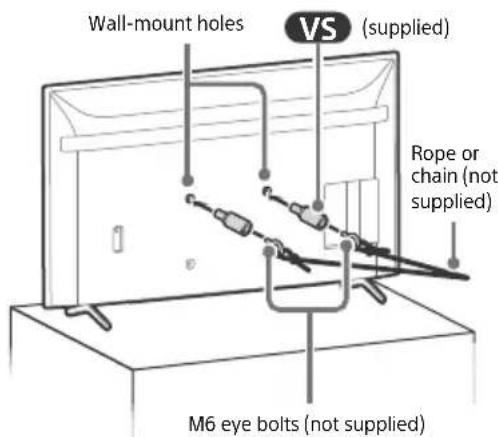

Wall-mount holes VS (supplied) Rope or chain (not supplied) M6 eye bolts (not supplied)

Wall-anchor (not supplied)

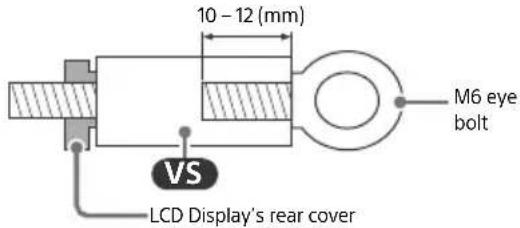

Please refer to below illustration for M6 eye bolt length.

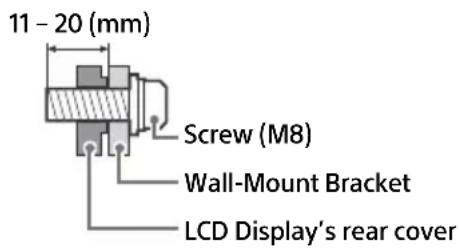

10 - 12 (mm) M6 eye bolt VS LCD Display's rear cover

Note

• Your LCD Display is shipped with screws attached to the rear of the LCD Display depending on the LCD Display model. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the LCD Display to a wall.
• Securing the LCD Display to the Stand without securing the LCD Display and the Stand to the wall provides minimum protection against the LCD Display toppling over. For further protection, be sure to follow the three measures recommended.

Connection Diagram

Note

- Terminals and labels may vary depending on region/country/LCD Display model.

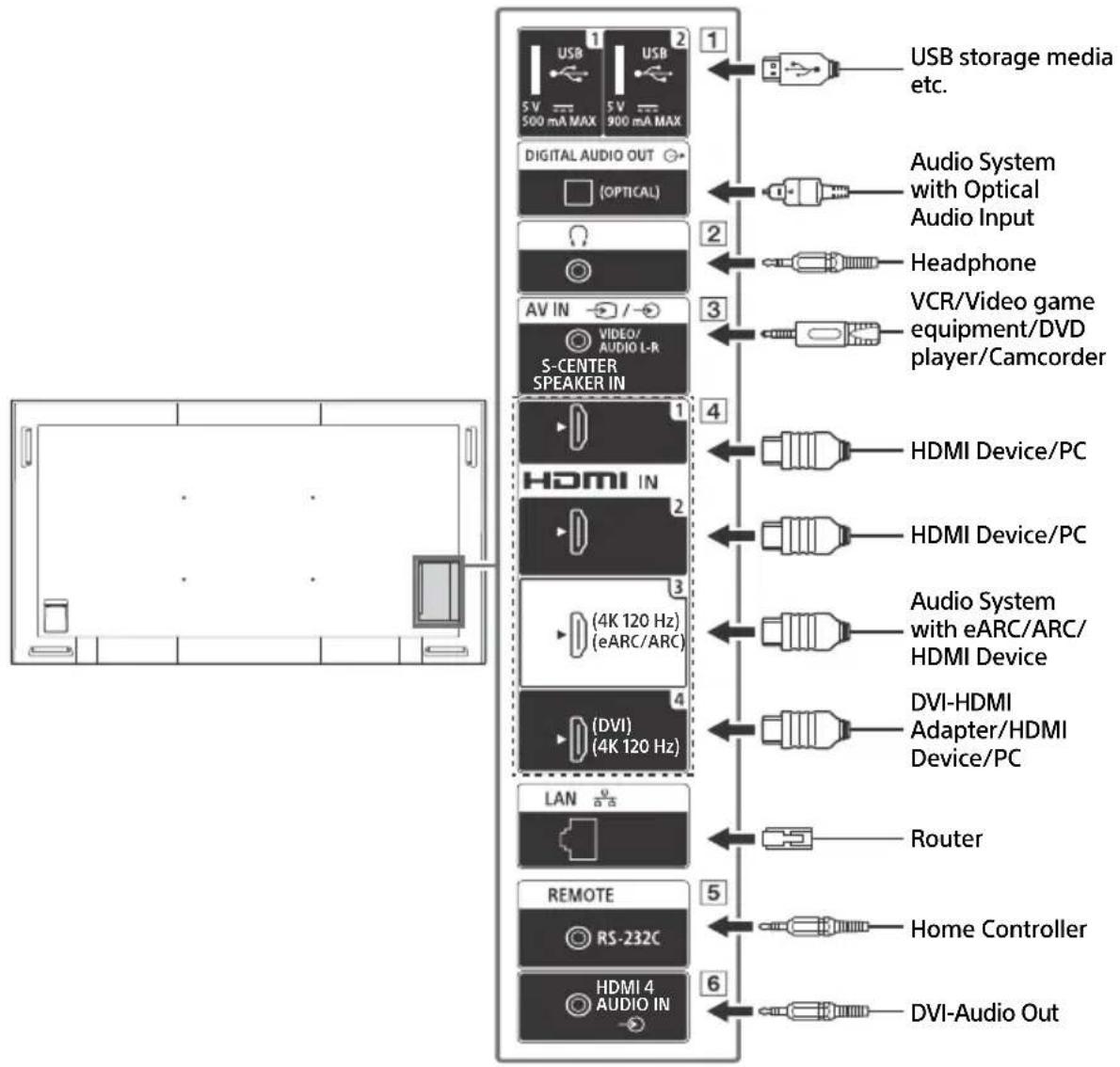

FW-98BZ53L / 98BZ50L / 98BZ30L


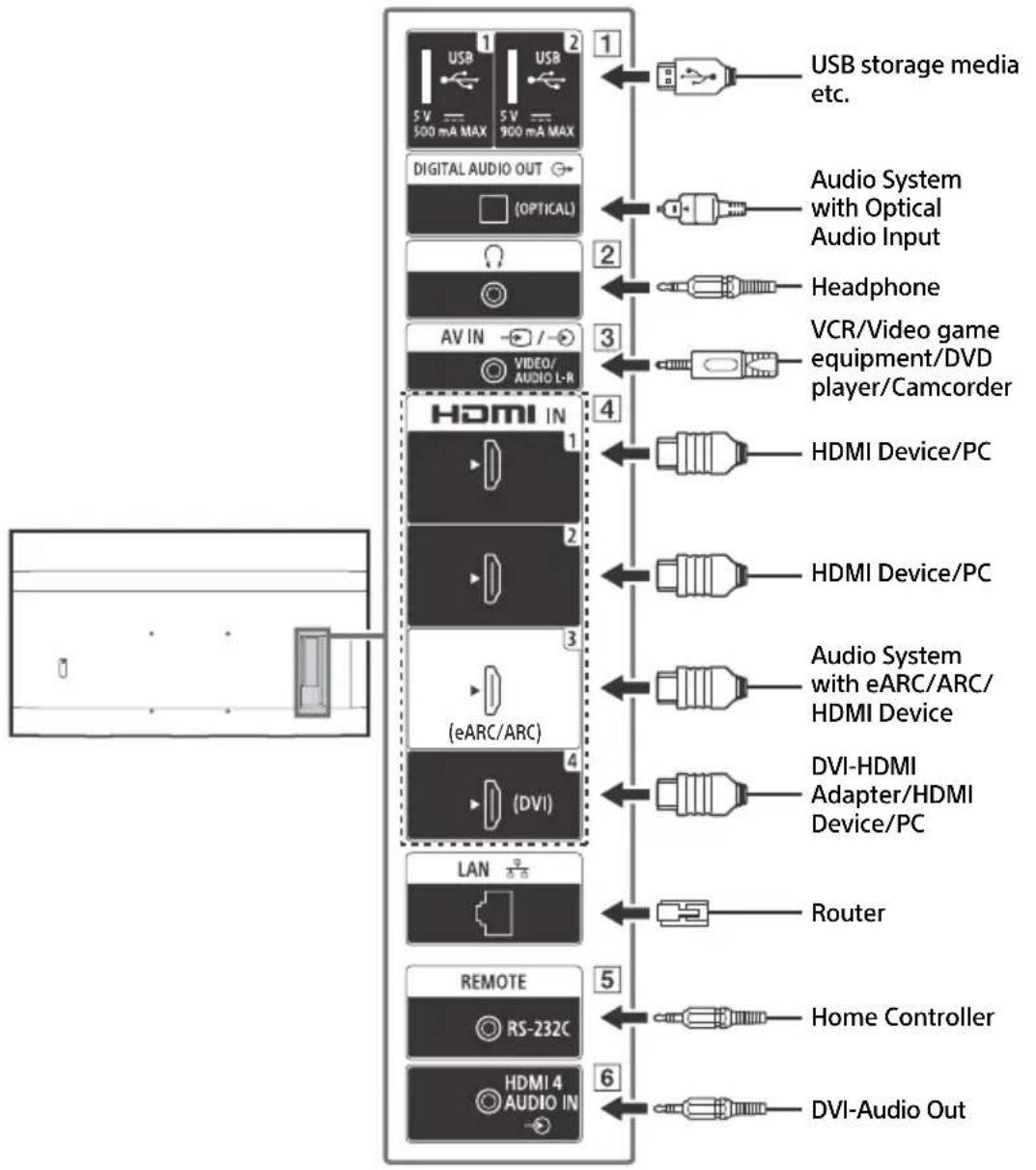

1 USB 1 USB 2

- Connecting a large USB device may interfere with other connected devices beside it.

2 (Headphone)

• Supports 3-pole stereo mini jack only.
- You cannot output sound from both the headphone and the LCD Display speakers at the same time.

3 →/→ AV IN

- For a composite connection, use an Analog Extension Cable (not supplied).

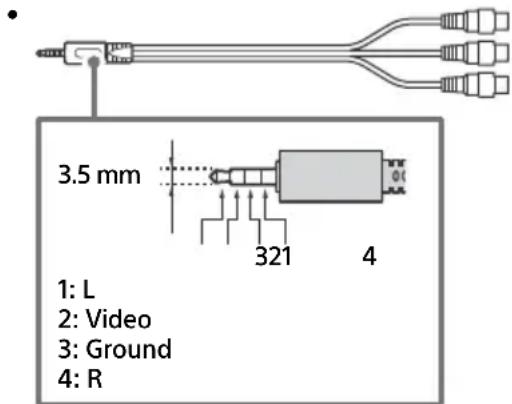

3.5 mm 1: L 2: Video 3: Ground 4: R

4 HDMI IN 1/2/3/4

• HDMI interface can transfer the digital video and audio on a single cable.
• If the device has a DVI jack, connect it to HDMI IN 4 through a DVI - HDMI adapter interface (not supplied), and connect the device's audio out jack to HDMI 4 AUDIO IN.

< 12 mm < 21 mm

- HDMI IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)

Connect your audio system to the HDMI IN 3 to route LCD Display audio to your audio system. An audio system that supports HDMI eARC/ARC can send video to the LCD Display, and receive audio from the LCD Display via the same HDMI cable. If your audio system does not support HDMI eARC/ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

- Use the HDMI cable with Ethernet to connect audio system with eARC.

5 REMOTE RS-232C

- Terminal for serial communication. For details, see "Control functions".

6 HDMI 4 AUDIO IN

- If the device has a DVI jack, connect it to HDMI IN 4 through a DVI - HDMI adapter interface (not supplied), and connect the device's audio out jack to HDMI 4 AUDIO IN.

Using LCD Display as Part of Audio System

(FW-98BZ53L / 98BZ50L / 98BZ30L only)

Note

• Before connecting cables, disconnect the AC power cord of both LCD Display and AV receiver.
• Refer to the instruction manual of the Audio system with S-CENTER OUT terminal for detail.

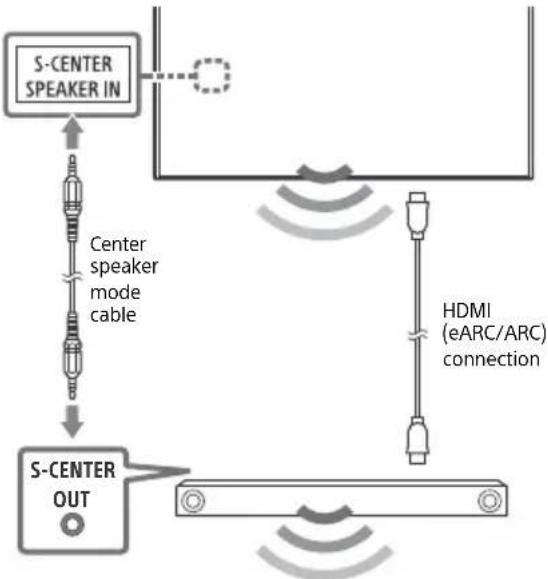


Remote Control and LCD Display

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/LCD Display model/LCD Display settings.

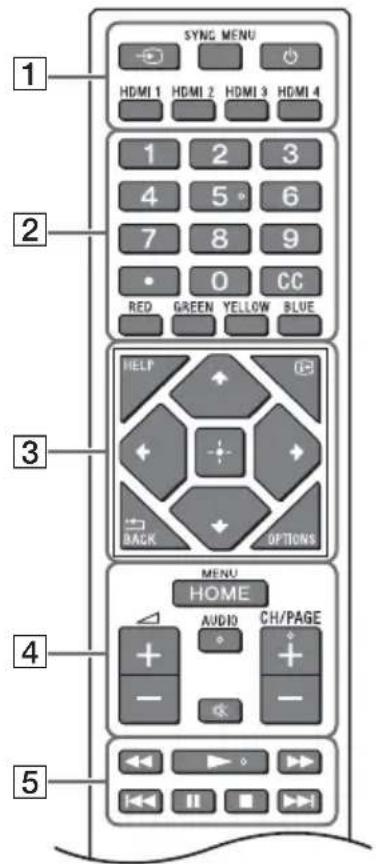

SYNC MENU HDMI 1 HDMI 2 HDMI 3 HDMI 4 1 2 3 4 5 6 7 8 9 0 CC RED GREEN YELLOW BLUE HELP BACK OPTIONS MENU HOME AUDIO CH/PAGE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

EN

1 (Input select): Display and select the input source, etc.
SYNC MENU: Display the BRAVIA Sync Menu.
(Power)
HDMI 1/2/3/4

2 Number buttons

(dot)

CC

Color buttons

3 HELP: Display the Help menu.

i+ (Screen display): Display information.

/BACK

OPTIONS: Displays a list of functions that can be used at that time.

+/↓/←/→/☐ (Navigation D-Pad): On screen menu navigation and selection.

4 HOME/MENU

△ +/- (Volume)

AUDIO: Select the sound of multilingual source or dual sound (depend on program source).

※ (Mute)^*

CH/PAGE +/-

5

6 ⏻ (Power)

7 Remote Control sensor / Light sensor / LED

* Accessibility shortcut is available by pressing and holding ☑ (Mute).

Settings

Pro mode

In [Pro mode], you can use various convenient functions for professional use. Here, we introduce how to change to [Pro mode] and typical functions of [Pro mode].

Pro mode

Normal mode: This is the default mode. [Pro mode] functions are not available in this mode. Pro settings mode: This mode allows you to set various settings of [Pro mode] functions.

Pro mode: This is the operation mode for professional use where you can use the [Pro mode] functions.

How to change the mode

When the LCD Display is in Normal mode

- Go to [Home] [Apps] [Pro settings], then select [Pro settings mode].

When the LCD Display is in Pro settings mode

- Go to [Home] [Apps] [Pro settings], then select [Start Pro mode].

When the LCD Display is in the Pro mode

- Press the activation keys described below on the remote control in order within a one second interval.

After restarting the LCD Display, the mode changes to [Pro settings mode].

Activation key: i+ (Screen display) / ☐ (Mute) / ∠ +/− (Volume +) / HOME/MENU

*Initially you cannot change the mode from [Pro settings] in [Pro mode]. If you want to change the mode from [Pro settings], go to [Pro settings] → [Function restrictions] → [Apps] and change [Pro settings] to [Enable] in [Pro settings mode].

Introduction of the Pro mode functions

In [Pro mode], you can use various convenient functions. Typical [Pro mode] functions are introduced below.

— Setting LCD Display operation when turning the AC power on

You can set the operation of the LCD Display when unplugging and reinserting the AC power plug.

— Optimized display of the PC input screen

The screen displays the PC input screen with optimum size according to the PC format.

— Automatic wake up and input switching by HDMI signal detection

Automatically turn on the LCD Display and switch to connected HDMI input when the HDMI device is connected.

— Settings of the displaying menu when pressing the HOME/MENU button

You can select the menu displayed when pressing the HOME/MENU button on the remote control.

- Initial input source designation when starting the LCD Display

You can designate the initial input source when starting the LCD Display.

— Pro mode lock

You can protect the settings of [Pro mode] by using a PIN.

- Initial/maximum volume setting

You can set the initial and maximum volume of the LCD Display.

— Restriction of the LCD Display operation on the remote control

You can restrict the LCD Display operation using the remote control.

— Restriction of external inputs

You can restrict the use of external inputs.

— Restriction of using applications

You can restrict the use of LCD Display applications.

How to set Pro mode functions

Go to [Home] → [Settings] → [Pro settings] when the LCD Display is in [Pro settings mode].*

*Varies depending on the version of the OS.

Control functions

RS-232C

You can control the LCD Display from an external service via RS-232C. The RS-232C connection is briefly explained in this page.

Interface

Establish the RS-232C connection to the LCD Display by using a 3.5 mm stereo mini plug (supplied).

TIP: LCD Display → Controller
RING: Controller → LCD Display

Connection settings

When establishing the RS-232C connection, make connection settings as below.

Baud rate 9600 bps

Data 8 bit

Parity None

Start bit 1 bit

Stop bit 1 bit

Flow control None

Data format

We introduce the data format for the RS-232C communication below. (a) Requests from the controller to the LCD Display

No. Item Value
1	H	e	a	d	e	r	0	x
2	Category		0x00	(fixed)
3	Function		0xXX
4	Length		0xXX	(=Data X+1 byte)
5	Data 1		0xXX
:	:		0xXX
:	:		0xXX
X+4	Data X		0xXX
X+5	Check Sum		0xXX

(b) Responses from the LCD Display to the controller

No. Item Value
1	H	e	a	d	e	r	0
2 Answer 0x00 Completed (Normal End)
			0x01 : Limit Over(Abnormal End-Exceed maximum value)
			0x02 : Limit Over(Abnormal End-Exceed minimum value)
			0x03 : Command Canceled (Abnormal end)
			0x04 : Parse Error (Data Format Error)
3	C	h	e	c	k	S	u m

x

0

Command example

Examples of RS-232C communication command are explained below.

Control	Head	Category	Function	Length	Data 1	Data X	Checksum
Power on/off	0x8C	0x00	0x00	0x02	0x00 (off)	-	0x8E
					0x01 (on)	-	0x8F
HDMI input selection	0x8C	0x00	0x02	0x03	0x04 (HDMI)	0x01 (#1)	0x96
						0x02 (#2)	0x97
						0x03 (#3)	0x98
						0x04 (#4)	0x99

For more details on RS-232C, please contact your sales representative.

IP

You can control the LCD Display via IP from an HTML5/Android application on the LCD Display or on the external device. You can manage and monitor information of input/power, start and terminate applications, control the display such as input source and volume. You can also restrict commands by the authentication function.

Supported IP protocol

Protocol name	Layer	Format	Authentication	Explanation
REST API	HTTP	JSON-RPC	Yes	The APIs whose purpose is device control.
IRCC-IP	HTTP	SOAP	Yes	Infrared Compatible Control over Internet Protocol.The technology and formats to transmit remote control commands via the Internet.
Simple IP control	TCP	Byte stream	N/A	Only typical functions are supported.

LCD Display settings

When using [IP control], set the LCD Display as follows first.

Go to [Settings] → [Network & Internet] → [Local network] → [IP control].

For REST API and IRCC-IP,

• Select [Authentication].
• Set [Pre-Shared Key] if needed.
  For Simple IP control,
• Enable [Simple IP control].

Example of HTTP request and response for REST API

Here is the example of a request and response to acquire the power status to the LCD Display (IP address: 192.168.0.1 Pre-shared Key "1234").

URL

http://192.168.0.1/sony/system

Request

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Response

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

For more details on [IP control], please contact your sales representative.

Installing the LCD Display to the Wall

Using the optional Wall-Mount Bracket (SU-WL855 only)\* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your LCD Display be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the Sony Customer Support website for your LCD Display model at the following address.

https://www.sony.com/am/support

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this LCD Display, especially to determine the strength of the wall for withstanding the LCD Display's weight.
• Sony is not liable for any damage or injury caused by mishandling or improper installation.
• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness. Please refer to below illustration.

10 - 12 (mm) Screw (M6) Wall-Mount Bracket VS

- Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand (models with Table-Top Stand only). Keep the screws away from small children.

Note

• Read the supplied safety documentation for additional safety information.
  * Only for limited region/country/model.

Using the optional Wall-Mount Bracket (except SU-WL855) (not supplied)

This LCD Display's instruction manual only provides the steps to prepare the LCD Display for Wall-Mount installation before it is installed on the wall.

Your LCD Display can be mounted to a wall using a suitable Wall-Mount Bracket (not supplied). If the Table-Top Stand is attached to the LCD Display, the LCD Display may require detaching the Table-Top Stand (models with Table-Top Stand only). Prepare the LCD Display for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that installation of your LCD Display on the wall be performed by qualified professionals. Do not attempt to install it yourself.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this LCD Display, especially to determine the strength of the wall for withstanding the LCD Display's weight.
• The screws for installing the Wall-Mount Bracket to the LCD Display are not supplied.
• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness. Please refer to below illustration.

FW-98BZ53L / 98BZ50L / 98BZ30L

11 - 20 (mm) Screw (M8) Wall-Mount Bracket LCD Display's rear cover

FW-85BZ40L / 85BZ35L / 85BZ30L / 75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

10 - 12 (mm) Screw (M6) Wall-Mount Bracket VS

- Refer to the following table for wall-mount hole pattern.

Model Name	Wall-mount hole pattern
	a × b
FW-98BZ53L / 98BZ50L / 98BZ30L	600 × 400 mm
FW-85BZ40L / 85BZ35L / 85BZ30L	400 × 400 mm
FW-75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L	300 × 300 mm
FW-50BZ30L / 43BZ30L	200 × 200 mm

- Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand (models with Table-Top Stand only). Keep the screws away from small children.

Note

• Read the supplied safety documentation for additional safety information.
• For more detailed information, visit Sony Customer Support website.*
  * Only for limited region/country/model.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, LCD Display does not respond, or network is lost, do the following steps.

1 Restart your LCD Display by pressing the power button on the remote control for about five seconds and select [Restart]. The LCD Display will restart. If the LCD Display does not recover, try unplugging the AC power cord then press the power button on the LCD Display and release it. Wait for two minutes, and plug in the AC power cord.

Or, press the power button on the LCD Display for about 40 seconds until the LCD Display turns off.

2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your LCD Display to the Internet and perform a software update. Sony recommends you to keep your LCD Display software updated. Software updates provide new features and performance improvements.
4 Perform the factory data reset.

When you plug in the LCD Display, the LCD Display may not be able to turn on for a while even if you press the power button on the remote control or the LCD Display.

It takes time to initialize the system. Wait for about one minute, then operate it again.

How to reset the LCD Display to factory settings

WARNING: The reset will clear all of your customized settings including the parental lock setting.

• You can reset the LCD Display to factory settings by selecting [Factory data reset].
• To force factory data reset, unplug the AC power cord. Press and hold ⏻ button on the LCD Display, then plug in the AC power cord.

- For security purposes, be sure to remove all personal and account information before discarding, selling or passing your LCD Display to someone else by: unlinking/unregistering, signing out of and deactivating all network services as well as factory reset the LCD Display.

The remote control does not function.

- Replace the batteries.

The restricted profile password has been forgotten.

- Perform the force factory data reset.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

Speaker output (W)

FW-98BZ53L / 98BZ50L / 98BZ30L:

10 + 10 + 10 + 10

FW-85BZ40L / 85BZ35L / 85BZ30L /

75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L /

65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L /

55BZ30L / 50BZ30L / 43BZ30L: 10 + 10

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Input/Output jacks

→/→ AVIN

Video/Audio input (mini jack)

S-CENTER SPEAKER IN (FW-98BZ53L /

98BZ50L / 98BZ30L only)

S-center speaker input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video (FW-98BZ53L / 98BZ50L / 98BZ30L only):

4096 × 2160p (60 Hz)^12, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (60 Hz) ^2 , 3840 ×

2160p (24, 30 Hz), 1080p (24, 30, 60,

120 Hz), 1080i (60 Hz), 720p (24, 30,

60 Hz), 480p, PC Formats

3840 × 2160p (120 Hz)* ^2*3

Video (FW-85BZ40L / 85BZ35L / 85BZ30L /

75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L /

65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L /

55BZ30L / 50BZ30L / 43BZ30L only):

4096 × 2160p (60 Hz)^12, 4096 × 2160p

(24Hz)^1,3840× 2160p(60Hz)^2,3840×

2160p (24, 30 Hz), 1080p (24, 30, 60 Hz),

1080i (60 Hz), 720p (24, 30, 60 Hz),

480p, PC Formats

Audio:

In eARC (Enhanced Audio Return

Channel) mode

7.1 channel linear PCM: 32/44.1/48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS:X Master Audio

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/

88.2/96/176.4/192 kHz 16/20/24 bits,

Dolby Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return

Channel/Audio Return Channel) (HDMI IN 3 only) ^4

In eARC mode

7.1 channel linear PCM: 32/44.1/48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS:X Master Audio

In ARC mode

Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS)

→ HDMI 4 AUDIO IN

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports Super Speed USB (USB 3.2 Gen 1)

LAN

10BASE-T/100BASE-TX connector

(Depending on the operating

environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

REMOTE

RS-232C mini jack

This jack is for receiving the external control signal.

Power and others

Power requirements

110 V - 240 V AC, 50/60 Hz (U.S.A./

Canada 120 V AC, 60 Hz)

Power consumption

In use (W)

FW-98BZ53L: 505

FW-98BZ50L: 505

FW-98BZ30L: 328

FW-85BZ40L: 373

FW-85BZ35L: 323

FW-85BZ30L: 248

FW-75BZ40L: 299

FW-75BZ35L: 235

FW-75BZ30L: 306

FW-65BZ40L: 229

FW-65BZ35L: 218

FW-65BZ30L: 230

FW-55BZ40L: 201

FW-55BZ35L: 169

FW-55BZ30L: 202

FW-50BZ30L: 140

FW-43BZ30L: 103

In standby ^56

Less than 0.5 W with 120 V AC and less

than 0.5 W with 240 V AC

Screen size (measured diagonally) (Approx.)

(cm/inches)

FW-98BZ53L / 98BZ50L / 98BZ30L: 247.7 /

97.5 (98" class)

FW-85BZ40L / 85BZ35L / 85BZ30L: 214.8 /

84.6 (85" class)

FW-75BZ40L / 75BZ35L / 75BZ30L: 189.3 /

74.5 (75" class)

FW-65BZ40L / 65BZ35L / 65BZ30L: 163.9 /

64.5 (65" class)

FW-55BZ40L / 55BZ35L / 55BZ30L: 138.8 /

54.6 (55" class)

FW-50BZ30L: 125.7 / 49.5 (50" class)

FW-43BZ30L: 108.0 / 42.5 (43" class)

Display resolution (horizontal × vertical)

(pixels)

3840 × 2160

Output rating

500 mA (for USB 1), 900 mA (for USB 2)

Dimensions (Approx.) (w × h × d) (mm) / (inches)

FW-98BZ53L: 2199 × 1255 × 85 / 86^5/8 × 49^1/2 × 3^3/_8

FW-98BZ50L: 2199 × 1255 × 85 / 86 ^5 / 8 × 49 ^1 / 2 × 3 ^3 / _8

FW-98BZ30L: 2199 × 1255 × 85 / 86^5/8 × 49^1/2 × 3^3/_8

FW-85BZ40L: 1899 × 1089 × 71 / 74 ^7/8 × 42 ^7/8 × 2 ^7/_8

FW-85BZ35L: 1899 × 1089 × 71 / 74 ^7 / 8 × 42 ^7 / 8 × 2 ^7 / _8

FW-85BZ30L: 1899 × 1089 × 71 / 74 ^7 /8 ×

42^7/8× 2^7/8

FW-75BZ40L: 1686 × 969 × 72 / 66^1/2 × 38^1/4 × 2^7/_8

FW-75BZ35L: 1686 × 969 × 72 / 66^1/2 × 38^1/4 × 2^7/_8

FW-75BZ30L: 1686 × 969 × 72 / 66^1/2 × 38^1/4 × 2^7/_8

FW-65BZ40L: 1462 × 842 × 71 / 57^5/8 × 33^1/4 × 2^7/_8

FW-65BZ35L: 1462 × 842 × 71 / 57^5/8 × 33^1/4 × 2^7/_8

FW-65BZ30L: 1462 × 842 × 71 / 57^5/8 × 33^1/4 × 2^7/_8

FW-55BZ40L: 1243 × 721 × 71 / 49 × 28^1 /2 × 2^7 /8

FW-55BZ35L: 1243 × 721 × 71 / 49 × 28^1 /2 × 2^7 /8

FW-55BZ30L: 1243 × 721 × 71 / 49 × 28^1 /2 × 2^7 /8

FW-50BZ30L: 1126 × 653 × 70 / 44^3/8 × 25^3/4 × 2^7/_8

FW-43BZ30L: 972 × 567 × 70 / 38^3/8 × 22^3/8 × 2^7/_8

wall-mount hole pattern

FW-98BZ53L / 98BZ50L / 98BZ30L:

600×400mm

FW-85BZ40L / 85BZ35L / 85BZ30L:

400×400 mm

FW-75BZ40L / 75BZ35L / 75BZ30L /

65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L /

55BZ35L / 55BZ30L: 300 × 300 mm

FW-50BZ30L / 43BZ30L: 200 × 200 mm

wall-mount screw size (mm)

FW-98BZ53L / 98BZ50L / 98BZ30L: M8

(length: see "Installing the LCD Display to the Wall".)

FW-85BZ40L / 85BZ35L / 85BZ30L /

75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L /

65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L /

55BZ30L / 50BZ30L / 43BZ30L: M6

(length: see "Installing the LCD Display to the Wall".)

Mass (Approx.) (kg) / (lb.)

FW-98BZ53L: 67.2 / 148.1

FW-98BZ50L: 67.2 / 148.1

FW-98BZ30L: 67.2 / 148.1

FW-85BZ40L: 44.5 / 98.1

FW-85BZ35L: 44.5 / 98.1

FW-85BZ30L: 44.5 / 98.1

FW-75BZ40L: 31.5 / 69.4

FW-75BZ35L: 31.5 / 69.4

FW-75BZ30L: 31.7 / 69.9

FW-65BZ40L: 21.4 / 47.2

FW-65BZ35L: 21.2 / 46.7

FW-65BZ30L: 21.2 / 46.7

FW-55BZ40L: 15.8 / 34.9

FW-55BZ35L: 15.7 / 34.6

FW-55BZ30L: 15.7 / 34.6

FW-50BZ30L: 12.3 / 27.1

FW-43BZ30L: 10 / 22.1

Others

Optional accessories

Wall-Mount Bracket: SU-WL855

(FW-75BZ40L / 75BZ35L / 75BZ30L /

65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L /

55BZ35L / 55BZ30L only)

USB Clock Unit: FWA-UB100AT

USB Anti-Theft Cover: FWA-AT100

Table-Top Stand: FWA-ST1L (FW-43BZ30L),

FWA-ST2L (FW-50BZ30L), FWA-ST3L

(FW-65BZ40L / 65BZ35L / 65BZ30L /

55BZ40L / 55BZ35L / 55BZ30L)

Operating temperature: 0 °C – 40 °C /

32 °F - 104 °F

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].

*2 Refer to the on screen menu to set [HDMI signal format].

*3 HDMI IN 3 and 4 only. Use the Ultra High Speed HDMI Cable to connect.

*4 Connect your audio system to the HDMI IN 3 to route LCD Display audio to your audio system.

*5 Specified standby power is reached after the LCD Display finishes necessary internal processes.

*6 Standby power consumption will increase when your LCD Display is connected to the network.

Note

- Optional accessories availability depends on countries/region/LCD Display model/stock.

- Design and specifications are subject to change without notice.

- Some of the on-screen instructions may not apply to your LCD Display model.

Licensing Information

- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

- Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2022 Dolby Laboratories. All rights reserved.

- Vewd® Core. Copyright 1995-2023 Vewd Software AS. All rights reserved.

- Google, YouTube and Android TV are trademarks of Google LLC.

- Wi-Fi ^ , Wi-Fi Alliance ^ and Wi-Fi Direct ^ are registered trademarks of Wi-Fi Alliance.

- Wi-Fi CERTIFIED™ and Wi-Fi CERTIFIED 6™ logos are certification marks of Wi-Fi Alliance.

- For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.

- The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Group Corporation and its subsidiaries is under license.

- TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

- Apple, Apple Home, AirPlay and HomeKit are trademarks of Apple Inc., registered in the U.S. and other countries and regions. To use AirPlay and Apple HomeKit with this TV, the latest version of iOS, iPadOS, or macOS is recommended.

- Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com.

- All other trademarks are the property of their respective owners.

Table des matières

Illustration of three people installing or adjusting a large panel or panel (no text or symbols visible)

FW-85BZ40L / 85BZ35L / 85BZ30L

Two line drawings of human figures carrying a large rectangular object, no text or symbols present.

FW-75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

Line drawing of two human figures holding a rectangular device (no text or symbols)

Diagram illustrating three different types of furniture or fixtures with checkmark and prohibition symbols, likely for safety or inspection.

FW-65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

FW-65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

< 12 mm < 21 mm

- HDMI IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)

http://192.168.0.1/sony/system

Requête

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Réponse

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L /

65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L /

55BZ30L / 50BZ30L / 43BZ30L

10 - 12 (mm) Vis (M6) Support de fixation murale VS

75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L /

65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L /

55BZ30L / 50BZ30L / 43BZ30L

uniquement) :

4 096 × 2 160p (60 Hz)* ^1*2 , 4 096 ×

2 160p (24 Hz)* ^1 , 3 840 × 2 160p

(60Hz)^*2,3840× 2160p(24,30Hz),

1 080p (24, 30, 60 Hz), 1 080i (60 Hz),

720p (24, 30, 60 Hz), 480p, formats

Ordinateur

Audio :

En mode eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return

Channel/Audio Return Channel) (HDMI IN 3 uniquement) ^4

En mode eARC

→ DIGITAL AUDIO OUT (OPTICAL)

FW-65BZ40L / 65BZ35L / 65BZ30L :

163,9 / 64,5 (classe 65 po)

FW-55BZ40L / 55BZ35L / 55BZ30L :

138,8 / 54,6 (classe 55 po)

FW-50BZ30L : 125,7 / 49,5 (classe 50 po)

FW-43BZ30L : 108,0 / 42,5 (classe 43 po)

FW-75BZ40L / 75BZ35L / 75BZ30L /

65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L : 300 × 300 mm

FW-50BZ30L / 43BZ30L : 200 × 200 mm

75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L /

65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L /

55BZ30L / 50BZ30L / 43BZ30L : M6

FW-65BZ40L:21,4/47,2

FW-65BZ30L:21,2/46,7

FW-55BZ40L:15,8/34,9

FW-55BZ35L : 15,7 / 34,6

FW-55BZ30L:15,7/34,6

(FW-75BZ40L / 75BZ35L / 75BZ30L /

65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L /

55BZ35L / 55BZ30L uniquement)

(FW-43BZ30L), FWA-ST2L (FW-50BZ30L),

FWA-ST3L (FW-65BZ40L / 65BZ35L /

65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L)

	Pantalla LCD Sony Modelo N.°
	FW-43BZ30L	FW-50BZ30L	FW-65BZ40L/65BZ35L/65BZ30L/55BZ40L/55BZ35L/55BZ30L
N.° de modelo de soporte de sobremesa	FWA-ST1L	FWA-ST2L FWA	FWA-ST3L

Illustration of three people installing or adjusting a large panel or panel frame (no text or symbols visible)

FW-85BZ40L / 85BZ35L / 85BZ30L

Two line drawings of human figures carrying a large rectangular object, no text or symbols present.

FW-75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

Line drawing of two human figures holding a rectangular device (no text or symbols)

Diagram illustrating three different types of furniture or fixtures with checkmark and prohibition symbols, likely for safety or inspection.

FW-65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

FW-65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L

NOT FOR CANADIAN CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

NE S'ADRESSE PAS AUX CONSOMMATEURS CANADIENS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.

< 12 mm < 21 mm

http://192.168.0.1/sony/system

Solicitud

POST /sony/system HTTP/1.1
Host: 192.168.0.1
Content-Type: application/json; charset=UTF-8
Content-Length: 70
X-Auth-PSK: 1234
{"method": "getPowerStatus", "params": [], "id": 50, "version": "1.0"}

Respuesta

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Content-Length: 44
{"result": [{"status": "active"}], "id": 50}

https://www.sony.com/am/support

Video (solo FW-85BZ40L / 85BZ35L /

85BZ30L / 75BZ40L / 75BZ35L / 75BZ30L /

65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L /

55BZ35L / 55BZ30L / 50BZ30L /

43BZ30L):

4 096 × 2 160p (60 Hz)* ^1*2 , 4 096 ×

2 160p (24 Hz) ^*1 , 3 840 × 2 160p

(60 Hz) ^2 , 3 840 × 2 160p (24, 30 Hz),

1 080p (24, 30, 60 Hz), 1 080i (60 Hz),

720p (24, 30, 60 Hz), 480p, Formatos de PC

Audio:

→ DIGITAL AUDIO OUT (OPTICAL)

Toma óptica digital (PCM lineal de dos

canales: 48 kHz 16 bits, Dolby Audio, DTS)

→ HDMI 4 AUDIO IN

FW-75BZ40L / 75BZ35L / 75BZ30L:

189,3 / 74,5 (Clase 75")

FW-65BZ40L / 65BZ35L / 65BZ30L:

163,9 / 64,5 (Clase 65")

FW-55BZ40L / 55BZ35L / 55BZ30L:

138,8 / 54,6 (Clase 55")

FW-50BZ30L: 125,7 / 49,5 (Clase 50")

FW-43BZ30L: 108,0 / 42,5 (Clase 43")

Resolución del monitor (horizontal × vertical) (píxeles)

$$ 3 8 4 0 \times 2 1 6 0 $$

FW-75BZ40L / 75BZ35L / 75BZ30L /

65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L /

55BZ35L / 55BZ30L: 300 × 300 mm

FW-50BZ30L / 43BZ30L: 200 × 200 mm

75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L /

65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L /

55BZ30L / 50BZ30L / 43BZ30L: M6

(solo FW-75BZ40L / 75BZ35L / 75BZ30L /

65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L /

55BZ35L / 55BZ30L)

(FW-43BZ30L), FWA-ST2L (FW-50BZ30L),

FWA-ST3L (FW-65BZ40L / 65BZ35L /

65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L)
