USER MANUAL Black Steel 86725 UNOLD

Modern black and orange stand with a circular fan blade and orange handle, no visible text or symbols.

Bedienungsanleitung

Instructions for use I Notice d'utilisation Gebruiksaanwijzing I Istruzioni per l'uso Instrucciones de uso I Instrukcja obsługi

Modell 86725

Impressum:

Instructions for use Model 86725

Technical Specifications.... 14

Explanation of the symbols 14

For your safety.... 14

Montieren 17

Operation.... 19

Cleaning and care.... 20

Guarantee Conditions.... 21

Waste Disposal/Environmental Protection .... 21

Service 13

Technical diagram of a fan assembly with numbered components for identification

Simple line drawing of two vertical poles with circular bases and a small object on top (no text or symbols)

Abb. 1

Technical line drawing of two circular side table holders with base legs and mounting feet (no text or symbols)

Abb. 2

Three identical stand-mounted cameras with black lenses and metallic blades, shown from different angles (no text or symbols visible)

Abb. 3

BEDIENEN

Technical illustration of two fan-shaped industrial fans with blades and mounting feet, shown from different angles (no text or symbols)

Abb. 4

Weight: Approx. 6.1 kg

Diameter: 44 cm

Power cord length: Approx. 160 cm

Material: Metal

Noise level: 63.7 dB

Features: 3 speed levels, oscillation can be switched on, carrying handle on the housing, height adjustment between 93 and 120 cm

Accessories: Operating instructions

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF THE SYMBOLS

This symbol indicates potential hazards that may result in injury or damage to the appliance.

FOR YOUR SAFETY

Please read the following instructions and keep them on hand for later reference.

Instructions for persons in the household

1. This appliance can be used by children 8 years and older, as well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.

2. Children must not play with the appliance.

3. Children are not allowed to perform cleaning and user maintenance, unless they are 8 years of age or older and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years of age.

Safety instructions for set-up and operation of the appliance

1. Only switch the appliance on when it has been properly assembled.
2. Ensure that there is sufficient space where the appliance is located. A minimum distance of 50 ~cm must be maintained between the appliance and other objects.
3. Do not use the appliance in rooms that are extremely dusty or in the vicinity of flammable substances.
4. Only connect the appliance to alternating current with voltage in accordance with the rating plate.
5. This appliance may not be operated with an external timer or a remote control system.
6. Never immerse the appliance or the power cord in water or other liquids - life-threatening danger!
7. Do not open the motor housing under any circumstances, there is danger of electric shock!
8. The appliance is intended for household use only, or for similar areas of use, such as,
   ■ in kitchenettes in businesses, offices or other workplaces,
   ■ for use by guests in hotels, motels or other lodgings,
   ■ in private guest houses or holiday homes.
9. Ensure that the power cord is laid out in such a manner that there is no possibility of stumbling over it.
10. To avoid damage to the cord, never wrap the power cord around the appliance.
11. To avoid damage to the cord, always unplug the mains plug from the electrical outlet by grasping the plug, never pull the power cord to unplug the appliance.
12. Ensure that the electrical outlet used is easily accessible, in order to unplug the appliance in an emergency.
13. To avoid damage to the power cord, ensure that it is not pinched or pulled over corners.
14. To prevent the risk of a fire or electric shock, this fan must not be used with an external speed controller.
15. Do not use the appliance in the absence of ventilation, such as in cabinets, on uneven surfaces or nearby flammable substances.

16. Never allow the appliance to run unattended.

17. If you use an extension cable, lay the cable so that no one can trip over it.

18. The appliance must never be used in wet/wet and cold rooms - danger of electric shock!
19. Keep the appliance out of direct sunlight.
20. Never stick objects such as fingers, needles, pins, etc. through the basket grille into the interior of the appliance - danger of injury!
21. Ensure that long hair cannot be caught by the impeller.
22. Regularly check the appliance, the plug and the power cord for wear or damage. In case of damage to the power cord or other parts, please send the appliance for inspection and repair to our customer service department. Unauthorised repairs can result in serious hazards for the user and void the warranty.
23. To avoid damage, do not use the appliance with accessories of other manufacturers or brands.
24. Pull the mains plug out of the socket after use, as well as before cleaning. Never leave the appliance unattended if the mains plug is plugged in.

Never stick objects such as fingers, needles, pins, etc. through the basket grille into the interior of the appliance - danger of injury!

Only operate the appliance on a level, stable substrate, so that it does not tip over.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

MONTIEREN

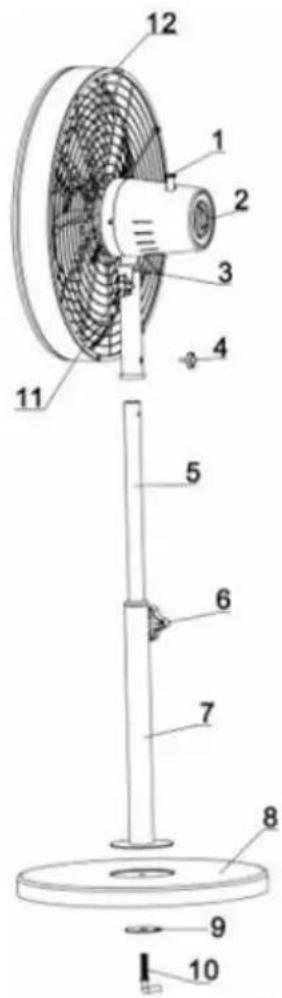

Technical diagram of a fan assembly with numbered parts for identification

1 Oscillation button
2 ON/OFF/Speed
3 Tilt angle adjustment
4 Locking screw
5 Inner tube
6 Screw for height adjustment
7 Outer t eub
8 Base
9 Washe
10 Screw of basfa stener
11 Neck fastening knob (do not unscrew!)
12 Carrying hadle

1. Prior to assembly, make sure that you are installing the appliance in a flat and dry location.
2. Remove all packaging materials and any transport guards and stickers (not the type plate or the serial number!). Keep the packaging material away from children. Choking hazard! If necessary, dispose of the packaging material according to the applicable statutory waste disposal regulations. Tip: Keep the packaging material in case you wish to return the appliance for repairs at a later time.
3. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our Customer Service department.
4. Check whether all required parts listed in this manual have been shipped with your appliance. Notice: If it is still fitted on the axle, you can remove the fabric tube as it merely serves as protection during transport.

Copyright UNOLD AG | www.unold.de

Pure diagram of two vertical poles with circular bases and a small object on top, no text or symbols present

Fig. 1

1. Remove the screw of the socket fastener No. 10 and the washer No. 9 from the underside of the outer tube No. 7 (Fig. 1).
2. Insert the outer tube into the base No. 8 (nose on the stand tube and recess in the base must lie inside each other, Fig. 1) and turn both over while holding on to the outer tube.
3. Place the washer over the opening on the bottom of the base. After that, insert the screw for the socket fastener and tighten the screw (Fig. 2).

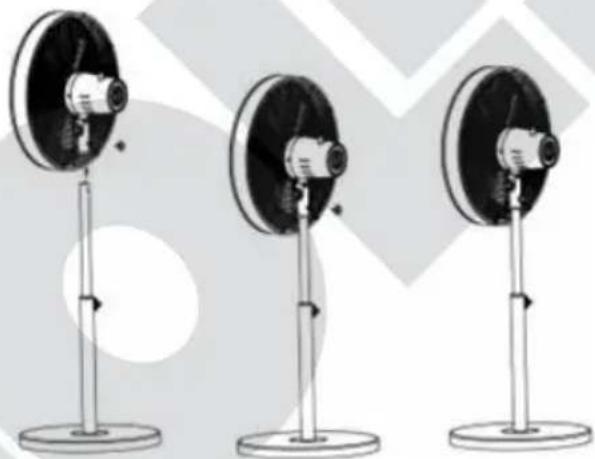

4. Next, loosen locking screw No. 4. Insert the top side of the inner tube No. 5 into the tube of the fan head and straighten the fan head. The two holes in the tubes must line up on top of each other so that the locking screw can be screwed in. Tighten the locking screw to fix the fan head in place (Fig. 3).
5. Check if all parts have been installed and fastened properly.

Line drawing of two circular side table legs with base and support feet, no text or symbols present

Fig. 2

Three identical stand-mounted cameras with black domed heads and metallic blades, shown from different angles (no text or symbols)

Fig. 3

OPERATION

1. Make sure that the appliance is set up in a secure and stable manner and close to a power socket on a suitable and level surface.
2. The appliance must not be set up in bathrooms or other wet environments!
3. Place the plug in a power socket (220–240 V AC\~, 50 Hz).
4. If you wish to set up the appliance in another location, turn off the appliance first before disconnecting the plug from the power socket.
5. Do not stick any objects into the appliance.

Adjusting the tilt angle

1. You can tilt the motor housing vertically to some extent. To do so, slightly loosen the lock nut for the tilt angle (No. 3), bring the motor housing to the desired position, and tighten the nut again.

Adjusting the height

1. You can adjust the height of the appliance to a certain extent.
2. To do this, turn the applian ce off frst.
3. Loosen the height adjustment screw (No. 6) on the outer tube and slide the inner tube up or down to the desired height. Tighten the height adjustment screw to fix the fan in place.

Selecting the speed

1. Turn on the appliance by selecting one of the three speed levels on the rotary switch:

■ Level "1": light breeze
■ Level "2": medium breeze
■ Level "3": strong breeze
■ Level "0" turns off the appliance.

1. You can switch between the different speed levels at any time.

Swivel function/oscillation

1. Press the oscillation button at the back of the appliance head down. The appliance will now swivel by itself.
2. If you wish to turn off the swivel function again, pull the oscillation button up.

Power off

1. Turn the rotary switch to level "O" to switch the appliance off. Disconnect the plug from the power socket if you no longer use the appliance.

CLEANING AND CARE

Switch off the appliance by turning the rotary switch to "O" and unplug the appliance from the power socket.

Wait until the appliance has come to a complete stop.

Make sure never to immerse the appliance in water. Do not expose the motor and electrical components to moisture.

1. Never use scouring agents, steel wool, metal objects, hot cleaners or disinfectants.
2. Wipe off the stand tube and grille with a slightly damp cloth.

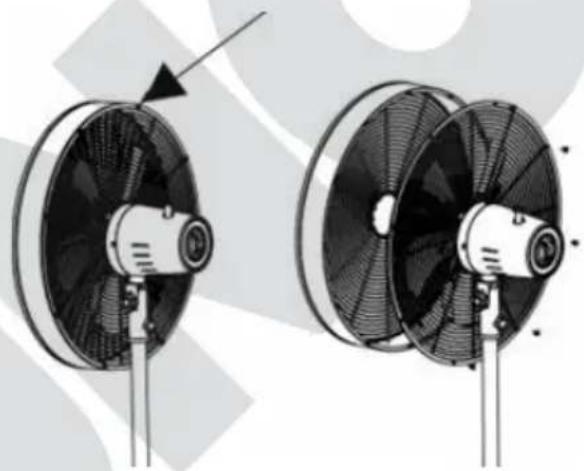

3. You can clean the fan wheel by loosening the small screw on the basket grille and removing the front half of the basket. Carefully clean the fan wheel with a soft cloth and properly screw all parts back together again.

Illustration of two different fan blades with a central fan and stand, showing internal structure and mounting points (no text or symbols)

Fig. 4

1. Store the fan in a dry, safe place to protect it from dust, impacts, heat and moisture.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website https://unold.de/pages/rucksendungen. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a highquality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible, we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. There is a legal requirement to dispose of waste electrical and electronic equipment (WEEE) as well as batteries and accumulators separately from household waste. You can recognise this waste equipment by the crossed-out wheeled bin symbol (WEEE symbol). Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 86725

SPÉCIFICATION TECHNIQUE

Puissance : 50 Watts, 220–240 V\~, 50 Hz

Dimensions : Env. 40 x 43,5 x 120 cm (p/l/h)

Poids : Env. 6,1 kg

Diamètre : 44 cm

Technical diagram of a fan with numbered parts, including top view and side-view assembly

Pure diagram of two vertical cylindrical objects with mounting holes and a small object above them, no text or symbols present.

Fig. 1

Simple line drawing of a circular mechanical component with a stem and base (no text or symbols)

Simple line drawing of a round table with a central knob and a vertical rod, no text or symbols present.

Fig. 2

Line drawing of a standard office desk lamp with a circular head and stand (no text or symbols)

Illustration of a vintage-style desk lamp with a circular head and stand (no text or symbols visible)

Simple line drawing of a standing stand with a circular fan and cylindrical body (no text or symbols)

Fig. 3

UTILISATION

Technical illustration of a dual-panel fan assembly with no visible text or symbols

Fig. 4

CONDITIONS DE GARANTIE

Technical diagram of a fan with numbered parts, including top view and side-view cross-sections.

1 Oscillatieknop

2 AAN/UIT/snelheid

3 Instelling hellingshoek

4 Vastzetschroef

5 Binnenste buis

Pure diagram of two vertical supports with circular components and a small object, no text or symbols present

afb. 1

Simple line drawing of a circular mechanical component with a vertical shaft and base (no text or symbols)

Simple line drawing of a circular object with a handle and base, no text or symbols present

afb. 2

Illustration of a standard office lamp with a circular head and stand (no text or symbols visible)

Illustration of a vintage desktop lamp with a circular head and stand (no text or symbols visible)

Simple line drawing of a vintage desktop stand with a circular head and vertical shaft (no text or symbols)

afb. 3

BEDIENING

Technical illustration of two fan-shaped industrial fans with blades and mounting base (no text or symbols)

afb. 4

Technical diagram of a fan assembly with numbered parts for identification

Pure diagram of two vertical supports with circular bases and a small object on top, no text or symbols present

Fig. 1

Simple line drawing of a cylindrical mechanical component with a base and top, no text or symbols present.

Simple line drawing of a round table with a central knob and a vertical rod, no text or symbols present.

Fig. 2

Three identical stand-mounted cameras with black plastic panels, shown from different angles (no text or symbols visible)

Fig. 3

USO DELL'A PPARECCHIO

Technical illustration of two fan-shaped industrial fans with blades and a central hub, shown from different angles (no text or symbols)

Fig. 4

Technical diagram of a fan with numbered parts, including top view and side-view cross-section

Simple line drawing of two vertical poles with star-shaped base supports and a small object on top (no text or symbols)

fig. 1

Simple line drawing of a circular mechanical component with a stem and base (no text or symbols)

Simple line drawing of a circular object mounted on a vertical rod with a base and a small protrusion (no text or symbols)

fig. 2

Line drawing of a standard office desk lamp with a circular head and stand (no text or symbols)

Simple line drawing of a vintage-style desk lamp with a circular head and stand (no text or symbols)

Simple line drawing of a standing stand with a circular vent and base (no text or symbols)

fig. 3

MANEJO

Technical illustration of a fan with two views showing internal blades and mounting base (no text or symbols)

fig. 4

Technical diagram of a fan with numbered parts, including top view and side-view cross-sections.

Simple line drawing of two vertical poles with star-shaped base supports and a small object on top (no text or symbols)

rys. 1

Simple line drawing of a circular mechanical component with a stem and base (no text or symbols)

Simple line drawing of a round table with a central knob and a vertical rod, no text or symbols present.

rys. 2

Line drawing of a standard office lamp with a circular head and stand (no text or symbols)

Illustration of a vintage-style desk lamp with a circular head and stand (no text or symbols)

Simple line drawing of a desktop stand with a circular head and central shaft (no text or symbols)

rys. 3

OBSŁUGA

Technical illustration of a fan assembly showing front and side views (no text or symbols)

rys. 4
