Tone Free TONE-FP9 - Earphones LG - Free user manual and instructions

Product Type	True Wireless Bluetooth 5.2 Earbuds
Brand	LG
Model	Tone Free TONE-FP9
Dimensions (earbud)	21.2 mm (w) x 28.3 mm (d) x 23.2 mm (h)
Dimensions (case)	54.5 mm (w) x 54.5 mm (d) x 30 mm (h)
Weight (earbud)	5.2 g (each)
Weight (case)	36.7 g
Power (earbud)	Lithium-ion battery 3.7 V / 68 mAh
Power (case)	Lithium-ion battery 3.7 V / 390 mAh
Battery life (ANC off)	Up to 10 h (earbuds) + 24 h with case
Battery life (ANC on)	Up to 6 h (earbuds) + 15 h with case
Fast charging	5 min charge for 60 min playback
Main features	Active Noise Cancellation (ANC), Ambient Sound Listening (LAS), UVnano (ear tip sterilization), connection and wireless mode (receiver via AUX cable), touch controls, LG TONE Free app
Water resistance rating	IPX4 (earbuds only, splash resistant)
Connectivity	Bluetooth 5.2, A2DP/AVRCP/HFP/HSP profiles, USB-C port for charging and AUX mode
Cleaning and maintenance	Regularly clean the speaker and ventilation ports with a soft brush or cotton swab; remove ear tips for cleaning
Safety	Do not disassemble, avoid extreme temperatures >50°C or <-10°C, do not immerse, keep out of reach of children (small parts), consult a doctor if you have implants
Spare parts and repairability	Battery not user-replaceable; replacement by authorized professional; use only authentic LG accessories; gel ear tips available in 3 sizes
Warranty	2 years limited
General information	CE certification, compliance with Directive 2014/53/EU, Bluetooth SIG, battery recycling (do not discard with household waste)

Frequently Asked Questions - Tone Free TONE-FP9 LG

How to connect LG TONE-FP9 earbuds to my smartphone?

Enable Bluetooth on your phone, open the case lid with earbuds inside, then press and hold the touchpad on the left or right earbud for 3 to 5 seconds until the LED flashes blue. Select LG-TONE-FP9 from the Bluetooth list (ignore the one with "_LE").

How to activate noise reduction (ANC)?

Press and hold the left or right earbud to switch between ANC (noise reduction) and LAS (ambient sound listening) modes. You can also configure these modes in the LG TONE Free app.

How does the UVnano function work?

The charging case has a UVnano LED that removes up to 99.9% of certain bacteria on the earbud tips. It activates automatically for 5 minutes when you charge the earbuds in the closed and plugged-in case. The blue LED indicates UVnano is in progress.

What is the battery life of the earbuds?

With ANC off, the earbuds provide up to 10 hours of listening and the case provides an additional 24 hours. With ANC on, the battery life is 6 hours for the earbuds and 15 hours with the case. A 5-minute quick charge gives 60 minutes of playback.

Are the earbuds waterproof?

The earbuds are certified IPX4, meaning they are resistant to splashes and sweat, but should not be submerged or used underwater. The charging case is not waterproof.

How to clean the earbuds?

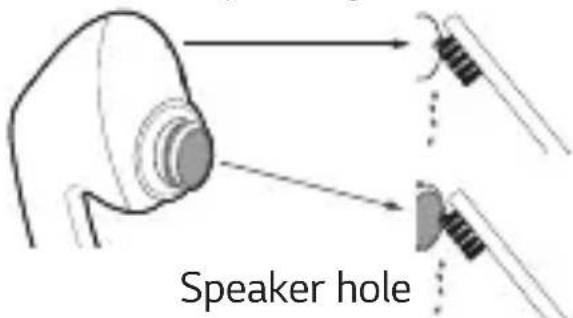

First remove the gel ear tips. Use a soft brush or cotton swab to gently clean the speaker port and the air ventilation port. Avoid any liquid. Clean regularly to prevent clogging.

How to reset the earbuds in case of issues?

Place the earbuds in the charging case, then press and hold the touchpad on the left or right earbud for at least 10 seconds. The battery LED will flash red, indicating a factory reset. Then reconnect the earbuds to your device.

Why does only one earbud connect or the connection is unstable?

Make sure both earbuds are properly inserted in the case and that it is charged. Delete the device from the Bluetooth list and re-pair. Avoid interference (walls, metal, other 2.4 GHz devices). The correct model name is LG-TONE-FP9 without "_LE".

How to use connection and wireless mode (connect case to an audio source)?

Connect the supplied USB-C™ to AUX cable to the case (USB-C port) and the other end to the audio source (e.g., in-flight entertainment system, radio). Slide the connection and wireless mode switch to the right. The earbuds will broadcast audio from the connected source.

How to replace the ear tips and where to find accessories?

Gel ear tips are available in three sizes (S, M, L). To replace, gently pull off the used ear tip and snap on the new one. Use only authentic LG accessories. Contact LG customer service or an authorized dealer to purchase replacement ear tips.

USER MANUAL Tone Free TONE-FP9 LG

Google Play App Store

Rev 5.0 EUF

www.lg.com

Using LG TONE Free™

Copyright © 2021 - 2023 LG Electronics Inc. All Rights Reserved

NOTE: For the best performance and to prevent any damage to, or misuse of the headset, please read all of the information carefully prior to using the headset.

Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc.

The LG TONE Free (TONE-FP9) is a lightweight wireless headset that uses Bluetooth technology.

This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth Profile.

Safety Precautions

The following safety precautions are provided to prevent any unexpected accident or damage. Please familiarise yourself with the safety precautions.

The safety precautions are classified into "WARNING" and "CAUTION".

WARNING: Failing to comply with the instructions may result in serious injury or death.

CAUTION: Failing to comply with the instructions may result in minor injury or product damage.

WARNING

Do not drop the product from a high place.

Make sure there is no water, alcohol, or benzene in contact with the product.

Do not store the product in a wet or dusty place.

Do not place heavy objects on the product.

This product is waterproof to the IPX4 level (daily life waterproof).

(The IPX4 waterproof rating applies to the earbud product only.)

Do not put the product under the water or use it in a humid location such as a bathroom.

CAUTION

Do not disassemble, adjust, or repair the product arbitrarily.

Do not place the product near excessive heat or flammable material.

The product may be damaged if an incompatible charger is used.

Make sure that an infant or child does not swallow a magnet or a small component of the product.

Make sure that foreign objects do not enter the charger's connectors (charging port and power plug). Failure to do so may result in fire or electric shock.

If you have a medical device implanted, contact your doctor before using this device.

This product has a built-in battery, and the battery cannot be removed or replaced arbitrarily.

For your safety, do not remove the battery incorporated in the product.

If you arbitrarily replace the battery or don't replace it correctly, it may explode.

The lithium-ion battery is a hazardous component that can cause injury.

Battery replacement by an unqualified professional can cause damage to your device.

Do not replace the battery by yourself. The battery can be damaged, which can cause overheat and injury. The battery must be replaced by an authorized service provider. The battery should be recycled or disposed of separately from household waste.

Do not discard the battery arbitrarily. Follow the local procedure for discarding batteries.

To prevent unnecessary energy consumption, disconnect the device when fully charged. Always use an easily accessible power outlet for charging your device.

Risk of fire or explosion if the battery is replaced by an incorrect type.

Do not store or transport at pressures lower than 11.6 kPa and at altitudes above 15000 m.

Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types).

Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting a battery, can result in an explosion.

Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas.

A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

Do not carelessly throw away old batteries. It can cause an explosion or fire. The disposal method may vary by country and region. Dispose of it in an appropriate manner.

NOTE

If the product is exposed to excessive sweat, clean the product.

Keep the earbuds clean.

Wearing earbuds for a long time may cause pain, and if humidity inside ears continues for a long time, it may cause skin trouble.

HD Speaker

If the communication network of the device you are connecting to supports HD Voice Calling, you can enjoy making voice calls and listening to music in high definition.

Product Components

LG TONE Free™ Earbuds (medium eargels installed) UV Charging Case

Extra Ear Gels (small & large)

USB Type-C™ Charging Cable

USB-C™ to AUX cable Reference guide Simple Owner's

Manual

WEEE Card (Europe Only)

NOTE: Actual product design may differ from images shown in manual.

CAUTION

Make sure authentic LG Electronics components are used. Using a non-authentic component may damage the product and thus void the warranty.

Use the USB Type-C™ cable or the USB-C™ to AUX cable provided with the product.

Overview

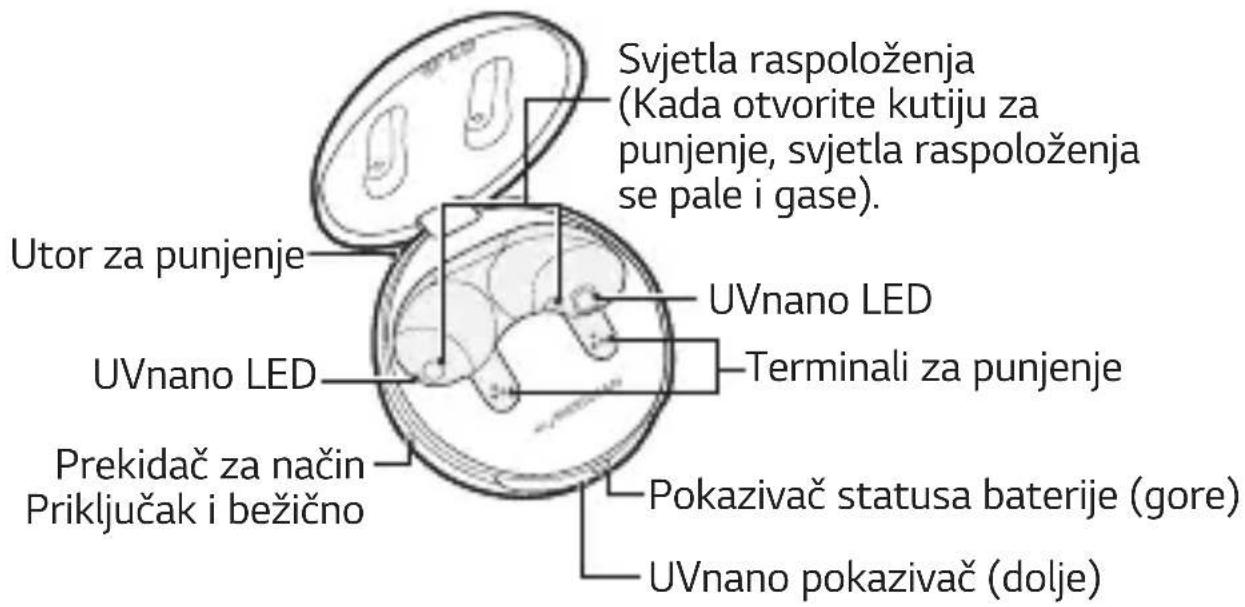

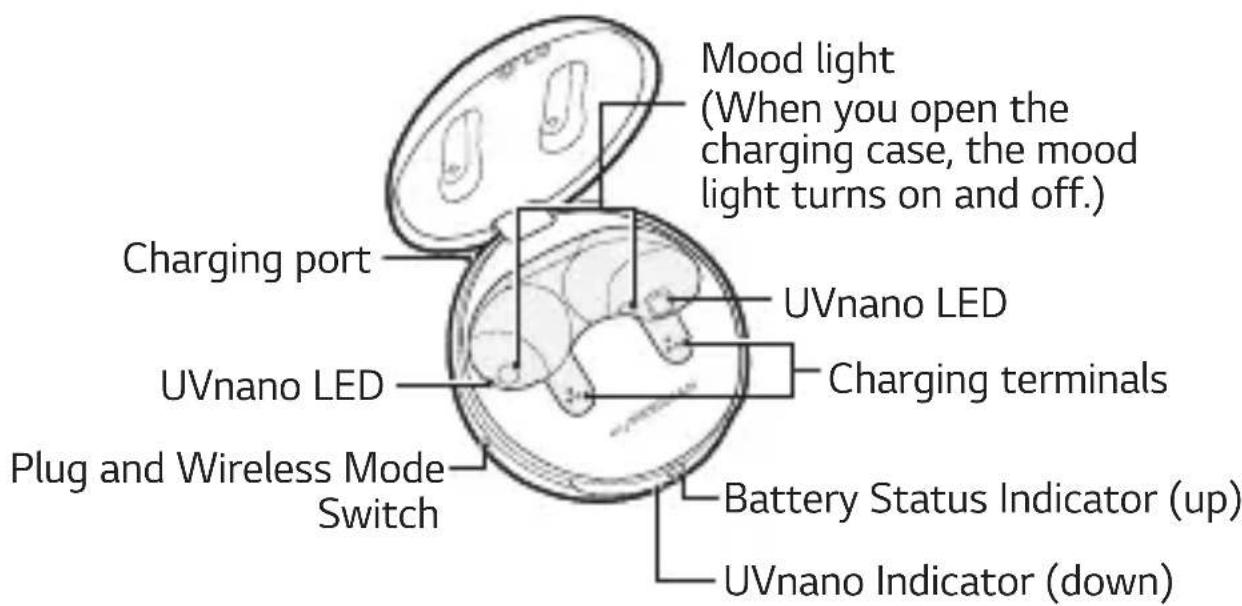

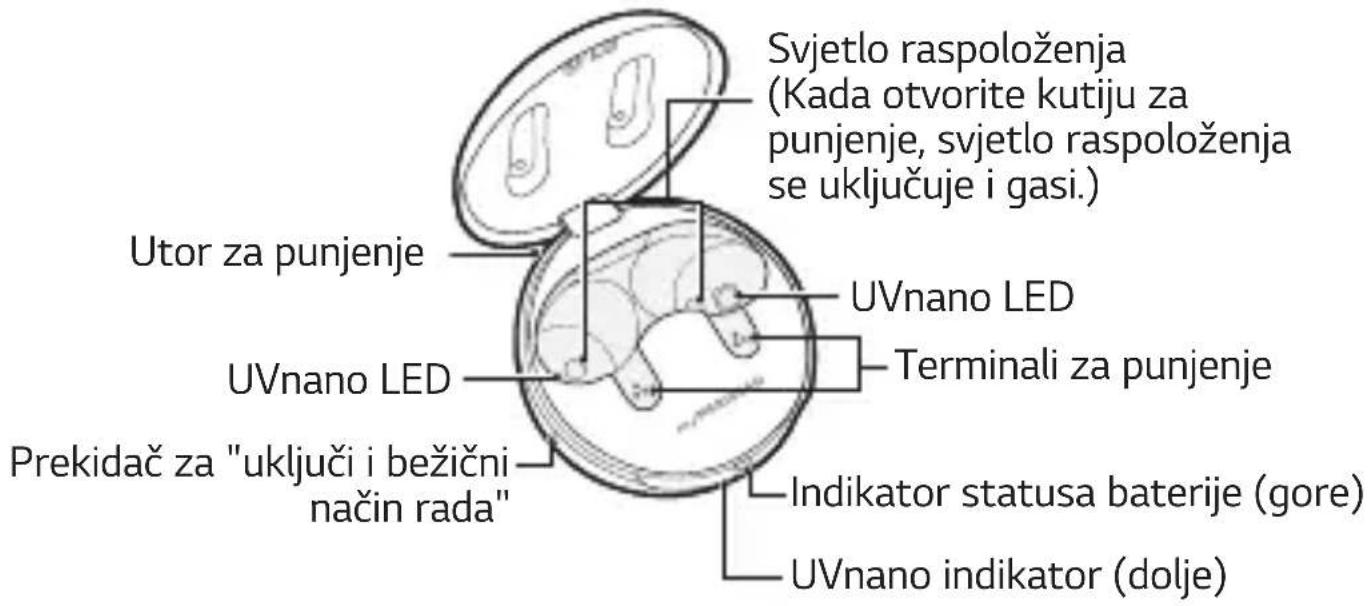

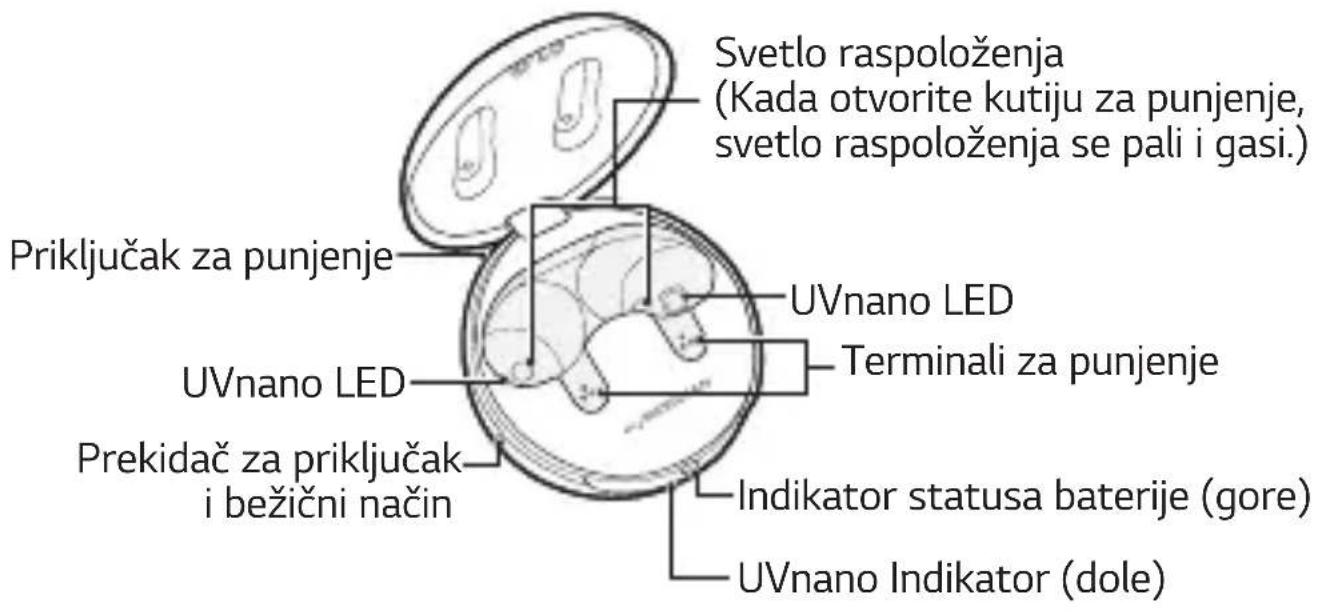

Charging Case

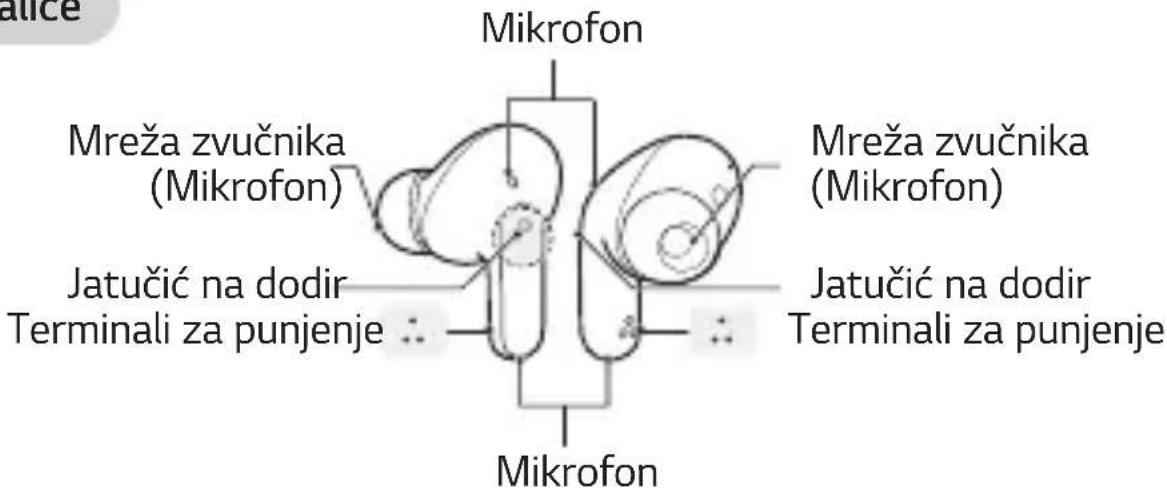

Earbuds

Speaker mesh (Microphone)

Speaker mesh (Microphone)

Touchpad Charging terminals

*Make sure that the charging terminal is not soiled with foreign substances. *The appearance and specifications of the actual product may differ depending on the model.

Pairing and Connecting

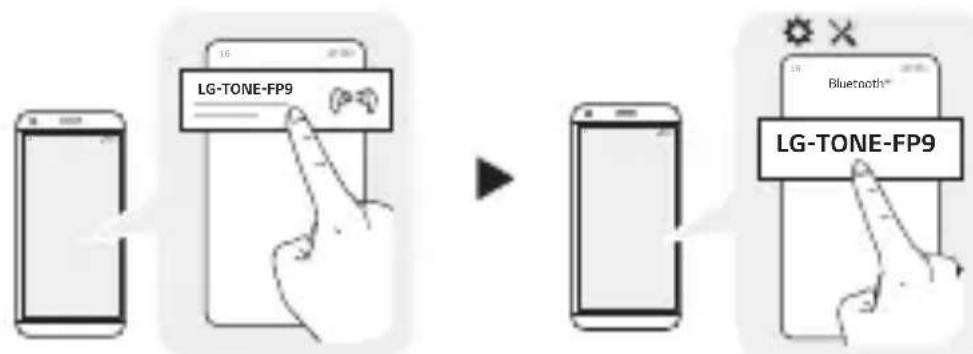

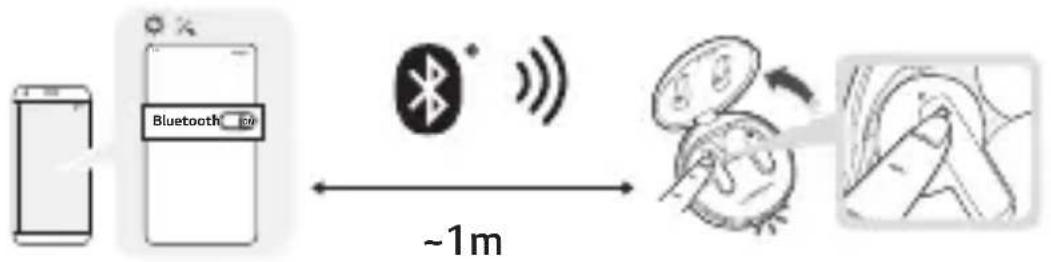

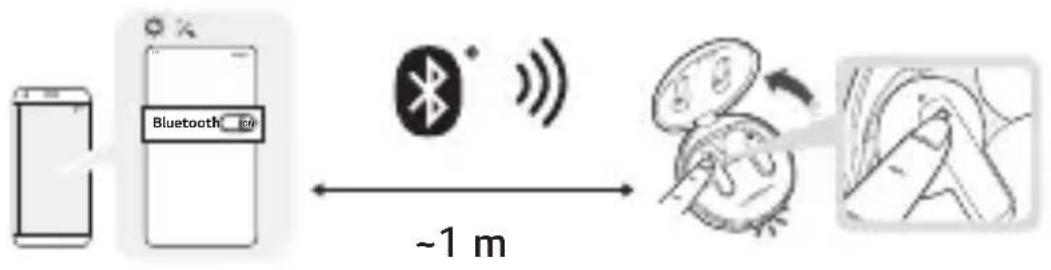

Fast Pair

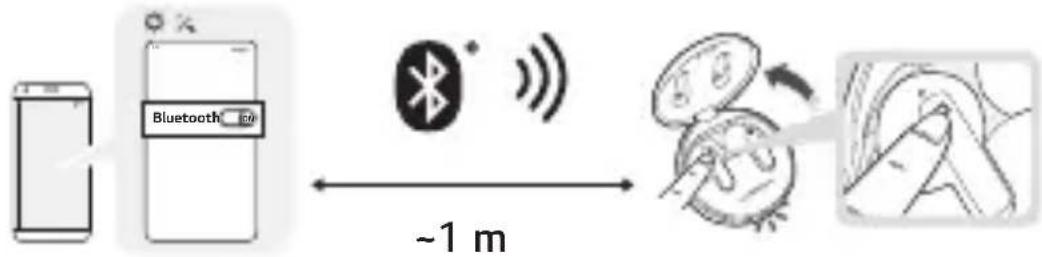

1. Turn on the Bluetooth function on the mobile phone or the device to be connected. 2. Open the cover of the charging case with the earbuds mounted on the case. Press and hold the touchpad of the left or right earbud for 3 to 5 seconds until the battery status indicator blinks in blue.

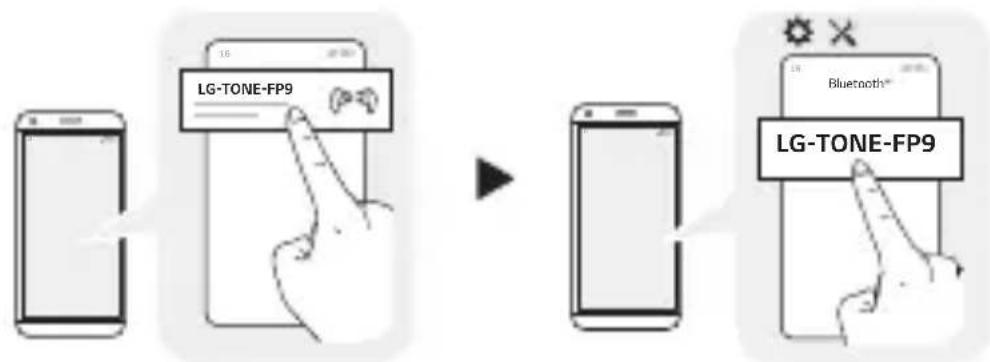

3. When the Fast Pair connection pop-up appears on the top area of the mobile phone screen, tap it to connect. (It only supports Android™ 6.0 or higher, and requires configuring Bluetooth and location information settings of the mobile device.)

4. If the pop-up does not appear, select [LG-TONE-FP9] from the Bluetooth menu on the mobile phone and connect it (for users of iOS or Android 5.0 or lower versions).

CAUTION: In the list of Bluetooth connected devices,

LG-TONE-FP9_LE is not the correct model name for connection.

Check the model name in use and connect with the model name without "LE".

If the earbud model name is abnormally displayed on the Android device, change the model name in the Bluetooth menu of

Connected Device Settings.

NOTE: To connect with another device, perform the above procedure again.

Automatic Reconnection

The earbuds are connected automatically when you open the cover of the charging case. If you close the cover of the charging case with both earbuds mounted in the charging case, the earbuds are disconnected.

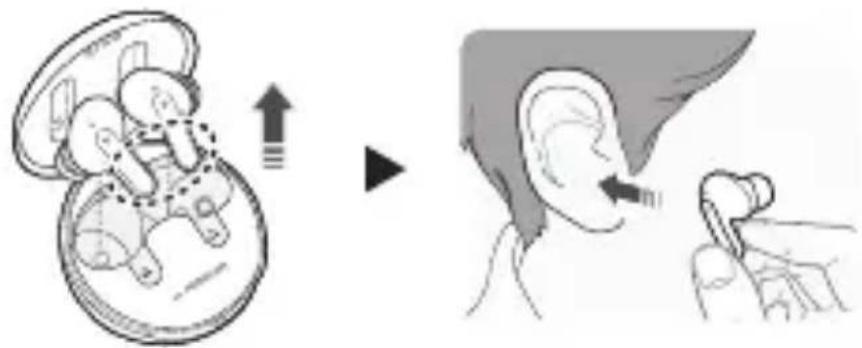

Wearing Earbuds

1 Separate the earbuds from the charging case and adjust them so that they fit comfortably in your ears.

NOTE: You can use ear gels that fit your ears to improve Active Noise Canceling (ANC) performance and enjoy rich music sound.

2 When you wear the earbuds, you will hear a wearing detection alarm.

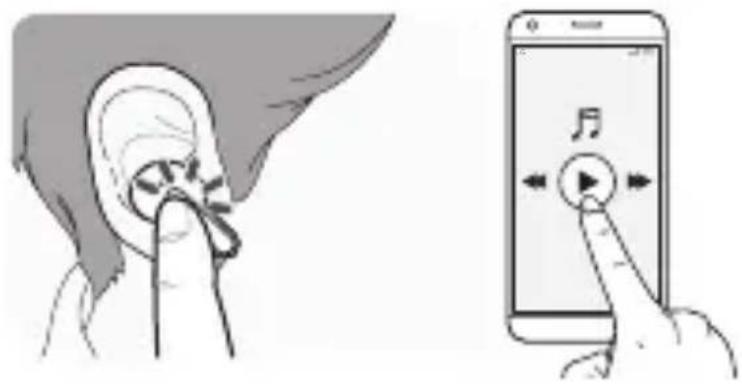

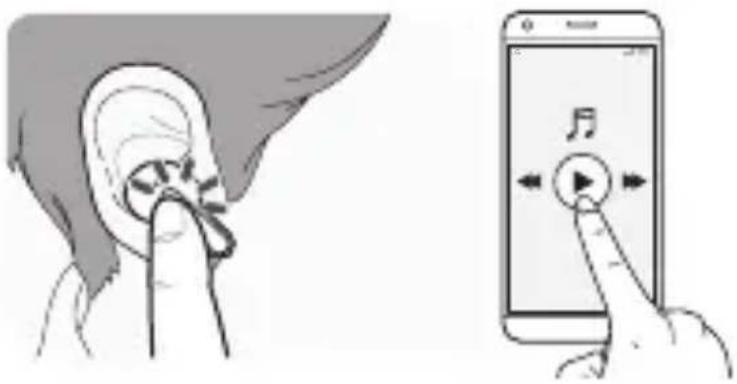

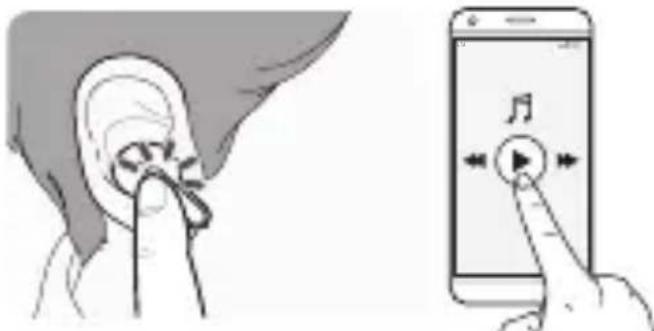

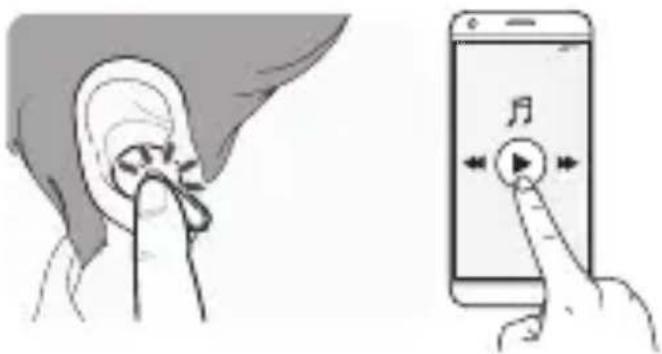

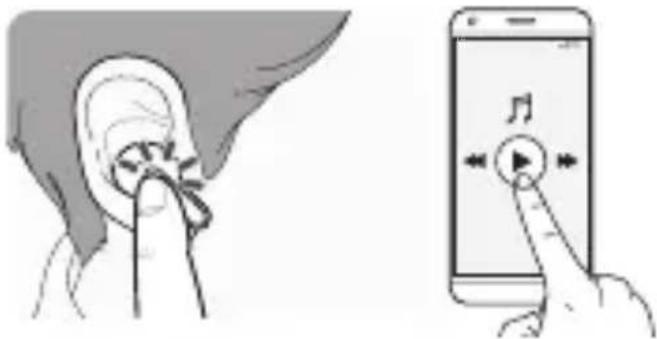

Playing Music

Function Description
Play / Pause	: Touch the left or right earbud once.
Adjusting the Volume	: Touch the left(Decrease volume) or right(Increase volume) earbud twice.
Play Next	: Touch the left or right earbud three times.

NOTE: You can change the operation method of the function in the touchpad settings of the LG TONE Free app.

Once you turn on the Plug and Wireless mode, the earbuds reacts to your touch as follows:

• Touch it once to mute or unmute the sound.
• Touch it twice to adjust the volume.
• Touching it three times triggers no response.

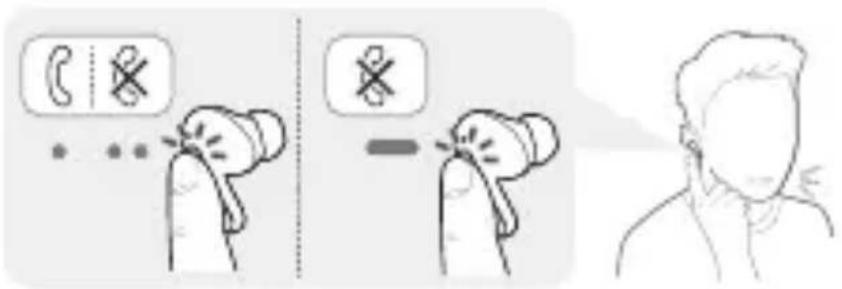

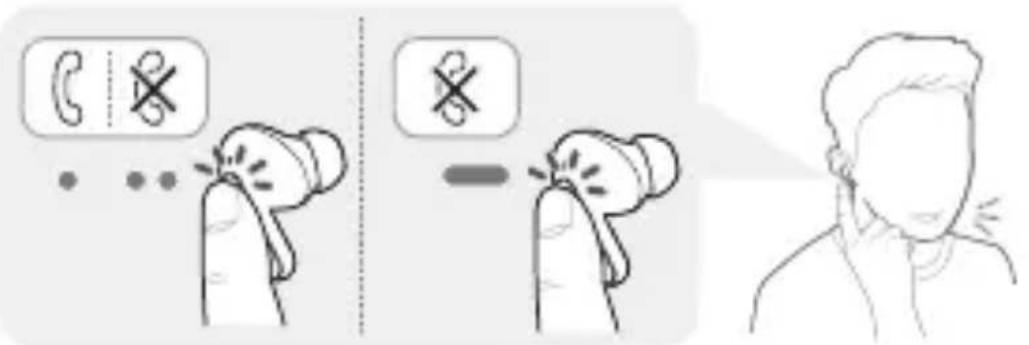

Mobile Calling Functions

Function Status	Description
Answering Calls	Ringing Touch the left or right earbud once.
Ending Calls	Talking	Touch the left or right earbud twice.
Making Calls Idle		If you make a call using a mobile phone, the call is automatically connected to the headset.
Receiving Calls while on the Phone	Talking	If you touch the left or right earbud once, the current call will go on hold, and you will be able to answer an incoming call.If the previous call is on hold, you can finish the current call on the mobile phone.(It works differently depending on the mobile phone settings.)
Rejecting Calls	Ringing Touch and hold the left or right earbud.

Listen to the Ambient Sound (LAS) / Active Noise Cancellation (ANC)

Listen to the Ambient Sound (LAS)

The Listen to the Ambient Sound (LAS) function allows you to listen to the ambient sound so that you can recognize the surrounding situation and any potential risks.

Active Noise Cancellation (ANC)

The Active Noise Cancellation (ANC) function blocks any ambient sound. So, you can use the function to listen to the music or watch a video without interference.

Touch and hold the left or right earbud to switch between the ANC mode and the LAS mode.

You can set the LAS and ANC functions in the LG TONE Free app.

You can configure the Listen to the Ambient Sound mode and Conversation mode using the LG TONE Free app.

If you use the LAS or ANC function, the battery consumes faster, reducing the time you can use the product.

You can use the LAS and ANC functions while being idle, listening to music, or being on the phone.

*ANC is an acronym for Active Noise Cancellation.

CAUTION: When the LAS mode is enabled, you may hear the ambient sound become loud suddenly.

When using the ANC function outdoors, pay attention to the surrounding environment for safety.

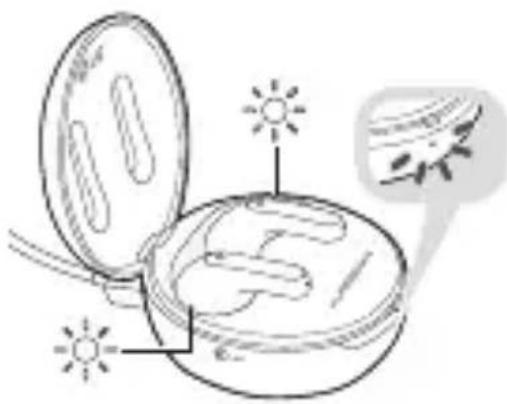

UVnano

The charging case has a built-in UVnano LED, which allows you to use your earbuds cleanly.

If you charge the earbuds wired after mounting them on the charging case and closing the cover, the UVnano LED operates for 5 minutes.

*UVnano is a compound word derived from the words UV and its unit, nanometer.

NOTE: The UVnano indicator turns on blue while the UVnano LED is on. The UVnano charging case eliminates up to 99.9% of harmful bacteria inside the earbud hole.

In the case of a white product, discolouring may occur in the contact area of the UVnano LED, but it does not affect the product function.

CAUTION: Be aware that the temperature of the earbuds may rise while the UVnano LED is on.

Charging

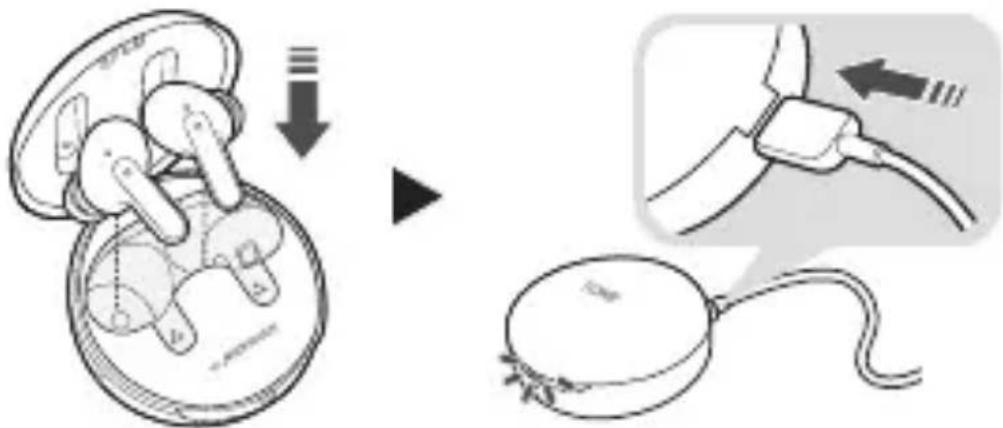

Wired Charging

When the charging cable is connected, the charging status is displayed in the charging case.

NOTE: The earbuds and the charging case are charged at the same time. The charging port on the charging case cannot be used to supply power to mobile phones, etc.

Plug and Wireless Mode (External Device Connection Mode)

You can connect the charging case to a device such as an airplane stereo system, treadmill, cassette player, radio, and TV to listen with the earbuds.

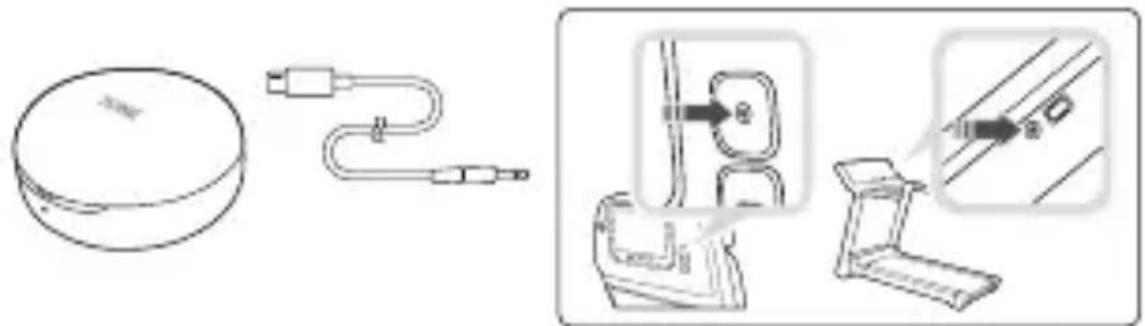

How to Connect

1 Connect the USB-C™ side of the USB-C™ to AUX cable to the charging case. 2 Connect the AUX side to a device you want to use.

3 Wear the earbuds. 4 Push the Plug and Wireless Mode switch to the right to turn on the mode. 5 The indicator on the charging case flashes in green. 6 Once the charging case is connected to the earbuds, the indicator turns off.

How to Disconnect

1 Push the Plug and Wireless Mode switch to the left.

2 The indicator on the charging case flashes in blue.

3 Once disconnected from the charging case, the earbuds reconnect to the device that was previously connected.

- If the device is not found, the earbuds enter the Connection Ready mode.

NOTE: You cannot use the LG TONE Free app, but the EQ and touchpad settings are maintained as is. (Touch operation: Refer to the Playing Music section.)

The earbuds do not support the call function.

The USB-C™ to AUX cable does not support the charging function.

The earbuds may not be compatible with some devices, and a separate adapter (sold separately) may be necessary to use a port on some airplane seats.

If you use the earbuds for a long duration, the battery of the earbuds (including the charging case) may drain faster than when physically connected to a smartphone.

Checking the Battery Status

If earbuds are mounted in the charging case, the earbuds' battery status is displayed. Otherwise, the charging case's battery status is displayed.

If the earbuds are mounted in the charging case while plugged in, the UVnano process will commence for 5 minutes. Once this process is complete, the charging case's battery status will be displayed.

Battery Status Indicator	Remaining Battery (charger not connected)	Charging State (charger connected)
Red 20% or lower Charging
Yellow 20% - 80% -
Green 80% or higher Fully charged

NOTE: When the charging case lid is closed, charging case battery status is displayed. If the charging case has no remaining charge, there will be no display and it cannot function. We recommend you keep the charging case charged at all times as the earbuds are not able to be turned on and turned off independently.

Battery Status Indicator

Status Description
Bluetooth Search Mode	The battery status indicator flashes in blue.
Battery below 20%	The battery status indicator turns on and off in red.
Battery 20% - 80%	The battery status indicator turns on and off in yellow.
Battery 80% or more	The battery status indicator turns on and off in green.
When there is a problem while charging	The battery status indicator flashes in red.
Charging (charger connected)	The battery status indicator turns on in red.
Charging complete (charger connected)	The battery status indicator turns on in green.

Out of Range

If the device connected to the product is out of effective communication range, the communication signal becomes weak and the communication is lost. The effective communication range may vary depending on surrounding and other conditions.

If the device comes back within effective communication range, the product automatically reconnects to the device. If the device is not automatically reconnected, touch the left or right earbud once to connect them.

LG TONE Free App

If you install the "LG TONE Free" app, you can use Check Earbud Battery, Voice Alert, Change Equalizer Mode, Check Last Connected Location Information, and Find My Earbuds functions. Check out the app for more details.

To install the "LG TONE Free" app, search LG TONE Free in the Google Play Store or App Store or scan the QR code below.

It supports Android 7.0 or higher and iOS 11 or higher.

Google Play App Store

Troubleshooting

If you see any of the following symptoms while using the product, make sure to recheck it. It may not be a malfunction.

Symptom Cause and Solution
The power does not turn on	Check the battery level and charge it.
If unable to make a call with earbuds	If the mobile phone does not support headset and hands-free functions, you cannot use the calling features.Check the battery level and charge it.
If unable to register earbuds to mobile phone	Check whether earbuds are turned on.Check if the earbuds have entered the search mode.- While the earbuds are inserted in the charging case, press and hold the touch pad on the left or right earbud for 3 to 5 seconds to switch to the search mode.
If you replaced the earbuds or there is a problem with the operation (Factory reset)	While the earbuds are inserted in the charging case, press and hold the touch pad on the left or right earbud for 10 seconds or more.- The battery status indicator of the charging case flashes red and the initialization to the factory status is carried out. After initialization to the factory status, reconnect the earbuds.

*Factory reset and Search mode cannot be used in Plug and Wireless mode.

Cleaning Guide

Cleaning Earbud

Clean the speaker hole and air ventilation hole regularly so that they are not blocked by foreign substances (sebum, earwax, etc.).

* If the speaker hole and air ventilation hole are blocked, volume may be low and noise may occur, and the noise canceling performance may be lowered.

1 First, separate the ear tip and remove foreign substances inside the ear tip.

2 Then, clean the hole with a soft brush or cotton swab to clean it.

Air ventilation hole

(It may be placed differently or not exist depending on the model.)

Specifications and Features

Item Comments
Bluetooth Specifications	V 5.2 (Headset/Hands-Free/A2DP/AVRCP)
Battery	Earbud : 3.7 V / 68 mAh, Lithium-ionCharging case : 3.7 V / 390 mAh, Lithium-ion
Music Play TimeEarbuds & With Charging case	ANC Off: Up to 10 & Up to 24 hours*ANC On: Up to 6 & Up to 15 hours*
Charging Time	Earbud: within an hour / Charging case: within 2 hoursFast Charging: 5 min charge for up to 60 min playtime*※When charging wired at room temperature
Rated Input Voltage	Earbud: 5 V ---, 136 mACharging case: 5 V ---, 500 mA
Operating Temperature	0 °C ~ +40 °C
Operating Humidity	5 % ~ 60 %
Dimensions(mm) /Weight (g)	Earbud : 21.2 mm (W) X 28.3 mm (L) X 23.2 mm (H)/ 5.2 g (One earbud)Charging case : 54.5 mm (W) X 54.5 mm (L) X30 mm (H) / 36.7 g
Frequency range Output Power (Max)
2402 MHz to 2480 MHz		Earbud : 11.5 dBmCharging case : 10 dBm

*Duration of use may vary depending on the connected mobile device, features being used, settings, signal strength, operating temperature, frequency band, and other methods of use.

WEEE card (Europe only)

Music playback

Disconnection method

Google Play App Store

Troubleshooting

Google Play App Store

Troubleshooting

USB Type-C™ Charging cable

WEEE card (Europe only)

Touchpad Charging ports

Play music

Disconnect

Google Play App Store

Troubleshooting

Play music

Disconnect

Google Play App Store

Troubleshooting

Copyright © 2021 - 2023 LG Electronics Inc. All Rights Reserved

How to disconnect

Google Play App Store

USB Type-C™ charging cable

Play music

Google Play App Store

Troubleshooting

Playing music

How to disconnect

Google Play App Store

USB Type-C™ charging cable

WEEE card (Europe only)

Google Play App Store

WEEE card (Europe only)

Playing music

How to disconnect

1 Slide the Plug and Wireless Mode switch to the left.

Google Play App Store

Troubleshooting

LG TONE Free™ Earbuds (medium ear tips installed) UV Charging Case

Extra ear cushions (small and large)

USB Type-C™ charging cable

USB-C™ to AUX cable Reference Guide Simple owner's manual

WEEE Card (Europe only)

NOTE: The actual product may differ from the images shown in the manual.

CAUTION

Make sure to use genuine LG Electronics components. Using non-genuine components may damage the product and void the warranty.

Use the USB Type-C™ cable / USB-C™ to AUX cable provided with the product.

Overview

Charging case

Earbuds

Speaker mesh (Microphone)

Speaker mesh (Microphone)

- Touch pad Touch pad Charging terminals Charging terminals

*Make sure the charging terminal is not contaminated with foreign substances.

The appearance and specifications of the actual product may vary depending on the model.

Pairing and Connecting

Quick Pairing

1 Turn on the Bluetooth function on your mobile phone or the device you are connecting. 2 Open the cover of the charging case with the earbuds mounted in the case. Press and hold the touch pad on the left or right earbud for 3 to 5 seconds until the battery status indicator blinks blue.

3 When the Quick Pairing connection pop-up appears at the top of the mobile phone screen, tap to connect. (Supports only Android™ 6.0 or higher and requires configuring Bluetooth and location information settings on the mobile device.)

4 If the pop-up does not appear, select [LG-TONE-FP9] from the Bluetooth menu on the mobile phone and connect it (for iOS users or Android 5.0 or lower versions).

CAUTION: In the list of devices connected via Bluetooth,

LG-TONE-FP9_LE is not the correct model name for connecting.

Check the model name in use and connect to the model name without "LE".

If the earbud model name is not displayed normally on an Android device, change the model name in the Bluetooth menu of the connected device's settings.

NOTE: To connect to another device, repeat the above procedure.

Automatic Reconnection

2 When you wear the earbuds, you will hear a wear detection alarm.

Starting Music

Funkcija Opis
Pokretanje/zaustavljanje	: Dodirnite lijevu ili desnu slušalicu jednom.
Namještanje glasnoće	: Dodirnite lijevu (smanjenje) ili desnu slušalicu (pojačanje) dva puta.
Pokrenite Sljedeće	: Dodirnite lijevu ili desnu slušalicu tri puta.

Funkcija Status Opis
Javljanje na pozive	Zvonjava Dodirnite lijevu ili desnu slušalicu jednom.
Završavanje poziva	Razgovor Dodirnite lijevu slušalicu dva puta.
Pozivanje Odsutan	Ako pozivate koristeći mobilni telefon, poziv se automatski povezuje na slušalice.
Primanje poziva dok ste na telefonu	Razgovor	Ako dodirnete lijevu ili desnu slušalicu jednom, trenutačni poziv će preći na čekanje i vi ćete moći odgovoriti na dolazeći poziv. Ako je prethodni poziv na čekanju, možete završiti trenutni poziv na mobilnom telefonu. (Radi različito u ovisnosti o postavkama mobilnog telefona).
Odbijanje poziva	Zvonjava Dodirnite i držite lijevu ili desnu slušalicu.

The Listen to Ambient Sound (LAS) function allows you to hear surrounding sound so you can recognize the surrounding situation and any potential risks.

The Active Noise Cancellation (ANC) function blocks any surrounding sound. This allows you to use the function to listen to music or watch videos without distractions.

The charging case has a built-in UVnano LED that allows you to use the earbuds cleanly.

If you charge the wired earbuds after mounting them on the charging case and closing the cover, the UVnano LED operates for 5 minutes.

3 Wear the earbuds.

4 Slide the switch for Connection and Wireless mode to the right to turn on the mode.

How to disconnect

1 Slide the switch for Connection and Wireless mode to the left. 2 The indicator on the charging case blinks blue. 3 When disconnected from the charging case, the earbuds reconnect to the previously connected device.

NOTE: You cannot use the LG TONE Free app, but the EQ and touch pad settings are maintained as they are. (Touch operation: See the section Playing music.)

Pokazivač statusa baterije	Preostala baterija (punjač nije povezan)	Stanje punjenja (punjač povezan)
Crveno 20% ili niže Punjenje
Žuto 20% - 80% -
Zeleno 80% ili više		Do kraja napunjeno

NOTE: When the cover of the charging case is closed, the battery status of the charging case is displayed. If the charging case is completely out of power, there will be no display and it cannot operate. We recommend keeping the charging case charged at all times because the earbuds cannot be turned on or off independently.

Battery status indicator

Status Opis
Bluetooth Način pretraživanja	Pokazivač statusa baterije treperi plavo.
Baterija ispod 20%	Pokazivač statusa baterije pali se i gasi crveno.
Baterija 20% - 80% Pokazivač statusa baterije pali se i gasi žuto.
Baterija 80% ili više	Pokazivač statusa baterije pali se i gasi zeleno.
Gdje je problem s punjenjem	Pokazivač statusa baterije treperi crveno.
Punjenje (punjač povezan)	Pokazivač statusa baterije pali se crveno.
Punjenje završeno (punjač povezan)	Pokazivač statusa baterije pali se zeleno.

Out of range

If the device is connected to the product outside the effective communication range, the communication signal becomes weak and communication is lost. The effective communication range may vary depending on the environment and other conditions.

If the device returns within the effective communication range, the product automatically reconnects to the device. If the device does not reconnect automatically, touch the left or right earbud once to connect them.

LG TONE Free app

If you install the "LG TONE Free" app, you can use the Check Earbud Battery, Voice Alert, Change Equalizer Mode, Check Last Connected Location Information, and Find My Earbuds functions. Check the app for more details.

To install the "LG TONE Free" app, search for LG TONE Free in the Google Play Store or App Store and scan the QR code below.

Supports Android 7.0 or higher and iOS 11 or higher.

Google Play App Store

Troubleshooting

If you encounter any of the following symptoms while using the product, please take note. It may not be a malfunction.

2 Then clean the hole with a soft brush or cotton swab.

LG TONE Free™ Earbuds (with medium ear gels installed) UV Charging Case

Additional silicone ear gels (small and large)

USB Type-C™ Cable for charging

USB-C™ to AUX Cable Reference Guide Simple User Manual

WEEE card (Europe only)

NOTE: The actual product design may differ from the images shown in the manual.

CAUTION

Make sure to use authentic LG Electronics components. Using a non-authentic component may damage the product and void the warranty.

Use the USB Type-C™ cable/USB-C™ to AUX cable supplied with the product.

Overview

Charging case

Earbuds

*Make sure the charging terminal is not contaminated with foreign substances. *The appearance and specifications of the actual product may vary depending on the model.

Pairing and connecting

Quick pairing

1 Turn on the Bluetooth function on your mobile phone or the device you want to connect. 2 Open the lid of the charging case with the earbuds placed in the case. Press and hold the touchpad of the left or right earbud for 3 to 5 seconds until the battery status indicator blinks blue.

3 When the quick pairing pop-up window appears at the top of the mobile phone screen, tap it to connect. (Supports only Android™ 6.0 or later and requires configuring Bluetooth and location information settings on the mobile device.)

4 If the pop-up window does not appear, select [LG-TONE-FP9] from the Bluetooth menu on the mobile phone and connect it (for iOS users or Android 5.0 or lower versions).

CAUTION: In the list of Bluetooth connected devices, LG-TONE-FP9_LE is not the correct model name for connection. Check the model name in use and connect to the model name without "LE".

If the model name of the earbuds is displayed abnormally on an Android device, change the model name in the Bluetooth menu in the connected device settings.

2 When you wear the earbuds, you will hear a wear detection alarm.

Playing music

Funkcija Status Opis
Javljanje na pozive	Zvonjava Dodirnite levu ili desnu slušalicu jednom.
Završavanje poziva	Razgovor Dodirnite levu ili desnu slušalicu dva puta.
Pozivanje Odsutan	Ako uputite poziv putem mobilnog telefona, poziv se automatski povezuje sa slušalicama.
Primanje poziva dok ste na telefonu	Razgovor	Ako dodirenete levu ili desnu slušalicu jednom, trenutni poziv će biti na čekanju, a vi ćete moći odgovoriti na dolazni poziv. Ako je prethodni poziv na čekanju, možete da završite trenutni poziv na mobilnom telefonu. (Radi drugačije zavisno od postavki mobilnog telefona.)
Odbijanje poziva	Zvonjava Dodirnite i držite levu ili desnu slušalicu.

The Active Noise Cancellation (ANC) function blocks all ambient sound. Therefore, you can use the function to listen to music or watch videos without interruption.

Touch and hold the left or right earbud to switch between ANC and LAS modes.

You can set the LAS and ANC functions in the LG TONE Free app.

The charging case has a built-in UVnano LED that allows you to use the earbuds cleanly.

If you charge the wired earbuds after mounting them on the charging case and closing the lid, the UVnano LED will operate for 5 minutes.

*UVnano is a compound word formed from UV and its unit, nanometer.

3 Wear the earbuds 4 Press the switch Connection and wireless mode to the right to turn on the mode. 5 The indicator on the charging case blinks green. 6 When the charging case connects to the earbuds, the indicator turns off.

How to disconnect

1 Press the switch Connection and wireless mode to the left. 2 The indicator on the charging case blinks blue. 3 After they are separated from the charging case, the earbuds reconnect to the previously connected device.

Indikator statusa baterije	Preostala baterija (punjač nije spojen)	Stanje punjenja (punjač povezan)
Crveno 20%	ili niže Punjenje
Žuto 20% -	80% -
Zeleno 80%	ili više	Do klraja napunjeno

Google Play App Store

Troubleshooting

Google Play App Store

Copyright © 2021 - 2023 LG Electronics Inc. All Rights Reserved

WEEE card (Europe only)

How to disconnect

Google Play App Store

Troubleshooting

Extra ear cushions (small and large)

WEEE card (Europe only)

2 When you wear the earphones, you will hear an alarm for wear detection.

Playing music

Delovanje Opis
Predvajaj / premor	: Enkrat se dotaknite leve ali desne slušalke.
Prilagoditev glasnosti	: Dvakrat se dotaknite leve (Zmanjšaj glasnost) ali desne (Povečaj glasnost) slušalke.
Predvajaj naprej	: Trikrat se dotaknite leve ali desne slušalke.

3 Wear the earphones. 4 Push the "Plug & Wireless Mode" switch to the right to turn on the mode. 5 The indicator on the charging case blinks green. 6 When the charging case is connected to the earphones, the indicator turns off.

How to disconnect

Google Play App Store

Troubleshooting

Copyright © 2021 - 2023 LG Electronics Inc. All Rights Reserved

Listening to music

How to disconnect?

Google Play App Store

LG TONE Free™ Earphones (medium ear cushions installed) UV charging case

Extra ear cushions (small and large)

USB Type-C™ Cable for charging

USB-C™ to AUX Cable Quick Start Guide

WEEE card (Europe only)

NOTE: The actual product design may differ from the images shown in the manual.

CAUTION

Make sure to use genuine LG Electronics components.

Using a non-genuine component may damage the product and thereby void the warranty.

Use the USB Type-C™ / USB-C™ to AUX cable provided with the product.

Overview

Charging case

Earbuds

2 When wearing the earbuds, you will hear the wear detection alarm.

Funkcija Opis
Reproduciranje/zaustavljanje	: Dodirnite lijevu ili desnu slušalicu jednom.
Podešavanje jačine	: Dodirnite lijevu (Smanjenje glasnoće) ili desno (Pojačanje glasnoće) slušalicu dva puta.
Reproduciranje Sljedeće	: Dodirnite lijevu ili desnu slušalicu tri puta.

NOTE: You can change the function mode in the touchpad settings of the LG TONE Free app.

When you plug in and use wireless mode, the earbuds respond to your touch as follows:

• Tap once to mute or unmute the sound.
• Tap twice to adjust the volume.
• Touching it three times does not cause any reaction.

Mobile phone call functions

Funkcija Status	Opis
Javljanje na pozive	Zvonjava	Dodirnite lijevu ili desnu slušalicu jednom.
Završavanje poziva	Razgovor	Dodirnite lijevu ili desnu slušalicu dva puta.
Pozivanje Odsutan	Razgovor	Ako uputite poziv putem mobilnog telefona, poziv se automatski povezuje sa slušalicama.
Primanje poziva dok ste na telefonu	Razgovor	Ako jednom dodirnete lijevu ili desnu slušalicu, trenutačni poziv će biti na čekanju, a vi ćete moći odgovoriti na dolazni poziv.Ako je prethodni poziv na čekanju, možete završiti trenutni poziv na mobilnom telefonu. (Radi drugačije ovisno o postavkama mobilnog telefona.)
Odbijanje poziva	Zvonjava	Dodirnite i držite lijevu ili desnu slušalicu.

The Active Noise Cancellation (ANC) function blocks all ambient sound. Therefore, you can use the function to listen to music or watch videos without interruption.

Touch and hold the left or right earbud to switch between ANC and LAS modes.

You can set the LAS and ANC functions in the LG TONE Free app.

You can configure the ambient sound listening mode and conversation mode using the LG TONE Free app.

If you use the LAS or ANC function, the battery drains faster, reducing the product's usage time.

You can use the LAS and ANC functions while idle, listening to music, or on a phone call.

*ANC is an acronym for Active Noise Cancellation.

The charging case has a built-in UVnano LED, which allows you to use the earbuds cleanly.

If you charge the wired earbuds after mounting them in the charging case and closing the lid, the UVnano LED will operate for 5 minutes.

How to disconnect

1 Slide the "power and wireless mode" switch to the left. 2 The indicator on the charging case blinks blue. 3 When they are separated from the charging case, the earbuds reconnect to the previously connected device.

Indikator statusa baterije	Preostala baterija (punjač nije priključen)	Stanje punjenja (punjač povezan)
Crveno 20% ili manje Punjenje
Žuta 20% - 80% -
Zelena 80% ili više		Potpuno napunjen

NOTE: When the lid of the charging case is closed, the battery status of the charging case is displayed. If the charging case has no remaining charge, there will be no display and it will not operate. We recommend keeping the charging case charged at all times, as the earbuds cannot be turned on or off independently.

Battery status indicator

Status Opis
Bluetooth Način pretrage	Indikator statusa baterije treperi plavo.
Baterija ispod 20%	Indikator statusa baterije se uključuje i isključuje crveno.
Baterija 20% - 80%	Indikator statusa baterije se uključuje i isključuje žuto.
Baterija 80% ili više	Indikator statusa baterije se uključuje i isključuje zeleno.
Kada dođe do problema tokom punjenja	Indikator statusa baterije treperi crveno.
Punjenje (punjač povezan)	Indikator statusa baterije se uključuje crveno.
Punjenje je završeno (punjač povezan)	Indikator statusa baterije se uključuje zeleno.

Out of scope

If the device is connected to the product outside the effective communication range, the communication signal becomes weak and communication is lost. The effective communication range may vary depending on the environment and other conditions.

If the device returns within the effective communication range, the product automatically reconnects to the device. If the device does not connect automatically, tap the left or right earbud once to connect them.

LG TONE Free App

If you install the "LG TONE Free" app, you can use the functions Check earbud battery, Voice alert, Change equalizer mode, Check last connected location data, and Find my earbuds. See the app for more details.

To install the "LG TONE Free" app, search for LG TONE Free in the Google Play Store or App Store, or scan the QR code below.

Google Play App Store

Troubleshooting

Declaration of Conformity

DECLARATION OF CONFORMITY:

Hereby, LG Electronics declares that the radio equipment type this headset is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.lg.com/global/support/cedoc/cedoc#

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Android, Google Play, the Google Play logo, and other related marks and logos are trademarks of Google LLC.

Bluetooth®

CE

Additional Information

1. Radio frequency exposure

This Bluetooth LG Stereo Headset is a radio transmitter and receiver. When in operation it communicates with a Bluetooth equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2402 to 2480 MHz. Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible LG Electronics mobile phone.

2. Bluetooth Connection Precautions

The following environments affect the range and reception of Bluetooth signals:

- When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device

- When equipment that uses 2.4 GHz frequency signals (Wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used

- When using a Bluetooth device (TV, laptop, etc.) other than the mobile phone, the sound quality may be affected by the specifications and performance of the device

3. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare, but your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

4. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +50° or below -10°. For maximum battery capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between 0° and +45°.

5. Recycling the battery in your Bluetooth Headset

The battery in your Bluetooth Headset must be disposed of properly and should never be placed in municipal waste.

6. Conditions

- The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.

- This warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modification or adjustment, acts of God, or damage resulting from liquid.

- This warranty does not cover product failures due to improper repair installations, modifications, or service performed by a non-LG Electronics authorized person. Tampering with any of the seals on the product will void the warranty.

Limited Warranty

SUBJECT TO THE CONDITIONS OF THIS LIMITED WARRANTY, LG ELECTRONICS WARRANTS THIS PRODUCT TO BE FREE FROM DEFECTS IN DESIGN, MATERIAL, AND WORKMANSHIP AT THE TIME OF ITS ORIGINAL PURCHASE BY A CONSUMER, AND FOR A SUBSEQUENT PERIOD OF TWO (2) YEARS. SHOULD

YOUR PRODUCT NEED WARRANTY SERVICE, PLEASE RETURN IT TO THE DEALER FROM WHOM IT WAS PURCHASED OR CONTACT YOUR LOCAL LG ELECTRONICS CONTACT CENTER TO GET FURTHER INFORMATION.

Important Safety Information

Avoiding hearing damage

Permanent hearing loss may occur if you use your headset at a high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing.

If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use the headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

Please refer to your handset user guide for more information on how to adjust listening levels on your handset.

Using headsets safely

Use of Headset to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while operating any type of vehicle or performing any other activity that requires your full attention.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses that have the obligations to disclose source code, that is contained in this product, and to access all referred license terms, copyright notices and other relevant documents please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

RISK GROUP 2
	CAUTION: UV EMITTED FROM THIS PRODUCT. EYE OR SKIN IRRITATION MAY RESULT FROM EXPOSURE. USE APPROPRIATE SHIELDING.
	WARNING: IF YOU DON'T DO CHARGING OR IF YOU OPEN THE CHARGING CASE, THE UVNANO FUNCTION IS NOT ACTIVATED.

The output level shall automatically return to an output level not exceeding RS1 when the power is switched off.

Reference Guide

Declaration of Conformity

DECLARATION OF CONFORMITY:

For more information on how to adjust the listening level on your headset, refer to your headset's user manual.

For more information on how to adjust the listening level on your headset, refer to your headset's user manual.

For more information on how to adjust the listening level on your headset, refer to your headset's user manual.

Disposal of waste batteries/accumulators

1 This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead. 2 All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3 The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health. 4 For more detailed information about disposal of your old batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the product. (http://www.lg.com/global/sustainability/environment/take-back-recycling/global-network-europe)

Removal of waste batteries and accumulators

(Product with embedded battery ONLY)

In case this product contains a battery incorporated within the product which cannot be readily removed by end users, LG recommends that only qualified professionals remove the battery, either for replacement or for recycling at the end of this product's working life. To prevent damage to the product, and for their own safety, users should not

attempt to remove the battery and should contact LG Service Helpline, or other independent service providers for advice.

Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/contacts, and careful extraction of the battery cell using specialized tools. If you need the instructions for qualified professionals on how to remove the battery safely, please visit http://www.lge.com/global/sustainability/environment/take-back-recycling.

(http://www.lg.com/global/sustainability/environment/take-back-recycling/global-network-europe)

Removal of batteries and accumulators

Disposal of your old appliance

1 This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream. 2 Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources. 3 You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling

~	Refers to alternating current (AC).
	Refers to direct current (DC).
	Refers to class II equipment.
	Refers to stand-by.
	Refers to “ON” (power).
	Refers to dangerous voltage.

LG Electronics France, Immeuble Workstation
