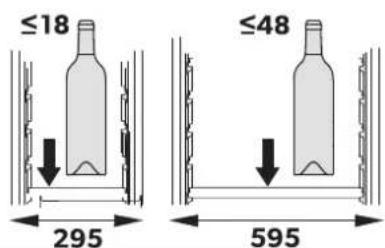

≤18 295 ≤48 595

6

Ø76 300.5

Bxxx, Cxxx, Exxx

7
E18FGB

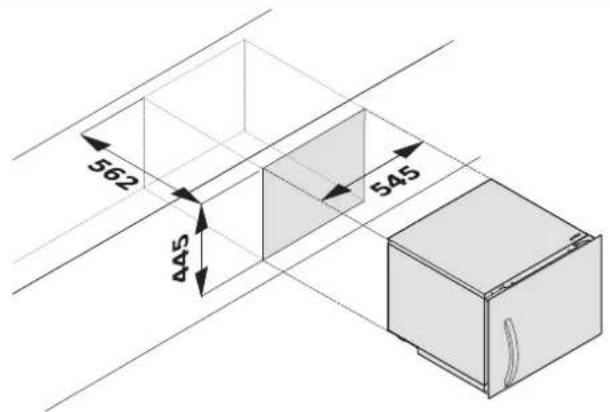

562 445 545

8
E49FGB

559 885 545

9

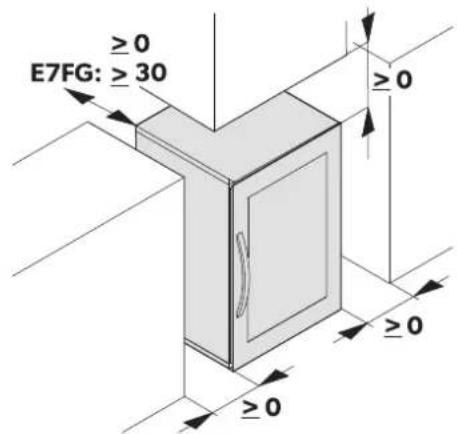

≥0 E7FG: ≥30 ≥0 ≥0 ≥0

10

Diagram of a curved pipe with two bolts and directional arrows indicating flow or movement (no text or symbols)

11

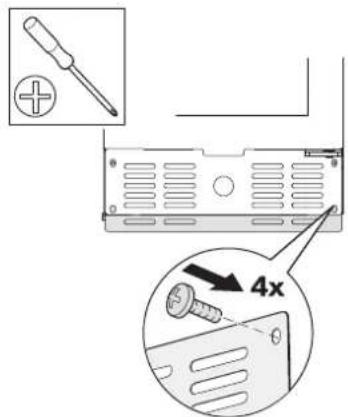

12 - 80 mm

Bxxx, Cxxx, Exxx

12

Pure technical diagram showing two cylindrical components connected to a vertical panel, with an arrow indicating direction (no text or symbols)

Technical diagram showing a bracket with screws and an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with bolts and a directional arrow (no text or symbols)

13

Diagram showing a screwdriver inserted into a device with a 4x magnification indicator, illustrating the process.

Technical diagram showing a ventilation system with a central fan and directional arrows (no text or labels)

Diagram showing screwdriver installation on a device with 4x magnification indicator

14

Technical diagram showing a structural component with labeled parts and an inset view of a component.

15

Diagram illustrating the step of removing a plastic bag into a refrigerator, with warning symbols and cleaning instructions.

16

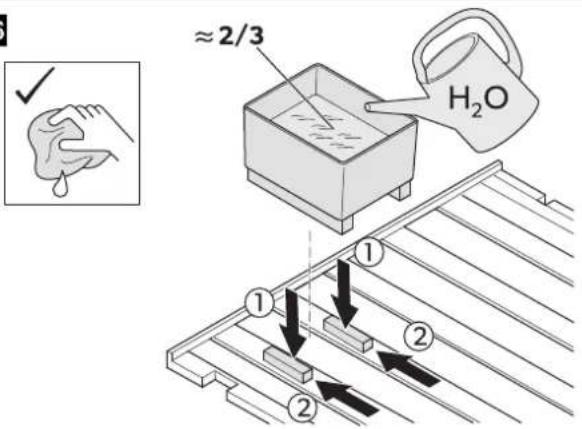

≈2/3 H₂O 1 2 1 2

17

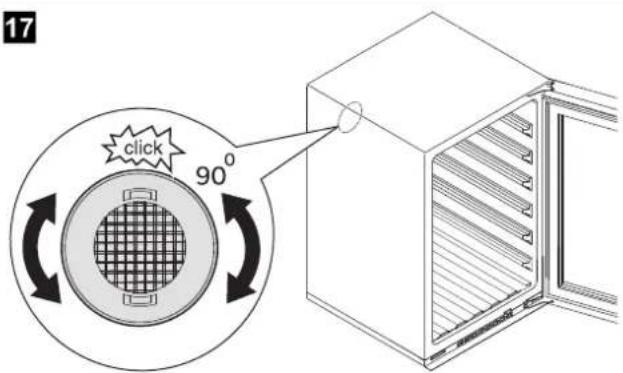

17 click 90°

E18FGB, E49FGB

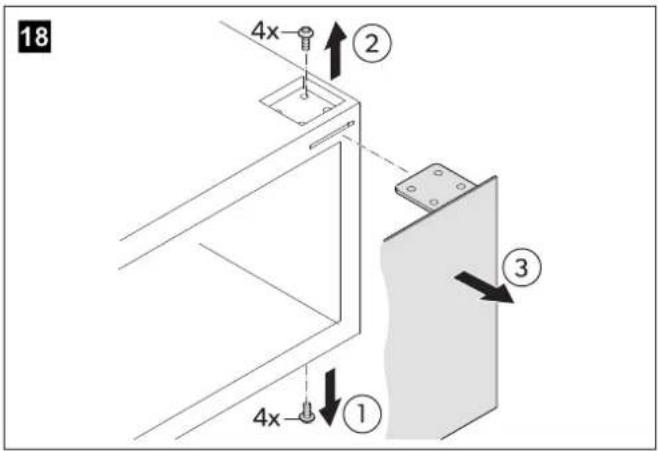

18 4x ② ③ 4x ①

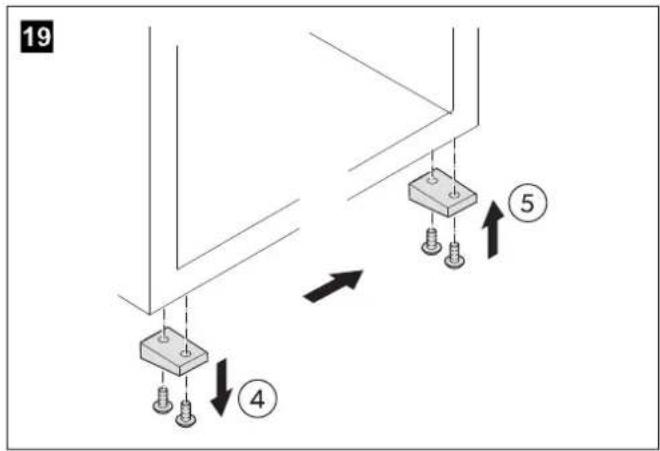

19 4 ⑤

20 ⑥ 180°

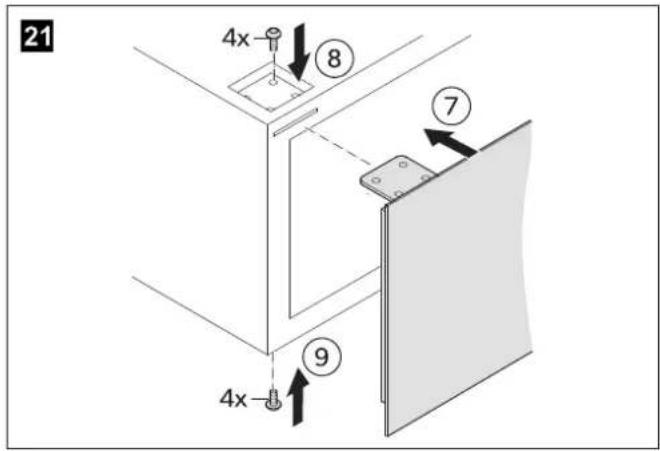

21 4x 8 7 9 4x

B29G, B68G

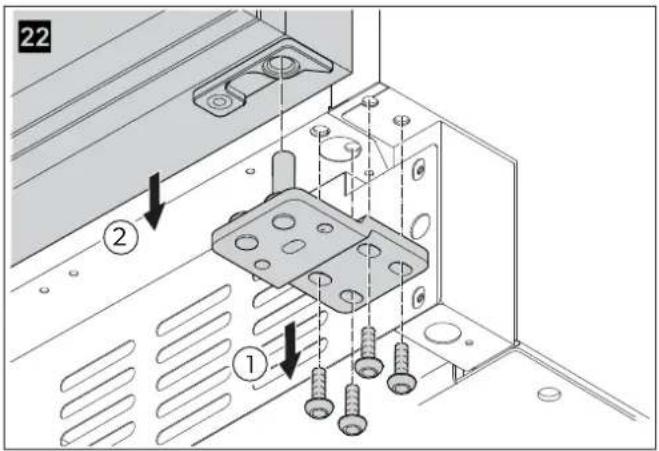

22 ② ①

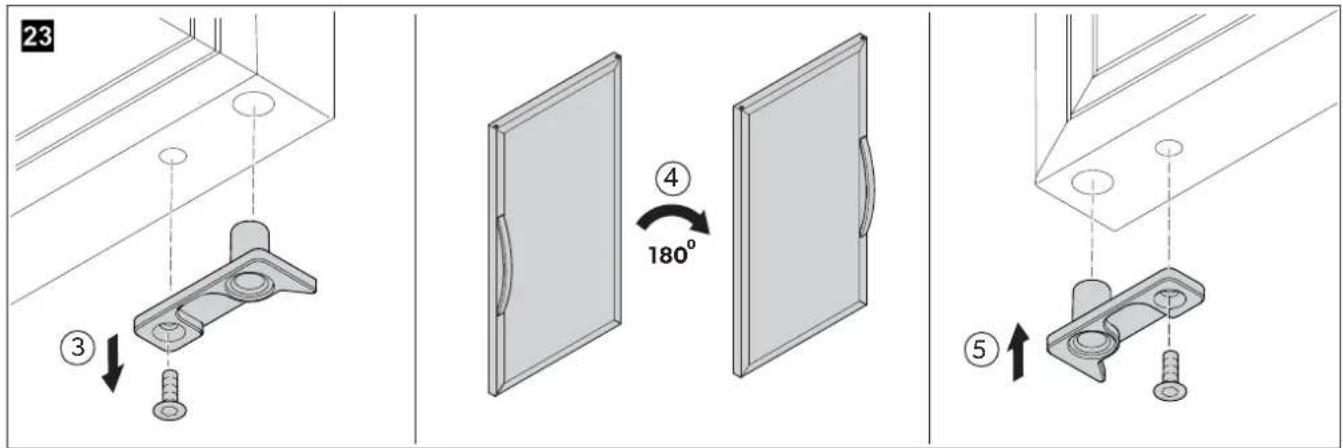

23 ③ ④ 180° ⑤

24 ⑦↑ ⑥

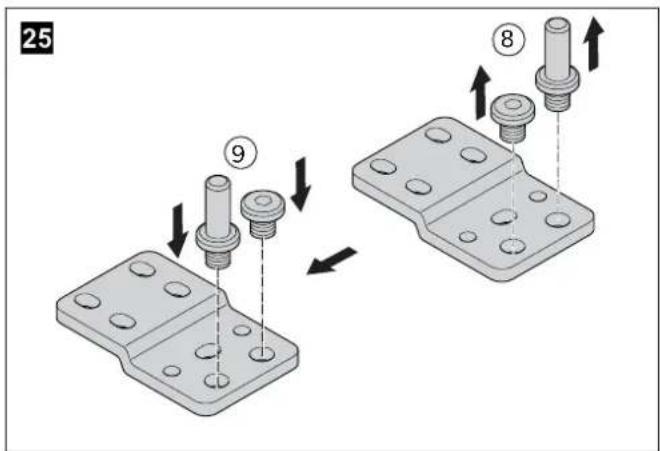

25 ⑨ ⑧

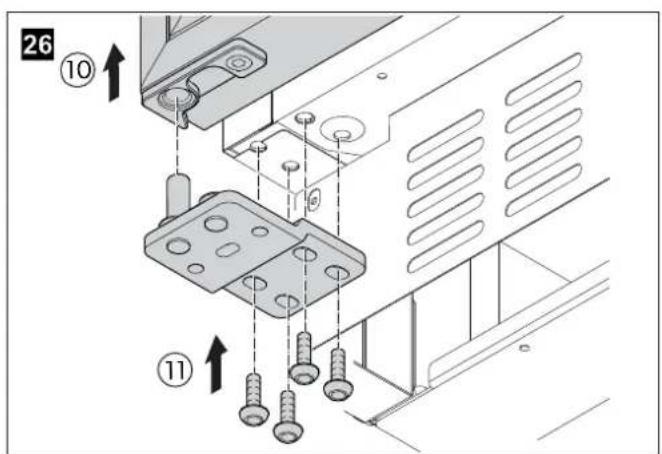

26 ⑩↑ ⑪↑

E7FG, E16FG, E28FG, E45FG, C20G, C50G

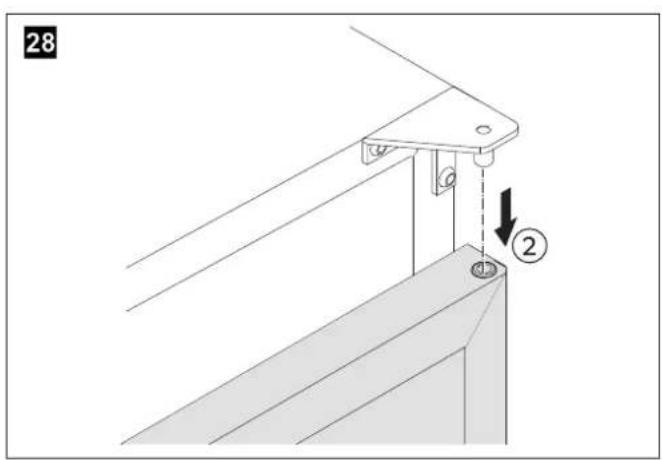

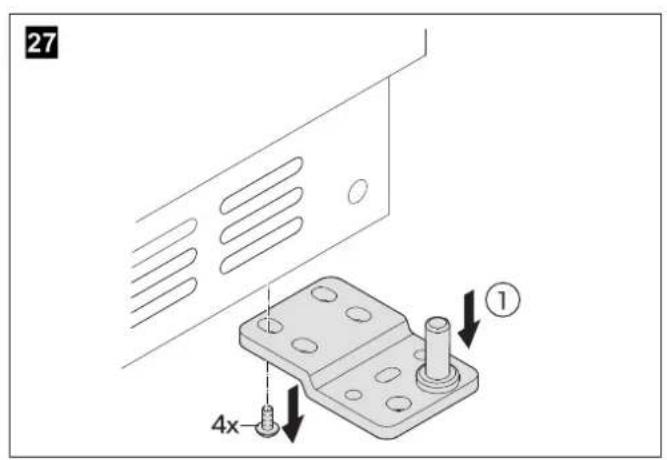

27 4x ①

28 ②

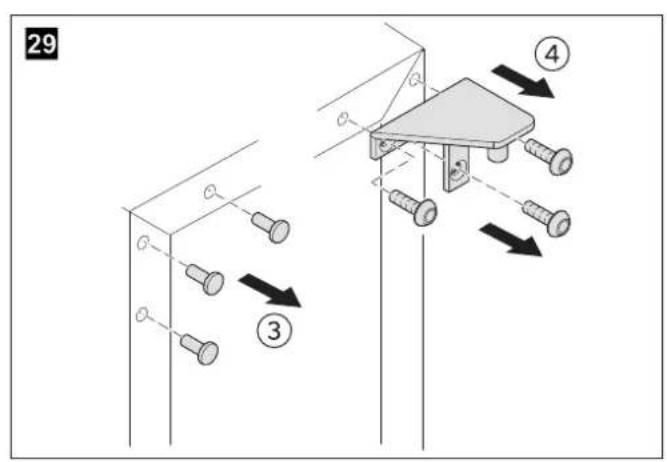

29 ③ ④

30 ⑤ ⑥

31 ⑦ 180°

32 ⑨ ⑧

33 ⑩

34 4x ⑪

B162S, B195S, C101G, C125G, E91FG, E115FG

35 ① 4x

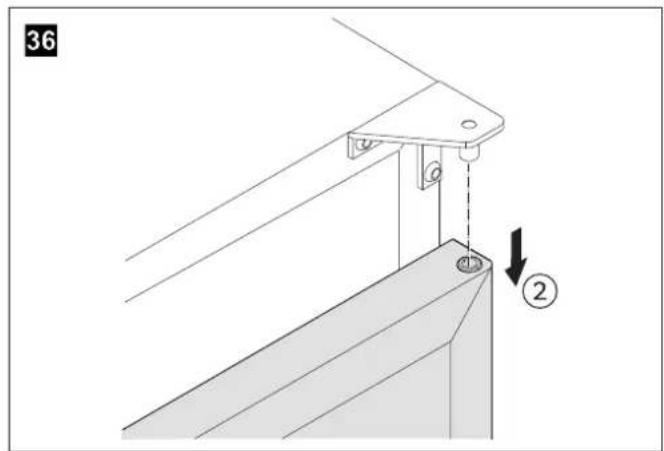

36 ②

37 ③ ④

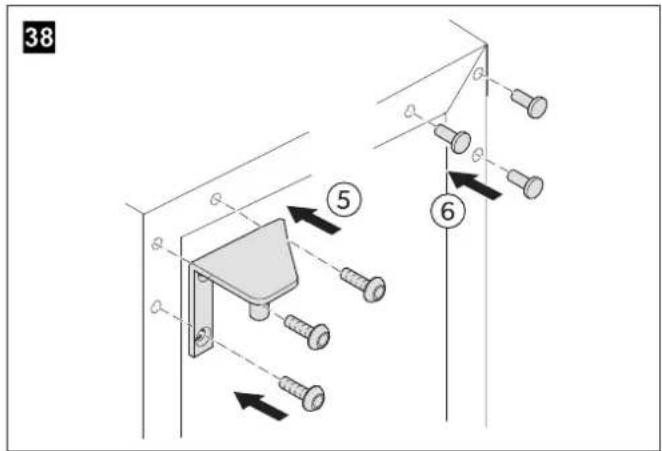

38 ⑤ ⑥

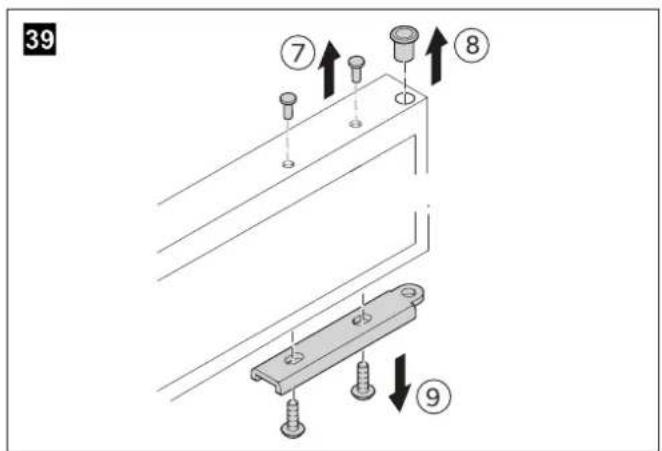

39 ⑦ ⑧ ⑨

40 ⑩ ⑪ ⑫ ⑫ ⑫

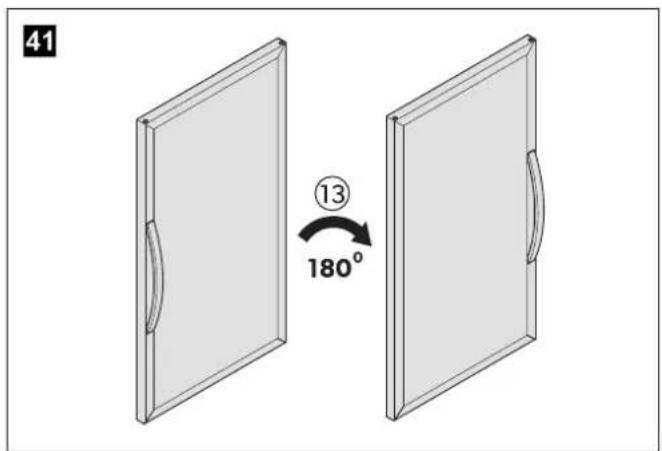

41 ⑬ 180°

42 14 4x

B162S, B195S, C101G, C125G, E91FG, E115FG

43 15 2x 16 17 18 2x

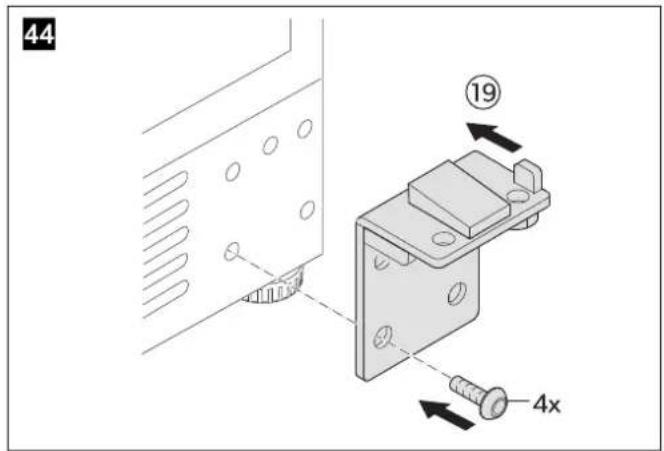

44 19 4x

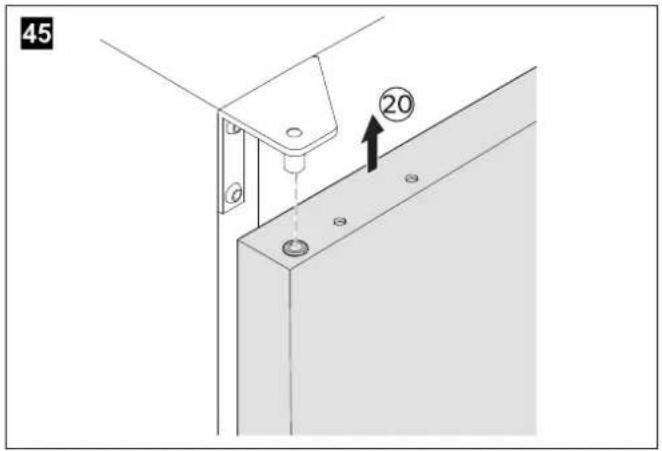

45 20

46 ②1 4x

Bxxx, Cxxx, Exxx

47

① ② ③ ④ ⑤ 16 °C °F

BxxG, BxxxS, CxxxG, E7FG, E18FGB

48

① ④ ⑤ ③ ⑥ ⑦ ⑧ ②

E16FG, E28FG, E45FG, E49FGB, E91FG, E115FG

49

① ④ ⑤ ③ ⑥ ⑦ ⑧ ② 10 16 °C °F

E40FGD

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit www.dometic.com.

Table of contents

1 Explanation of symbols....14
2 Safety instructions....14
3 Scope of delivery....14
4 Intended use....15
5 Technical description .... 15
6 Mounting and connecting 16
7 Using the wine refrigerator....18
8 Cleaning and maintenance 21
9 Storing....22
10 Service agent....22
11 Troubleshooting....22
12 Warranty....23
13 Disposal 23
14 Technical data 23

1 Explanation of symbols

WARNING!

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE:

Supplementary information for operating the product.

2 Safety instructions

WARNING!

Instructions pertaining to the risk of death or serious injury!

• Only use the wine refrigerator as intended.
• Do not store any explosive substances, such as spray cans with propellants, in the wine refrigerator.
• Do not operate the wine refrigerator if it is visibly damaged.

NOTICE!

Instructions pertaining to the risk of material damage!

- Do not use accessories that have not been recommended by the manufacturer.

Fire hazard!

• When positioning the device, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device.

Health hazard

- This wine refrigerator can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.

• Children shall not play with the device.

- Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload the wine refrigerator.

- Opening the wine refrigerator for long periods can cause significant increase of the temperature in the compartments of the device.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- If the wine refrigerator is left empty for long periods:

-Switch off the device.
-Defrost the device.
-Clean and dry the device.
-Leave the lid open to prevent mould developing within the device.

3 Scope of delivery

The wine refrigerator comes in 17 models ("Technical data", on page 24).

The model name of the wine refrigerator includes the following information:

Example: E49 FGB

E 49 FGB
B: Basic		F: Frameless	B: Built-in
C: Classic	Maximum number of bottles to be stored in	G: Glass	D: Double door
E: Elegance		S: Solid

B29G

B68G

B162S

B195S

C20G

C50G

C101G

C125G

E7FG

E16FG

E18FGB

E28FG

E40FGD

E45FG

E49FGB

E91FG

E115FG

Wine refrigerator x x x x x x x x x

x x x

x x x x

x x

Water tank + + x x x x x x x x x x

x x x x

x x x

Keys x x x x x x x

Label set x x x x x x x x x

Carbon filter x x x x x x x x x x x x x

Sliding shelf + + + + x x x x x x x

x x x

x x x

Serving shelf + + + +

+ +

+

x x

Presentation shelf

+

+ +

+

+ x +

+

Metal beverage shelf

+

+

+

+

+

+

+

+

+

Door left upper hinge

x x

x x x x

x x x

x x x x x

Installation material

x x

x x x x

x x x

x x x x x x x x

Manual*

x x

x x x x

x x x

x x x x x x x x

Legend: x: included, +: optional
* Manuals can be downloaded via QR code (fig. 1, on page 3).
Additional accessories under dometic.com.

4 Intended use

The wine storage appliance (also referred to as wine refrigerator) is intended to be used exclusively for the storage and temperature control of wine. It's intended for indoor use only.

In this manual wine refrigerators with different installation types are described. See technical data section for model reference.

Installation types:

• Built-in: The wine refrigerator is intended for installation in a piece of cabinetry or an installation niche.
• Freestanding: The wine refrigerator is not intended to be used as a built-in appliance.

Only closed and still sealed bottles may be stored in the appliance.

The wine refrigerator is not suitable for storing medicine or freezing foodstuffs.

This wine refrigerator is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the wine refrigerator. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

5 Technical description

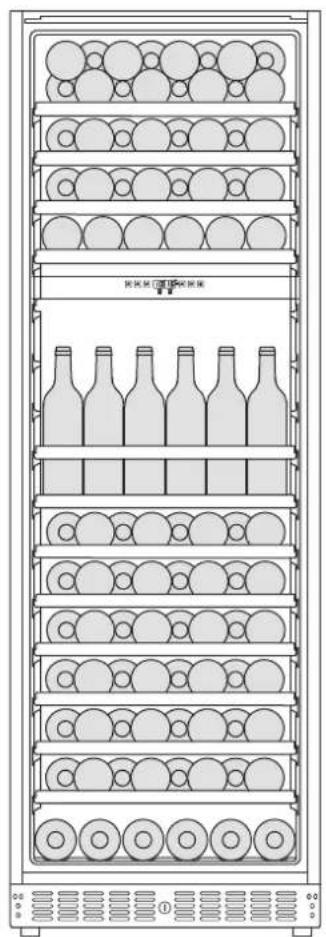

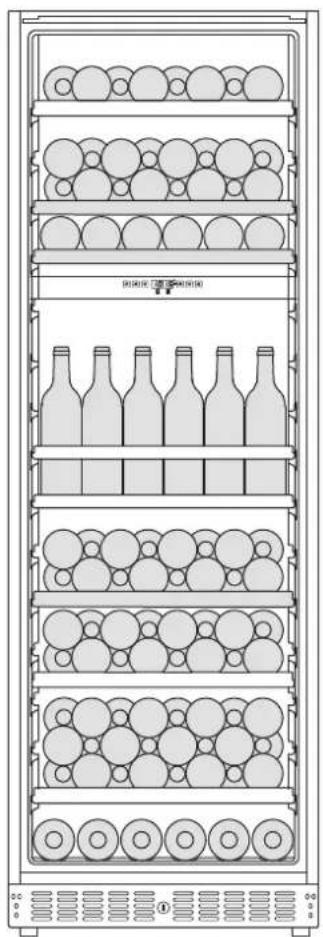

No in fig. 3, on page 4	Description
1	Foot
2	Ventilation grille
3	Door
4	Control panel
5	Temperature zone
6	Shelf
7	Upper temperature zone / Left temperature zone
8	Temperature zone divider

No in fig. 3 on page 4

Description

9 Lower temperature zone / Right temperature zone

10 Lock

5.1 Operating elements and displays

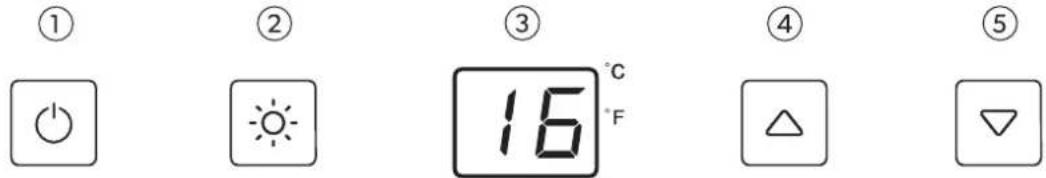

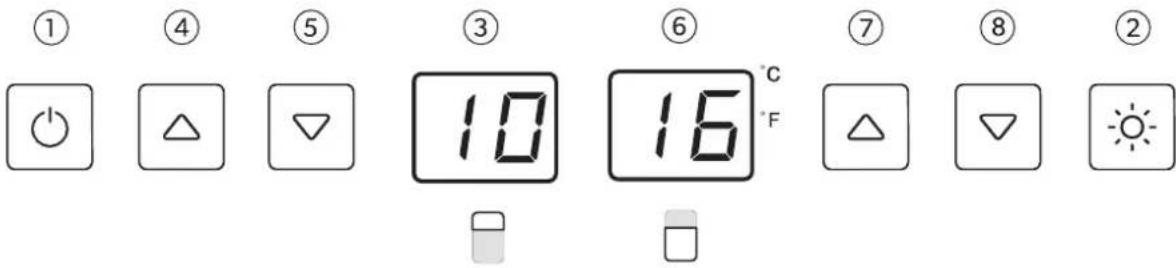

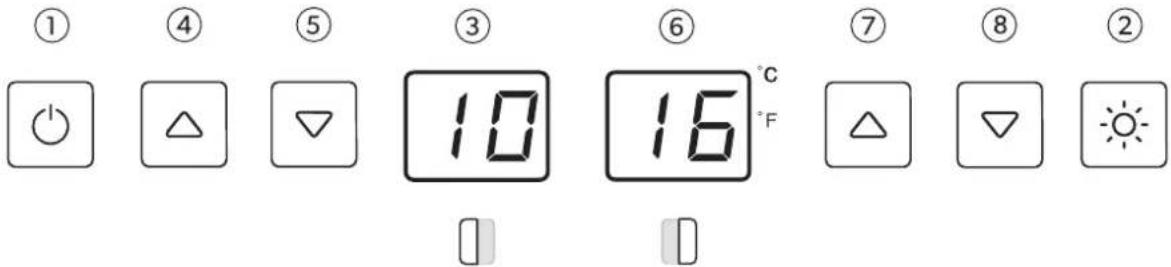

No in fig. 47, 49 on page 12

Symbol Description

1 On/Off button

2 Light button

3

Temperature display (only zone/top or left zone)

4 Up button (only zone/top or left zone)

5 Down button (only zone/top or left zone)

6

Temperature display (bottom or right zone)

7 Up button (bottom or right zone)

8 Down button (bottom or right zone)

5.2 Shelves

The wine refrigerator is factory fitted with detachable shelves for storing the bottles. You can increase the capacity by using the optional accessory of reinforced storage shelves.

Depending on the model sliding shelves, presentation shelves and service shelves are available (see "Scope of delivery", on page 14).

5.3 Features

All models of the wine refrigerator are equipped with:

• UV impervious door with a reversible hinge
• Automatic defrosting
- Sensor buttons
- Setting temperature display
• Storing temperature display
- ^ C / ^ temperature display
• LED interior lighting with two operating modes
• Temperature memory function: The set temperature is saved when the unit is switched off.
- Temperature monitor: A warning signal sounds and the temperature display flashes if the interior temperature noticeably deviates from the one set
- Sabbath mode
• Temperature alarm system - visual and audible
• Door alarm system - audible

For additional equipment such as a lock and an active carbon filter see "Scope of delivery", on page 14.

6 Mounting and connecting

Remove all the inner and outer packaging materials before setting up.

WARNING!

- Move and set up the wine refrigerator by at least two people.

NOTICE!

• Do not place the wine refrigerator in direct sunlight or in the vicinity of strong heat sources (heating appliances, ovens, etc.).
• Only locate the wine refrigerator indoors, never outside.
• Check that the voltage specification on the type plate is the same as that of the power supply.

6.1 Installation site

When selecting the location, follow the instructions below:

• The wine refrigerator should stand in the coldest part of the room, away from heat sources (ovens, heating devices or radiators).
  • The location must not be damp or wet.
• The wine refrigerator must not be exposed to direct sunlight. This can damage the acrylic coating and lead to higher power consumption.
  • The ground must be level and sufficiently stable to bear the wine refrigerator at full capacity.
• The wine refrigerator must be sufficiently ventilated. The ventilation slots on the front of the wine refrigerator must not be obstructed.

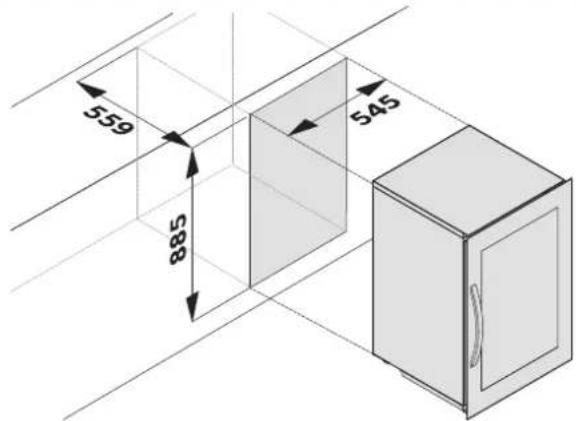

• Observe the installation dimensions, see technical data.

6.2 Ventilation

NOTICE!

• Ensure that the ventilation slots remain clear.
  Obstructed ventilation slots lead to increased power consumption and can damage the wine refrigerator.
• Model E7FG needs at least 30 mm space on the rear side for ventilation (fig. 9, on page 5).

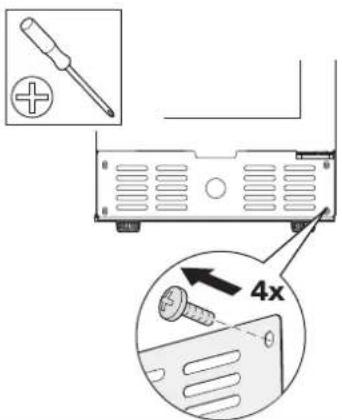

6.3 Adjusting the feet

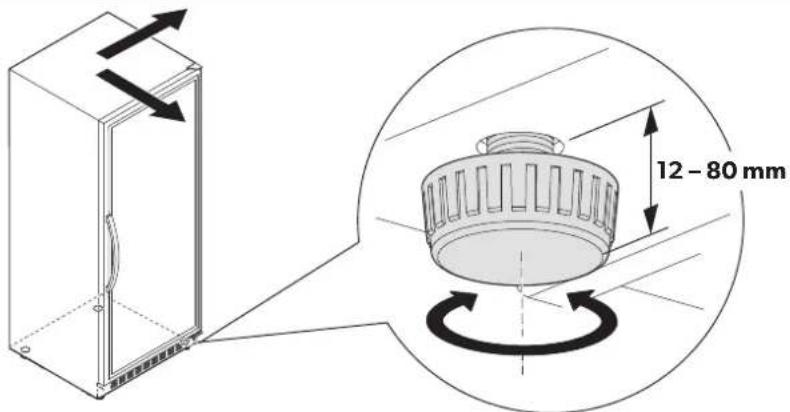

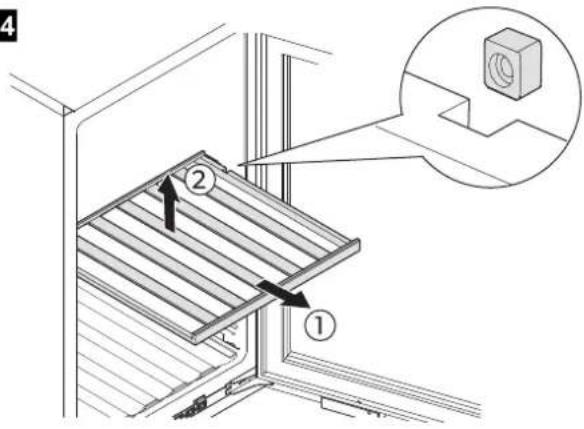

▶ Make sure the wine refrigerator is level by adjusting the feet (fig. 11, on page 5).

6.4 Reversing the door

You can change the hinge of the door, so that it opens to the left rather than the right.

For reversing the door follow the steps in the mentioned figures:

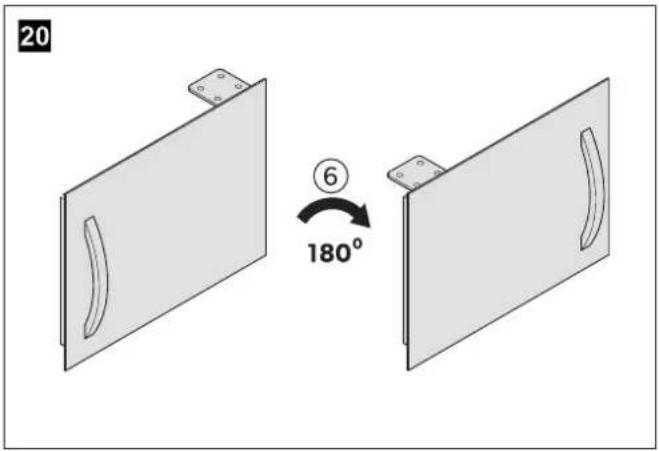

▶ E18FGB and E49FGB (fig. 18, on page 7 to fig. 21, on page 8)

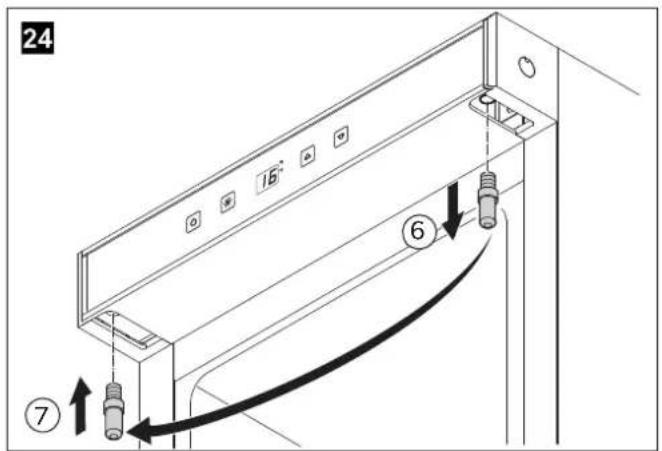

▶ B29G and B68G (fig. 22, on page 8 to fig. 26, on page 8)

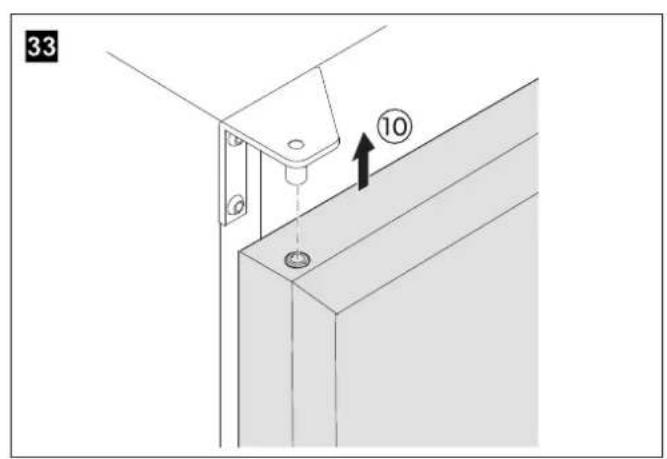

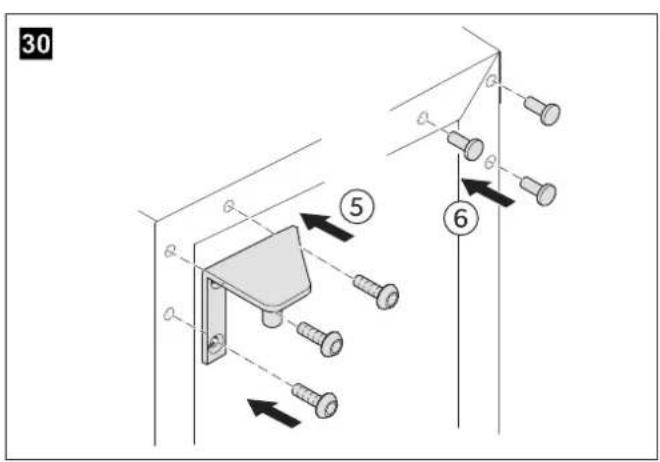

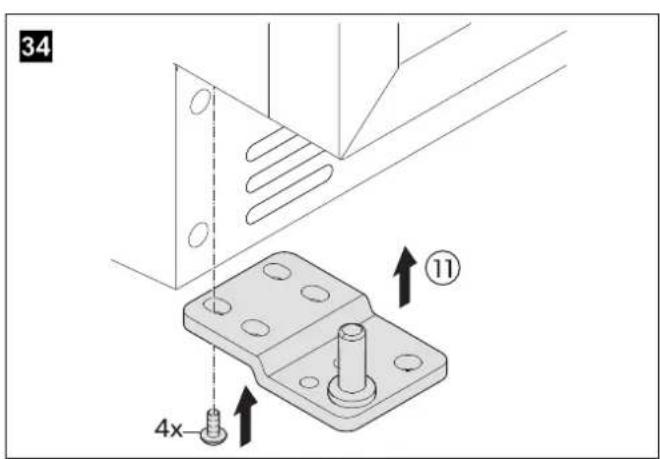

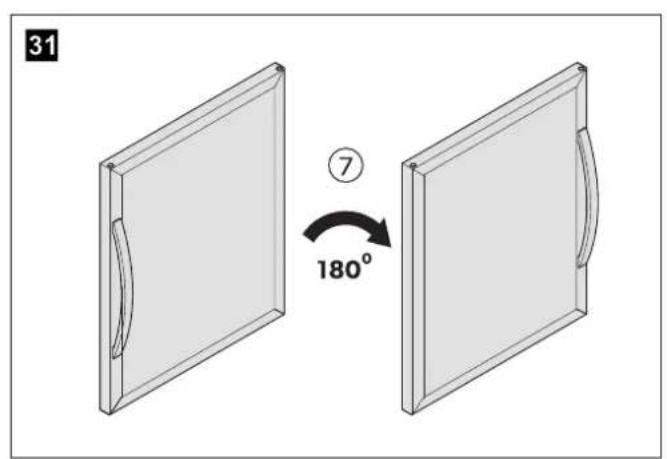

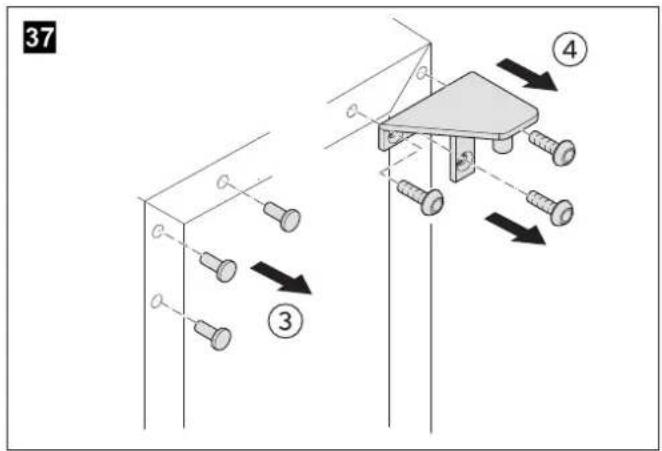

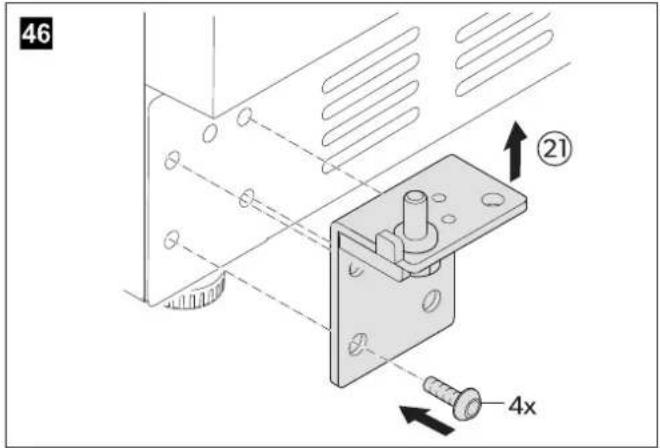

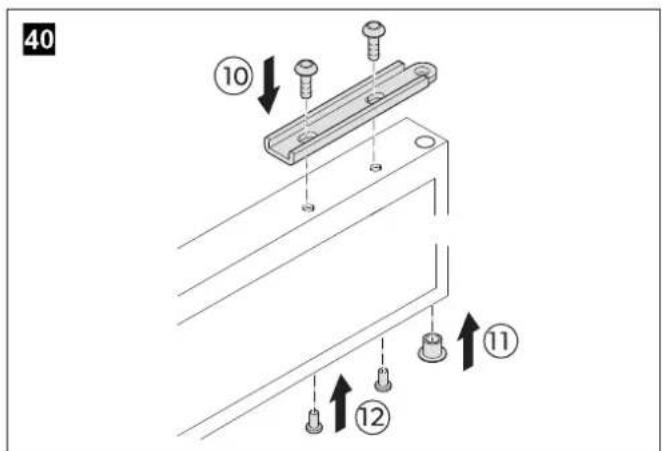

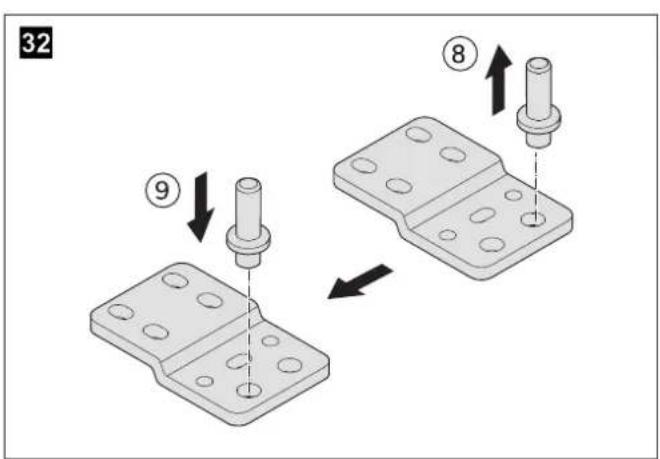

▶ E7FG, E16FG, E28FG, E45FG, C20G and C50G (fig. 27, on page 9 to fig. 34, on page 9)

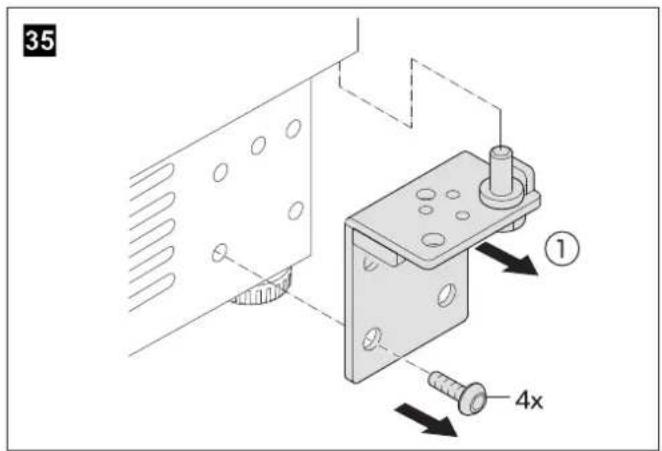

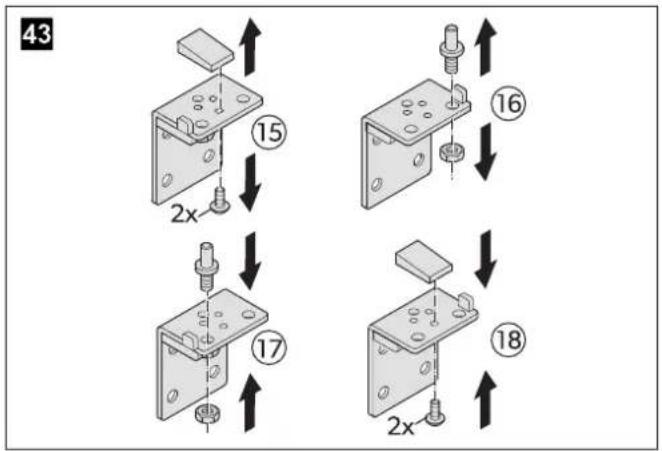

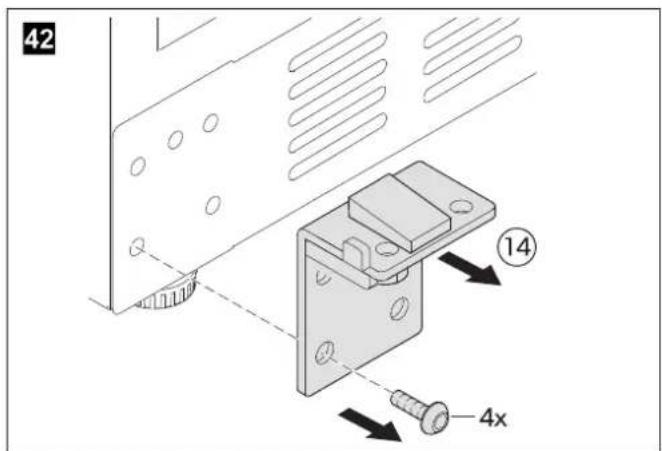

B162S, B195S, C101G, C125G, E91FG, E115FG (fig. 35, on page 10 to fig. 46, on page 11)

6.5 Mounting the door handle

Mount the door handle on the side opposite to the hinge. To get access to the bores partly lift off the sealing at the inside of the door (fig. 10 on page 5).

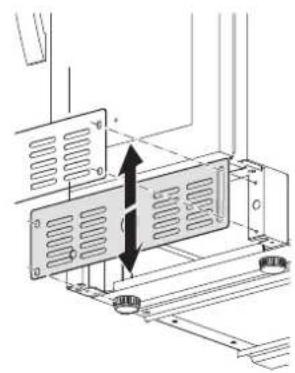

6.6 Adjusting the ventilation grille

▶ Adjust the height of the ventilation grill (fig. 13, on page 6).

6.7 Electrical connection

NOTICE!

Leave the wine refrigerator to stand upright for about 2 hours after transporting, before you connect it to the power supply. Otherwise this could cause faults in the cooling system.

Observe the following when connecting the wine refrigerator:

• Connect the wine refrigerator to a circuit that is protected with 15 A.
• Check that the voltage specification on the type plate is the same as that of the power supply.
• Have the socket and power circuit checked by a qualified electrician to ensure that the socket is earthed correctly. Do not use an extension cable or a multiple power socket.
• The cable must rest securely behind the wine refrigerator and not be allowed to lie or hang unprotected.
• Ensure that the power cable is not jammed when pushing the wine refrigerator into place.

6.8 Integrating freestanding models

All freestanding models may as well be integrated either under a worktop between 820 mm and 890 mm in height or between other cabinets.

If you integrate your wine refrigerator, observe the installation dimensions and ensure the door will open and close properly in the chosen location. Make sure your installation does not block the front ventilation grille.

Model E7FG needs at least 30 mm space on the rear side for ventilation (fig. 9 on page 5).

NOTICE!

If the wine refrigerator is fully integrated behind a skirting board:

• Ensure that the ventilation openings in the skirting board have a cross-section of at least 300cm^2 .
• Remove the ventilation grilles, so that warm air can disperse unhindered.

6.9 Installing built-in models (E18FGB, E49FGB)

Observe the installation dimensions (fig. 7, on page 5 and fig. 8, on page 5).

The wine refrigerator is equipped with an integrated ventilation system to disperse the warm air automatically. Air intake is provided underneath the door and the air escapes at the top of the door.

NOTICE!

The air inlet and outlet must not be covered or blocked in any way.

After installation make sure that the wine refrigerator door opens and closes properly.

Secure the wine refrigerator inside the cabinet:

1. Open the door.
2. Pop out the two cover caps on the opposite side of the hinge.
3. Tighten the screws through the attachment bracket.
4. Screw the attachment bracket to the inside of the cabinet to secure the wine refrigerator in the niche (fig. 12, on page 6).

7 Using the wine refrigerator

WARNING!

• Never use the wine refrigerator in rooms where flammable materials are stored or flammable gases have built up. Sparks from the motor could ignite them.
• Do not store any explosive substances, such as spray cans with propellants, in the wine refrigerator.
• Keep the keys out of the reach of children.
  • Supervise children to ensure that they do not play with the wine refrigerator.
• Do not operate the wine refrigerator if it is visibly damaged.

NOTICE!

• Do not place any electrical devices inside the wine refrigerator.
• Do not use accessories that have not been recommended by the manufacturer.
• Never pull the plug out of the socket by the connection cable.

7.1 Before first use

NOTICE!

Before you use the wine refrigerator for the first time:

• Clean the wine refrigerator inside and outside for hygienic reasons (see "Cleaning and maintenance", on page 21).
• Check that the operating voltage matches the mains voltage (see type plate).

7.2 Saving energy

• Only open the wine refrigerator as often and for as long as necessary.

• Avoid unnecessarily low temperature settings.

• For optimal energy consumption, position the shelves and drawers according to their position on delivery..

• On a regularly basis, make sure the door seal still fits properly.
• Clean dust and dirt from the condenser at regular intervals.

7.3 Positioning the bottles

NOTICE!

• Only store wine in closed and still sealed bottles.
• Do not overload the wine refrigerator.
• Do not cover the shelves with aluminum foil or any other objects, as this obstructs the air circulation.
• Be sure to use reinforced storage shelves (accessory) if you want to stack bottles.

NOTICE!

For wine refrigerators with sliding shelves:

• Make sure that the door is fully open when you pull out the shelves on roller-bearings. Otherwise the door seal can be damaged.
• Do not put more than two layers of bottles on a sliding shelf (fig. 5, on page 4).
• Observe the allowed number of bottles depending on the shelf-width (fig. 5, on page 4).

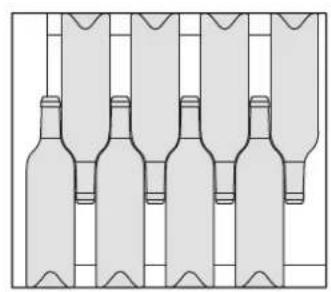

For space-efficient storage note the given example (fig. 4, on page 4). The example refers to standard Bordeaux type bottles (fig. 6 on page 4).

7.4 Operating elements and displays

No in fig. 47 , 49on page 12	Symbol Description
1 On/Off button
2 Light button
3	- / / Temperature display (only zone/top or left zone)
4 Up button (only zone/top or left zone)
5 Down button (only zone/top or left zone)
6	/ / Temperature display (bottom or right zone)
7 Up button (bottom or right zone)
8 Down button (bottom or right zone)

7.5 Switching on and off

▶ To switch on, press the on/off button briefly.
▶ To switch off, press the on/off button for at least 5 seconds.

7.6 Deactivating the key lock (only B29G, B68G)

▶ If the buttons are not touched for 2 minutes or longer, the key lock is activated automatically.
▶ To remove the key lock, press the up button △ and down button ▽ for at least 5 seconds.

7.7 Setting the LED interior lighting (standard mode or vitrine mode)

The LED interior lighting has two different modes:

• Standard mode: The interior is illuminated when the door is opened.
  • Vitrine mode: The interior is illuminated constantly.

▶ Press the light button briefly.

√ The lighting mode changes from standard mode to vitrine mode or vice-versa.

7.8 Switching to Sabbath mode

In Sabbath mode, the display, interior lighting and warning signal for the temperature monitor are deactivated. When the Sabbath mode is activated, it switches off automatically after 96 hours. The refrigeration continues as usual.

▶ Press both the on/off button ⏻ and the light button ⚙-for at least 5 seconds.
√ The temperature indicator flashes 4 times.
√ The Sabbath mode is activated respectively deactivated.

7.9 Setting the temperature

The temperature of each temperature zone can be set between 5 °C and 20 °C (41 °F and 68 °F).

To avoid food waste, note the following:

• Adjust the temperature to the quantity and type of the foodstuff.
• Store the different foodstuff types as shown in the figures.

NOTE:

• If the temperature zones are one above the other, the temperature for the lower zone must always be just as high or higher than the temperature for the upper zone.

• The wine refrigerator functions at its best if the difference in temperature between the two zones is at least 4 °C (39 °F).

• Display the set temperature by briefly pressing the up button △ or the down button ▽ (fig. 48 and 49 on page 12).

• If your wine refrigerator has two temperature zones, set the temperature for each zone separately by using the corresponding up button △ and down button ▽. Briefly press the up button △ to increase the temperature or the down button ▽ to decrease the temperature.

√ The display flashes while you make the setting.
√ Once you have set the temperature, the display shows the current inner temperature again.

7.9.1 Setting the temperature unit (°C or °F)

You can select whether the temperature is displayed in Celsius or Fahrenheit.

▶ Press the light button ⚙️ for at least 5 seconds.
√ The display shows the temperature in the other unit.

7.9.2 Displaying the set temperature

NOTE:

When using the wine refrigerator for the first time or if it has not been used for a long time, the inner temperature could differ from the one you have set. The temperature display flashes as long as this is the case. Once the set temperature has been reached, the temperature display lights up constantly.

▶ Press the up button △ or the down button ▽ briefly.
√ The display shows the set temperature.
√ After 5 seconds the display shows the current inner temperature again.

7.9.3 Switching the fan on/off (dynamic cooling mode or silent mode)

The fan can be operate in two different modes:

• Silent mode: The fan runs only when required. The fan switches off when the set temperature is reached.
• Dynamic cooling mode: The fan runs permanently to regulate humidity and temperature. This way an homogeneous climate for the interior of a temperature zone is reached.

Silent mode

▶ Press the up button △ for at least 5 seconds.
√ Three acoustic signals are emitted.
√ The fan is switched to silent mode.

Dynamic cooling mode

▶ Press the down button ▽ for at least 5 seconds.
√ Five acoustic signals are emitted.
√ The fan is switched to dynamic cooling mode.

7.9.4 Monitoring the temperature

The warning signal prevents the temperature from falling or rising too much unnoticed, which could affect the quality of the wine. Once the unit has reached the set temperature, the warning signal and the temperature display flashing stops.

A warning signal sounds and the temperature display flashes in the following cases:

• The inner temperature of a zone deviates from the set temperature by more than 5^ .
  • The power supply has been disconnected for a long time.
  • The door has not been shut properly.
  • The door is open for more than 60 seconds.

To switch off the warning signal prematurely:

▶ Press the on/off button briefly.

√ The temperature display flashes until the set temperature is reached. The display is then illuminated constantly and indicates that the alarm system is active again.

8 Cleaning and maintenance

WARNING!

• Disconnect the wine refrigerator from the mains before cleaning and maintenance.
• If the wine refrigerator connection cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• The wine refrigerator may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards. In need of repairs, contact customer services.

NOTICE!

• Never pull the plug out of the socket by the connection cable.
• Clean the wine refrigerator and disconnect it from the mains if it is empty and you will not need to use it for some time. Leave the door of the disconnected wine refrigerator open to avoid mould.

8.1 Cleaning

NOTICE!

• Never clean the wine refrigerator under running water or in dishwater.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the wine refrigerator.
• Make sure that the air inlet and outlet vents on the unit are free of any dirt, so that heat from the interior can be released and the unit is not damaged.

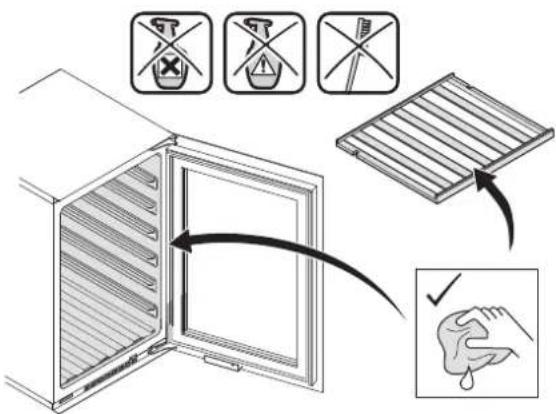

Regularly clean the wine refrigerator (fig. 15 on page 6).

1. Empty the wine refrigerator.
2. Switch off the wine refrigerator and disconnect the plug.
3. Remove the shelves for optimum cleaning (fig. 14n page 6).
4. Wash the inside with a solution of warm water and baking powder. This should be about two tablespoons of baking powder to half a liter of water.
5. Only wipe the control panel with a slightly damp cloth.
6. Wash the outside of the wine refrigerator with warm water and a mild detergent.
7. Wipe it down with clean water and dry the surface with a cloth.
8. Clean the shelves with mild detergent.
9. Insert the shelves.

8.2 Checking the water level (humidity control)

If your wine refrigerator is equipped with a water tank, regularly check the water level and change the water (fig. 16, on page 6).

1. Take out the water tank.
2. Empty the water tank and clean it.
3. Fill the water tank 2/3 full with water and place it on the grid on the top shelf.
4. Make sure that the water tank is securely positioned on the grid so that it cannot tip over.

8.3 Replacing the active charcoal filter

If your wine refrigerator is equipped with an active charcoal filter, replace it with a new one once a year (fig. 17, on page 6):

1. Turn the filter by 90^ clockwise or anti-clockwise and remove it.
2. Insert a new filter.
3. Turn the filter 90^ clockwise or anti-clockwise until it clicks into position.

9 Storing

Leave the wine refrigerator operating if you are absent for less than 3 weeks.

NOTICE!

• Store the wine refrigerator in a dry place when not in use.
• Do not store the wine refrigerator damp or wet.
• Leave the door open ajar.
  • Always ensure good ventilation to avoid moisture.

9.1 Periods of absence

If you won't use the wine refrigerator for several months:

1. Empty the wine refrigerator.
2. Switch off the wine refrigerator and disconnect the plug.
3. Clean and dry the insides thoroughly.
4. Leave the door ajar to prevent odors and mould from forming.

9.2 Moving

WARNING!

Move and set up the wine refrigerator by at least two people.

10 Service agent

10.1 Spare parts and professional repairs

Only use original spare parts. There is a delivery guarantee of up to 10 years for function-maintaining spare parts after series production of the device has been discontinued. Spare parts can be obtained from the manufacturer.

10.2 EPREL database

From 1 March 2021, information on energy labelling and ecodesign requirements will be available in the European Product Database (EPREL). You can access the product database via this link: https://eprel.ec.europa.eu/

You will be prompted to enter the model identifier that can be found on the nameplate.

11 Troubleshooting

11.1 In the event of a power failure

1. In case of a brief power failure avoid opening the door.
   √ The inner temperature will not be unduly affected, as long as the door is not opened too frequently.
2. After a power cut or if the wine refrigerator has been switched off, wait 3 to 5 minutes before switching on again.

11.2 Other issues

Problem Reason Solution
Wine refrigerator does not work Wine refrigerator is not connected to a power supply.Circuit breaker or fuse has blown.		Connect the wine refrigerator.
		Wine refrigerator is switched off. Switch on the wine refrigerator.
		Circuit breaker or fuse has blown Switch on the circuit breakerSwitch on or replace the fuse
Wine refrigerator is not cold enough Temperature is not set properly Check the set temperature
			The ambient temperature could require a higher temperature setting
			Door was opened frequently Do not open the door more often than necessary
			Door was not closed properly Close door properly
			Door is not hermetically sealed Check the door seal and clean or replace
Wine refrigerator switches itself on and off	Room temperature is higher than average	Move the wine refrigerator in a cooler place.
	Recently refilled with new bottles Leave the wine refrigerator to work for a while until the set temperature has been reached.
	Door was opened frequently Do not open the door more often than necessary
	Door was not closed properly Close door properly
	Door is not hermetically sealed Check the door seal and clean or replace
Buttons do not respond (only B29G, B68G)	Key lock is activated	Deactivate the key lock (see chapter 7.6, page 19)

12 Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault

13 Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

WARNING! RISK OF CHILD ENTRAPMENT

Before disposing of your old wine refrigerator:

• Take off the door.
- Leave storage shelves in the wine refrigerator so that children cannot climb inside.

Protect the environment!

Do not dispose of any batteries with general household waste.

Return defective or used batteries to your retailer or dispose of them at collection points.

14 Technical data

	All wine refrigerators
Rated Power Suppl 220 – 240V~ / 50Hz / 1P
Climate Class SN – ST
Storage Temperature Range 5 – 20°C / 41 – 68°F
Intended ambient temperature use 3 – 38 °C / 37 – 100 °F
Wine Storage Compartment Humidity 50% – 80%
Compressor or Thermoelectric System Compressor (Reciprocating)
Defrosting Automatic
Cooling Type Fan Cooling
Refrigerant Type R600a
Foaming Agent of Polyurethane Cyclopentane
Power Cord	1.8 m, Black, Schuko Plug

Test/certificates

	B29G	B68G	B162S	B195S
Size (width - bottles)	30 cm - 20	60 cm - 54	60 cm - 100	60 cm - 125
Total Gross/Storing Volume (l)	62/57	152/134	310/262	380/335
Max. Bottles with Sliding/Storage Shelves	20/29	52/68	102/162	126/195
Number of Compartment	1	1	1	1
Wine Conditioning System	Single	Single	Single	Single
Number of Doors	1	1	1	1
Default Opening	Left	Left	Left	Left
Door Opening Angle	180°	180°	110°	110°
Shelves	2 Fixed	2 Fixed	3 Fixed	4 Fixed
Sound Power Level (LWA - db(A) re 1 pW)	40	42	42	42
Current (A)	0.6	1.2	1.4	1.4
Power Input (W)	85	100	160	160
Heater Winter System (W)	≤80	≤120	≤120	≤120
Display Position	Outside Top Front	Outside Top Front	Inside Behind Door	Inside Behind Door
Interior Light	0.15 W LED White	2x 0.15 W LED White	2x 0.15 W LED White	2x 0.15 W LED White
Installation Type	Built-Under/ Freestanding	Built-Under/ Freestanding	Built-In/Recessed/ Freestanding	Built-In/Recessed/ Freestanding
Adjustable Feet (mm)	80	15 - 80	80	80
Dimensions (W×H×D mm/Inches)	295 x 863 x 615 / 11 ^5 / _8 x 34 x 24 ^1 / _4	595 x 863 x 615 / 23 ^1 / _2 x 34 x 24 ^1 / _4	595 x 1476 x 615 / 23 ^1 / _2 x 58 ^5 / _8 x 24 ^1 / _4	595 x 1768 x 615 / 23 ^1 / _2 x 69 ^5 / _8 x 24 ^1 / _4
Carton Dimensions (W×H×D mm/Inches)	326 x 920 x 628 12 ^3 / _4 x 36 ^1 / _4 x 24 ^3 / _4	660 x 935 x 660 26 x 36 ^7 / _8 x 26	660 x 1566 x 660 26 x 61 ^5 / _8 x 26	660 x 2002 x 628 26 x 78 ^7 / _8 x 24 ^3 / _4
Net Weight (kg/lb)	26/57	42/92	56.5/125	68/150
Gross Weight (kg/lb)	28/62	46/101	62/137	79.5/175

	C20G	C50G	C101G	C125G
Size (width - bottles)	30 cm - 20	60 cm - 54	60 cm - 100	60 cm - 125
Total Gross/Storing Volume (l)	62/57	152/134	315/286	390/350

C20G C50G C101G C125G

Max. Bottles with Sliding/Storage Shelves	20/26 50/66 101/149 125/182
Number of Compartment	1111
Wine Conditioning System	Single Single Single Single
Number of Doors 1111
Default Opening Left Left Left
Door Opening Angle	180^	180^	110^ 110^
Shelves	4 Sliding	4 Sliding	6 Sliding	8 Sliding
Energy Consumption (kWh/year)	102	145	160	165
Energy Class	A+	A	A	A
Sound Power Level (LWA - db(A) re 1 pW)	40	42	42	42
Current (A)	0.6	1.2	1.4	1.4
Power Input (W)	85	100	160	160
Heater Winter System (W)	≤80	≤120	≤120	≤120
Display Position	Inside Behind Door	Inside Behind Door	Inside Behind Door	Inside Behind Door
Interior Light	6x 0.05 W LED White	6x 0.05 W LED White	12x 0.05 W LED White	15x 0.05 W LED White
Installation Type	Built-Under/ Freestanding	Built-Under/ Freestanding	Built-In/Recessed/ Freestanding	Built-In/Recessed/ Freestanding
Adjustable Feet (mm)	80	80	80	80
Dimensions (WxHxD mm/Inches)	295 × 820 × 615 / 11^3/_8 × 32^1/_4 × 24^1/_4	595 × 820 × 615 / 23^1/_2 × 32^1/_4 × 24^1/_4	595 × 1476 × 615 / 23^1/_2 × 58^1/_8 × 24^1/_4	595 × 1768 × 615 / 23^1/_2 × 69^1/_8 × 24^1/_4
Carton Dimensions (WxHxD mm/Inches)	326 × 875 × 628 12^3/_4 × 34^1/_2 × 24^3/_4	660 × 885 × 660 26 × 34^7/_8 × 26	660 × 1566 × 660 26 × 61^5/_8 × 26	660 × 2002 × 628 26 × 78^7/_8 × 24^3/_4
Net Weight (kg/lb)	26/57	41/90	69.5/153	78.5/173
Gross Weight (kg/lb)	28/62	45/99	75/165	90/198

	E7FG	E16FG	E18FGB	E28FG
Size (width - bottles)	15 cm - 7	30 cm - 20	60 cm - 18	40 cm - 28
Total Gross/Storing Volume (l)	22/19	62/52 52/46	90/75
Max. Bottles with Sliding/Storage Shelves	7/N.A. 16/19	18/N.A.	28/33
Number of Compartment	1	2	1	2
Wine Conditioning System	Single Single Single Single
Number of Doors 1 1 1 1
Default Opening	Left	Left	Vertical	Left
Door Opening Angle	180^	180^	105^	180^
Shelves	6 Black Column Racks	5 Sliding	2 Sliding	5 Sliding
Energy Consumption (kWh/year)	135	139	106	108
Energy Class	A	A	A+	A+
Sound Power Level (LWA - db(A) re 1 pW)	39	40	37	42
Current (A)	0.4	0.6	0.6	1.2
Power Input (W)	60	85	85	100
Heater Winter System (W)	30	≤ 80	≤ 50	≤ 80

E7FG E16FG E18FGB E28FG

Display Position Inside Behind Door Inside Behind Door Inside Behind Door Inside Behind Door
Interior Light 3x 0.05 W LED White 12x 0.05 W LED White 6x 0.05 W LED White 12x 0.05 W LED White
Installation Type Built-Under		Built-Under/Freestanding	Fully Integrated Built-Under/Freestanding
Adjustable Feet (mm) 80	80	10	80
Dimensions(W×H×D mm/Inches)	148x 820x 570 / 5^7/_8 × 32^1/_4 × 22^1/_2	295 x 820x 615 / 11^5/_8 × 32^1/_4 × 24^1/_4	590 x 455 x 600 / 23^1/_4 × 17^7/_8 × 23^5/_8	395 x 820 x 615 / 15^1/_2 × 32^1/_4 × 24^1/_4
Carton Dimensions(W×H×D mm/Inches)	190 x 875 x 570 / 7^1/_2 × 34^1/_2 × 22^1/_2	326 x 865 x 628 / 12^3/_4 × 34^1/_4 × 24^3/_4	660 x 550 x 660 / 26 × 21^5/_8 × 26	460 x 880 x 628 / 18^1/_8 × 34^5/_8 × 24^3/_4
Net Weight (kg/lb)	18.5/40	31.5/69	30.5/67	36.5/80
Gross Weight (kg/lb)	20/44	39/86	35/77	39/86

	E40FGD	E45FG	E49FGB E91FG
Size (width - bottles) 60 cm - 40 60 cm - 54 60 cm - 49		60 cm - 100
Total Gross/Storing Volume (l)	124/115	152/125	142/116	315/275
Max. Bottles with Sliding/Storage Shelves	40/55 45/61 49/49		91/123
Number of Compartment	2	2	2	2
Wine Conditioning System	Twin	Single	Single	Twin
Number of Doors	2	1	1	1
Default Opening	-	Left	Left	Left
Door Opening Angle	180°	180°	105°	110°
Shelves	11 Sliding	5 Sliding	4 Sliding, 1 Display Shelf	7 Sliding, 1 Serving Drawer Shelf
Energy Consumption (kWh/year)	109	109	112	158
Energy Class	A+	A+	A+	A
Sound Power Level (LWA - db(A) re 1 pW)	42	42	42	41
Current (A)	1.2	1.2	1.2	1.4
Power Input (W)	100	100	100	160
Heater Winter System (W)	≤80	≤120	≤120	≤120

Display Position Inside Behind Door Inside Behind Door Inside Behind Door Inside Behind Door
Interior Light	12x 0.05 W LED White	12x 0.05 W LED White	10x 0.05 W LED White	24x 0.05 W LED White
Installation Type	Built-Under/ Freestanding	Built-Under/ Freestanding	Fully Integrated	Built-In/Recessed/ Freestanding
Adjustable Feet (mm) 80	80	10	80
Dimensions(W×H×D mm/Inches)	595×820×615 /231⁄2 × 321⁄4 × 241⁄4	595 × 820×615 /231⁄2 × 321⁄4 × 241⁄4	590 × 885 × 600 /231⁄4 × 347⁄8 × 235⁄8	595 × 1476 × 615 /231⁄2 × 581⁄8 × 241⁄4
Carton Dimensions(W×H×D mm/Inches)	660 × 885 × 660 /26×347⁄8 × 26	660 × 885 × 660 /26×347⁄8 × 26	660 × 980 × 660 /26×385⁄8 × 26	660 × 1566 × 660 /261⁄8 × 615⁄8 × 26
Net Weight (kg/lb)	46.5/102	48/106	50/110	82/181
Gross Weight (kg/lb)	50.5/111	52/115	56/123	87.5/193

Further product information can be accessed via QR code on the energy label (see figures) or via eprel.ec.europa.eu.
E115FG

Size (width - bottles)	60 cm - 125
Total Gross/Storing Volume (l)	390/338
Max. Bottles with Sliding/Storage Shelves	115/155
Number of Compartment	2
Wine Conditioning System	Twin
E115FG
Number of Doors 1
Default Opening Left
Door Opening Angle 110°
Shelves 10 Sliding, 1 Serving Drawer Shelf
Energy Consumption (kWh/year) 165
Energy Class A
Sound Power Level (LWA - db(A) re 1 pW) 41
Current (A) 1.4
Power Input (W) 160
Heater Winter System (W)	≤120
Display Position Inside Behind Door
Interior Light 30x 0.05 W LED White
Installation Type	Built-In/Recessed/Freestanding
Adjustable Feet (mm)	80
Dimensions (W×H×D mm/Inches)	595 × 1768 × 615 / 231⁄2 × 695/3 × 241⁄4
Carton Dimensions (W×H×D mm/Inches)	660 × 2002 × 628 261⁄3 × 787⁄3 × 243⁄4
Net Weight (kg/lb)	92.5/204
Gross Weight (kg/lb)	104/229

E7FG E16FG E18FGB E28FG

5 Description technique

E7FG E16FG E18FGB E28FG

Courant (A) 0,4 0,6 0,6 1,2
Puissance absorbée(W)	60 85 85 100
Système de chauffagehiver (W)	30	≤80 ≤50 ≤80
Position d'affichage	Intérieur, derrière la porte	Intérieur, derrière la porte	Intérieur, derrière la porte	Intérieur, derrière la porte
Lumière intérieure	3x 0,05 W LEDblanches	12x 0,05 W LEDblanches	6x 0,05 W LEDblanches	12x 0,05 W LED blanches
Type d'installation	Encastré	Encastré / autonome	Entièrement intégré	Encastré / autonome
Pieds réglables (mm)	80	80	10	80
Dimensions(L×H×P mm/pouces)	148x 820x 570 / 5^7/_8 × 32^1/_4 × 22^1/_2	295 x 820x 615 / 11^5/_8 × 32^1/_4 × 24^1/_4	590 x 455 x 600 / 23^1/_4 × 17^7/_8 × 23^5/_8	395 x 820 x 615 / 15^1/_2 × 32^1/_4 × 24^1/_4
Dimensions de l'emballage (L×H×P mm/pouces)	190 x 875 x 570 / 7^1/_2 × 34^1/_2 × 22^1/_2	326 x 865 x 628 / 12^3/_4 × 34^1/_4 × 24^3/_4	660 x 550 x 660 / 26 × 21^5/_8 × 26	460 x 880 x 628 / 18^1/_8 × 34^5/_8 × 24^3/_4
Poids net (kg/lb)	18,5/40	31,5/69	30,5/67	36,5/80
Poids brut (kg/lb)	20/44	39/86	35/77	39/86

E7FG E16FG E18FGB E28FG

E7FG E16FG E18FGB E28FG

7.3 Colocar as garrafas

ADVERTÊNCIA!

E7FG E16FG E18FGB E28FG

Abertura standard À esquerda À esquerda Vertical À esquerda
Ângulo de abertura da porta	180° 180° 105° 180°
Prateleiras	6 suportes de coluna pretos	5 deslizantes 2 deslizantes 5 deslizantes
Consumo de energia (kWh/ano)	135 139 106 108
Classe energética A A	A+	A+
Nível de potência sonora (LWA - db(A) re 1 pW)	39	40	37	42
Corrente (A)	0,4	0,6	0,6	1,2
Potência de entrada (W)	60	85	85	100
Sistema de aquecimento para o modo de inverno (W)	30	≤80	≤50	≤80
Posição do monitor	Interior, atrás da porta	Interior, atrás da porta	Interior, atrás da porta	Interior, atrás da porta
Iluminação interior	3 LEDs de 0,05 W, brancos	12 LEDs de 0,05 W, brancos	6 LEDs de 0,05 W, brancos	12 LEDs de 0,05 W, brancos
Tipo de instalação	Encastrado	Encastrado/independente	Completamente integrado	Encastrado/independente
Pés ajustáveis (mm)	80	80	10	80
Dimensões (L×A×P mm/polegadas)	148×820×570 / 5^1/_8 × 32^1/_4 × 22^1/_2	295×820×615 / 11^3/_8 × 32^1/_4 × 24^1/_4	590×455×600 / 23^1/_4 × 17^7/_8 × 23^2/_8	395×820×615 / 15^1/_2 × 32^1/_4 × 24^1/_4
Dimensões da embalagem (L×A×P mm/polegadas)	190×875×570 / 7^1/_2 × 34^1/_2 × 22^1/_2	326×865×628 / 12^3/_4 × 34^1/_4 × 24^3/_4	660×550×660 / 26 × 21^5/_8 × 26	460×880×628 / 18^1/_8 × 34^5/_8 × 24^3/_4
Peso líquido (kg/lb)	18,5/40	31,5/69	30,5/67	36,5/80
Peso bruto (kg/lb)	20/44 39/86 35/77		39/86

E40FGD E45FG
E49FGB E91FG

E7FG E16FG E18FGB E28FG

Dimensioni(L×A×P mm/pollici)	148×820×570/5 78 × 32 14 × 22 12	295 × 820×615/11 58 × 32 14 × 24 14	590 × 455 × 600/23 14 × 17 78 × 23 58	395 × 820 × 615/15 12 × 32 14 × 24 14
Dimensioni cartone(L×A×P mm/pollici)	190 × 875 × 570/7 12 × 34 12 × 22 12	326 × 865 × 628/12 34 × 34 14 × 24 34	660 × 550 × 660/26 × 21 58 × 26	460 × 880 × 628/18 18 × 34 58 × 24 34

Peso netto (kg/lb) 18,5/40 31,5/69 30,5/67 36,5/80
Peso lordo (kg/lb) 20/44 39/86 35/77 39/86

E40FGD E45FG E49FGB E91FG

E7FG E16FG E18FGB E28FG

Bruttovægt (kg/lb) 20/44 39/86 35/77 39/86

E40FGD E45FG E49FGB E91FG

Størrelse (bredde - flasker)	60 cm - 40 60 cm - 54 60 cm - 49 60 cm - 100
Total brutto-/opbevaringsvolumen (l)	124/115 152/125 142/116 315/275
Maks. flasker med skyde-/opbevaringshylder	40/55 45/61 49/49 91/123
Antal rum	2	2	2	2
Vinkonditioneringssystem	Dobbelt Enkelt	Enkelt	Dobbelt
Antal døre	2	1	1	1
Standardåbning	-	Venstre	Venstre	Venstre
Døråbningsvinkel	180°	180°	105°	110°
Hylder	11 skydehylder	5 skydehylder	4 skydehylder, 1 fre-mvisningshylde	7 skydehylder, 1 server-ingsskuffehylde
Energiforbrug (kWh/år)	109	109	112	158
Energiklasse	A+	A+	A+	A
Lydeffektniveau (LWA-db(A) re 1 pW)	42	42	42	41
Strøm (A)	1,2	1,2	1,2	1,4
Strømindgang (W)	100	100	100	160
Opvarmer vintersystem (W)	≤80	≤120	≤120	≤120
Displayposition	Indvendigt bag døren	Indvendigt bag døren	Indvendigt bag døren	Indvendigt bag døren
Indvendig belysning	12x 0,05 W LED hvid	12x 0,05 W LED hvid	10x 0,05 W LED hvid	24x 0,05 W LED hvid
Monteringstype	Underbygget/fritstående	Underbygget/fritstående	Fuldt integreret	Indbygget/i niche/fritstående
Justerbare fødder (mm)	80	80	10	80
Mål(B×H×D mm/tommer)	595×820×615 /231⁄2 × 321⁄4 × 241⁄4	595 × 820×615 /231⁄2 × 321⁄4 × 241⁄4	590 × 885 × 600 /231⁄4 × 347⁄8 × 235⁄8	595 × 1476 × 615 /231⁄2 × 581⁄8 × 241⁄4
Kassens mål (B×H×D mm/tommer)	660 × 885 × 660 /26x 347⁄8 × 26	660 × 885 × 660 /26x 347⁄8 × 26	660 × 980 × 660 /26x 385⁄8 × 26	660 × 1566 × 660 /261⁄8 × 615⁄8 × 26
Nettovægt (kg/lb)	46,5/102	48/106	50/110	82/181
Bruttovægt (kg/lb)	50,5/111	52/115	56/123	87,5/193

WARNING! RISK FÖR ATT BARN FASTNAR

Viften kan drives i to ulike moduser:

E7FG E16FG E18FGB E28FG

E7FG E16FG E18FGB E28FG

E7FG E16FG E18FGB E28FG

Regulowane nóżki (mm)	80 80 10 80
Wymiary (szer. × wys. × gł., mm/in)	148× 820× 570 / 5^7/_8 × 32^1/4 × 22^1/2	295 × 820× 615 / 11^5/_8 × 32^1/4 × 24^1/4	590 × 455 × 600 / 23^1/4 × 17^7/_8 × 23^5/_8	395 × 820 × 615 / 15^1/2 × 32^1/4 × 24^1/4
Wymiary opakowania (szer. × wys. × gł., mm/in)	190 × 875 × 570 / 7^1/2 × 34^1/2 × 22^1/2	326 × 865 × 628 / 12^3/4 × 34^1/4 × 24^3/4	660 × 550 × 660 / 26 × 21^5/_8 × 26	460 × 880 × 628 / 18^7/_8 × 34^5/_8 × 24^3/4

Masa netto (kg/lb) 18,5/40 31,5/69 30,5/67 36,5/80
Masa brutto (kg/lb) 20/44 39/86 35/77 39/86

E40FGD E45FG E49FGB E91FG

E7FG E16FG E18FGB E28FG

Spotreba energie (kWh/ročne)	135 139 106 108
Energetická trieda A A A+ A+
Hladina akustického výkonu (LWA - dB(A) re 1 pW)	39 40 37 42
Prúd (A)	0,4	0,6	0,6	1,2
Príkon (W)	60 85 85 100
Systém zimného ohrevu (W)	30	≤80	≤50	≤80
Umiestnenie displeja	Vnútri za dverami	Vnútri za dverami	Vnútri za dverami	Vnútri za dverami
Osvetlenie vnútorného priestoru	3 × 0,05 W, LED biele	12 × 0,05 W, LED biele	6 × 0,05 W, LED biele	12 × 0,05 W, LED biele
Typ inštalácie	Vstavaná pod	Vstavaná pod/vol'ne stojaca	Plne integrovaná	Vstavaná pod/vol'ne stojaca
Nastavitelné nožičky (mm)	80 80	10 80
Rozmery (Š×V×H mm/palcov)	148 × 820 × 570 / 5^7/_8 × 32^1/_4 × 22^1/_2	295 × 820 × 615 / 11^5/_8 × 32^1/_4 × 24^1/_4	590 × 455 × 600 / 23^1/_4 × 17^7/_8 × 23^5/_8	395 × 820 × 615 / 15^1/_2 × 32^1/_4 × 24^1/_4
Rozmery kartóna (Š×V×H mm/palcov)	190 × 875 × 570 / 7^1/_2 × 34^1/_2 × 22^1/_2	326 × 865 × 628 / 12^3/_4 × 34^1/_4 × 24^3/_4	660 × 550 × 660 / 26 × 21^5/_8 × 26	460 × 880 × 628 / 18^1/_8 × 34^5/_8 × 24^3/_4
Hmotnosť netto (kg/lb)	18,5/40	31,5/69	30,5/67	36,5/80
Hmotnosť brutto (kg/lb)	20/44	39/86	35/77	39/86

E7FG: E16FG: E18FGB: E28FG:

Nastavitelné patky(mm)	80 80 10 80
Rozměry(Š×V×H mm/palce)	148×820×570/57/8×321⁄4×221⁄2	295×820×615/115/8×321⁄4×241⁄4	590×455×600/231⁄4×177/8×235/8	395×820×615/151⁄2×321⁄4×241⁄4
Rozměry krabice(Š×V×H mm/palce)	190×875×57071⁄2×341⁄2×221⁄2	326×865×628123⁄4×341⁄4×243⁄4	660×550×66026×215/8×26	460×880×628181⁄8×345/8×243⁄4
Čistá hmotnost (kg/lb)	18,5/40 31,5/69 30,5/67 36,5/80
Hrubá hmotnost (kg/lb)	20/44 39/86 35/77		39/86

E7FG E16FG E18FGB E28FG

dometic.com/sales-offices
