USER MANUAL E1 Outdoor Pro REOLINK

If you need any technical help, please visit our official support site and contact our support team before returning the products. https://support.reolink.com.

UK REP CET PRODUCT SERVICE LTD.

Beacon House Stokenchurch Business Park, Ibstone Rd.

Stokenchurch High Wycombe, HP14 3FE, United Kingdom

Be Prepared, Be Reolink

EN/DE/FR/IT/ES

Item No.: E560

Operational Instruction

Apply to: E1 Outdoor Pro

@ReolinkTech https://reolink.com

EN

Content

What's in the Box 2
Camera Introduction 3
Set up the Camera 4
Install the Camera....7
Troubleshooting....10
Specifications 10
Notification of Compliance 10

What's in the Box

Camera

Camera Bracket Reset NeedlePower Adapter

Pack of Screws 4.5m Power

Extension Cable

1m Network Cable

Mounting Template

Quick Start Guide

Surveillance Sign

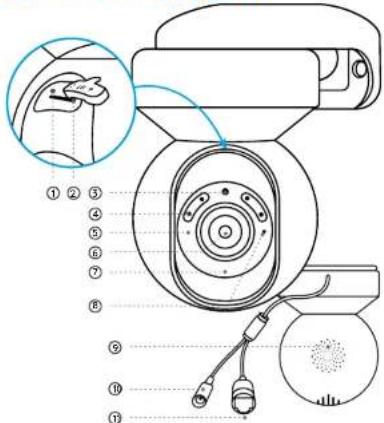

Camera Introduction

Diagram of a surveillance camera with numbered parts and an inset close-up showing the anatomical structure.

① Reset Button

* Press for more than five seconds to

restore the device to default settings.

② Micro SD Card Slot

^ Rotate the lens to find the

reset button and the SD card slot.

③ Daylight Sensor

④ Spotlight

⑤ Infrared Lights

⑥ Lens

⑦ Status LED

Built-in Mic

⑤ Speaker

Power Cable

⑪ Network Cable

Different states of the status LED:

• Red Light: WiFi connection failed Blinking: Standby status
- Blue Light: WiFi connection succeeded On: Working status

EnglishEnglish3 4

Set up the Camera

Wired Setup

It is recommended that the initial setup be completed with the Ethernet cable. You may follow the steps below to set up your camera.

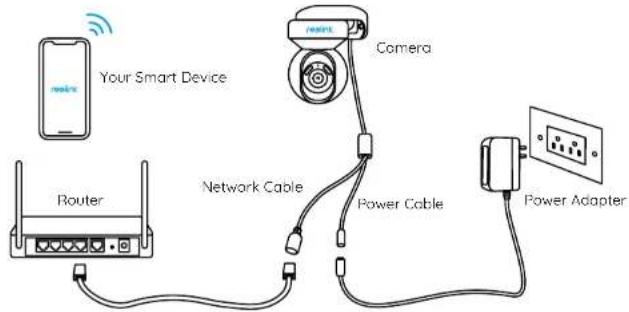

Step 1 Connect the camera to a LAN port on your router with an Ethernet cable. Step 2 Use the power adapter provided to power on the camera.

Your Smart Device Router Network Cable Power Cable Camera Power Adapter

Step 3 Download and Launch the Reolink App or Client software, and follow the onscreen instructions to finish initial setup.

- On Smartphone

Scan to download the Reolink App.

- On PC

Download path of the Reolink Client: Go to https://reolink.com > Support > App & Client

EnglishEnglish5 6

Wireless Setup

If you set up Camera without the Ethernet cable, you may follow the steps below.

NOTE: This device supports 2.4 GHz and 5 GHz Wi-Fi networks. It is recommended to connect the device to 5 GHz Wi-Fi for a better network experience.

Step 1 Use the power adapter provided to power on the camera.

Step 2 Launch the Reolink App, click the " + " button in the top right corner to add the camera. Scan the QR code on the device and follow the onscreen instructions to finish initial setup.

Illustration showing a smartphone displaying a QR code scanning a circular device, and a hand holding a camera with a logo.

NOTE: If you access the camera via the Reolink Client, you may click the Add Device icon and choose the UID option to enter the UID of your camera. The UID is on the camera body (right below the QR code).

Install the Camera

Mount the Camera to the Wall

For outdoor use, the camera must be installed upside down for better waterproof performance.

Diagram illustrating a finger manipulation technique with numbered steps and magnified detail view

Pull the button of the security mount and unscrew the bracket to separate the two parts.

reelink 2

Screw the bracket to the bottom of the camera.

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, including a numbered label '3' in the corner.

Drill holes in accordance with the mounting template and screw the security mount to the wall.

30kV 30kV 30kV 30kV 30kV 4

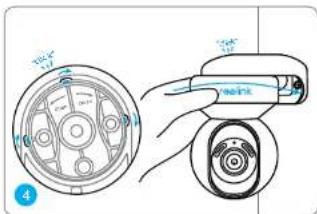

Choose a proper direction of the camera and then align the bracket to the security mount and lock the camera in place by turning anti-clockwise.

NOTE: Use the drywall anchors included in the package if needed.

Mount the Camera to the Ceiling

Pull the button of the security mount and unscrew the ceiling bracket from the mount.

Technical line drawing of a ceiling lamp with screw base and mounting holes (no text or symbols)

Hand holding a circular device labeled 'realin' with a scroll wheel, showing a mechanical assembly (no text or symbols on the device itself)

Install the bracket to the ceiling. Align the camera with the bracket and turn the camera unit clockwise to lock it in position.

EnglishEnglish9 10

Troubleshooting

Camera is Not Powering on

If your camera is not powering on, please try the following solutions:

- Plug the camera into another outlet.

- Use another 12V power adapter to power on the camera.

If these won't work, please contact Reolink Support.

WiFi Connection Failed During Initial Setup Process

If the camera failed to connect to WiFi, please try the following solutions:

- Please ensure your have entered the correct WiFi password

- Put your camera close to your router to ensure a strong WiFi signal.

- Change the encryption method of the WiFi

network to WPA-PSK/WPA2-PSK/WPA3-PSK (safer encryption) on your router interface.

- Change your WiFi SSID or password and

make sure that SSID is within 31 characters and password is within 64 characters.

- Set your password using only the characters on the keyboard.

If these won't work, please contact Reclink Support.

Specifications

Operating Frequency: 2.4/5GHz Dual-band

Operating Temperature:

-10°C to 55°C (14°F to 131°F)

Size: 85×118 mm

Weight: 395g

For more specifications, please visit https://reolink.com/

Notification of Compliance

FCC Compliance Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can rotate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna,
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiv-

eris connected.

- Consult the dealer or an experienced radio/TV technician for help.

Cution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Radiation Exposure statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

ISED Compliance Statements

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L'émetteur/récepteur exempt de licence

ISED Radiation Exposure statement

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

CE Simplified EU Declaration of Conformity

Realink declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and Directive 2014/30/EU.

WiFi Operating Frequency

OPERATING FREQUENCY:

2.4 GHz EIRP < 20dBm

5 GHz EIRP < 20dBm

5.8GHz EIRP < 14dBm

The functions of Wireless Access Systems including Radio Local Area Networks(WAS/RLANs) within the band 5150-5350 MHz for this device are restricted to indoor use only within all European Union countries (BE/BG/CZ/DK/DF/FE/IE/EL/ES/FR/HR/IT/CY/LV/LT/LU/HU/MT/NL/AT/PL/PT/RO/SI/SK/FI/SE/TR/N.O/CH/IS/LI/UK(N))

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Limited Warranty

This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Official Store or a Reolink authorized reseller. Learn more: https://reolink.com/warranty-and-return/

Terms and Privacy

Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com. Keep out of reach of children.

| English13
