Product type	Outdoor surveillance camera
Brand	Reolink
Model	E1 Outdoor CX
Dimensions	Φ90 x 120 mm
Weight	446 g
Power supply	12V power adapter (included)
Connectivity	Dual-band Wi-Fi 2.4/5 GHz, Ethernet 10/100 (network cable included)
Field of view	Not specified
Video resolution	Not specified
Night vision	Color with built-in LED spotlight
Audio	Built-in microphone and speaker for two-way communication
Motion detection	Yes (PIR sensor or software detection)
Storage	microSD card slot (not included)
Operating temperature	-10°C to 55°C (14°F to 131°F)
Installation	Wall or ceiling (mount included, upside-down mounting for outdoor)
Box contents	Camera, mount, power adapter, reset pin, 1.5m Ethernet cable, 4.5m extension cable, drilling template, sticker, screw kit, quick start guide
Additional features	LED spotlight, light sensor, reset button, Reolink app (iOS/Android), PC client
Certifications	CE, FCC, ISED
Warranty	2 years (limited warranty, purchase from Reolink or authorized reseller)
Maintenance	Clean with a soft, dry cloth. Avoid chemicals.
Repairability	Spare parts available from technical support (adapter, cables, mounts)

Frequently Asked Questions - E1 Outdoor CX REOLINK

How to reset the Reolink E1 Outdoor CX camera?

Press and hold the reset button (located under the lens) for more than five seconds to restore factory settings.

The camera does not turn on, what to do?

Check the power supply by plugging into another outlet. Use another 12V adapter if available. If the problem persists, contact Reolink support.

How to connect the camera via Wi-Fi?

Enable Bluetooth on your phone. Open the Reolink app, tap '+' to add a device, scan the QR code on the camera, and follow the instructions.

Wi-Fi not working during initial setup, why?

Make sure you entered the correct password. Place the camera near the router. Check that Wi-Fi encryption is WPA2-PSK and the SSID does not exceed 31 characters.

What is the minimum distance required for radiofrequency exposure?

The device must be installed and used with a minimum distance of 20 cm between the radiator and any person.

How to install the camera outdoors?

For better sealing, install the camera upside down. Use the drilling template, attach the mount to the wall or ceiling, then lock the camera by turning counterclockwise.

Does the camera detect motion at night?

Yes, thanks to its LED spotlight and light sensor, it offers color night vision with motion detection.

What type of microSD card is compatible?

The camera accepts microSD cards (not included). Insert the card into the slot located under the lens after rotating it.

Can I use the camera without the app?

The Reolink app (or PC client) is required for initial setup. Once configured, you can access the feed via the app, but not without it.

How to get the full user manual?

Download the PDF manual for free from notice-facile.com or refer to the quick start guide included in the box.

USER MANUAL E1 Outdoor CX REOLINK

If you need any technical help, please visit our official support site and contact our support team before returning the products, https://support.reolink.com.

CET PRODUCT SERVICE SP. Z O.O.

Ul. Dluga 33 102 Zgierz, Polen

CET PRODUCT SERVICE LTD.

Beacon House Stokenchurch Business Park, Ibstone Rd, Stokenchurch High Wycombe, HP14 3FE, United Kingdom

January 2024

QSG1_A

58.03.006.0072

EN/DE/FR/IT/ES

Item No.: E530X

Operational Instruction

Apply to: E1 Outdoor CX

@ReolinkTech https://reolink.com

EN

Contents

What's in the Box 2

Camera Introduction 3

Set up the Camera 4

Install the Camera 7

Troubleshooting....9

Specifications 10

Notification of Compliance 11

What's in the Box

Camera

Camera Bracket

Power Adapter

Reset Needle

4.5m Power Extension Cable

1m Network Cable

Mounting Hole Template

Surveillance Sticker

Pack of Screws

Quick Start Guide

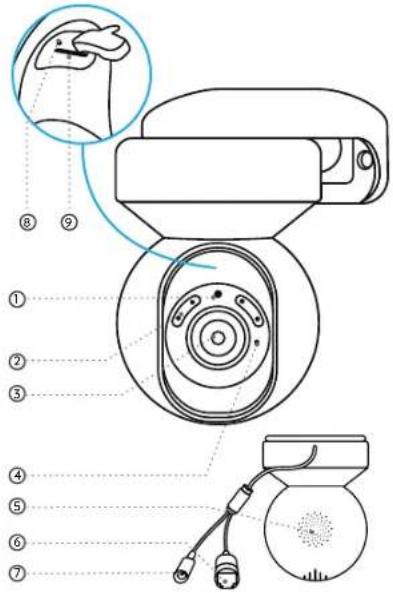

Camera Introduction

① Daylight Sensor
② Spotlight
③ Lens
④ Built-in Mic
⑤ Speaker
⑥ Network cable
⑦ Power cable
⑧ Reset Button
* Press for more than five seconds to restore the device to default settings.
⑨ microSD Card Slot
* Rotate the lens to find the reset button and the SD card slot.

EnglishEnglish3 4

Set up the Camera

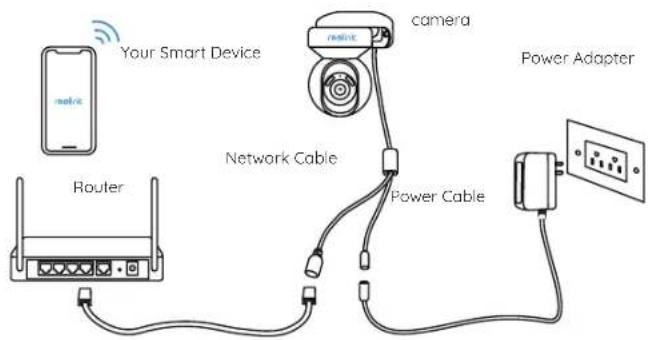

Wired Setup

It is recommended that the initial setup be completed with the Ethernet cable. You may follow the steps below to set up your camera.

Step 1 Connect the camera to a LAN port on your router with an Ethernet cable.
Step 2 Use the power adapter provided to power on the camera.

Step 3 Download and launch the Reolink App or Client software, and follow the onscreen instructions to finish initial setup.

- On Smartphone

Scan to download the Reolink App.

- On PC

Download path of the Reolink Client: Go to https://reolink.com > Support > App & Client.

EnglishEnglish5 6

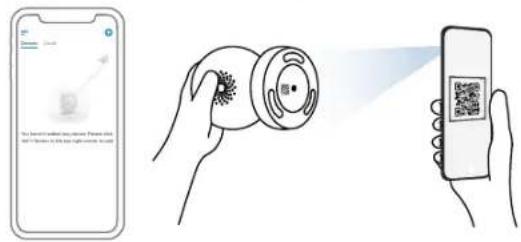

Wireless Setup

If you set up Camera without the Ethernet cable, you may follow the steps below.

NOTE: Please enable your phone's Bluetooth settings before connecting the camera.

Step 1 Use the power adapter provided to power on the camera. Step 2 Launch the Reolink App, click the “+” button in the top right corner to add the camera. Scan the QR code on the device and follow the onscreen instructions to finish initial setup.

NOTE: If you access the camera via the Reolink Client, you may click the Add Device Icon and choose the UID option to enter the UID of your camera. The UID is on the camera body (right below the QR code).

Install the Camera

Mount the Camera to the Wall

For outdoor use, Camera must be installed upside down for better waterproof performance.

Pull the button of the security mount and unscrew the bracket to separate the two parts.

Illustration of a hand holding a circular device with a lid labeled 'realink', showing internal components (no text beyond label)

Screw the bracket to the bottom of the camera.

EnglishEnglish7 8

Diagram of a mechanical device with a handle and connector, no text or symbols present

Drill holes in accordance with the mounting template and screw the security mount to the wall.

Choose a proper direction of the camera and then align the bracket to the security mount and lock the camera in place by turning anti-clockwise.

NOTE: Use the drywall anchors included in the package if needed.

Mount the Camera to the Ceiling

Pull the button of the security mount and unscrew the ceiling bracket from the mount.

Diagram of a ceiling lamp with three screw holes and a central oval component (no text or symbols)

Install the bracket to the ceiling. Align the camera with the bracket and turn the camera unit clockwise to lock it in position.

Troubleshooting

Camera is Not Powering on

If your camera is not powering on, please try the following solutions:

• Plug the camera into different outlets to see if the status LED lights up.
• Use another 12V power adapter to power on the camera.

EnglishEnglish9 10

If these won't work, please contact Reolink Support.

WiFi Connection Failed During Initial Setup Process

If the camera failed to connect to WiFi, please try the following solutions:

• Please ensure your have entered the correct WIFI password.
• Put your camera close to your router to ensure a strong WiFi signal.
• Change the encryption method of the WIFI network to WPA2-PSK/WPA-PSK (safer encryption) on your router interface.
• Change your WiFi SSID or password and make sure that SSID is within
  31 characters and password is within 64 characters.
• Set your password using only the characters on the keyboard.

If these won't work, please contact Reolink Support.

Specifications

Dimension: Φ90x 120mm

Weight: 446g

Operating Frequency: 2.4/5GHz Dual-band

Operating Temperature: -10°C to 55°C (14°F to 131°F)

Notification of Compliance

CE Declaration of Conformity

Reolink declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and Directive 2014/30/EU.

FCC Compliance Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter-

EnglishEnglish11 12

mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Radiation Exposure statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

ISED Compliance Statements

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

ISED Radiation Exposure statement

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

NOTE: Operation of 5150-5250 MHz is restricted to indoor use only in Canada.

EnglishEnglish13 1414English

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes. throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Limited Warranty

This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Official Store or a Reolink authorized reseller. Learn more: https://reolink.com/warranty-and-return/.

Terms and Privacy

Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com. Keep out of reach of children.

WiFi Operating Frequency

(the maximum transmitted power)

2.4 GHz EIRP < 20dBm

5 GHz EIRP <23dBm

5.8 GHz EIRP <14dBm

The functions of Wireless Access Systems including Radio Local

Area Networks(WAS/RLANs) within the band 5150-5350 MHz for

this device are restricted to indoor use only within all European

Union countries (BE/BG/CZ/DK/DE/EE/IE/EL/ES/FR/HR/IT/CY/LV/LT/

LU/HU/MT/NL/AT/PL/PT/RO/SI/SK/FI/SE/TR/N O/CH/IS/LI/UK(NI)

Technical Support

If you need any technical help, please visit our official support site and contact our support team before returning the products, https://support.reolink.com.
