USER MANUAL ARBR5131Xv1 HUSQVARNA

Husqvarna Attachments

Broom with collector 547 12 17-01

ARBR5131Xv1

EN Operator's manual 2-4

BG PbKOBOdCTBO 3a eKcnIooatauia 5-7

CS Navod k použiti 8-10

DA Brugsanvisning 11-13

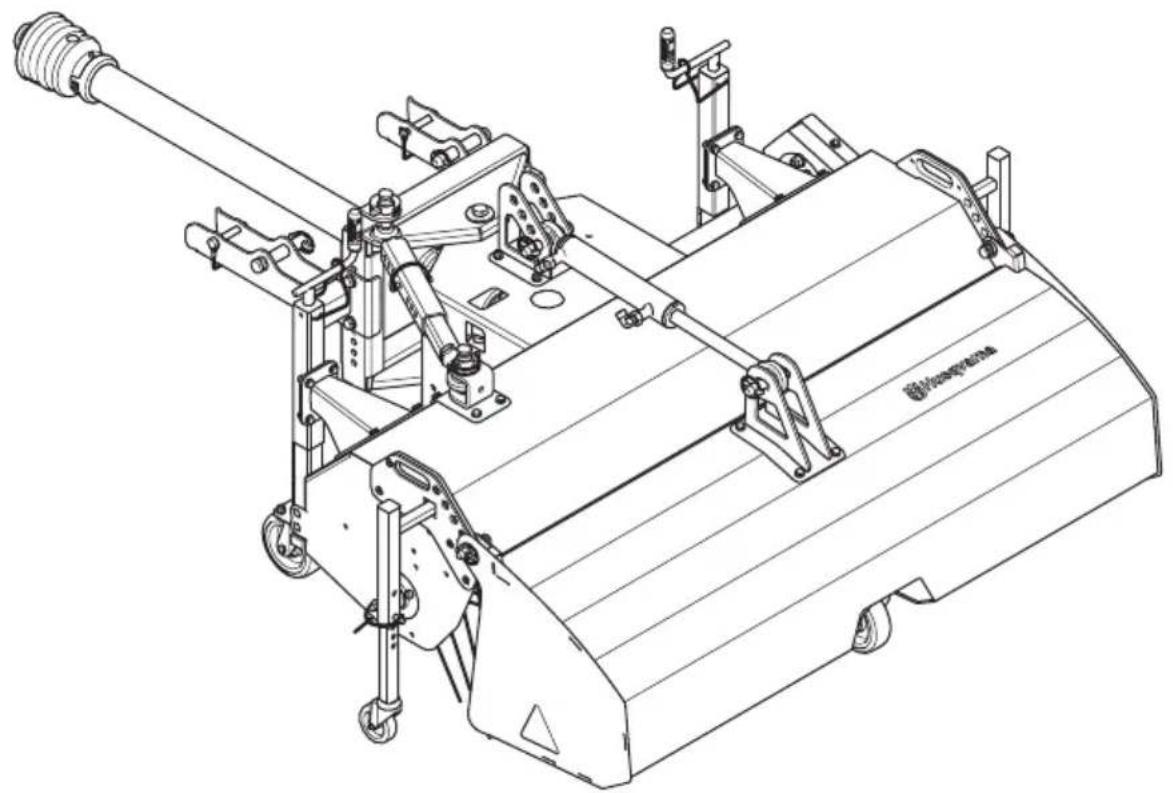

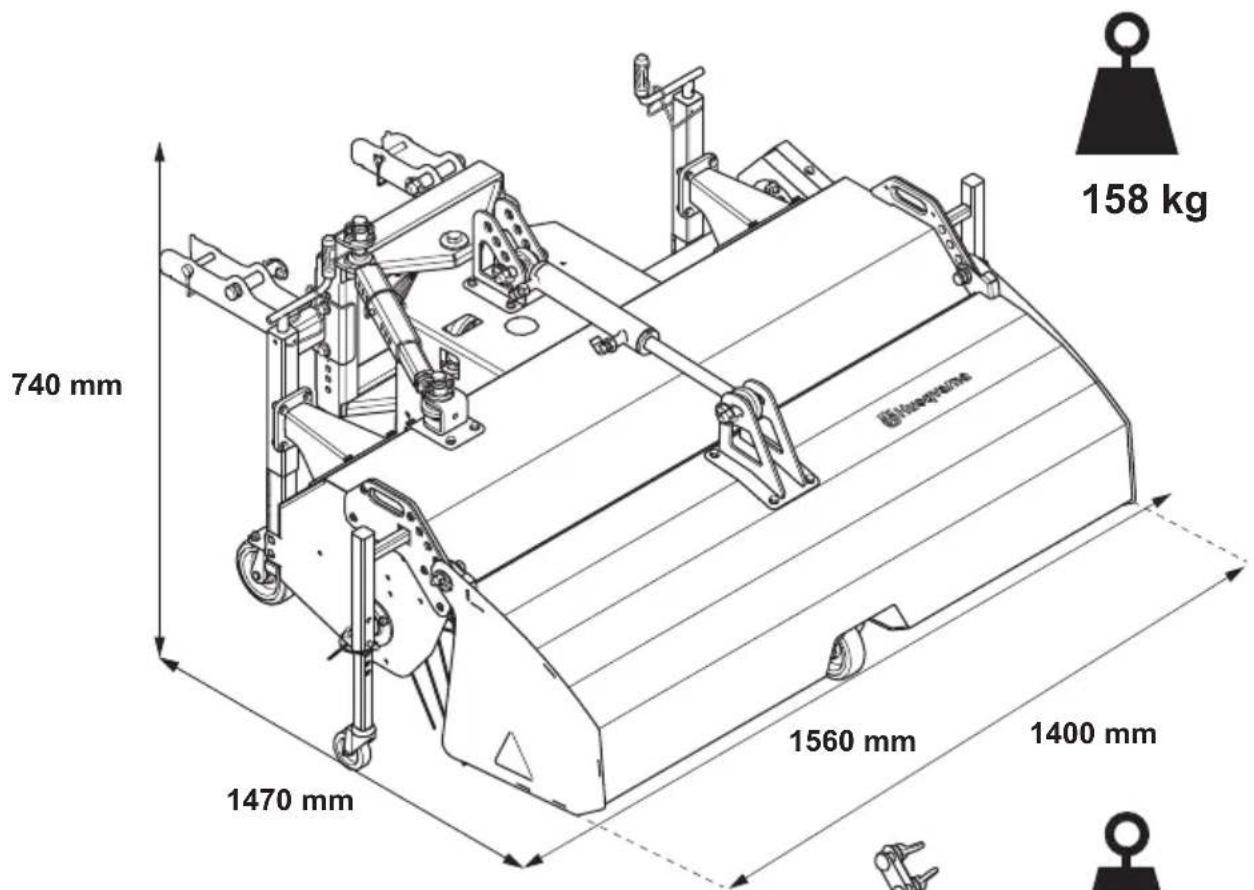

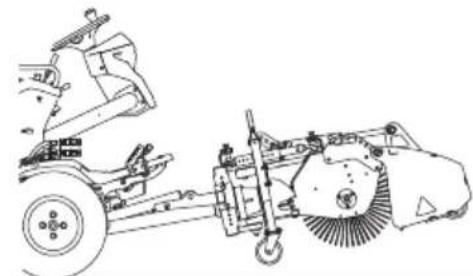

Broom with collector: 547 12 17-01

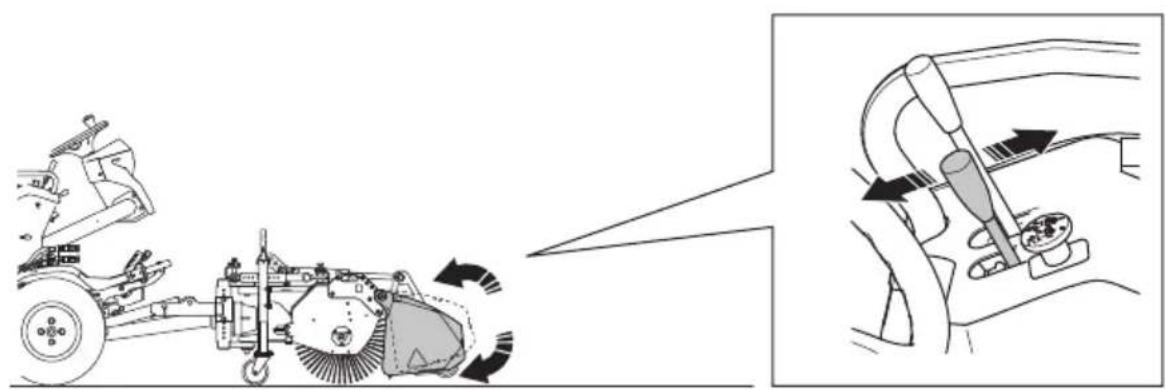

Intended use

This attachment is used together with a Husqvarna ride on mower to sweep horizontal surfaces. The attachment is used on surfaces of asphalt or paving. All other use is incorrect.

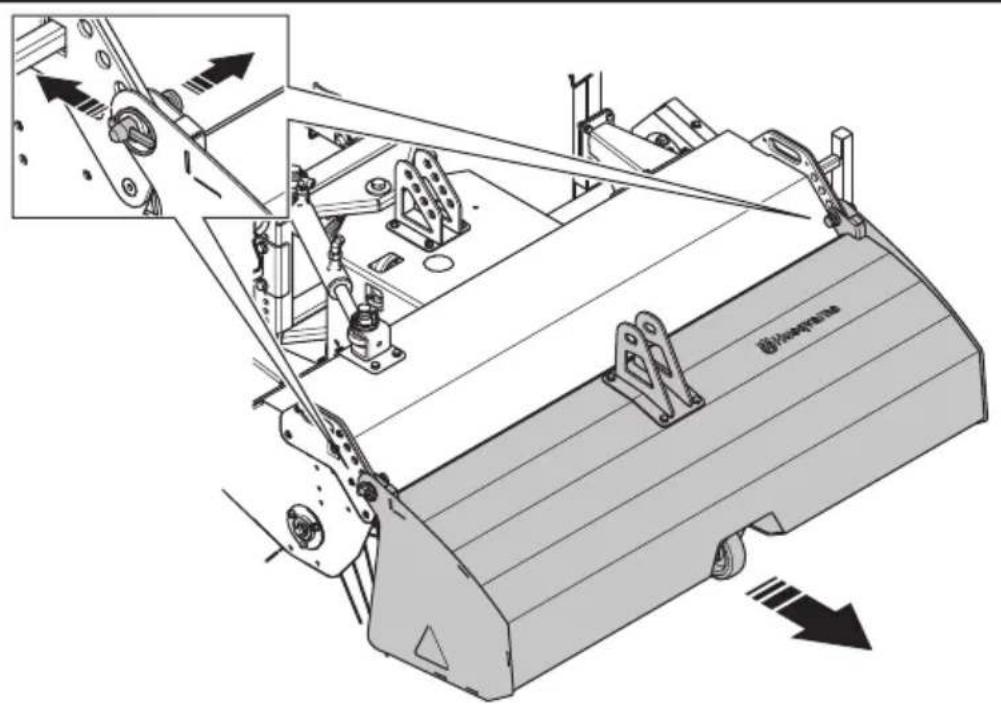

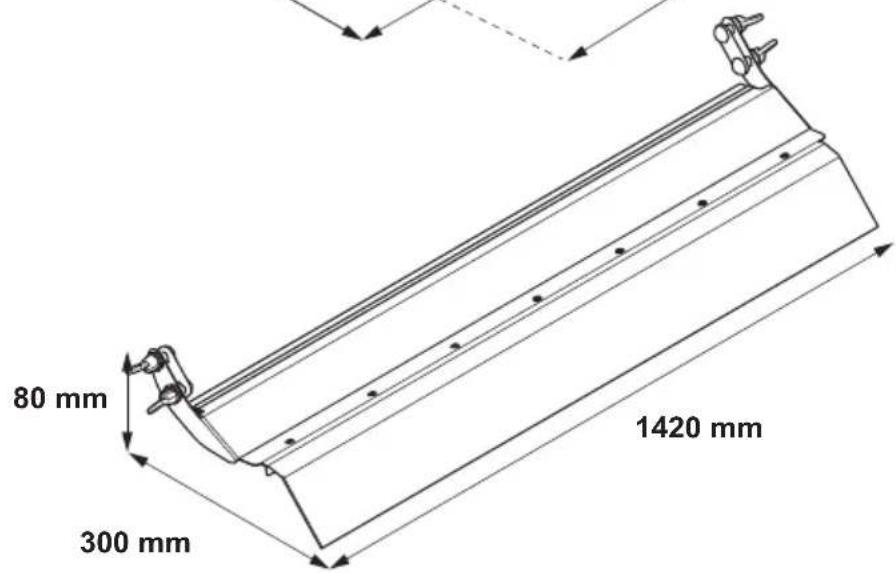

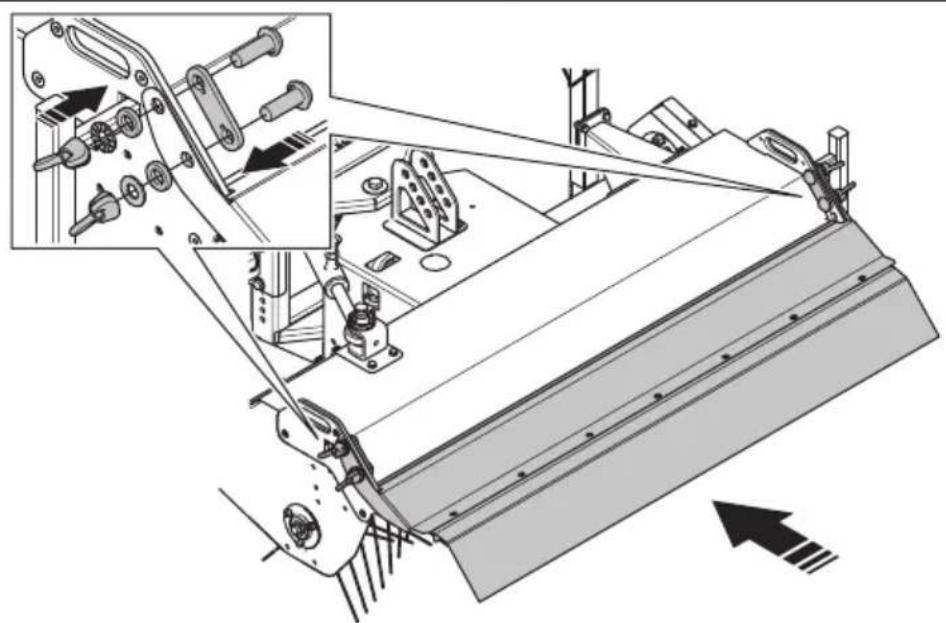

The collector can be replaced with a splash guard. The splash guard is sold separately.

The manufacturer is not liable for damage caused by incorrect use.

Symbols on the attachment

WARNING: Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

Read the operator's manual carefully and make sure that you understand the instructions before you use this attachment.

Do not start the engine if the protective covers are removed. There is a high risk of injury caused by moving parts.

Warning: risk of crush and/or cut injuries.
Make sure the cutting attachment has stopped before cleaning, carrying out repairs or an inspection.

Look out for ejecting objects and ricochets.

Remove the attachment from the product before you do maintenance on the attachment.

Keep bystanders away.

Make sure that all moving parts have stopped before you do maintenance or examine the attachment.

Do the maintenance described in this operator's manual.

Lubricate

Warning: Risk of crush injuries. Make sure that you can move safely and have free space to move away from the product in case of emergency.

Do not operate the product with a higher engine speed than 1600 rpm.

The product agrees with the applicable EC directives.

This product conforms to applicable UK regulations.

Husqvarna Service Information

1. Husqvarna model name
2. Husqvarna product number code (PNC)

Safety instructions for operation

WARNING: Read the warning instructions that follow before you start and use the attachment.

WARNING: Read the operator's manual of the product and make sure that you understand the instructions on the product before you start the attachment

• Always be careful and use your common sense. Avoid all situations which you consider to be beyond your capability. If you feel uncertainty about the operating procedures after you read the operator's manual, consult an expert before you continue.
• Learn how to use the attachment and its controls safely and learn how to stop the product quickly.
• Do not let children or other persons not approved for operation of the attachment to use or do servicing on it. Local laws may regulate the age of the user.
• Do not keep passengers on the attachment.
• Do not use an attachment with safety devices that are damaged or do not operate correctly. Replace the safety devices if necessary.
• Do not use the attachment if persons, especially children, or animals, are in the vicinity.

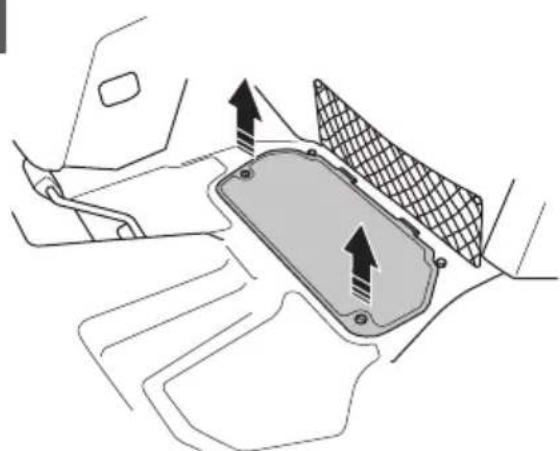

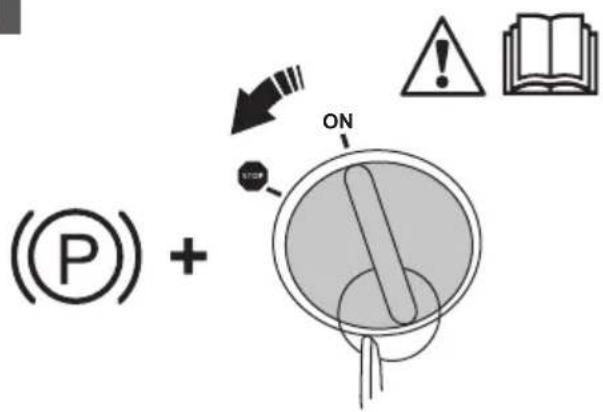

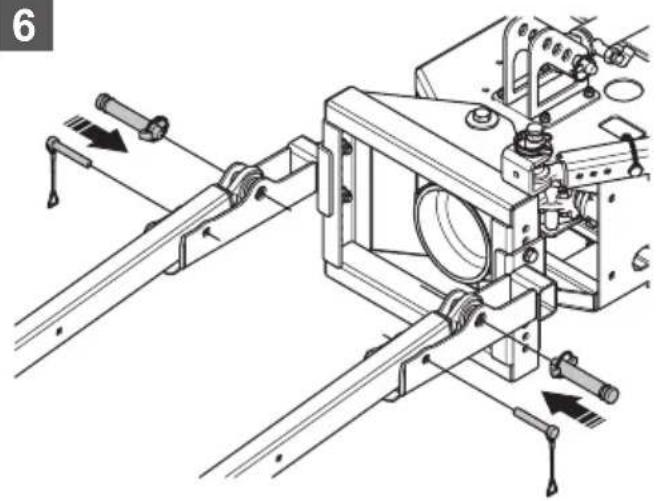

• Always disengage the PTO button, apply the parking brake and stop the engine on the product before you install the attachment. Make sure that the product and the attachment are stable.

WARNING: Be careful when attaching the attachment to the product, risk of crush injury. Use protective gloves.

• Examine the work area and remove all loose objects.
• Do a check of the safety devices before you operate the attachment.

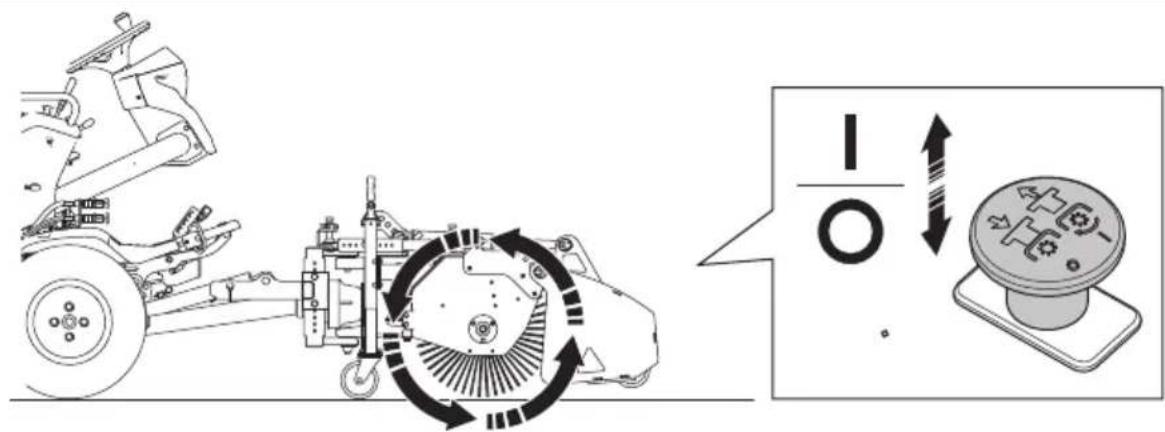

• Do a test of all the functions of the attachment before you operate the attachment.
• Make sure that all nuts and bolts are tightened correctly before you operate the attachment.
• Do not let the product stay unsupervised with the engine on. Always disengage the PTO button, apply the parking brake and stop the engine before you let the product stay unsupervised.
• Do not use the attachment if it is damaged or does not operate correctly.
• Do not overload the attachment capacity by operating the attachment at too fast a rate.
• Stop and examine the attachment if you operate the product across or into an object. If it is necessary, make repairs before you start.
• Clean the attachment after each use.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you do maintenance on the attachment.

• Only do the maintenance described in this operator's manual. More extensive work must be carried out by an authorized servicing dealer.

WARNING: Unauthorized modifications and/or accessories may lead to serious injury or death to the

user or others. Under no circumstances may the design of the attachment be modified without the permission of the manufacturer. Always use original spare parts. Your warranty may not cover damage or liability caused by the use of non-authorized accessories or spare parts.

• The maintenance procedures described in this operator's manual must be do not regularly. Refer to the Appendix.
• Always disengage the PTO button, apply the parking brake and stop the engine on the product before you remove the attachment.

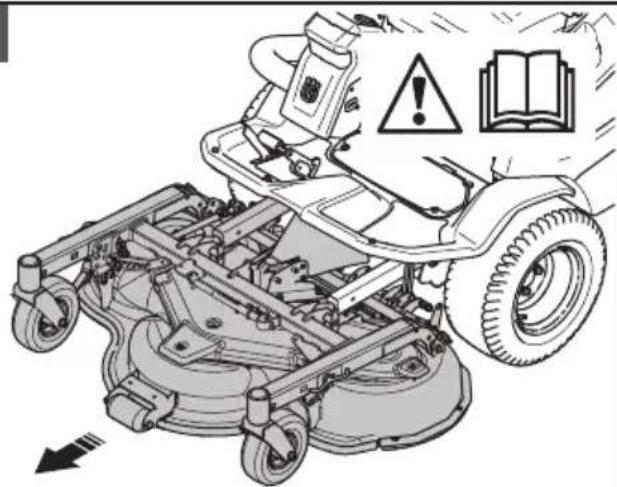

• Remove the attachment from the product before you do maintenance on the attachment.
• Do not walk or stay below the attachment, if the attachment is lifted during maintenance.
• Put the attachment on a level surface during maintenance. Make sure the attachment is stable.
• Make sure that all moving parts have stopped before you examine the attachment.
• Do a check of the safety devices regularly. If the safety devices are missing or damaged, speak to your authorized servicing dealer.
• Do not make modifications on safety devices.
• Make sure that all nuts and bolts are tightened correctly and that the attachment is in good condition.
• Use running water from a hose to clean the attachment.

CAUTION: Do not use a high-pressure washer or a steam cleaner. Water can go into bearings and electrical connections and cause corrosion which causes damage to the product.

• Do not point the water at electrical components or bearings. Detergent usually increases the damage.
• Lubricate the attachment after cleaning.

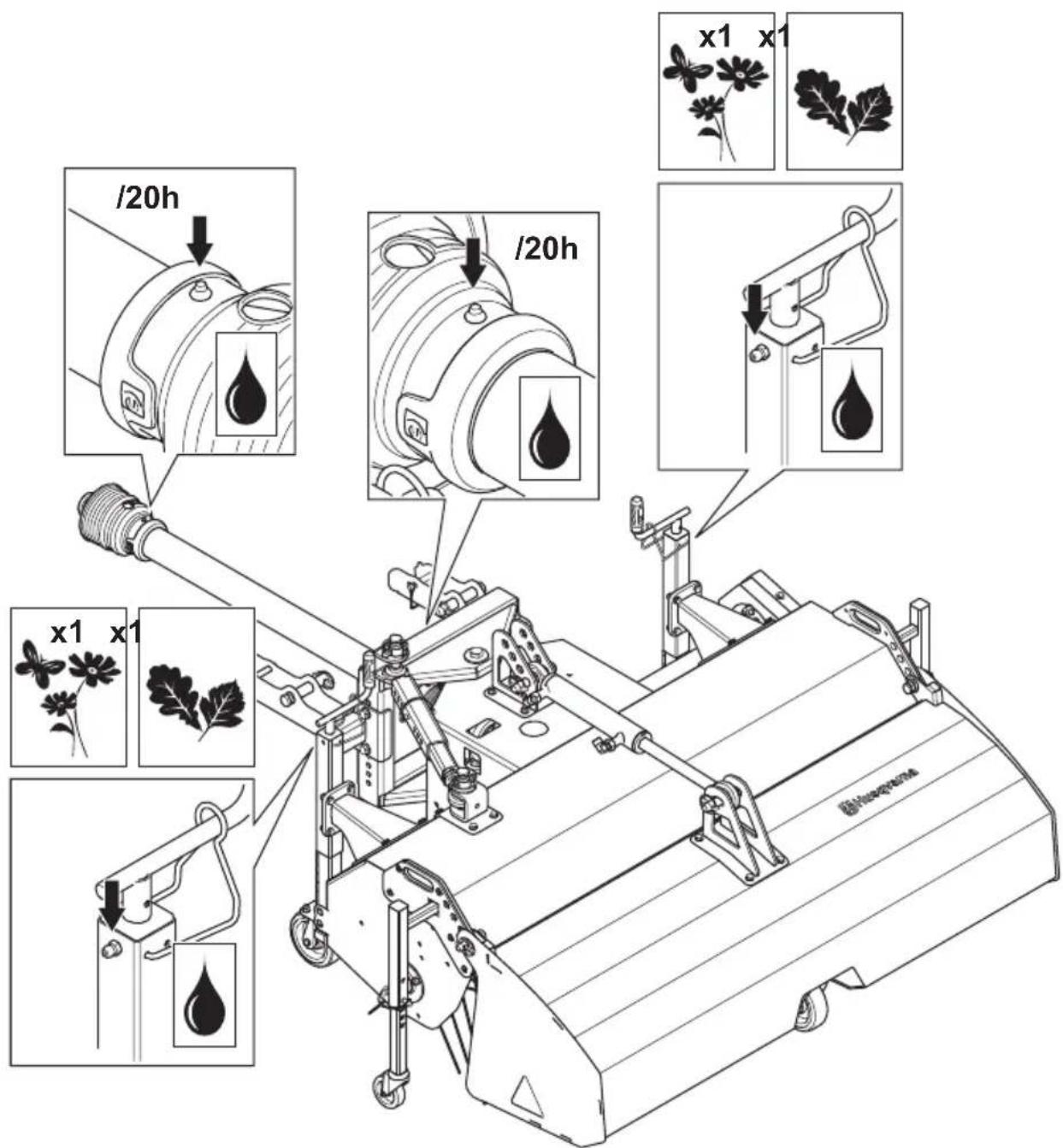

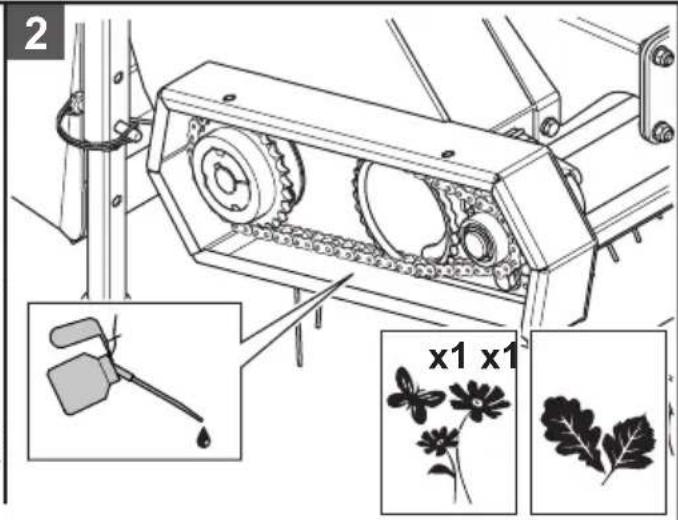

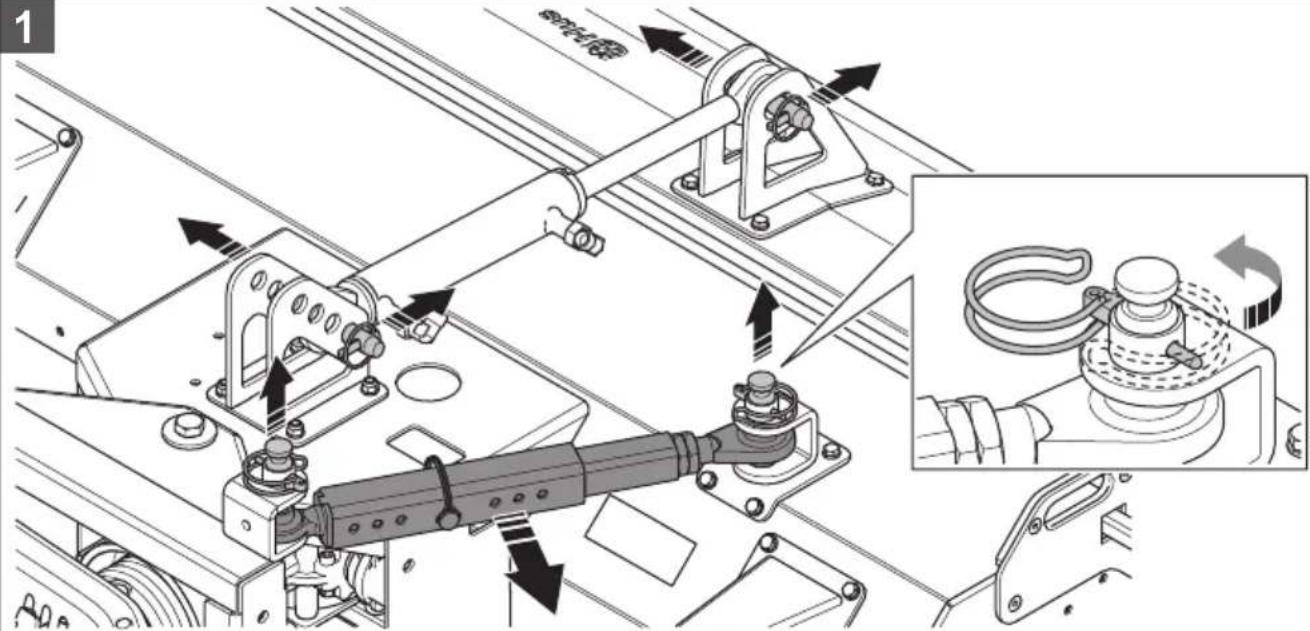

• Lubricate the attachment regularly. Refer to the Appendix in the operator's manual.

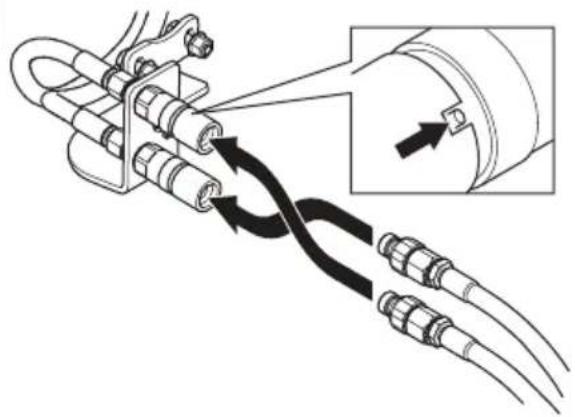

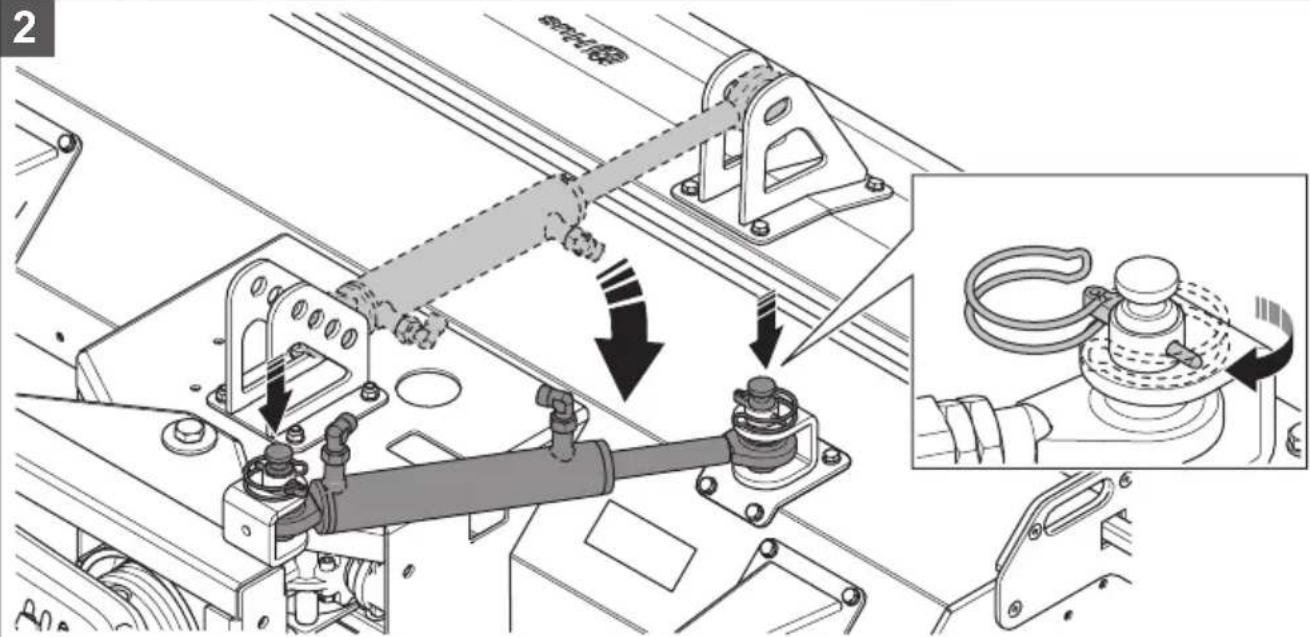

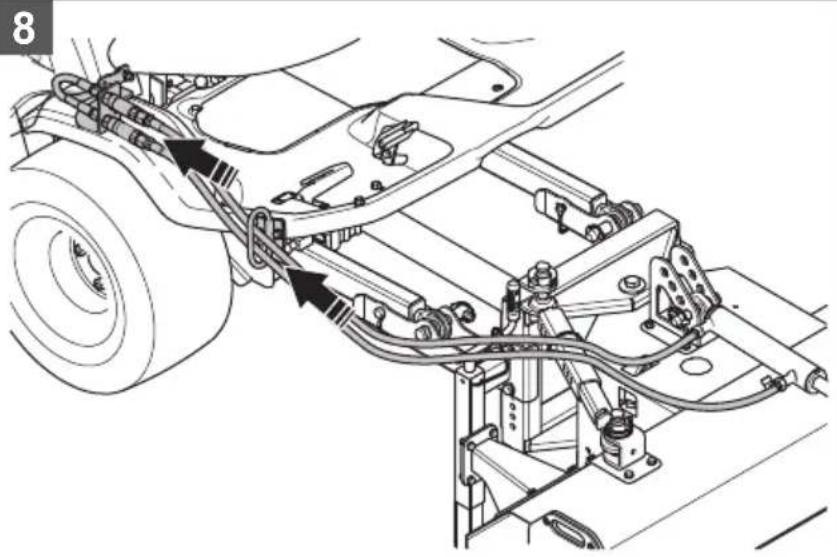

• Examine the hydraulic hose lines for damage regularly.

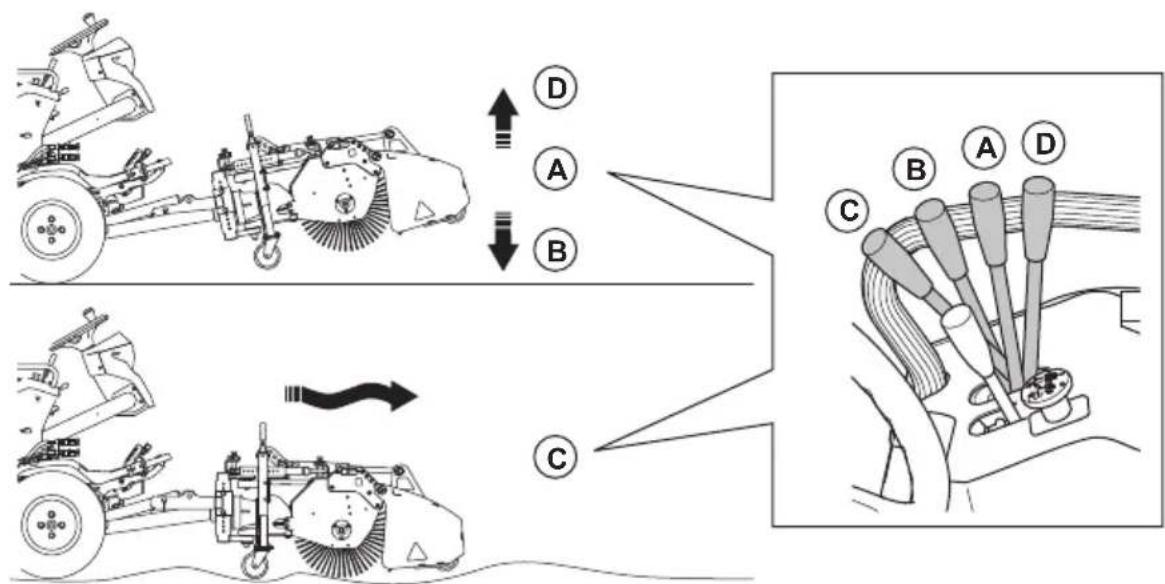

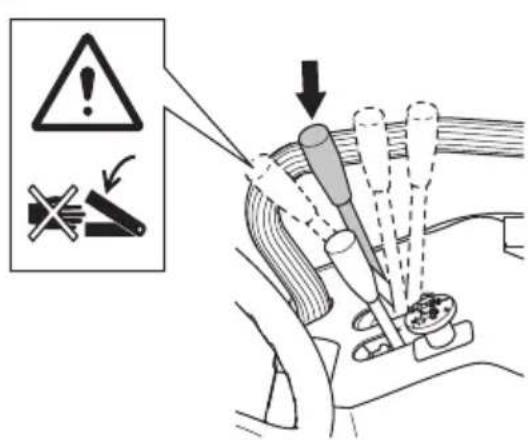

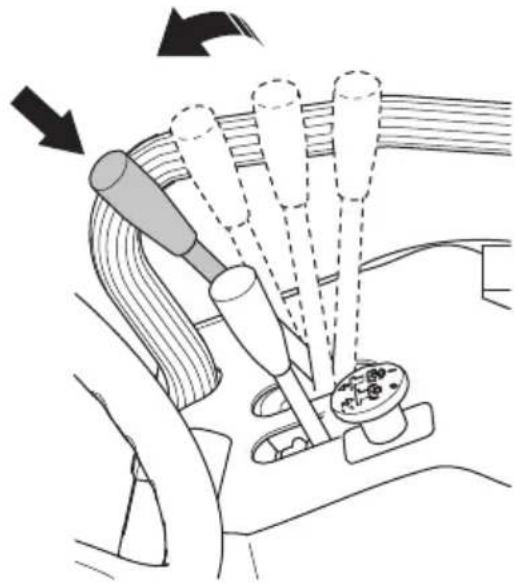

WARNING: Make sure the hydraulic system is depressurized before you change the position of the hydraulic hoses. Move the cutting height lever on the products forward and rearward 2-3 times to release remaining pressure. If pressurized hydraulic fluid escapes it can cause damage to your skin. In case of injury, get medical aid immediately!

Recommended transmission oil is SAE 80W-90.

Storage

Prepare the product for storage at the end of the season and before more than 30 days of storage.

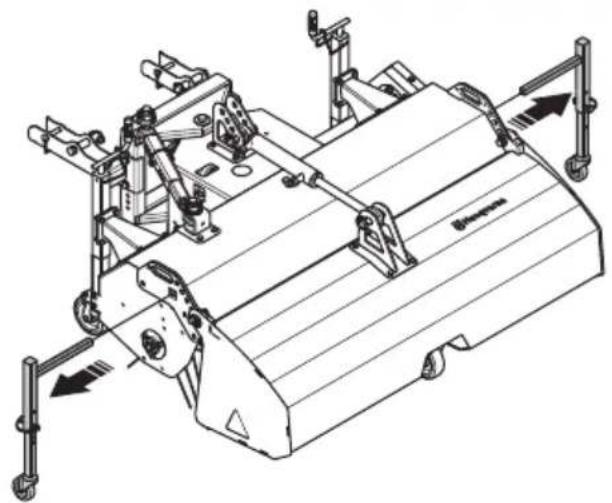

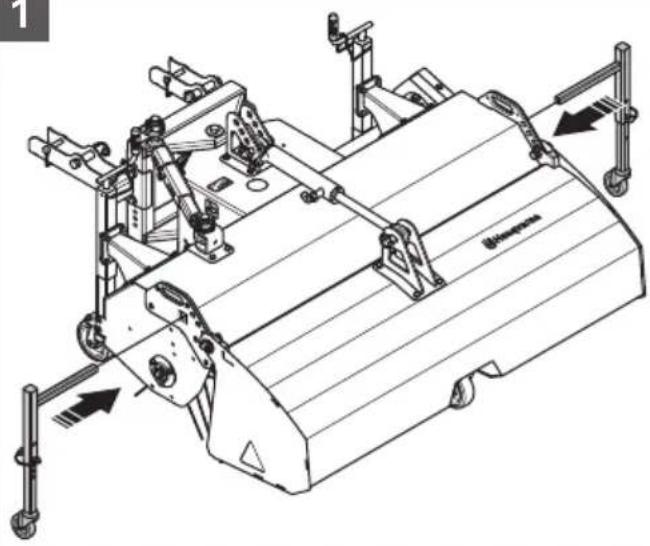

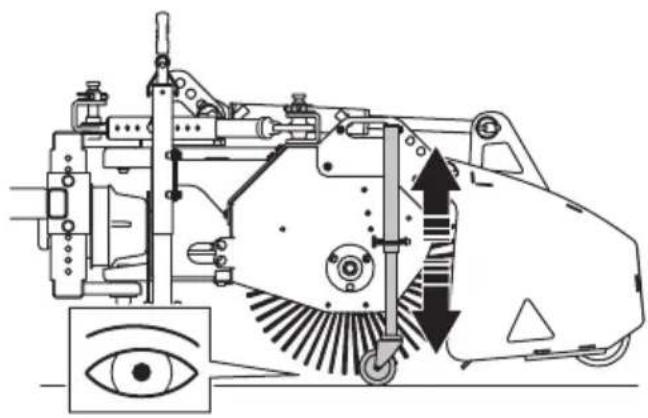

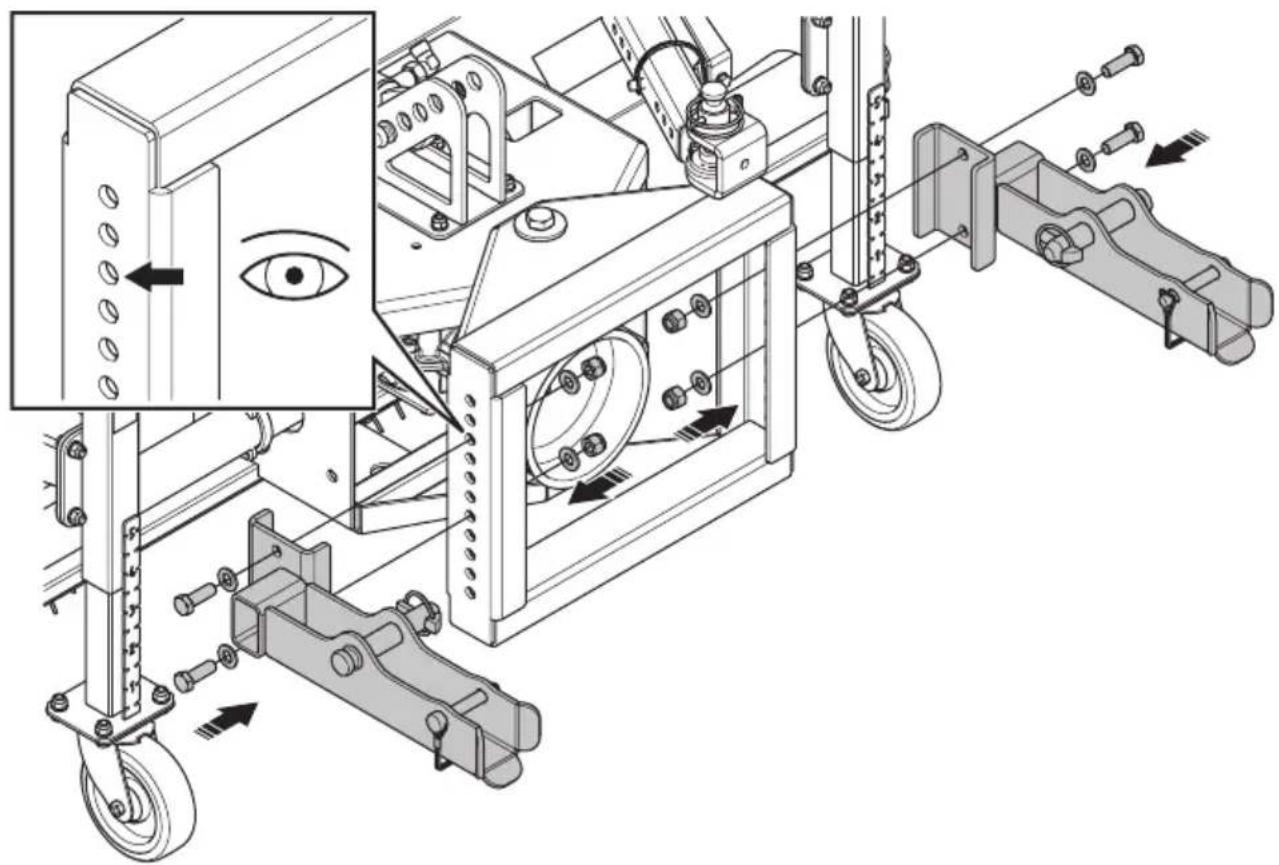

• Attach the supportive wheels before you put the attachment in storage. Refer to Appendix.

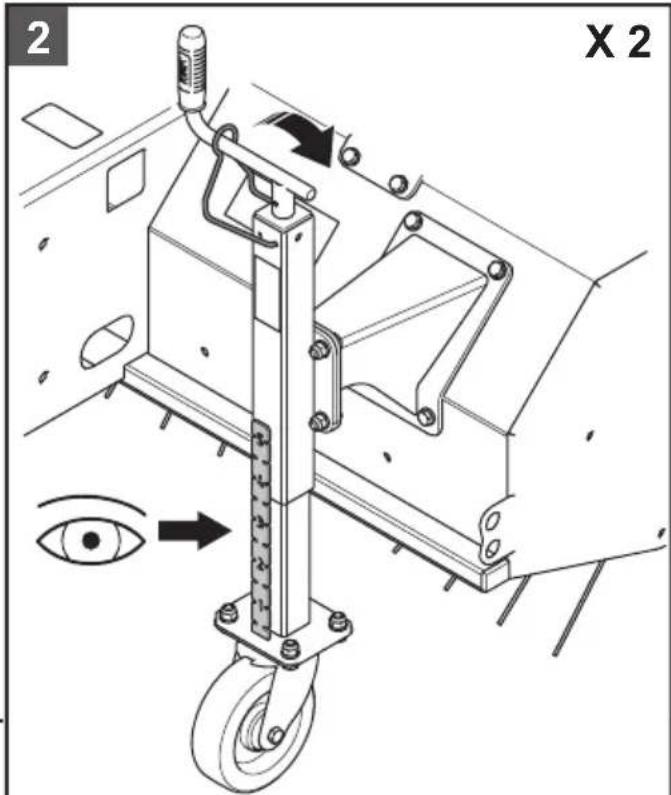

CAUTION: Install the support wheels to the attachment before you remove the attachment from the product.

• Clean the attachment before storage.

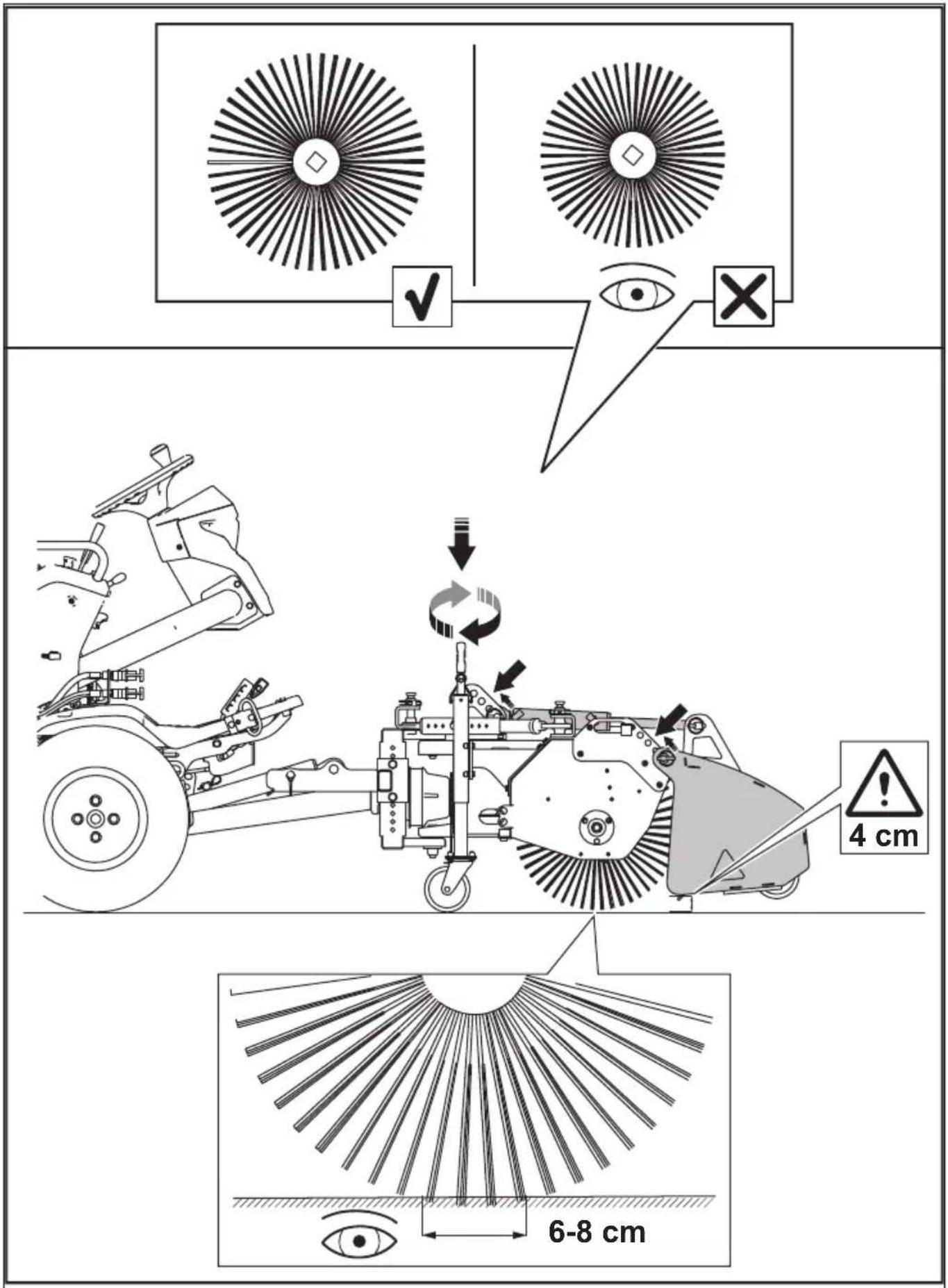

• Examine the attachment for worn or damaged parts.
• Tighten all screws and nuts.
• Replace all worn or damaged parts. Only use original spare parts.
• Lubricate the grease points on the attachment. Refer to the Appendix.
• Keep the attachment in a clean and dry area and cover it for more protection.

Broom with collector: 547 12 17-01
