Operational Instruction

Apply to: E1 Outdoor PoE

@ReolinkTech https://reolink.com

EN

Content

What's in the Box....2

Camera Introduction 3

Connection Diagram 4

Set up the Camera 5

Install the Camera....6

Troubleshooting 9

Specifications 9

Notification of Compliance 9

What's in the Box

Camera

Camera Bracket Reset Needle Pack of Screws

1m Network Cable

Mounting Template

Quick Start Guide

Surveillance Sign

Technical diagram of a surveillance camera with numbered parts and a magnified inset showing internal components.

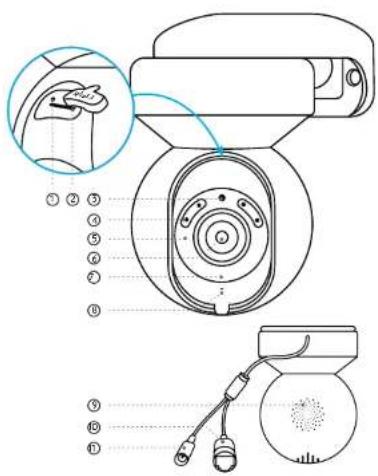

① Reset Button

* Press for more than five seconds to restore the device to default settings.

② Micro SD Card Slot

* Rotate the lens to find the reset button and the SD card slot

⑤ Daylight Sensor

④ Spotlight

⑤ Infrared Lights

⑥ Lens

⑦ Status LED

⑧ Built-In Mic

⑨ Speaker

⑭ Network Cable

① Power Cable

EnglishEnglish3 4

Connection DiagramCamera Introduction

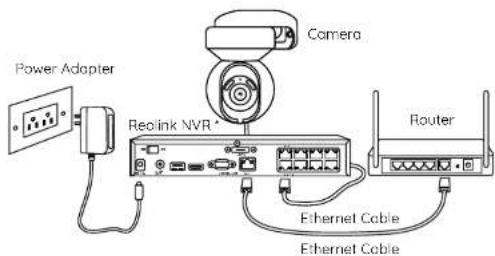

Before using the camera, please connect your camera as instructed below to finish initial setup.

1. Connect the camera to a Reolink NVR (not included) with on Ethernet cable.
2. Connect the NVR to your router, and then power on the NVR.

NOTE The camera should be powered with a 12V DC adapter or a PoE powering device such as PoE injector, PoE switch or Redink NVR (not included in the package).

Power Adapter Reolink NVR* Camera Router Ethernet Cable Ethernet Cable

* You may also connect the camera to a PoE switch or PoE injector.

Set up the Camera

Download and Launch the Reolink App or Client software, and follow the onscreen instructions to finish initial setup.

- On Smartphone

Scan to download the Reolink App.

- On PC

Download path of the Reolink Client: Go to https://reolink.com > Support > App & Client.

NOTE: If you are connecting the camera to a Reolink PoE NVR, please set up the camera via the NVR Interface.

EnglishEnglish5 6

Install the Camera

Mount the Camera to the Wall

For outdoor use, the camera must be installed upside down for better waterproof performance.

Diagram illustrating a finger manipulation technique with numbered steps and magnified detail view

Illustration of a hand holding a circular device with a labeled component, showing internal structure (no text or symbols beyond the label)

Pull the button of the security mount and unscrew the bracket to separate the two parts.

Screw the bracket to the bottom of the camera.

Diagram of a mechanical device with a lever and housing, showing motion lines (no text or symbols)

Drill holes in accordance with the mounting template and screw the security mount to the wall.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or movement.

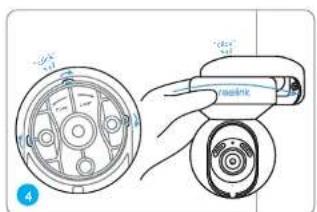

Choose a proper direction of the camera and then align the bracket to the security mount and lock the camera in place by turning anti-clockwise.

NOTE: Use the drywell anchors included in the package if needed.

Mount the Camera to the Ceiling

Pull the button of the security mount and unscrew the ceiling bracket from the mount.

Technical diagram of a ceiling fixture with screw fasteners and a central hub (no text or labels)

redin

Install the bracket to the ceiling. Align the camera with the bracket and turn the camera unit clockwise to lock it in position.

Troubleshooting

Camera is Not Powering on

If your camera is not powering on, please try the following solutions:

- Make sure your camera is powered properly. The PoE camera should be powered by a PoE switch/Injector, the Realink NVR or a 12V power adapter.

- If the camera is connected to a PoE device as listed above, connect the camera to another PoE port and see if the camera will power on.

- Try again with another Ethernet cable.

If the problem is not solved, please contact Reolink Support.

Specifications

Software Features

Audio: Two-way audio IR Cut Filter: Yes

General

Operating Temperature: -10°C to 55°C (14°F to 131°F) Size: 84.7×117.8 mm

Weight: 380g

Notification of Compliance

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ISED Compliance Statements

This Class B digital apparatus complies with Canadian ICES-003.

CE Simplified EU Declaration of Conformity

Reolink declares that this device is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU and LVD 2014/35/EU.

UKCA Declaration of Conformity

Reolink declares that this product is in compliance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment Safety Regulations 2016.

Limited Warranty

This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Official Store or a Reolink authorized reseller. Learn more: https://reolink.com/warranty-and-return/.
